Lion Yard Trading

Fence Posts, Clips & Fixings

Perimeter & Security Fencing

13items10technical drawings

Priced on enquiry

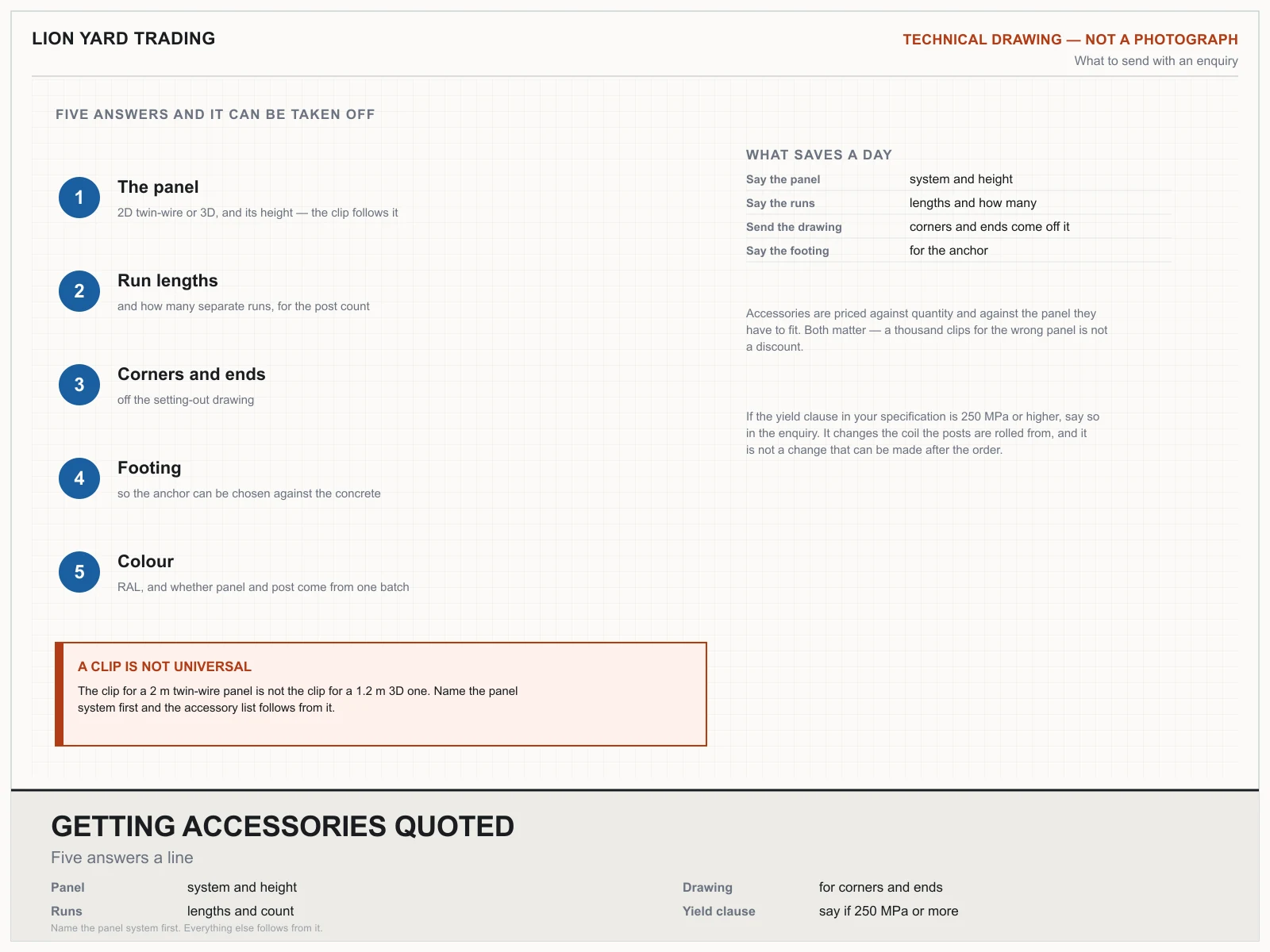

Priced against quantity and the panel system it has to fit — a clip for a 2 m twin-wire panel is not the clip for a 1.2 m 3D one.

WhatsApp us

Tell us the size and where it is going.

About this product

  • What it is: Posts, clips, connectors, anchors and caps for twin-wire (2D) and 3D welded mesh panel…
  • H-profile post: 70 × 44 mm, 1.25 mm wall, pre-drilled for clips, bolts and panel retaining hooks.
  • Post finish: Hot-dip galvanised both sides plus powder coat, minimum 60 microns.
  • Security clip: Stainless steel anti-theft bolt with a break-off head — the head shears at torque, so the…
  • Anchor: 4 bolts per base plate. Expansion or chemical anchor to suit the footing.
  • Post cap: Protective cap with an integrated hook that supports the panel while it is being fixed.
Read the full specification →
Delivered across all 7 Emirates

All 13 items

Every item on one list. Tap any row to ask about that one.

Priced against quantity and the panel system it has to fit — a clip for a 2 m twin-wire panel is not the clip for a 1.2 m 3D one.

What it is

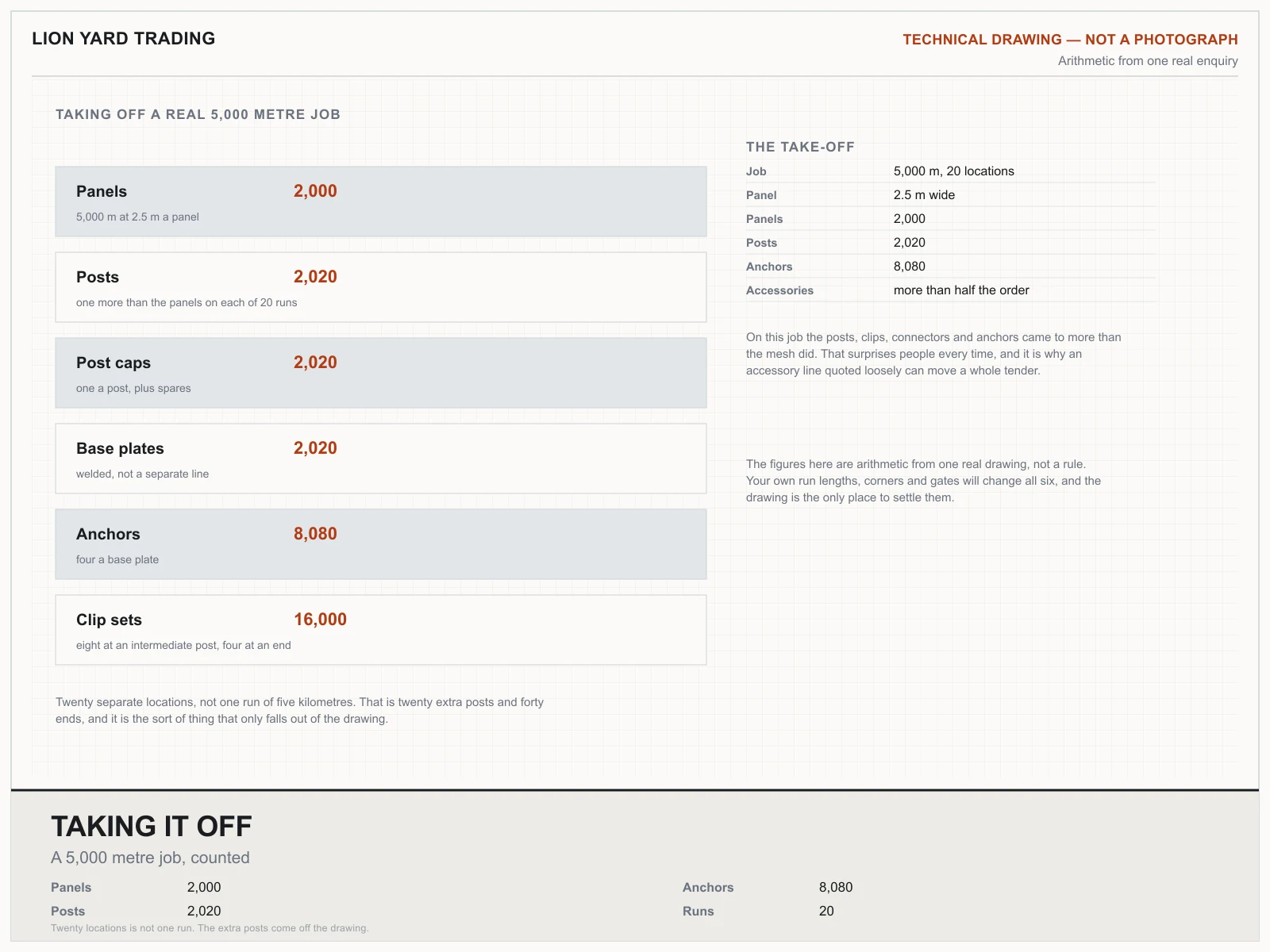

The parts that turn a stack of panels into a fence. Most of the cost of a mesh fence is not the mesh — on a 5,000 m job the posts, clips, connectors and anchors came to more than half the order.

Specification

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

What it is
Posts, clips, connectors, anchors and caps for twin-wire (2D) and 3D welded mesh panel systems.
H-profile post
70 × 44 mm, 1.25 mm wall, pre-drilled for clips, bolts and panel retaining hooks. Yield not less than 250 MPa.

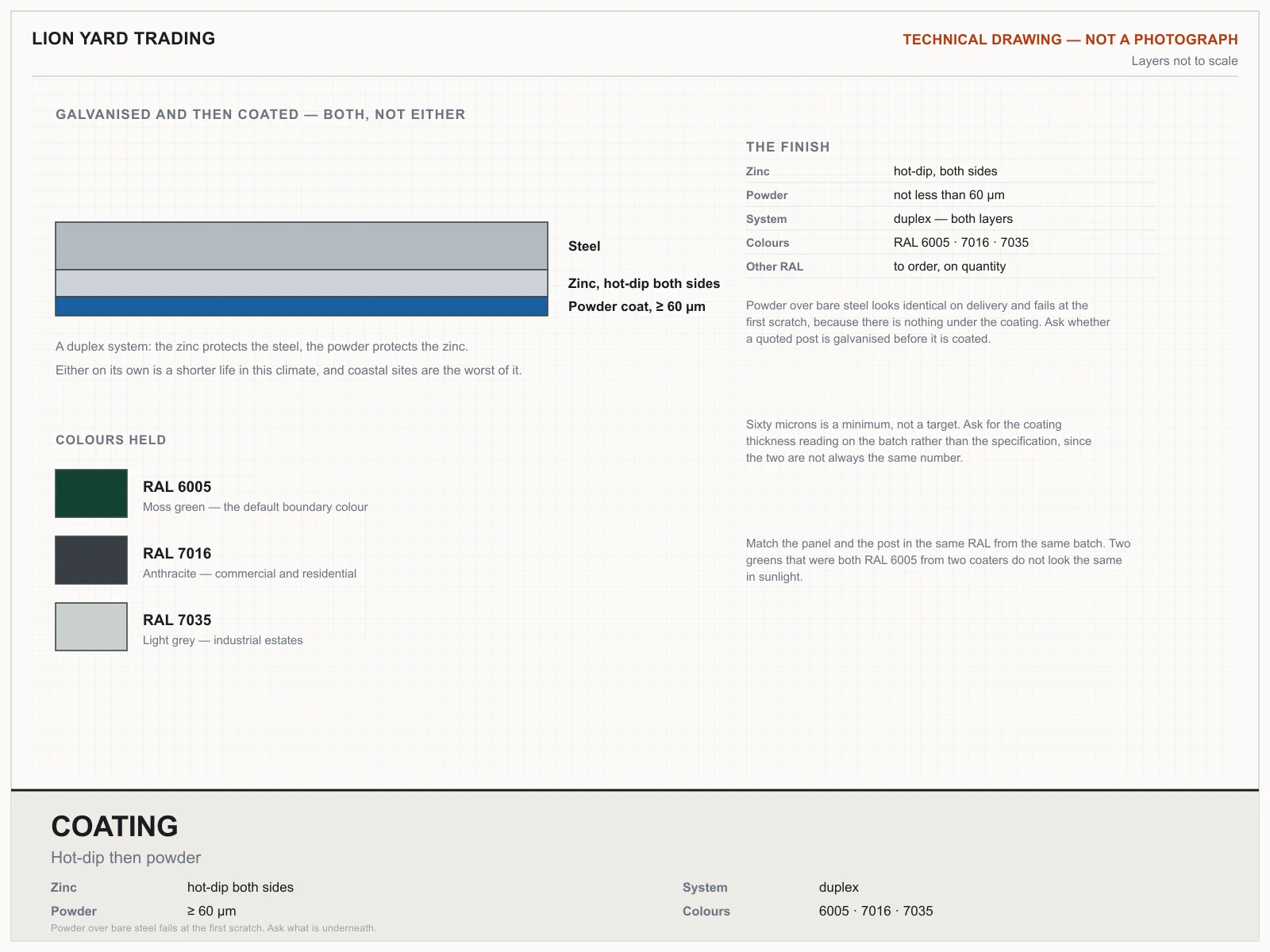

Post finish
Hot-dip galvanised both sides plus powder coat, minimum 60 microns. RAL 6005 green, RAL 7016 anthracite, RAL 7035 grey.

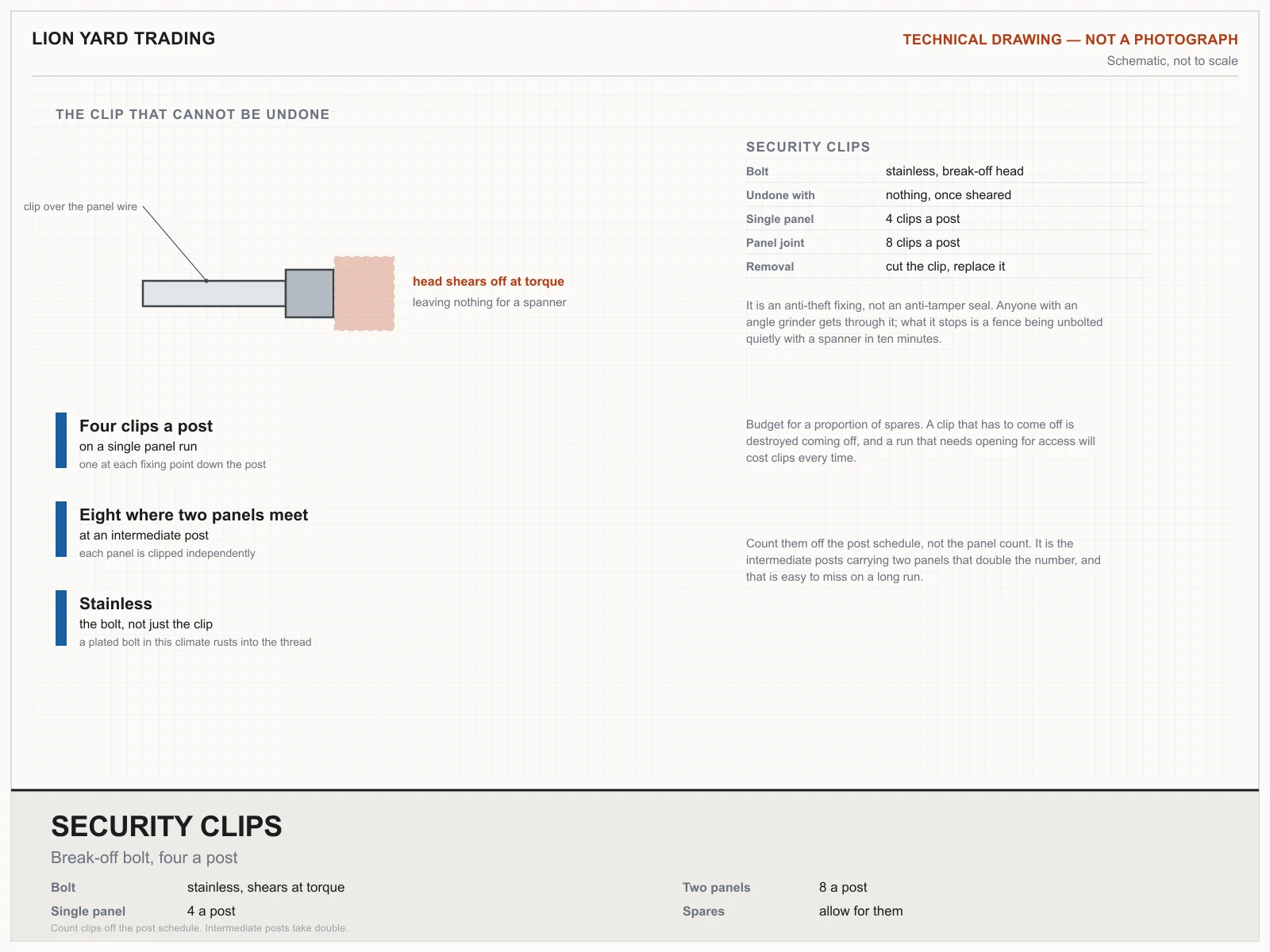

Security clip
Stainless steel anti-theft bolt with a break-off head — the head shears at torque, so the clip cannot be undone with a spanner.

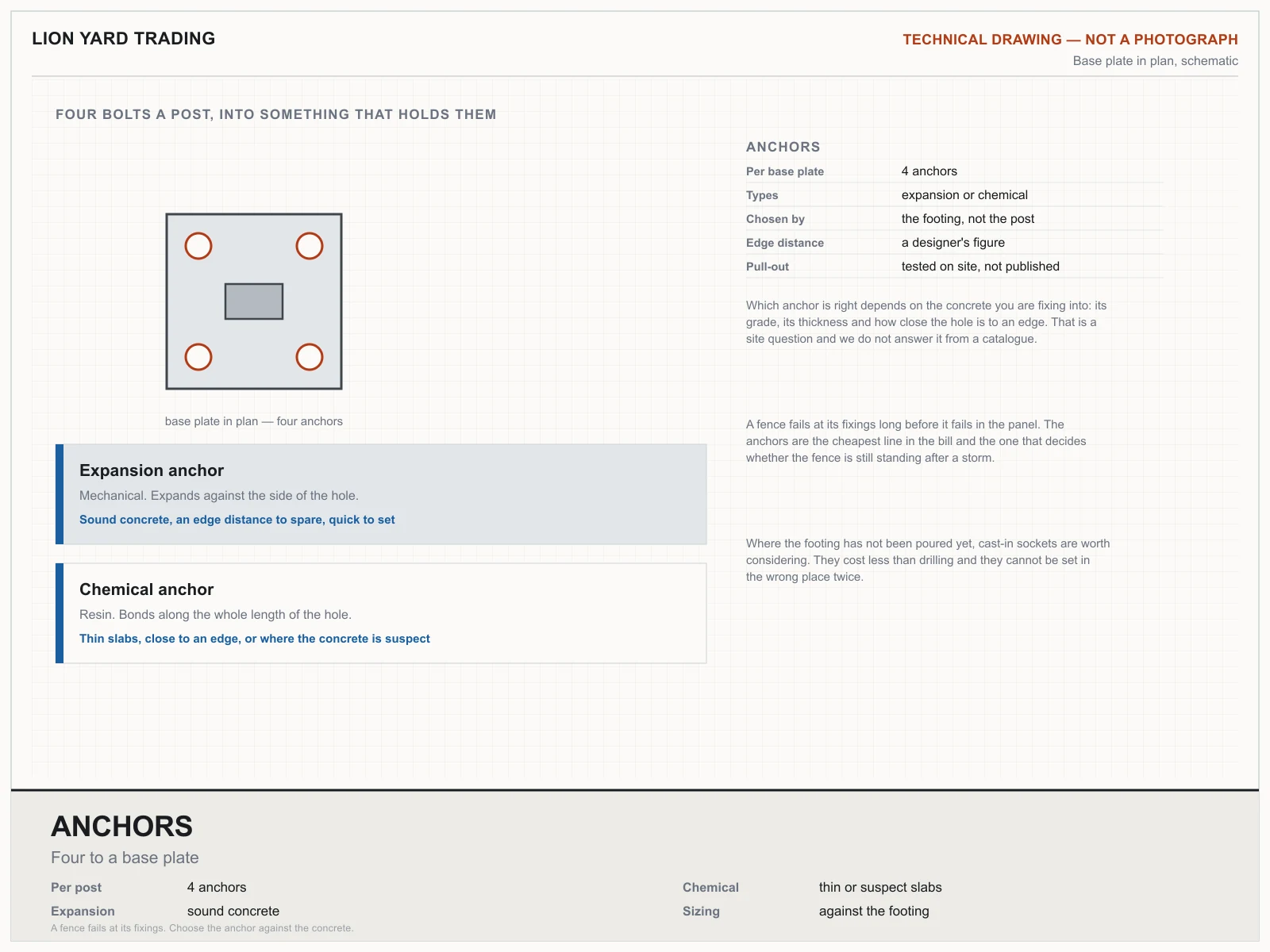

Anchor
4 bolts per base plate. Expansion or chemical anchor to suit the footing.

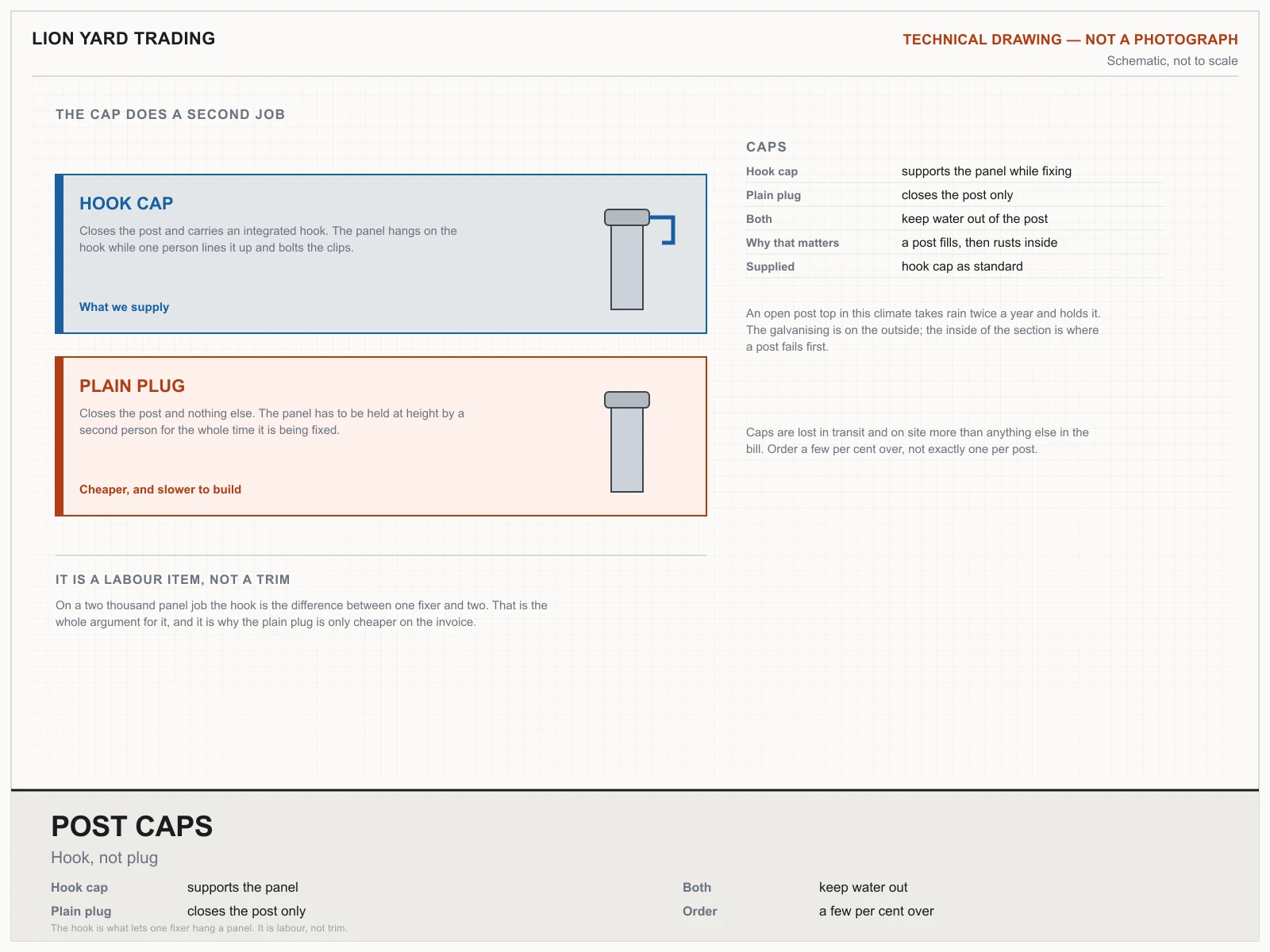

Post cap
Protective cap with an integrated hook that supports the panel while it is being fixed. A plain plug cap does not do this.
Standards
BS EN 10223-4 · BS EN 10223-7 for the panels

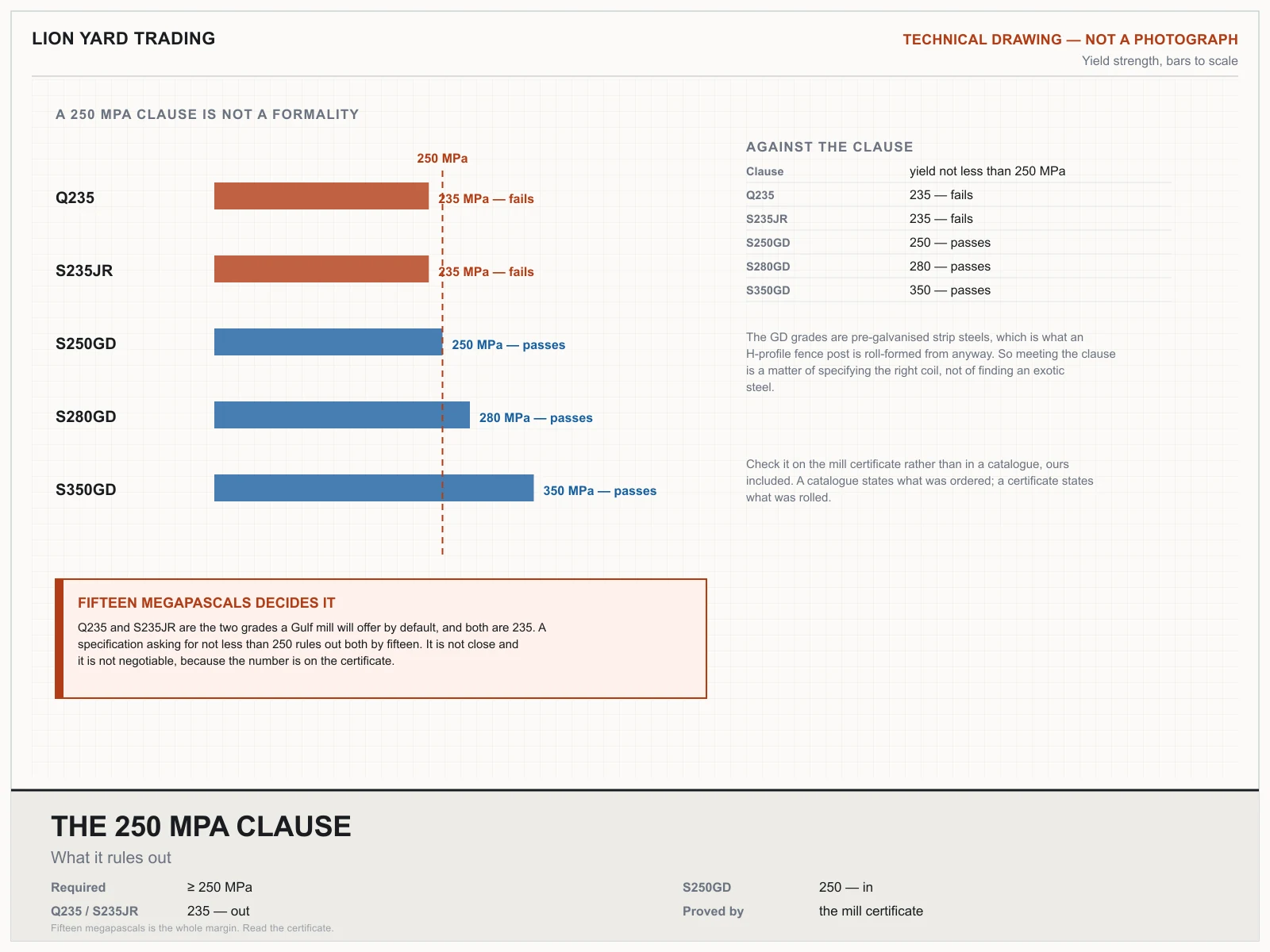

Note on yield
250 MPa rules out Q235 and S235JR, which are both 235. S250GD, S280GD and S350GD all pass. Confirm against the mill certificate rather than the catalogue.
Fence Posts, Clips & Fixings

Technical Procurement & Ordering Guides

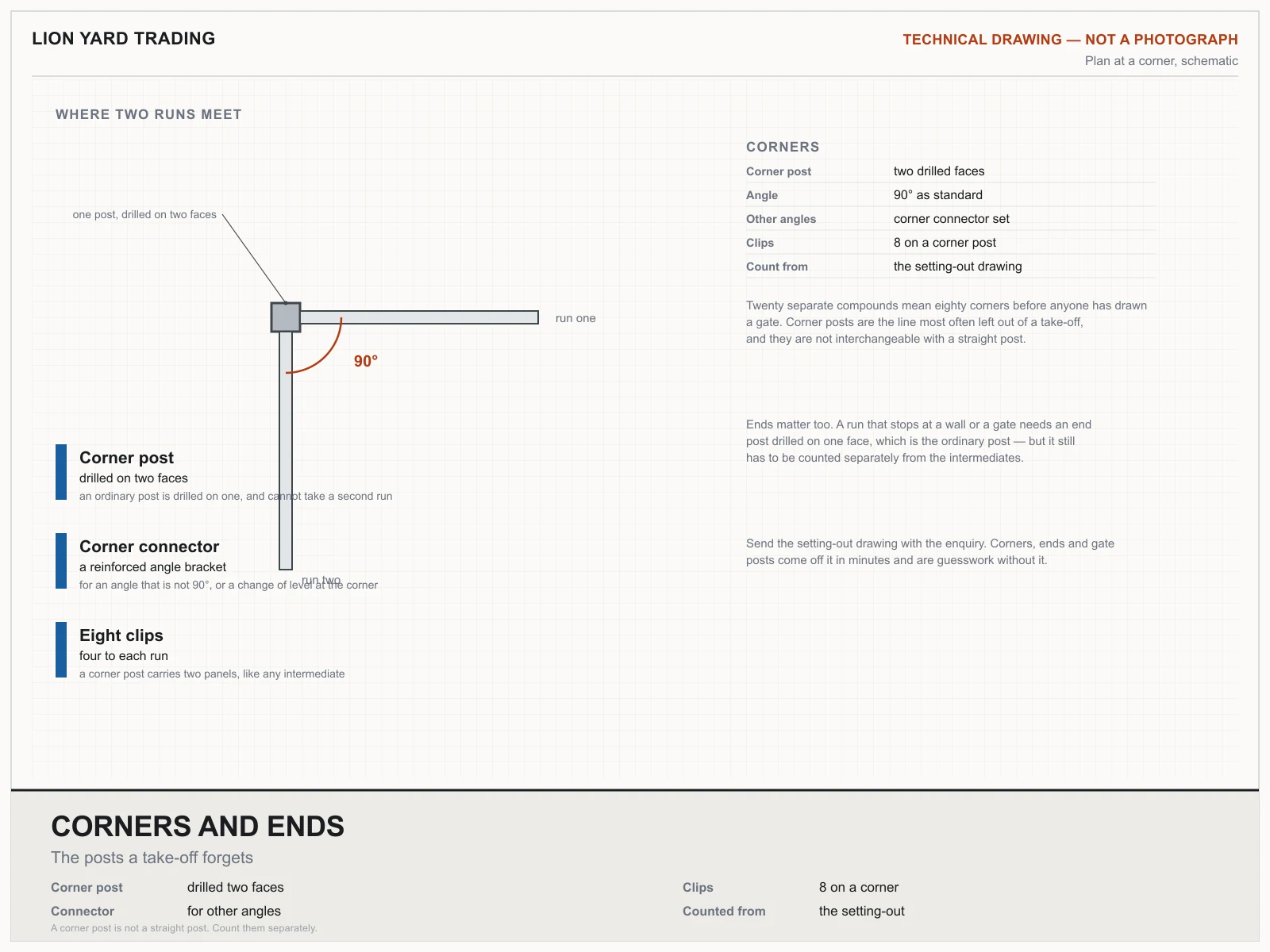

10 drawings covering every answer we need to price Fence Posts, Clips & Fixings — every figure comes from the price table above or from the published standard it is made to.

H-profile post70 × 44 × 1.25

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your fence posts, clips & fixings?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
