Lion Yard Trading

358 Anti-Climb High-Security Mesh

Perimeter & Security Fencing

8sizes10technical drawings10photos of our stock

Priced on enquiry

Priced per panel against your run length — a high-security spec, quoted against the job.

WhatsApp us

Tell us the size and where it is going.

About this product

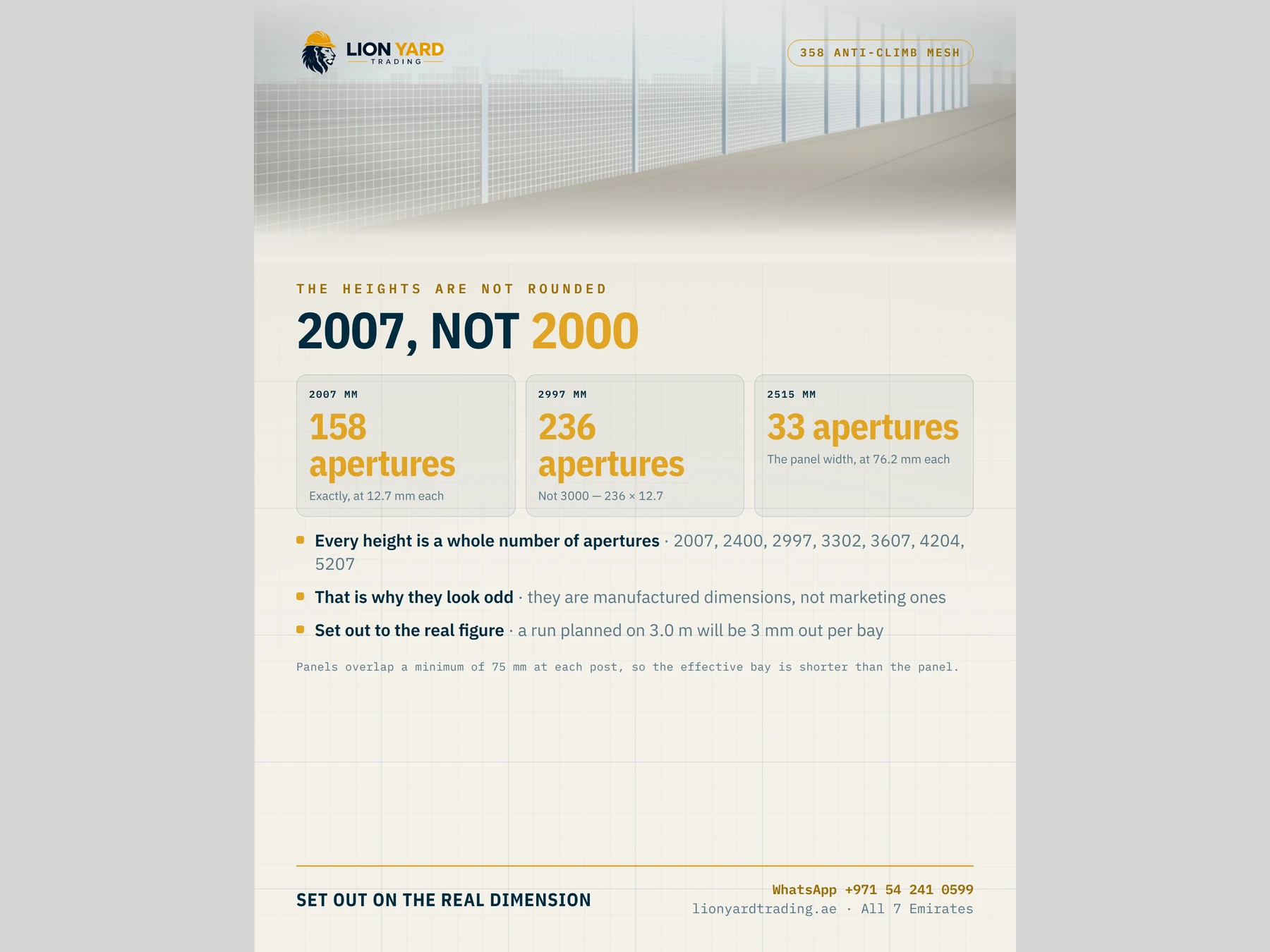

  • Mesh: 76.2 × 12.7 mm · wire 4.0 mm · 3in × 0.5in × 8 gauge
  • Panel width: 2515 mm · minimum 75 mm overlap at each post
  • Post centres: 2.5–3.0 m
  • Foundations: Depth follows the post height, not one figure for the range: the embedment is the post…
  • Gulf specification: Galfan wire with 250 micron organic polymer for coastal and humid sites
  • Standards: BS EN 10223-7 · BS 1722-14 · BS EN ISO 1461
Read the full specification →
Delivered across all 7 Emirates

All 8 sizes

Every size on one list. Tap any row to ask about that one.

Priced per panel against your run length — a high-security spec, quoted against the job.

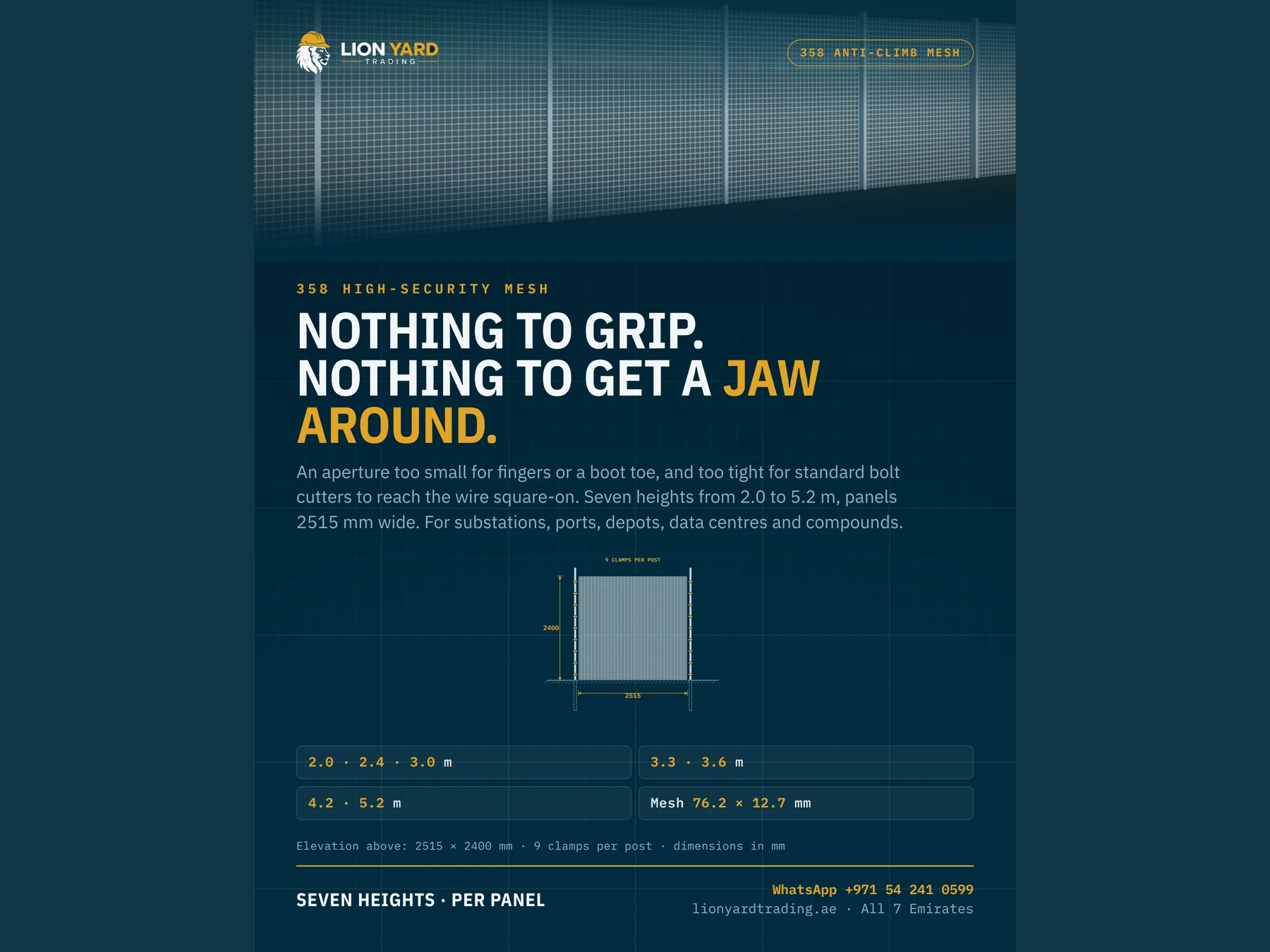

What it is

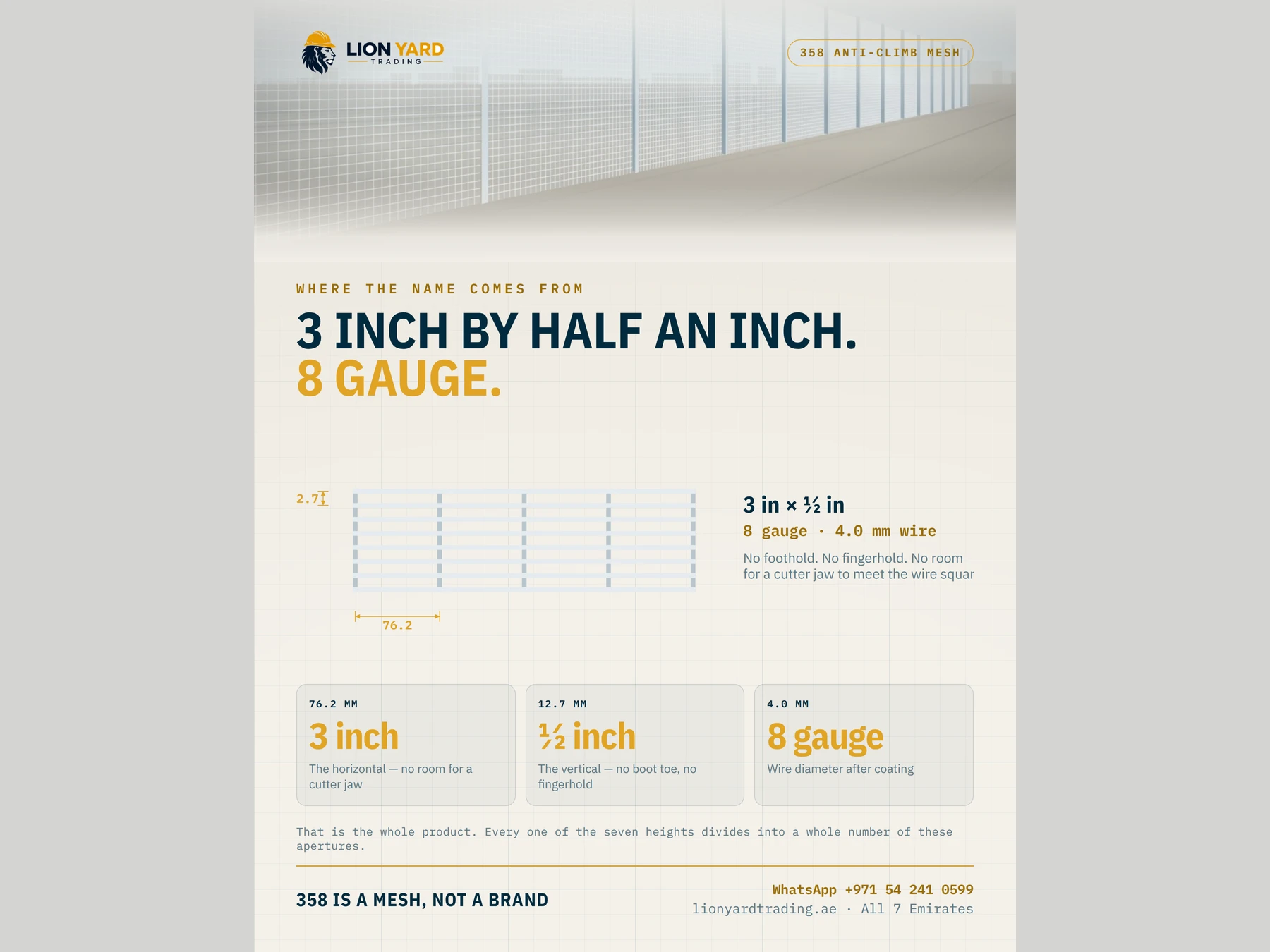

The aperture is too small for fingers or a boot toe and too tight for standard bolt cutters to reach the wire square-on. Named from its imperial mesh: 3 inch × 0.5 inch × 8 gauge. For substations, ports, depots, data centres and compounds.

Specification

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

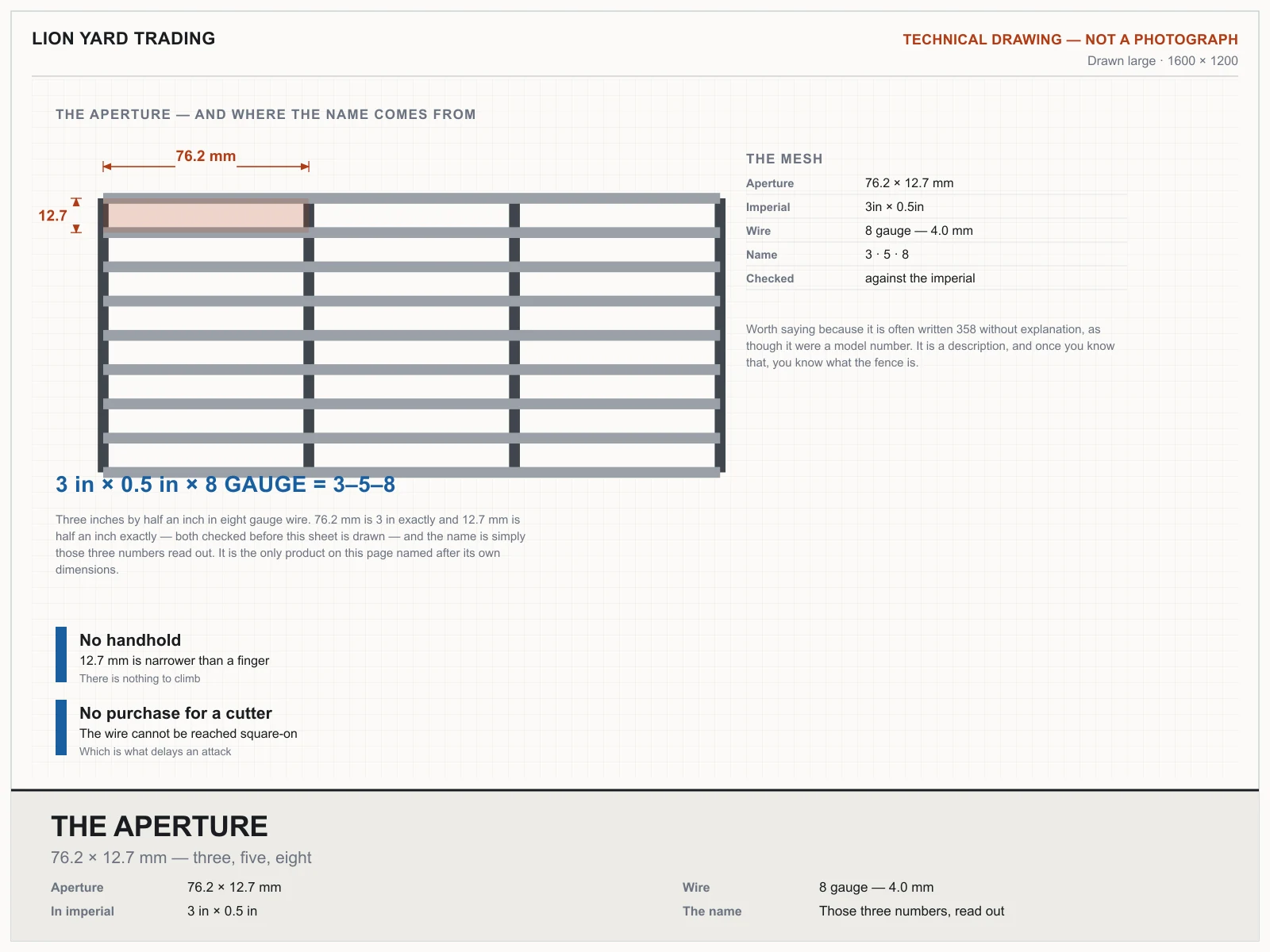

Mesh

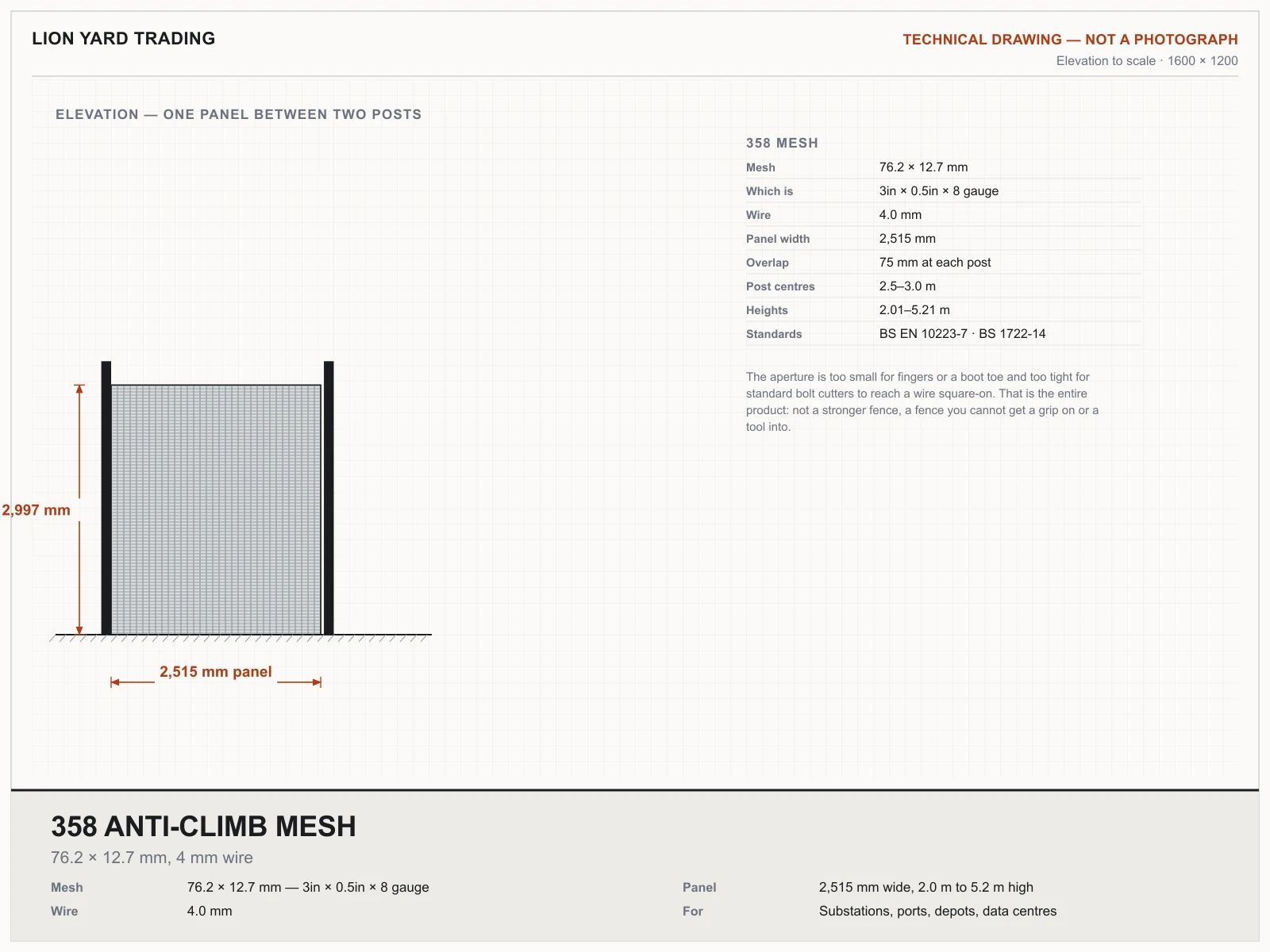

76.2 × 12.7 mm · wire 4.0 mm · 3in × 0.5in × 8 gauge
Panel width

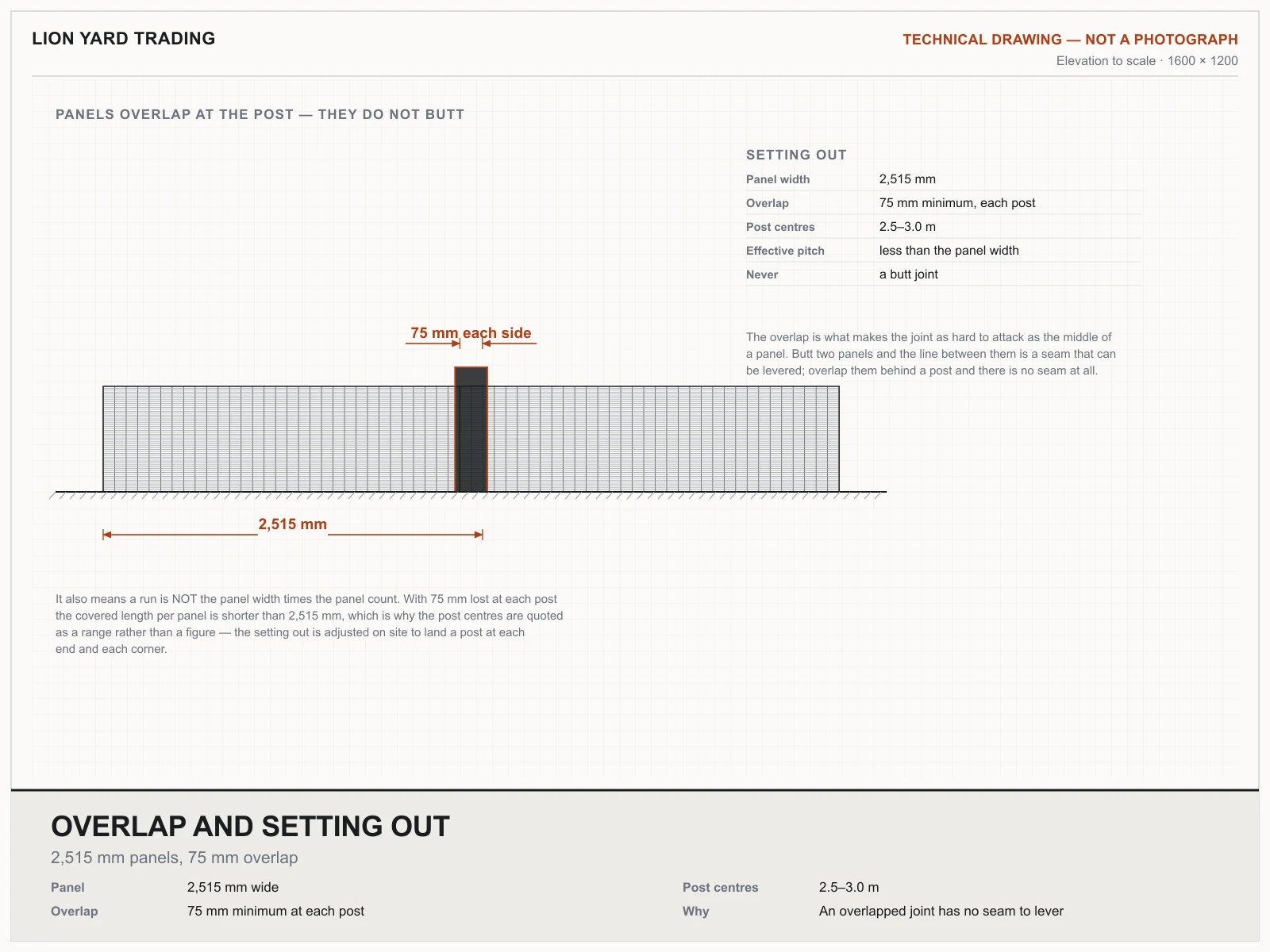

2515 mm · minimum 75 mm overlap at each post

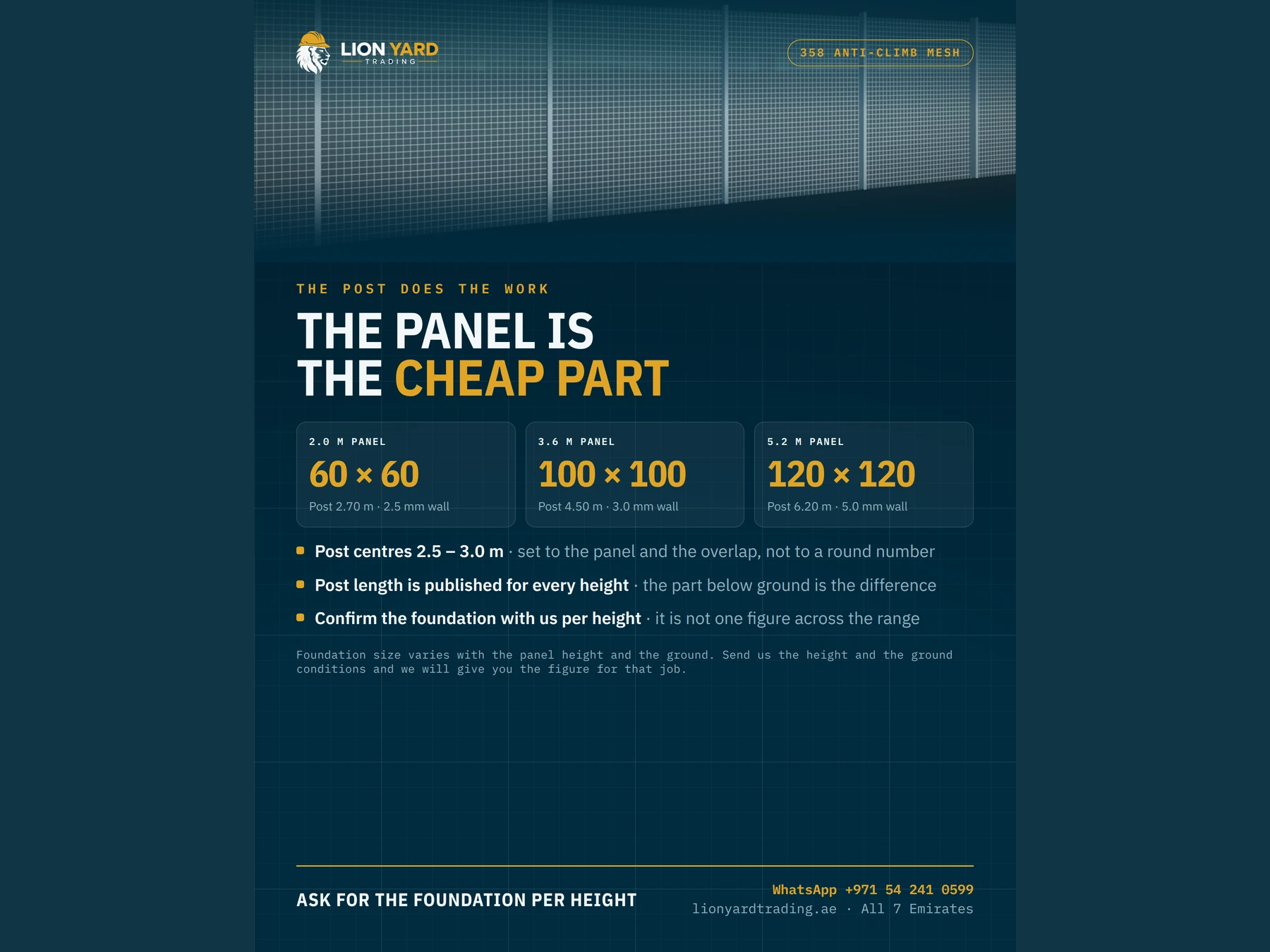

Post centres
2.5–3.0 m
Foundations

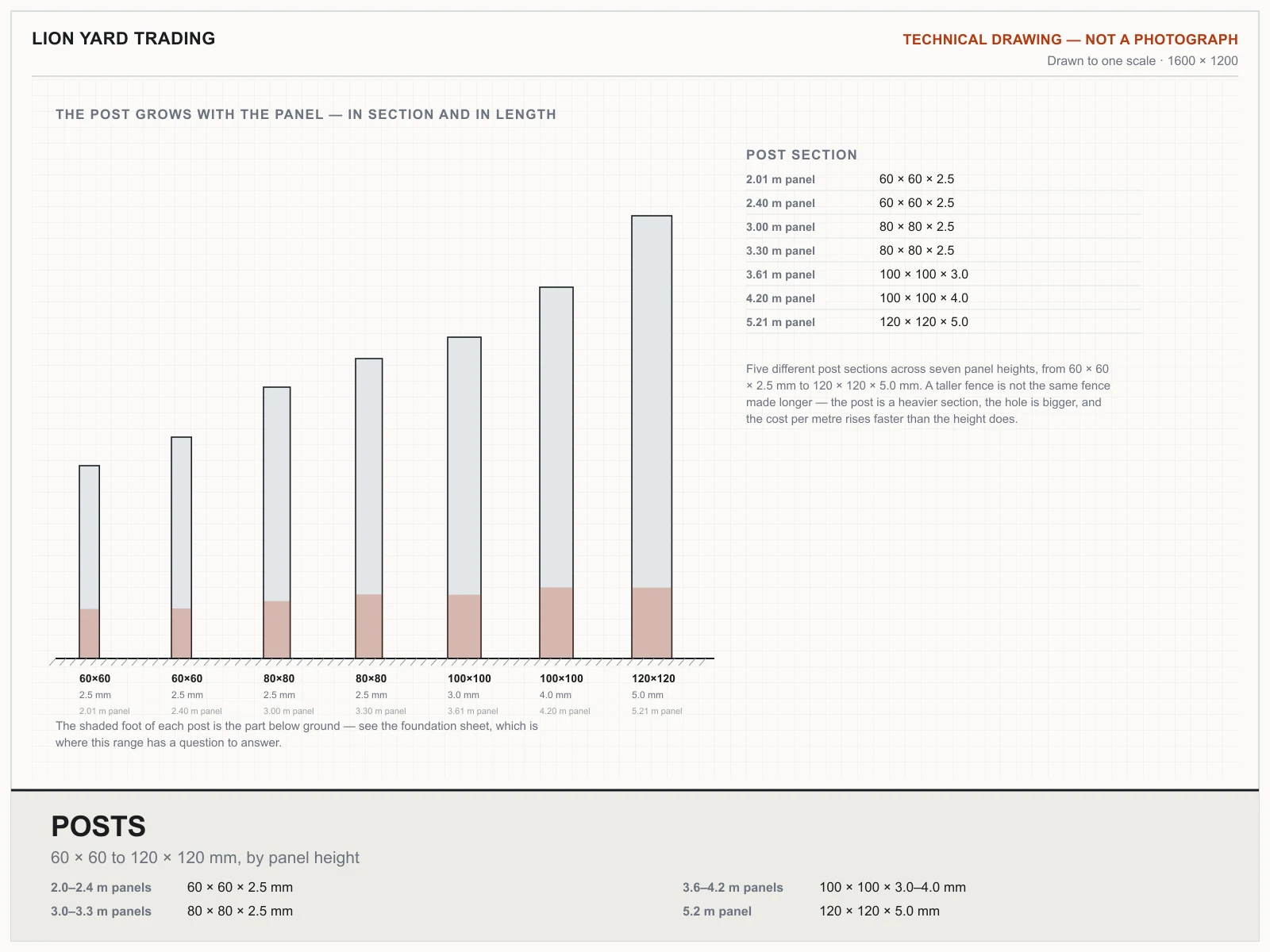

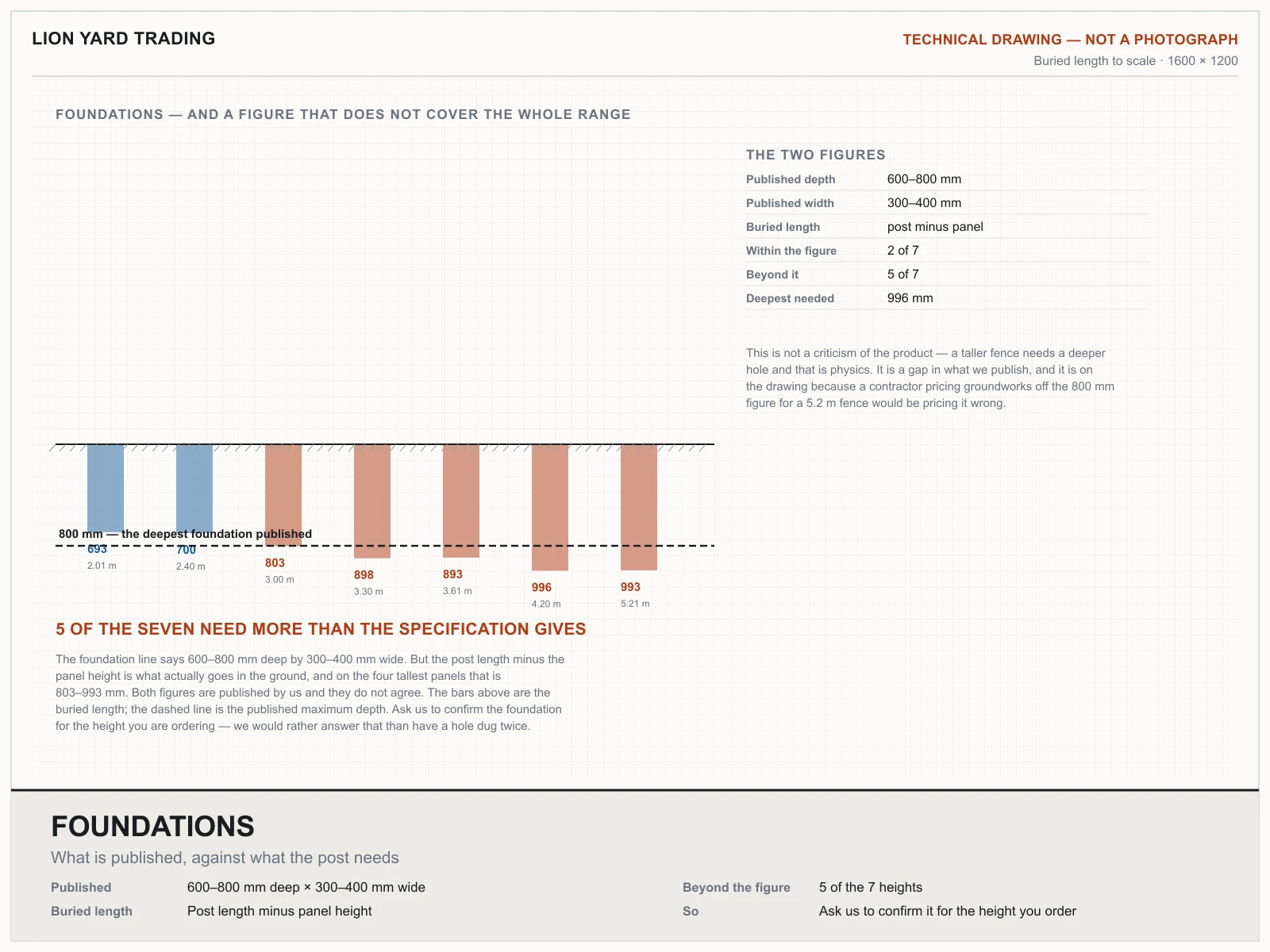

Depth follows the post height, not one figure for the range: the embedment is the post length less the panel height, which is about 700 mm at 2.0 and 2.4 m, 800–900 mm at 3.0 to 3.6 m, and about 1,000 mm at 4.2 and 5.2 m. 300–400 mm wide. Confirm against the structural design for your ground conditions.
Gulf specification

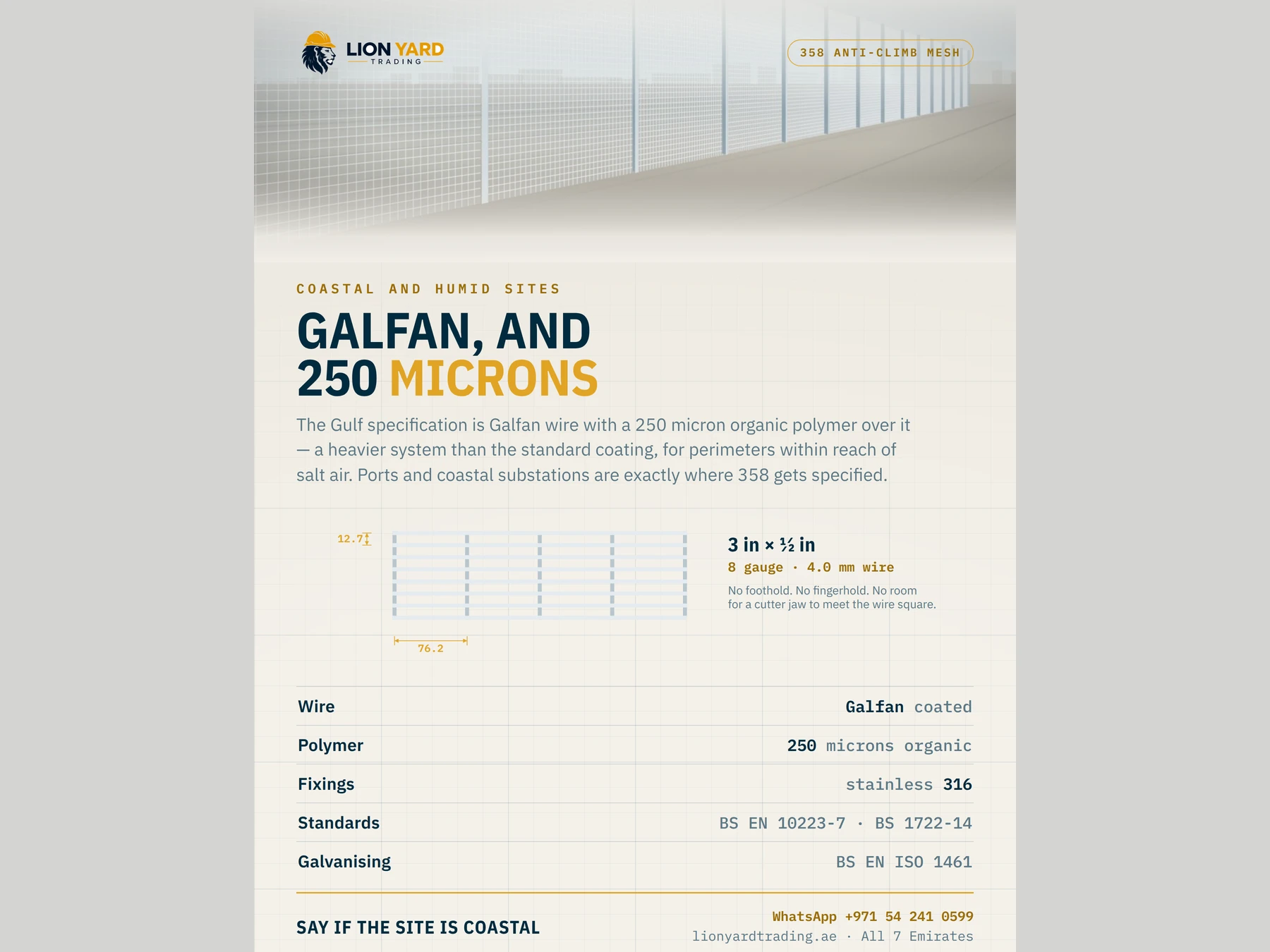

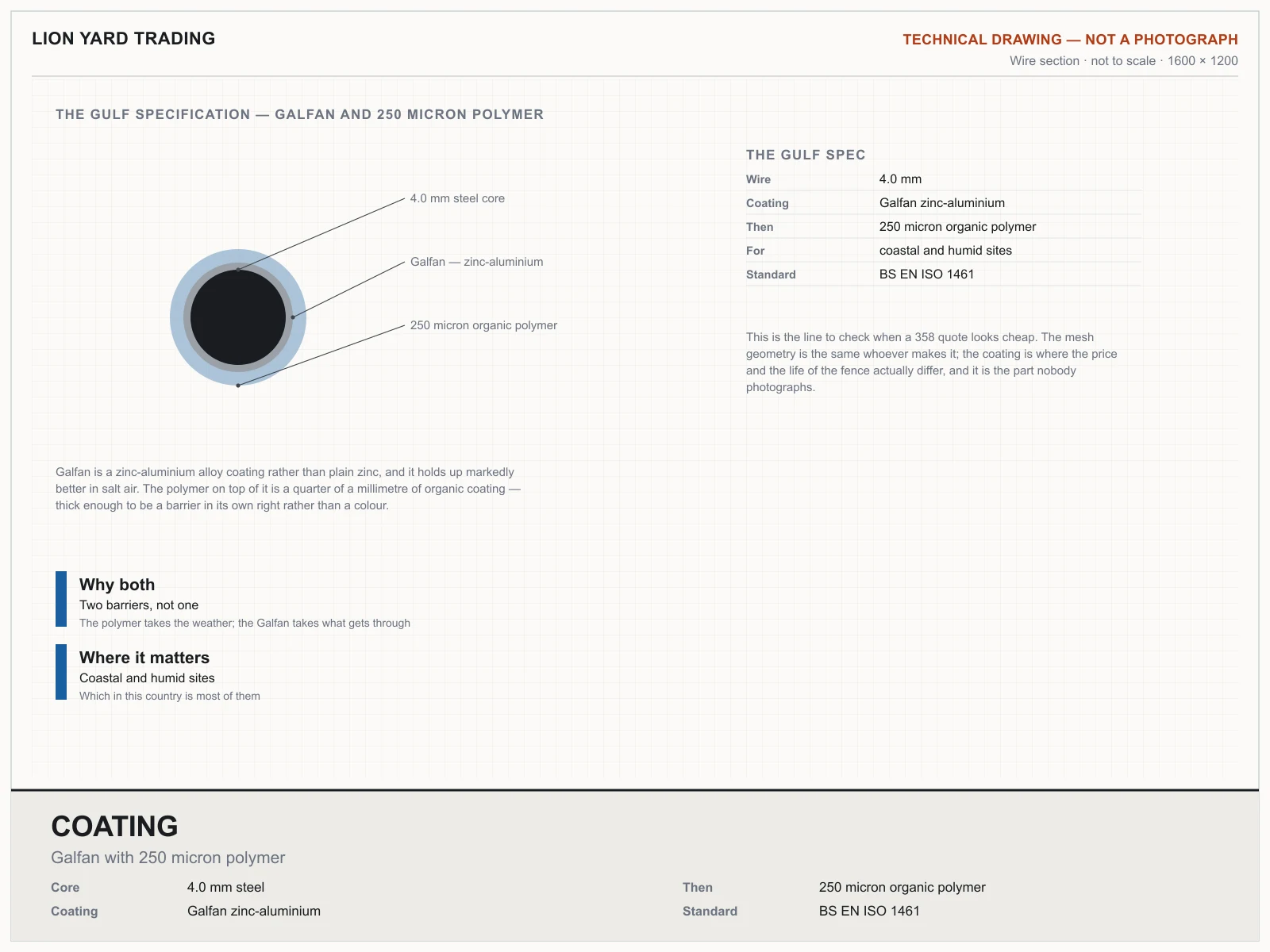

Galfan wire with 250 micron organic polymer for coastal and humid sites
Standards
BS EN 10223-7 · BS 1722-14 · BS EN ISO 1461

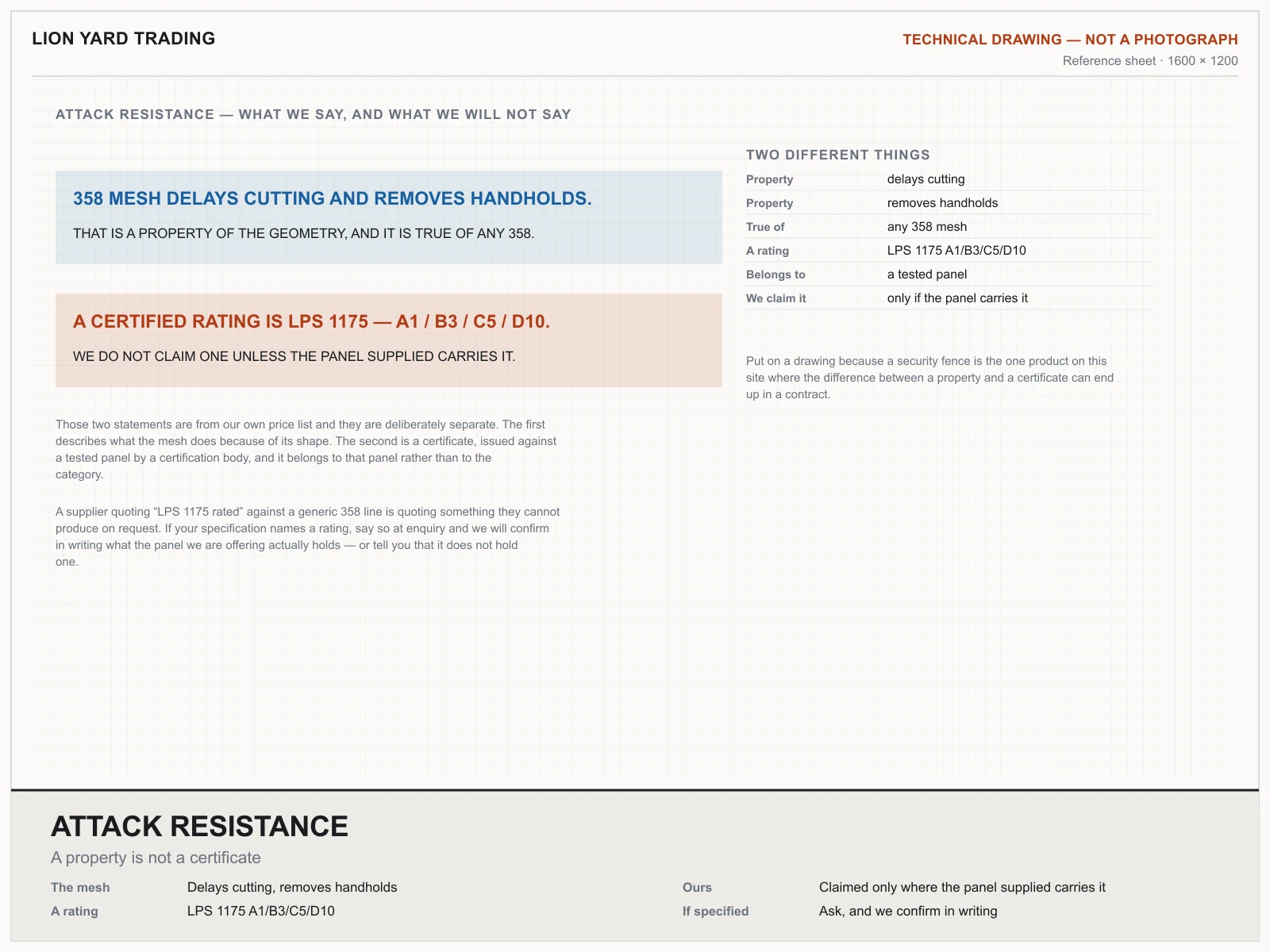

Attack resistance

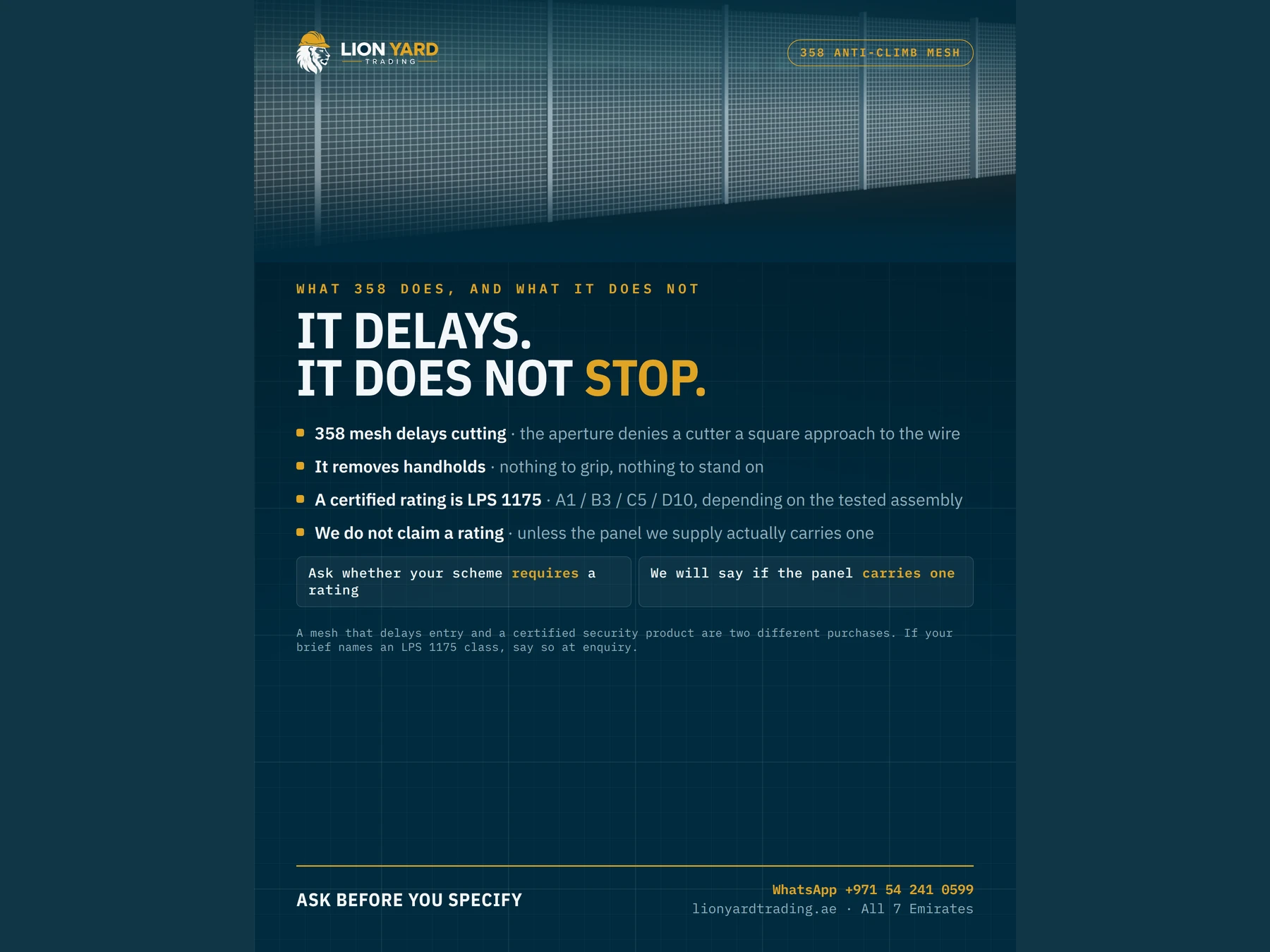

358 mesh delays cutting and removes handholds. A certified rating is LPS 1175 A1/B3/C5/D10 — we do not claim one unless the panel supplied carries it.
Delivery
All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
Installation
Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.

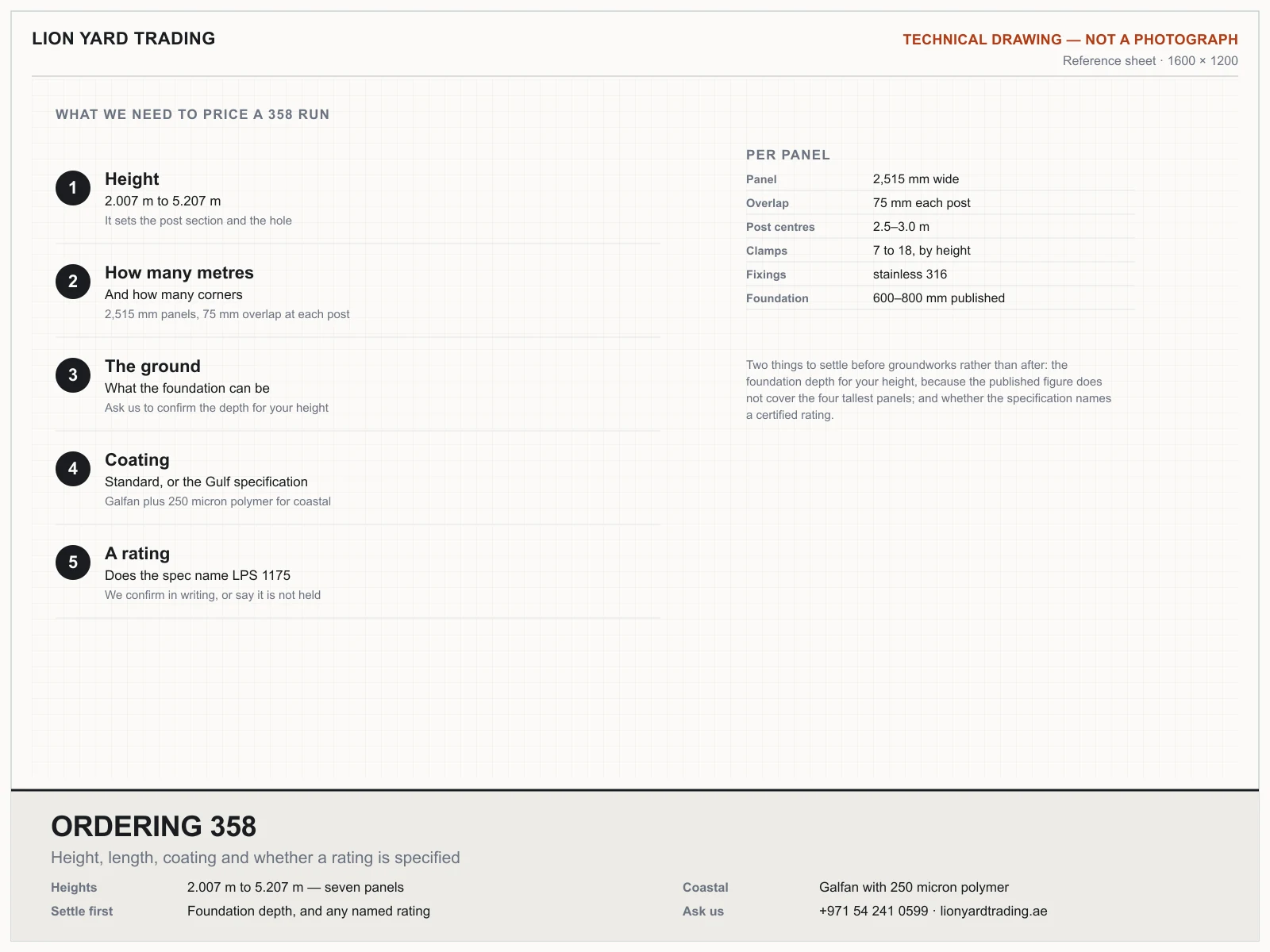

Ordering
Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
358 Anti-Climb High-Security Mesh

Technical Procurement & Ordering Guides

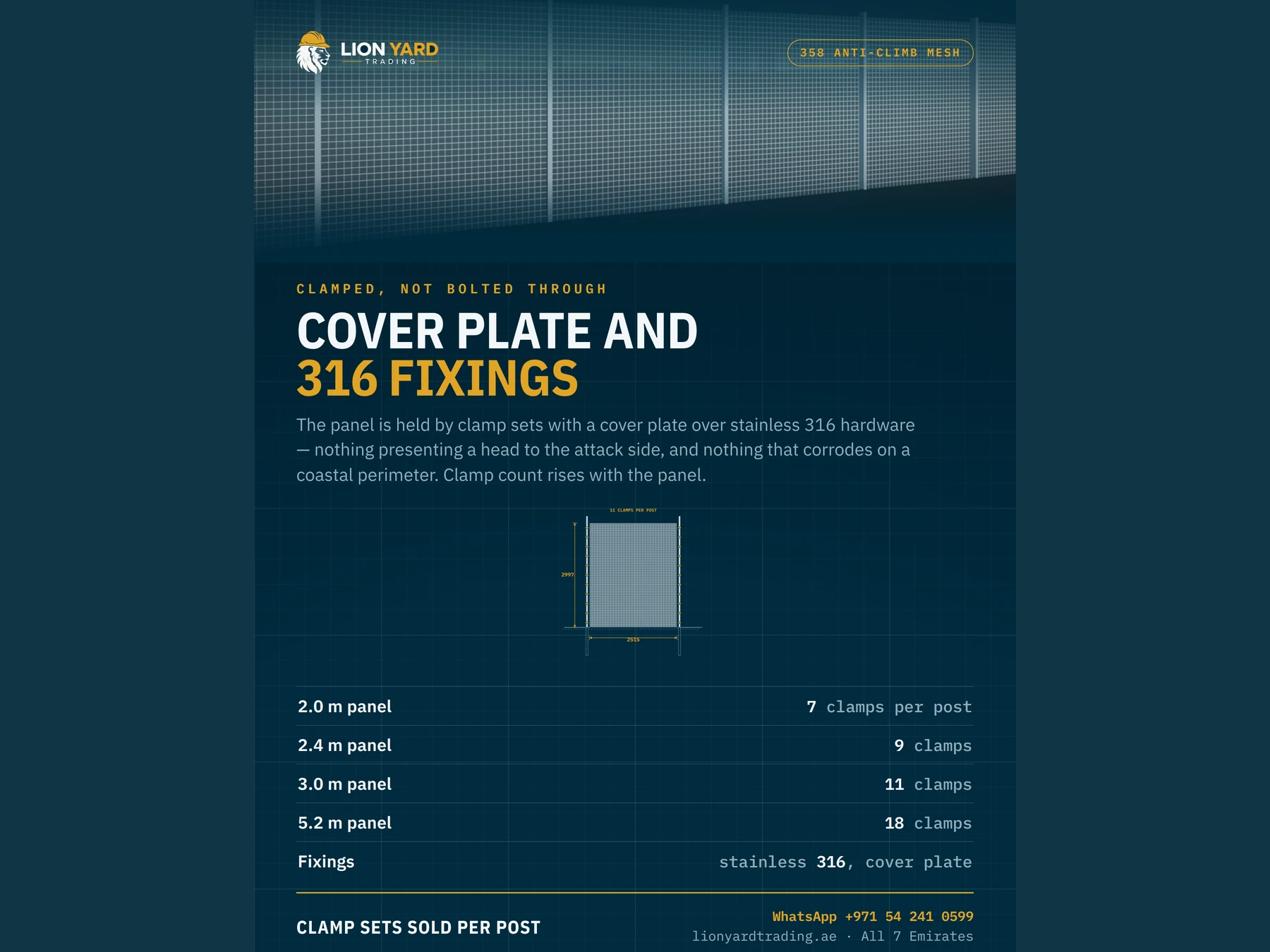

10 drawings covering every answer we need to price 358 Anti-Climb High-Security Mesh — every figure comes from the price table above or from the published standard it is made to.

The panel2,515 mm between posts

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your 358 anti-climb high-security mesh?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.

WhatsApp us
