Lion Yard Trading

GI Sheet Boundary Fence

Perimeter & Security Fencing

3sizes10technical drawings

Priced on enquiry

Priced per running metre against a site survey, since post spacing and footing depend on the ground.

WhatsApp us

Tell us the size and where it is going.

About this product

  • What it is: Corrugated galvanized steel sheet fixed to a galvanized steel post and rail frame set in…
  • Who buys it: Site perimeters needing visual screening as well as security, labour camps, storage…
  • Made of: Corrugated GI sheet (the same material family as roofing sheet) on GI pipe or box-section…
  • Heights: 2.0, 2.4 and 3.0 m the common stock heights; taller on request.
  • Delivery: All 7 Emirates from our own yard.
  • Installation service: Supply only, or supplied and installed by our own crew rather than a subcontractor.
Read the full specification →
Delivered across all 7 Emirates

All 3 sizes

Every size on one list. Tap any row to ask about that one.

  • 2.0m height
    Corrugated GI sheet on galvanized steel posts, standard screening height for a yard or site boundary.
    Ask on WhatsApp
  • 2.4m height
    The taller stock height, used where the boundary also needs to block sightlines fully - labour camps and storage yards.
    Ask on WhatsApp
  • 3.0m height
    The maximum stock height, for boundaries needing the tallest solid screening before a custom height is quoted.
    Ask on WhatsApp

Priced per running metre against a site survey, since post spacing and footing depend on the ground.

What it is

Solid corrugated GI sheet boundary wall on a steel post frame - full visual screening, not just a barrier.

Specification

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

What it is
Corrugated galvanized steel sheet fixed to a galvanized steel post and rail frame set in concrete footings, forming a solid, opaque boundary - unlike chain link or mesh, nothing is visible through it.
Who buys it
Site perimeters needing visual screening as well as security, labour camps, storage yards, and any boundary where the neighbour should not see in.
Made of
Corrugated GI sheet (the same material family as roofing sheet) on GI pipe or box-section posts, typically at 2.4-3 m centres.
Heights
2.0, 2.4 and 3.0 m the common stock heights; taller on request.
Delivery
All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
Installation service
Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
Ordering
Priced per running metre against a site survey, excluding 5% VAT.
GI Sheet Boundary Fence

Technical Procurement & Ordering Guides

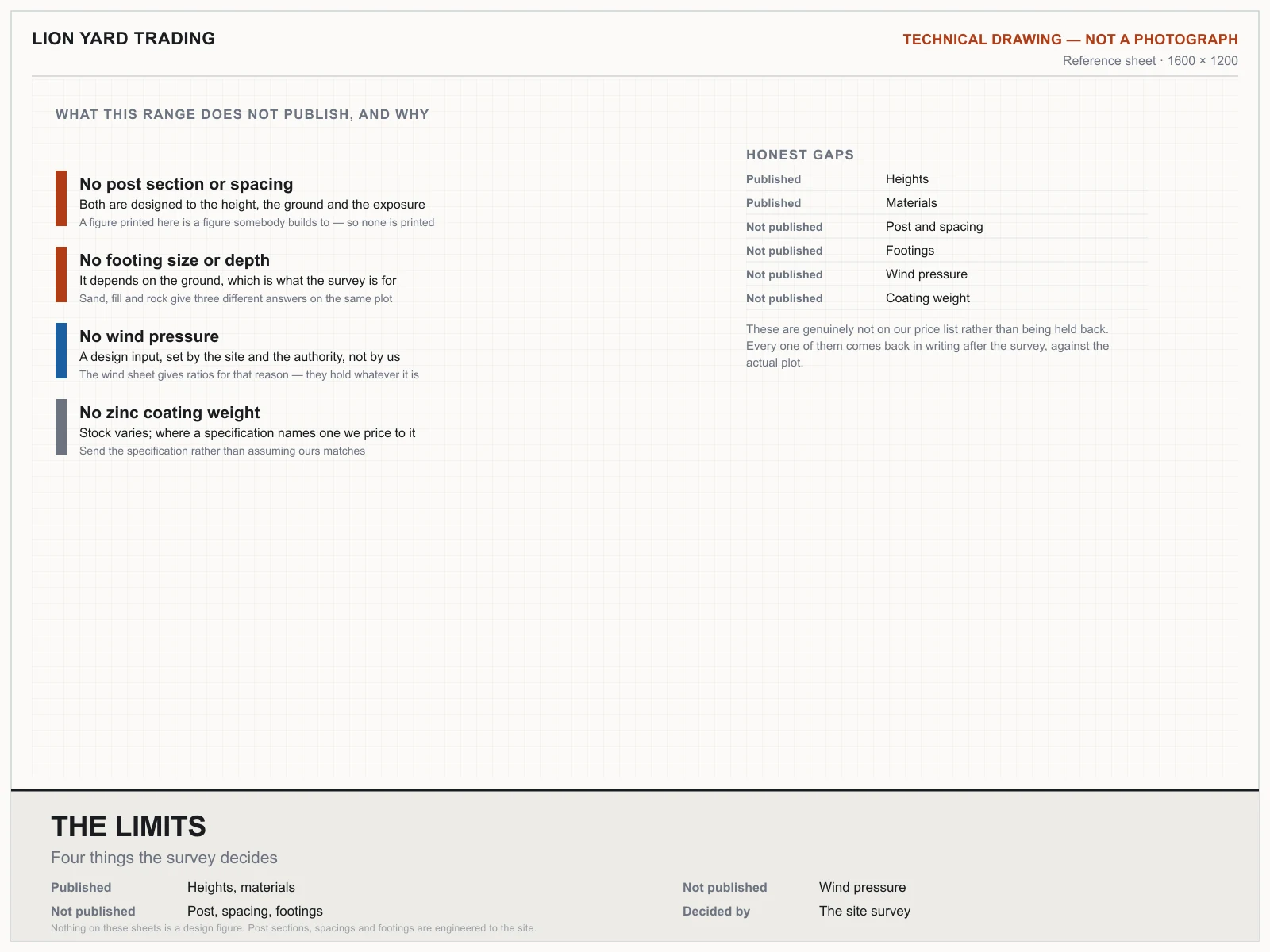

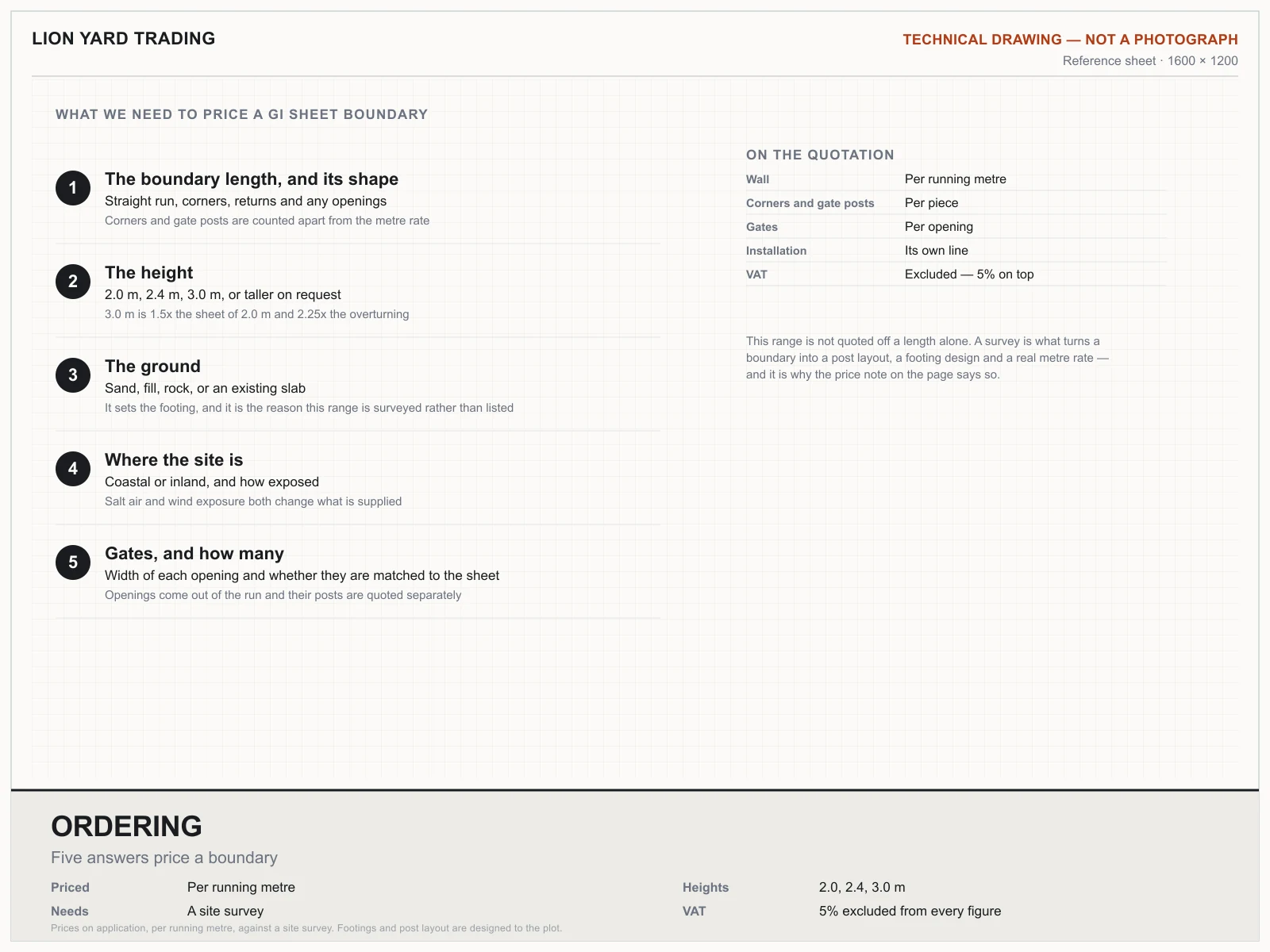

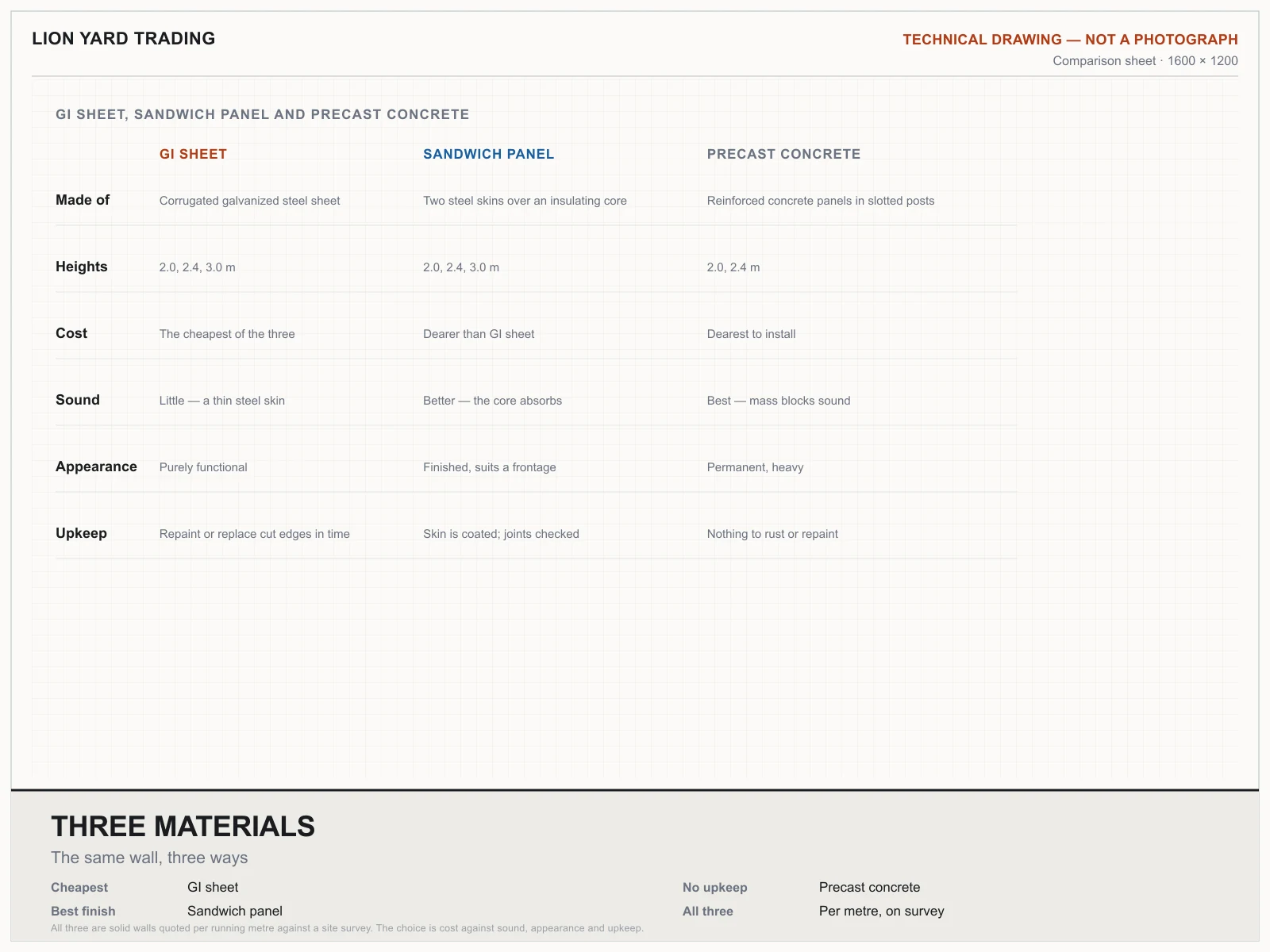

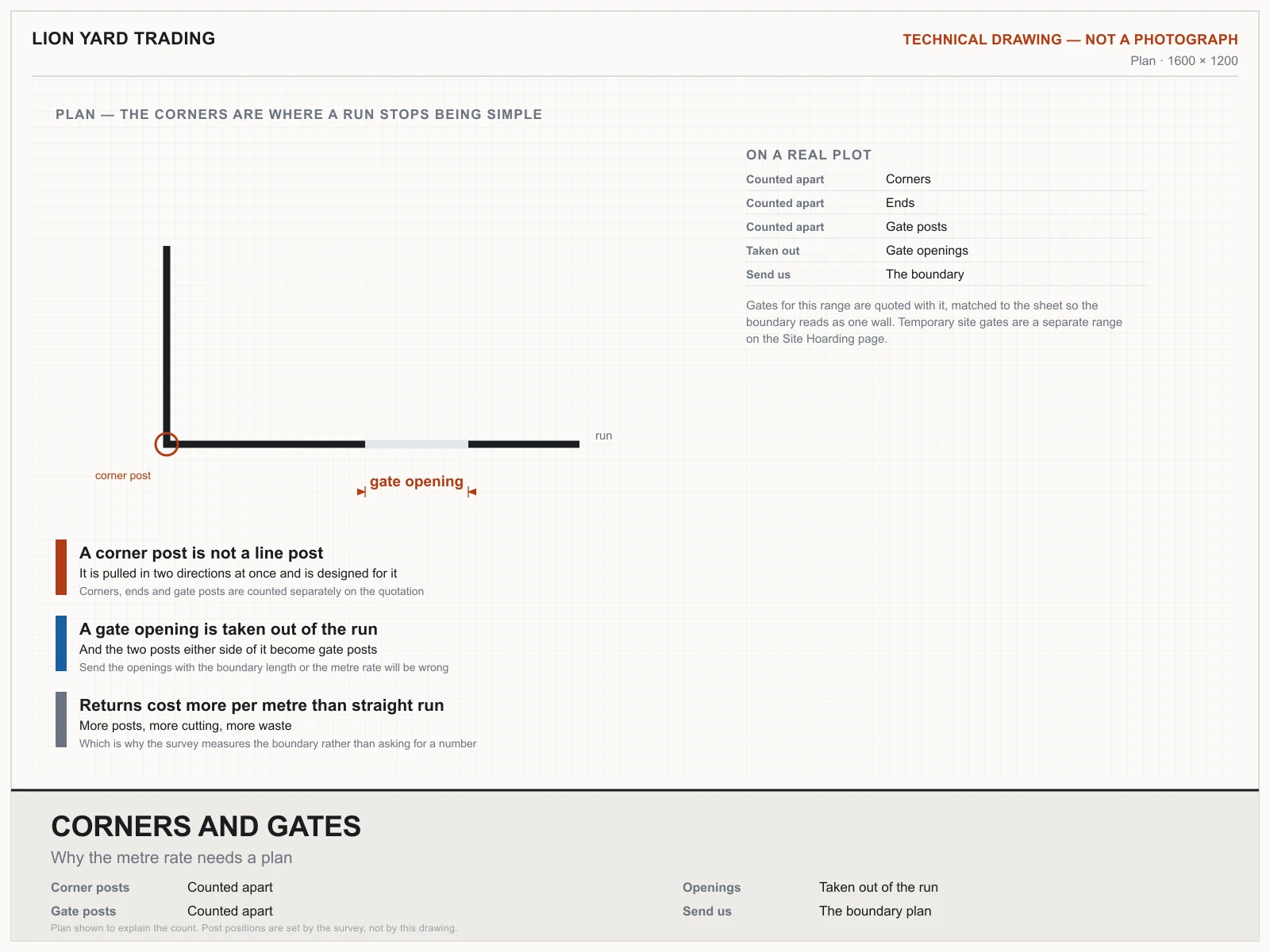

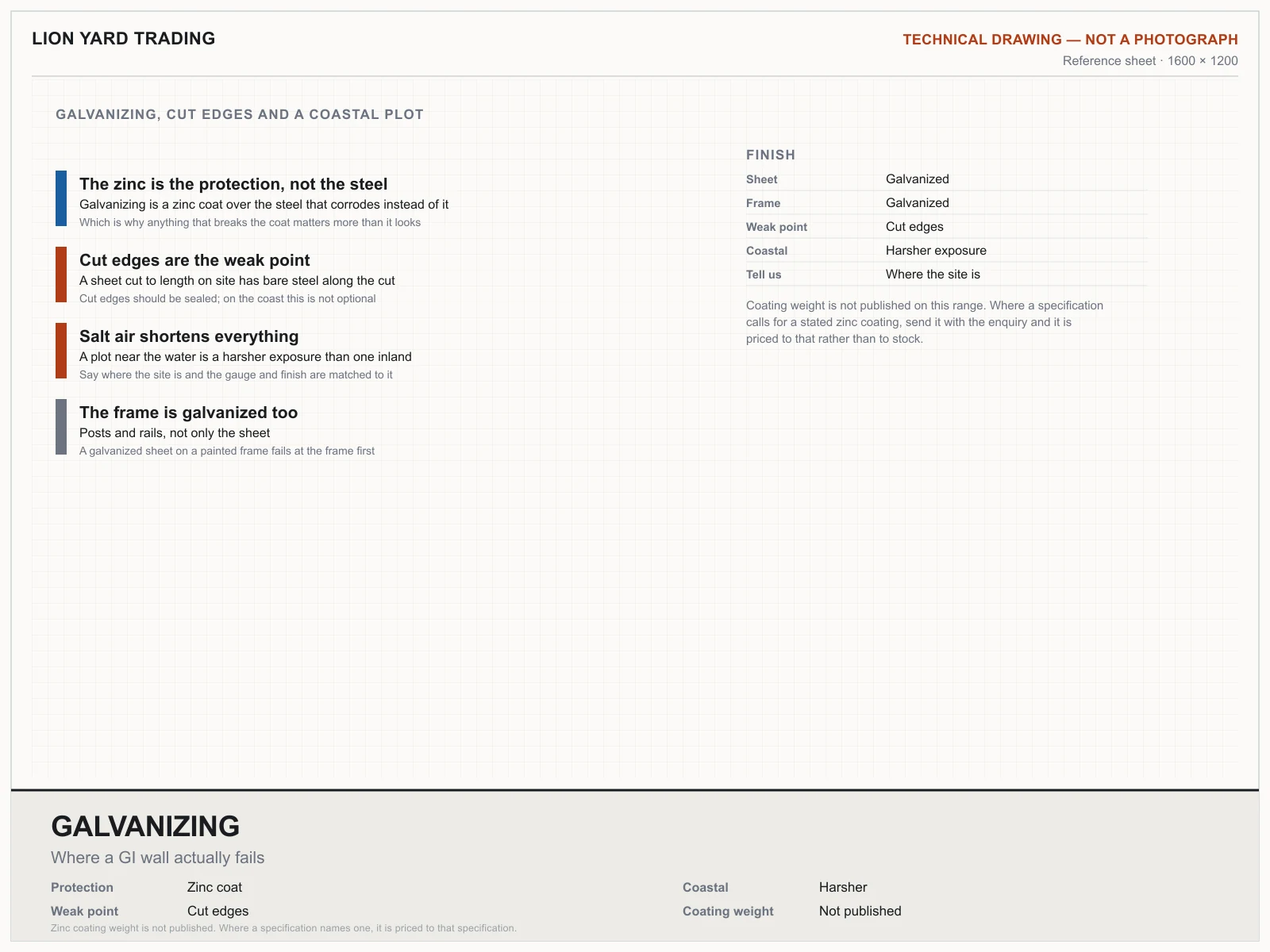

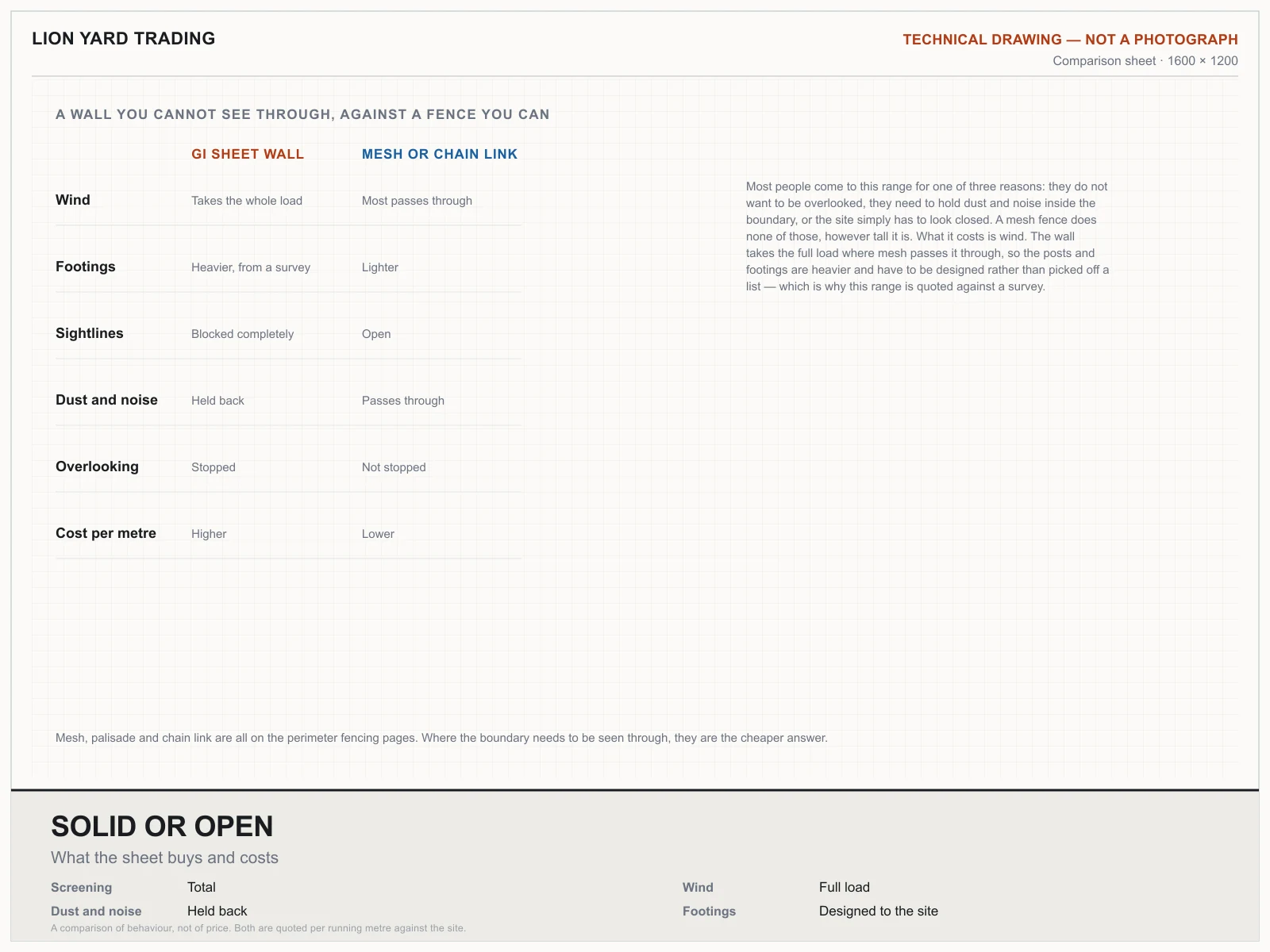

10 drawings covering every answer we need to price GI Sheet Boundary Fence — every figure comes from the price table above or from the published standard it is made to.

The wallSolid screening on a steel frame

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your gi sheet boundary fence?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.

WhatsApp us
