Sandwich Panel Boundary Fence

Perimeter & Security Fencing

3sizes10technical drawings

Priced on enquiry

Priced per running metre against a site survey, since post spacing and footing depend on the ground.

WhatsApp us

Tell us the size and where it is going.

About this product

  • Finished wall, or panels on their own?: This page is the FINISHED WALL — panels, galvanised posts and concrete footings, surveyed…
  • What it is made of: The same PPGI-skinned, PUF-core panel used for warehouse cladding, tongue-and-groove…
  • Compared to GI sheet fence: More expensive, better sound and heat performance, better finished appearance; GI sheet…
Read the full specification →
Delivered across all 7 Emirates

All 3 sizes

Every size on one list. Tap any row to ask about that one.

  • 2.0m height
    PUF-core sandwich panel between steel posts, standard boundary height with better sound and heat performance than a plain GI sheet fence.
    Ask on WhatsApp
  • 2.4m height
    The taller stock height, for boundaries needing full screening plus sound or heat performance.
    Ask on WhatsApp
  • 3.0m height
    The maximum stock height, for boundaries needing the tallest finished, insulated screening.
    Ask on WhatsApp

Priced per running metre against a site survey, since post spacing and footing depend on the ground.

What it is

Insulated sandwich panel on a steel frame for a boundary wall that also needs to block sound or hold a finished appearance.

Specification

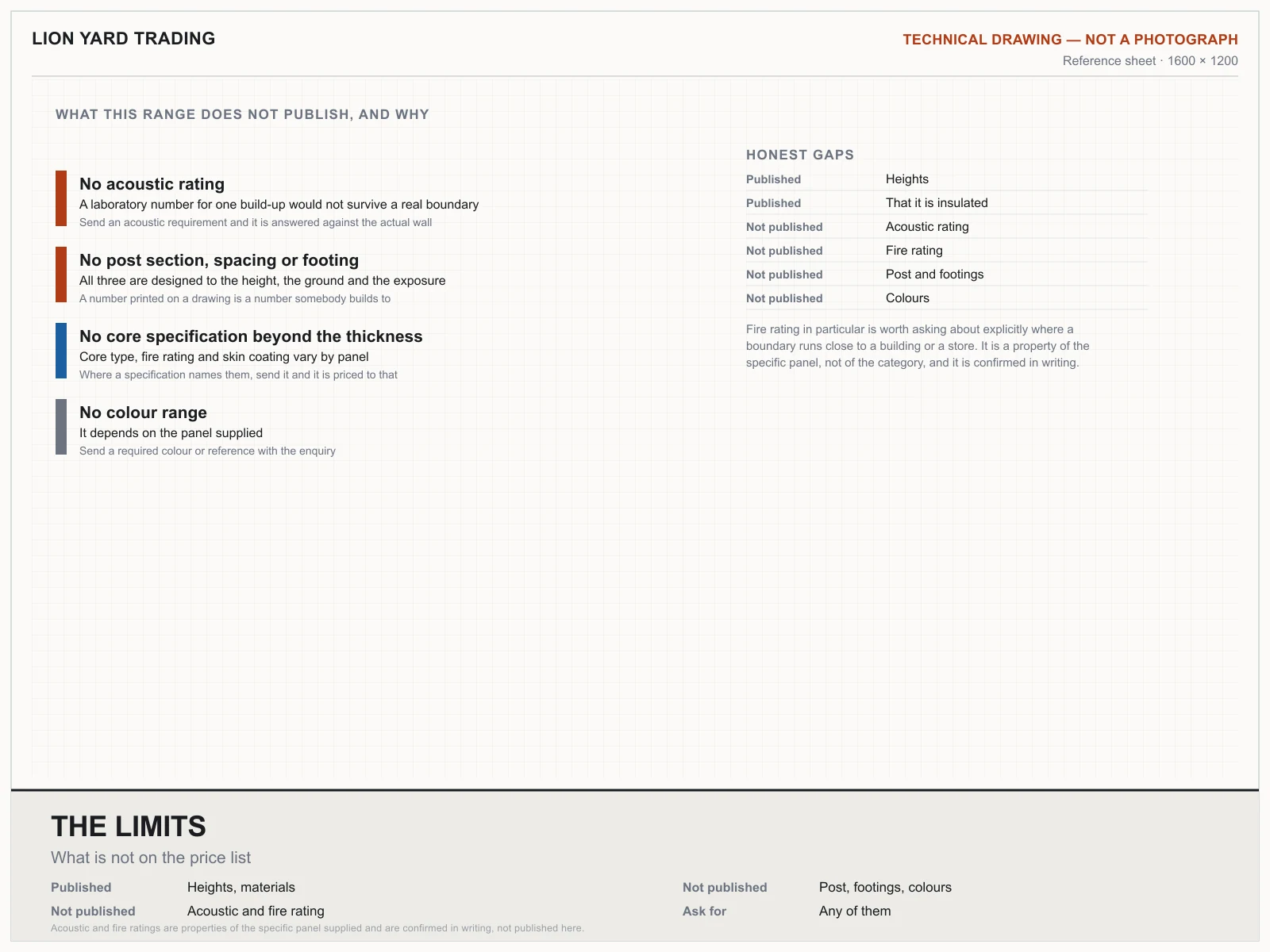

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

Finished wall, or panels on their own?
This page is the FINISHED WALL — panels, galvanised posts and concrete footings, surveyed and installed by us and priced per running metre. If you are cladding a building and want the panels on their own to fix to your own steel, that is our Insulated Sandwich Panels. Same panel, different job.
What it is made of
The same PPGI-skinned, PUF-core panel used for warehouse cladding, tongue-and-groove jointed, held in galvanised steel posts set into concrete footings.

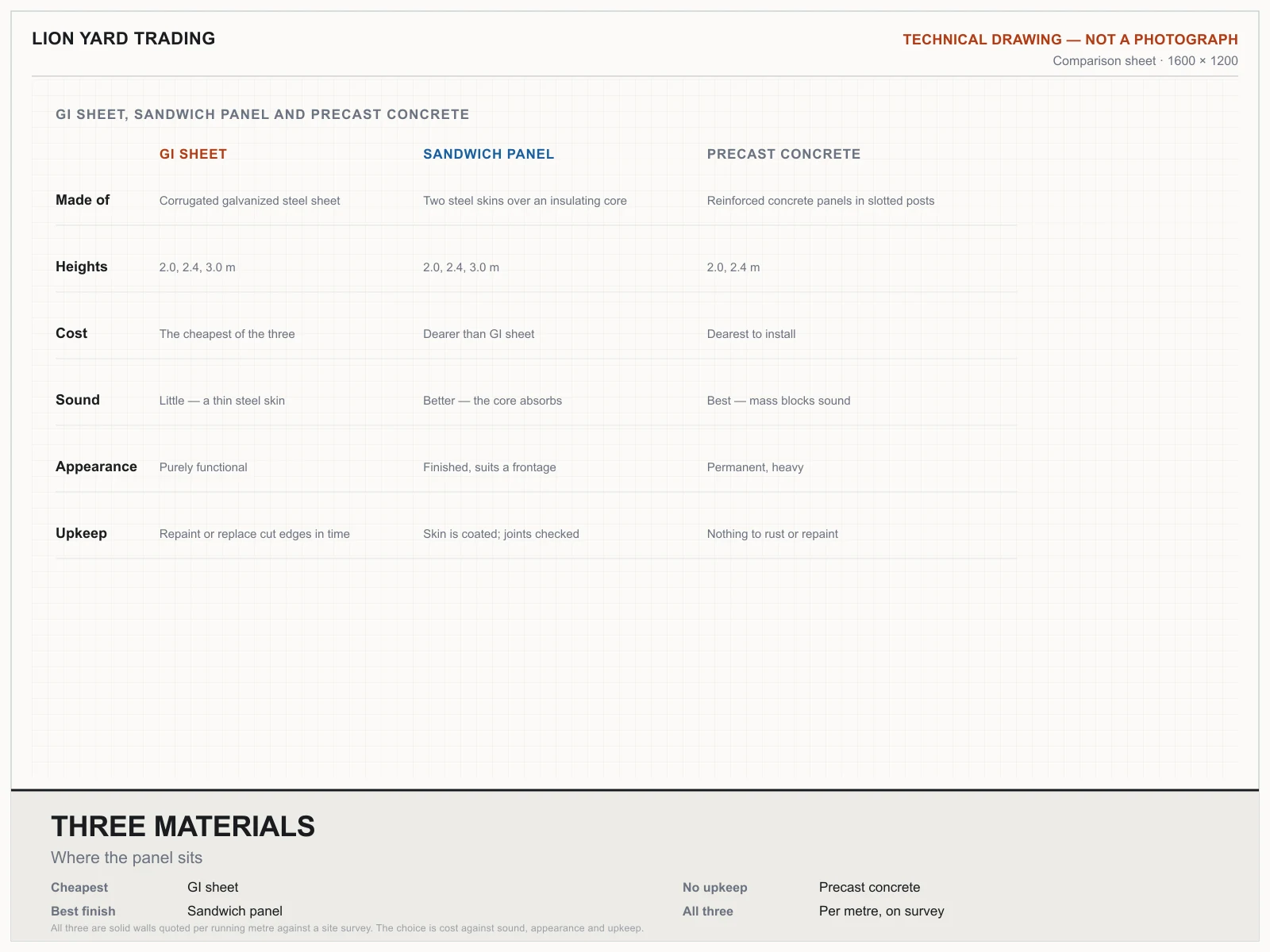

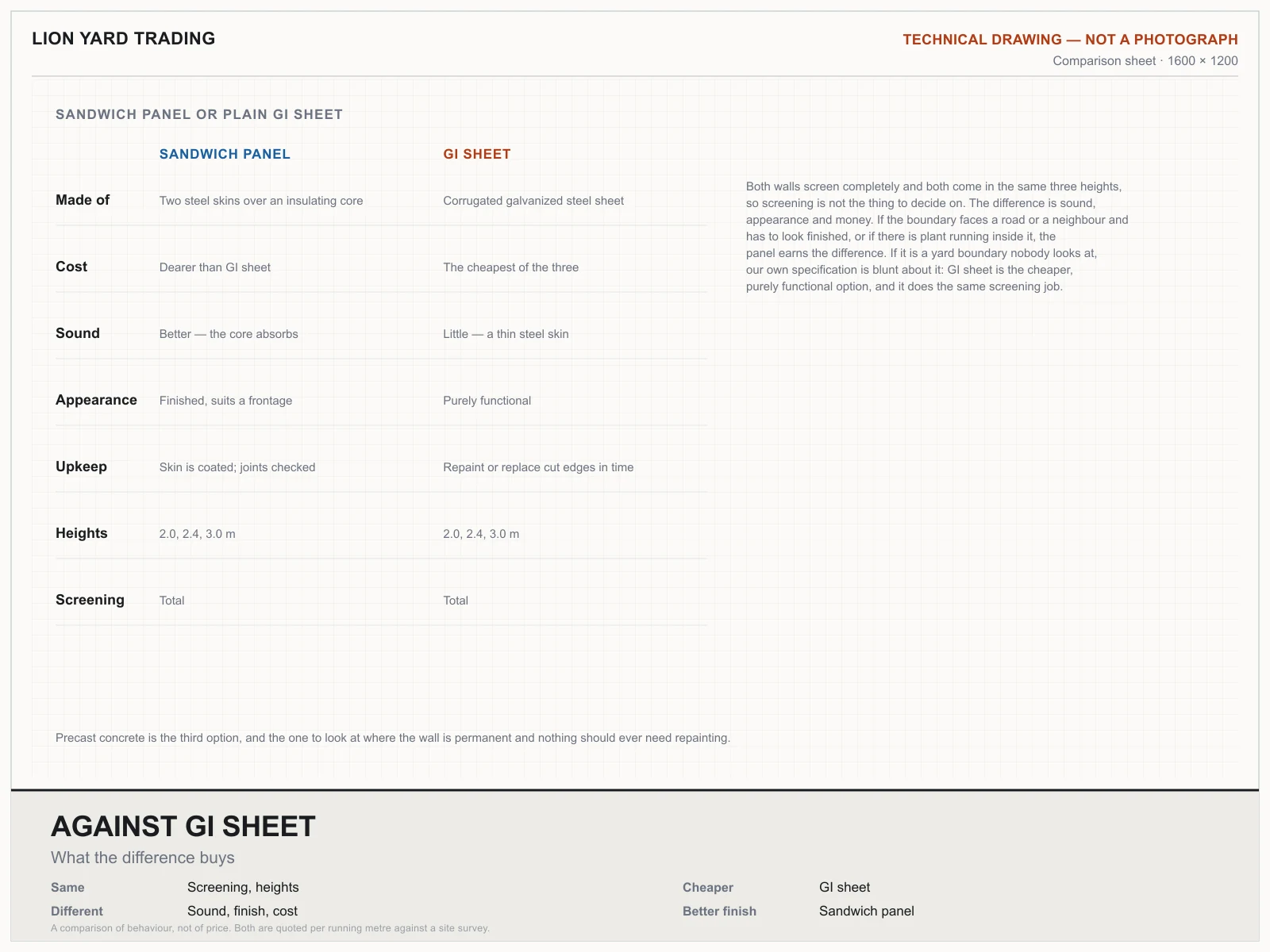

Compared to GI sheet fence
More expensive, better sound and heat performance, better finished appearance; GI sheet fence is the cheaper, purely functional option.
Sandwich Panel Boundary Fence

Technical Procurement & Ordering Guides

10 drawings covering every answer we need to price Sandwich Panel Boundary Fence — every figure comes from the price table above or from the published standard it is made to.

The wallInsulated panel on a steel frame

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your sandwich panel boundary fence?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.

WhatsApp us
