Welded Mesh Panel Fencing — 2D twin-wire

Perimeter & Security Fencing

11sizes10technical drawings10photos of our stock

Priced on enquiry

Priced per panel against your run length and quantity.

WhatsApp us

Tell us the size and where it is going.

About this product

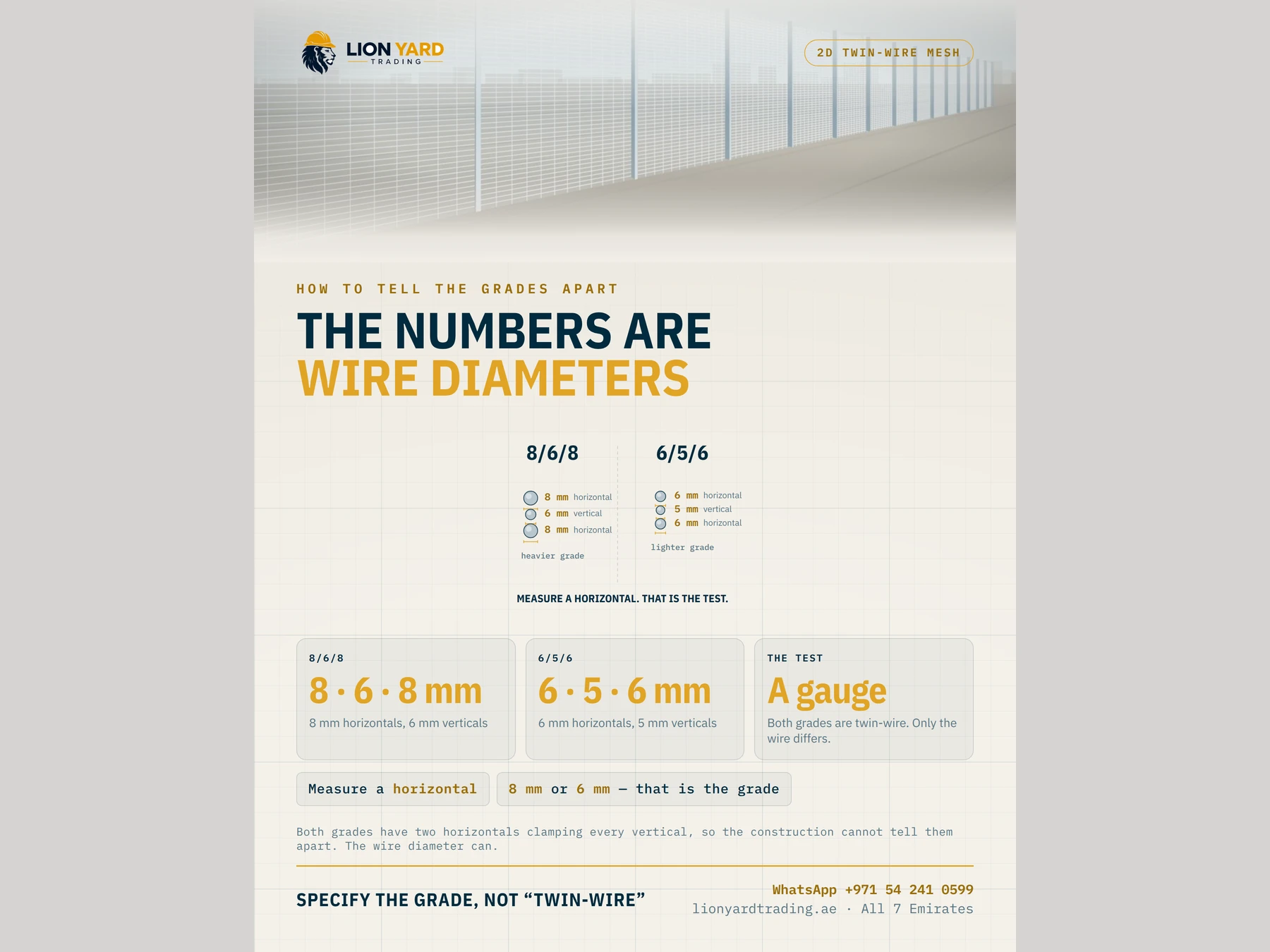

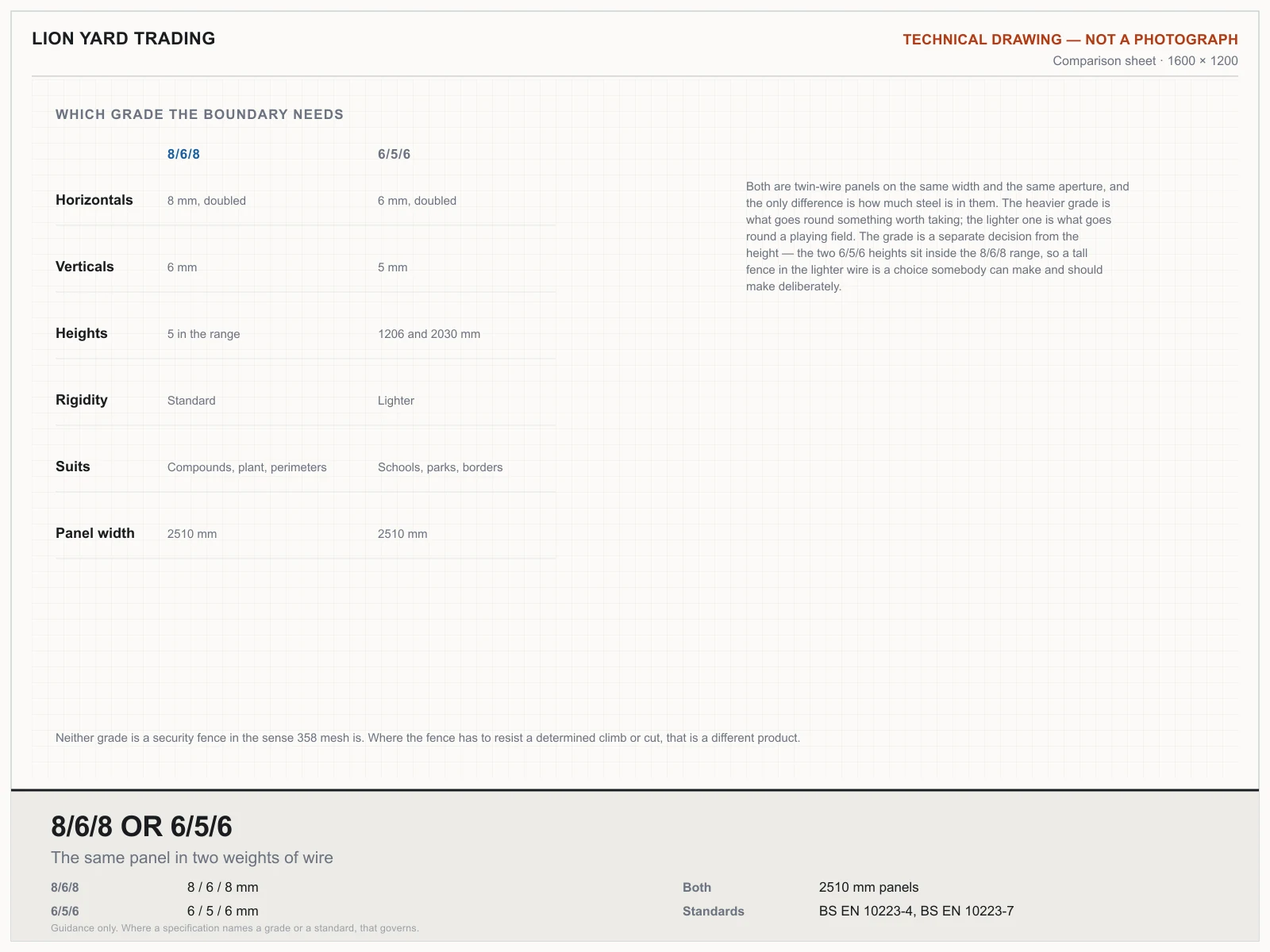

  • Wire: 8/6/8 — two 8 mm horizontals, 6 mm verticals · 6/5/6 lighter grade

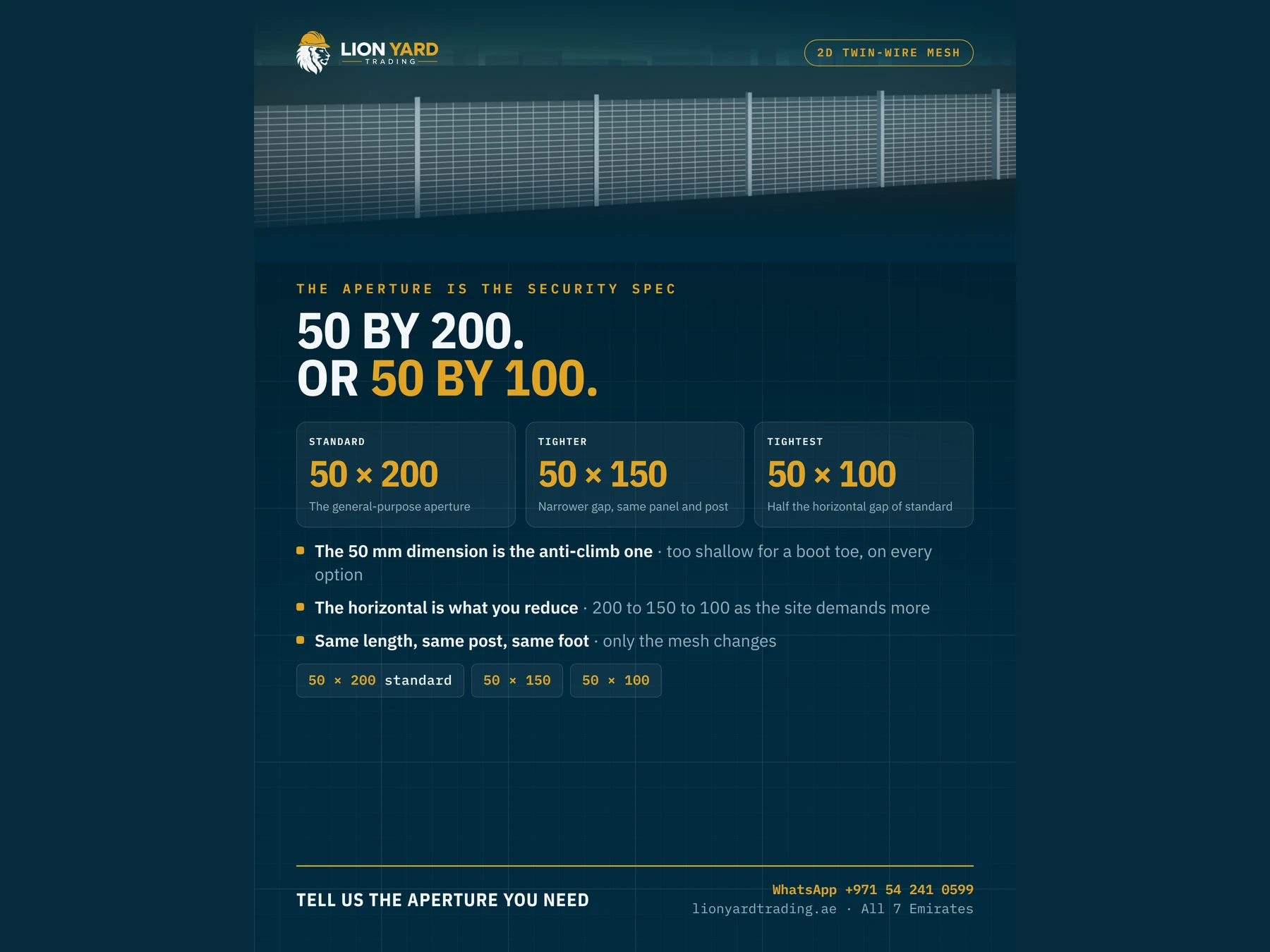

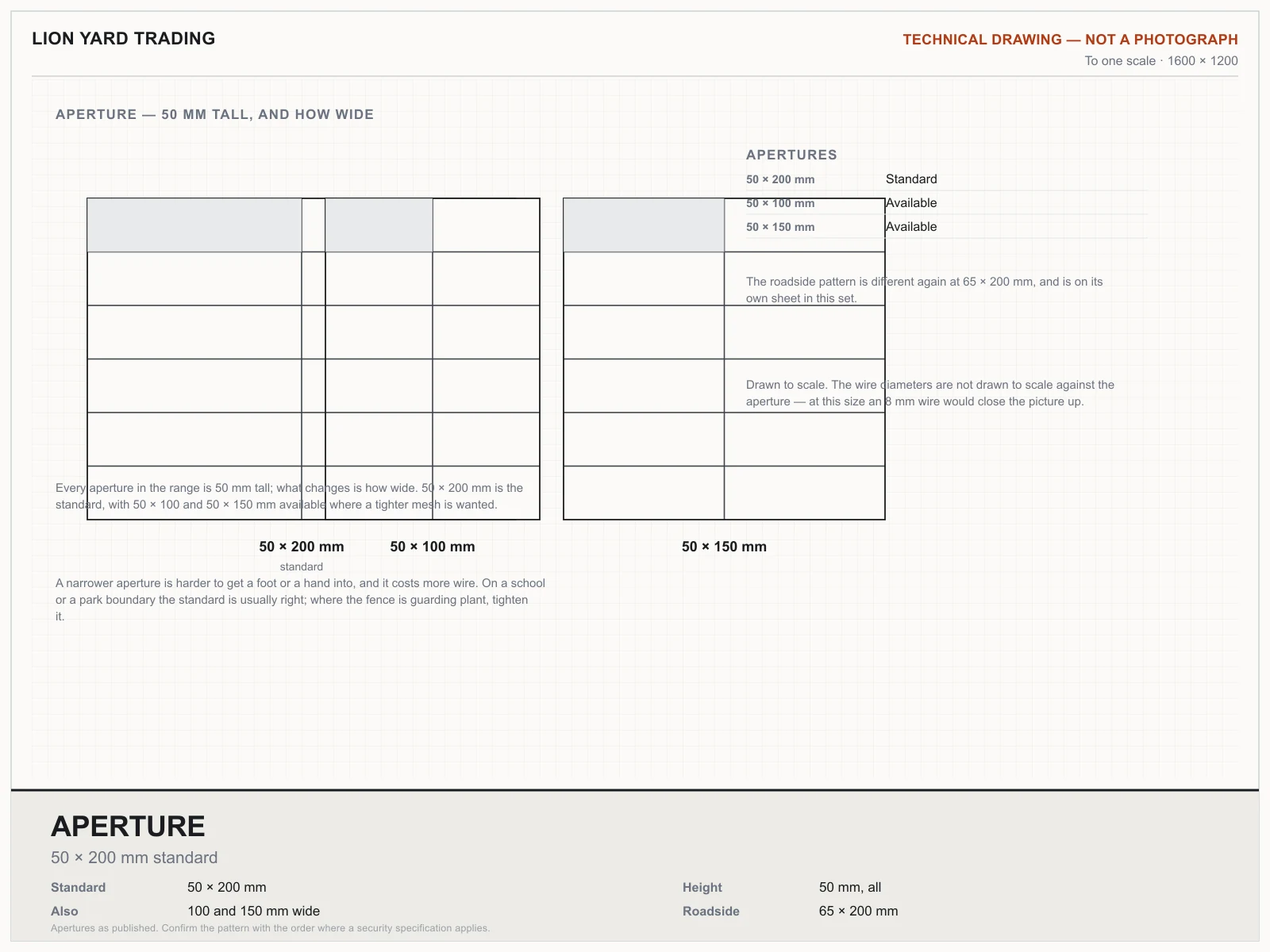

  • Mesh: 50 × 200 mm standard · 50 × 100 and 50 × 150 mm available
  • Panel width: 2510 mm standard · 2250 mm roadside pattern
  • Finish: Galvanised plus polyester, minimum 100 microns
  • Colours: RAL 6005 green · RAL 7016 anthracite · RAL 7035 grey roadside
  • Standards: BS EN 10223-4 · BS EN 10223-7
Read the full specification →
Delivered across all 7 Emirates

All 11 sizes

Every size on one list. Tap any row to ask about that one.

How many panels for your run?

Enter the boundary length and get panels and posts.

You need

  • 2D twin-wire panels, 2510 mm wide60 panels
  • PostsOne per panel, plus one to close the run61 posts

How that was worked out

  • 150 m ÷ 2.51 m per panel = 59.8 → 60 panels
  • posts: 60 + 1 = 61

Priced per panel against your run length and quantity.

What it is

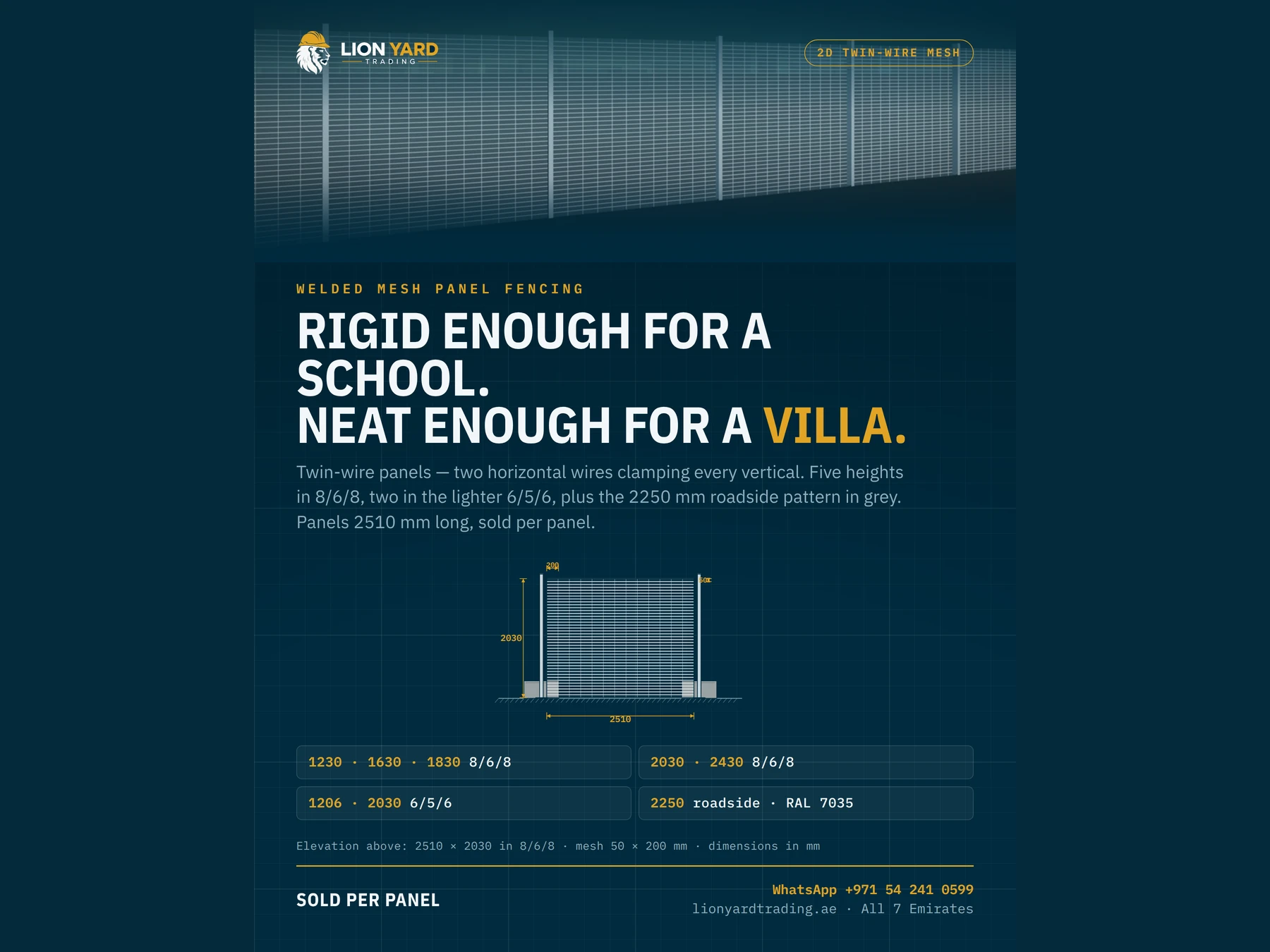

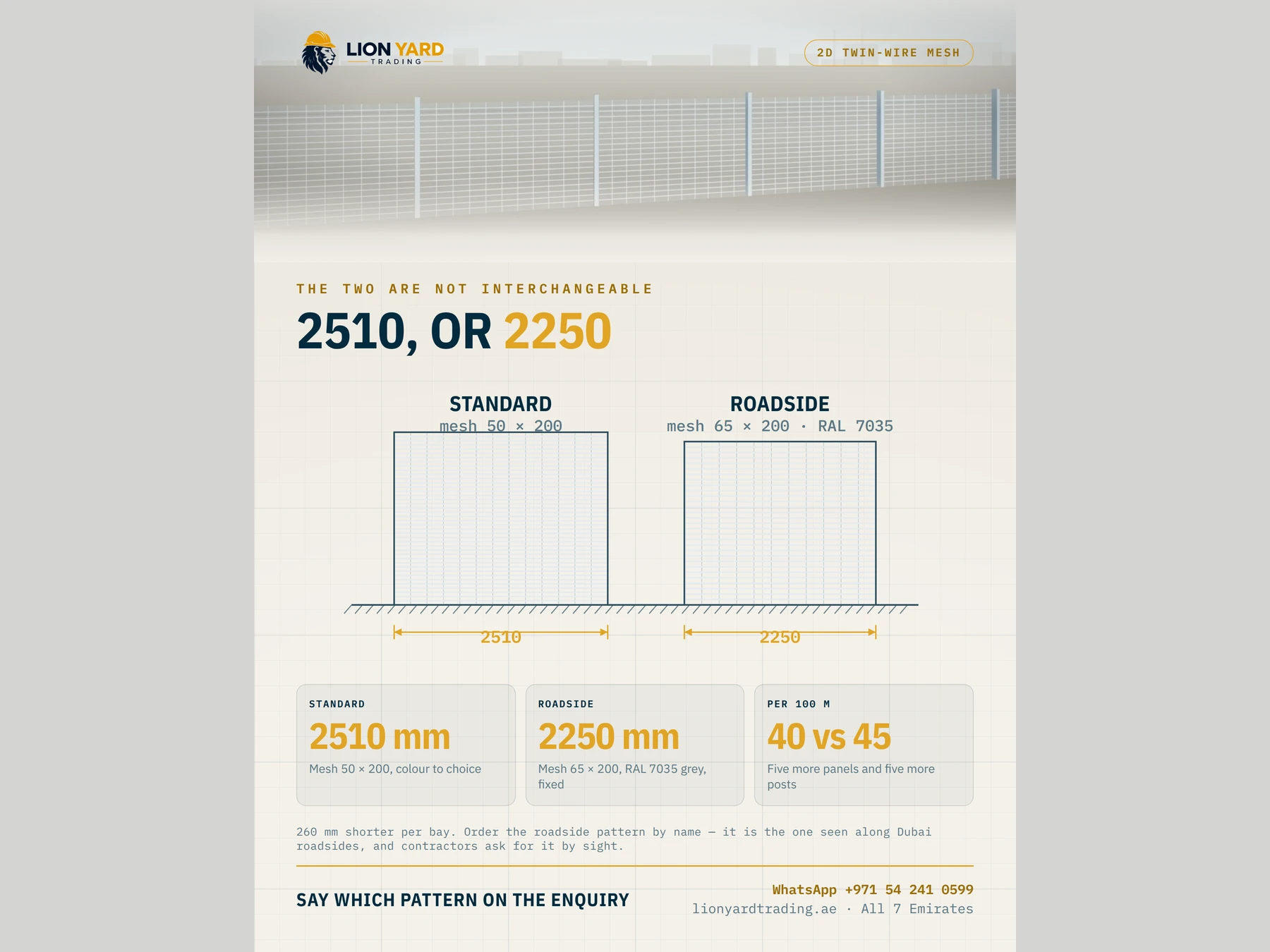

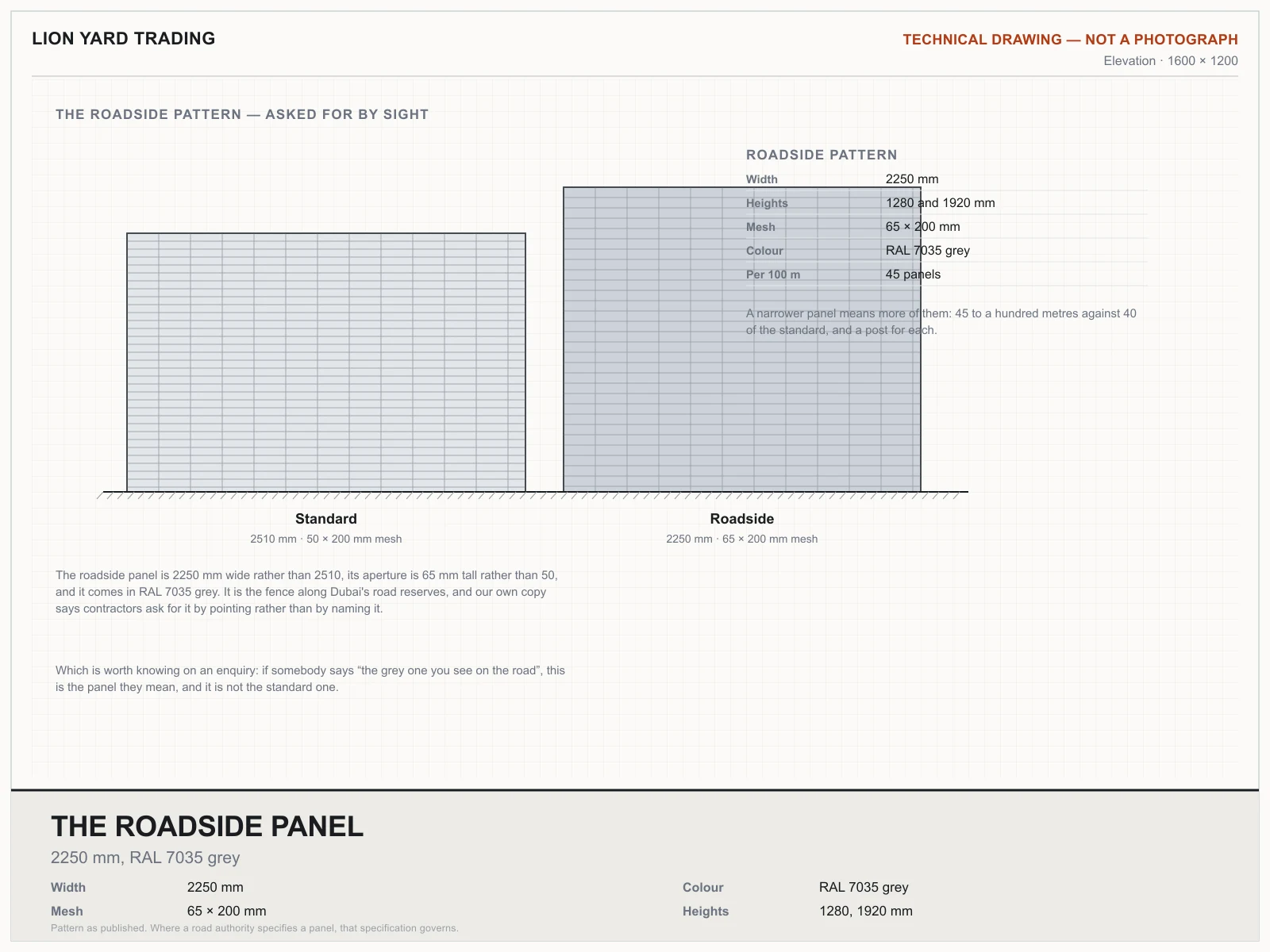

Rigid twin-wire panels, neat enough for schools, parks and residential borders. The 2250 mm pattern in grey RAL 7035 is the one seen along Dubai roadsides, so contractors ask for it by sight rather than by name.

Specification

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

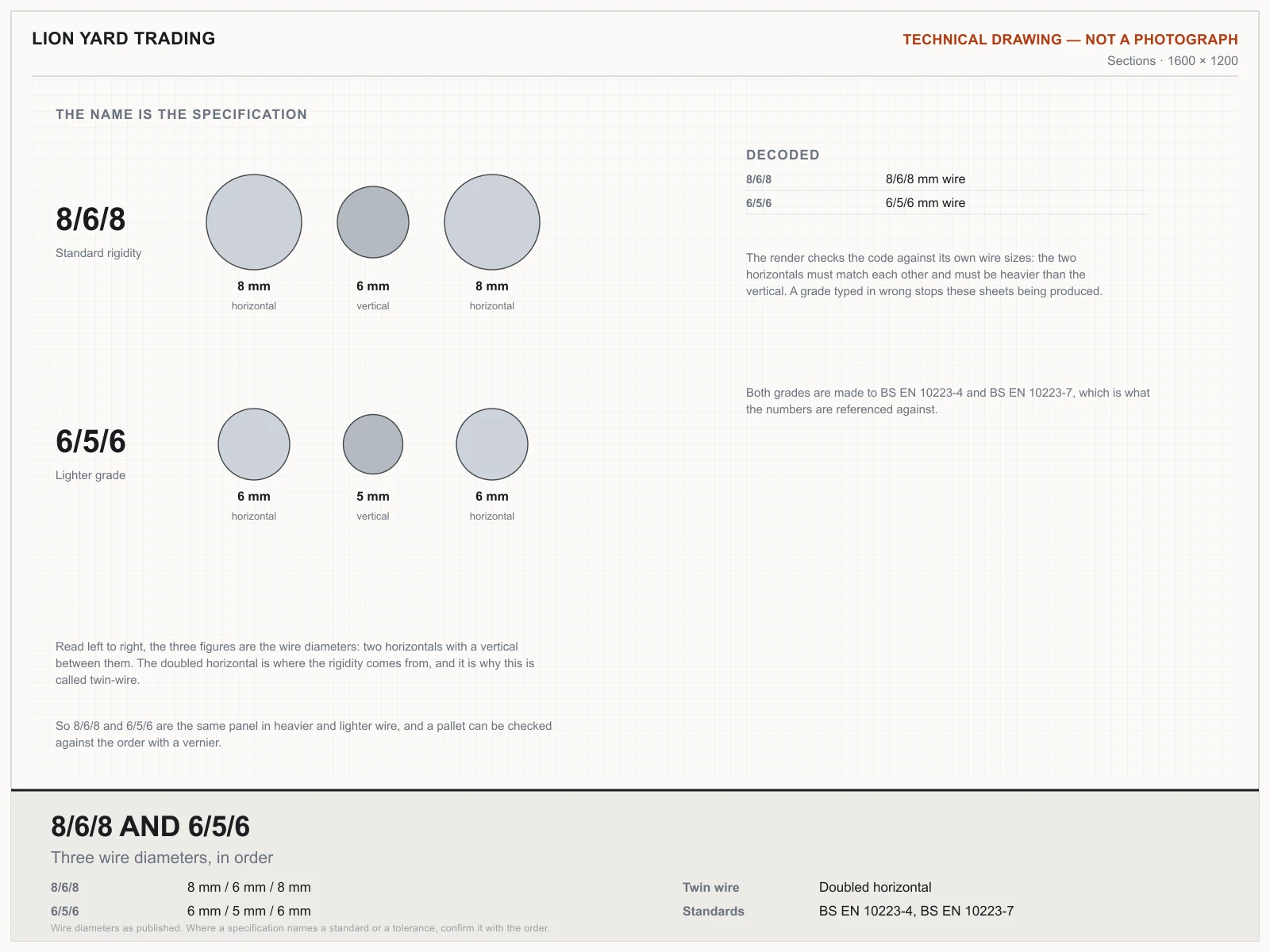

Wire
8/6/8 — two 8 mm horizontals, 6 mm verticals · 6/5/6 lighter grade
Mesh
50 × 200 mm standard · 50 × 100 and 50 × 150 mm available
Panel width
2510 mm standard · 2250 mm roadside pattern

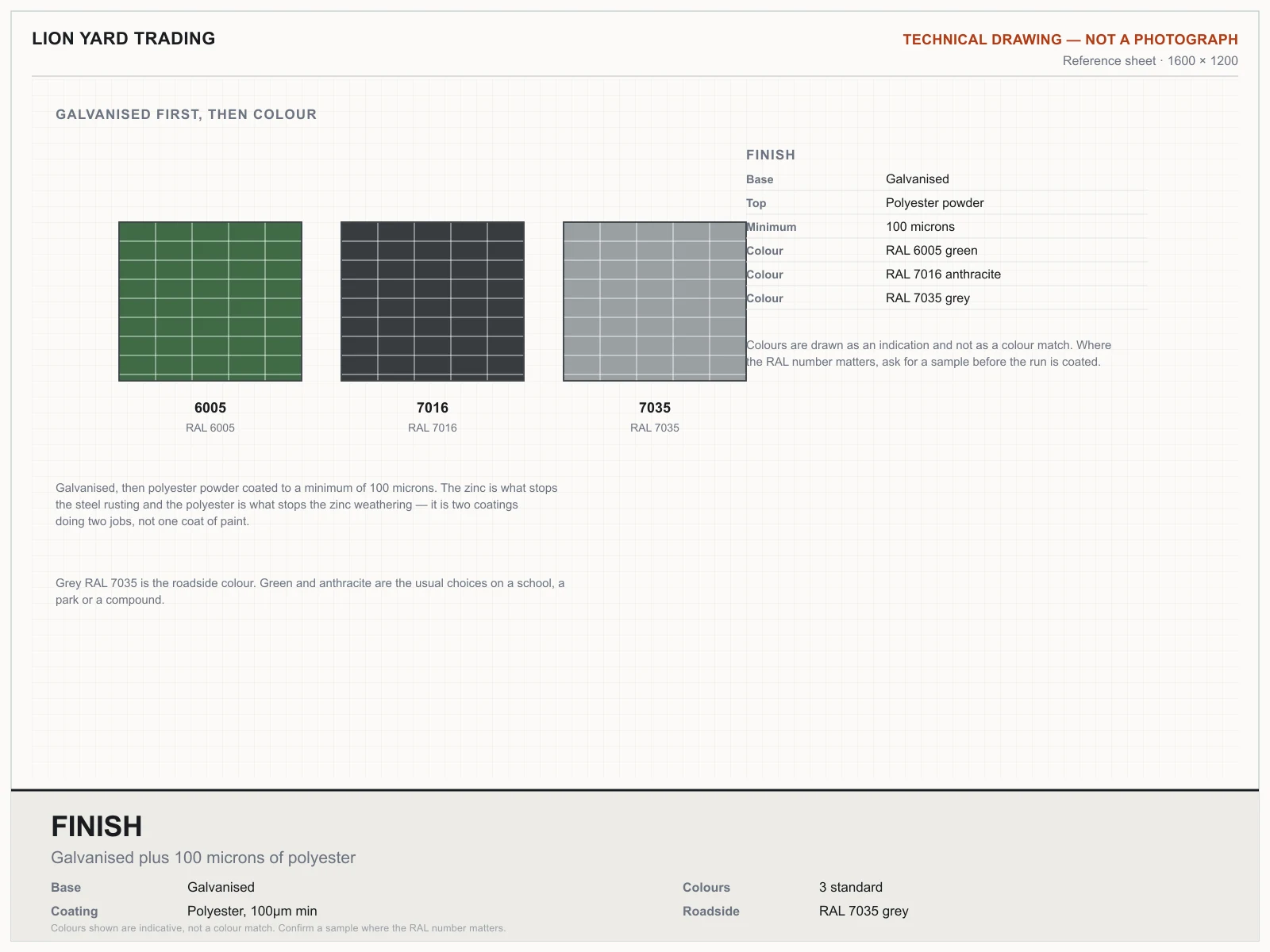

Finish
Galvanised plus polyester, minimum 100 microns
Colours
RAL 6005 green · RAL 7016 anthracite · RAL 7035 grey roadside
Standards
BS EN 10223-4 · BS EN 10223-7
Delivery
All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
Installation
Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
Ordering
Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Welded Mesh Panel Fencing — 2D twin-wire

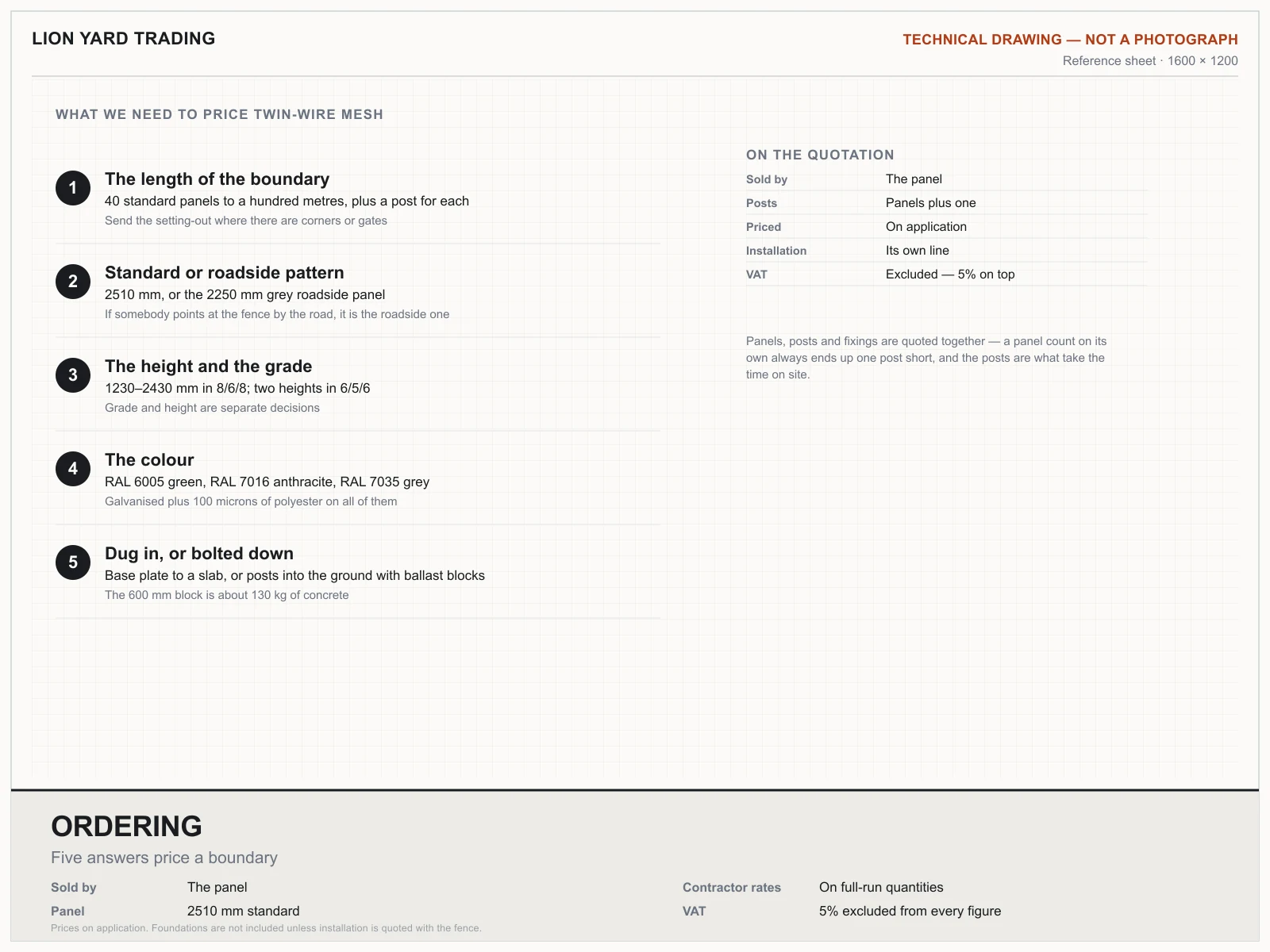

Technical Procurement & Ordering Guides

10 drawings covering every answer we need to price Welded Mesh Panel Fencing — 2D twin-wire — every figure comes from the price table above or from the published standard it is made to.

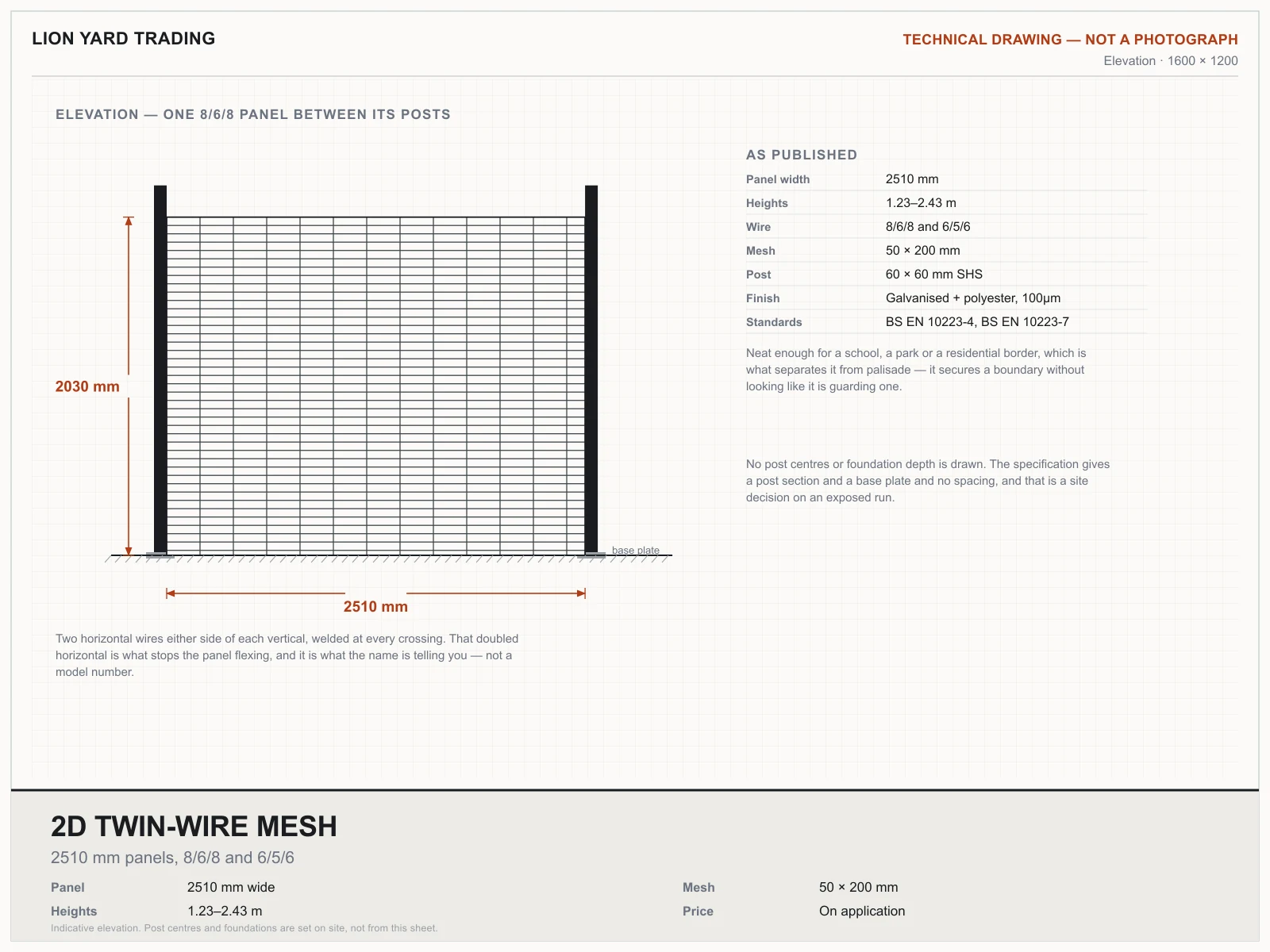

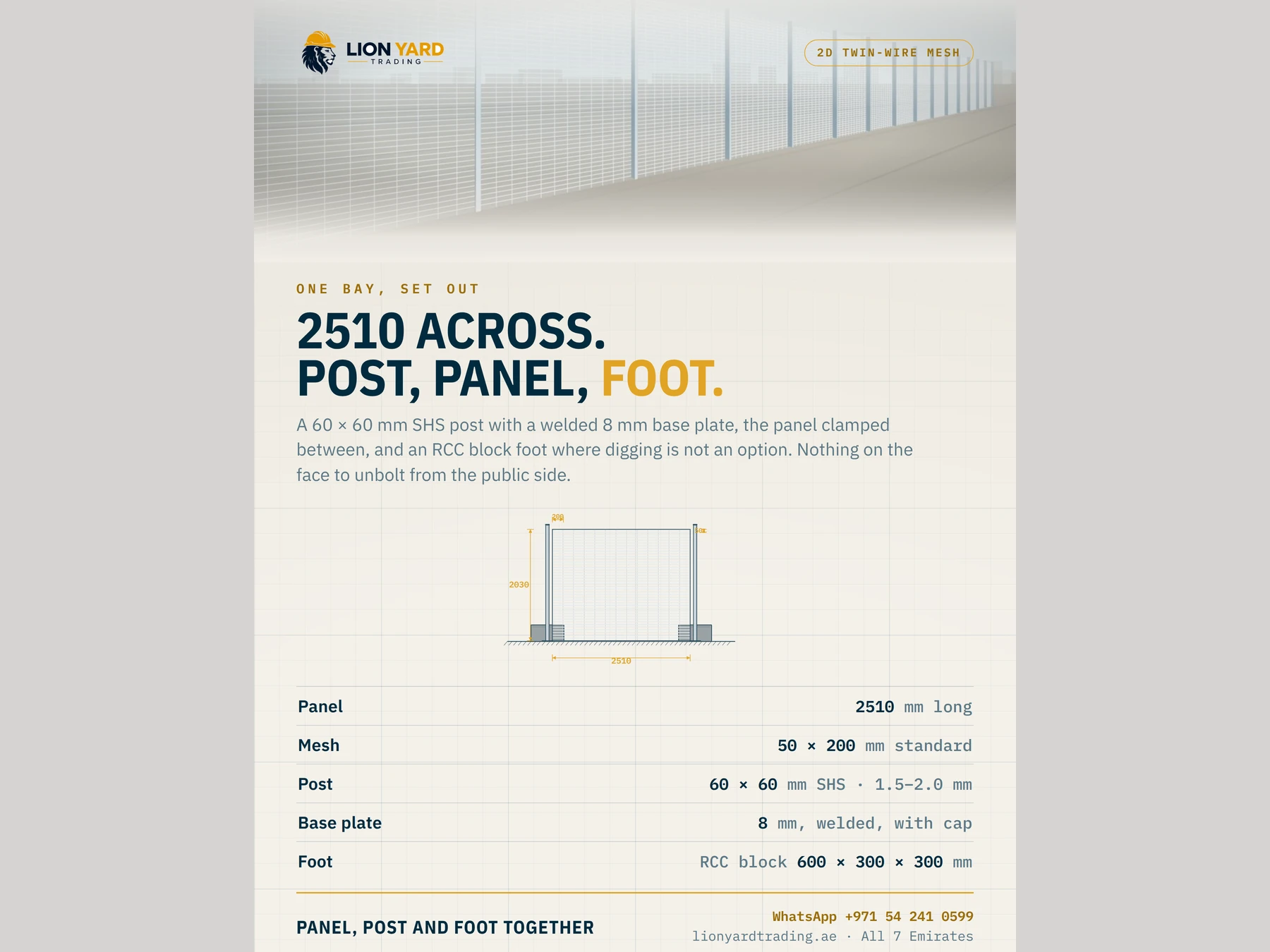

The panel2510 mm, 8/6/8

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your welded mesh panel fencing — 2d twin-wire?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
