Site Hoarding & Temporary Fencing

Corrugated GI hoarding, continuous panel walls, PVC eco panels, Heras mesh, gates, blocks and dust netting — everything needed to enclose a plot before work starts.

Jump toCorrugated GI Hoarding Panels (Shinko)Continuous Hoarding — flat panel wallPVC Eco Hoarding PanelsHeras Mesh Fence PanelsHoarding Bases, Posts & ClampsDust Screen & Sand-Break NettingSite Gates — swing & slidingSpecifying site hoarding
Corrugated GI 2.0 – 3.0 mHeras panels 3.5 × 2.0 mBlocks, posts & clampsSite gates to 10 m
Before you order

Which hoarding does my permit require?

Height and colour are set by whoever issues the permit, not by preference — and they differ by zone within the same emirate. This is what we have been able to establish, and where we have not, it says so.

Site enclosure requirements by UAE permit authority
AuthorityMinimum heightMaterialColour & branding
Dubai Development AuthorityRead at sourceTECOM, Internet City, Media City, Dubai Design District, Barsha Heights2.0 m minimumCorrugated steelWhite, with no logos or artwork. Within the plot, or up to 3.0 m outside it. Circular 331.
Dubai Development Authority — Healthcare CityRead at sourceDubai Healthcare City plots onlyNot specifiedCorrugated steelDark green, with no logos or artwork. The 2008 circular is still live.
Abu Dhabi MunicipalityTrade consensusAbu Dhabi mainland plots2.5 m minimumIron sheets on a steel frame, in concrete basesBright orange or an approved colour. Panel gaps 5 cm or less, ground gap 20 cm or less, site entrance under 5 m wide.Consistent across trade sources; we have not read it in the municipality's own published circular.

Branding is prohibited in DDA zones, not required. Circular 331 specifies white hoarding with no logos or artwork, and Dubai Healthcare City specifies dark green. If somebody has told you a premium developer expects a wrapped marketing banner, check the plot’s authority first — in a DDA zone it will be refused.

What we have not been able to confirm

Published here rather than left out. A supplier who prints a confident figure for every authority has invented some of them.

  • Dubai MunicipalityNot establishedDubai mainland plots outside the free zones

    Chapter 6 of the Code of Construction Safety Practice governs this, and we have not been able to read it at source. The 2.4 m figure quoted across the trade traces only to supplier blogs — most likely the 8 ft sheet length become a habit. Ask us and we will confirm with DM before you order.

  • Trakhees / PCFCNot establishedPalm Jumeirah, Jebel Ali, the Nakheel zones

    Regulation CS-4.0 is published only as a scanned document and no clause could be extracted. Anyone quoting you a Trakhees rule is not citing a document we could find.

  • Sharjah & the northern emiratesNot establishedSharjah, Ajman, Umm Al Quwain, Ras Al Khaimah, Fujairah

    Sharjah requires a fence permit; Ras Al Khaimah's building code covers permanent fences only. No temporary hoarding dimension could be established for these emirates.

Photos of our own stock. Sizes and condition vary — ask on WhatsApp for the units available today.

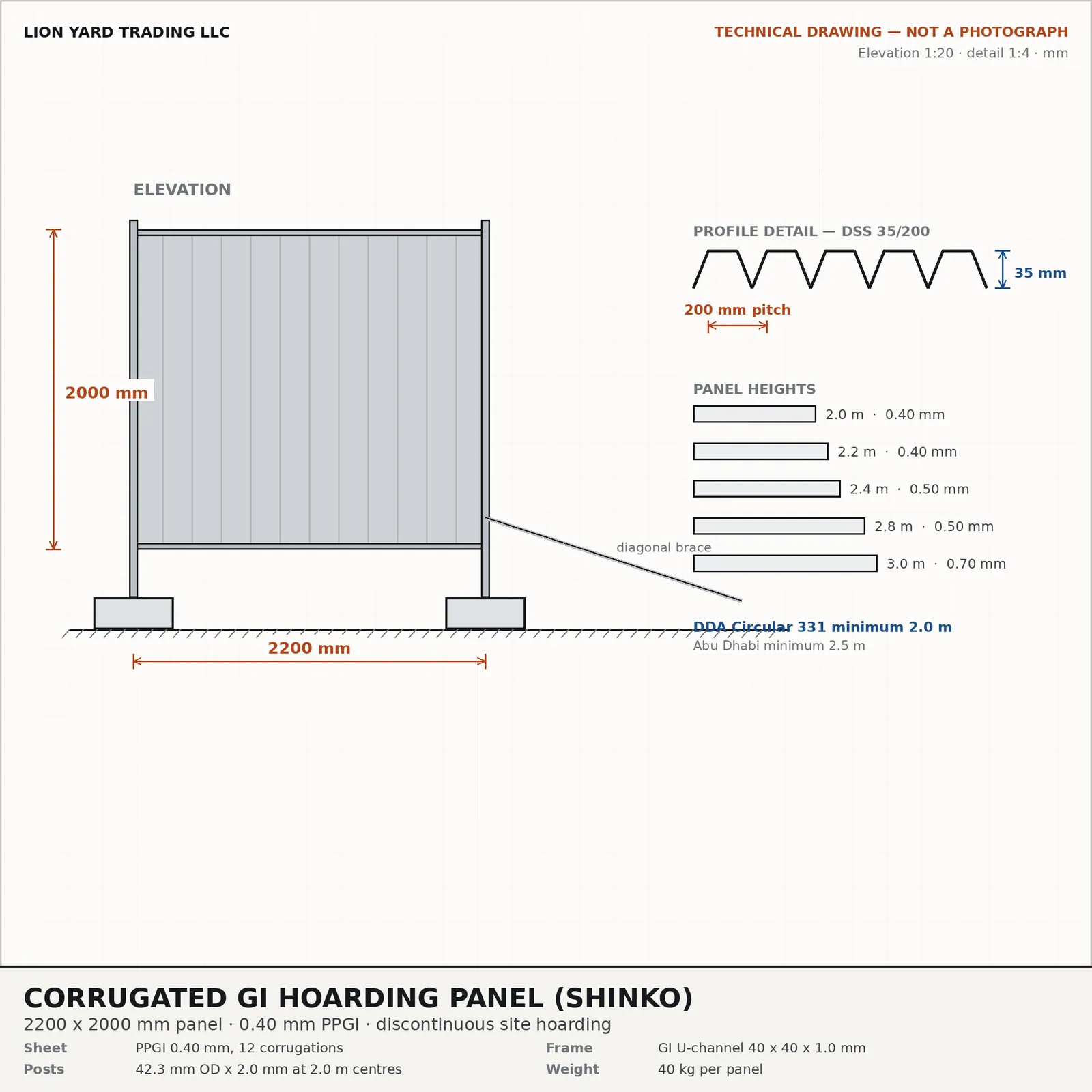

Corrugated GI Hoarding Panels (Shinko)

Known across the UAE trade as Shinko fencing, or discontinuous hoarding. Pre-painted galvanised corrugated sheet in a channel frame, standing in concrete blocks with a diagonal rear brace. The default enclosure for almost every building site in the country.

Specification

Sheet
PPGI 0.40 mm standard · 0.50–0.70 mm on request
Profile
DSS 35/200 standard · 12 corrugations per panel
Frame
GI U-channel 40 × 40 × 1.0 mm, top and bottom
Posts
42.3 mm OD × 1.2–2.0 mm GI ERW at 2.0 m centres
Bracing
Diagonal pipe 1.6–2.0 m to rear block
Standard colour
RAL 9002 off-white
Stocked colours
RAL 5010 (Emaar blue), 1001 beige, 7031 grey, 5012, 9003, 3020
Weight
40 kg per 2.2 × 2.0 m panel
Permit note
DDA Circular 331: minimum 2.0 m, corrugated steel, white, no logos or artwork. Abu Dhabi Municipality: 2.5 m minimum.

New: 2 year warranty | Refurbished: 6 month warranty

Prices exclude 5% VAT and are subject to change. Bulk discounts available. Last reviewed .

Photos of our own stock. Sizes and condition vary — ask on WhatsApp for the units available today.

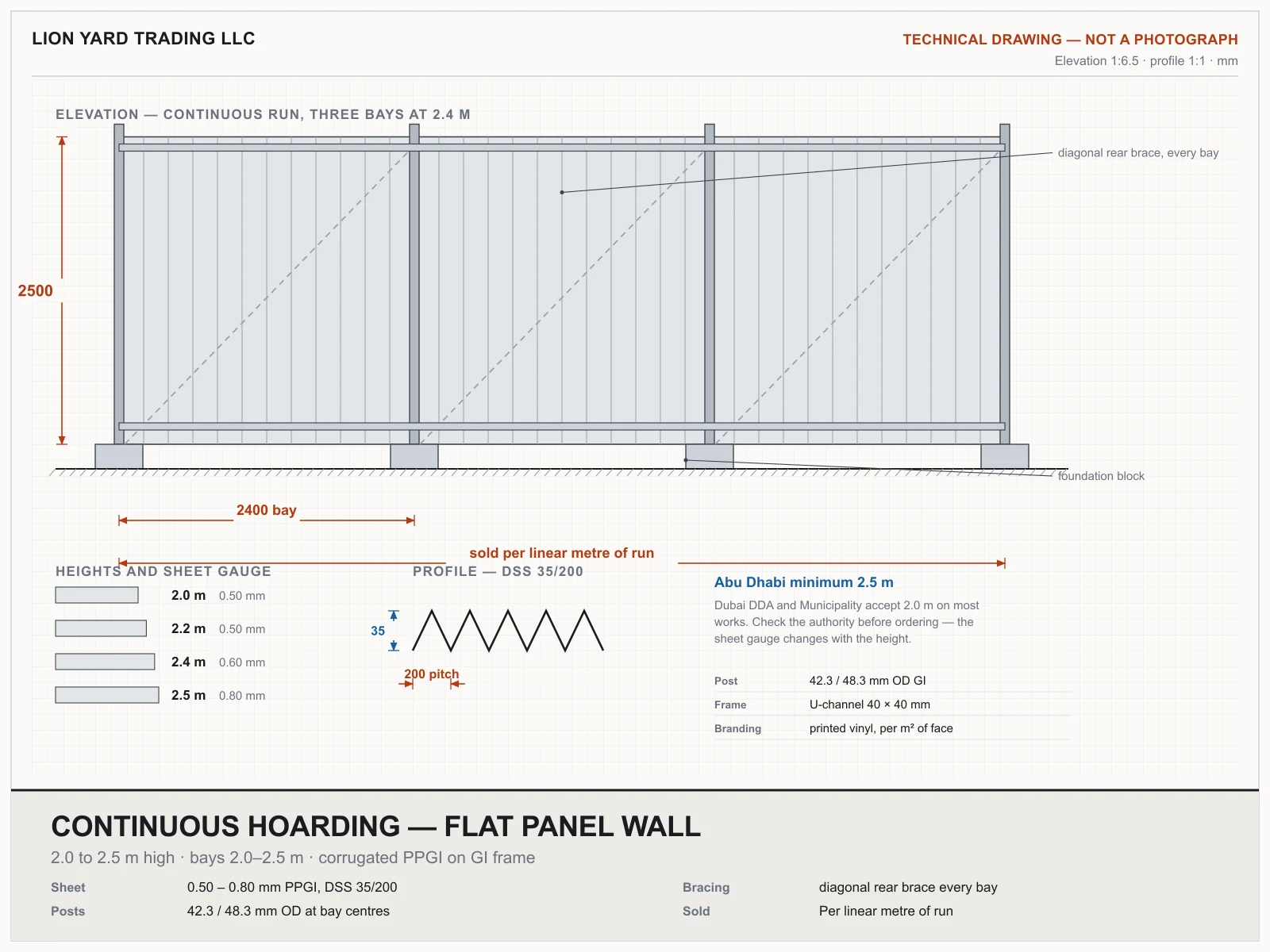

Continuous Hoarding — flat panel wall

A seamless flat-faced wall with no gaps, fabricated to the site boundary rather than stocked as a fixed panel. Specified where a developer wants a clean surface, and where thicker sheet is needed against wind load on an exposed frontage.

Specification

Sheet
0.50–0.80 mm to ASTM A653 / JIS G3302
Posts
RHS/SHS 50 × 50 mm or 60 × 60 mm at 2.0–2.5 m centres
Rails
GI U-channel top and bottom, rear pipe bracing to blocks
Base
Concrete blocks, steel base plate, bolt-down or cast-in
Finish
HDG, pre-painted or powder coated; plain or vinyl wrapped
Branding
Prohibited in DDA zones — Circular 331

New: 2 year warranty | Refurbished: 6 month warranty

Prices exclude 5% VAT and are subject to change. Bulk discounts available. Last reviewed .

Photos of our own stock. Sizes and condition vary — ask on WhatsApp for the units available today.

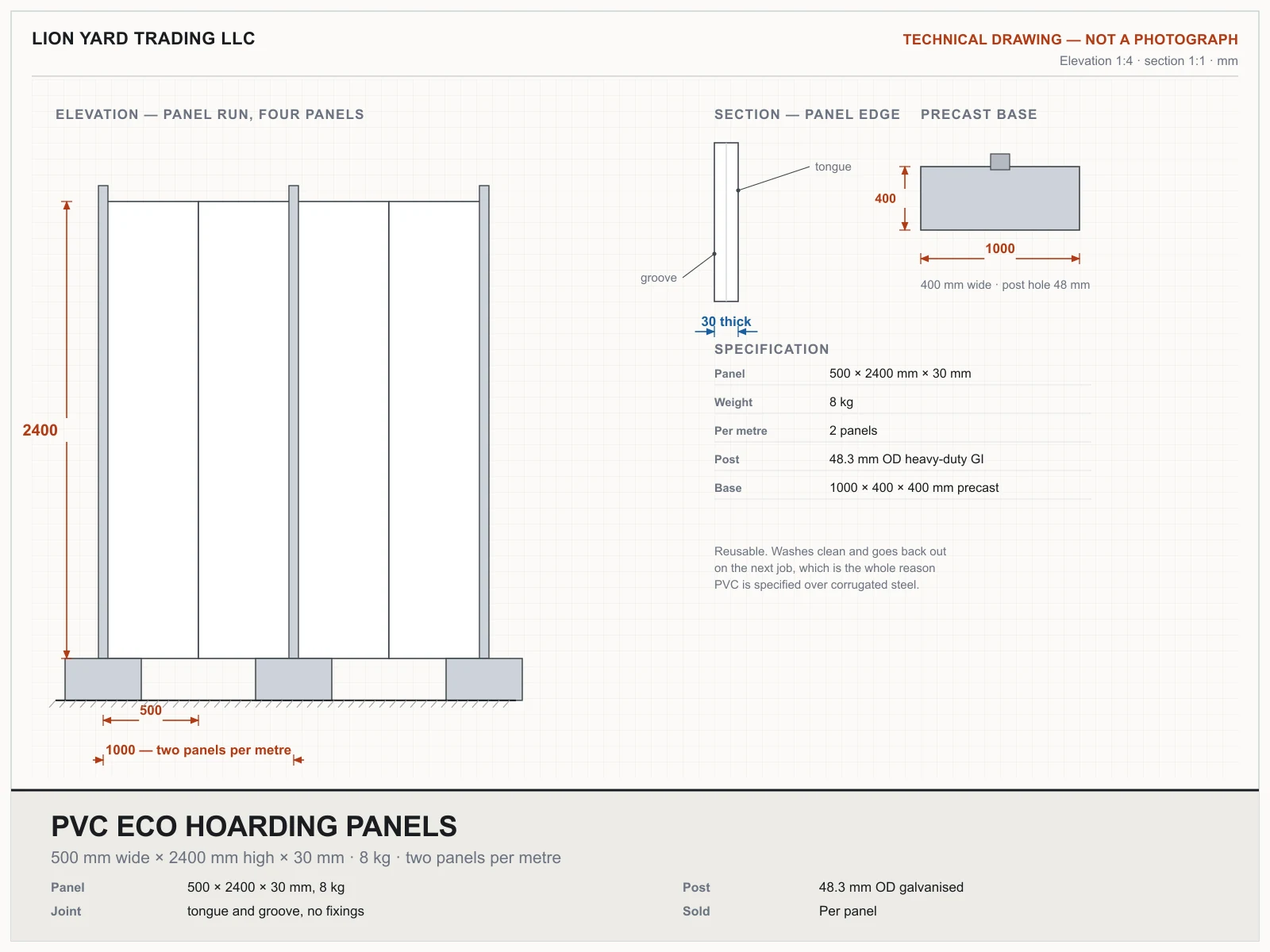

PVC Eco Hoarding Panels

Interlocking recycled-PVC planks with the colour extruded through, so scratches do not show and there is nothing to repaint. Light enough for two men to install without lifting gear, and cuttable on site with a hand saw.

Specification

Material
Recycled PVC, colour extruded through, 100% recyclable
Finished height
2.50 m with the standard 100 mm ground gap
Weight
8 kg per panel
Cutting
Hand saw on site
Where it does not apply
PVC is not corrugated steel, so it does not satisfy DDA Circular 331

New: 2 year warranty | Refurbished: 6 month warranty

Prices exclude 5% VAT and are subject to change. Bulk discounts available. Last reviewed .

Photos of our own stock. Sizes and condition vary — ask on WhatsApp for the units available today.

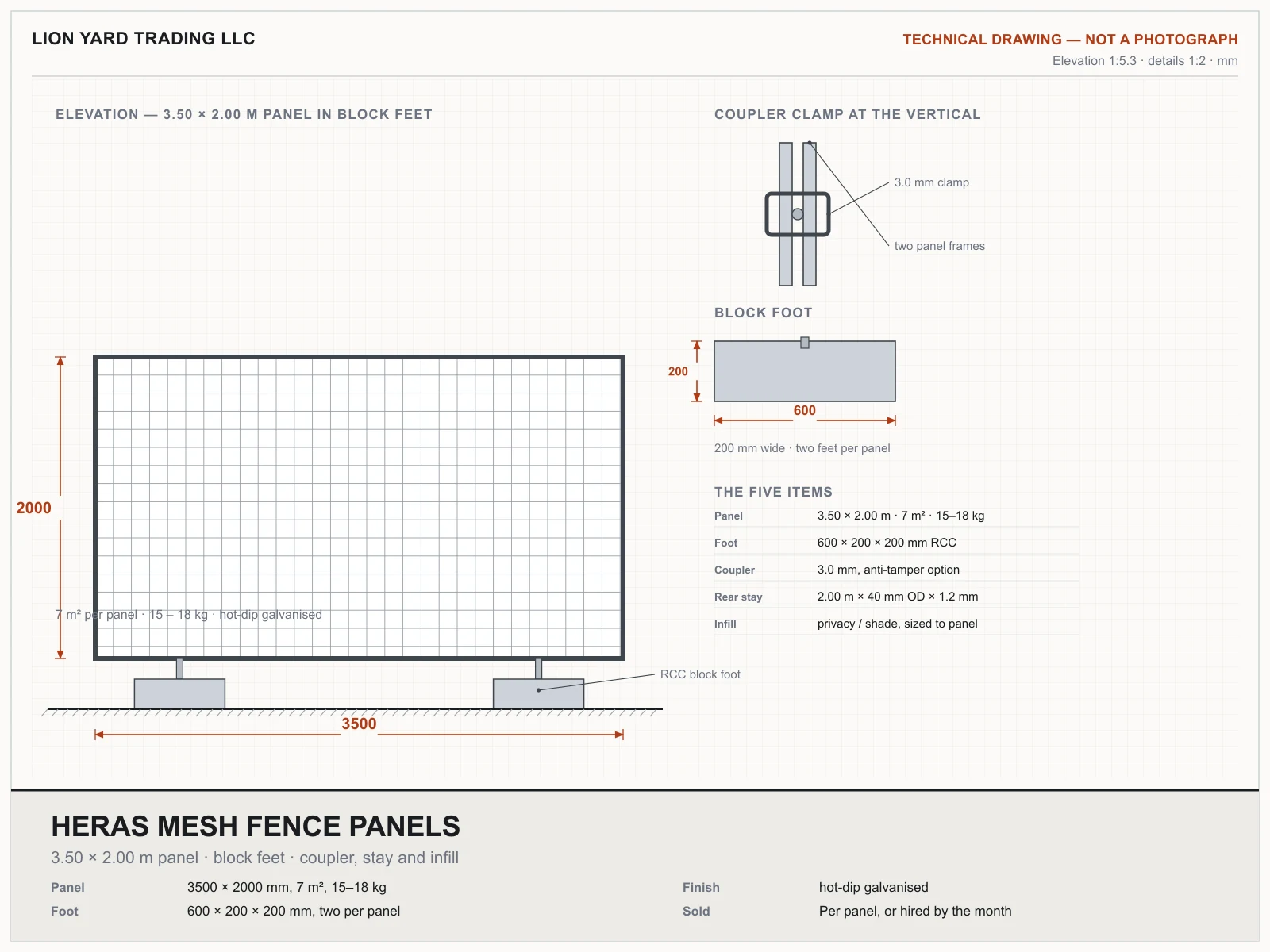

Heras Mesh Fence Panels

See-through welded mesh in a tubular frame standing in loose feet. Moves in minutes, which is what it is for — events, crowd routing, and internal site layouts that change week to week.

Specification

Panel
3.50 × 2.00 m — the standard across UAE suppliers
Mesh
100 × 50 mm is the figure most commonly quoted in the UAE
Wire
Horizontal 4 mm · vertical 3 mm
Frame
Horizontal tube 32 × 1.0 mm · vertical 38 × 1.2 mm
Finish
Hot-dip galvanised, commonly RAL 9006 silver for UV and coastal
Weight
15–18 kg per panel

New: 2 year warranty | Refurbished: 6 month warranty

Prices exclude 5% VAT and are subject to change. Bulk discounts available. Last reviewed .

Photos of our own stock. Sizes and condition vary — ask on WhatsApp for the units available today.

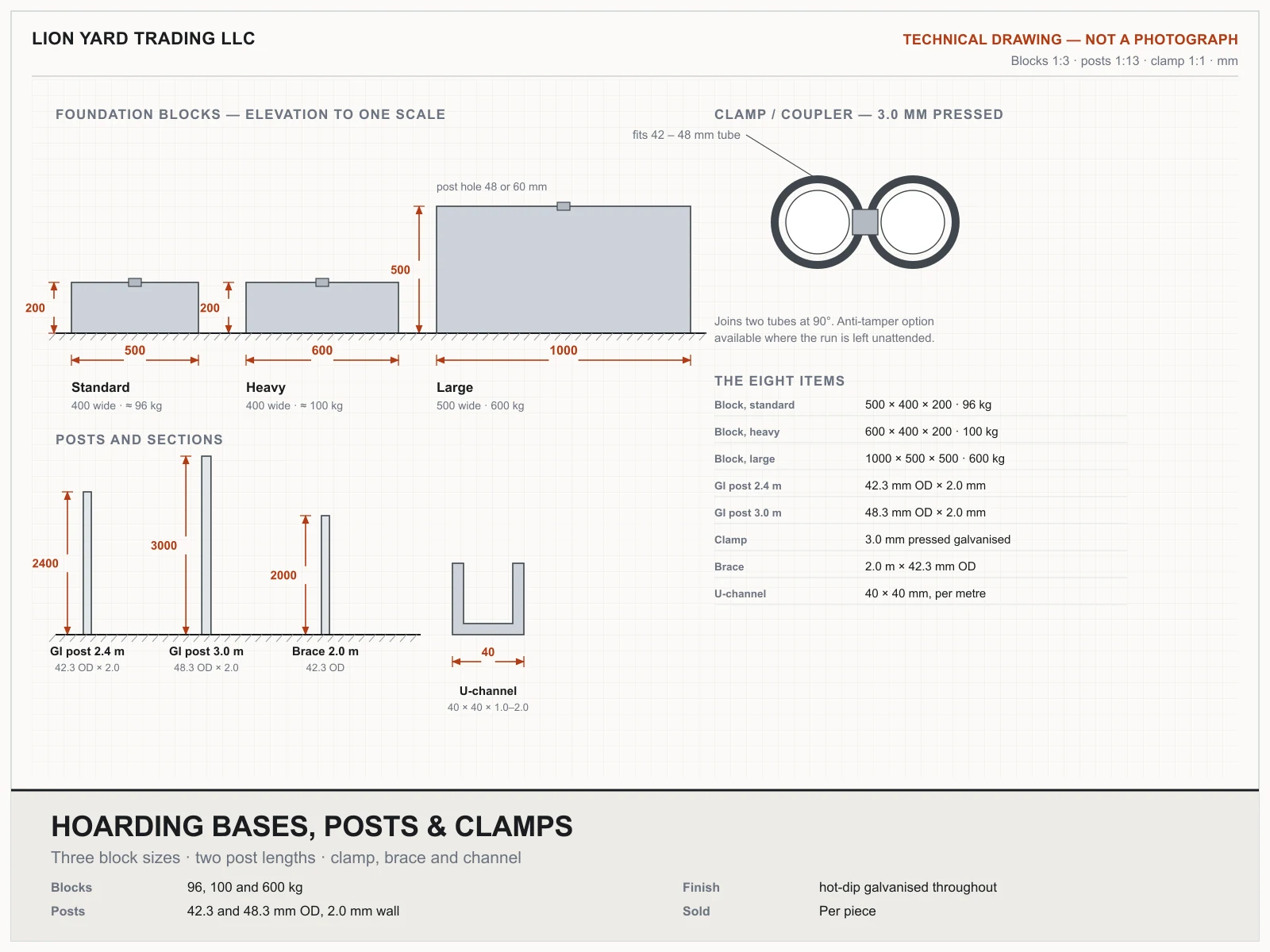

Hoarding Bases, Posts & Clamps

The parts that make everything above stand up. Panels get returned and reused; blocks and clamps get bought again on every job, which makes these the highest-volume repeat sale in the category.

Specification

Standard block
500 × 400 × 200 mm — two holes front, threaded bolt rear for the brace
Post sizes
42.3 mm OD for hoarding · 48.3 mm OD for taller runs
Clamp
3.0 mm pressed galvanised, fits 42–48 mm tube
Sold by
The piece

New: 2 year warranty | Refurbished: 6 month warranty

Prices exclude 5% VAT and are subject to change. Bulk discounts available. Last reviewed .

Photos of our own stock. Sizes and condition vary — ask on WhatsApp for the units available today.

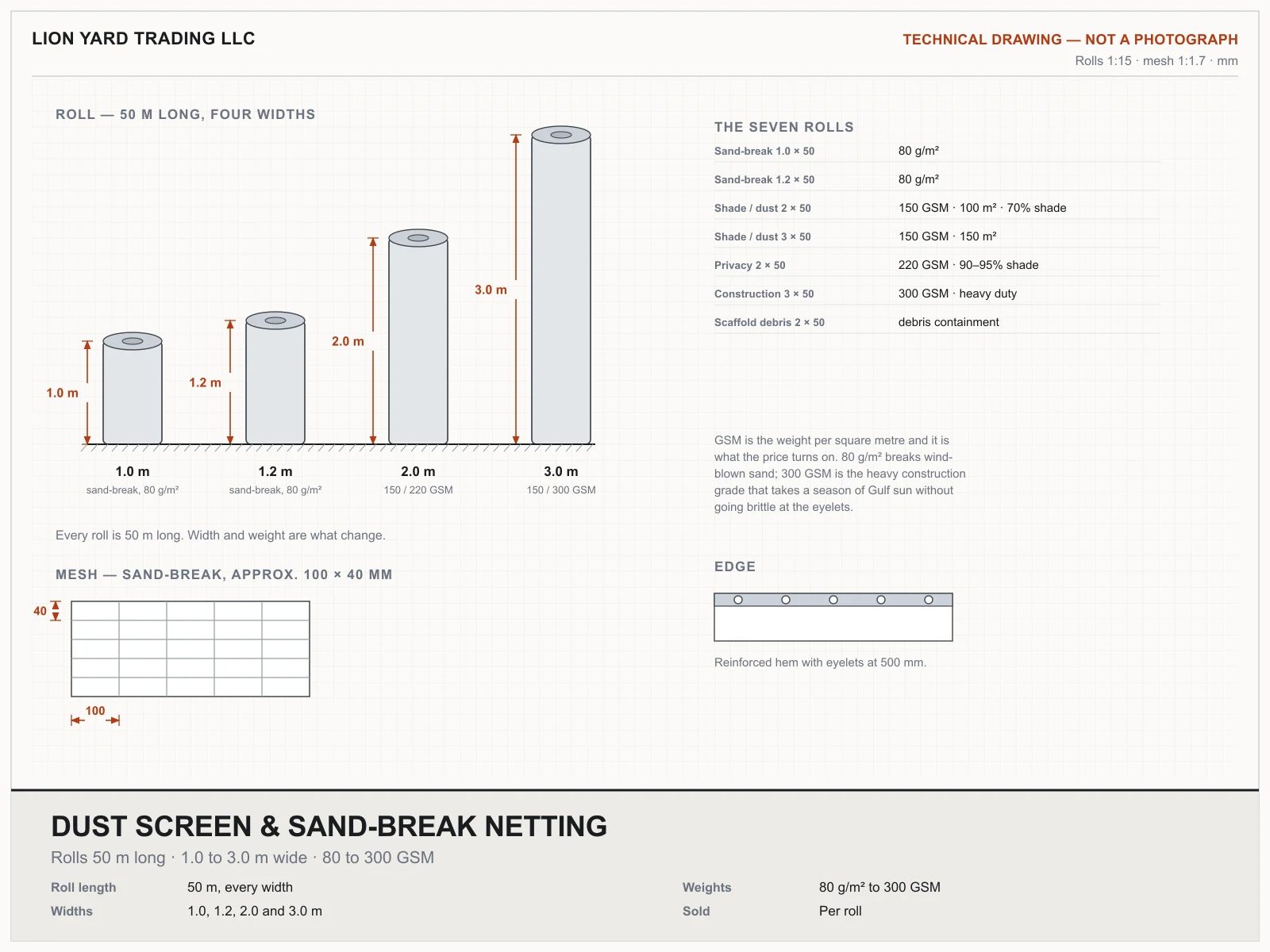

Dust Screen & Sand-Break Netting

HDPE knitted net for dust suppression, wind break and screening. A genuinely UAE category with no European equivalent — driven by sand, by dust-control duties on site, and by developers who do not want the works visible from the road.

Specification

Material
HDPE, UV stabilised
Colours
Green, black, beige, orange, yellow
Construction use
220–300 GSM at 70–90% shade
Privacy fencing
180–220 GSM at 90–95% shade
Sold by
The roll; made-to-measure quoted per m²

New: 2 year warranty | Refurbished: 6 month warranty

Prices exclude 5% VAT and are subject to change. Bulk discounts available. Last reviewed .

Photos of our own stock. Sizes and condition vary — ask on WhatsApp for the units available today.

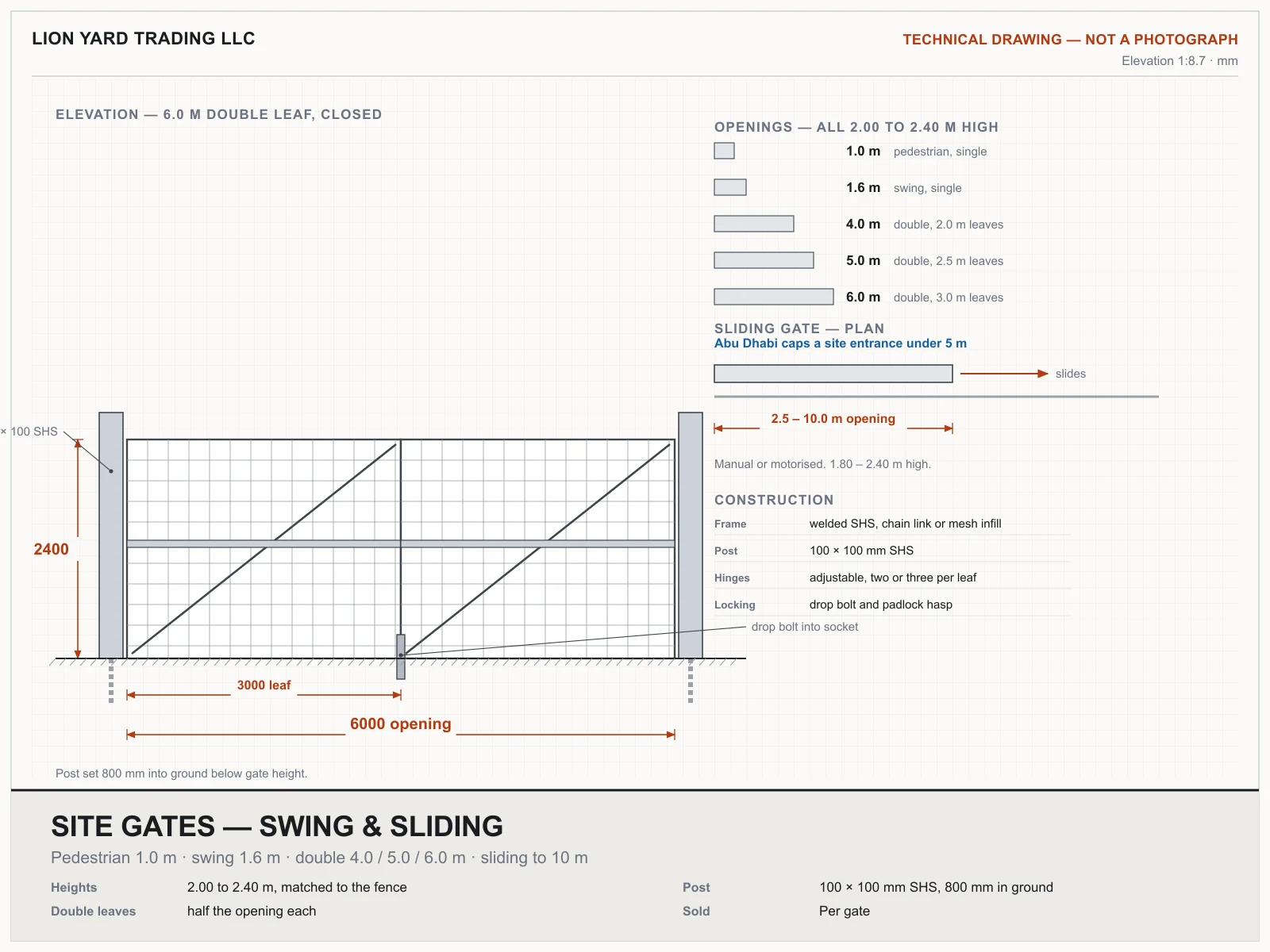

Site Gates — swing & sliding

Every enclosed plot needs at least one. The infill is matched to whatever the run is — corrugated sheet for hoarding, mesh for Heras, palisade for a permanent boundary.

Specification

Infill
Corrugated sheet, mesh, palisade or railings to match the run
Gate posts
80 × 80 × 5 mm to 100 × 100 mm SHS, by leaf size
In-ground
800 mm to 1.0 m, or a baseplate bolted to concrete
Operation
Manual, or motorised on sliding gates
Permit note
Abu Dhabi Municipality caps a site entrance at under 5 m wide

New: 2 year warranty | Refurbished: 6 month warranty

Prices exclude 5% VAT and are subject to change. Bulk discounts available. Last reviewed .

Applications

Where this is used.

The jobs site hoarding & temporary fencing actually do. If yours is not on the list, it is still worth asking — most of what we supply ends up somewhere nobody wrote down.

  • Plot enclosure before work starts

    The permit condition that comes before everything else — the boundary has to stand, at the height and colour the authority for that plot specifies, before the first delivery arrives.

  • Road frontage & pedestrian diversion

    Where the site meets a footpath or carriageway, and the enclosure is also what keeps the public out of the works.

  • Phased handover

    Hoarding moved inwards as zones complete, so the finished part opens while the rest stays enclosed. Panels come back to us and go out again on the next job.

  • Events & changing internal layouts

    Heras panels in loose feet, moved by two men in minutes, for crowd routing and site areas that change week to week.

  • Dust, sand & visual screening

    HDPE netting over the enclosure where the works have to be kept out of the wind, out of the neighbours' air, or out of sight from the road.

  • Site entrances

    Vehicle and pedestrian gates matched to the run. Abu Dhabi caps a site entrance at under 5 m, which decides the leaf sizing before anything else.

Technical detail

What we can put in front of your engineer.

Ask for any of it against a specific size and you will get it the same working day.

  • Panel height, sheet gauge and weight per panel, so you can check it against the permit condition
  • Which authority governs your plot, and what it specifies for height, material and colour
  • How many blocks, posts, clamps and braces a given run length needs
  • Stocked RAL colours, and which one the plot's authority will accept

We do not publish downloadable datasheets. Where a standard or a certificate is written into your specification, ask us against the specific unit — we will either produce the supplier documentation or tell you plainly that we cannot, rather than leave you to find out at inspection.

Send us the specification

The fastest quote comes from the run length in metres, which authority issues the permit, the plot location, and whether you need gates.

Sat–Thu, 8:00 AM – 6:00 PM. Outside those hours it is answered the next working morning.

Why buy here

What you get with the price.

Stock on the ground

Same-day into Ajman and Sharjah for what is in the yard, one to three working days elsewhere.

New and refurbished

Both grades priced side by side on every line, so the budget decision is yours to make, not ours to steer.

Delivered and offloaded

Our own transport across all 7 Emirates, with crane or forklift offloading arranged and quoted before you commit.

Checked before it leaves

Refurbished units are cleaned, repaired and inspected in our own yard rather than shipped on as found.

Bulk and project supply

Send the full requirement rather than line by line — contractor and bulk rates are better than list.

Straight answers

If we cannot meet a specification or evidence a standard, we say so at enquiry stage rather than after the order.

Buying guide

Specifying site hoarding

The permit decides your height and your colour. Everything after that is a choice, and the one that costs most to get wrong is ordering panels without the blocks, posts and clamps that make them stand up.

Discontinuous or continuous

Two systems sit under the word hoarding and they are priced differently because they are built differently. Discontinuous — what the trade calls Shinko — is stocked panels standing in concrete blocks, sold per panel and reusable job to job. Continuous is a flat-faced wall fabricated to your boundary, sold per linear metre, with no gaps at the joints.

  • Panels are the default and the cheaper option, because they are stock and they come back to us at the end of the job. Choose them unless something forces otherwise.
  • Continuous is specified where the developer wants an unbroken surface, or where wind load on an exposed frontage needs thicker sheet than a stock panel carries.
  • PVC eco panels are lighter, need no repainting because the colour runs through the plank, and cut on site with a hand saw. They are not corrugated steel, so they do not satisfy DDA Circular 331.

Sheet gauge, and what it buys

Standard panels are 0.40 mm pre-painted galvanised sheet on the DSS 35/200 profile, twelve corrugations to a panel. Thicker sheet is available at 0.50 and 0.70 mm, and continuous walls run to 0.80 mm.

  • Gauge buys stiffness against wind and resistance to denting, not height. A taller panel in thin sheet is the wrong trade.
  • Above about 2.4 m, or on an exposed frontage with nothing upwind of it, move up a gauge rather than adding bracing later.
  • The frame and posts matter as much as the sheet — GI U-channel top and bottom, 42.3 mm posts at 2.0 m centres, and a diagonal brace back to a block on every post.

What a 100 metre run actually needs

The panel count is the part everyone gets right and the fixings are the part that gets left off the order. These are straight arithmetic from the dimensions in the tables above, for a run with no gates and no corners.

SystemPer 100 m of run
Corrugated GI panels50 panels at 2.0 m post centres, 51 posts, 51 foundation blocks, 51 braces
PVC eco panels200 planks at 0.50 m wide — 2 per metre of run
Heras mesh panels29 panels at 3.5 m, 30 block feet, 29 coupler clamps

Add a panel and a post at every corner and either side of every gate opening. Gates are separate — every enclosed plot needs at least one, and Abu Dhabi caps a site entrance at under 5 m wide.

Branding is prohibited in DDA zones, not required

Circular 331 specifies white with no logos or artwork, and Dubai Healthcare City specifies dark green. If you have been told a premium developer expects a wrapped marketing banner, check which authority governs the plot before you order the vinyl — in a DDA zone it will be refused.

Questions

Straight answers.

How high does site hoarding have to be in the UAE?

It depends on the authority governing the plot, not on the emirate. DDA Circular 331 sets a minimum of 2.0 m in the Dubai free zones it covers. Abu Dhabi Municipality is reported at 2.5 m. For Dubai mainland the rule sits in Chapter 6 of the DM Code of Construction Safety Practice, which we have not been able to read at source — the 2.4 m figure quoted across the trade traces only to supplier blogs, so ask us and we will confirm before you order.

Can I put my company branding on site hoarding?

Not in a Dubai Development Authority zone. Circular 331 requires white hoarding with no logos or artwork, and the Dubai Healthcare City circular specifies dark green. Elsewhere it depends on the authority, so check the plot before printing anything.

What is Shinko fencing?

It is the UAE trade name for discontinuous corrugated hoarding — pre-painted galvanised corrugated sheet in a channel frame, standing in concrete foundation blocks with a diagonal brace to the rear. It is the default enclosure on almost every building site in the country.

How many foundation blocks do I need?

One per post, and posts sit at 2.0 m centres, so a 100 m run takes 51 posts and 51 blocks. Standard blocks are 500 x 400 x 200 mm at roughly 96 kg. Add a post either side of every gate opening and at every corner.

Can I hire hoarding rather than buy it?

We sell rather than hire. Panels are reusable across jobs, and we buy back used hoarding — so the practical equivalent is buying, using it for the programme, and selling it back to us at the end.
