Perimeter Intrusion Detection (PIDS)

Perimeter & Security Fencing

3options10technical drawings

Priced on enquiry

Priced per zone against your fence length and the sensor technology the site needs.

WhatsApp us

Tell us the size and where it is going.

About this product

  • What it is: Vibration, taut-wire or fibre-optic sensor cable fixed along an existing fence line…
  • Fits onto your fence: Mounted to 358 mesh, palisade or chain link you already have — this is a detection system…
  • Nuisance rejection: Panel logic distinguishes wind and rain vibration from an actual climb or cut attempt, so…
  • Who buys it: Substations, ports, data centres, depots and any site where a breach has to be known…
  • Delivery: All 7 Emirates from our own yard.
  • Installation service: Supply only, or supplied and installed by our own crew rather than a subcontractor.
Read the full specification →
Delivered across all 7 Emirates

All 3 options

Every option on one list. Tap any row to ask about that one.

Priced per zone against your fence length and the sensor technology the site needs.

What it is

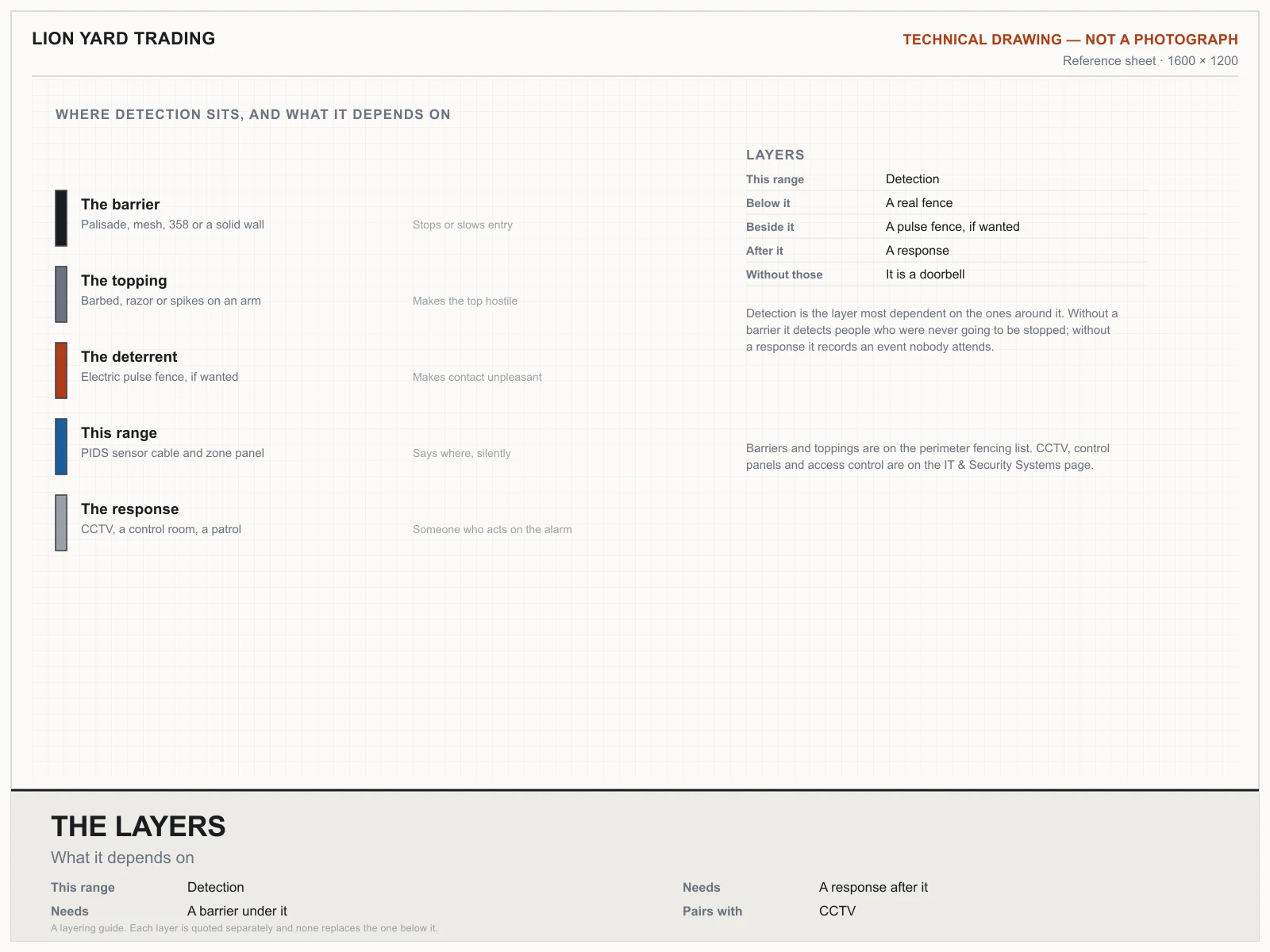

Fence-mounted sensors that detect climbing or cutting attempts on an existing fence and raise a zoned alarm — the detection layer for critical-infrastructure and high-value sites.

Specification

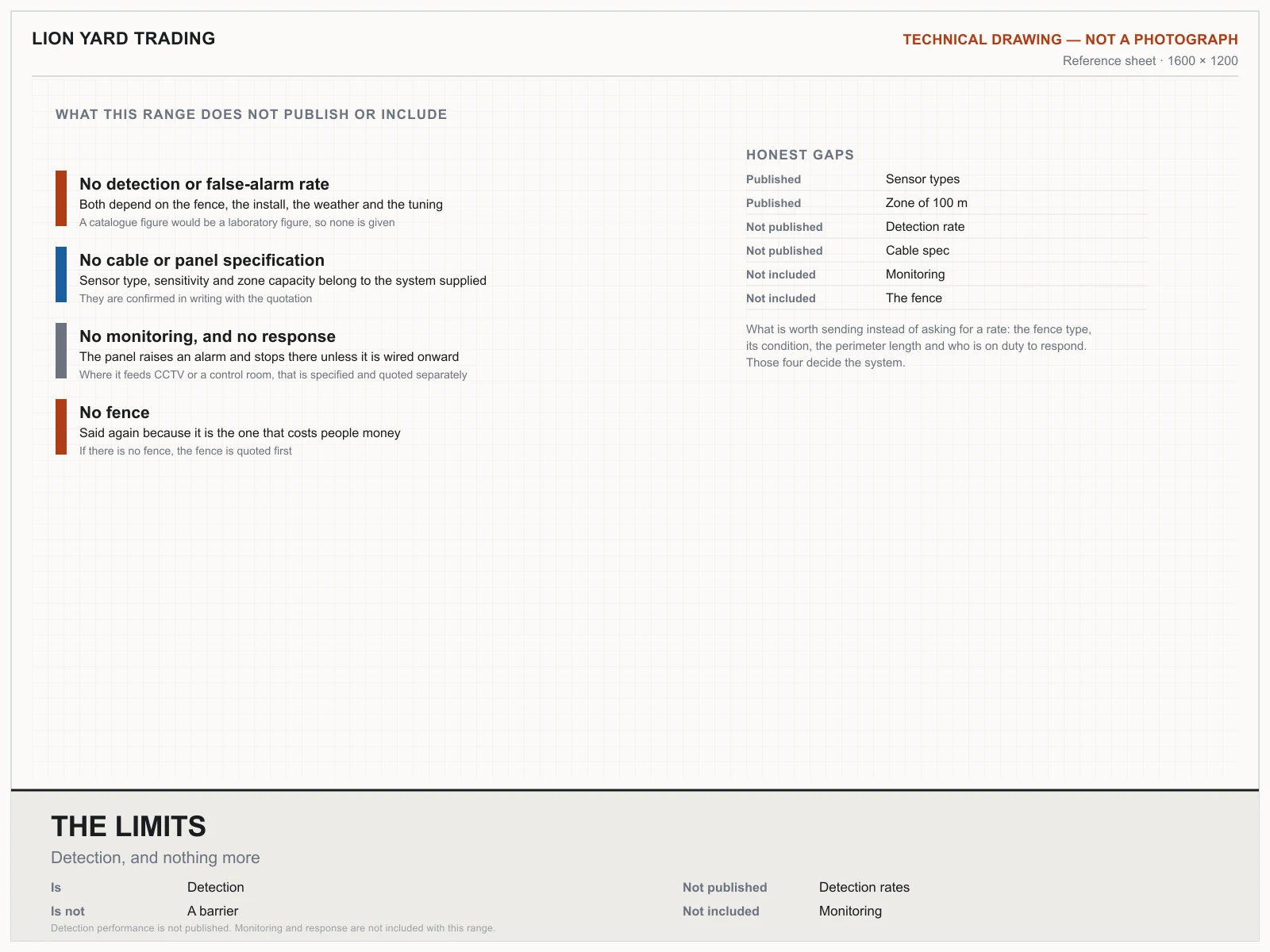

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

What it is
Vibration, taut-wire or fibre-optic sensor cable fixed along an existing fence line, wired to a control panel that raises a zone-specific alarm when the sensor detects a climb or cut attempt.
Fits onto your fence
Mounted to 358 mesh, palisade or chain link you already have — this is a detection system added to a physical fence, not a fence itself.

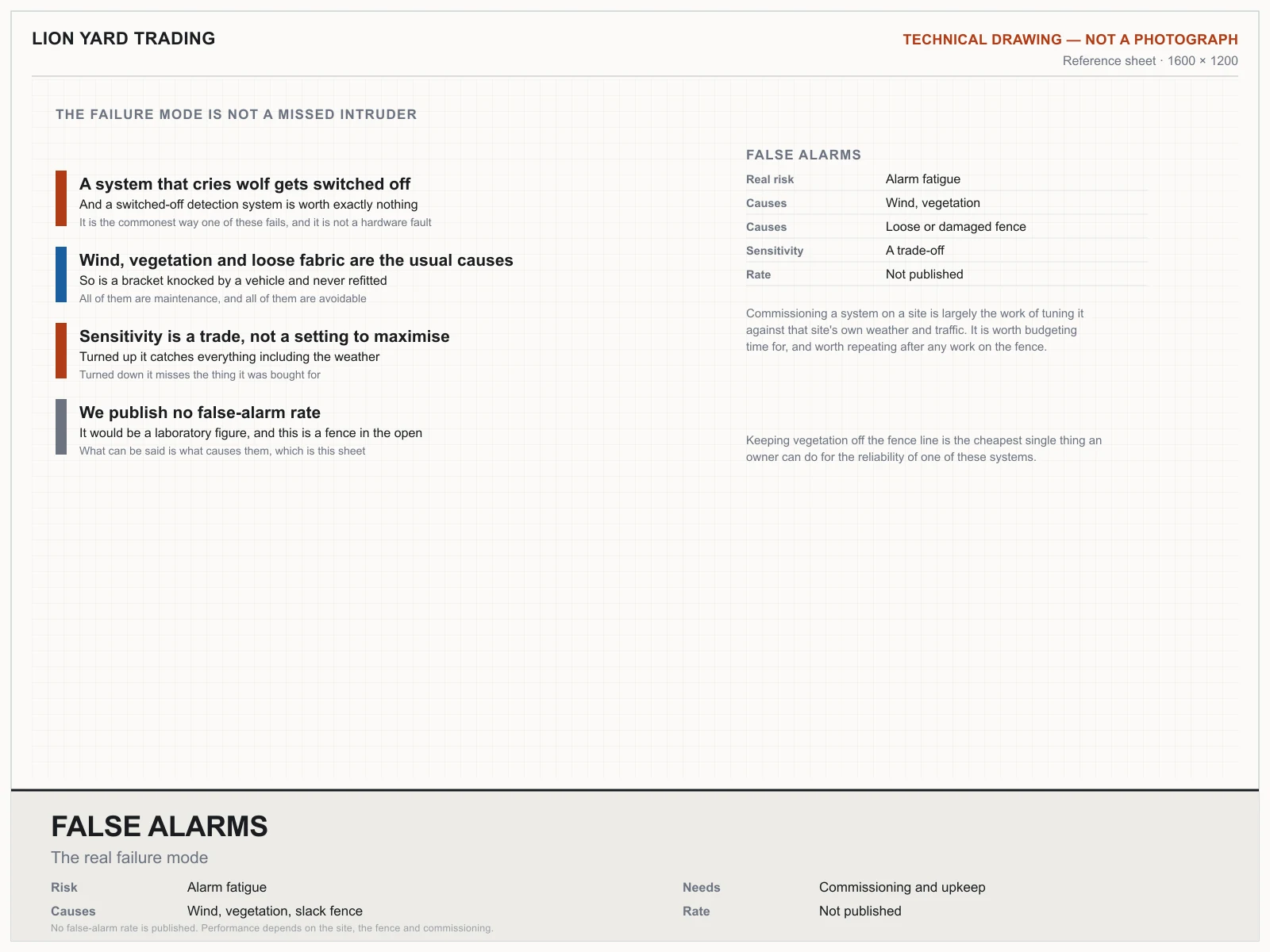

Nuisance rejection
Panel logic distinguishes wind and rain vibration from an actual climb or cut attempt, so the system does not flood a control room with false alarms.

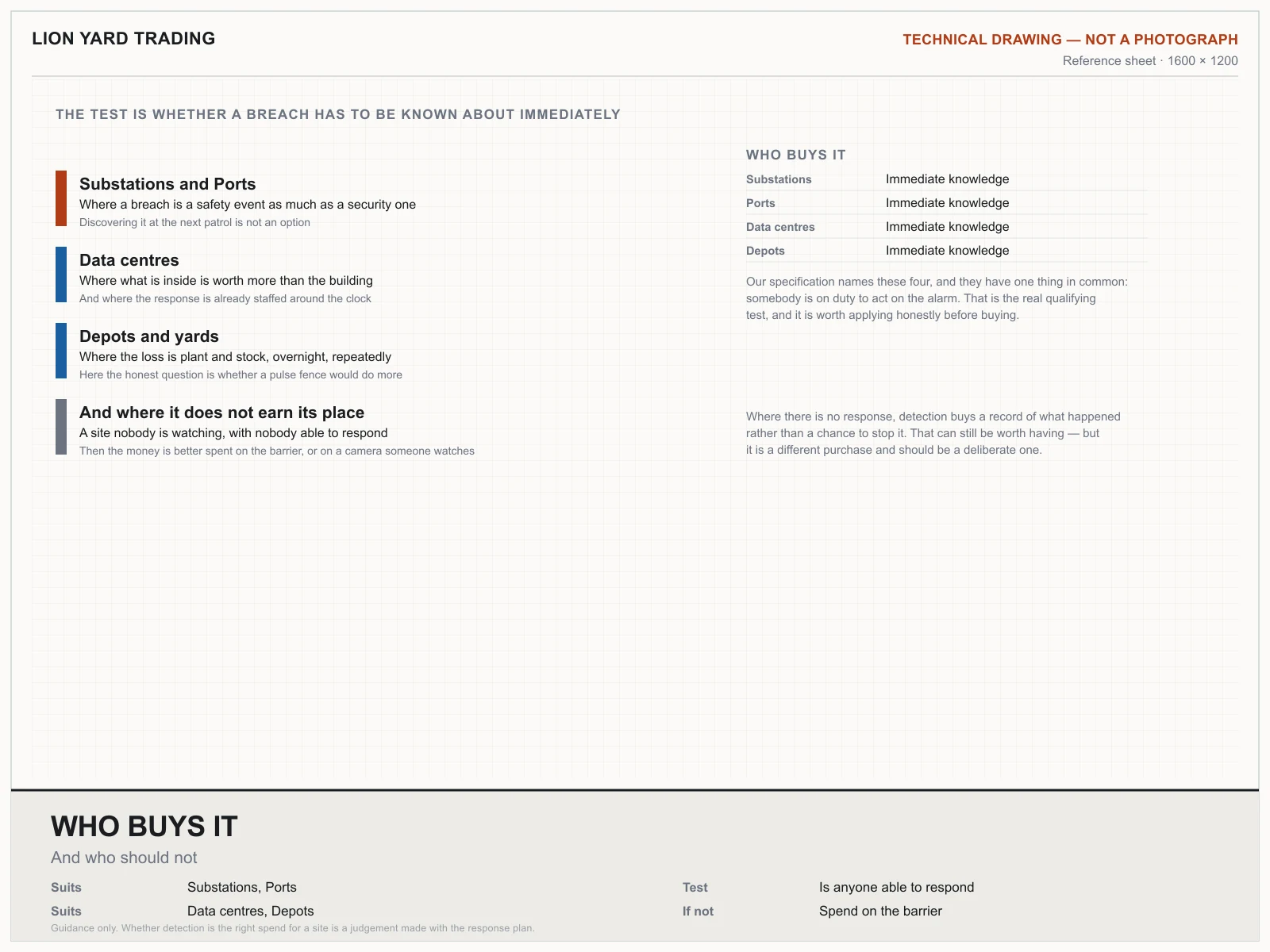

Who buys it
Substations, ports, data centres, depots and any site where a breach has to be known about immediately, not discovered on the next patrol.
Delivery
All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
Installation service
Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.

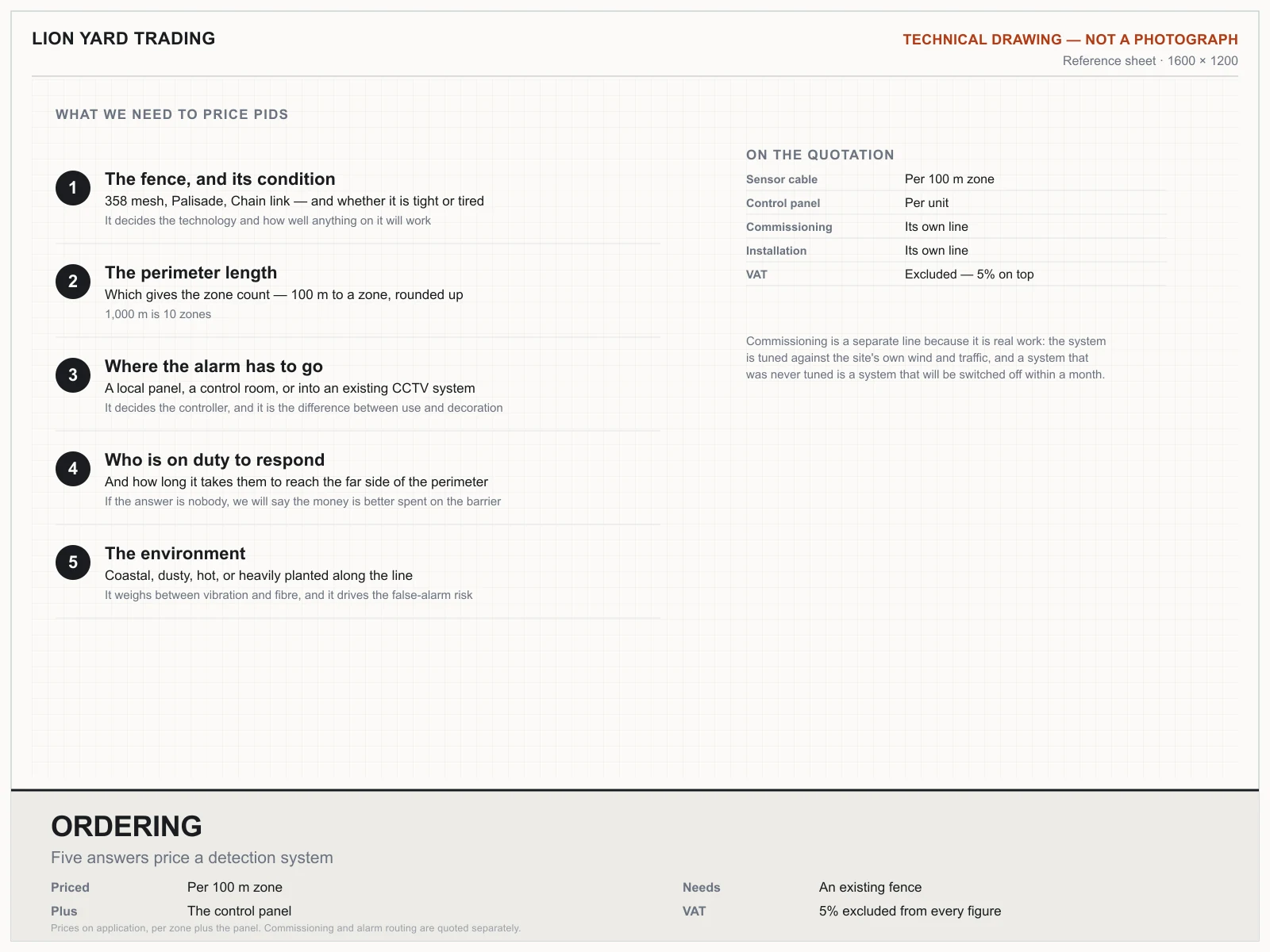

Ordering
Priced per zone against your fence length and the sensor technology the site needs.
Perimeter Intrusion Detection (PIDS)

Technical Procurement & Ordering Guides

10 drawings covering every answer we need to price Perimeter Intrusion Detection (PIDS) — every figure comes from the price table above or from the published standard it is made to.

The systemA sensor on your fence

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your perimeter intrusion detection (pids)?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.

WhatsApp us
