3D Curved Welded Mesh Panels
Perimeter & Security Fencing
Priced on enquiry
Priced per panel against your run length and quantity.
Tell us the size and where it is going.
About this product
- Wire: 3.0–5.0 mm · 5 mm standard
- Mesh: 50 × 200 mm · folds 50 × 100 mm

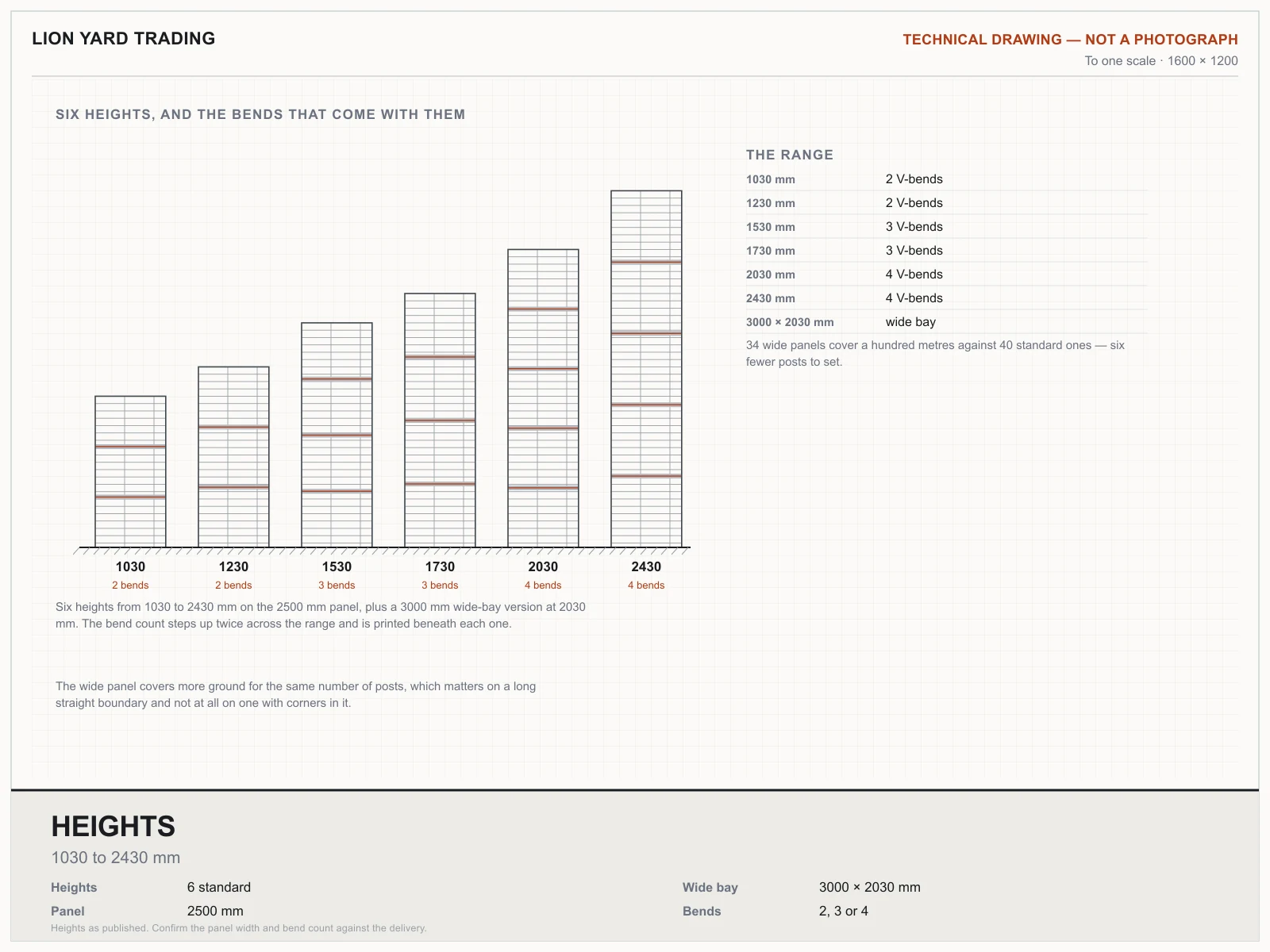

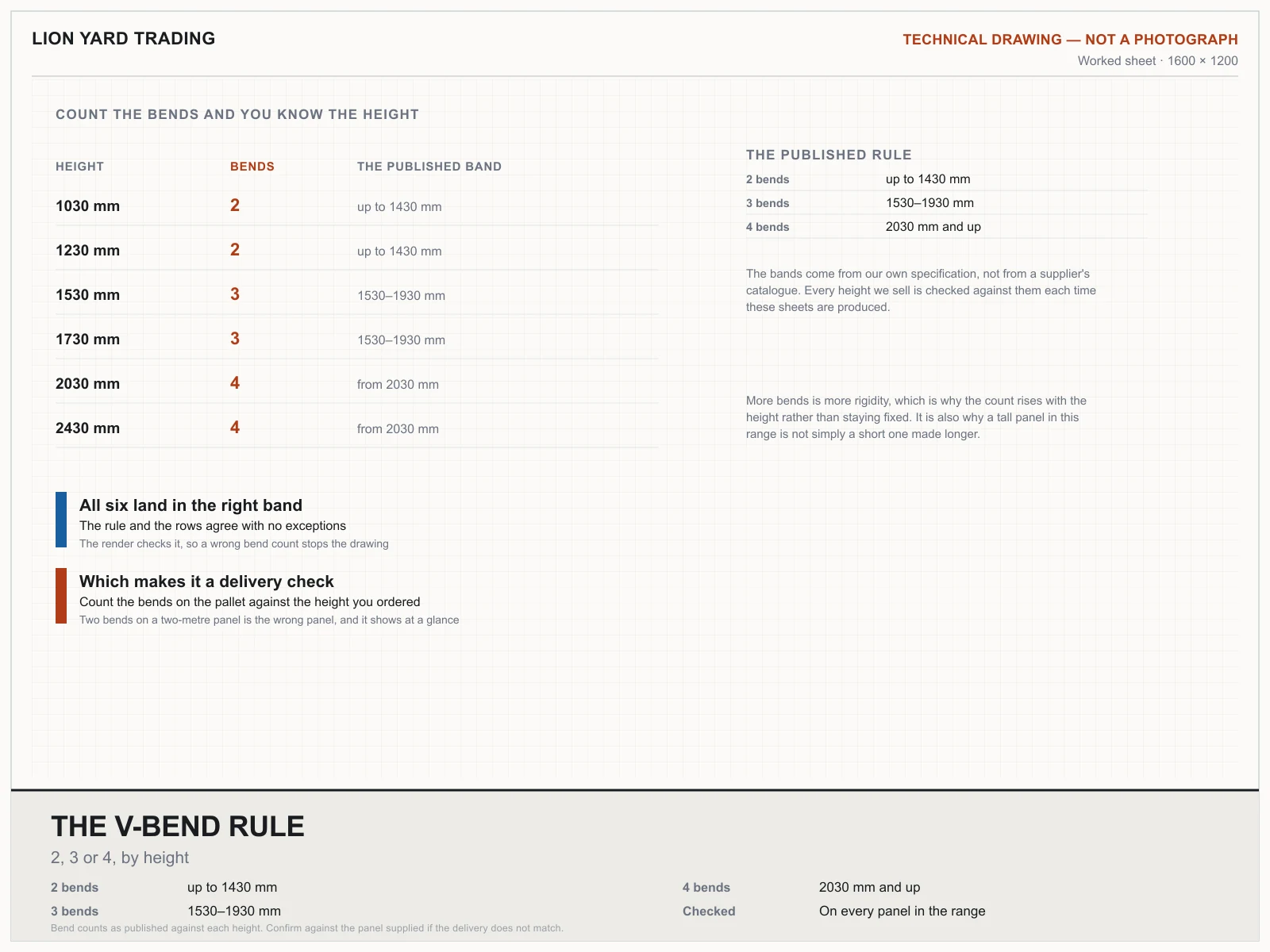

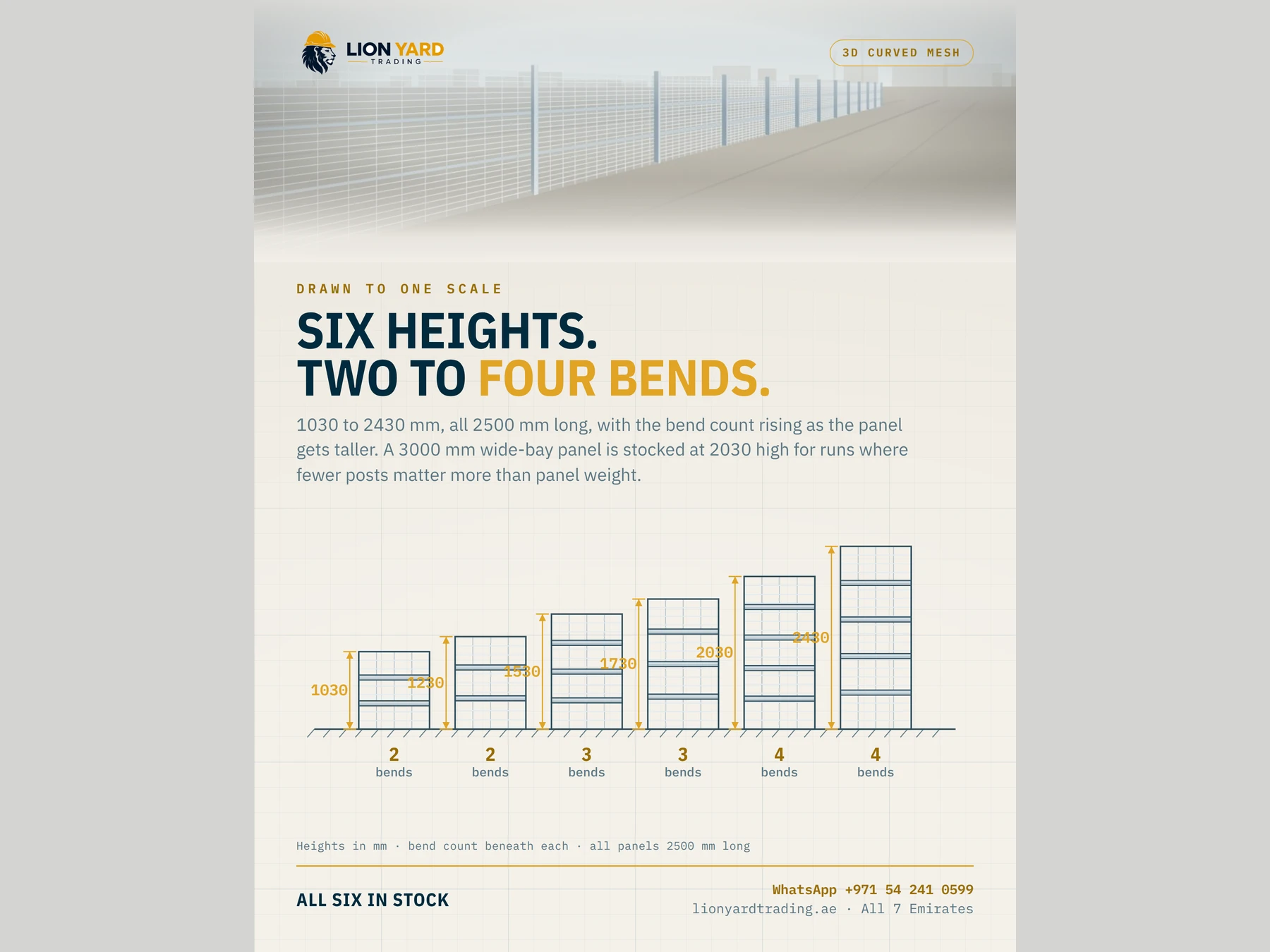

- V-bends: 2 up to 1430 mm · 3 from 1530–1930 mm · 4 from 2030 mm

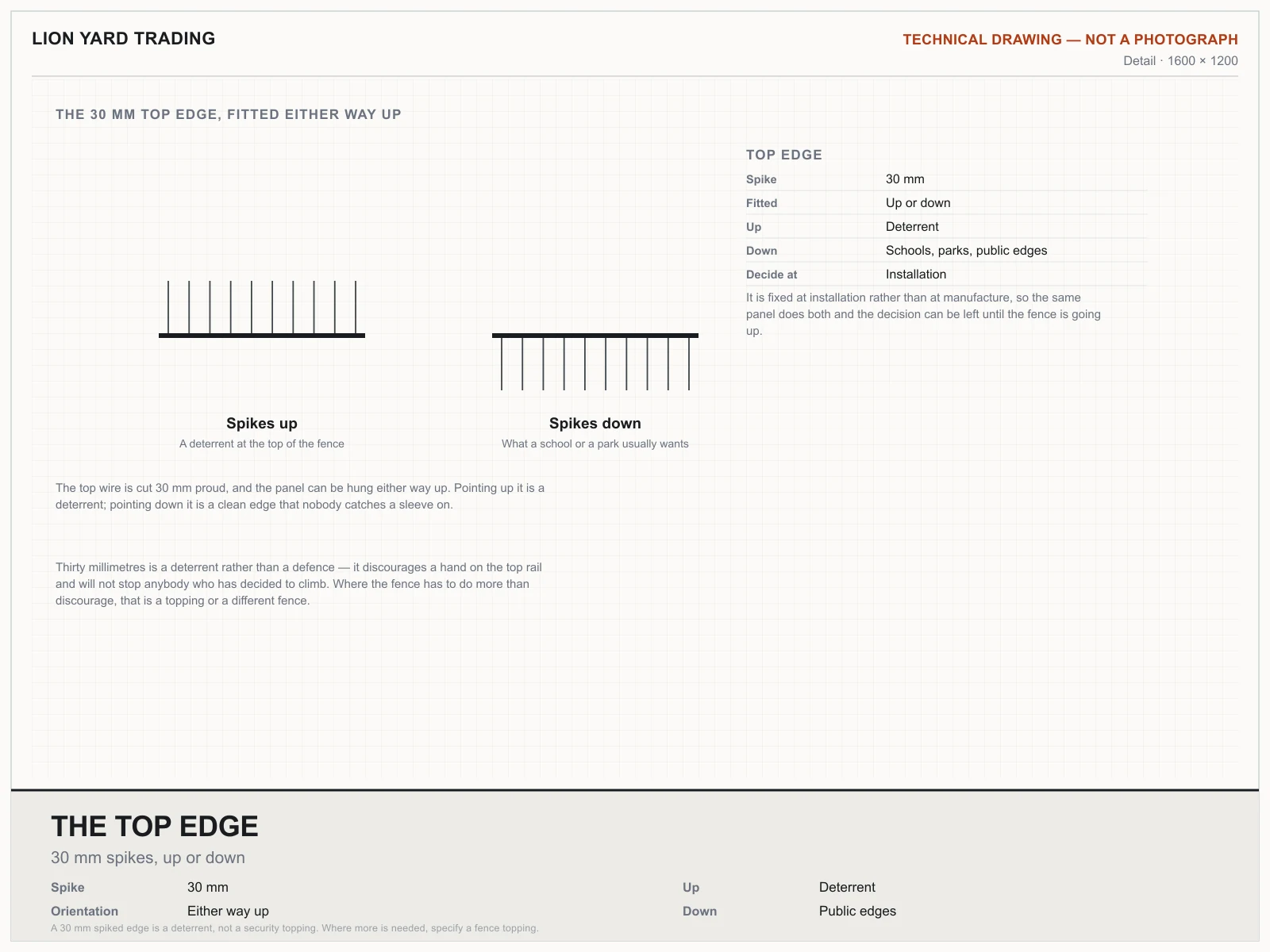

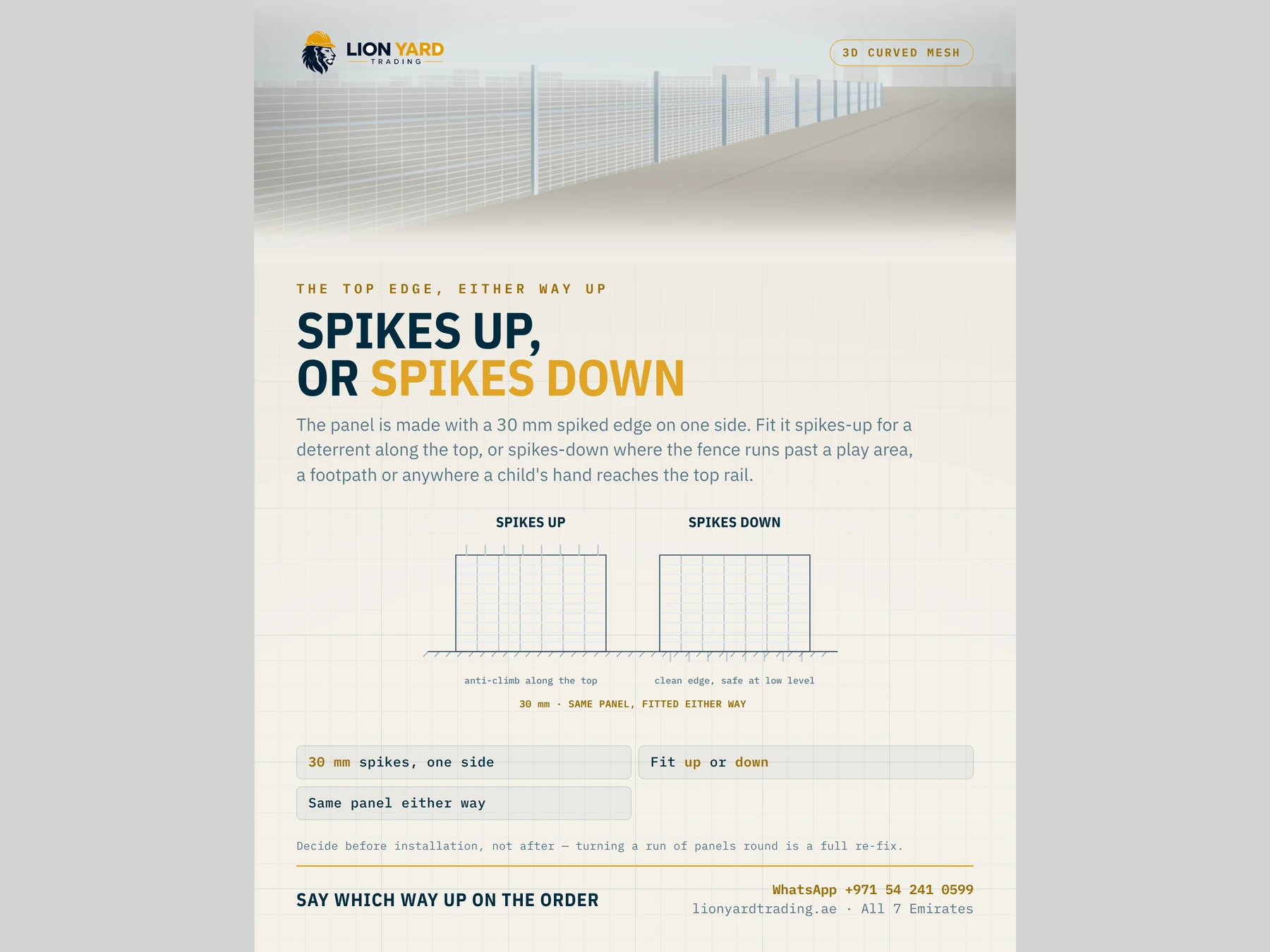

- Top edge: 30 mm spikes one side, fit up or down

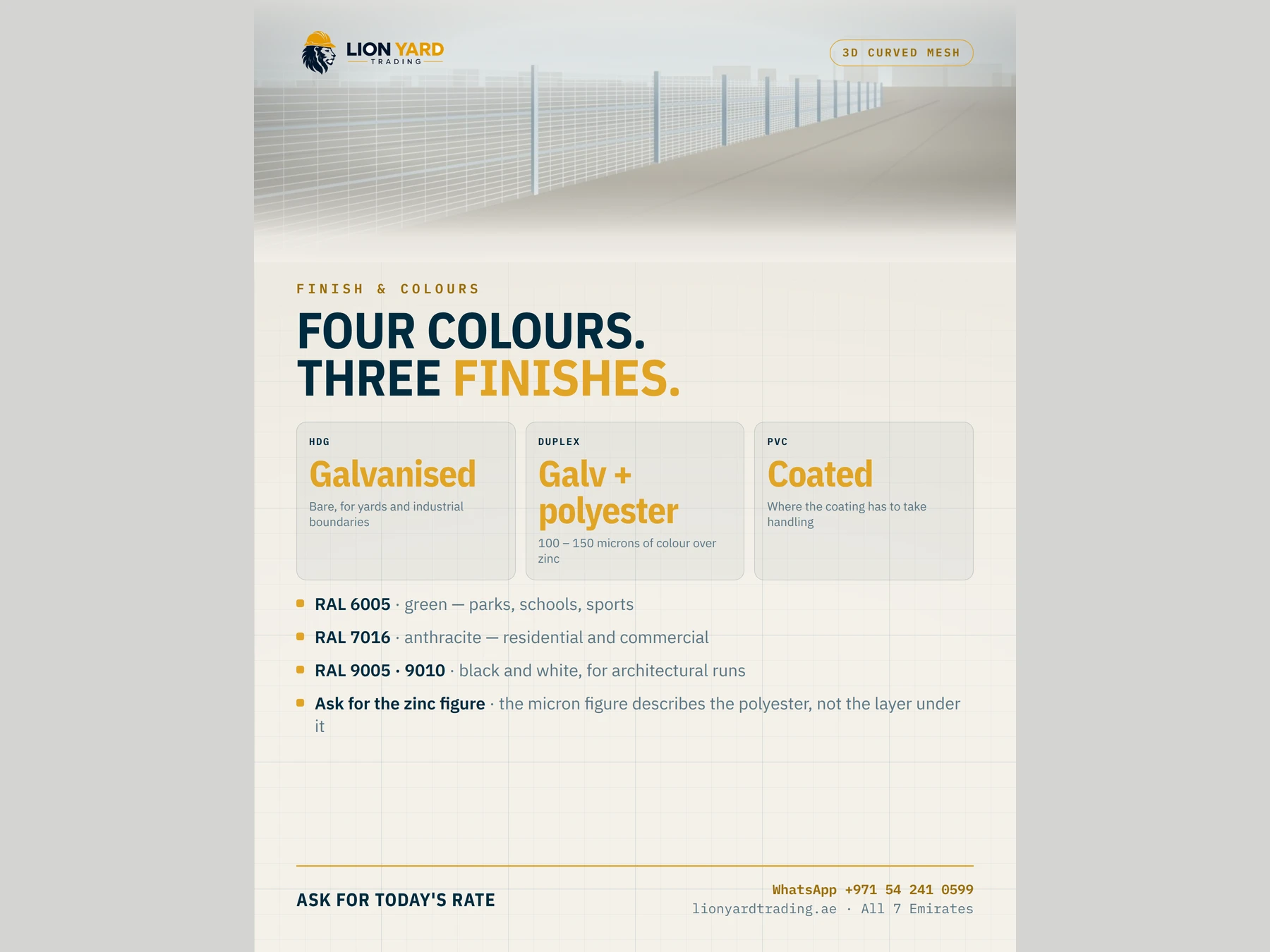

- Finish: HDG · galvanised plus polyester 100–150 microns · PVC
- Colours: RAL 6005 · 7016 · 9005 · 9010
All 8 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| 3D panel 2500 × 1030 mmLY-PERI-028 | 2.50 m long × 1.03 m high · 2 V-bends · wire 4–5 mm | Ask |
| 3D panel 2500 × 1230 mmLY-PERI-029 | 2.50 m long × 1.23 m high · 2 V-bends | Ask |
| 3D panel 2500 × 1530 mmLY-PERI-030 | 2.50 m long × 1.53 m high · 3 V-bends | Ask |
| 3D panel 2500 × 1730 mmLY-PERI-031 | 2.50 m long × 1.73 m high · 3 V-bends | Ask |
| 3D panel 2500 × 2030 mmLY-PERI-032 | 2.50 m long × 2.03 m high · 4 V-bends | Ask |
| 3D panel 2500 × 2430 mmLY-PERI-033 | 2.50 m long × 2.43 m high · 4 V-bends | Ask |
| 3D panel 3000 × 2030 mm — wideLY-PERI-034 | 3.00 m long × 2.03 m high · wide-bay pattern | Ask |

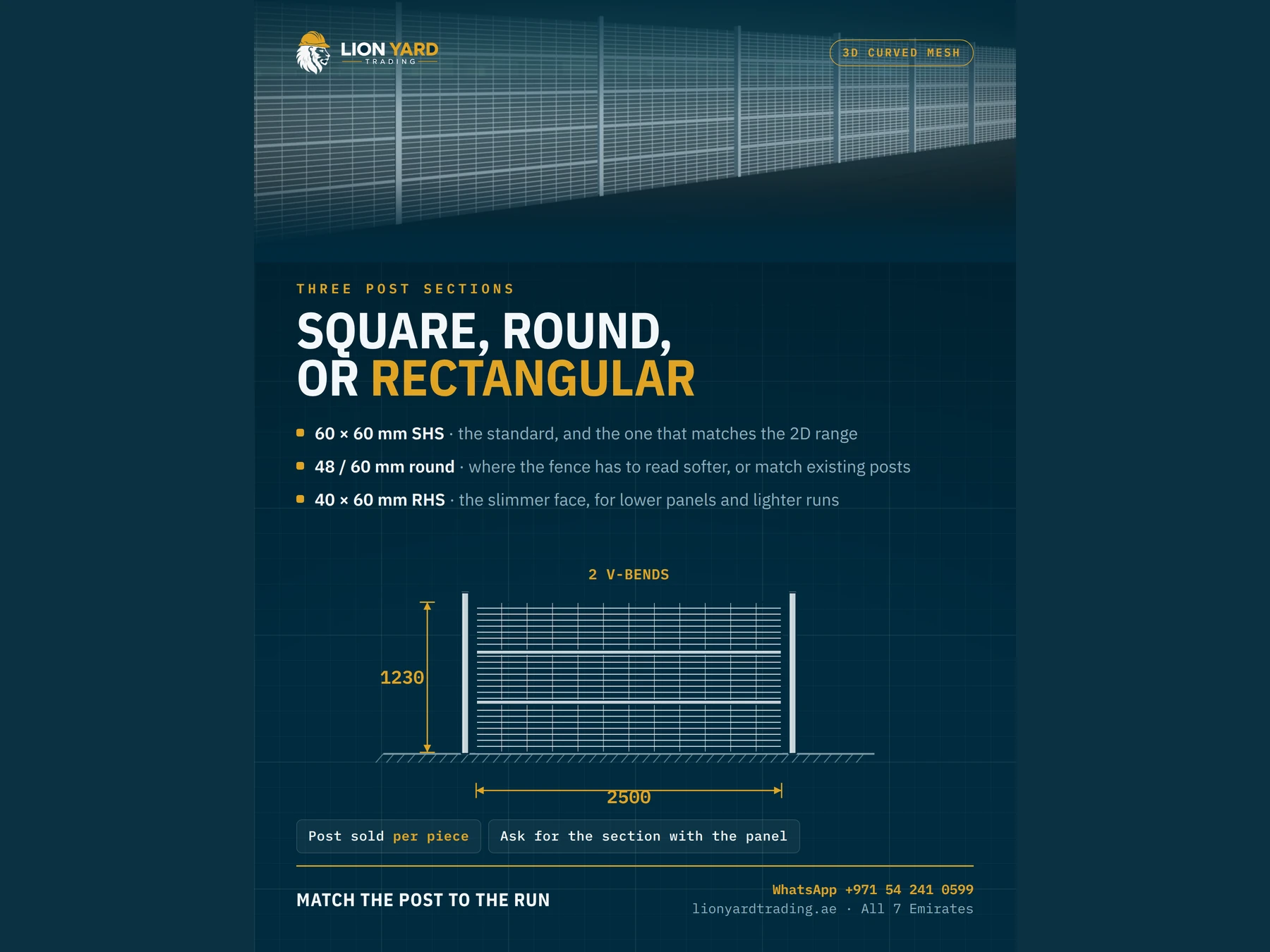

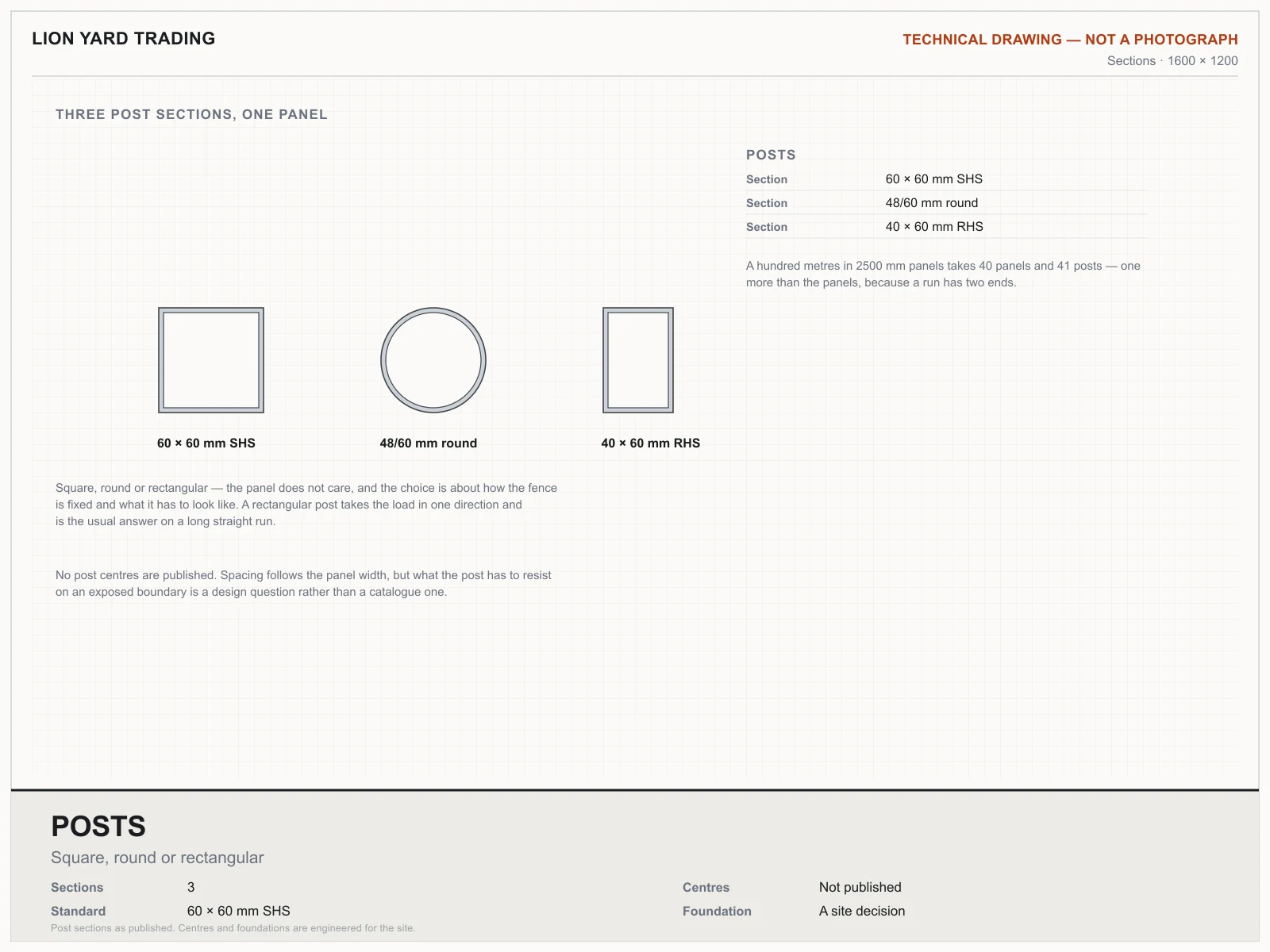

| Post 60 × 60 mmLY-PERI-092 | 60 × 60 mm SHS · also 48/60 mm round and 40 × 60 mm RHS | Ask |
- 2.50 m long × 1.03 m high · 2 V-bends · wire 4–5 mmAsk on WhatsApp
- 2.50 m long × 1.23 m high · 2 V-bendsAsk on WhatsApp
- 2.50 m long × 1.53 m high · 3 V-bendsAsk on WhatsApp
- 2.50 m long × 1.73 m high · 3 V-bendsAsk on WhatsApp
- 2.50 m long × 2.03 m high · 4 V-bendsAsk on WhatsApp
- 2.50 m long × 2.43 m high · 4 V-bendsAsk on WhatsApp
- 3.00 m long × 2.03 m high · wide-bay patternAsk on WhatsApp
- 60 × 60 mm SHS · also 48/60 mm round and 40 × 60 mm RHSAsk on WhatsApp
Priced per panel against your run length and quantity.
What it is

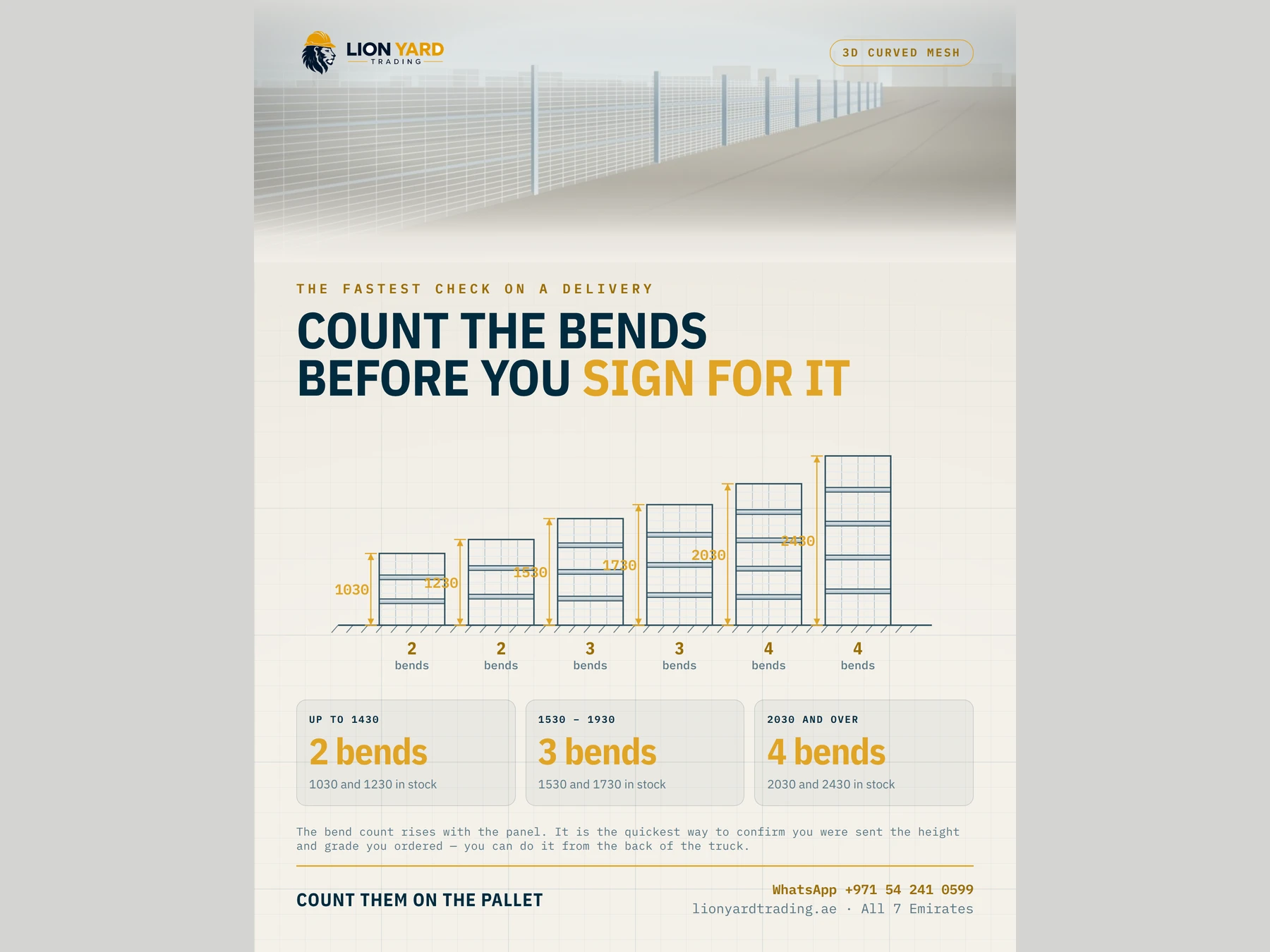

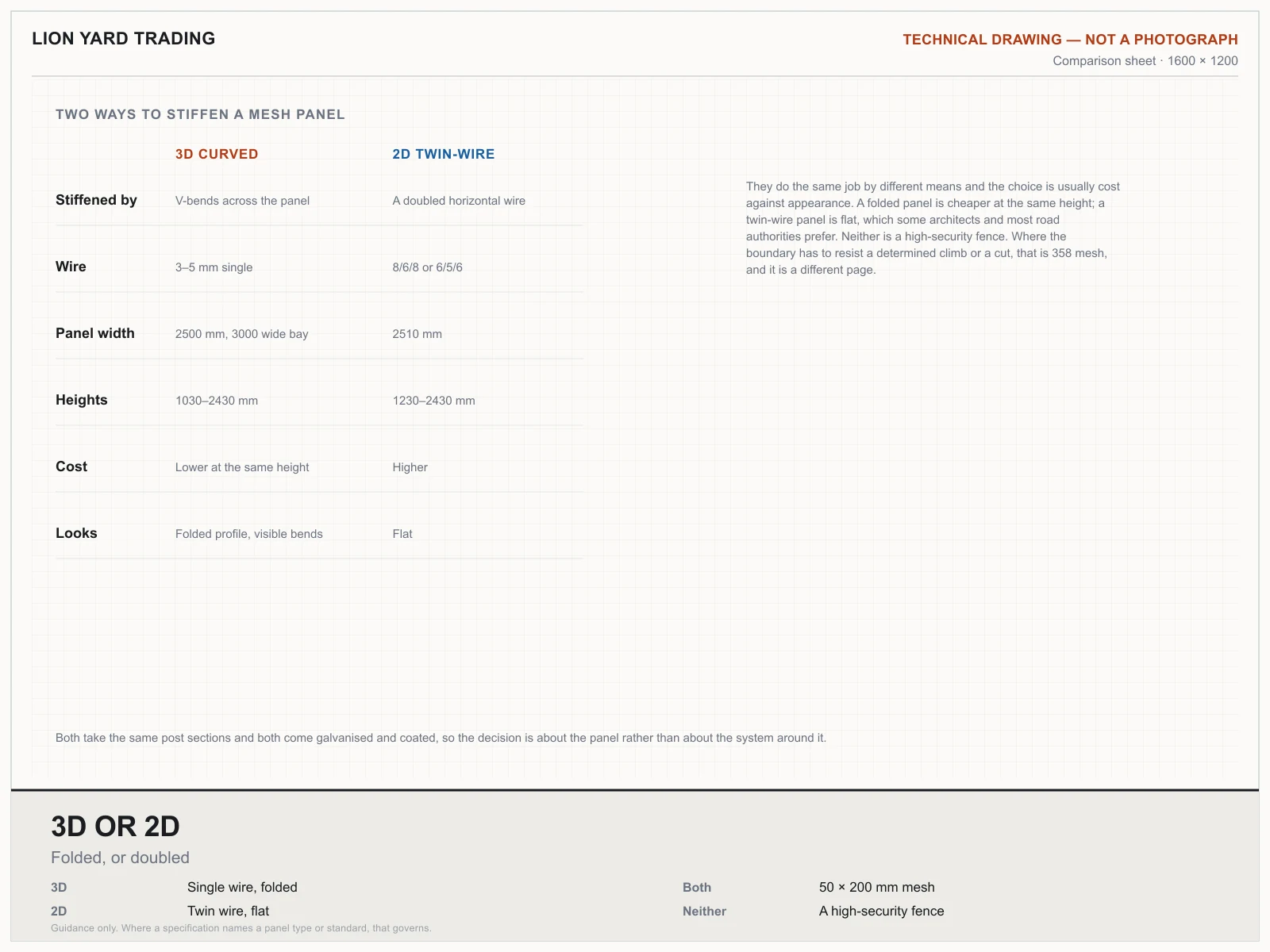

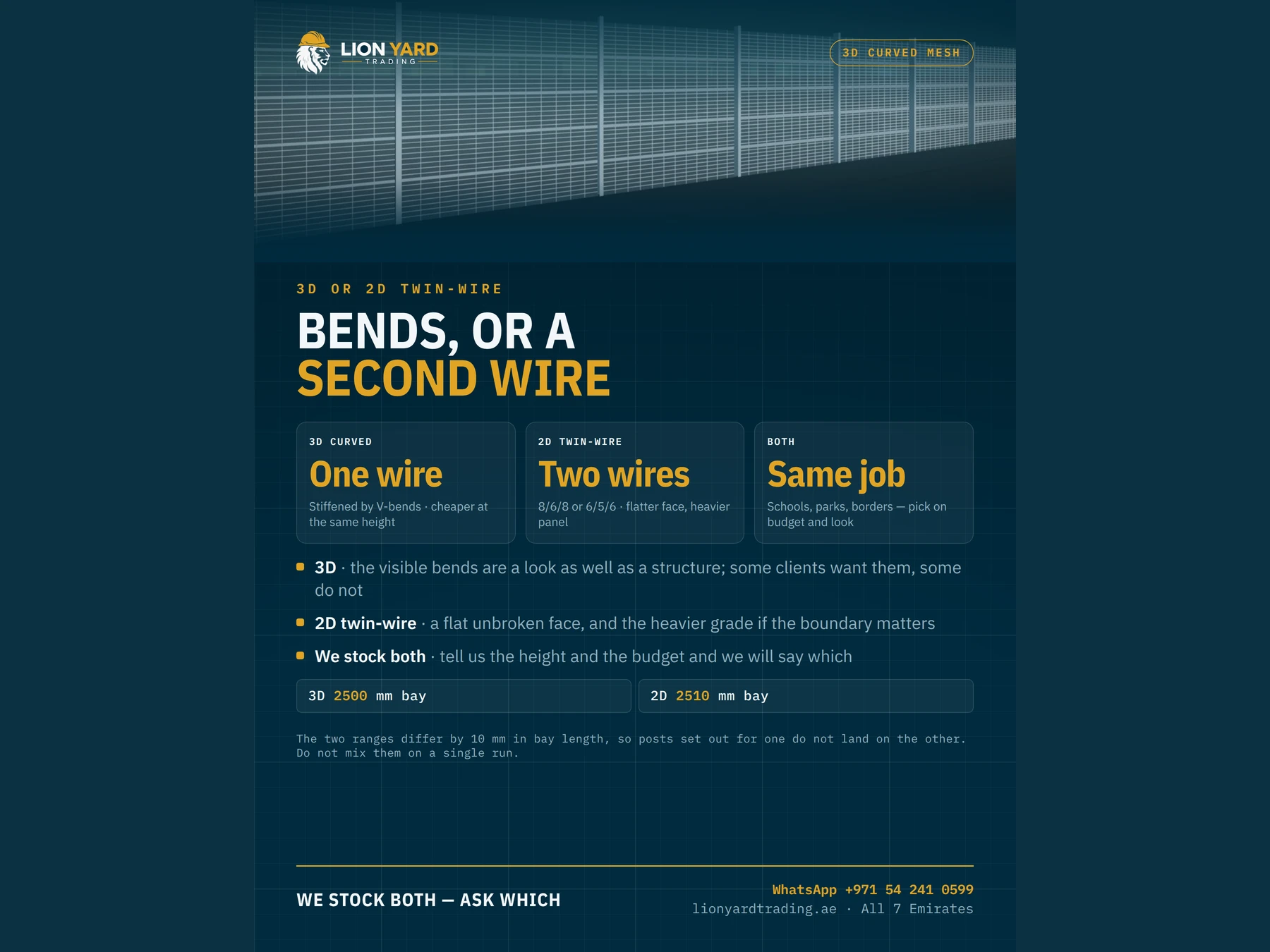

Single-wire panels stiffened by horizontal V-bends instead of a second wire — cheaper than twin-wire at the same height. The number of bends rises with the panel, which is the quickest way to check you are being quoted the right grade.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Wire
- 3.0–5.0 mm · 5 mm standard
- Mesh
- 50 × 200 mm · folds 50 × 100 mm
- V-bends
- 2 up to 1430 mm · 3 from 1530–1930 mm · 4 from 2030 mm
- Top edge
- 30 mm spikes one side, fit up or down

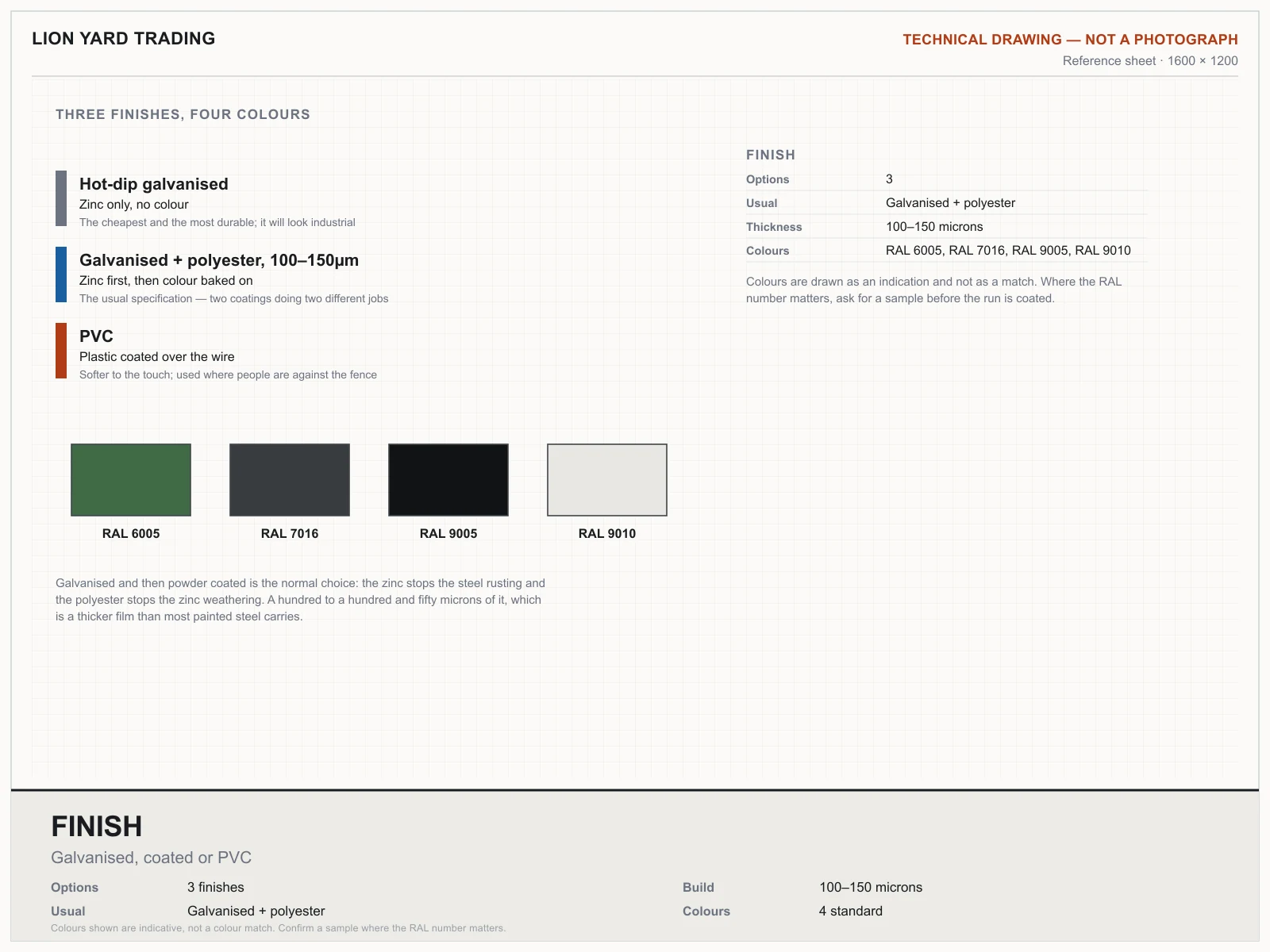

- Finish
- HDG · galvanised plus polyester 100–150 microns · PVC
- Colours
- RAL 6005 · 7016 · 9005 · 9010
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price 3D Curved Welded Mesh Panels — every figure comes from the price table above or from the published standard it is made to.

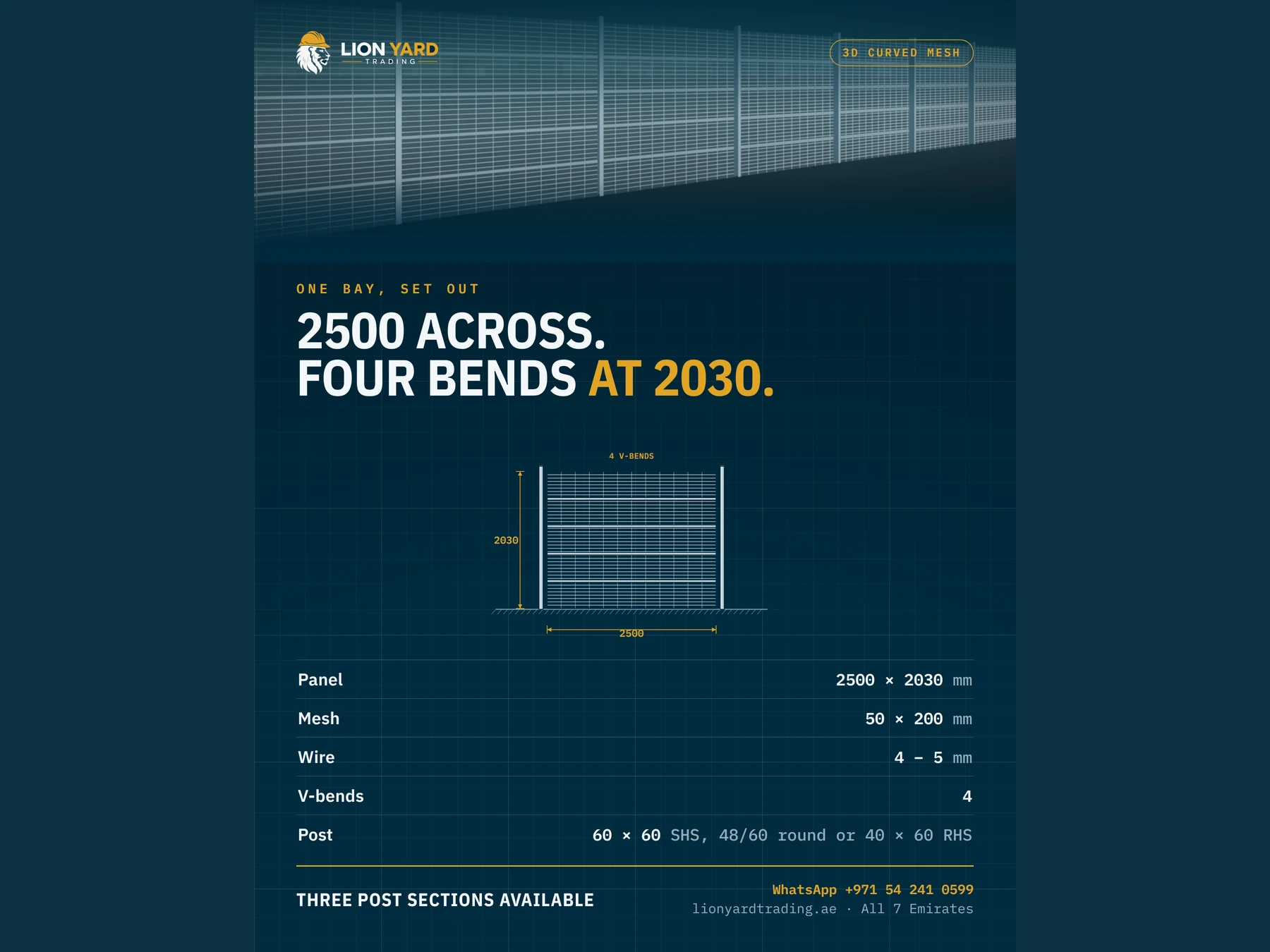

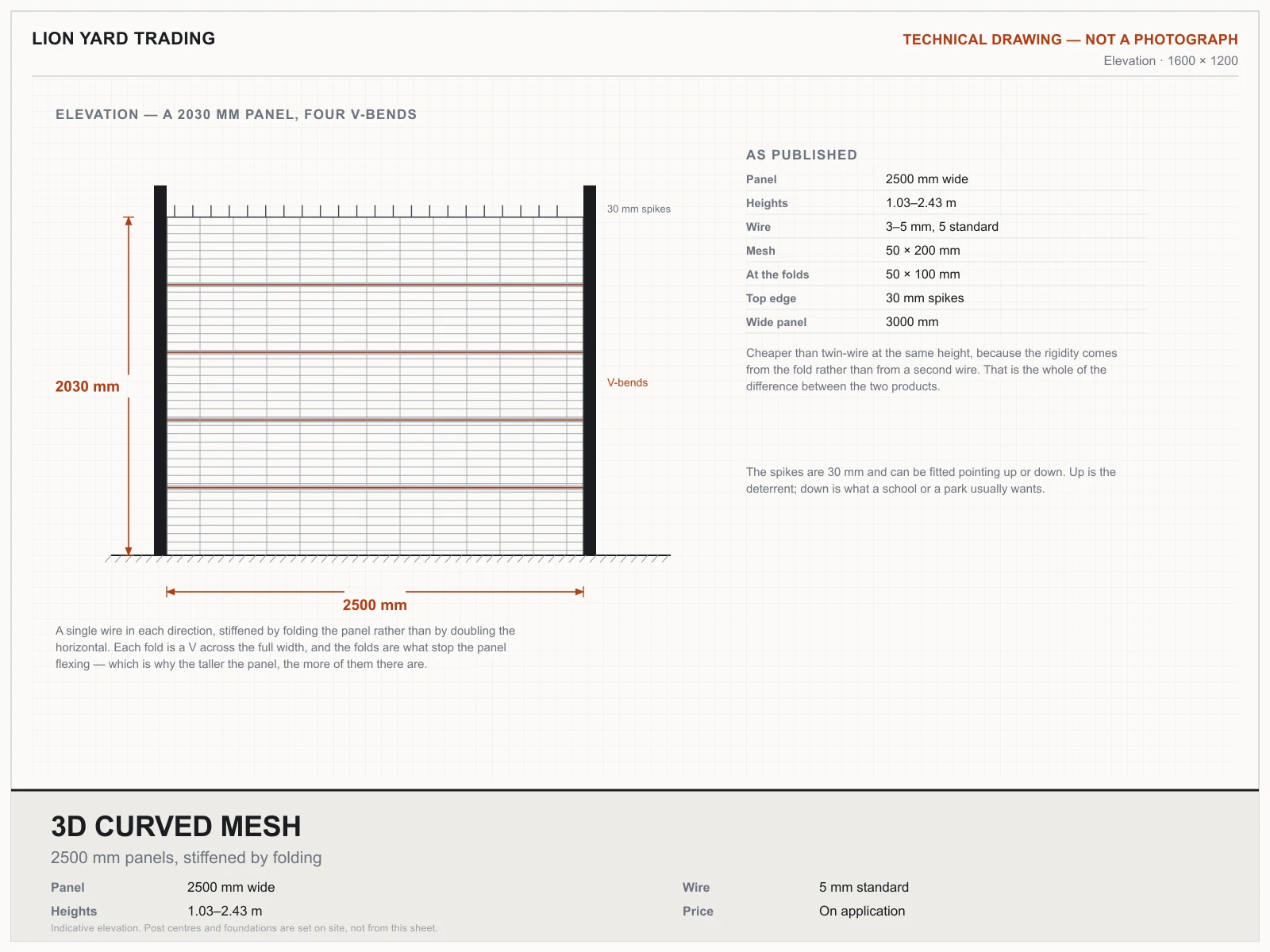

The panel2500 mm, four bends
1 of 10

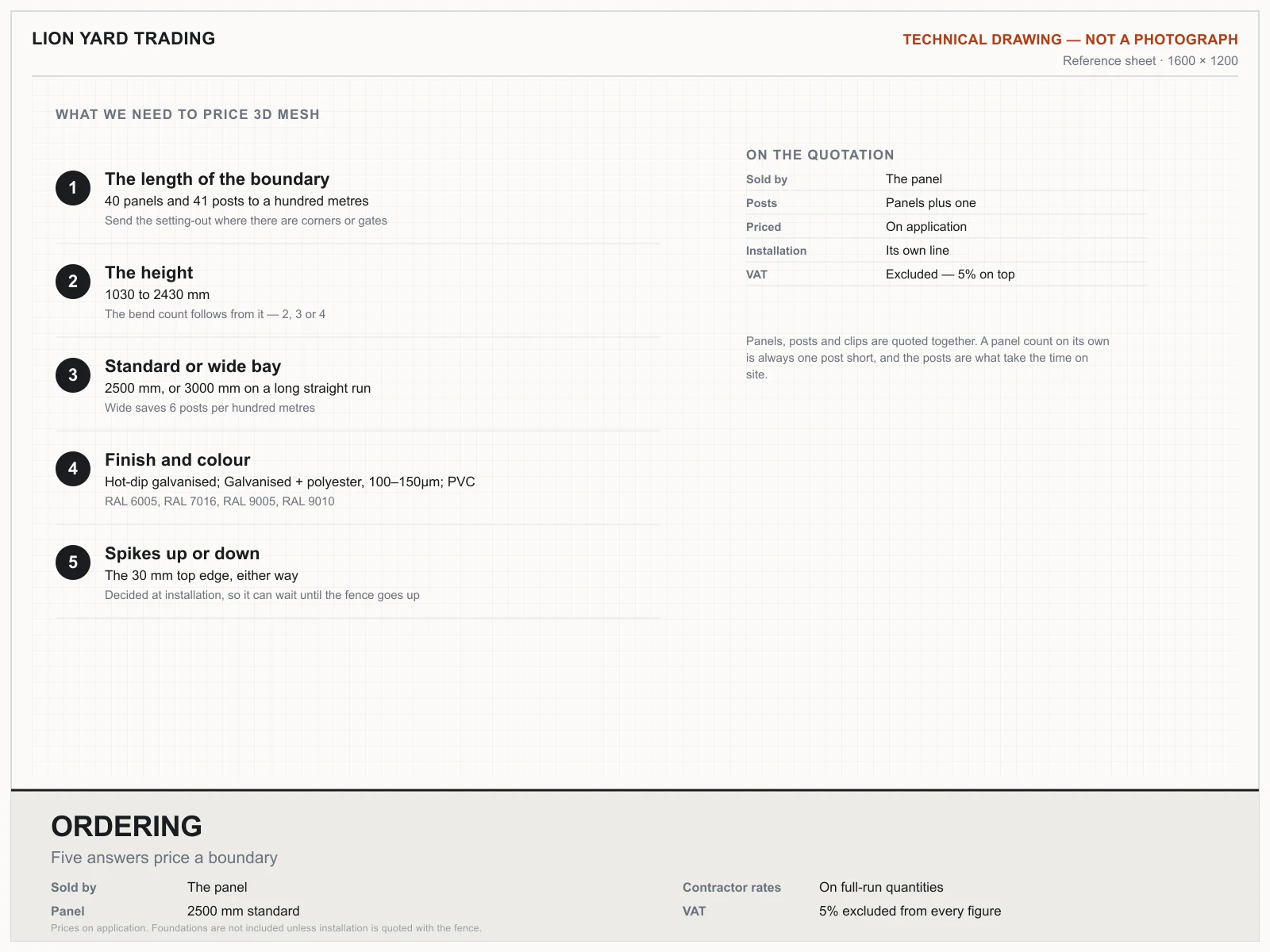

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your 3d curved welded mesh panels?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
