Galvanised C-channel studs standing, three sections
Products

Steel Framing, Studs & Sections

Cold-formed steel for framing and partitions — GI C-channel studs and U-track from 48 mm to 150 mm, G550 light gauge steel framing, and galvanised angle.

Jump toGI Channels & ProfilesLight Gauge Steel Framing — C89 / LGSF

2 products in Steel Framing, Studs & Sections

Swipe to find yours, then open it for sizes, prices and drawings.

Galvanised C-channel studs standing, three sections10 drawings

GI Channels & Profiles

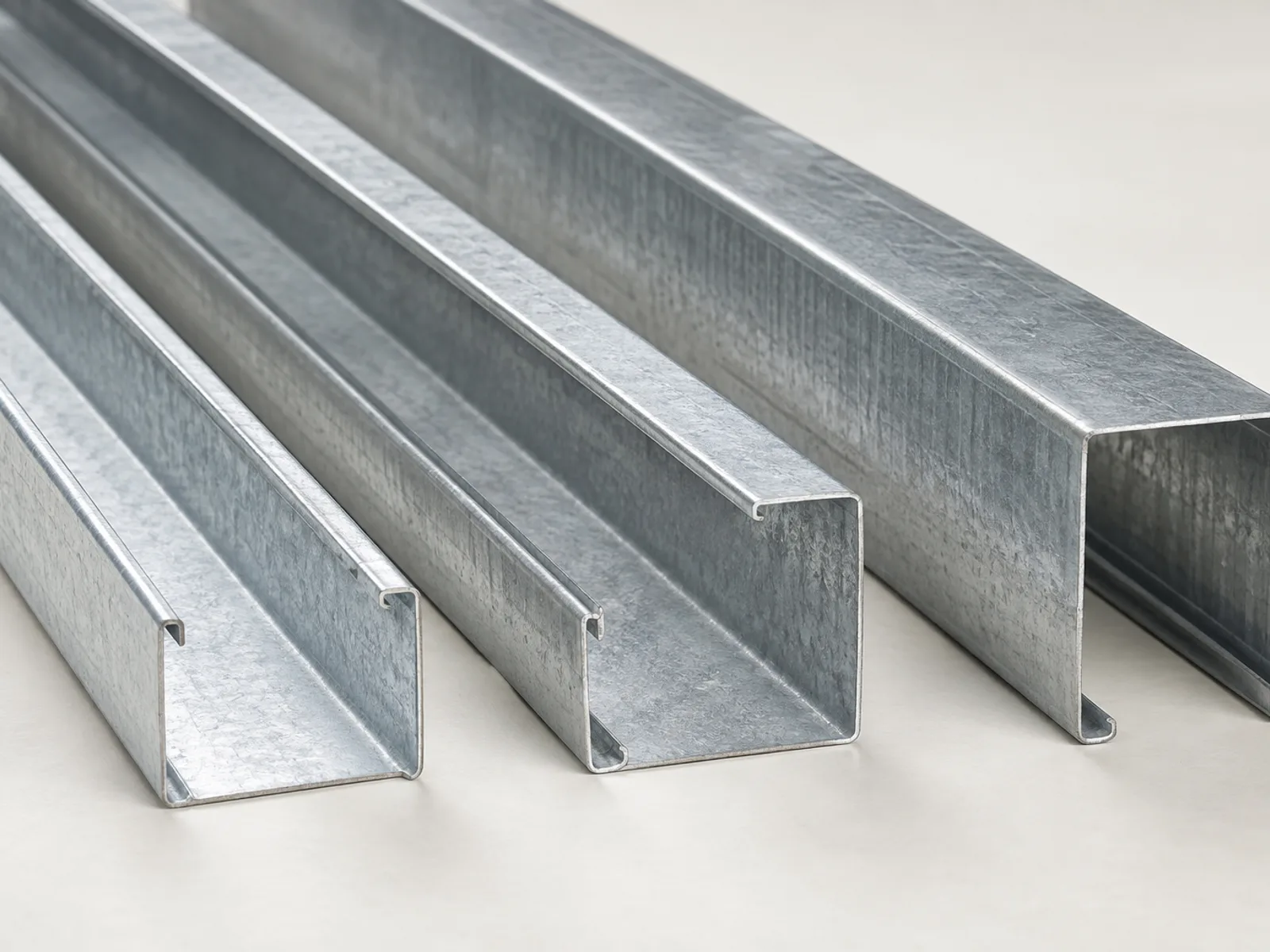

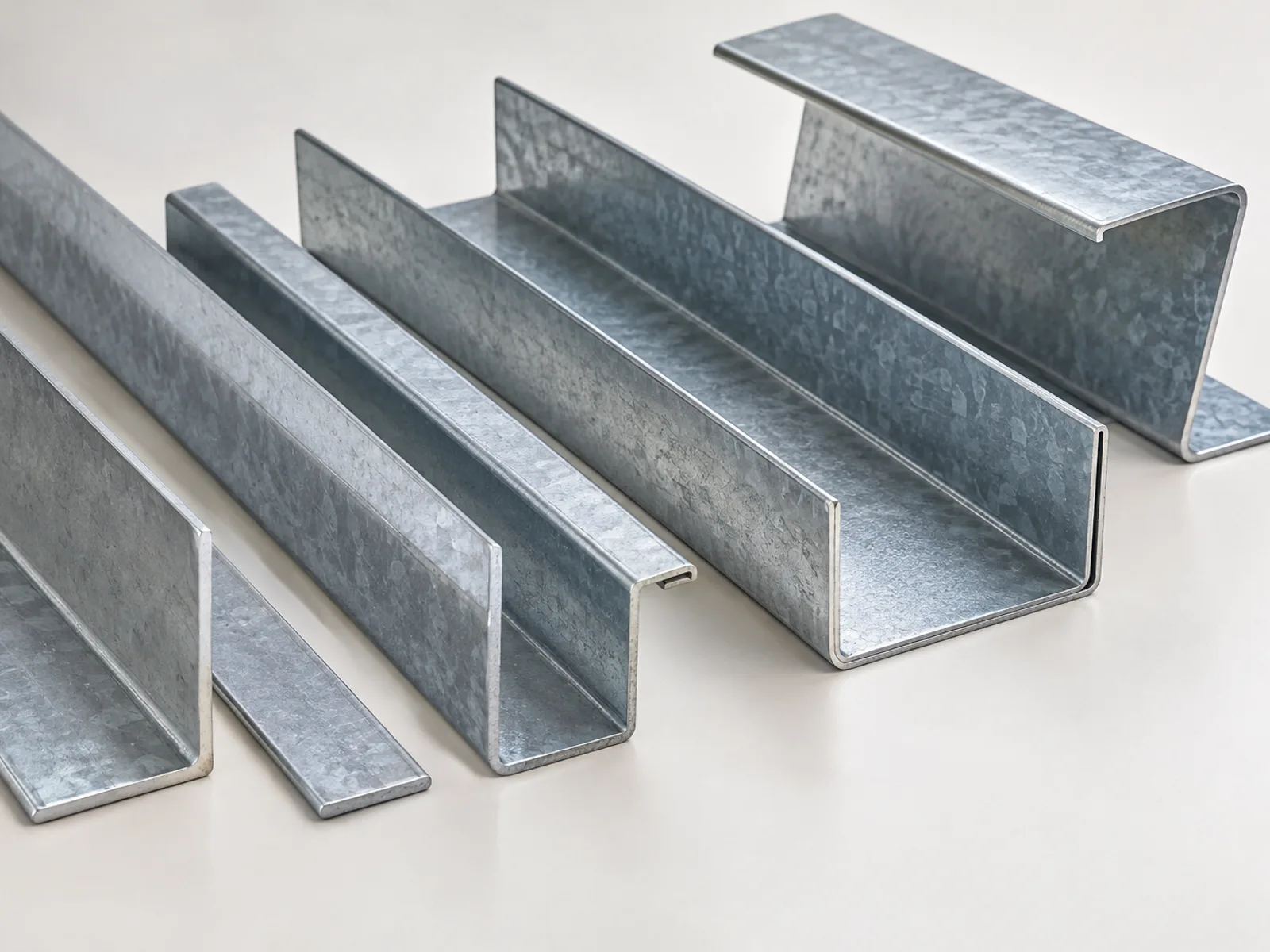

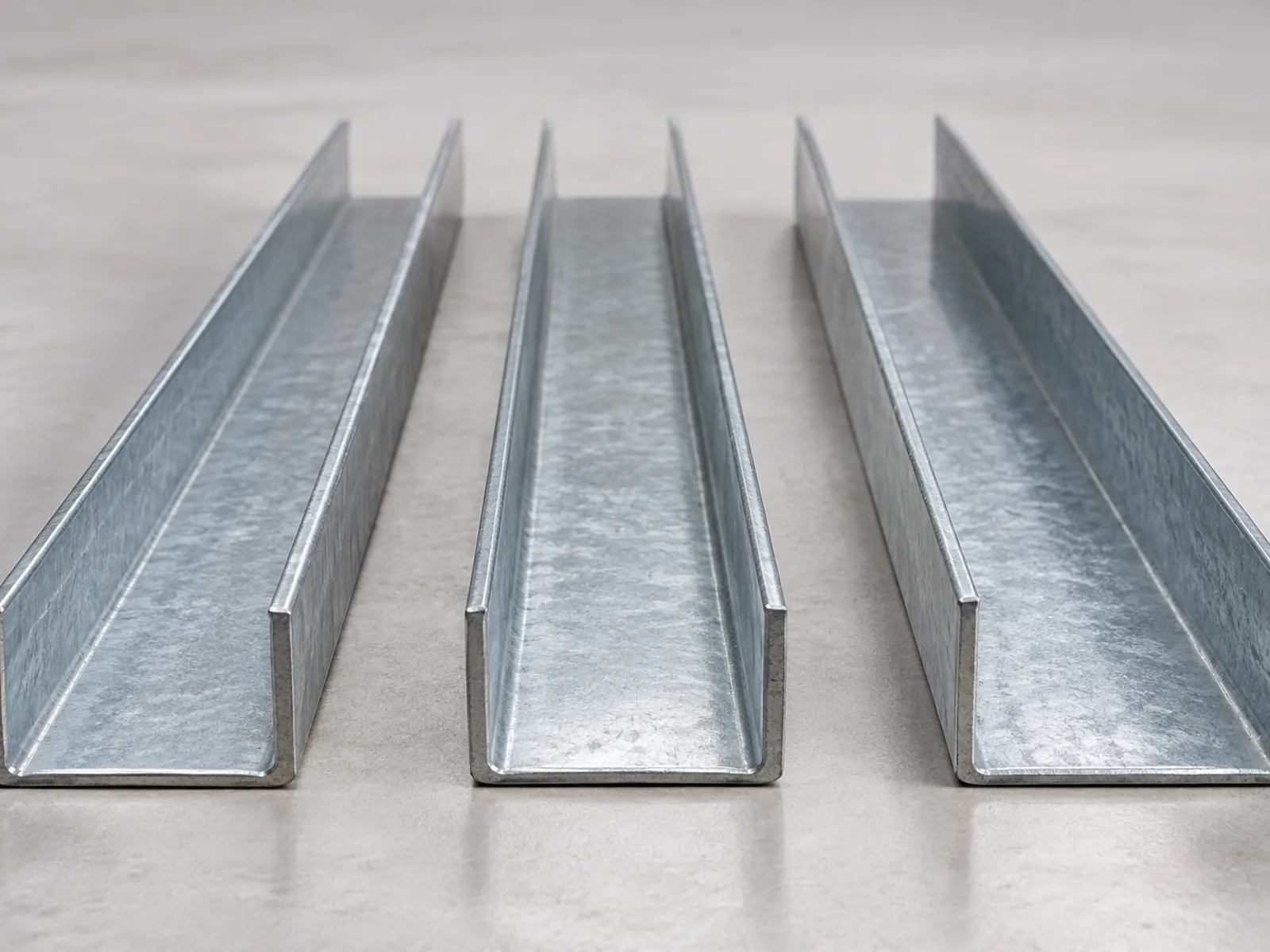

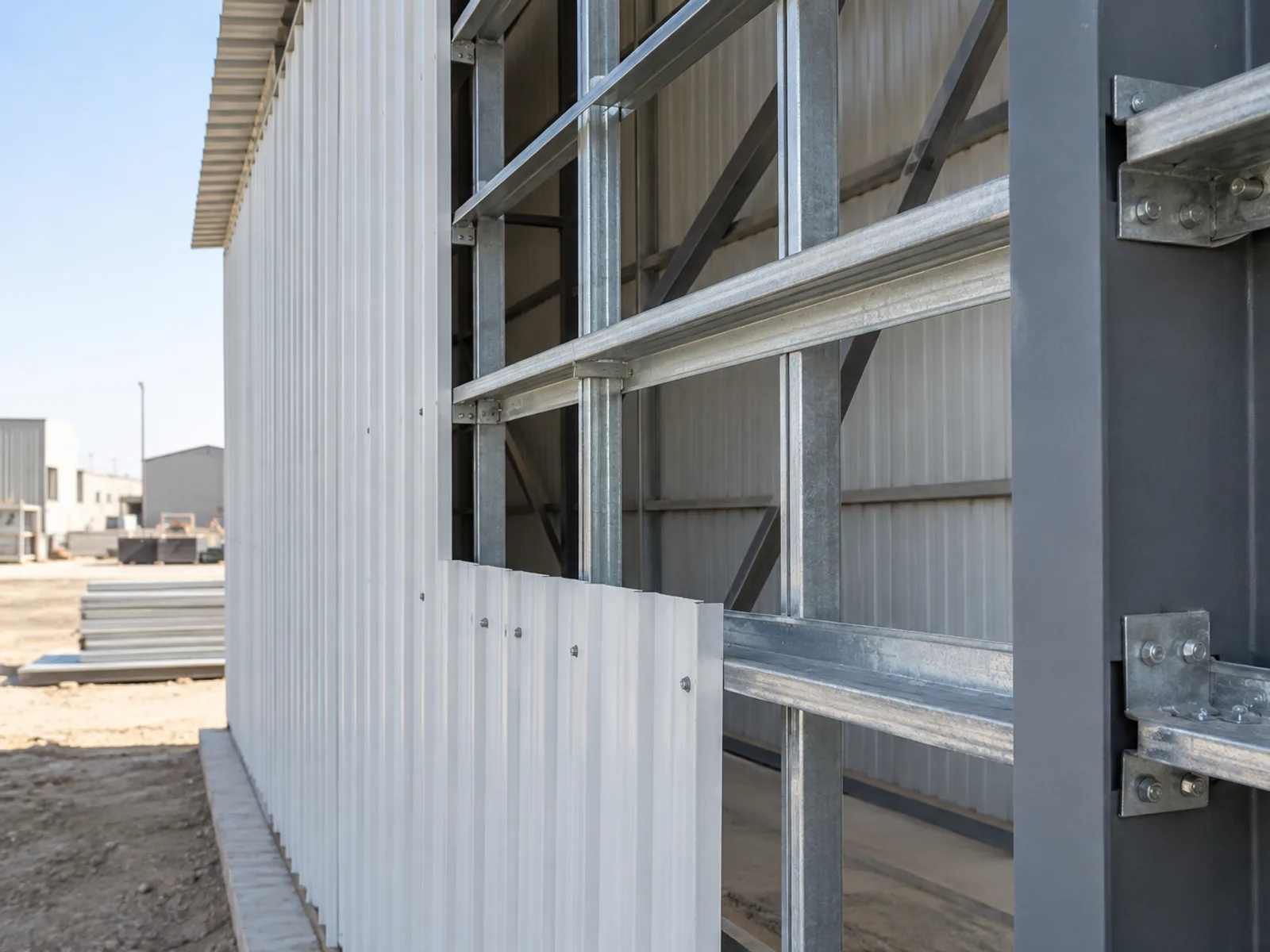

Roll-formed galvanized steel channel and profile sections — the structural frame behind hoarding, cladding and drywall. C-channel studs from 48 to 150 mm and matching U-channel track, both 3 m standard, in 0.35–0.90 mm. Z-purlins 142 to 302 mm deep in 1.5–3.0 mm, cut to length up to 12 m. Order the track to match the stud: the width is the same number on both. Track is stocked in 50, 70, 89, 92, 100 and 150 mm, so ask before specifying a 48, 64 or 123 mm stud.

22 sizesquoted to specView

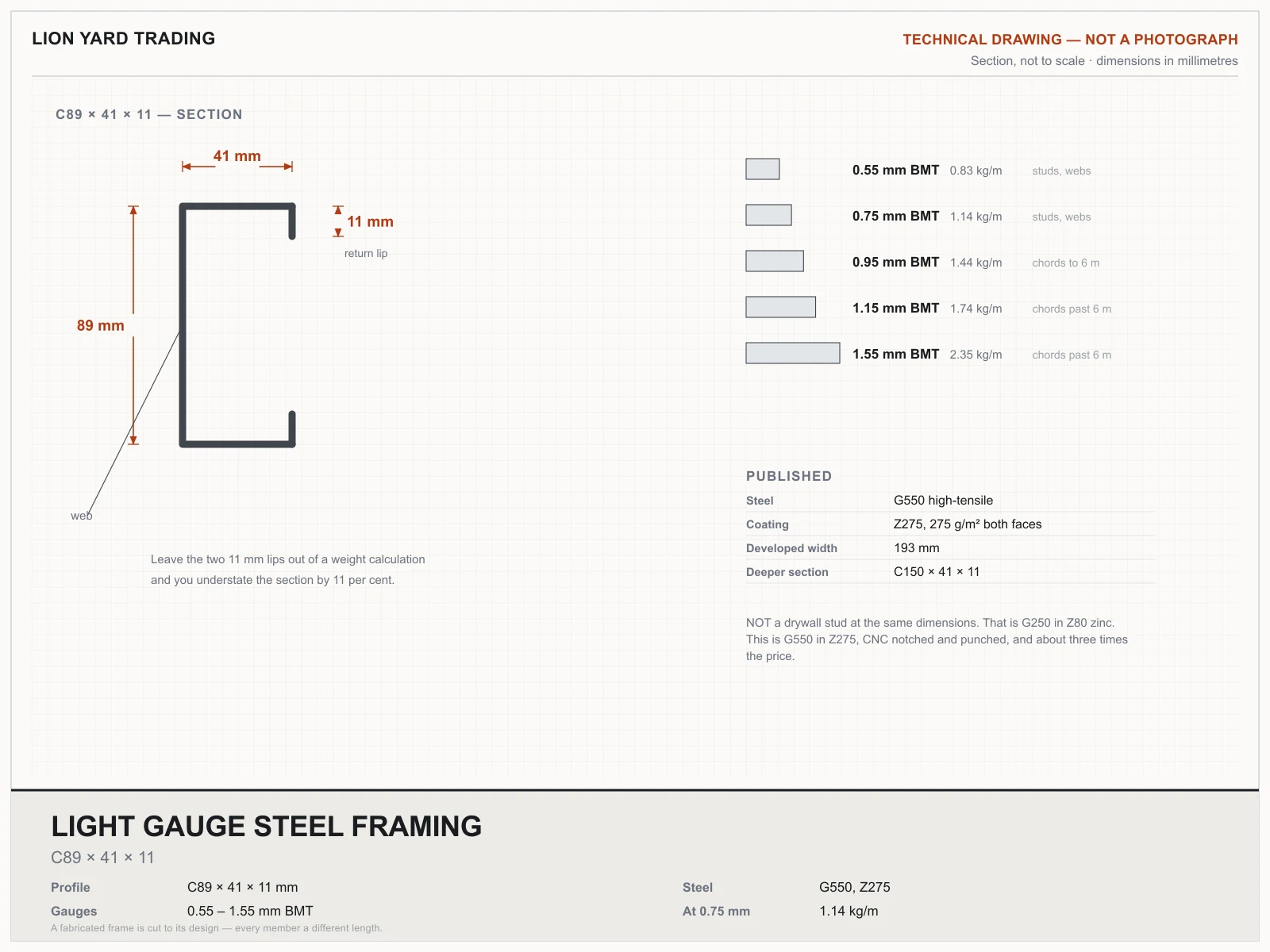

Technical drawing of the C89 by 41 by 11 mm light gauge steel framing section with weights at all five gauges10 drawings

Light Gauge Steel Framing — C89 / LGSF

CNC roll-formed structural framing — the system that builds a whole wall, floor or roof from steel that arrives flat and bolts together like a kit. Not a drywall stud: same dimensions, three times the steel grade, and a different job entirely.

10 sizesquoted to specView
Partition stud & track, 48-150 mmLGSF C89 & C150, G550Angle & box section0.35 mm to 3.0 mm
