Steel Palisade Fencing
Perimeter & Security Fencing
Priced on enquiry
Priced per bay against your run length and height.
Tell us the size and where it is going.
About this product
- Pale profile: W or D section · 65 mm general, 70 mm security · 2.5–3.9 mm

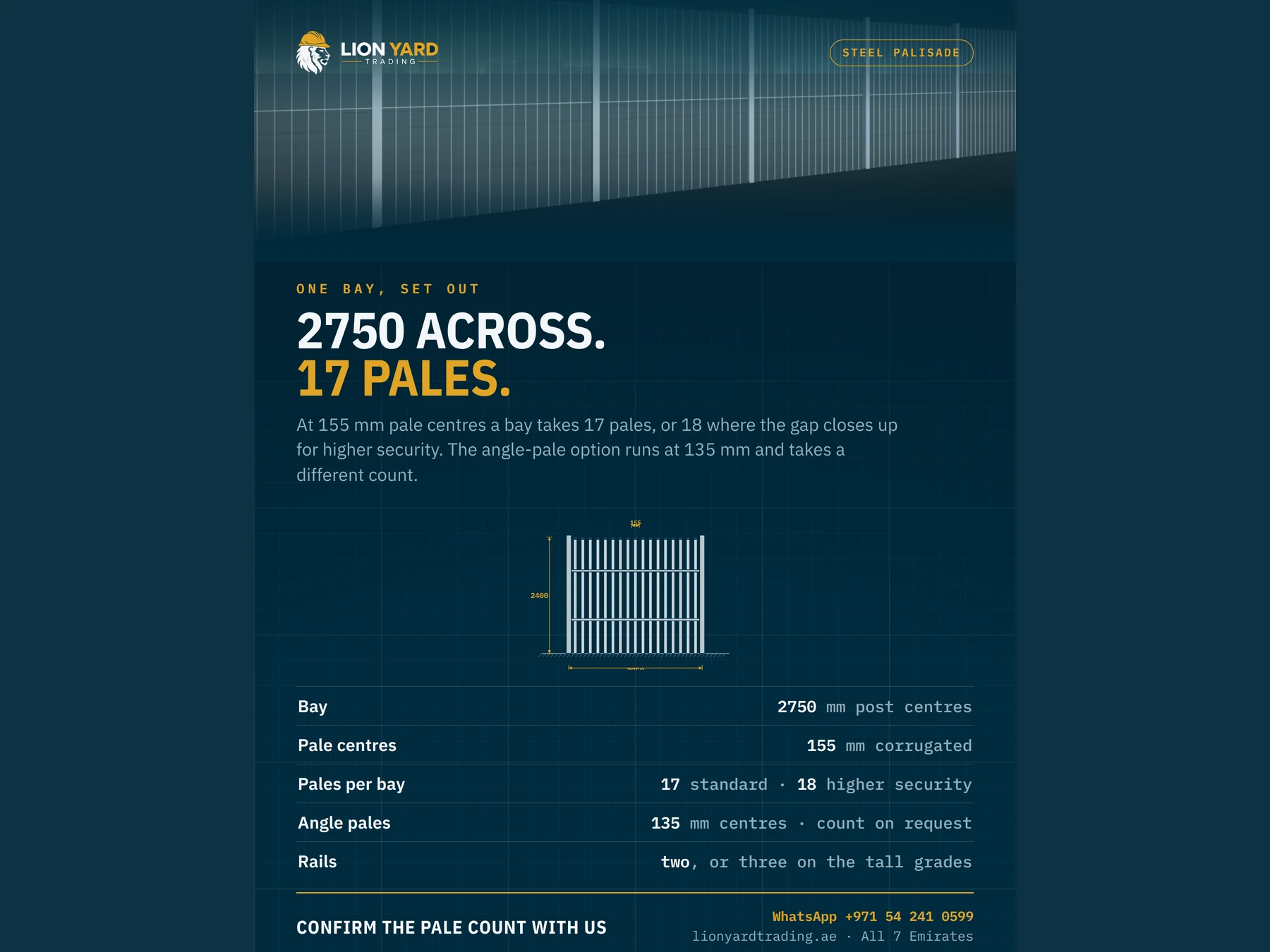

- Pale spacing: 155 mm centres corrugated · 135 mm angle
- Pales per bay: 17 standard · 18 for higher security
- Pale length: Fence height minus 50 mm

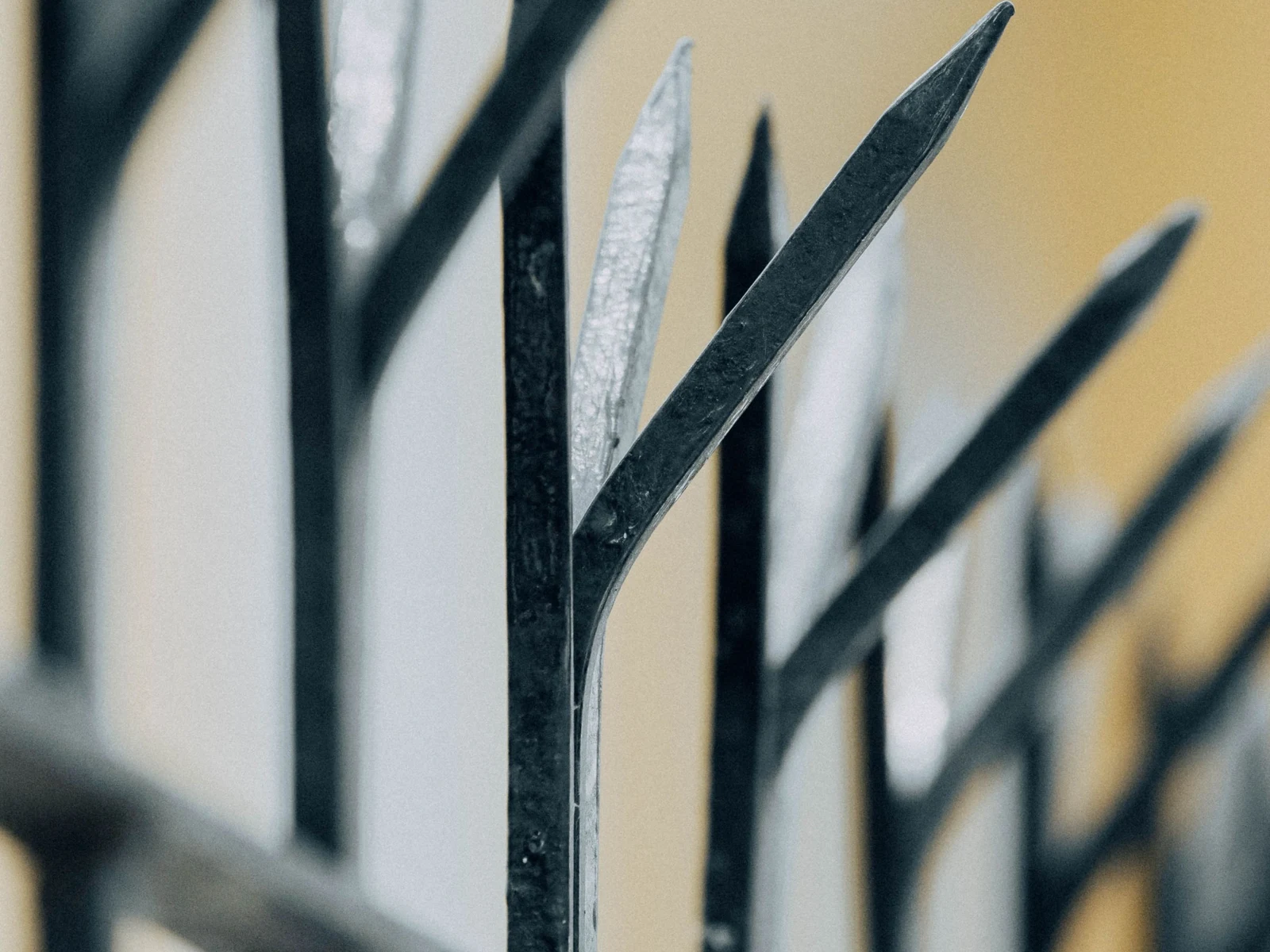

- Heads: Plain, single point, rounded, trident, trident serrated
- Posts: RSJ 102 × 44 (7.44 kg/m) · RSJ 127 × 76 (13 kg/m) at 3.0 m and above
All 7 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|

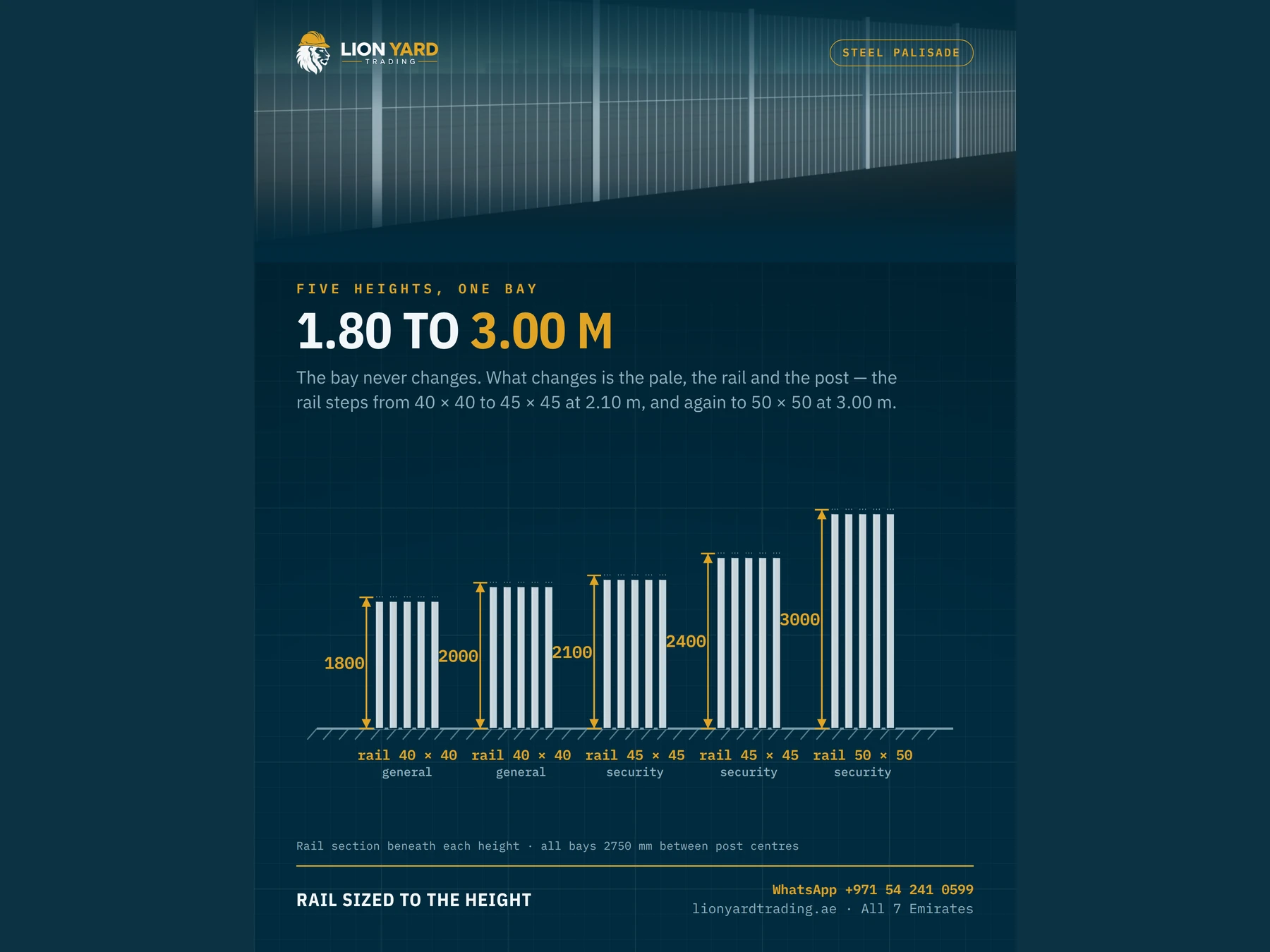

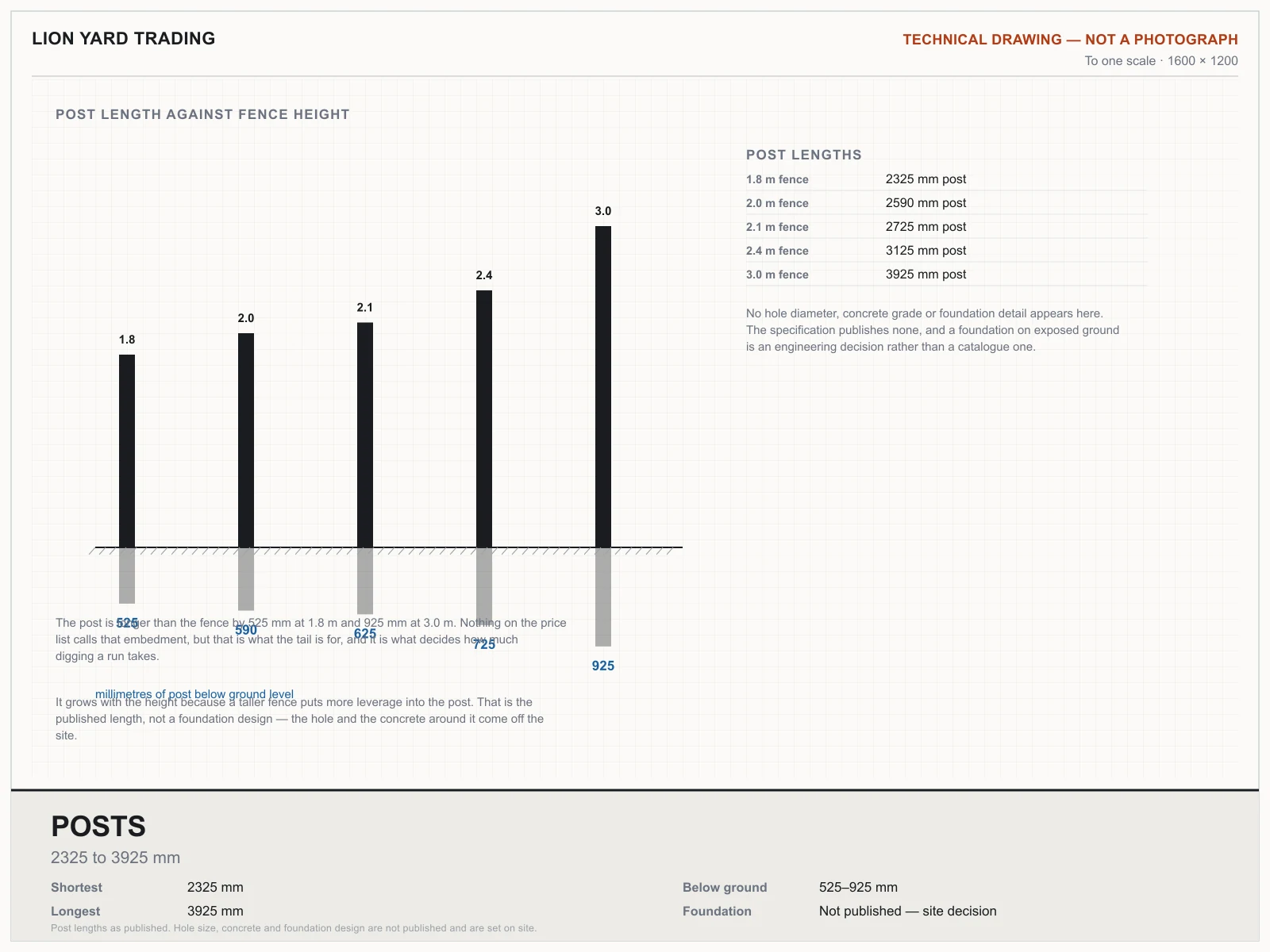

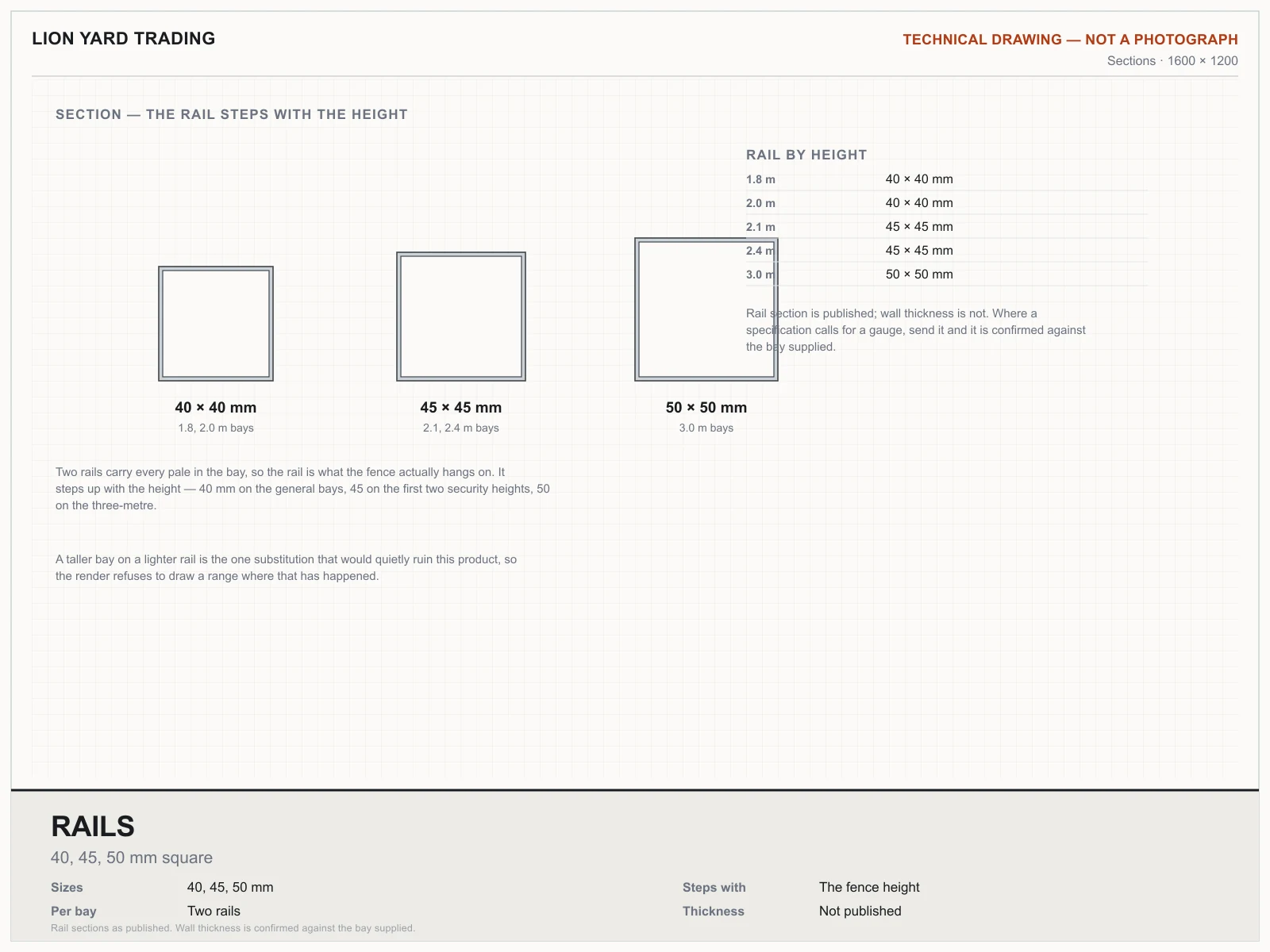

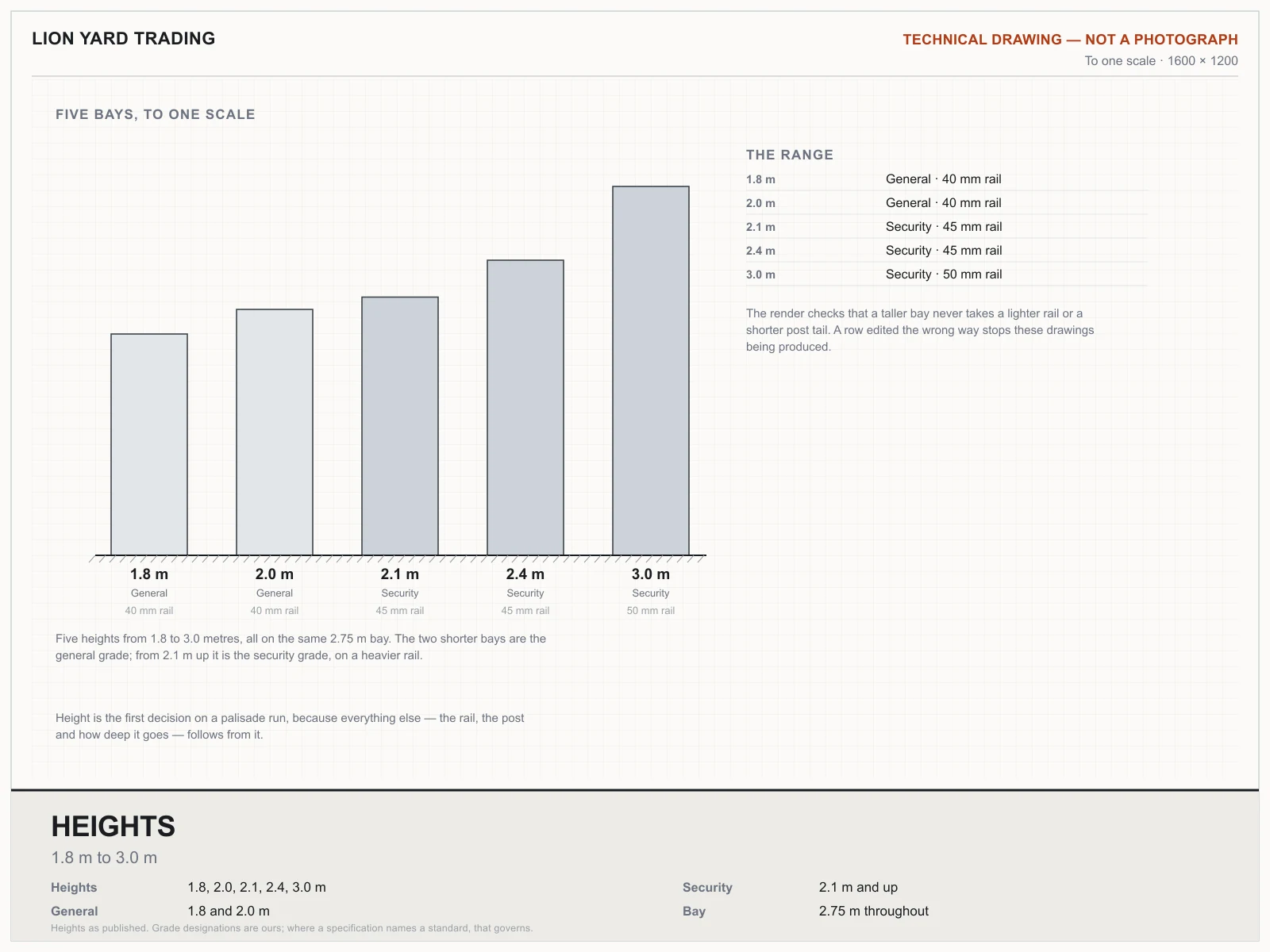

| Palisade bay 1.8 m — generalLY-PERI-043 | 2.75 m long × 1.80 m high · pale 1750 mm · rail 40 × 40 mm · post 2325 mm | Ask |
| Palisade bay 2.0 m — generalLY-PERI-044 | 2.75 m long × 2.00 m high · pale 1950 mm · rail 40 × 40 mm · post 2590 mm | Ask |
| Palisade bay 2.1 m — securityLY-PERI-045 | 2.75 m long × 2.10 m high · pale 2050 mm · rail 45 × 45 mm · post 2725 mm | Ask |
| Palisade bay 2.4 m — securityLY-PERI-046 | 2.75 m long × 2.40 m high · pale 2350 mm · rail 45 × 45 mm · post 3125 mm | Ask |
| Palisade bay 3.0 m — securityLY-PERI-047 | 2.75 m long × 3.00 m high · pale 2950 mm · rail 50 × 50 mm · post 3925 mm | Ask |

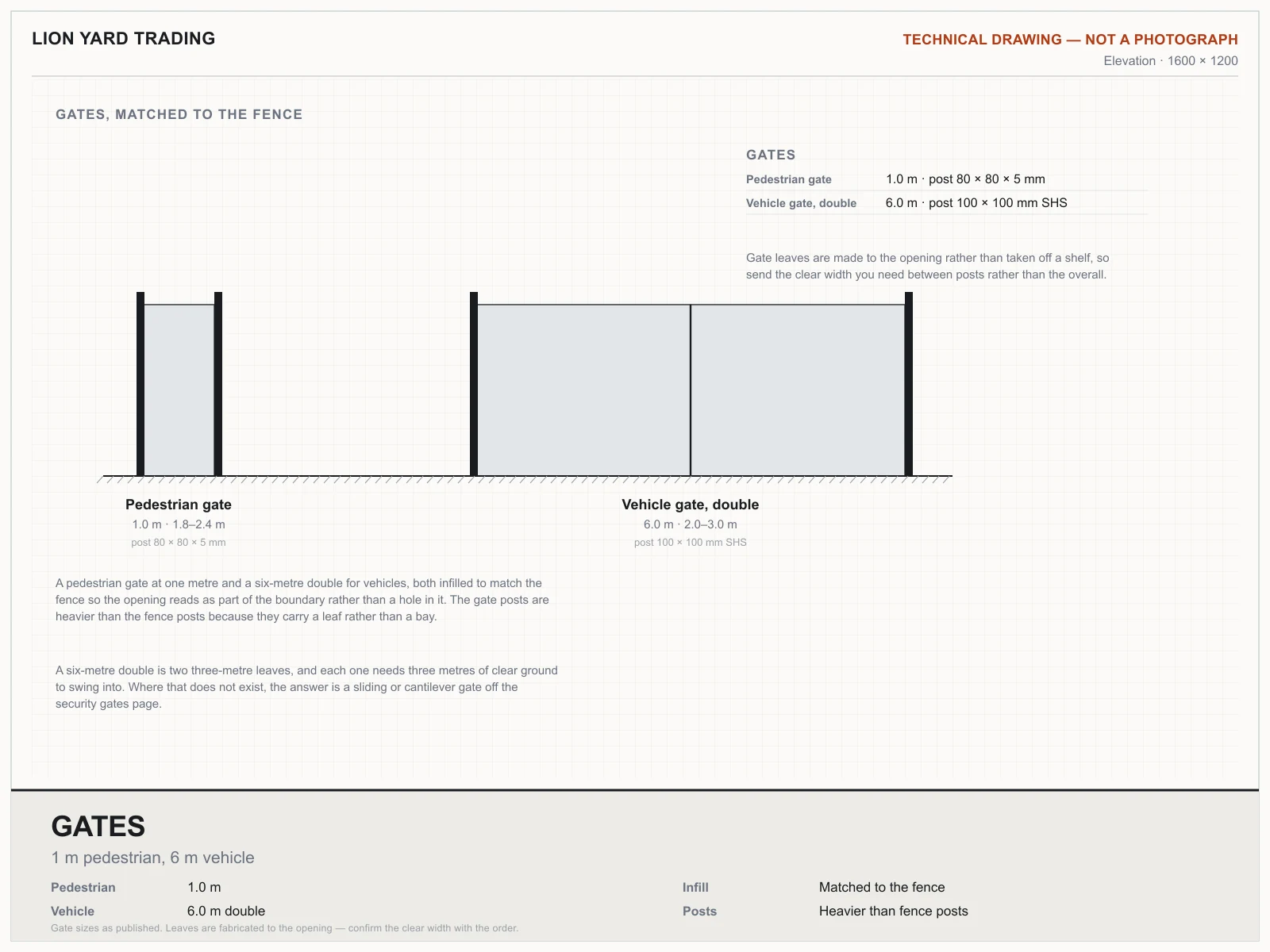

| Pedestrian gate 1.0 mLY-PERI-094 | 1.00 m wide × 1.80–2.40 m high · frame post 80 × 80 × 5 mm | Ask |
| Vehicle gate 6.0 m — doubleLY-PERI-095 | 6.00 m opening × 2.00–3.00 m high · post 100 × 100 mm SHS | Ask |
- 2.75 m long × 1.80 m high · pale 1750 mm · rail 40 × 40 mm · post 2325 mmAsk on WhatsApp
- 2.75 m long × 2.00 m high · pale 1950 mm · rail 40 × 40 mm · post 2590 mmAsk on WhatsApp
- 2.75 m long × 2.10 m high · pale 2050 mm · rail 45 × 45 mm · post 2725 mmAsk on WhatsApp
- 2.75 m long × 2.40 m high · pale 2350 mm · rail 45 × 45 mm · post 3125 mmAsk on WhatsApp
- 2.75 m long × 3.00 m high · pale 2950 mm · rail 50 × 50 mm · post 3925 mmAsk on WhatsApp
- 1.00 m wide × 1.80–2.40 m high · frame post 80 × 80 × 5 mmAsk on WhatsApp
- 6.00 m opening × 2.00–3.00 m high · post 100 × 100 mm SHSAsk on WhatsApp

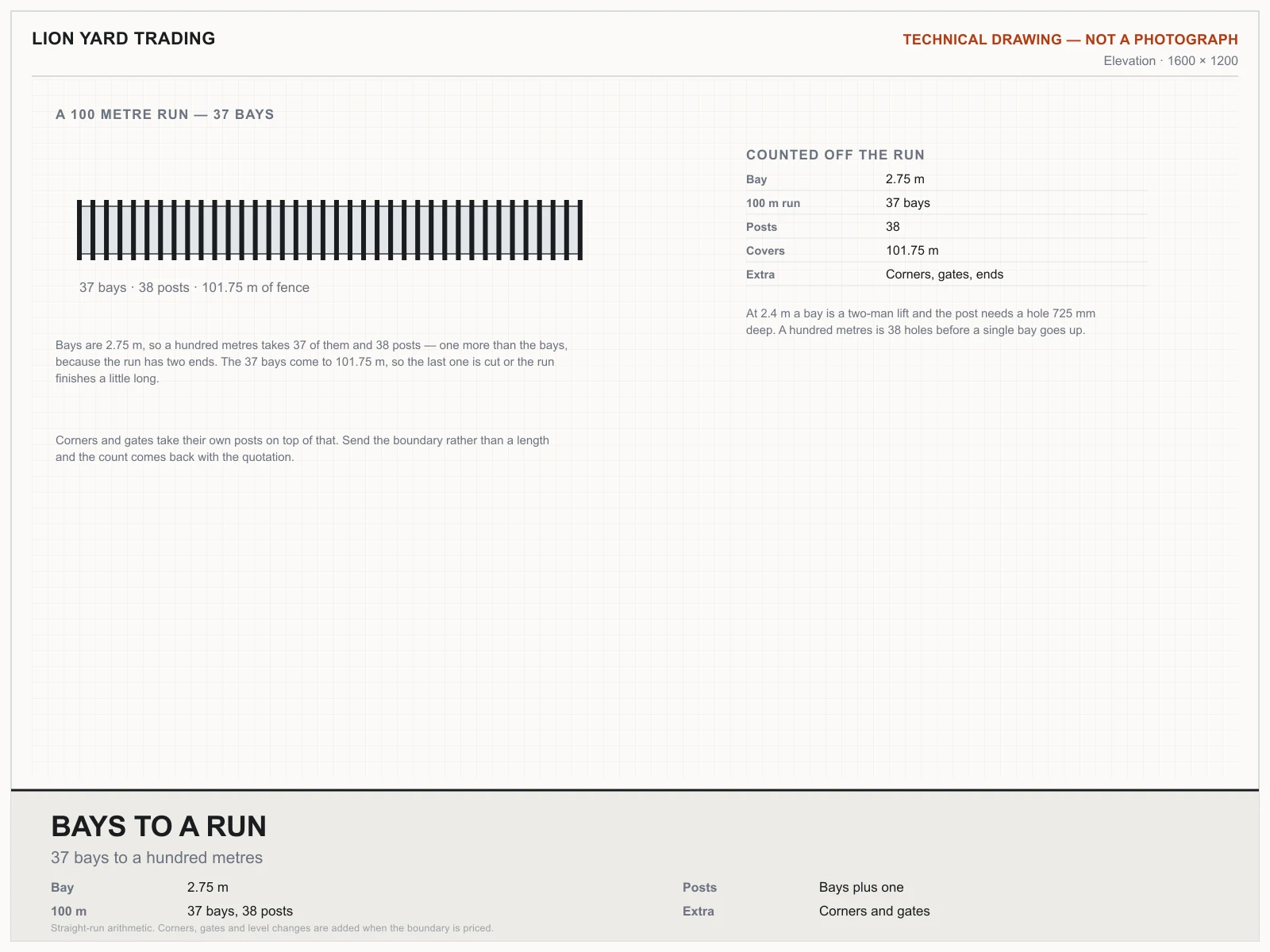

A bay is always 2.75 m between post centres.
Priced per bay against your run length and height.
What it is

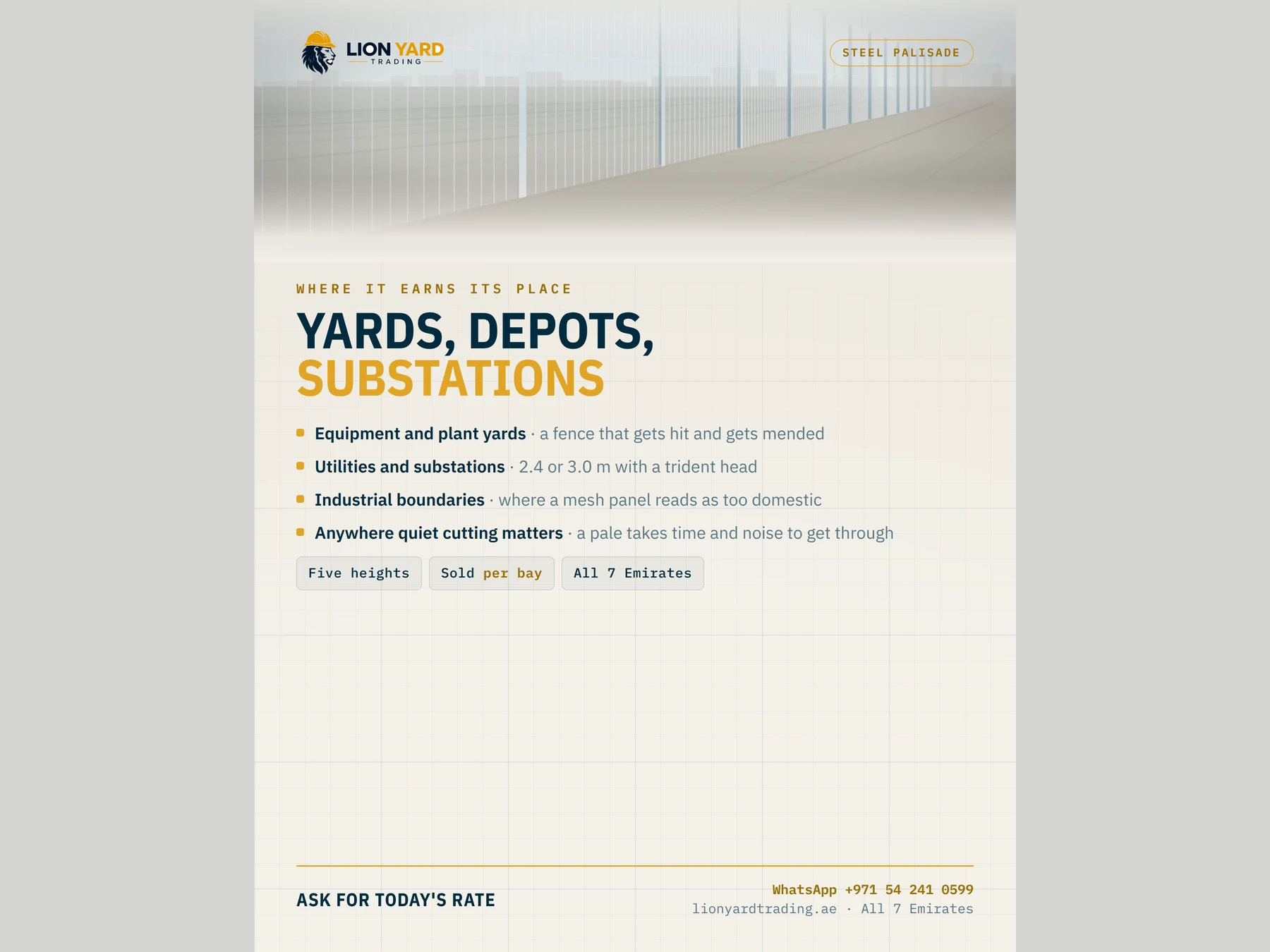

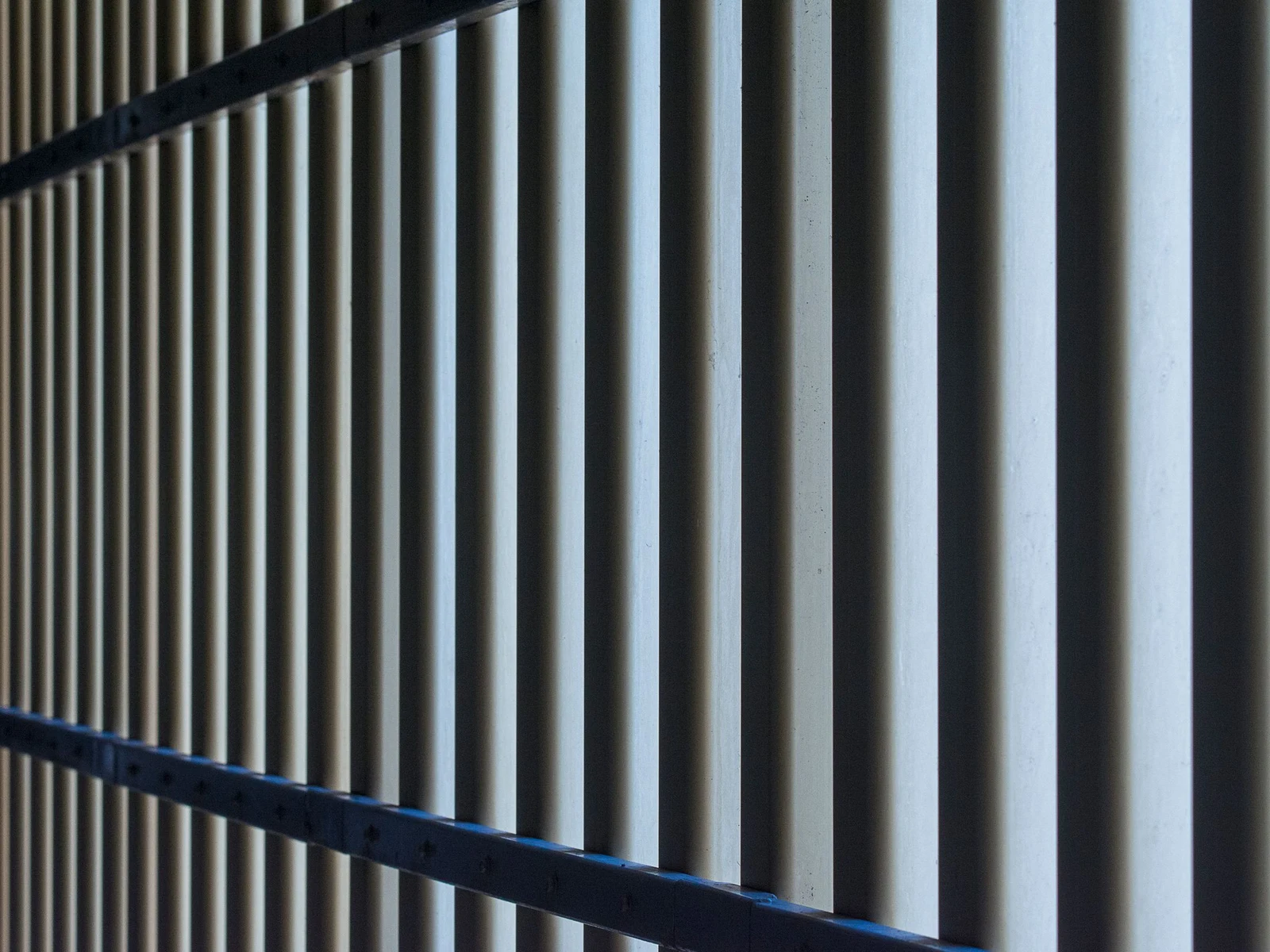

Vertical pales bolted to two horizontal rails, topped with points or a trident. Rigid, hard to cut quietly, and easy to repair a bay at a time — which is why industrial yards and equipment depots keep specifying it.
Specification

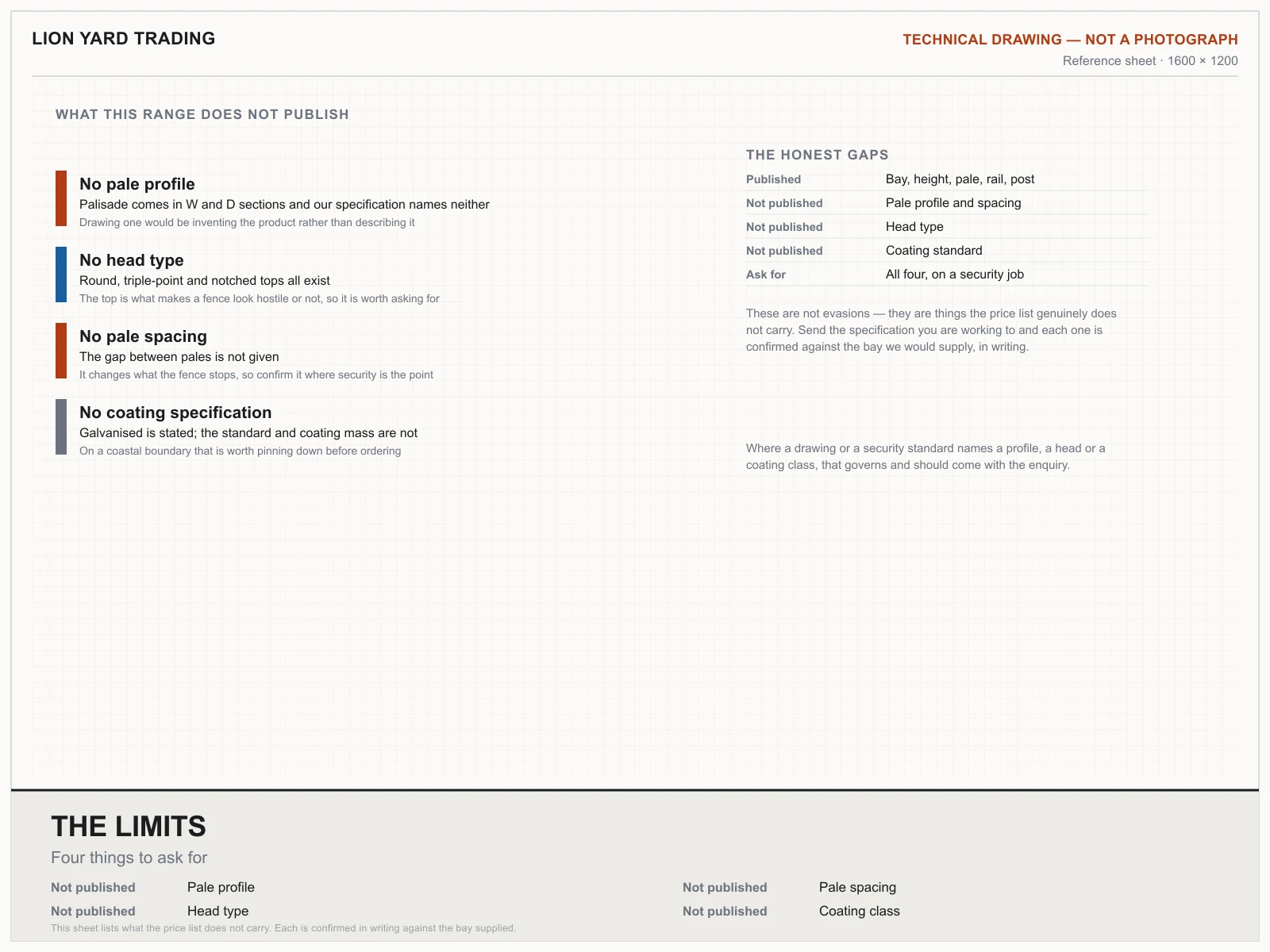

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Pale profile
- W or D section · 65 mm general, 70 mm security · 2.5–3.9 mm
- Pale spacing
- 155 mm centres corrugated · 135 mm angle
- Pales per bay
- 17 standard · 18 for higher security
- Pale length

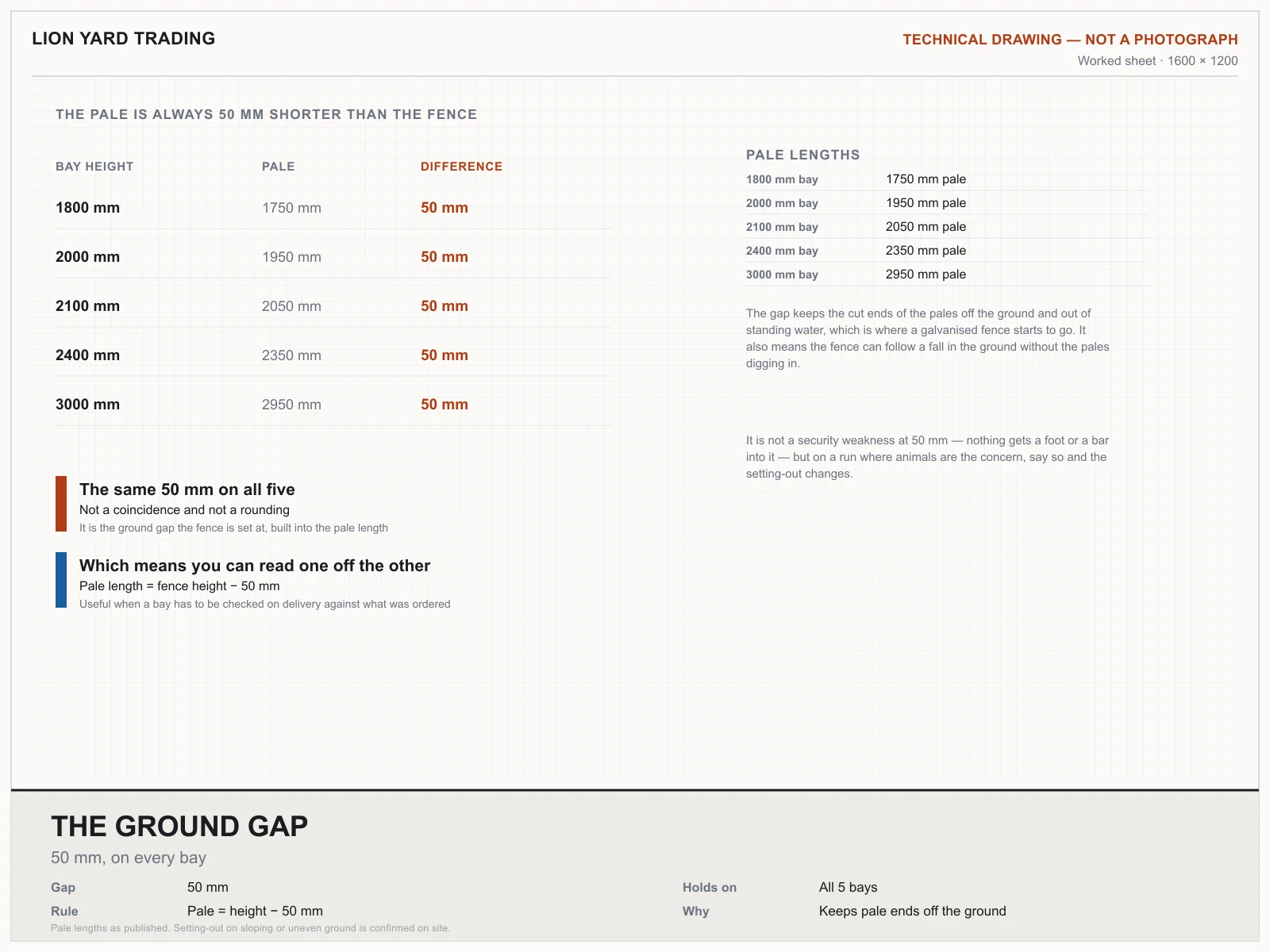

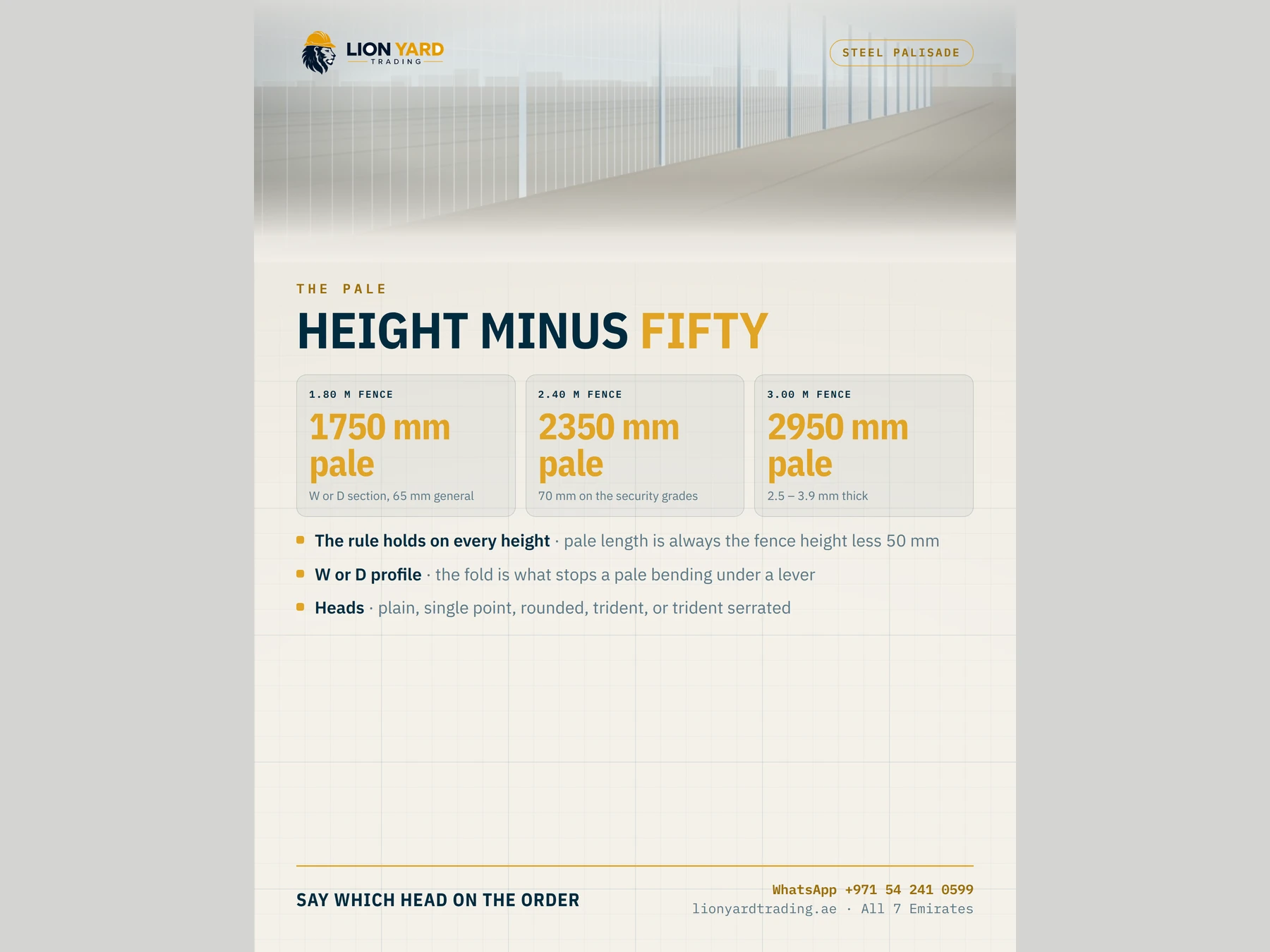

- Fence height minus 50 mm
- Heads
- Plain, single point, rounded, trident, trident serrated
- Posts
- RSJ 102 × 44 (7.44 kg/m) · RSJ 127 × 76 (13 kg/m) at 3.0 m and above
- Foundations
- 350 × 350 mm to 2.4 m · 450 × 450 mm at 3.0–3.6 m
- Fixings
- M8 shear-cone anti-vandal to pales · M12 cup-square to rails
- Standard

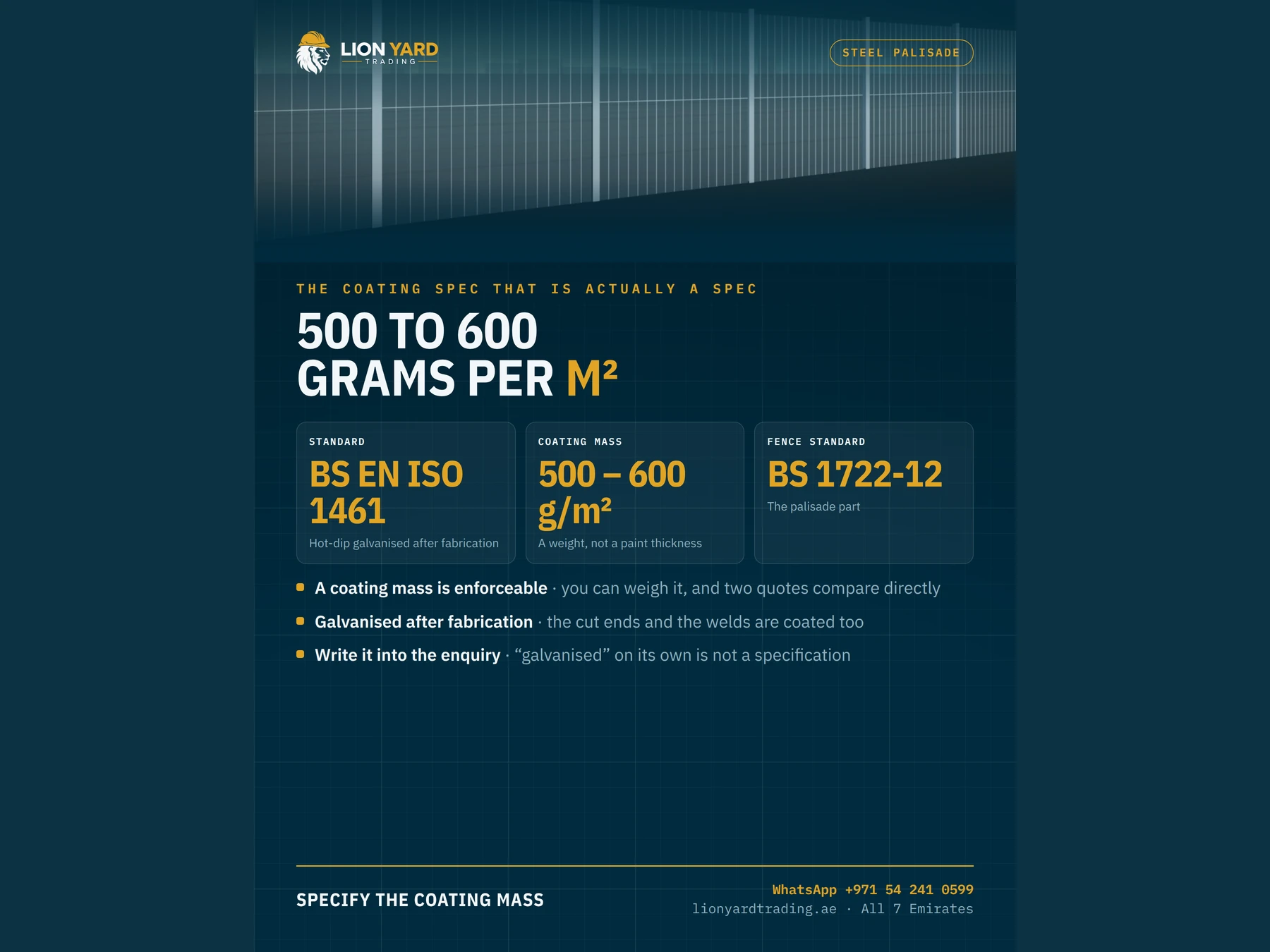

- BS 1722-12 · HDG to BS EN ISO 1461, 500–600 g/m²
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Steel Palisade Fencing — every figure comes from the price table above or from the published standard it is made to.

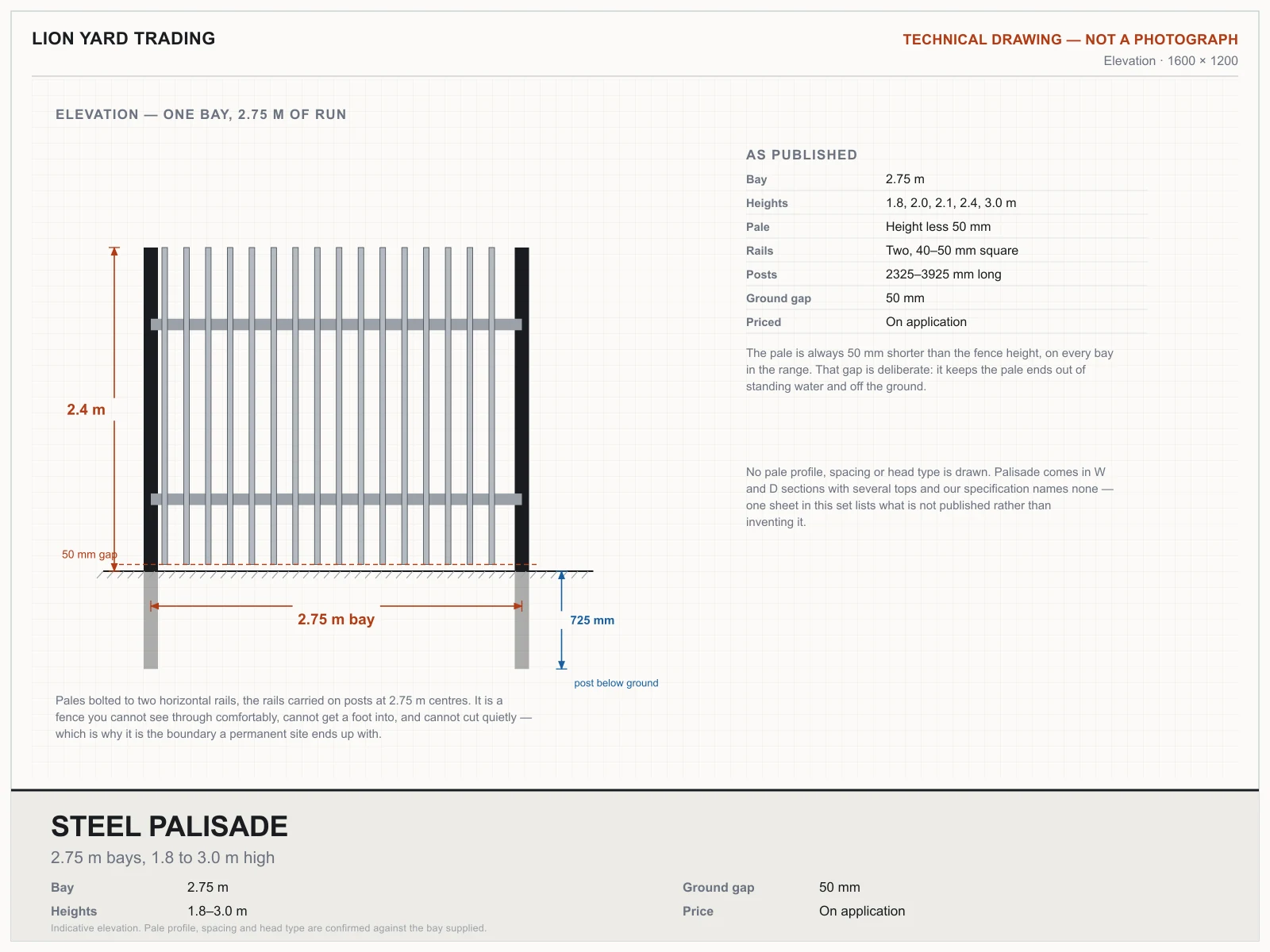

The bay2.75 m of run
1 of 10

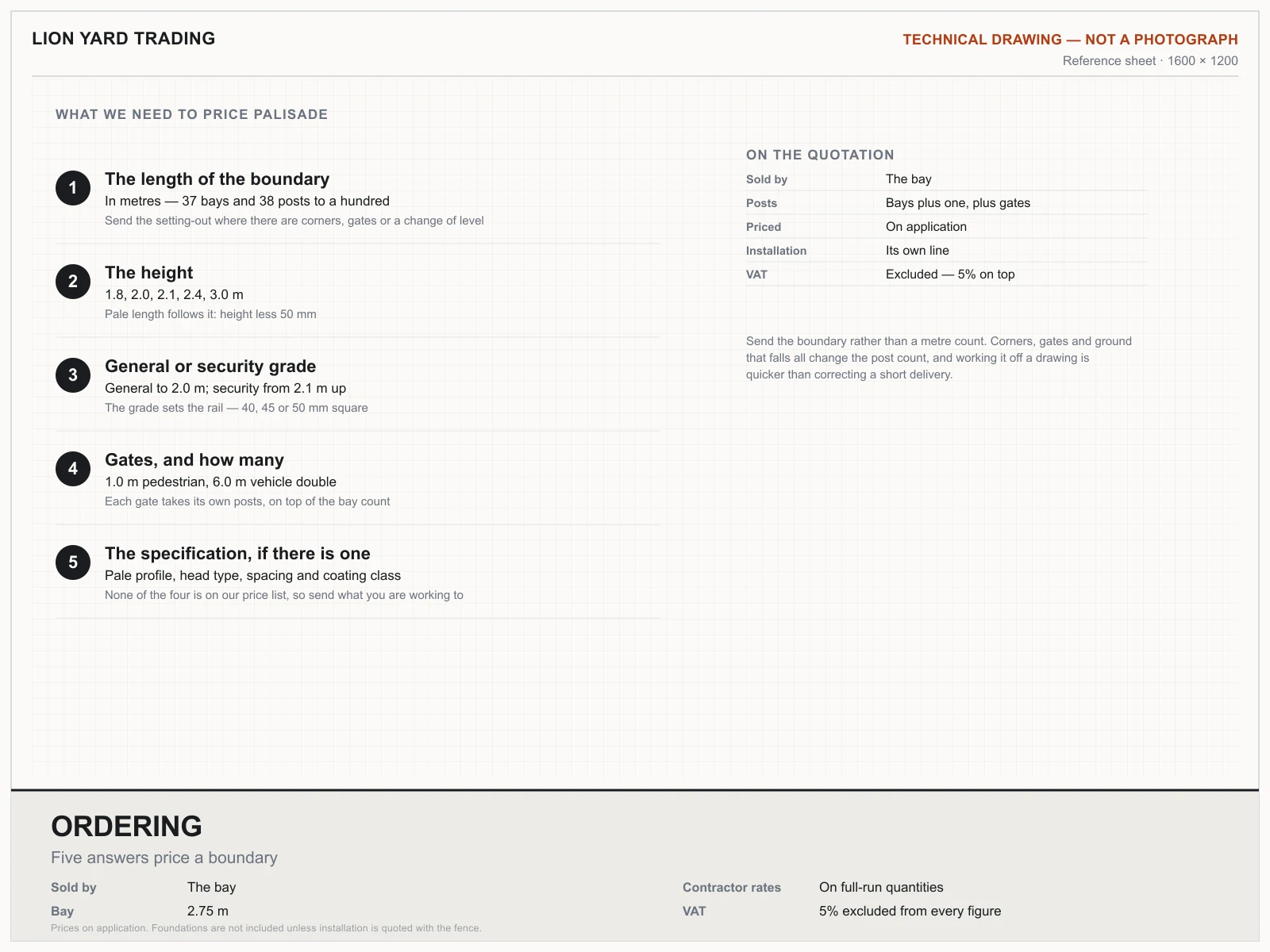

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your steel palisade fencing?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
