Chain Link Fencing
Perimeter & Security Fencing
16options10technical drawings10photos of our stock
Priced on enquiry
Priced per roll or per running metre against your run length.
Tell us the size and where it is going.
About this product

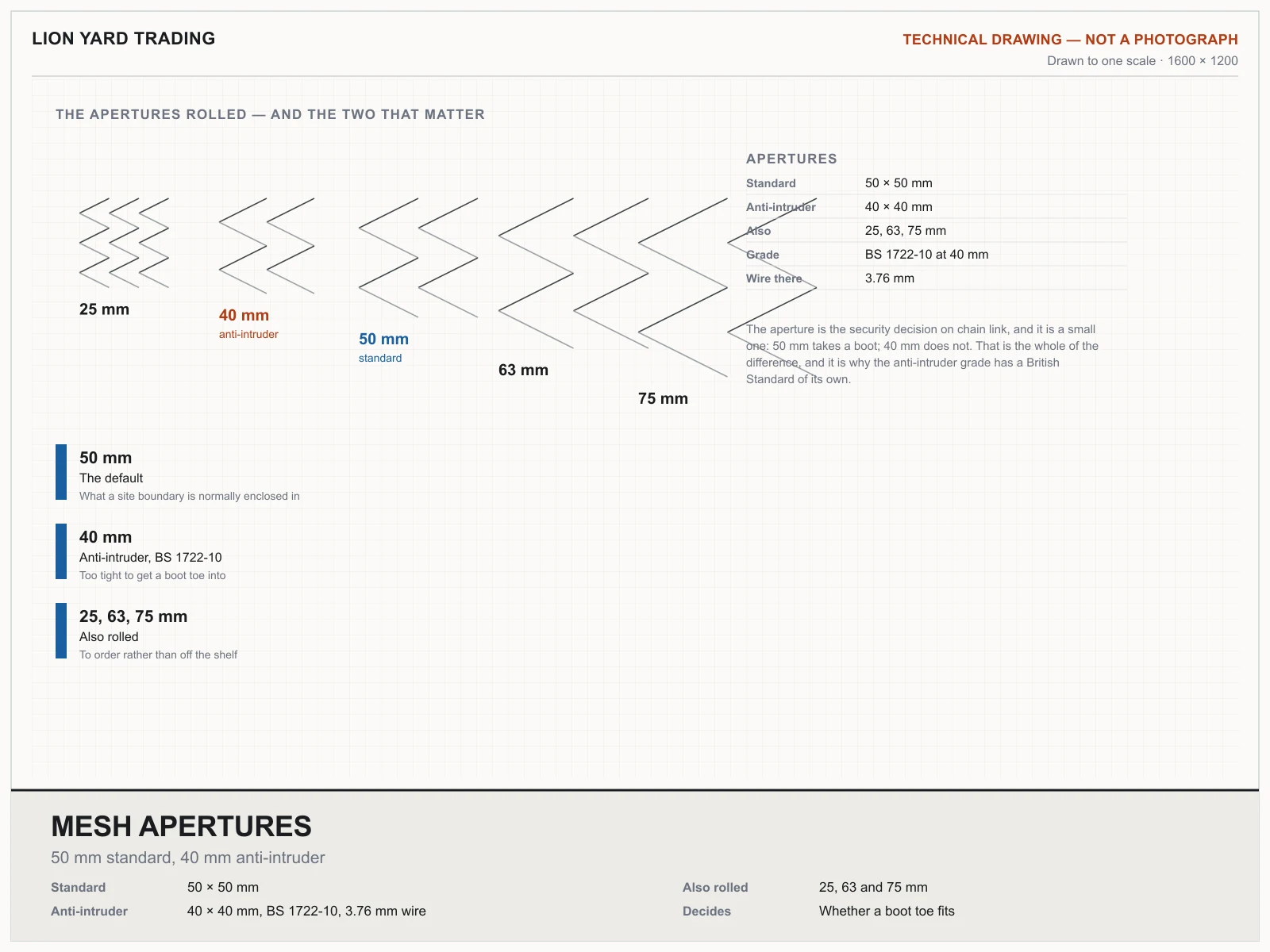

- Mesh apertures: 50 × 50 mm standard · 40 × 40 mm anti-intruder · 25, 63 and 75 mm also rolled
- Wire: 2.0–5.0 mm galvanised · PVC-coated 1.4/2.0 up to 4.0/5.0 mm
- Choosing the wire: Heavier wire lasts longer on a boundary that stays put; lighter wire is normal for…
- Sold by: Fabric by the 25 m roll or cut by the square metre · posts and fittings by the piece
- Post spacing: 3.0 m intermediate · approx. 30 m straining and corner
- Standards: BS 1722-1 · BS 1722-10 anti-intruder · BS EN 10223-6 · BS 4102
Delivered across all 7 Emirates
All 16 options
Every option on one list. Tap any row to ask about that one.

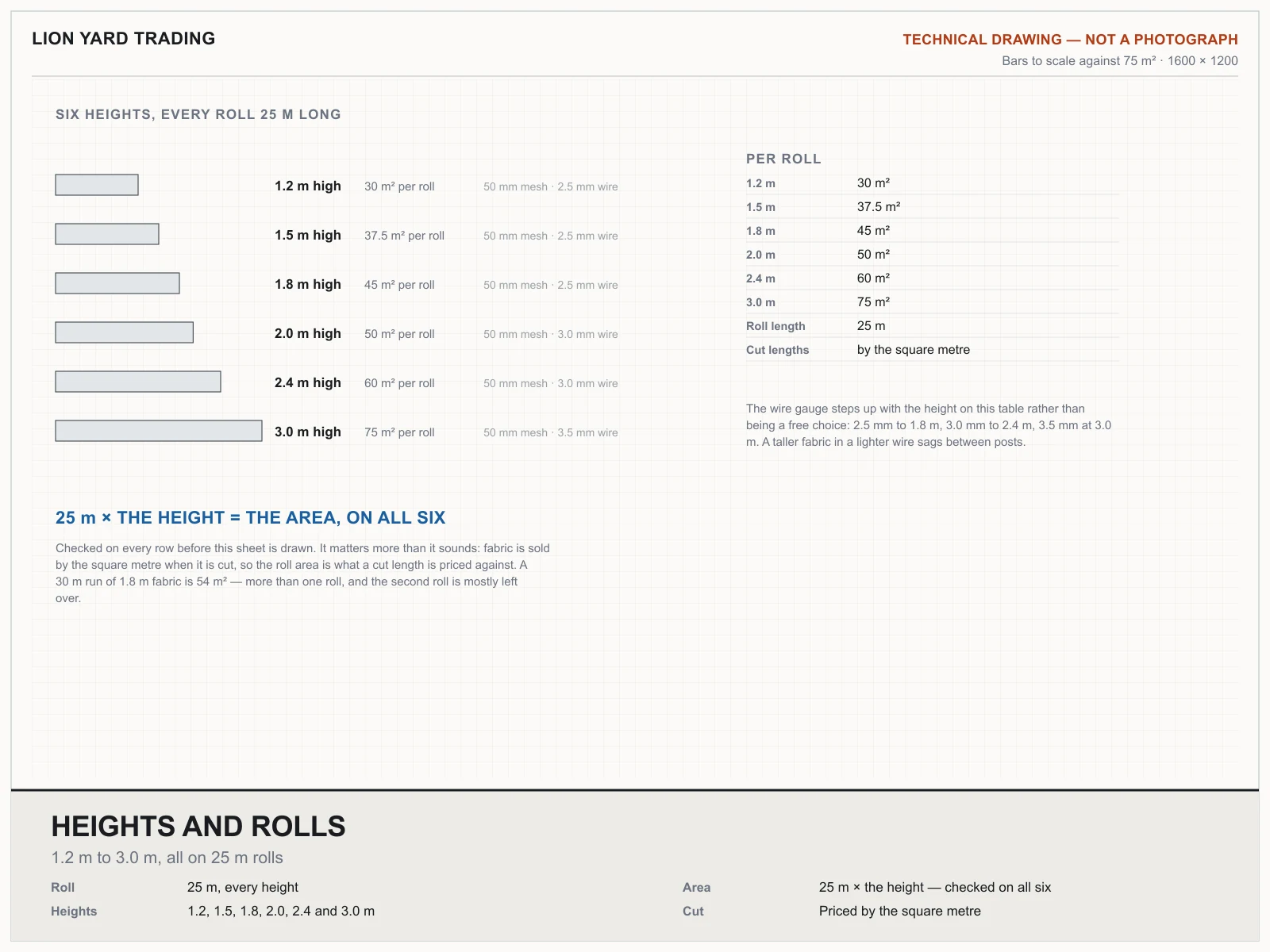

| Size / product | Details | Enquire |
|---|---|---|
| 1.2 m × 25 m — 50 mm mesh, 2.5 mmLY-PERI-071 | 25.0 m long × 1.20 m high · 30 m² per roll | Ask |
| 1.5 m × 25 m — 50 mm mesh, 2.5 mmLY-PERI-072 | 25.0 m long × 1.50 m high · 37.5 m² per roll | Ask |

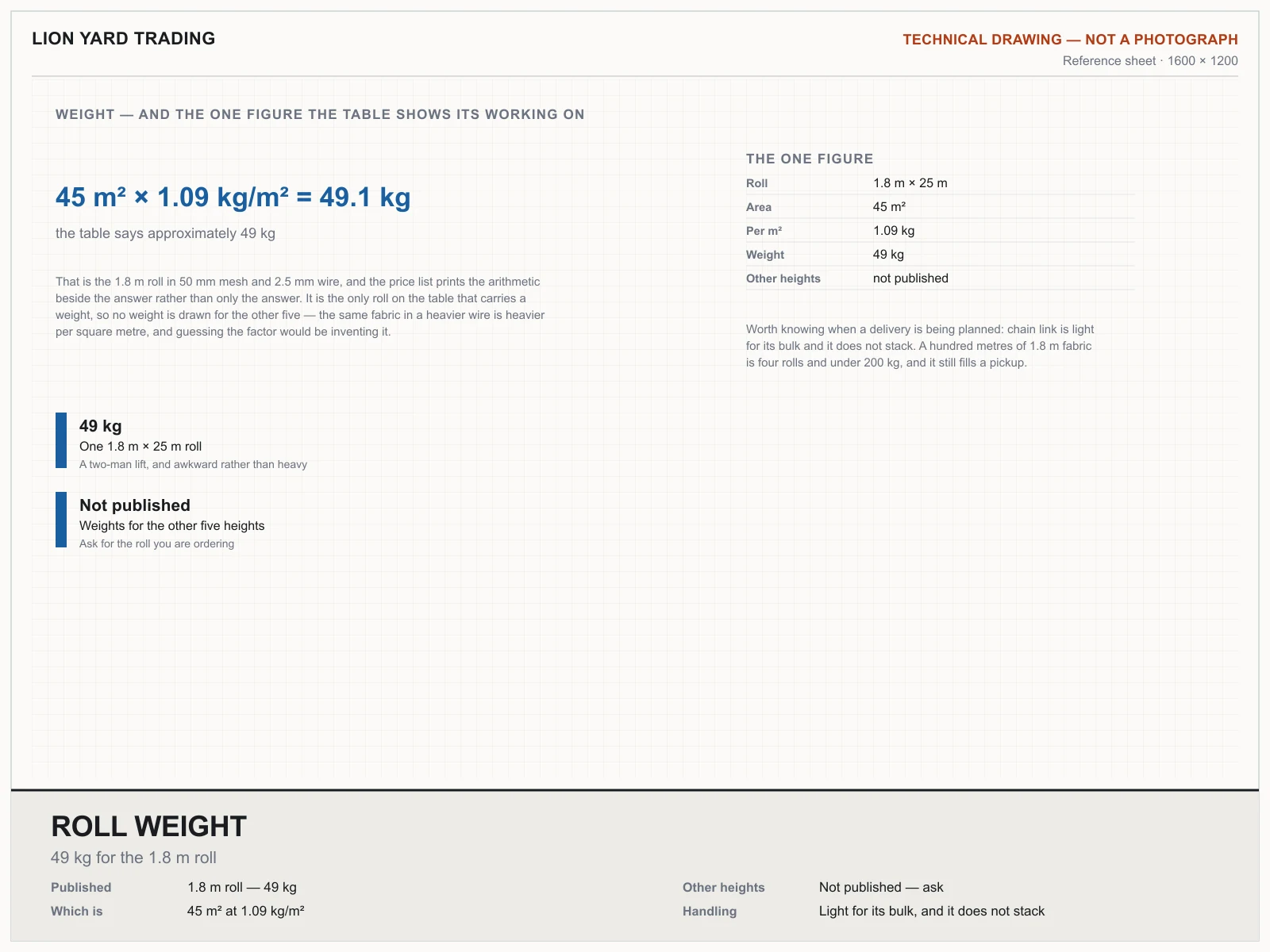

| 1.8 m × 25 m — 50 mm mesh, 2.5 mmLY-PERI-073 | 25.0 m long × 1.80 m high · 45 m² · approx. 49 kg per roll (45 m² at 1.09 kg/m² for 50 mm mesh in 2.5 mm wire) | Ask |
| 2.0 m × 25 m — 50 mm mesh, 3.0 mmLY-PERI-074 | 25.0 m long × 2.00 m high · 50 m² per roll | Ask |
| 2.4 m × 25 m — 50 mm mesh, 3.0 mmLY-PERI-075 | 25.0 m long × 2.40 m high · 60 m² per roll | Ask |
| 3.0 m × 25 m — 50 mm mesh, 3.5 mmLY-PERI-076 | 25.0 m long × 3.00 m high · 75 m² per roll | Ask |
| Anti-intruder 2.4 m — 40 mm mesh, 3.76 mmLY-PERI-077 | 25.0 m long × 2.40 m high · BS 1722-10 grade | Ask |
| PVC-coated 1.8 m — 50 mm meshLY-PERI-078 | 25.0 m long × 1.80 m high · core 2.2 mm / OD 3.2 mm · RAL 6005 green | Ask |
| Line post 2.4 mLY-PERI-079 | 2.40 m long × 48.3 mm OD × 2.5 mm · at 3.0 m centres | Ask |
| Line post 3.0 mLY-PERI-080 | 3.00 m long × 60.3 mm OD × 3.2 mm · at 3.0 m centres | Ask |
| Straining / corner post 3.0 mLY-PERI-011 | 3.00 m long × 76.1 mm OD × 3.2 mm · at approx. 30 m centres | Ask |

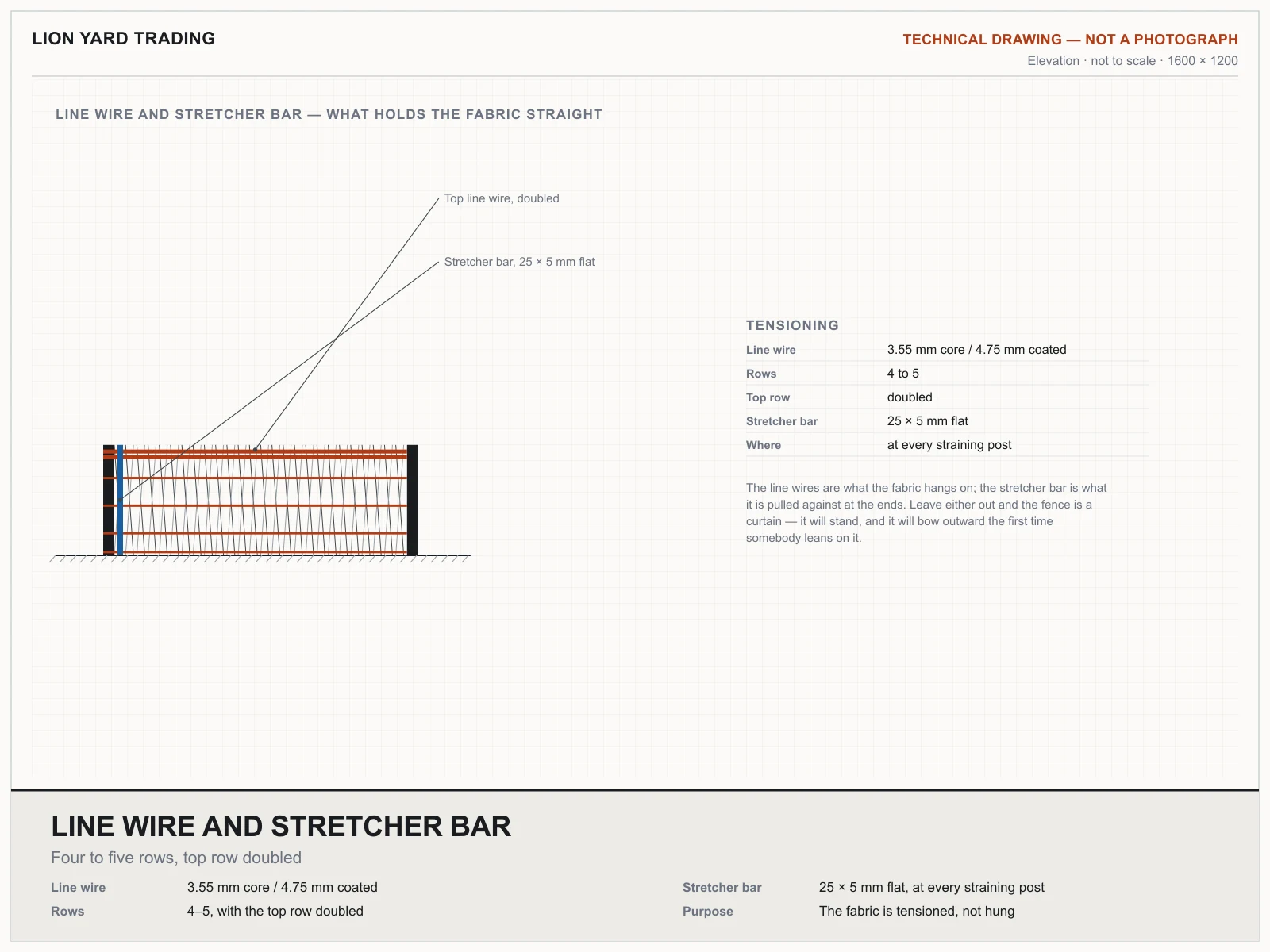

| Line wireLY-PERI-012 | 3.55 mm core / 4.75 mm coated · 4–5 rows, top row doubled | Ask |
| Stretcher barLY-PERI-013 | 25 × 5 mm flat | Ask |
| Cut to length — 50 mm mesh, 2.0 mm wireLY-PERI-081 | Cut from the roll · 50 × 50 mm aperture, 2.0 mm galvanised wire | Ask |
| Cut to length — 50 mm mesh, 2.5 mm wireLY-PERI-082 | Cut from the roll · 50 × 50 mm aperture, 2.5 mm galvanised wire | Ask |
| Cut to length — 50 mm mesh, 3.0 mm wireLY-PERI-083 | Cut from the roll · 50 × 50 mm aperture, 3.0 mm galvanised wire | Ask |
- 25.0 m long × 1.20 m high · 30 m² per rollAsk on WhatsApp
- 25.0 m long × 1.50 m high · 37.5 m² per rollAsk on WhatsApp
- 25.0 m long × 1.80 m high · 45 m² · approx. 49 kg per roll (45 m² at 1.09 kg/m² for 50 mm mesh in 2.5 mm wire)Ask on WhatsApp
- 25.0 m long × 2.00 m high · 50 m² per rollAsk on WhatsApp
- 25.0 m long × 2.40 m high · 60 m² per rollAsk on WhatsApp
- 25.0 m long × 3.00 m high · 75 m² per rollAsk on WhatsApp
- 25.0 m long × 2.40 m high · BS 1722-10 gradeAsk on WhatsApp
- 25.0 m long × 1.80 m high · core 2.2 mm / OD 3.2 mm · RAL 6005 greenAsk on WhatsApp
- 2.40 m long × 48.3 mm OD × 2.5 mm · at 3.0 m centresAsk on WhatsApp
- 3.00 m long × 60.3 mm OD × 3.2 mm · at 3.0 m centresAsk on WhatsApp
- 3.00 m long × 76.1 mm OD × 3.2 mm · at approx. 30 m centresAsk on WhatsApp
- 3.55 mm core / 4.75 mm coated · 4–5 rows, top row doubledAsk on WhatsApp
- 25 × 5 mm flatAsk on WhatsApp
- Cut from the roll · 50 × 50 mm aperture, 2.0 mm galvanised wireAsk on WhatsApp
- Cut from the roll · 50 × 50 mm aperture, 2.5 mm galvanised wireAsk on WhatsApp
- Cut from the roll · 50 × 50 mm aperture, 3.0 mm galvanised wireAsk on WhatsApp
Priced per roll or per running metre against your run length.
What it is

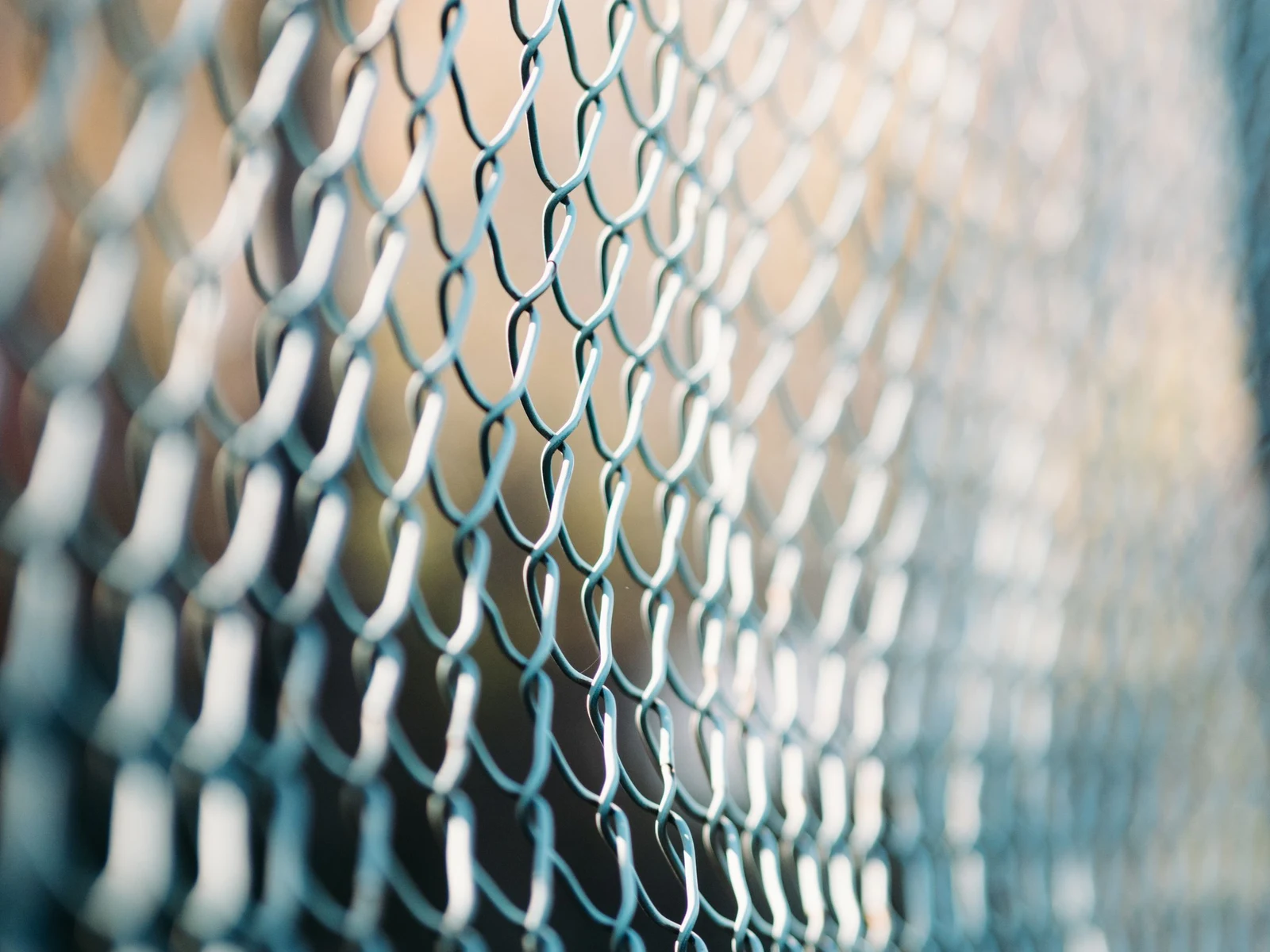

Woven galvanised mesh and posts for site perimeters, compounds and boundaries.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Mesh apertures
- 50 × 50 mm standard · 40 × 40 mm anti-intruder · 25, 63 and 75 mm also rolled

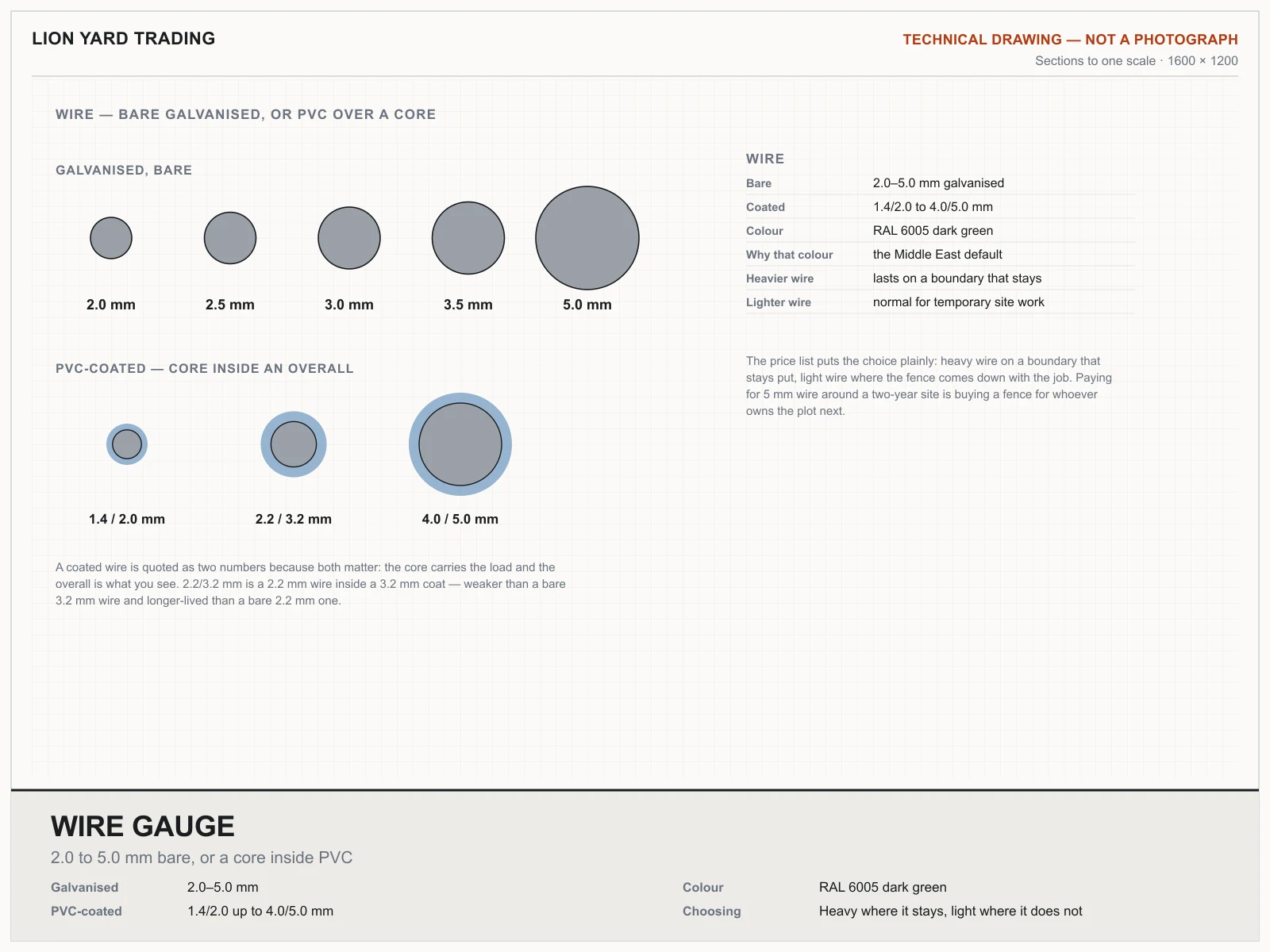

- Wire
- 2.0–5.0 mm galvanised · PVC-coated 1.4/2.0 up to 4.0/5.0 mm
- Choosing the wire
- Heavier wire lasts longer on a boundary that stays put; lighter wire is normal for temporary site enclosure
- Sold by
- Fabric by the 25 m roll or cut by the square metre · posts and fittings by the piece

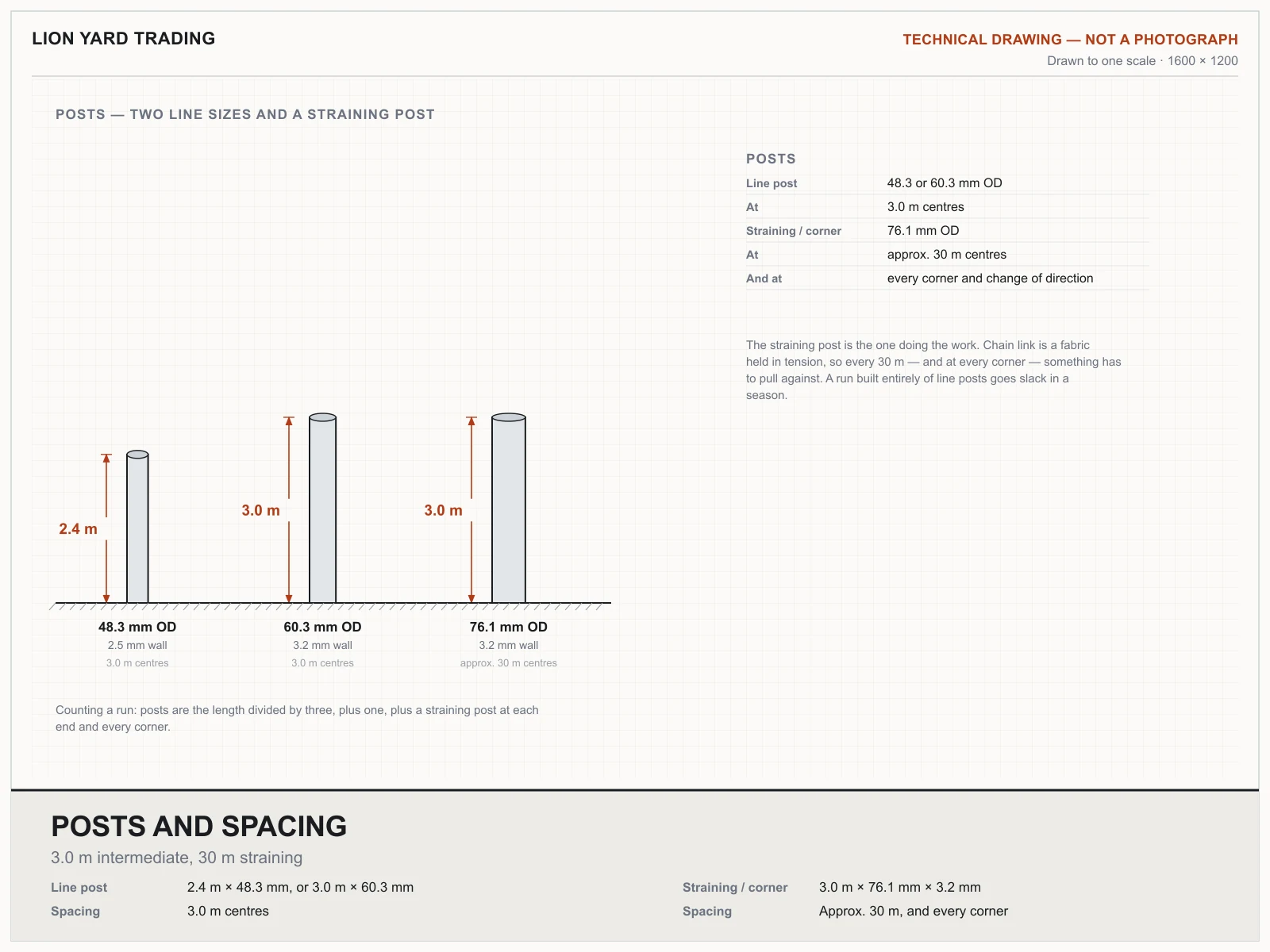

- Post spacing
- 3.0 m intermediate · approx. 30 m straining and corner

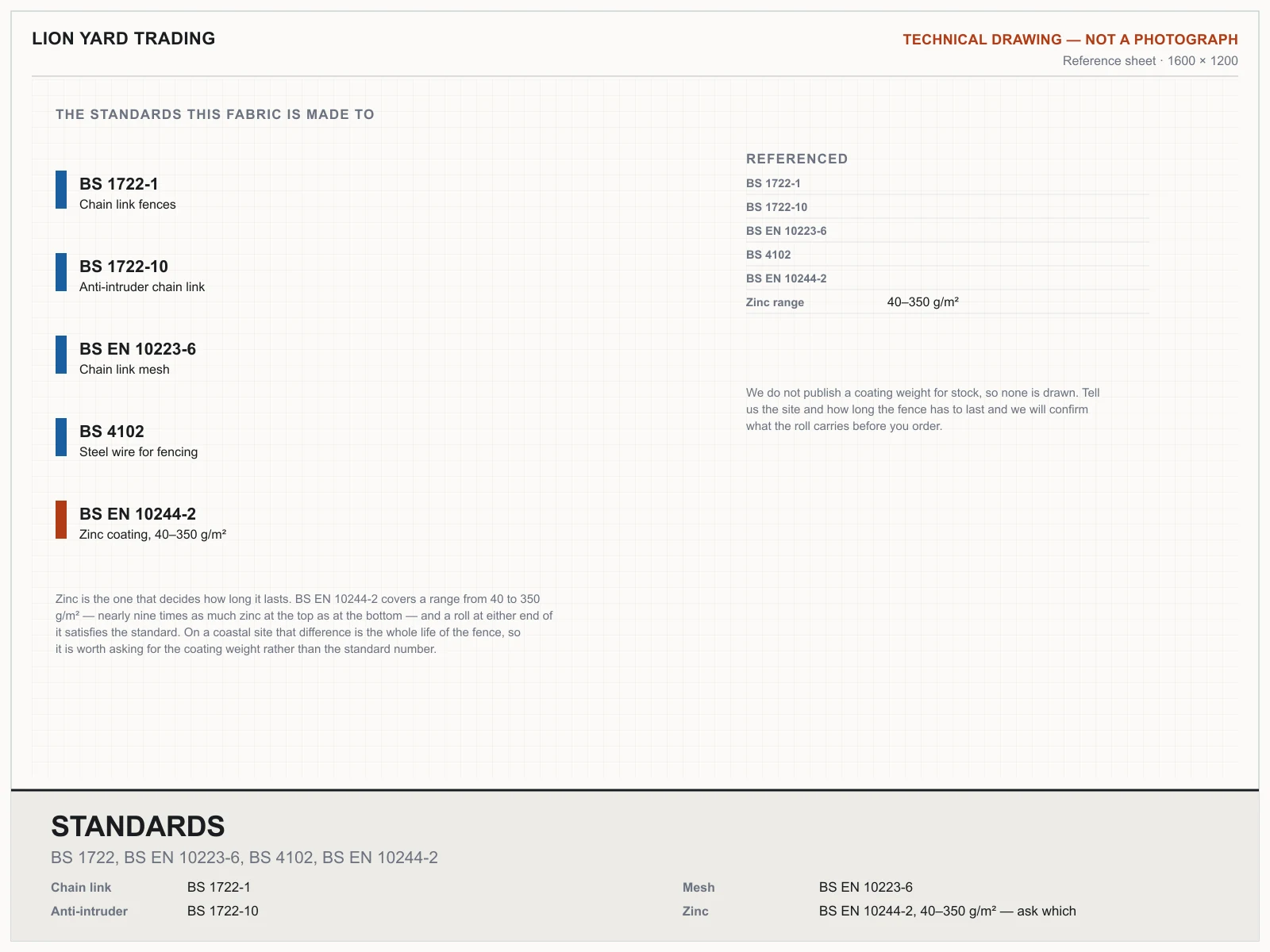

- Standards
- BS 1722-1 · BS 1722-10 anti-intruder · BS EN 10223-6 · BS 4102
- Zinc coating
- BS EN 10244-2, 40–350 g/m²
- PVC-coated colour
- RAL 6005 dark green, the Middle East default
- What it does

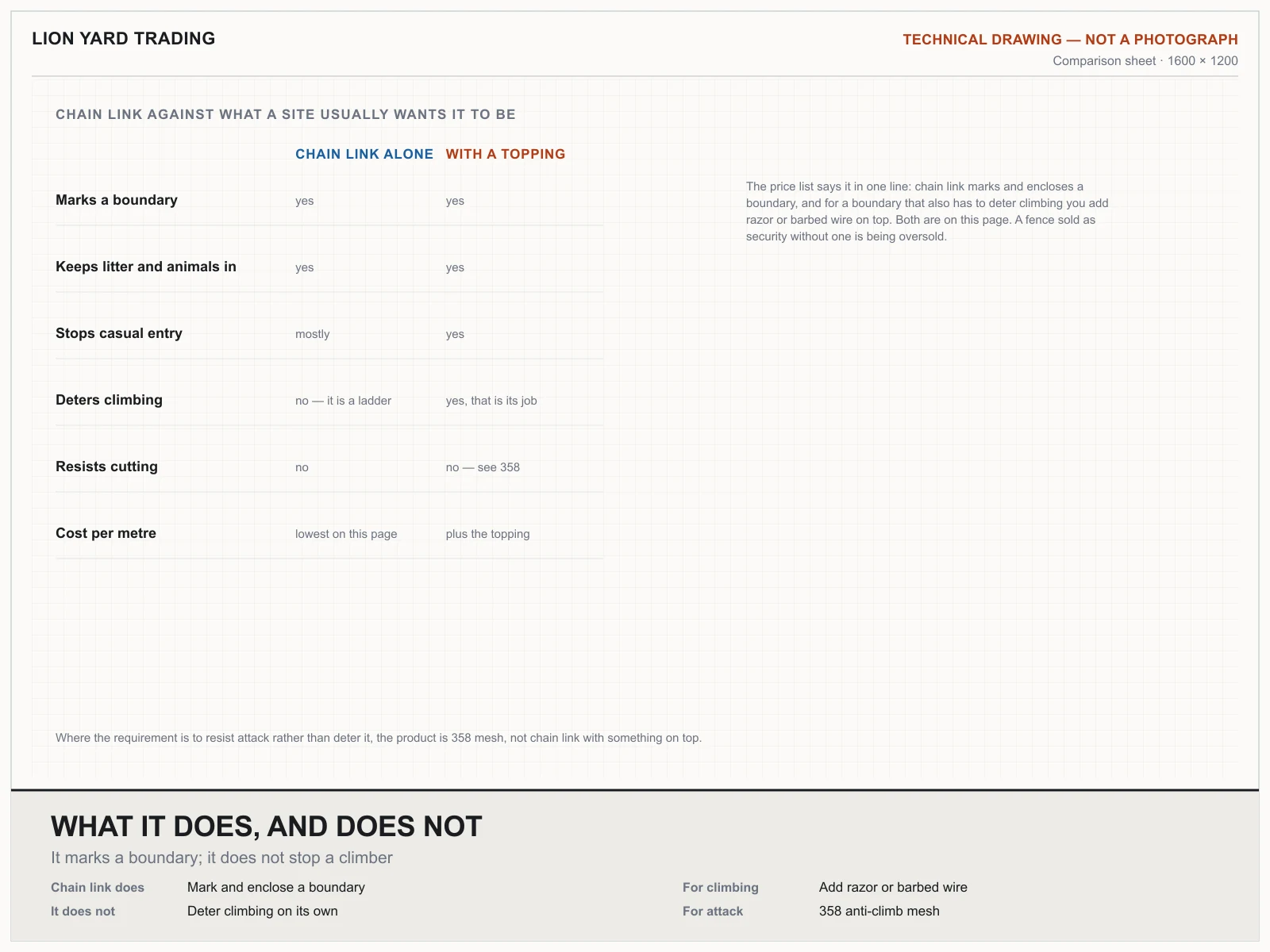

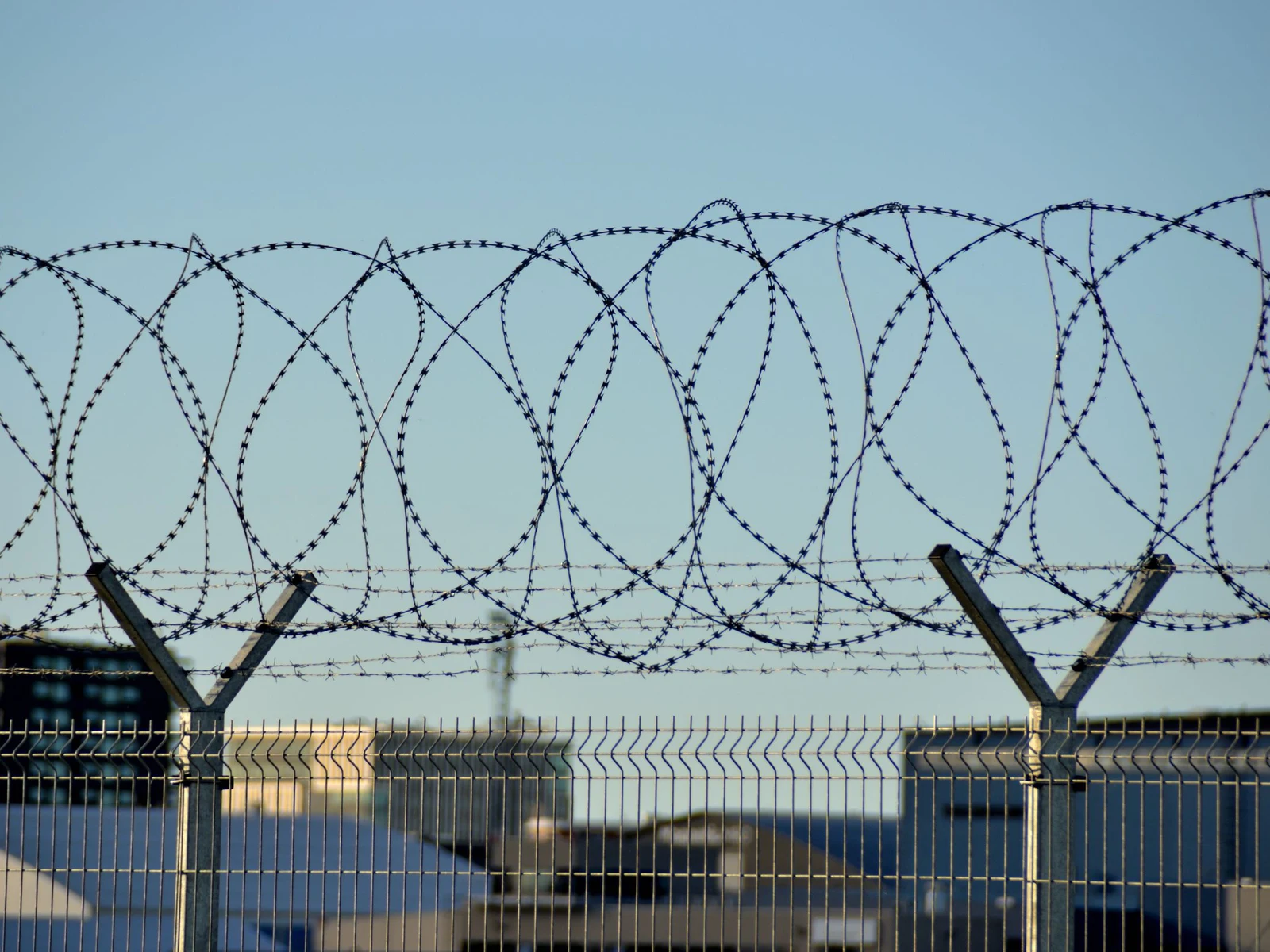

- Marks and encloses a boundary. For a boundary that also has to deter climbing, add razor or barbed wire on top
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
Chain Link Fencing
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Chain Link Fencing — every figure comes from the price table above or from the published standard it is made to.

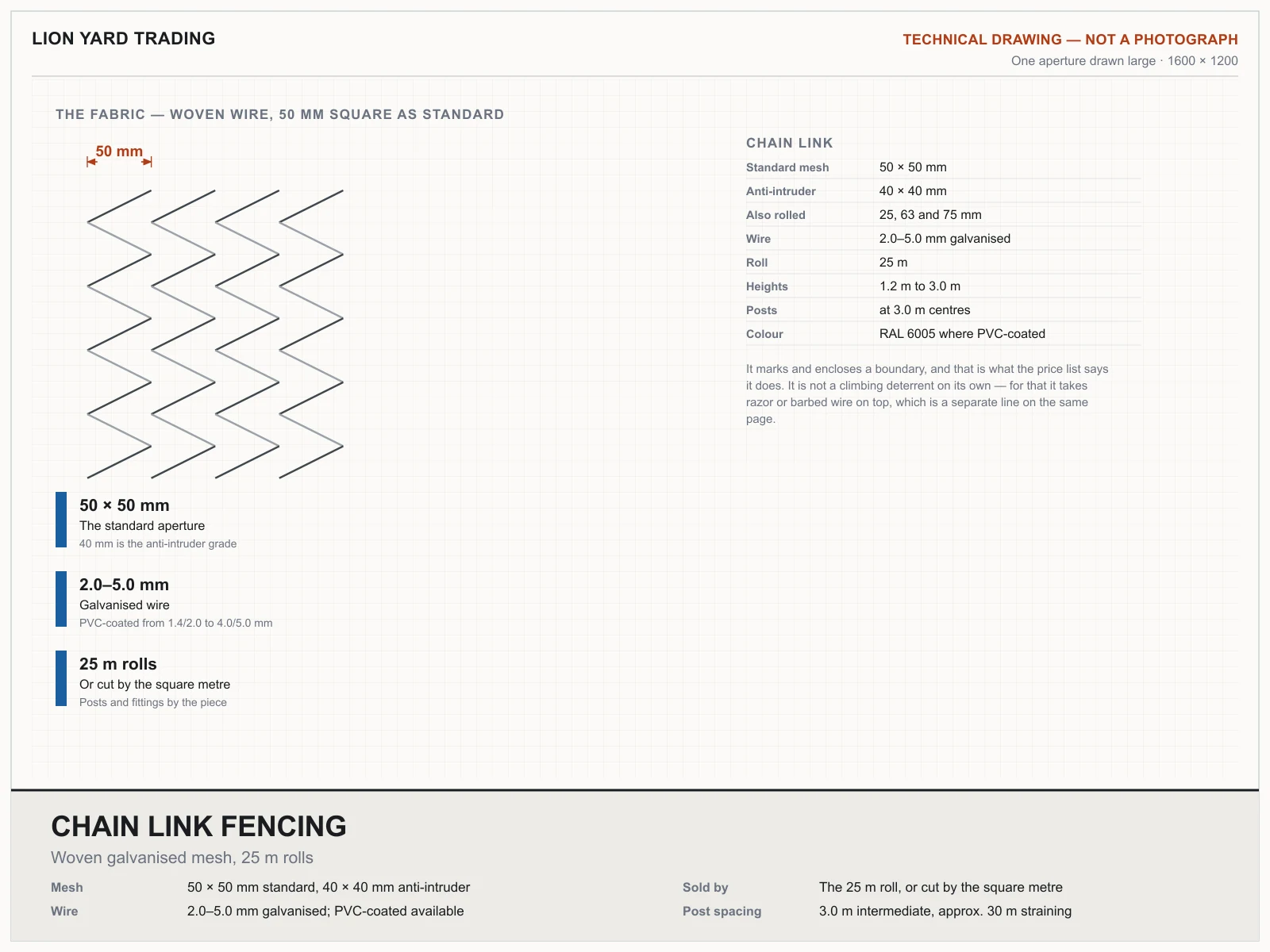

The fabric50 mm mesh, woven wire
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your chain link fencing?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
