Covered Walkway / Pedestrian Gantry
Site Hoarding & Temporary Fencing
Priced on enquiry
Made to your footpath width and the length of frontage affected.
Tell us the size and where it is going.
About this product
- What it is: A temporary scaffold or structural tunnel — boarded sides, a debris-rated roof…
- Who buys it: Sites on a public footpath, a busy frontage, or anywhere the works genuinely block the…
- Construction: Scaffold tube or steel frame, boarded or sheeted sides, a debris-netted or sheeted roof…
- Vs plain hoarding: Plain hoarding encloses the site; a covered walkway is for the public route that has…
- Delivery: All 7 Emirates from our own yard.
- Installation service: Supply only, or supplied and installed by our own crew rather than a subcontractor.
All 2 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| Standard Gantry - 1.5m clear widthLY-HOAR-074 | Boarded sides, debris-netted roof, both-side handrail | Ask |
| Wide Gantry - 2.4m clear widthLY-HOAR-075 | For a busier footpath needing two-way pedestrian flow | Ask |
- Boarded sides, debris-netted roof, both-side handrailAsk on WhatsApp
- For a busier footpath needing two-way pedestrian flowAsk on WhatsApp
Made to your footpath width and the length of frontage affected.
What it is
A protected, roofed route that keeps pedestrians moving safely past a site frontage where hoarding alone would block the footpath.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is
- A temporary scaffold or structural tunnel — boarded sides, a debris-rated roof, guardrails and usually its own lighting — that carries pedestrians past or under a work area rather than diverting them into the road.
- Who buys it
- Sites on a public footpath, a busy frontage, or anywhere the works genuinely block the only pedestrian route past the plot.
- Construction
- Scaffold tube or steel frame, boarded or sheeted sides, a debris-netted or sheeted roof rated to catch falling material, handrails both sides.
- Vs plain hoarding
- Plain hoarding encloses the site; a covered walkway is for the public route that has nowhere else to go — the two are usually specified together, not instead of each other.
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation service
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Made to your footpath width and the length of frontage affected, priced per running metre against a site survey.
Technical Procurement & Ordering Guides

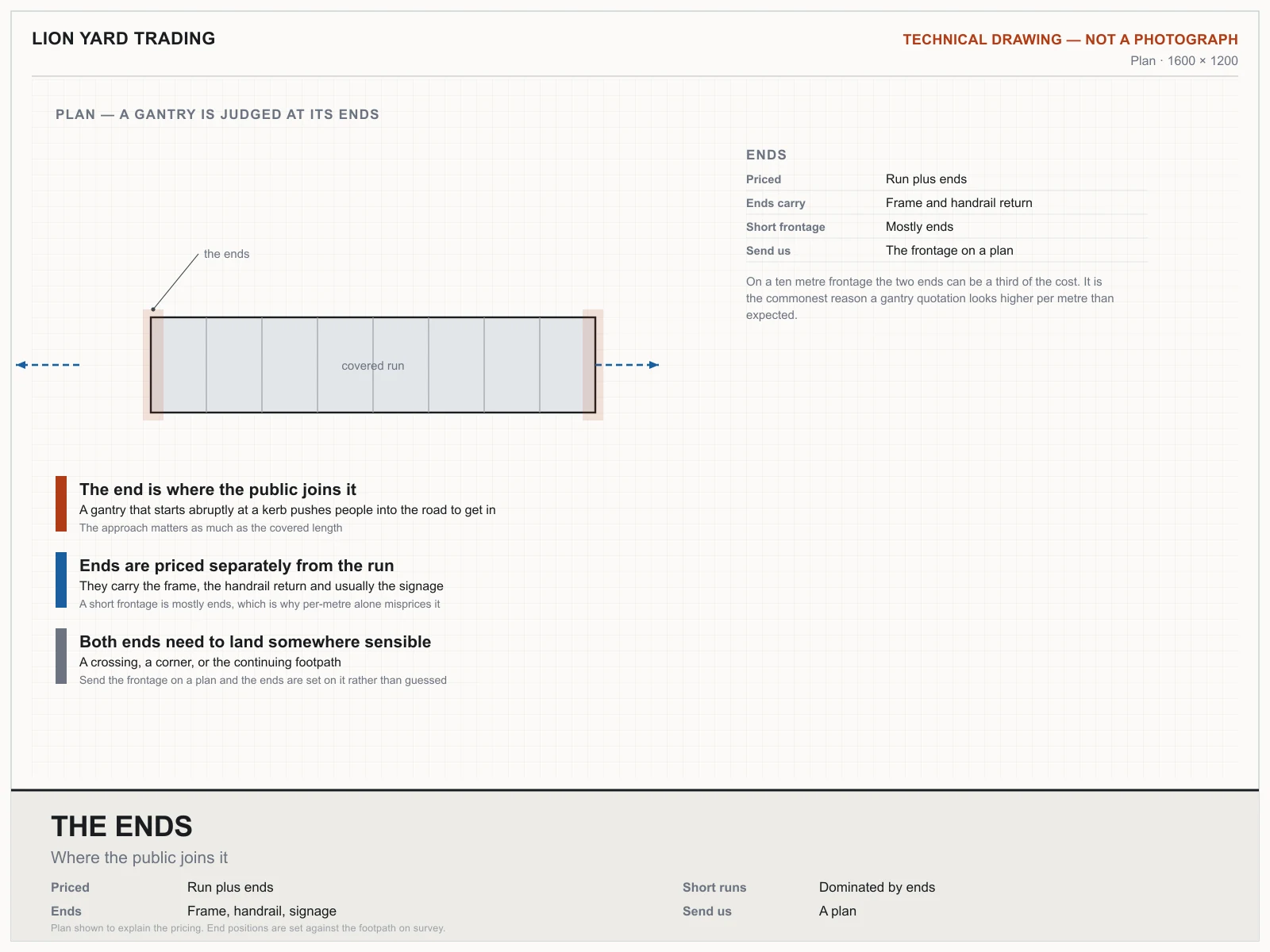

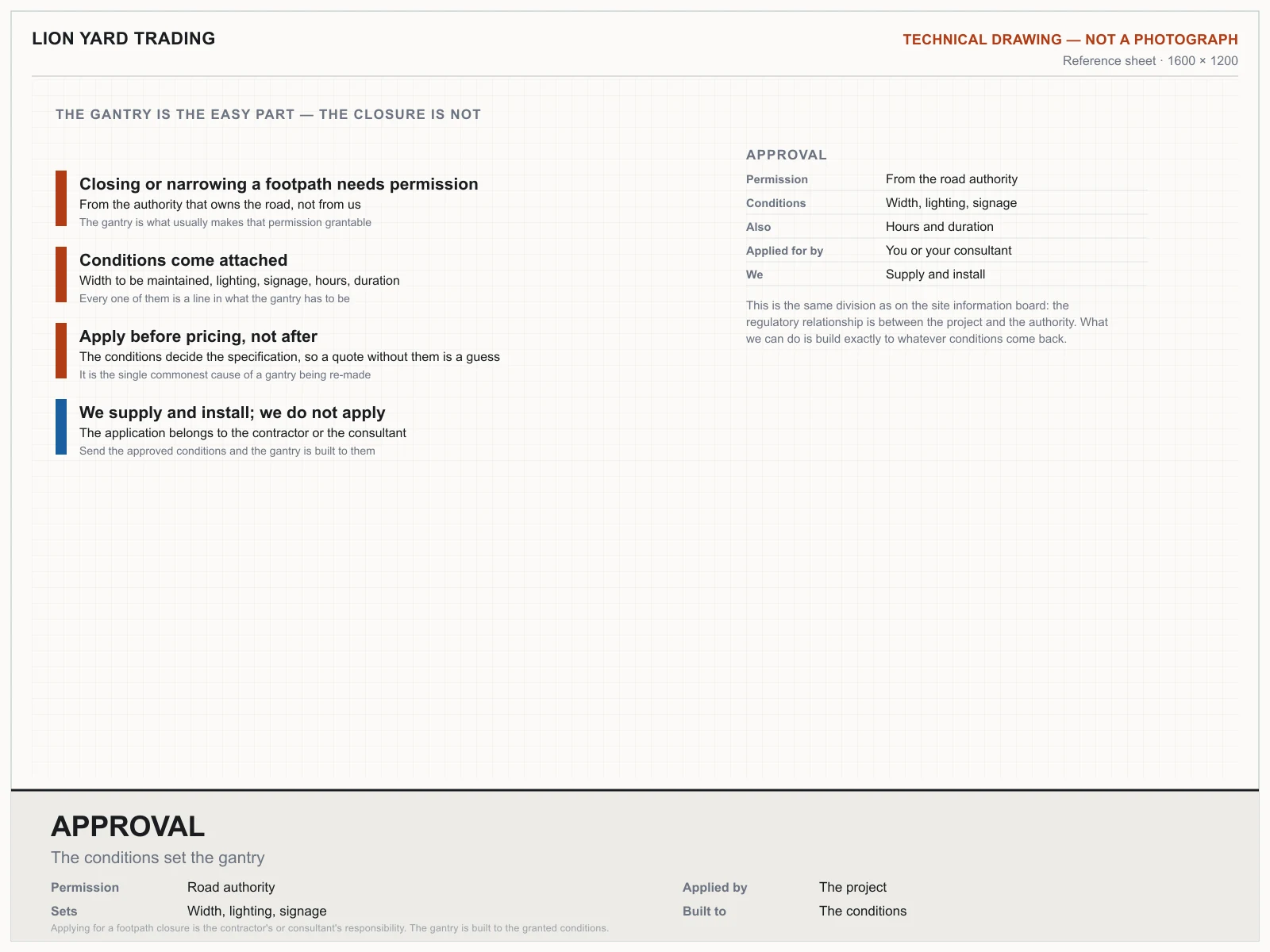

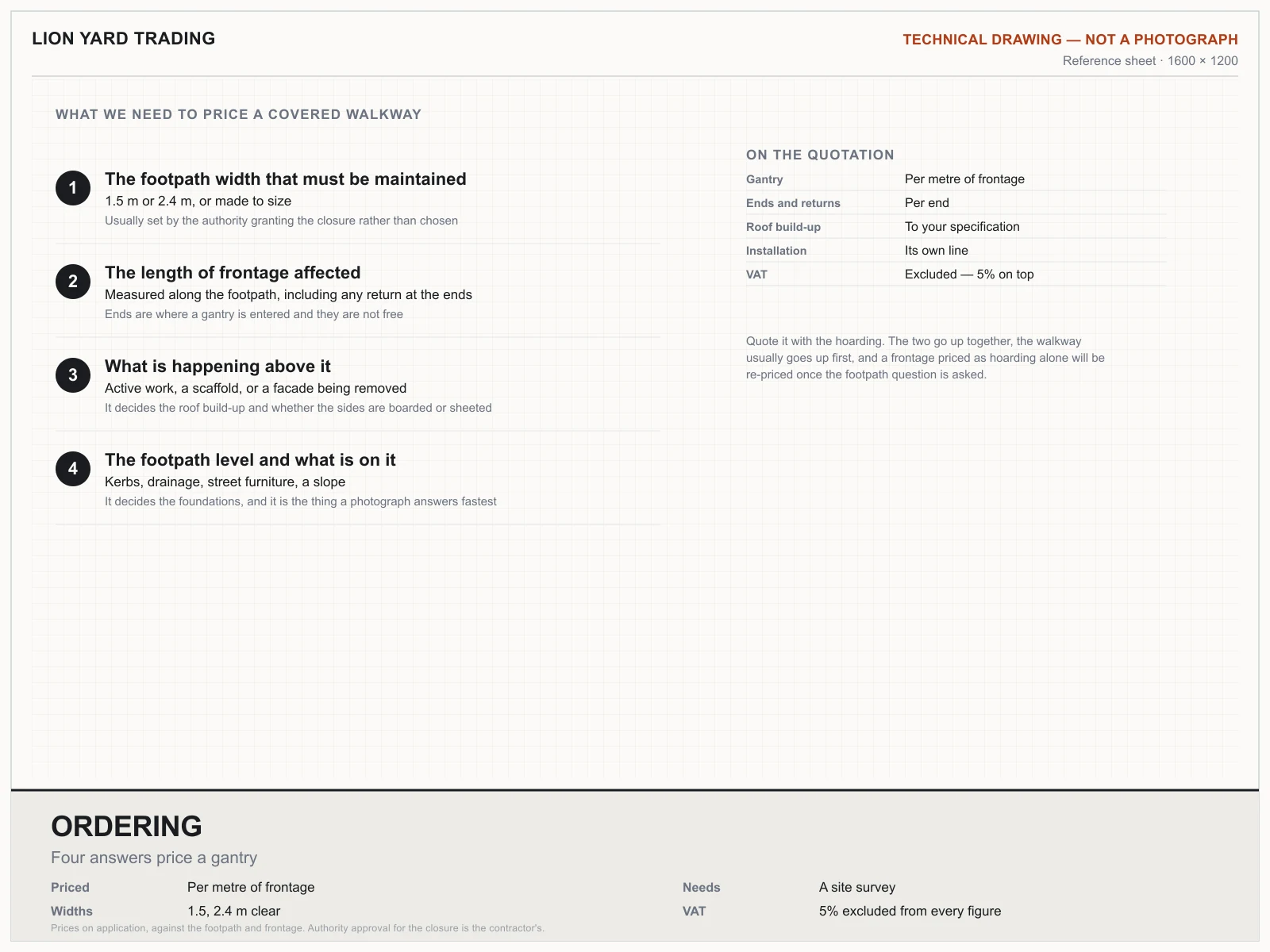

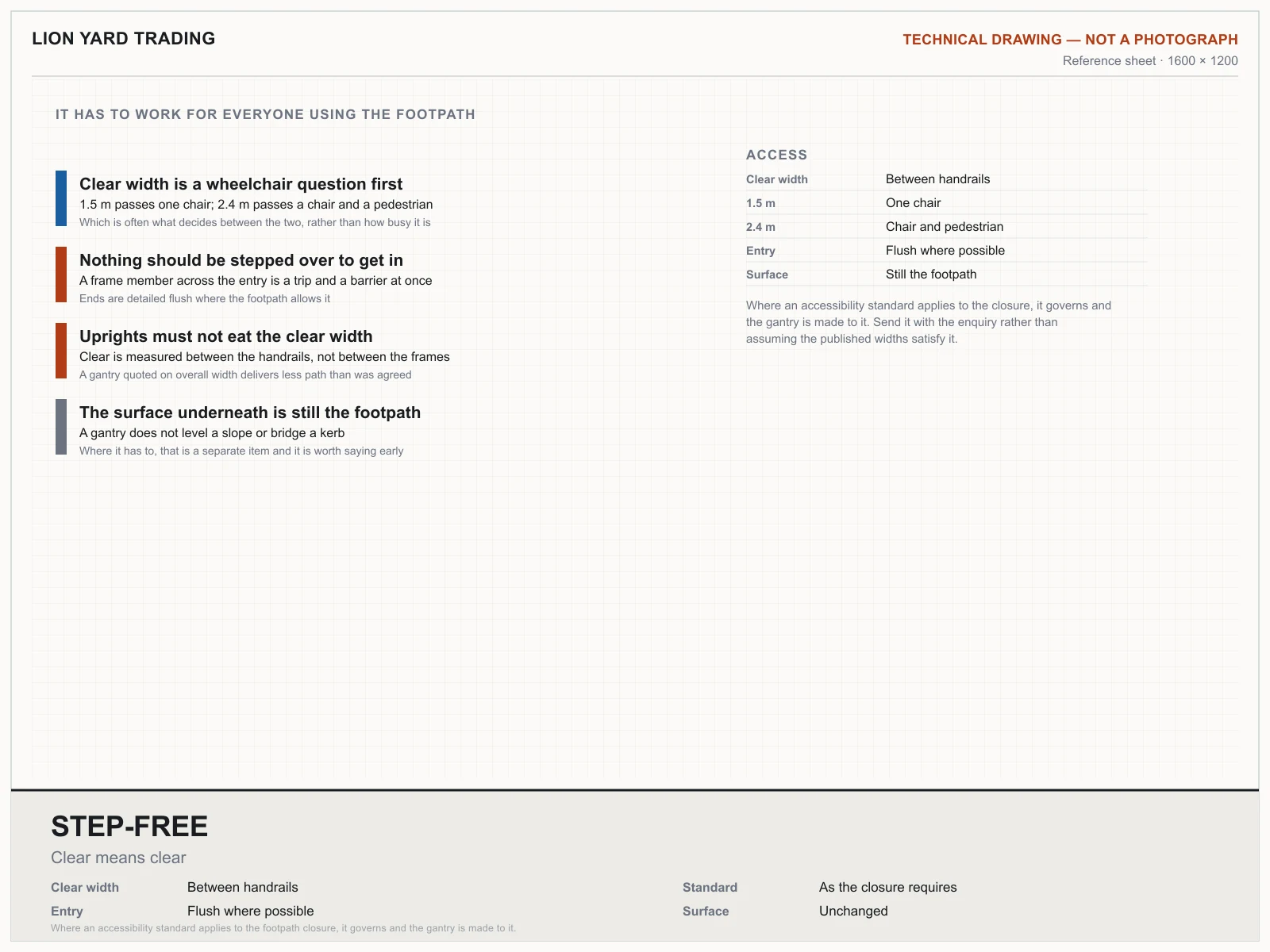

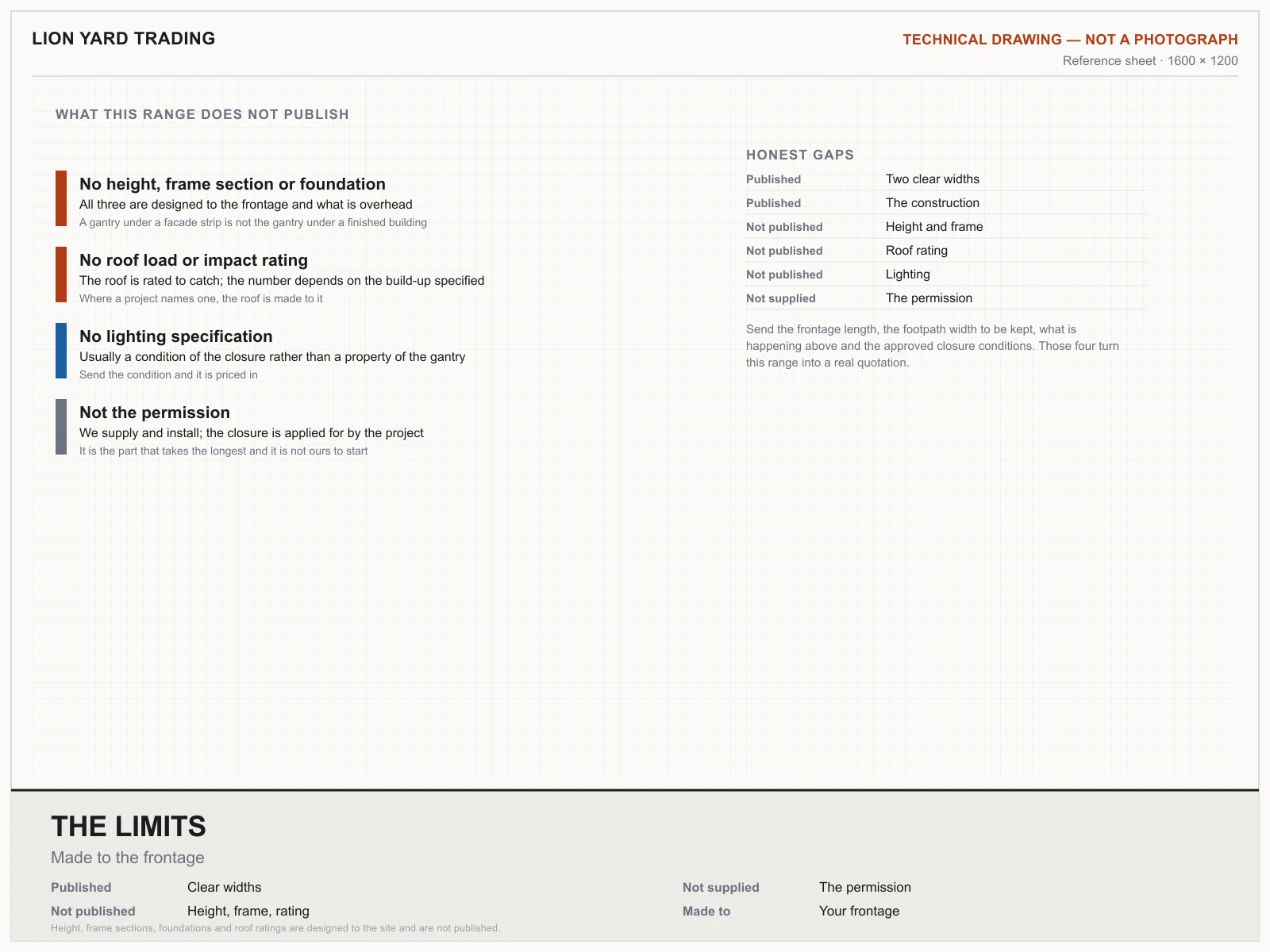

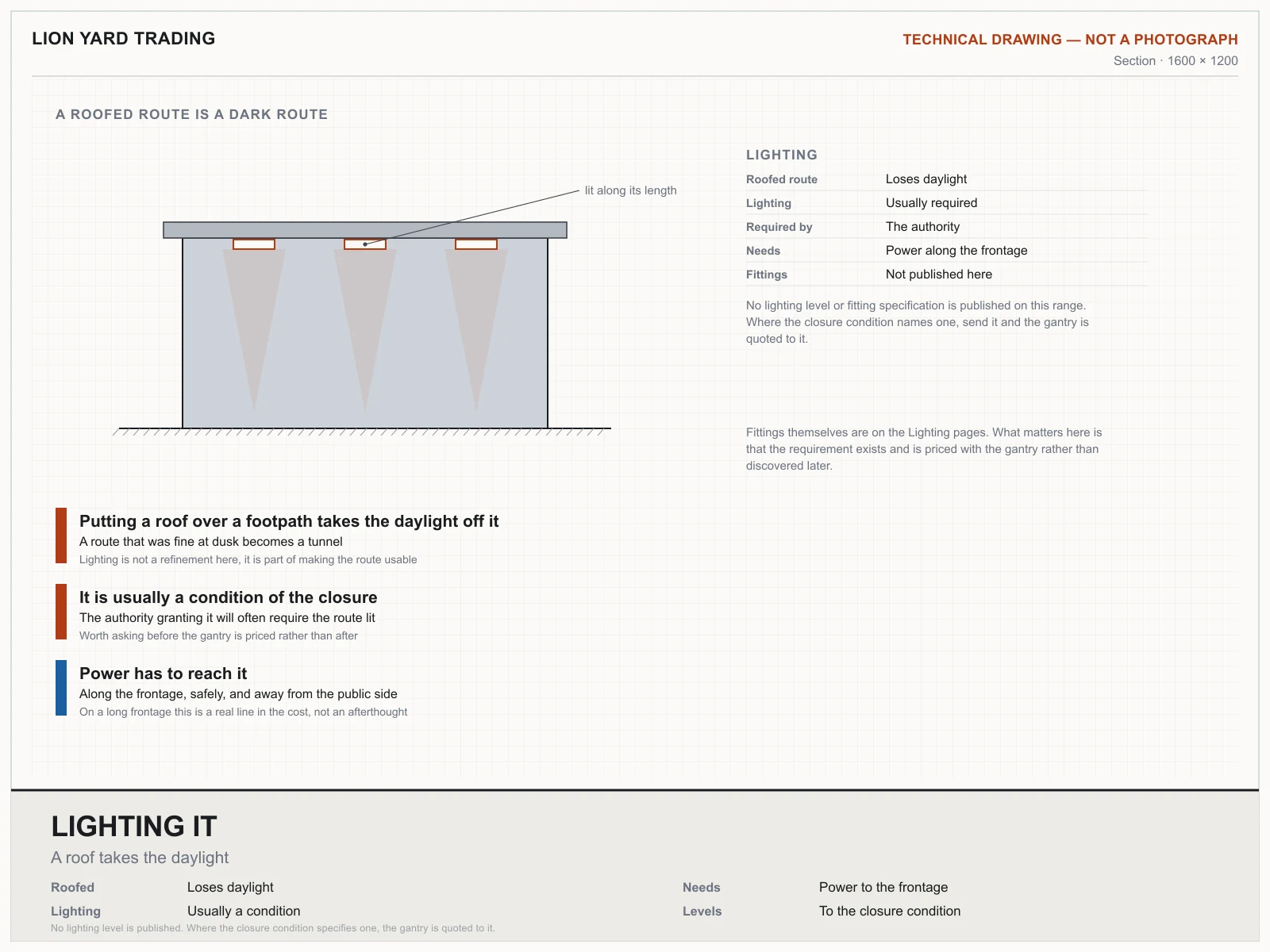

10 drawings covering every answer we need to price Covered Walkway / Pedestrian Gantry — every figure comes from the price table above or from the published standard it is made to.
Covered walkwayKeeping the footpath open
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your covered walkway / pedestrian gantry?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
