Hoarding Bases, Posts & Clamps
Site Hoarding & Temporary Fencing
Priced on enquiry
Priced per piece against your run length and post spacing.
Tell us the size and where it is going.
About this product
- Standard block: 500 × 400 × 200 mm — two holes front, threaded bolt rear for the brace

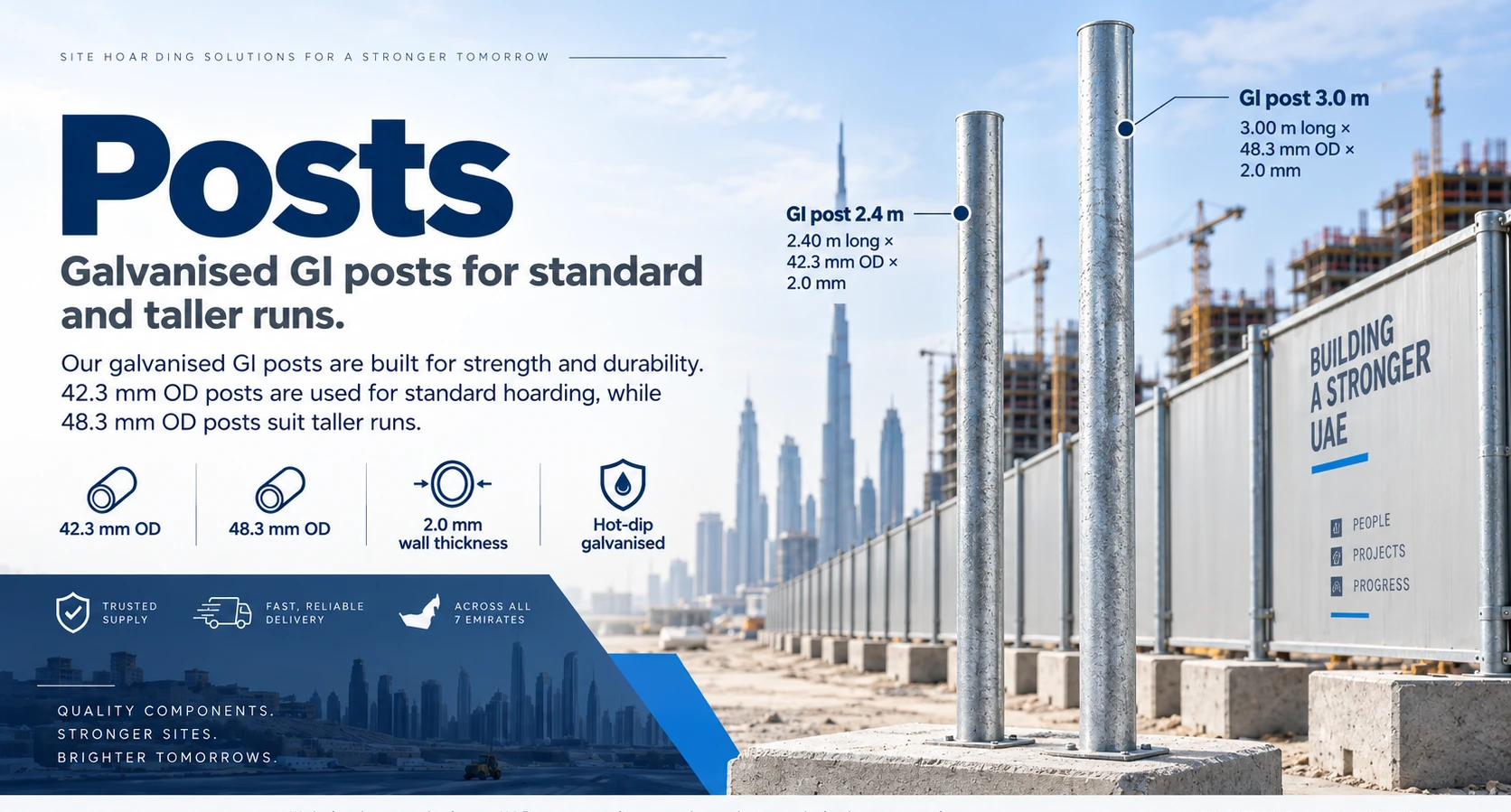

- Post sizes: 42.3 mm OD for hoarding · 48.3 mm OD for taller runs

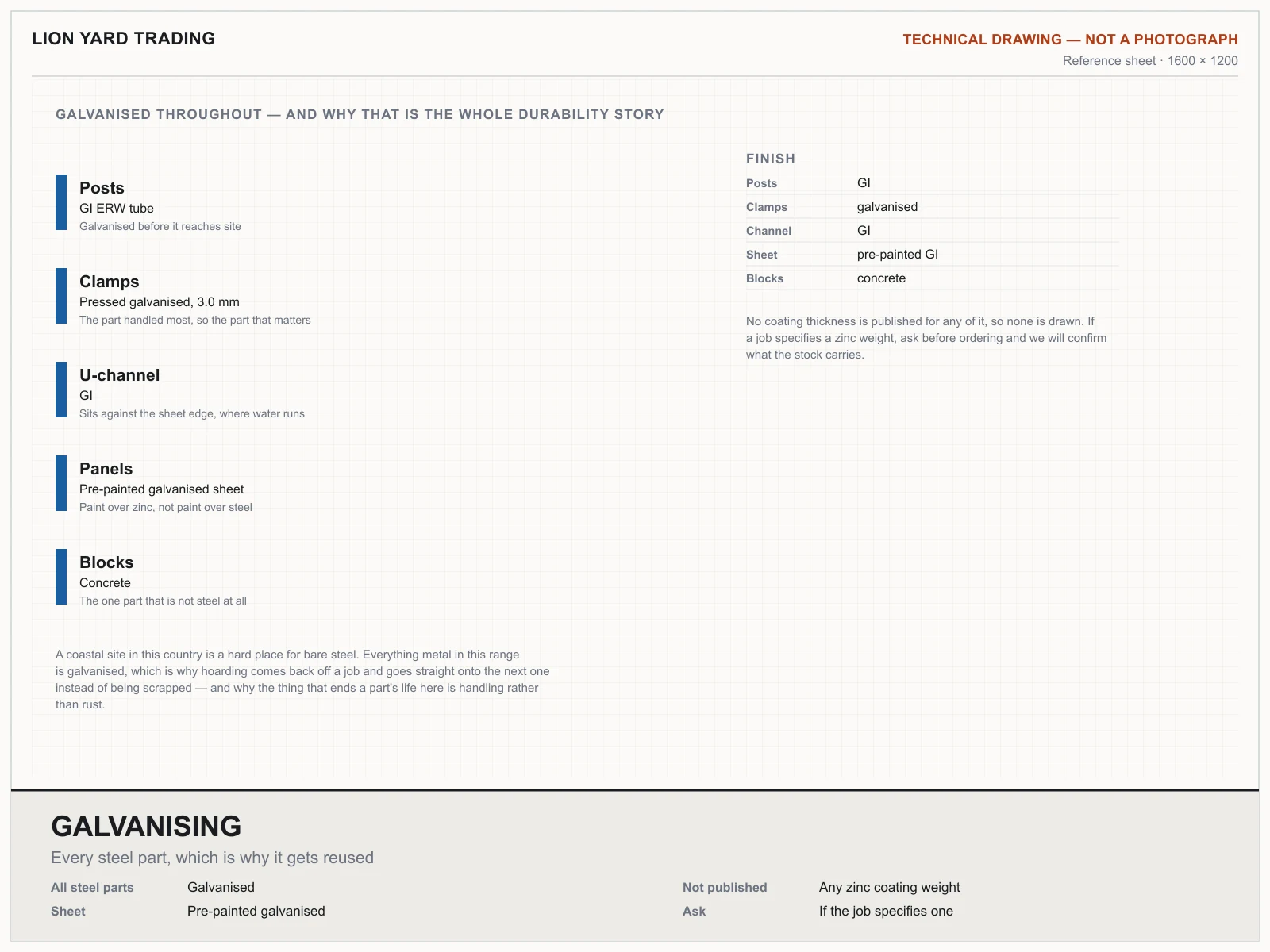

- Clamp: 3.0 mm pressed galvanised, fits 42–48 mm tube
- Sold by: The piece
- Delivery: All 7 Emirates from our own yard.
- Installation: Supply only, or supplied and installed by our own crew rather than a subcontractor.
All 8 items
Every item on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|

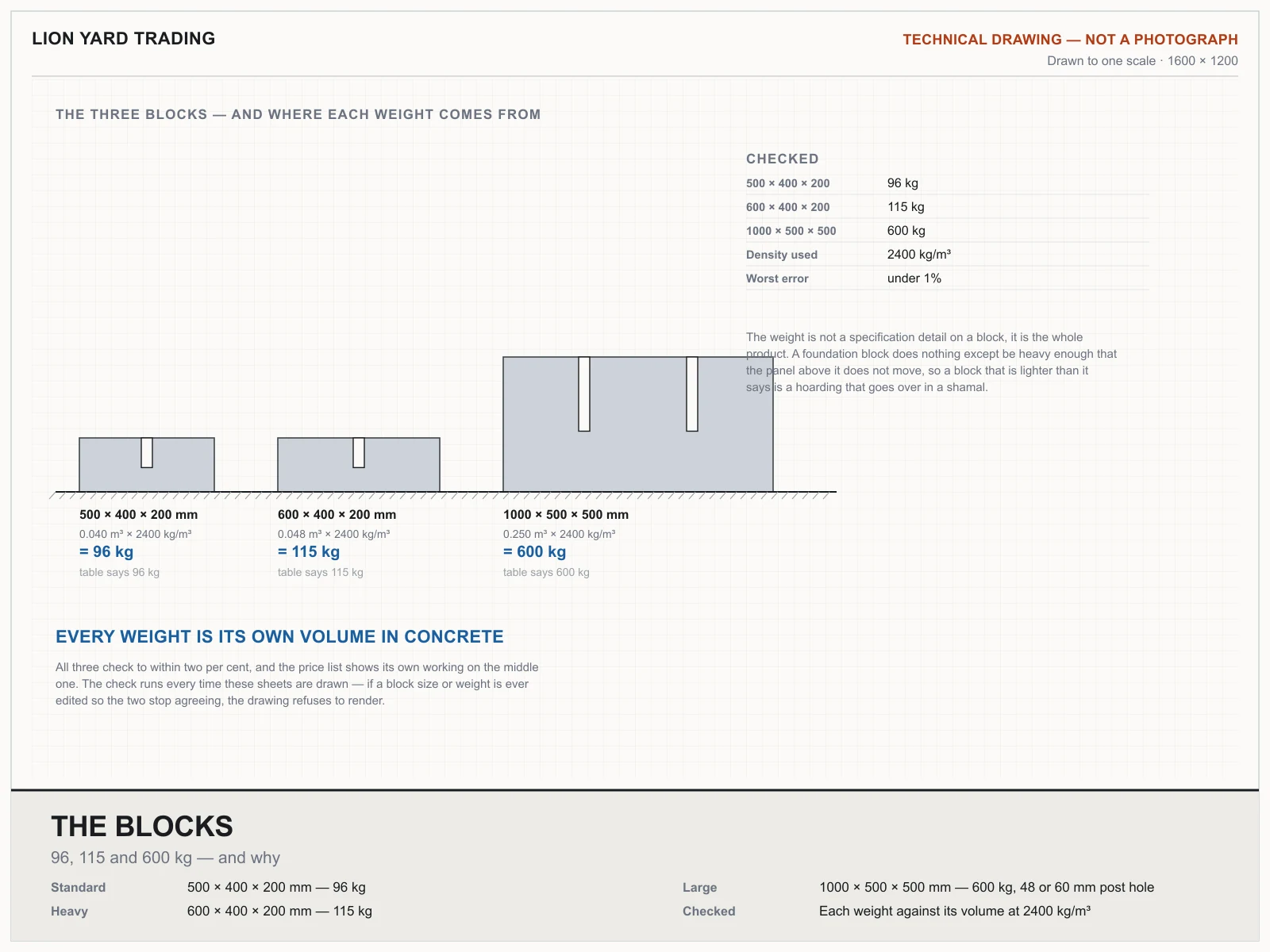

| Foundation block — standardLY-HOAR-022 | 500 mm long × 400 mm wide × 200 mm high · approx. 96 kg | Ask |
| Foundation block — heavyLY-HOAR-023 | 600 mm long × 400 mm wide × 200 mm high · 115 kg (0.048 m³ at 2400 kg/m³) | Ask |
| Hoarding block — largeLY-HOAR-024 | 1000 mm long × 500 mm wide × 500 mm high · 600 kg · 48 or 60 mm post hole | Ask |

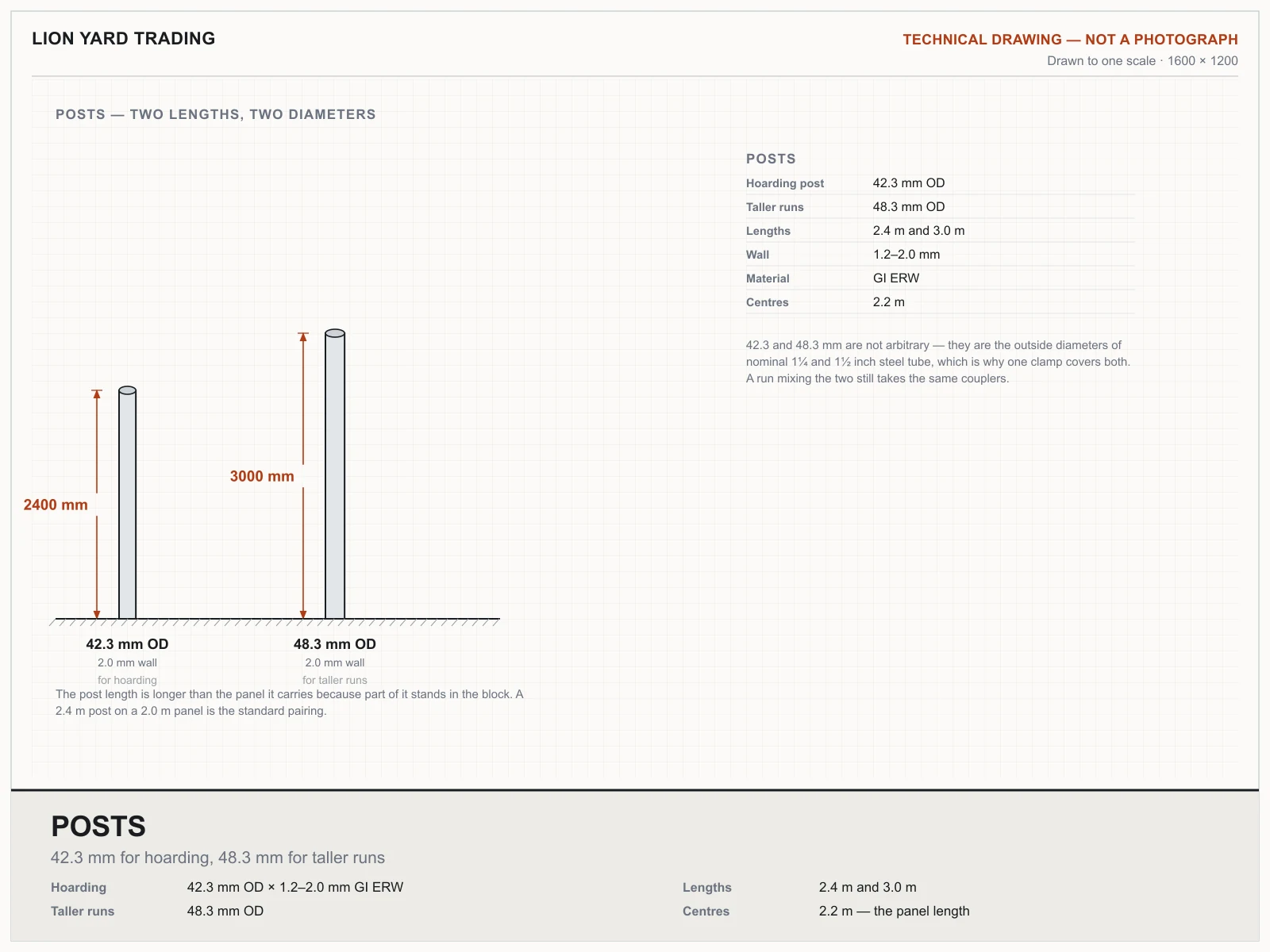

| GI post 2.4 mLY-HOAR-025 | 2.40 m long × 42.3 mm OD × 2.0 mm | Ask |
| GI post 3.0 mLY-HOAR-026 | 3.00 m long × 48.3 mm OD × 2.0 mm | Ask |

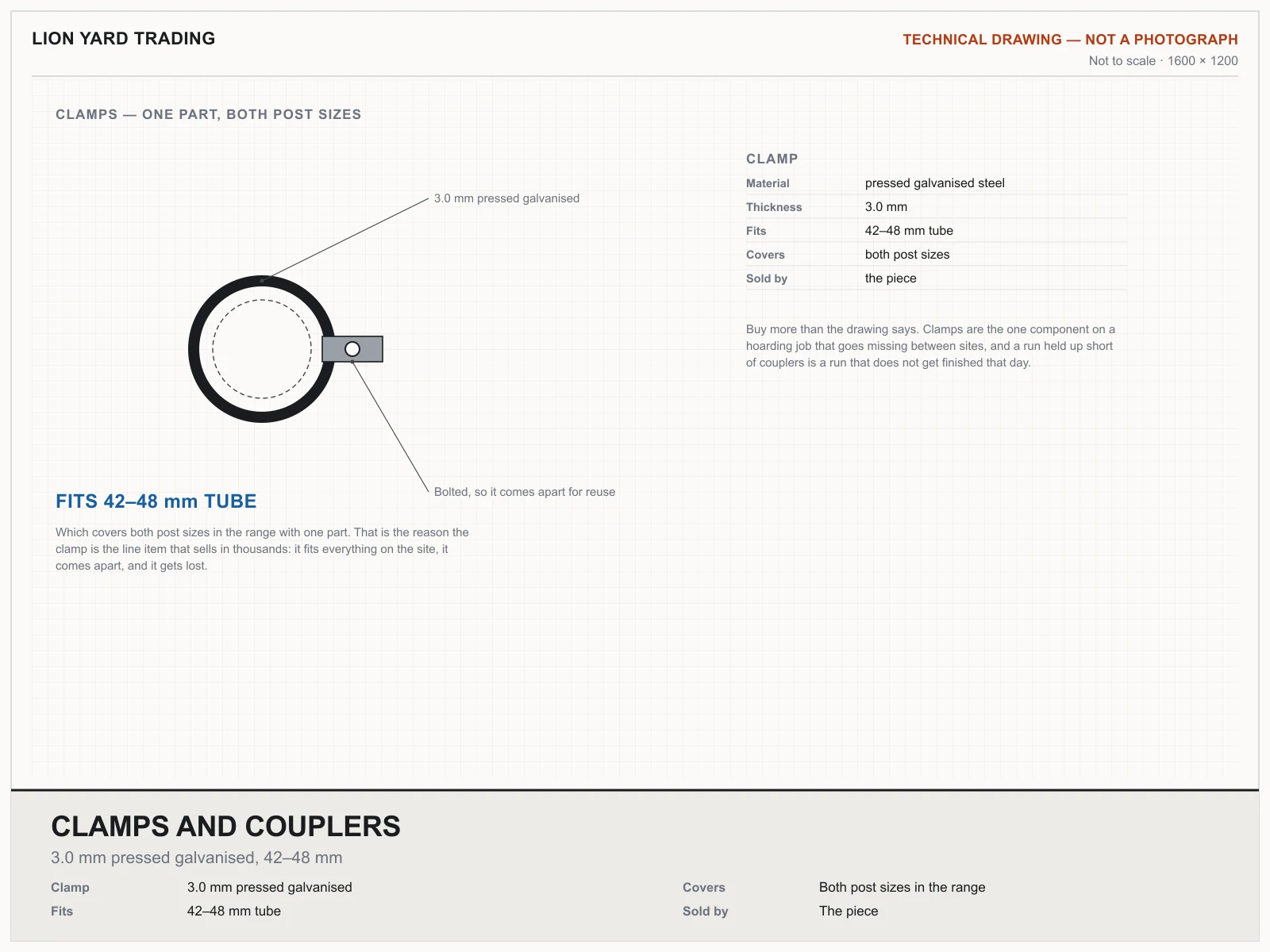

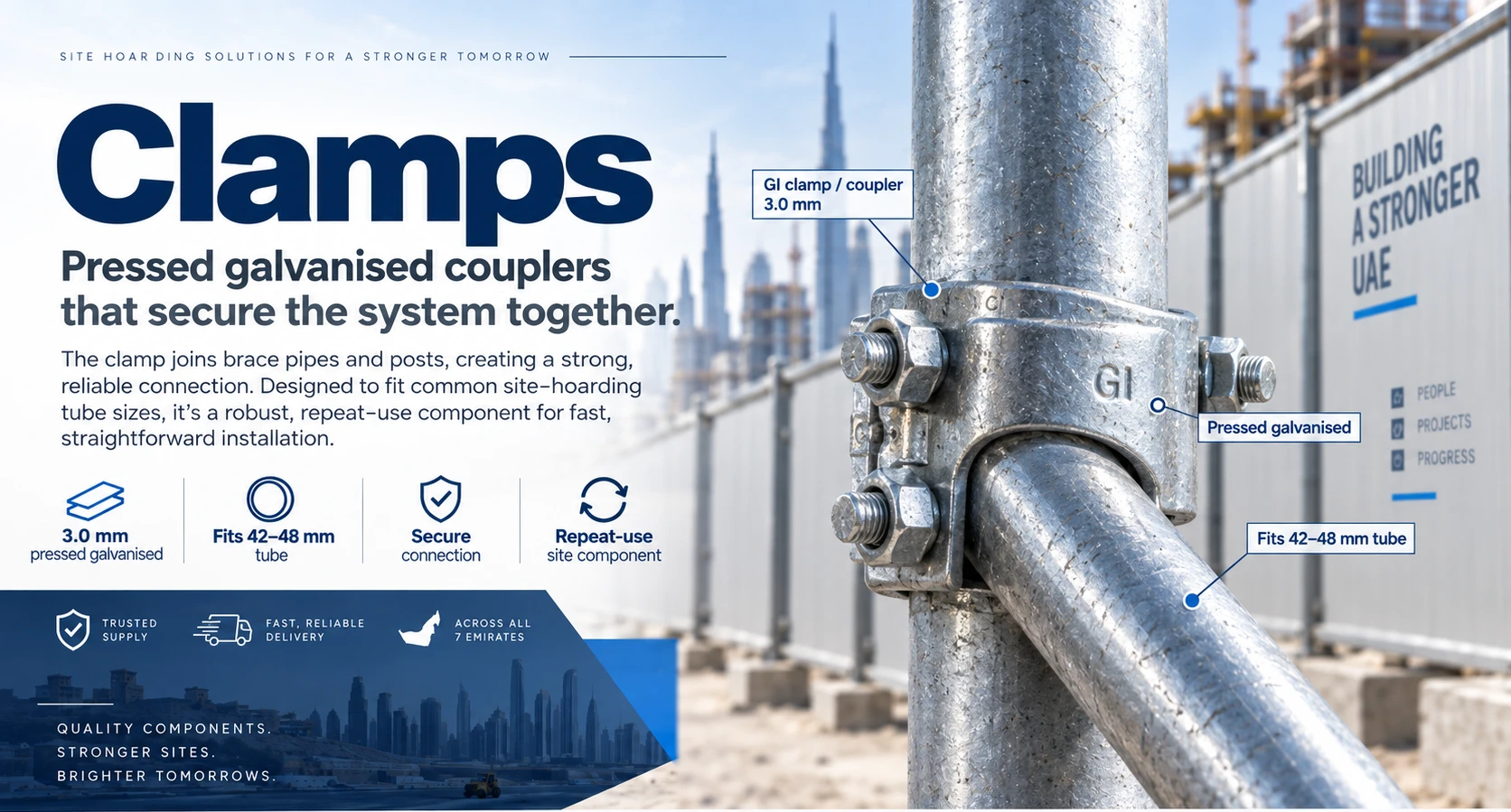

| GI clamp / coupler 3.0 mmLY-HOAR-027 | 3.0 mm pressed galvanised · fits 42–48 mm tube | Ask |

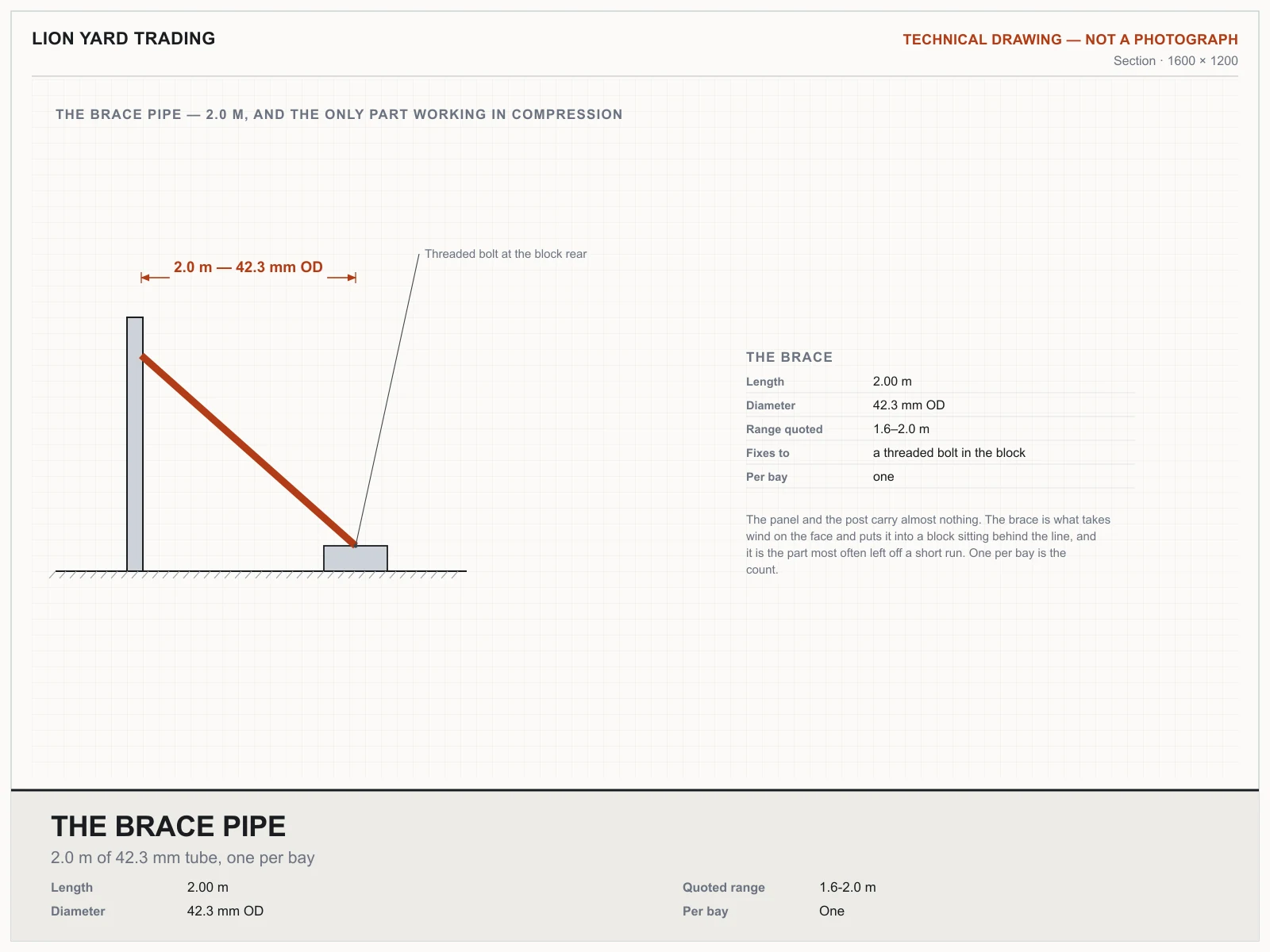

| Diagonal brace pipe 2.0 mLY-HOAR-028 | 2.00 m long × 42.3 mm OD | Ask |

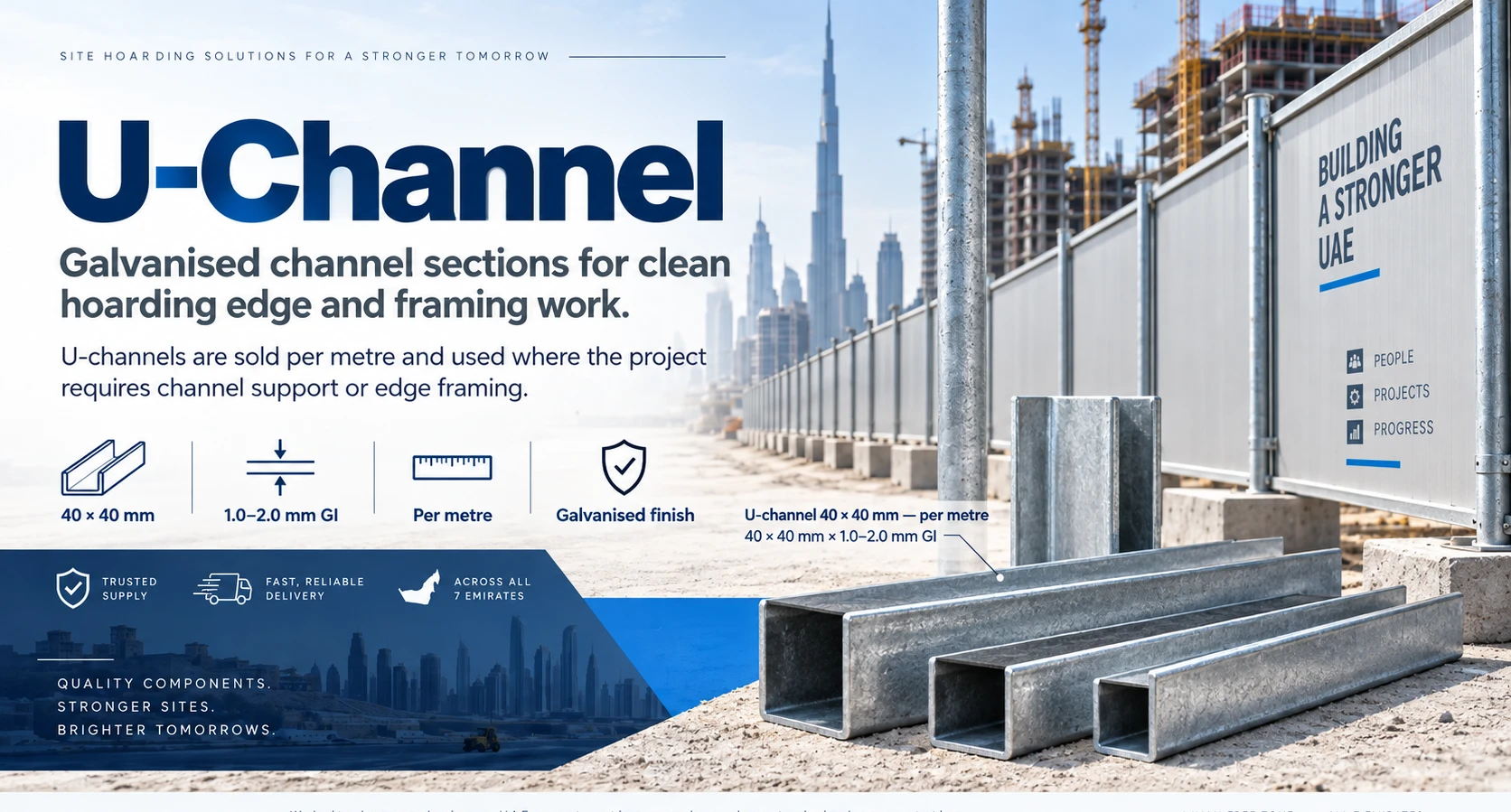

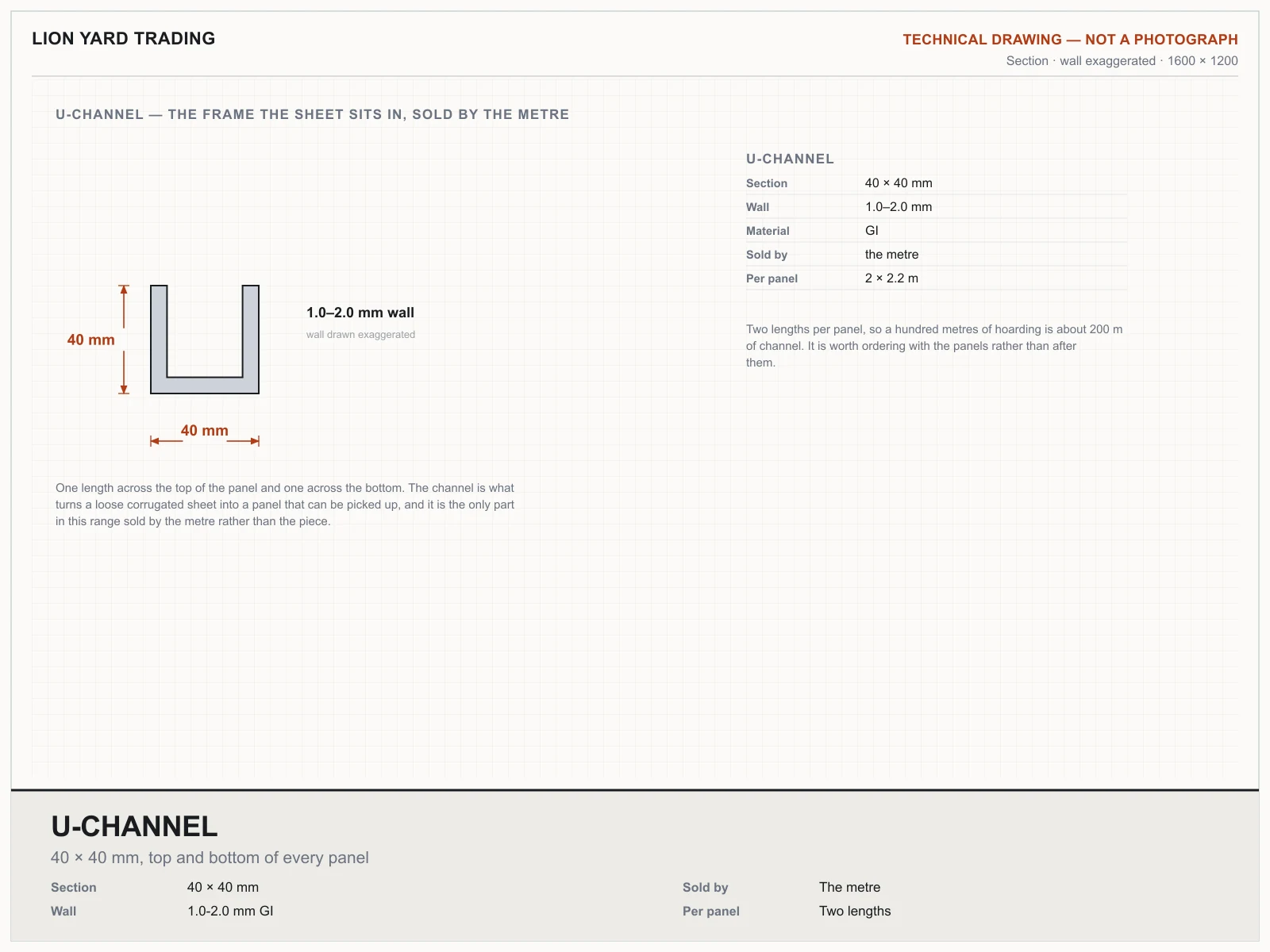

| U-channel 40 × 40 mmLY-HOAR-029 | Per metre · 40 × 40 mm × 1.0–2.0 mm GI | Ask |
- 500 mm long × 400 mm wide × 200 mm high · approx. 96 kgAsk on WhatsApp
- 600 mm long × 400 mm wide × 200 mm high · 115 kg (0.048 m³ at 2400 kg/m³)Ask on WhatsApp
- 1000 mm long × 500 mm wide × 500 mm high · 600 kg · 48 or 60 mm post holeAsk on WhatsApp
- 2.40 m long × 42.3 mm OD × 2.0 mmAsk on WhatsApp
- 3.00 m long × 48.3 mm OD × 2.0 mmAsk on WhatsApp
- 3.0 mm pressed galvanised · fits 42–48 mm tubeAsk on WhatsApp
- 2.00 m long × 42.3 mm ODAsk on WhatsApp
- Per metre · 40 × 40 mm × 1.0–2.0 mm GIAsk on WhatsApp
Priced per piece against your run length and post spacing.
What it is

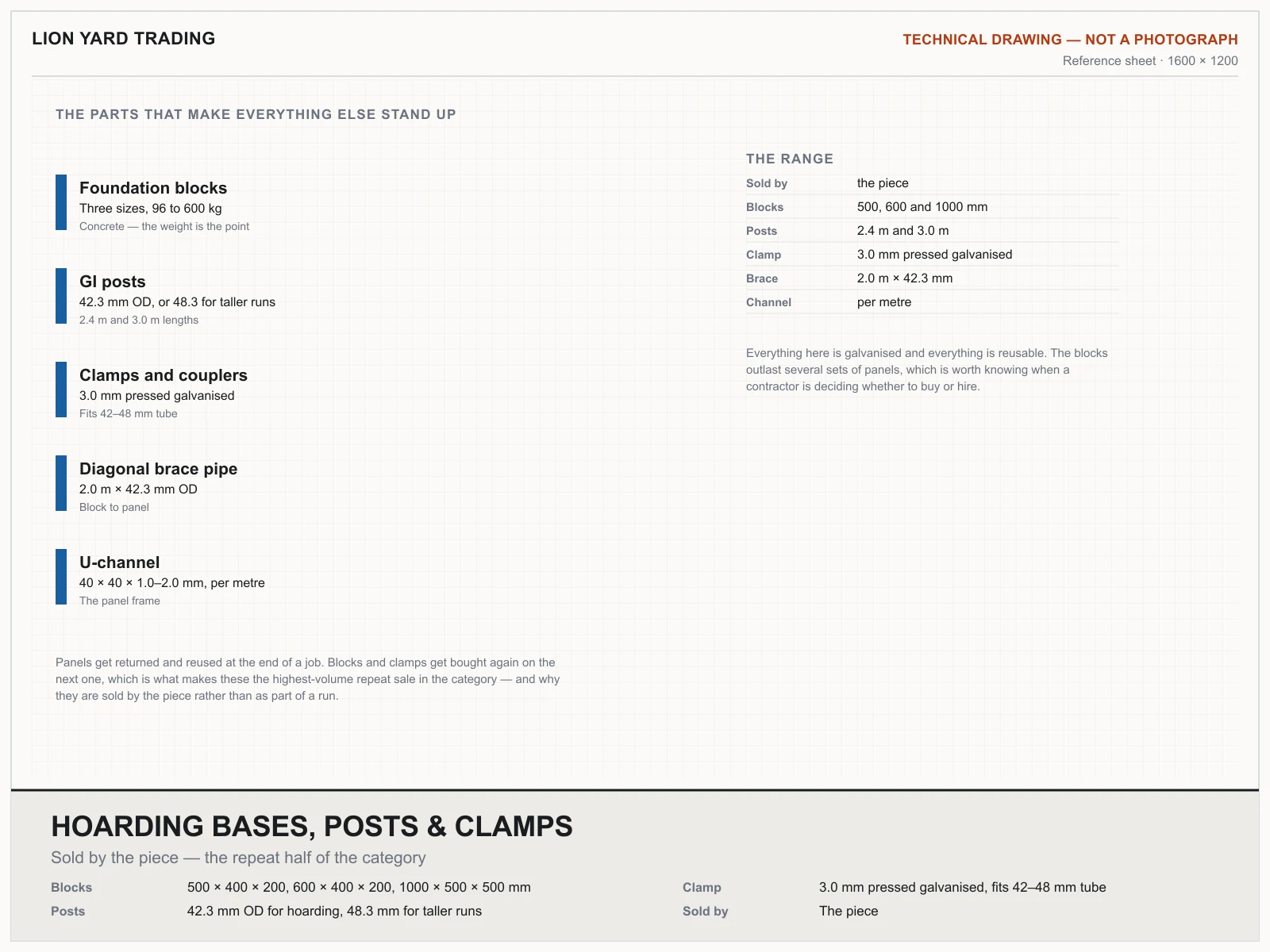

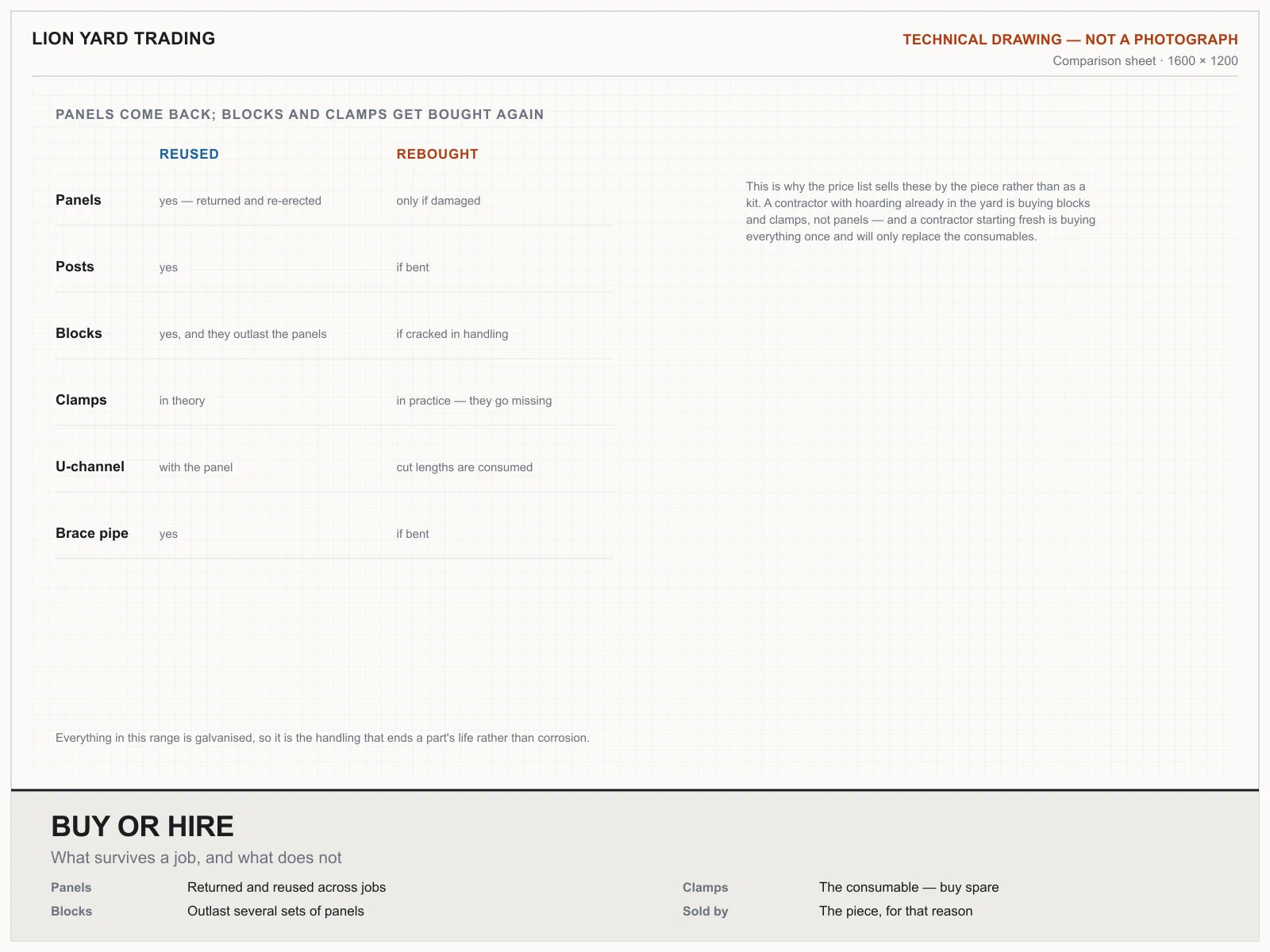

The parts that make everything above stand up. Panels get returned and reused; blocks and clamps get bought again on every job, which makes these the highest-volume repeat sale in the category.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Standard block
- 500 × 400 × 200 mm — two holes front, threaded bolt rear for the brace
- Post sizes
- 42.3 mm OD for hoarding · 48.3 mm OD for taller runs
- Clamp
- 3.0 mm pressed galvanised, fits 42–48 mm tube
- Sold by
- The piece
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Hoarding Bases, Posts & Clamps — every figure comes from the price table above or from the published standard it is made to.
The partsSold by the piece
1 of 10

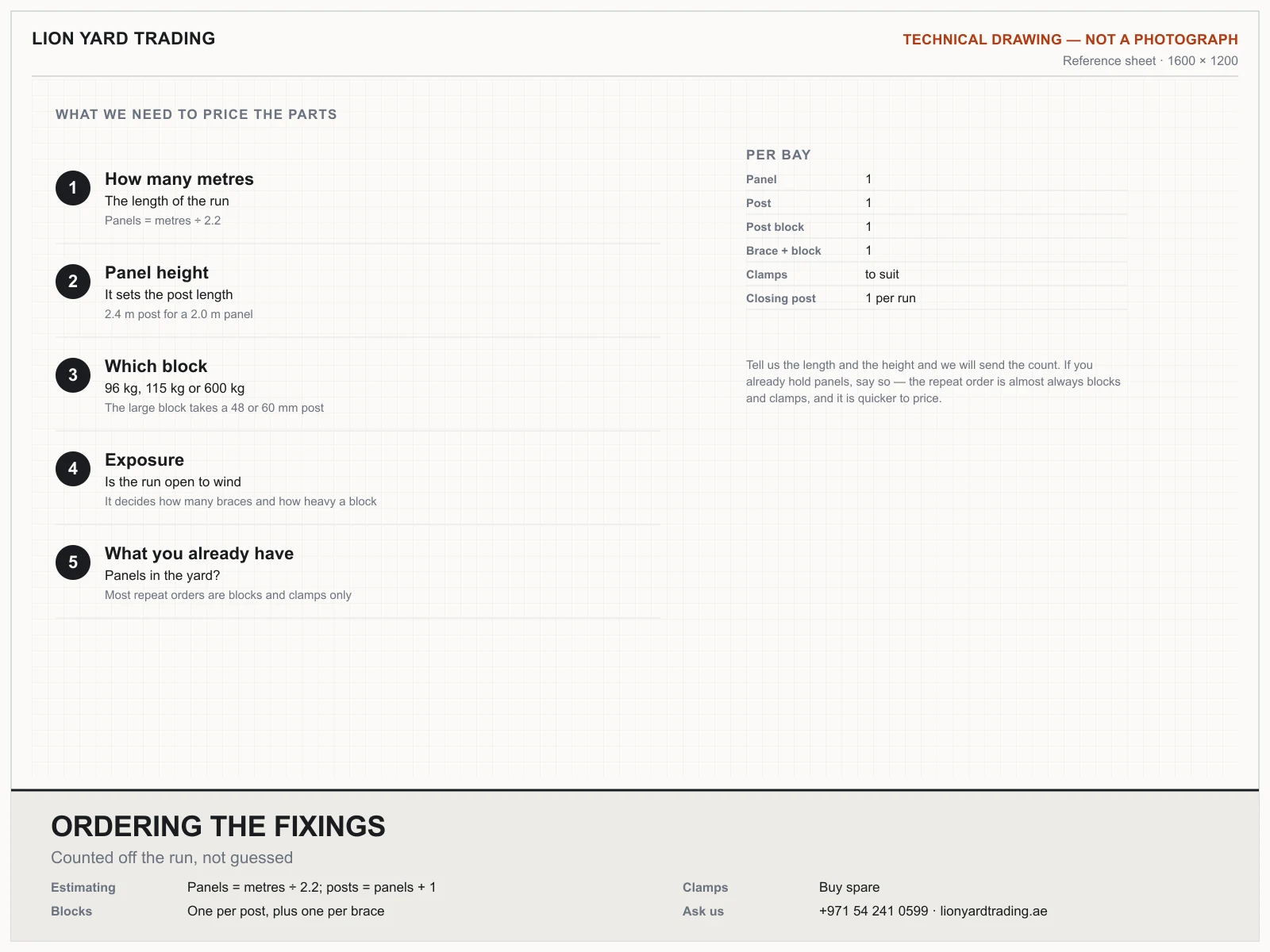

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your hoarding bases, posts & clamps?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
