Heras Mesh Fence Panels
Site Hoarding & Temporary Fencing
Priced on enquiry
Priced per panel or per metre of run against your layout.
Tell us the size and where it is going.
About this product
- Panel: 3.50 × 2.00 m — the standard across UAE suppliers
- Mesh: 100 × 50 mm is the figure most commonly quoted in the UAE
- Wire: Horizontal 4 mm · vertical 3 mm
- Frame: Horizontal tube 32 × 1.0 mm · vertical 38 × 1.2 mm
- Finish: Hot-dip galvanised, commonly RAL 9006 silver for UV and coastal
- Weight: 15–18 kg per panel
All 5 items
Every item on one list. Tap any row to ask about that one.
How many panels for your run?
Enter the length of the boundary and get panels, feet and couplers.
You need
- Heras mesh panels, 3.50 × 2.00 m29 panels
- Panel feetOne per panel, plus one to close the run30 feet
- Couplers2 per joint56 couplers
How that was worked out
- 100 m ÷ 3.50 m per panel = 28.6 → 29 panels
- feet: 29 panels + 1 = 30
- couplers: 28 joints × 2 = 56
| Size / product | Details | Enquire |
|---|---|---|
| Mesh panel 3.5 × 2.0 mLY-HOAR-054 | 3.50 m long × 2.00 m high · 7 m² · 15–18 kg | Ask |

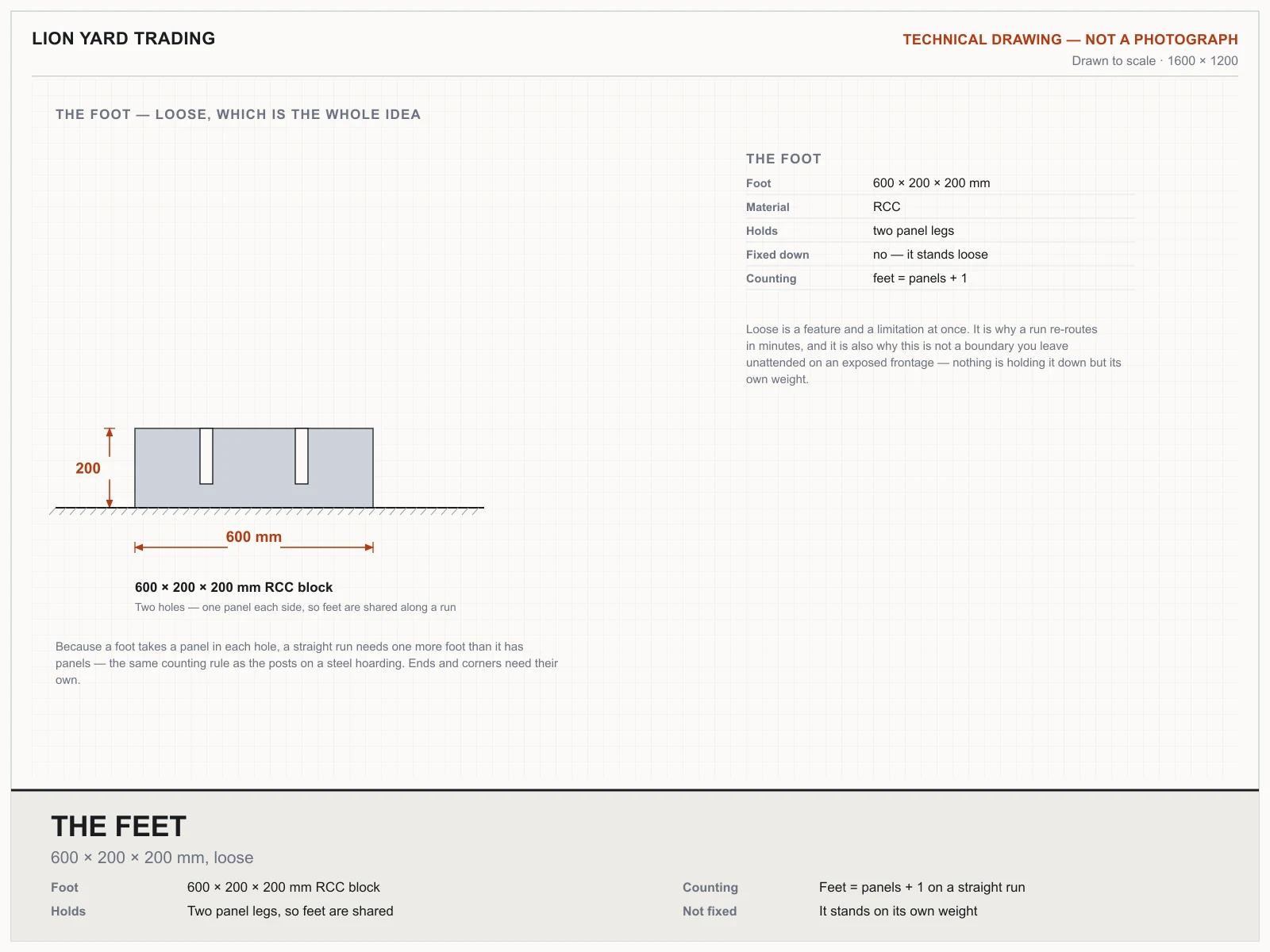

| RCC block footLY-HOAR-055 | 600 mm long × 200 mm wide × 200 mm high | Ask |

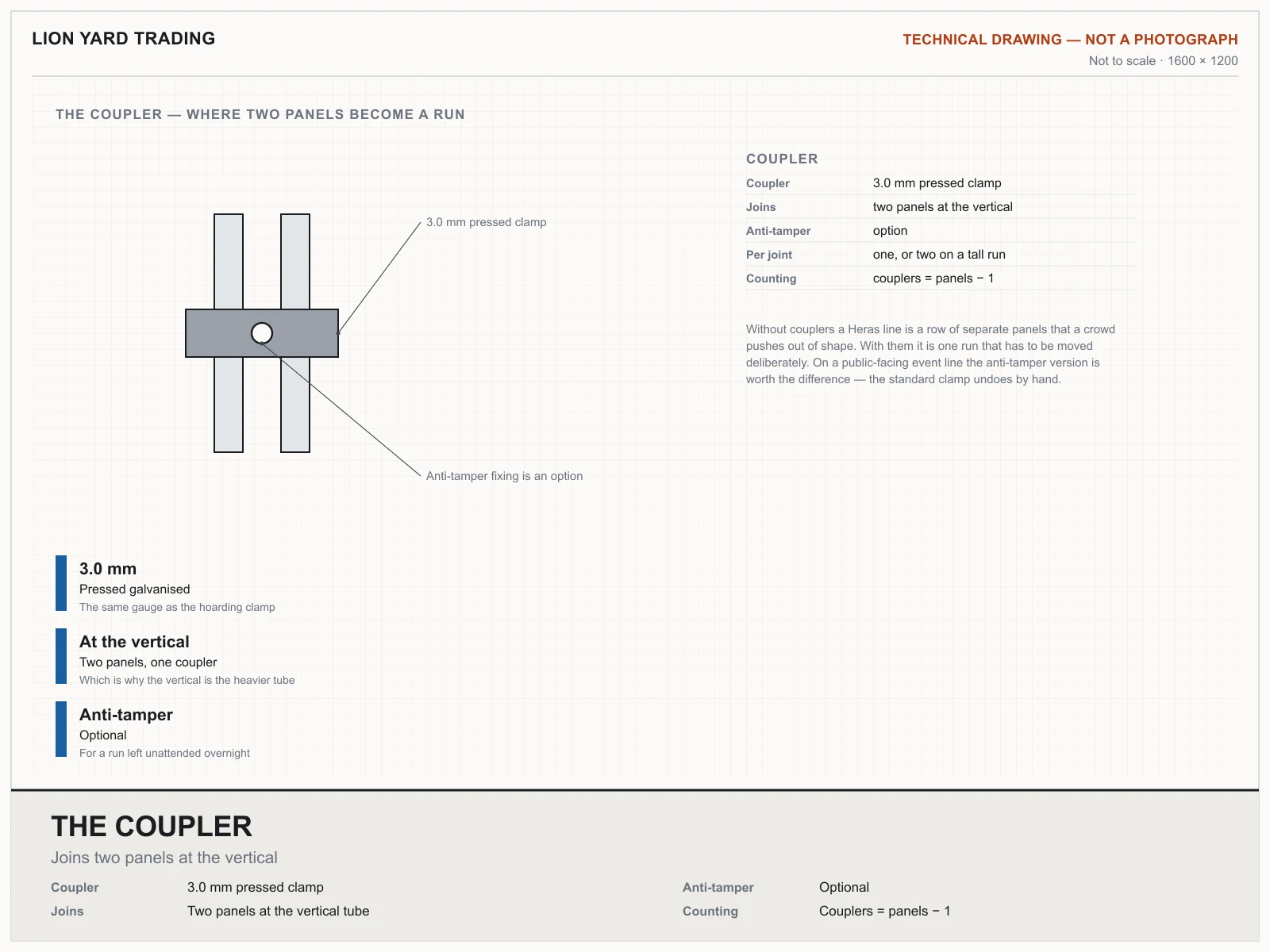

| Coupler clamp 3.0 mmLY-HOAR-056 | Joins two panels at the vertical · anti-tamper option | Ask |

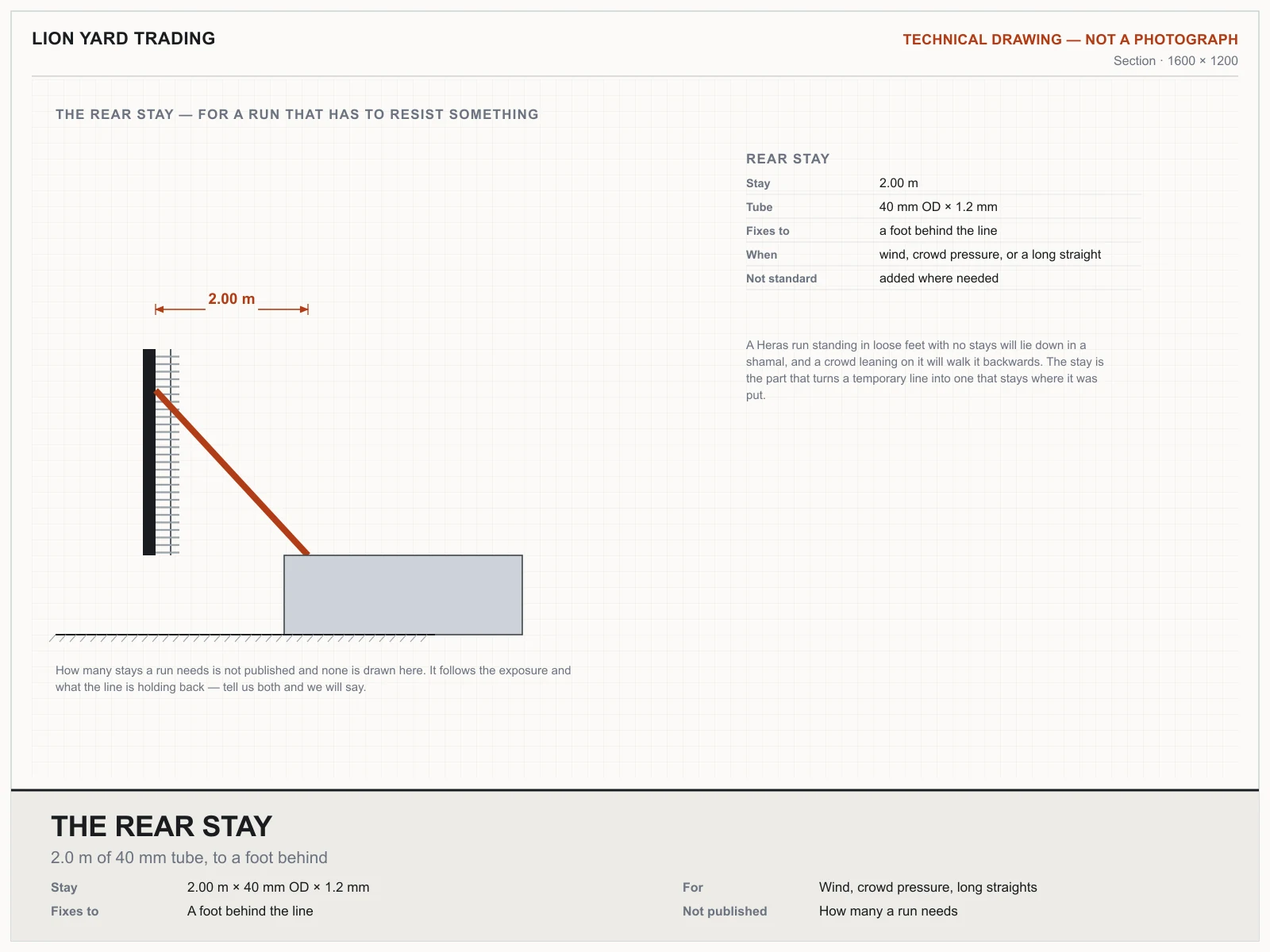

| Rear stay 2.0 mLY-HOAR-057 | 2.00 m long × 40 mm OD × 1.2 mm | Ask |

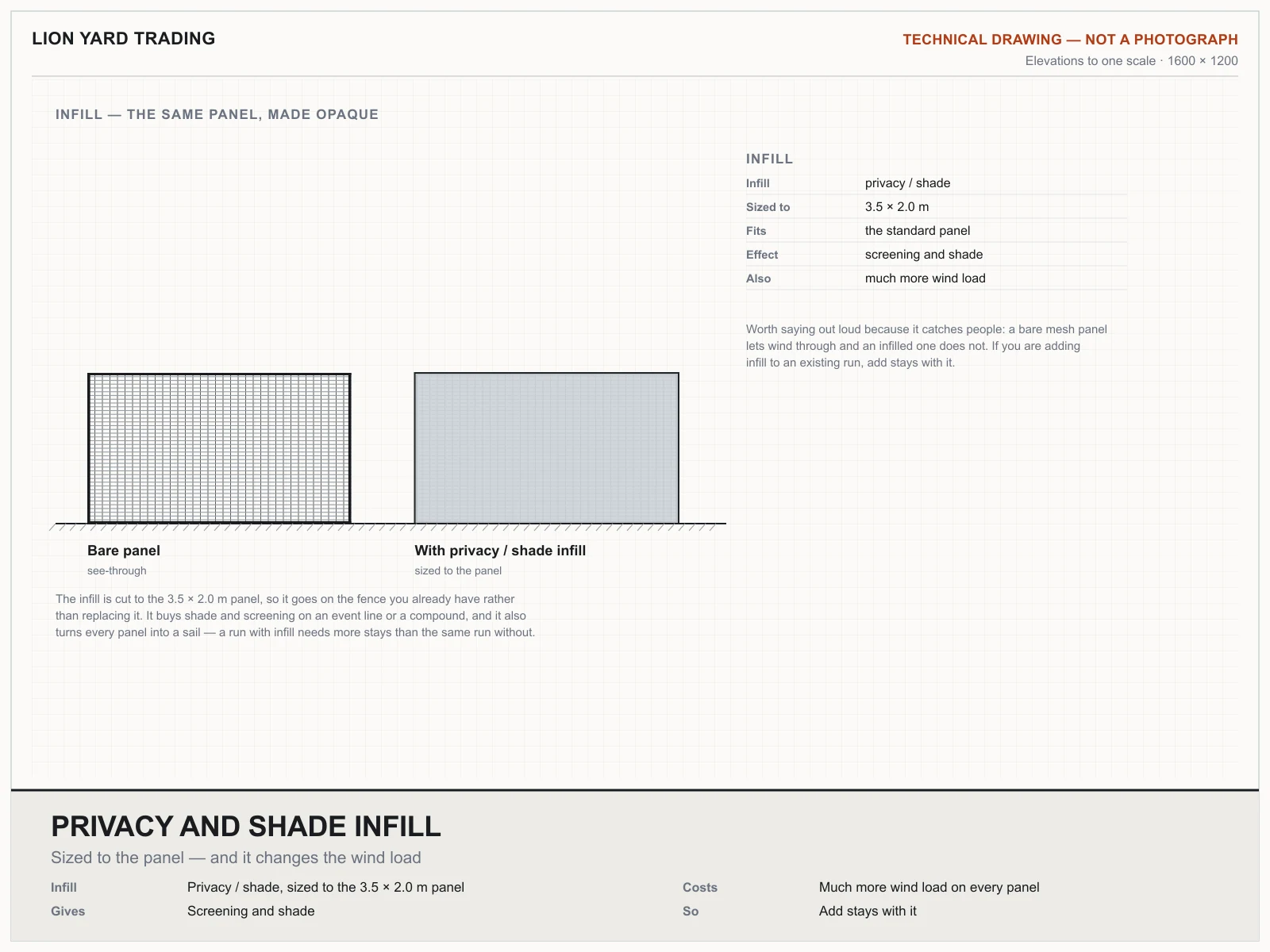

| Privacy / shade infillLY-HOAR-058 | Sized to the 3.5 × 2.0 m panel | Ask |
- 3.50 m long × 2.00 m high · 7 m² · 15–18 kgAsk on WhatsApp
- 600 mm long × 200 mm wide × 200 mm highAsk on WhatsApp
- Joins two panels at the vertical · anti-tamper optionAsk on WhatsApp
- 2.00 m long × 40 mm OD × 1.2 mmAsk on WhatsApp
- Sized to the 3.5 × 2.0 m panelAsk on WhatsApp
Priced per panel or per metre of run against your layout.
What it is

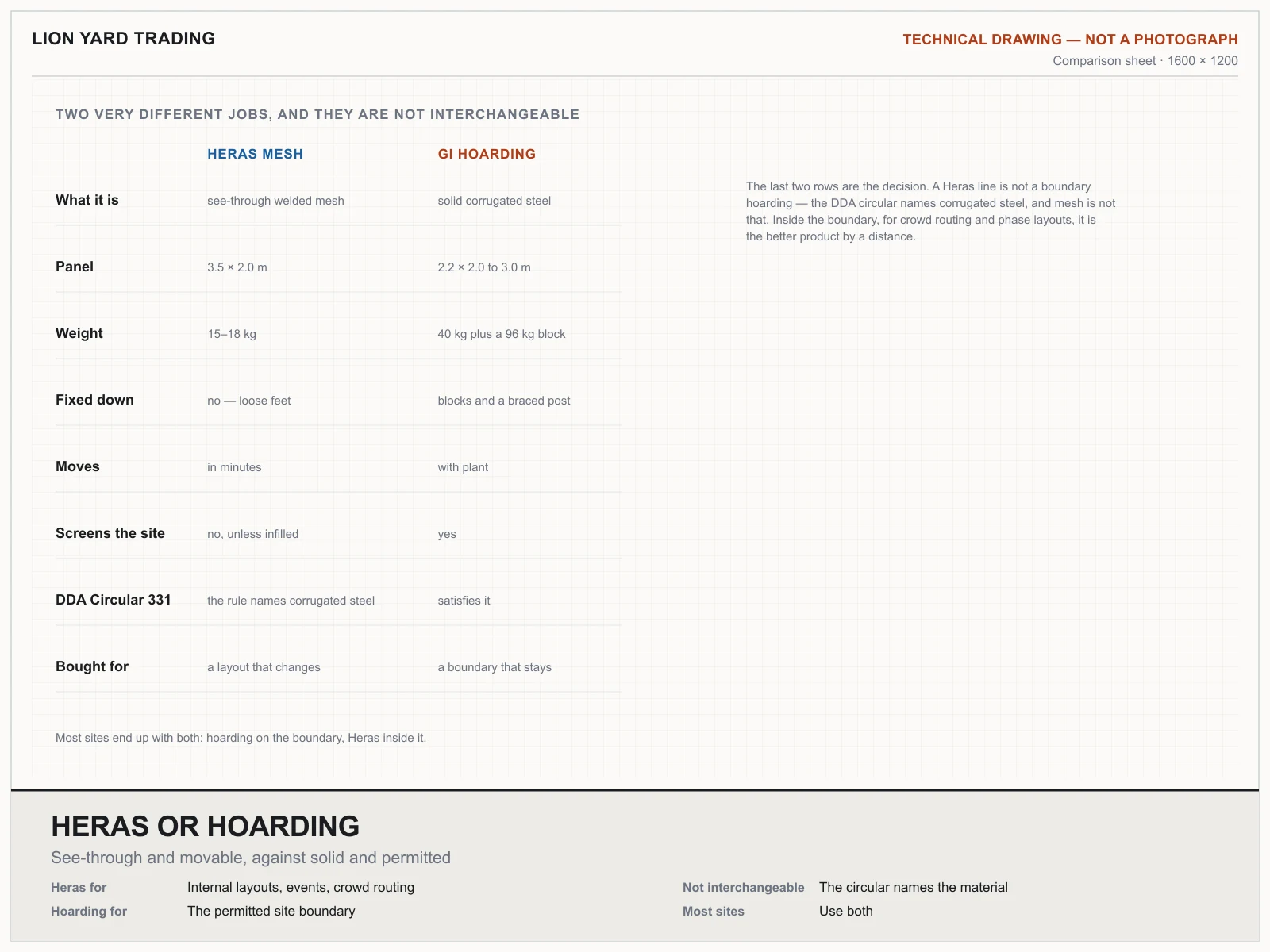

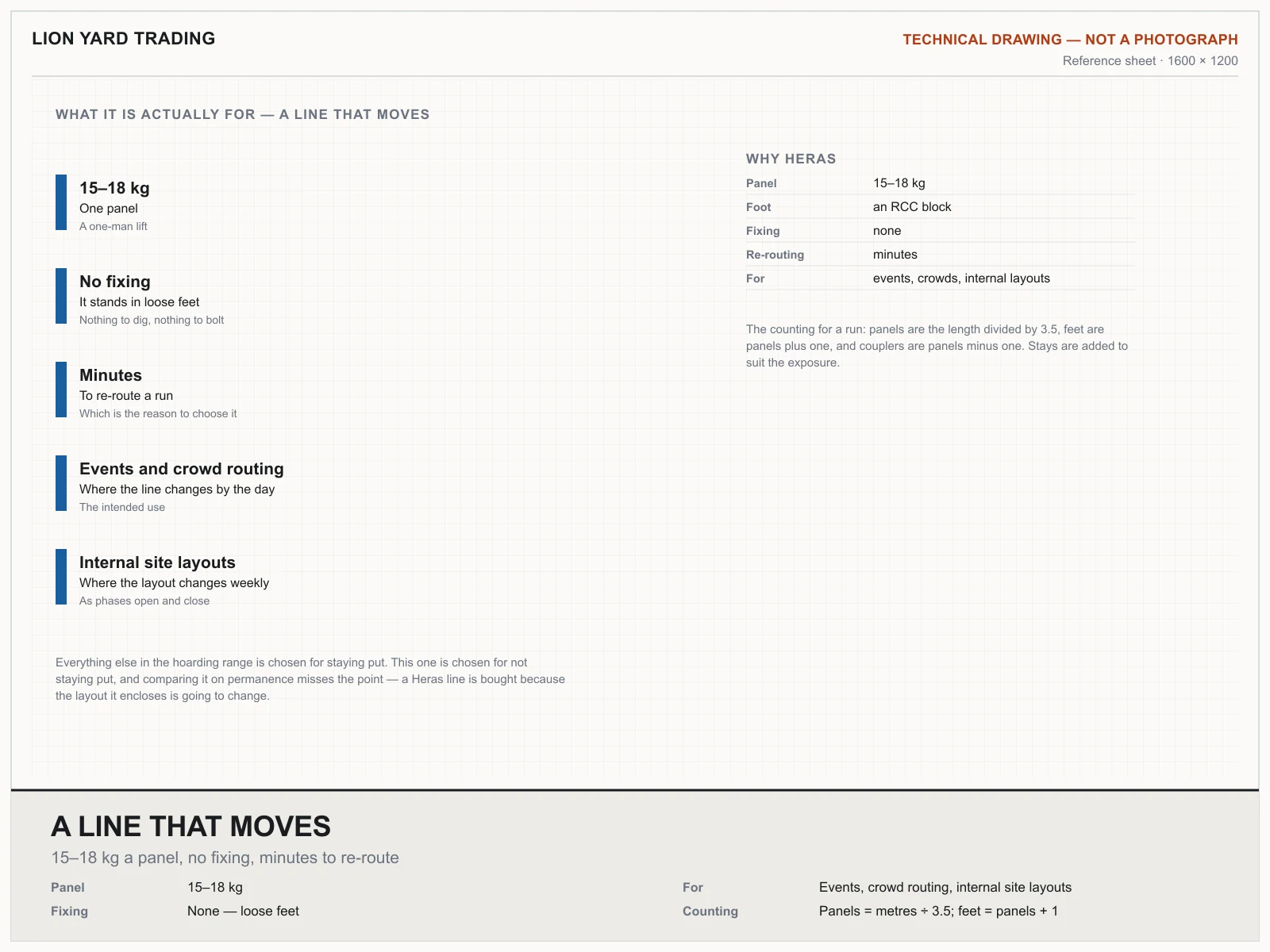

See-through welded mesh in a tubular frame standing in loose feet. Moves in minutes, which is what it is for — events, crowd routing, and internal site layouts that change week to week.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Panel
- 3.50 × 2.00 m — the standard across UAE suppliers

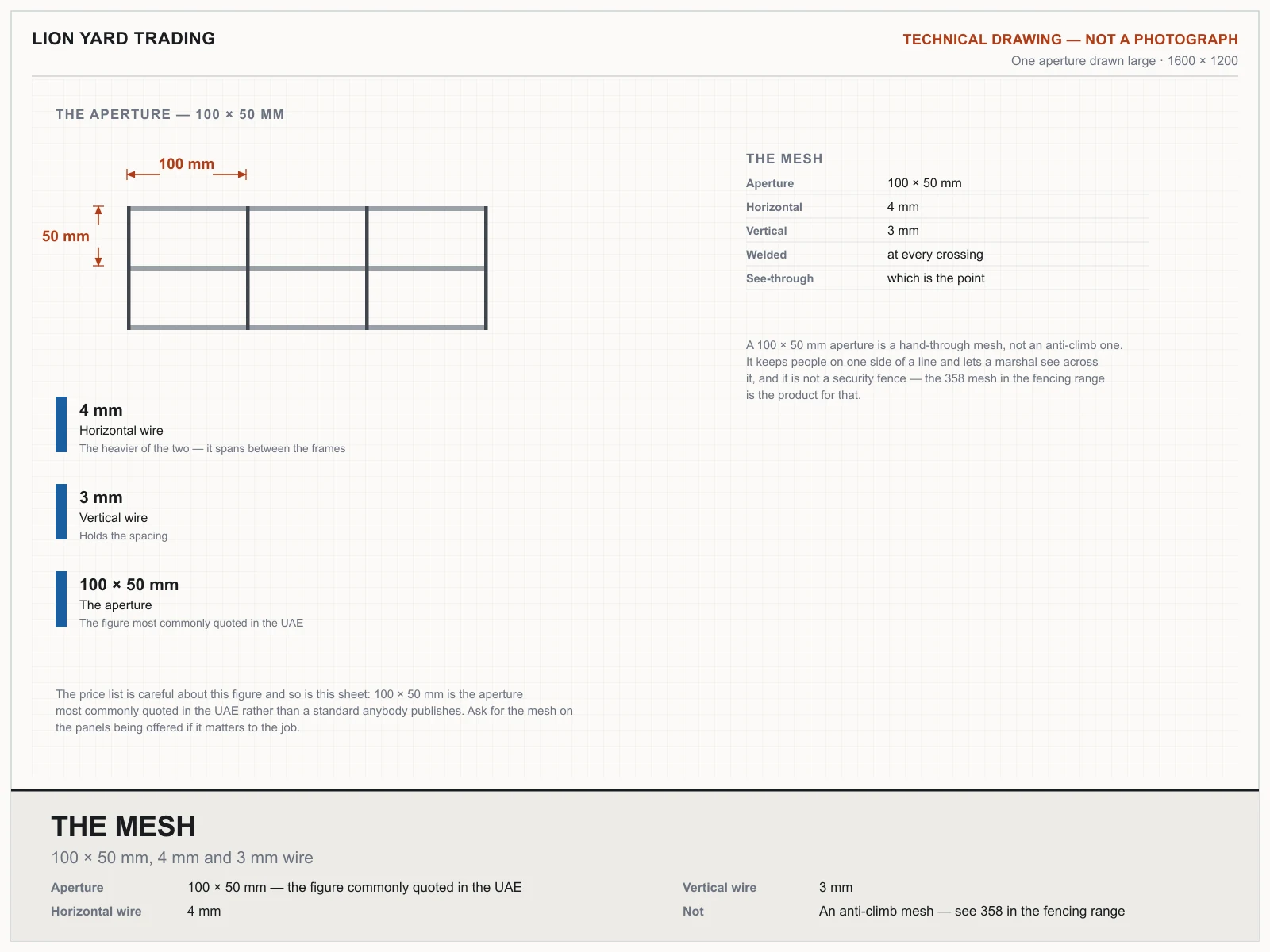

- Mesh
- 100 × 50 mm is the figure most commonly quoted in the UAE
- Wire
- Horizontal 4 mm · vertical 3 mm

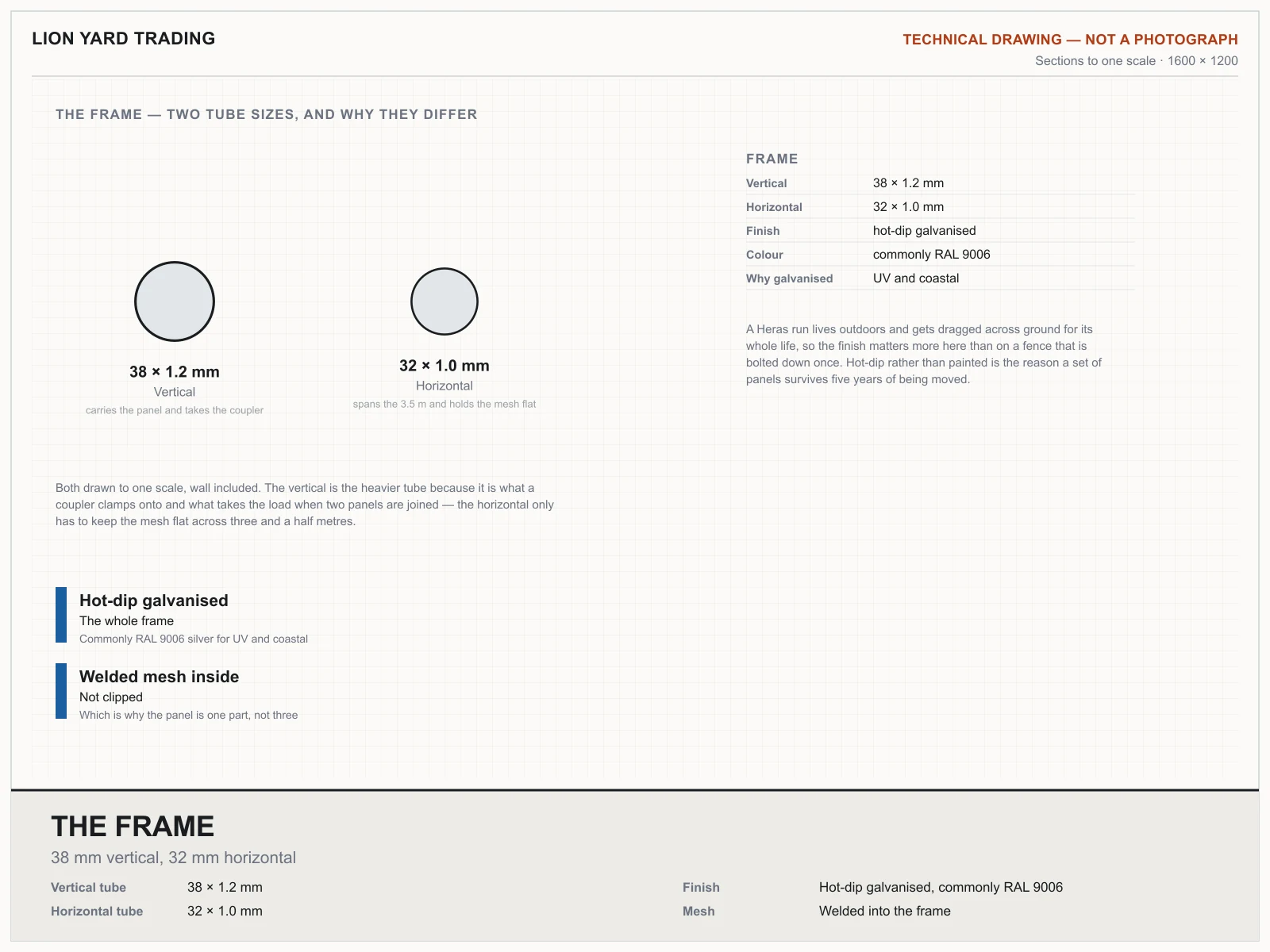

- Frame
- Horizontal tube 32 × 1.0 mm · vertical 38 × 1.2 mm
- Finish
- Hot-dip galvanised, commonly RAL 9006 silver for UV and coastal
- Weight
- 15–18 kg per panel
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.

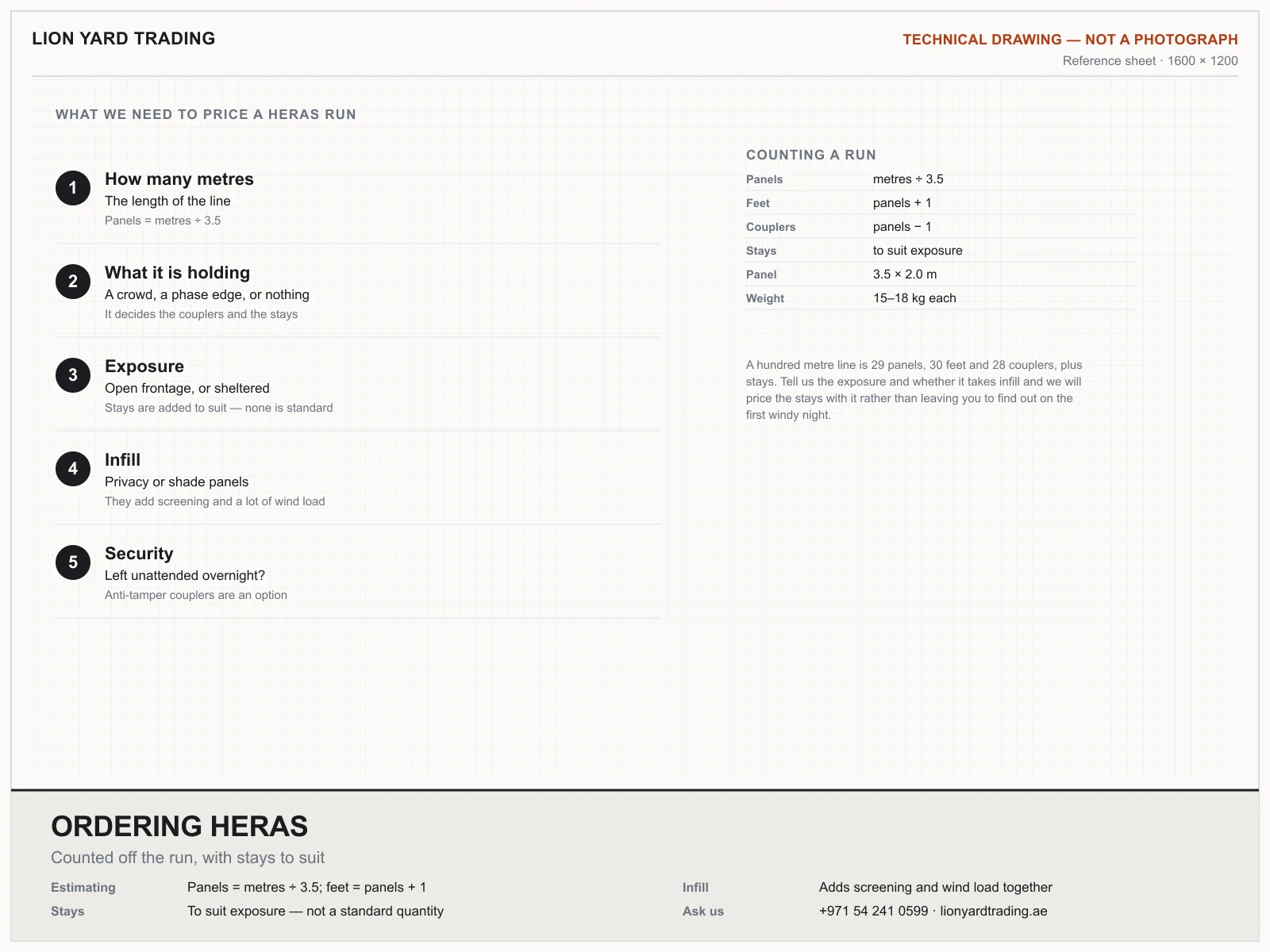

Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Heras Mesh Fence Panels — every figure comes from the price table above or from the published standard it is made to.
The panel3.5 × 2.0 m in loose feet
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your heras mesh fence panels?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
