Continuous Hoarding — flat panel wall
Site Hoarding & Temporary Fencing
Priced on enquiry
Priced per linear metre against your run length.
Tell us the size and where it is going.
About this product

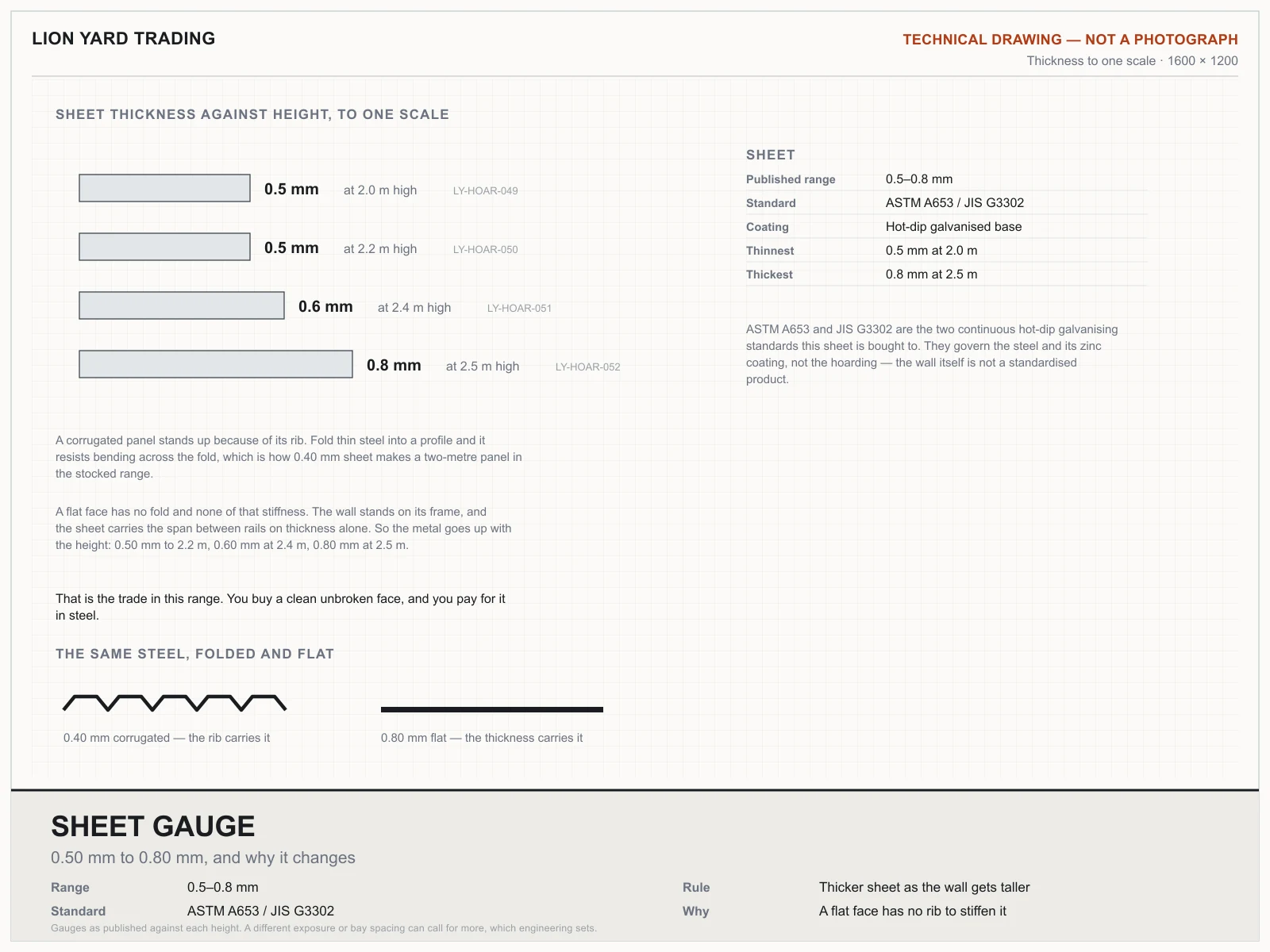

- Sheet: 0.50–0.80 mm to ASTM A653 / JIS G3302

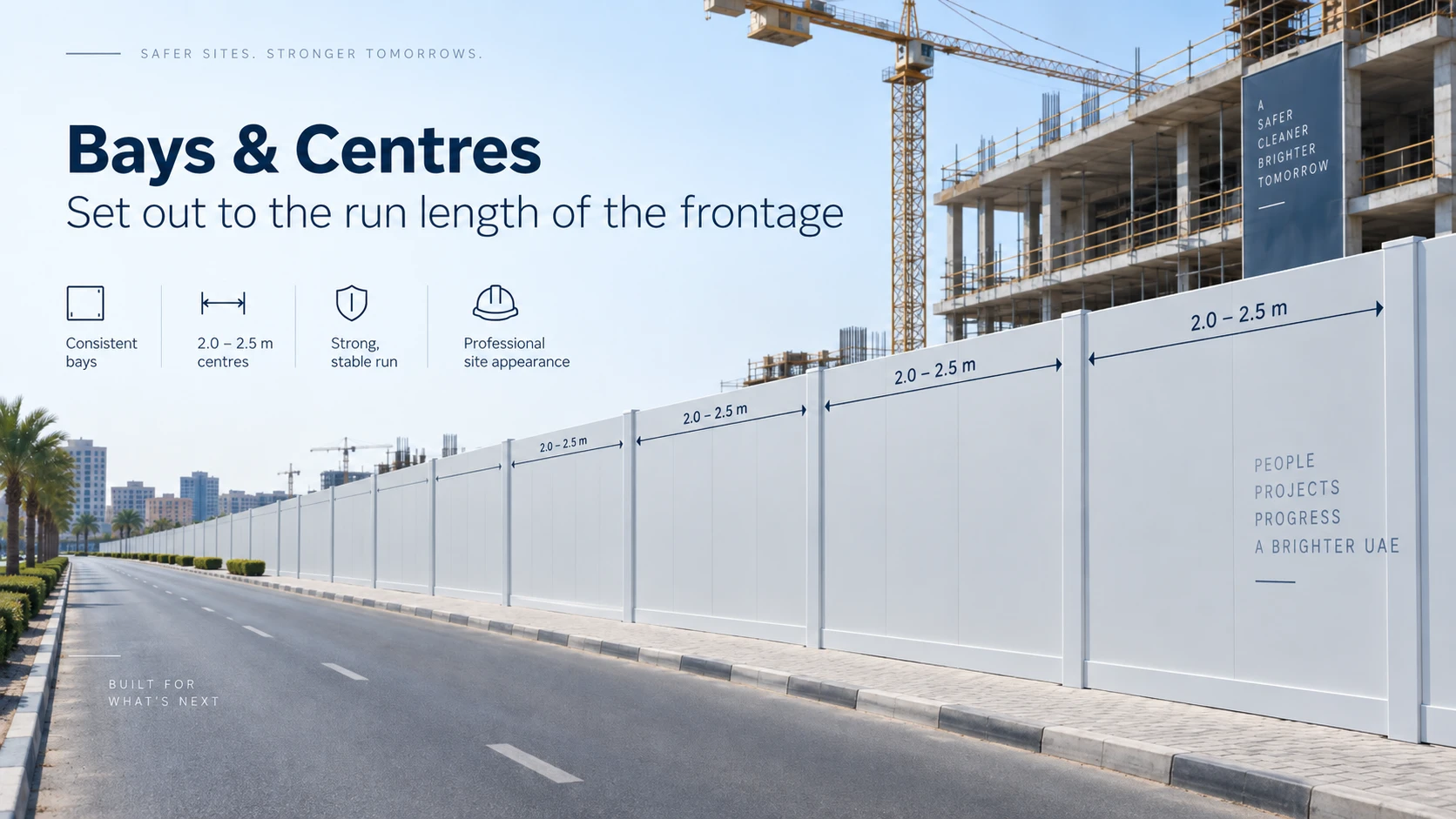

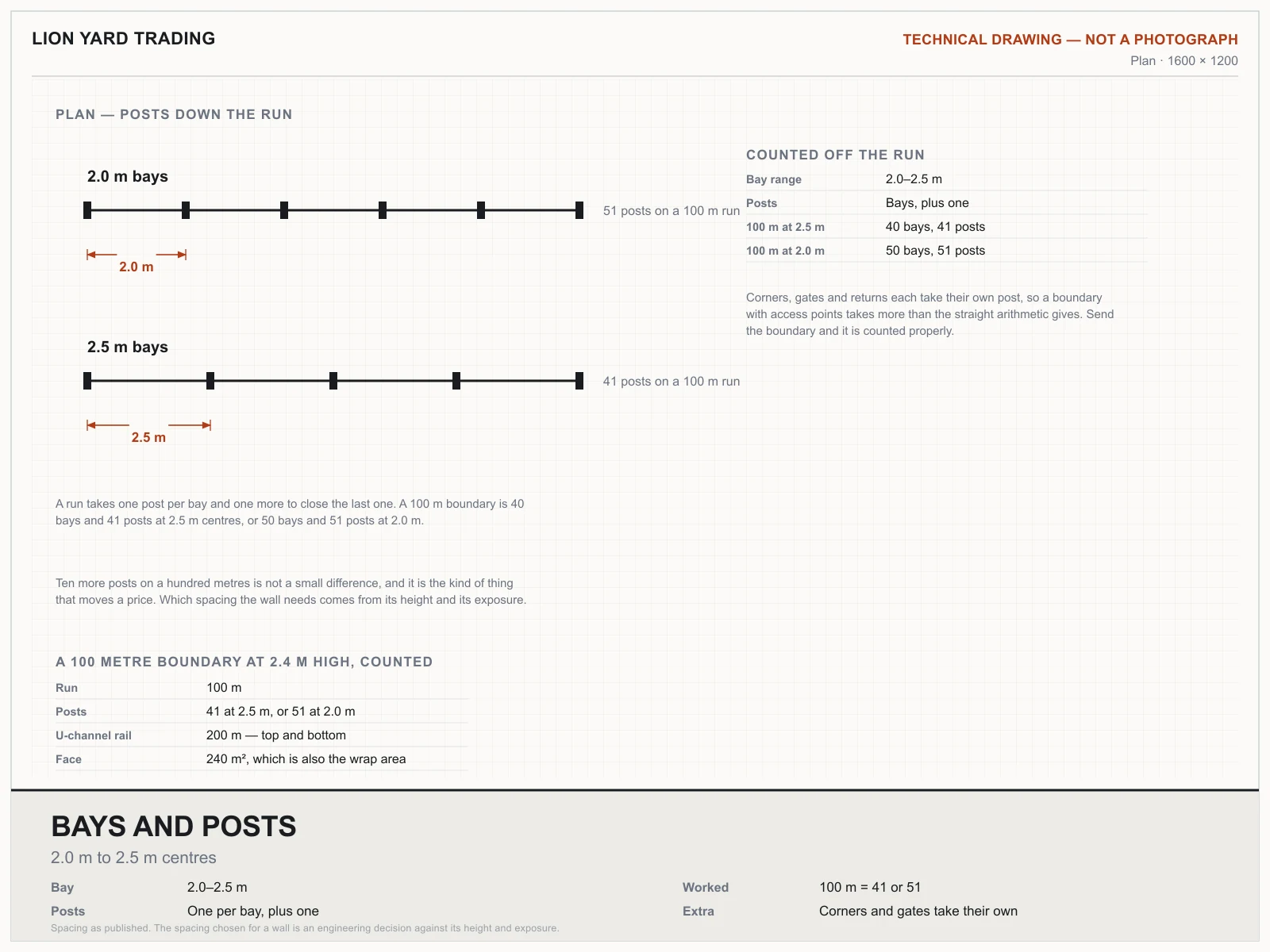

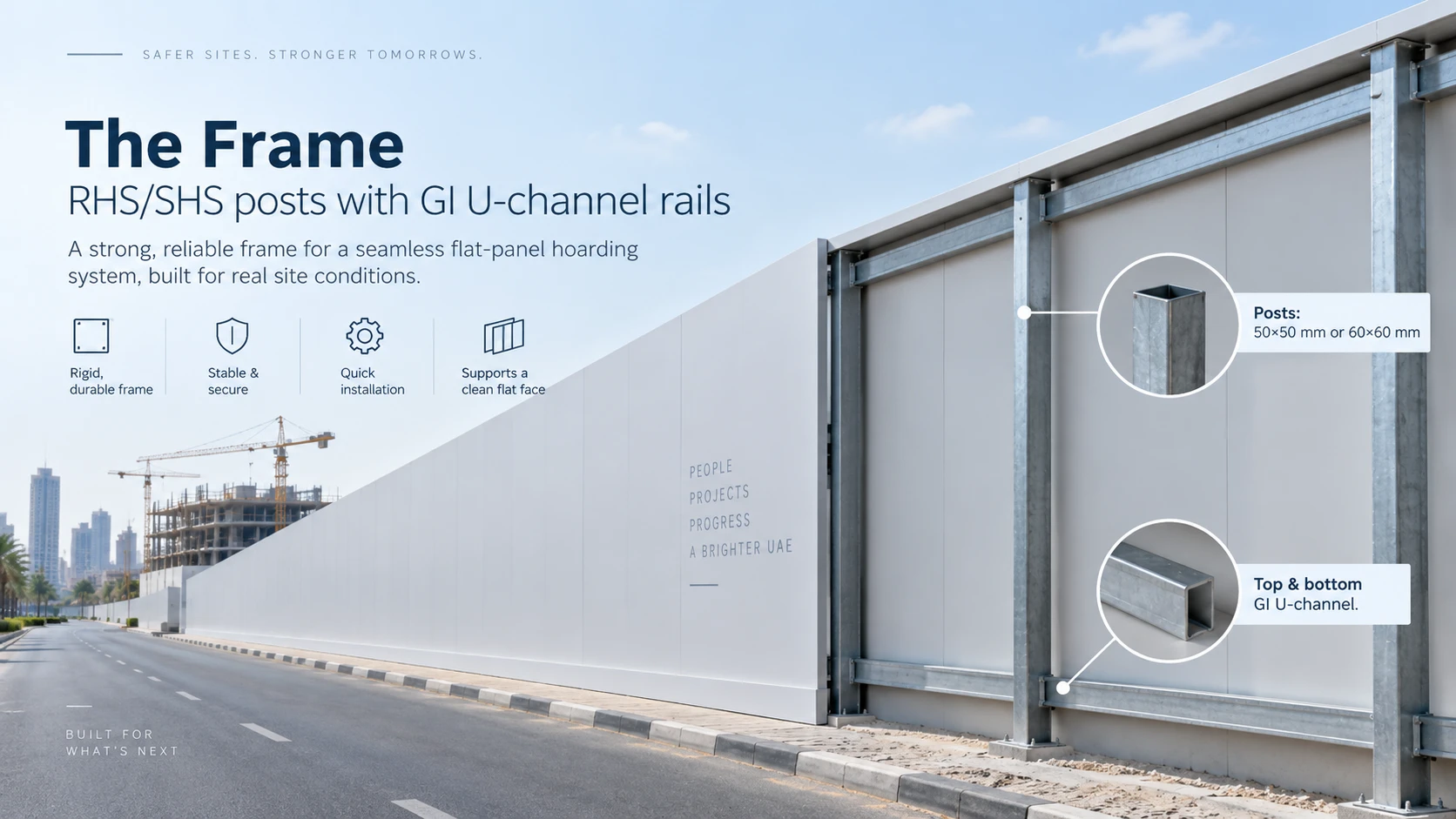

- Posts: RHS/SHS 50 × 50 mm or 60 × 60 mm at 2.0–2.5 m centres
- Rails: GI U-channel top and bottom, rear pipe bracing to blocks
- Base: Concrete blocks, steel base plate, bolt-down or cast-in

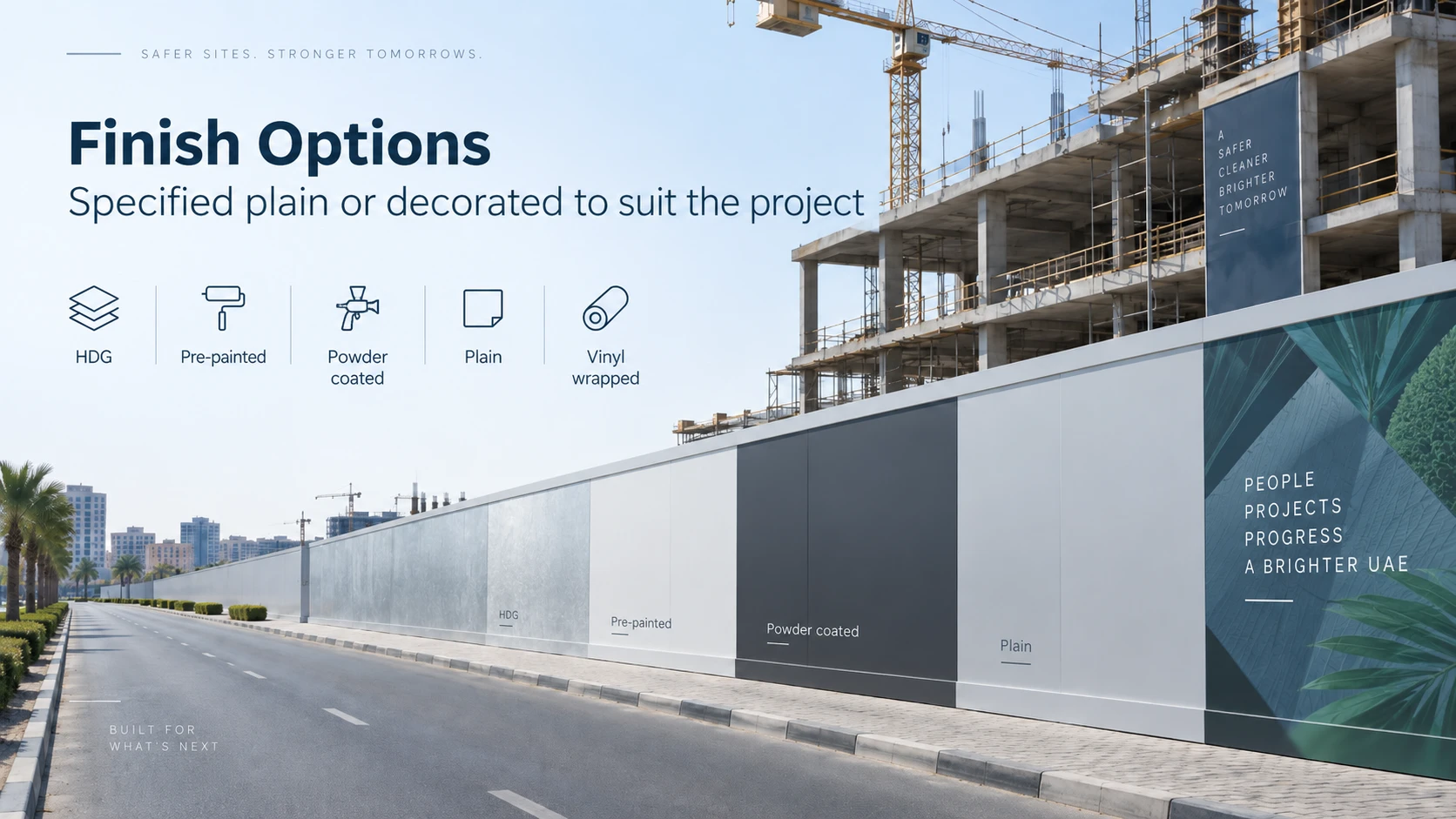

- Finish: HDG, pre-painted or powder coated; plain or vinyl wrapped
- Branding: Prohibited in DDA zones — Circular 331
All 5 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|

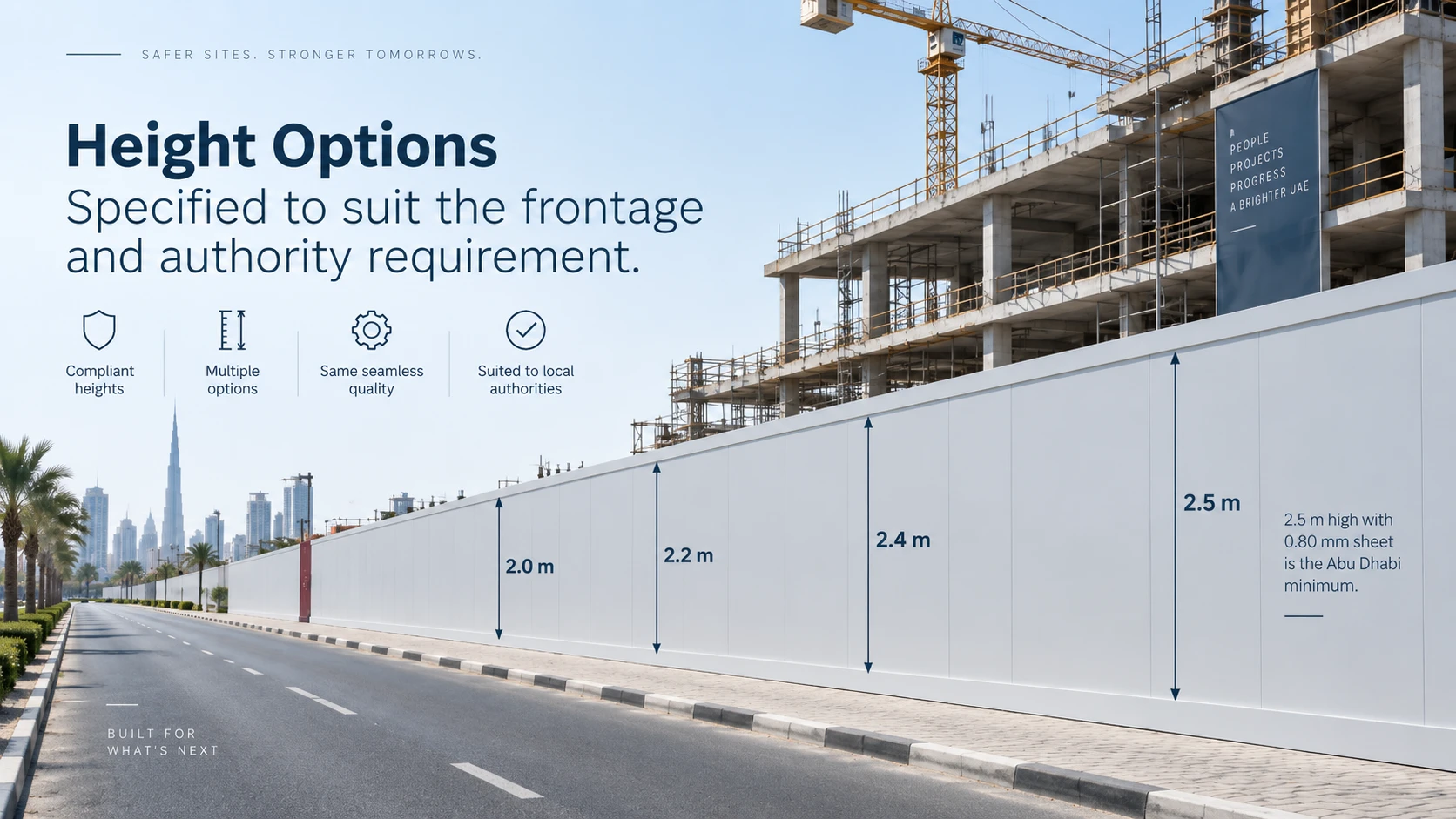

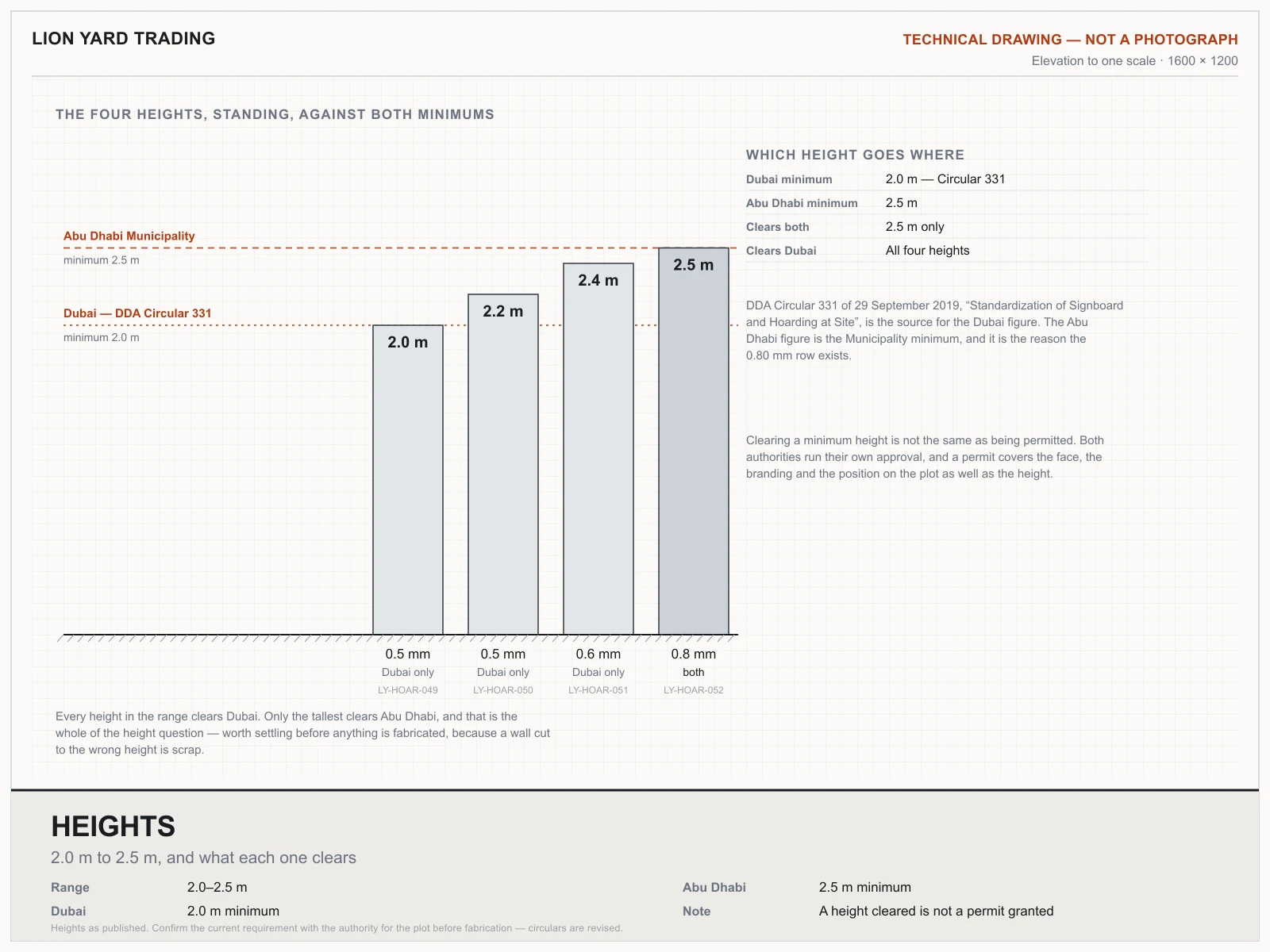

| 2.0 m high — 0.50 mmLY-HOAR-049 | Per metre of run × 2.00 m high · bays 2.0–2.5 m | Ask |
| 2.2 m high — 0.50 mmLY-HOAR-050 | Per metre of run × 2.20 m high · bays 2.0–2.5 m | Ask |
| 2.4 m high — 0.60 mmLY-HOAR-051 | Per metre of run × 2.40 m high · bays 2.0–2.5 m | Ask |
| 2.5 m high — 0.80 mmLY-HOAR-052 | Per metre of run × 2.50 m high · bays 2.0–2.5 m · Abu Dhabi minimum | Ask |

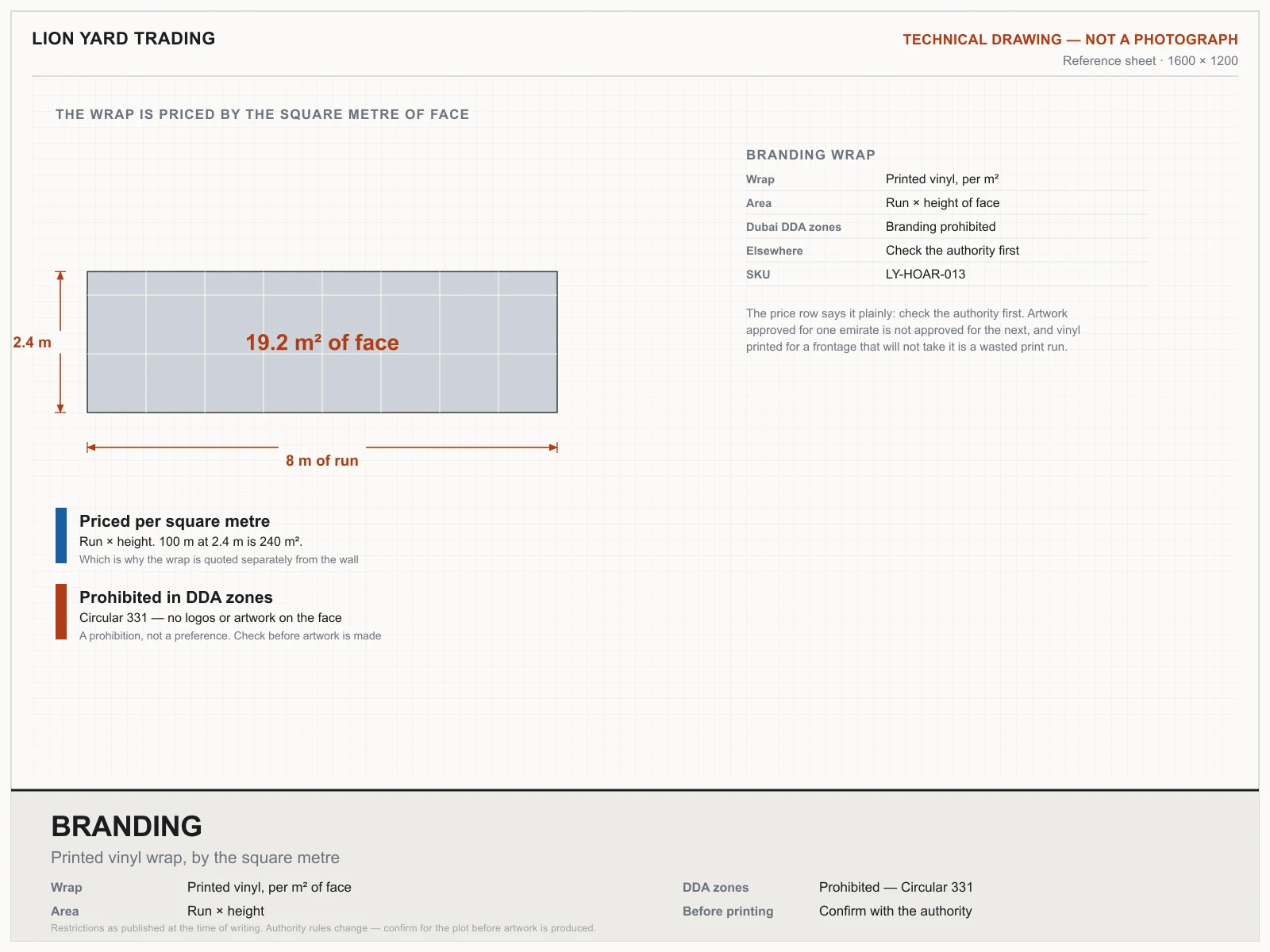

| Branding wrap — printed vinylLY-HOAR-013 | Per m² of hoarding face · check the authority first | Ask |
- Per metre of run × 2.00 m high · bays 2.0–2.5 mAsk on WhatsApp
- Per metre of run × 2.20 m high · bays 2.0–2.5 mAsk on WhatsApp
- Per metre of run × 2.40 m high · bays 2.0–2.5 mAsk on WhatsApp
- Per metre of run × 2.50 m high · bays 2.0–2.5 m · Abu Dhabi minimumAsk on WhatsApp
- Per m² of hoarding face · check the authority firstAsk on WhatsApp
Priced per linear metre against your run length.
What it is

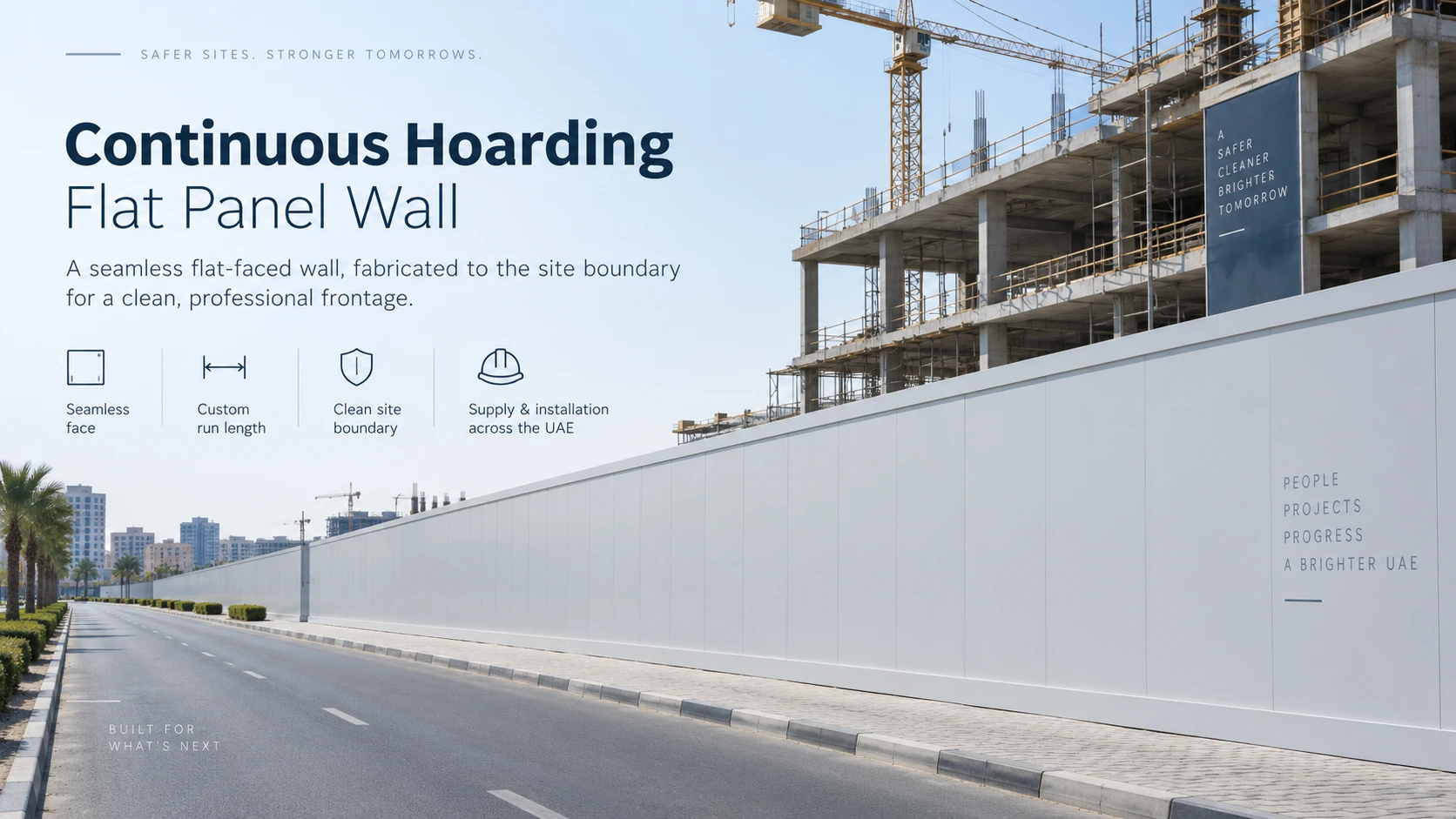

A seamless flat-faced wall with no gaps, fabricated to the site boundary rather than stocked as a fixed panel. Specified where a developer wants a clean surface, and where thicker sheet is needed against wind load on an exposed frontage.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Sheet
- 0.50–0.80 mm to ASTM A653 / JIS G3302
- Posts

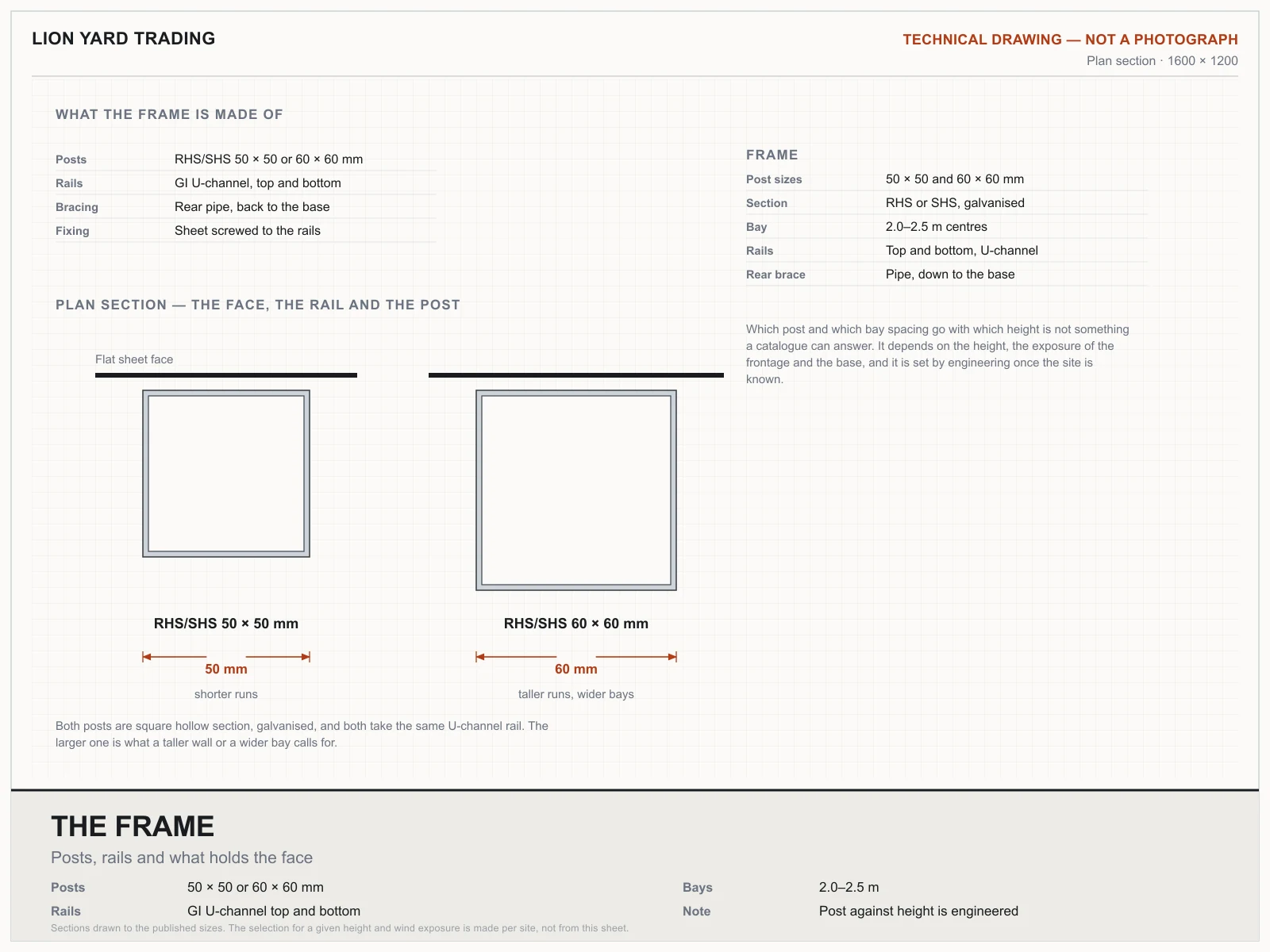

- RHS/SHS 50 × 50 mm or 60 × 60 mm at 2.0–2.5 m centres
- Rails

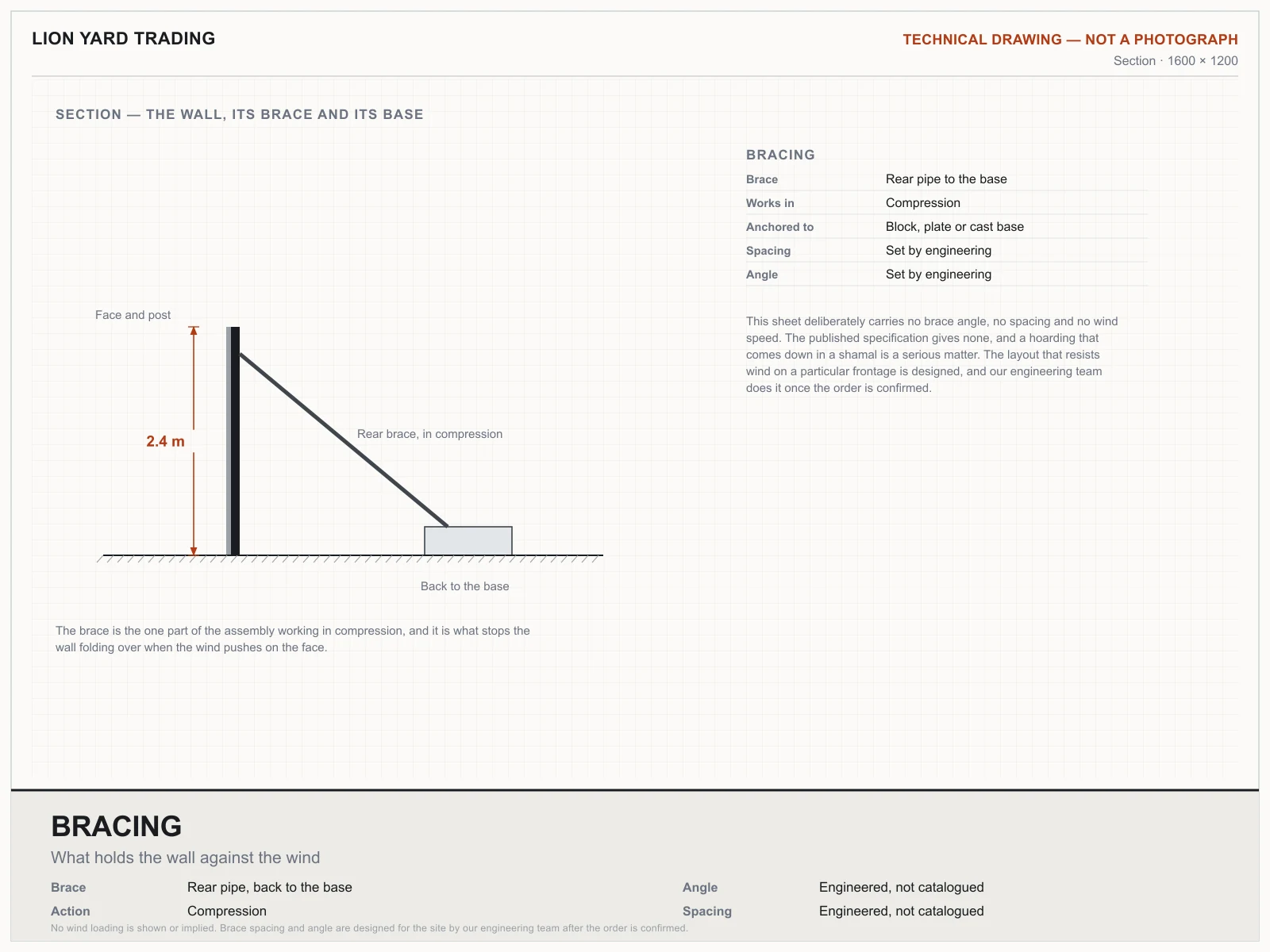

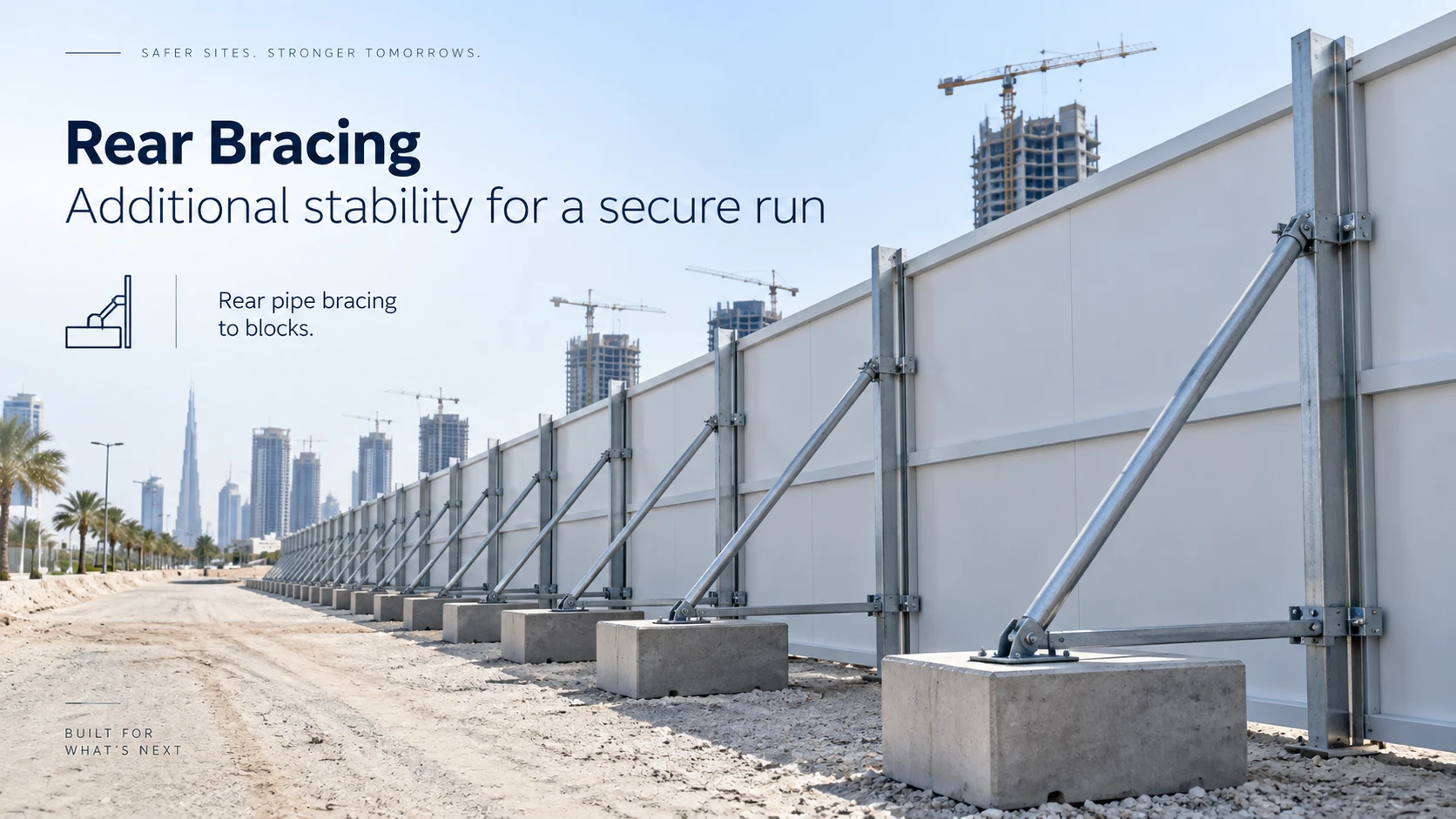

- GI U-channel top and bottom, rear pipe bracing to blocks
- Base

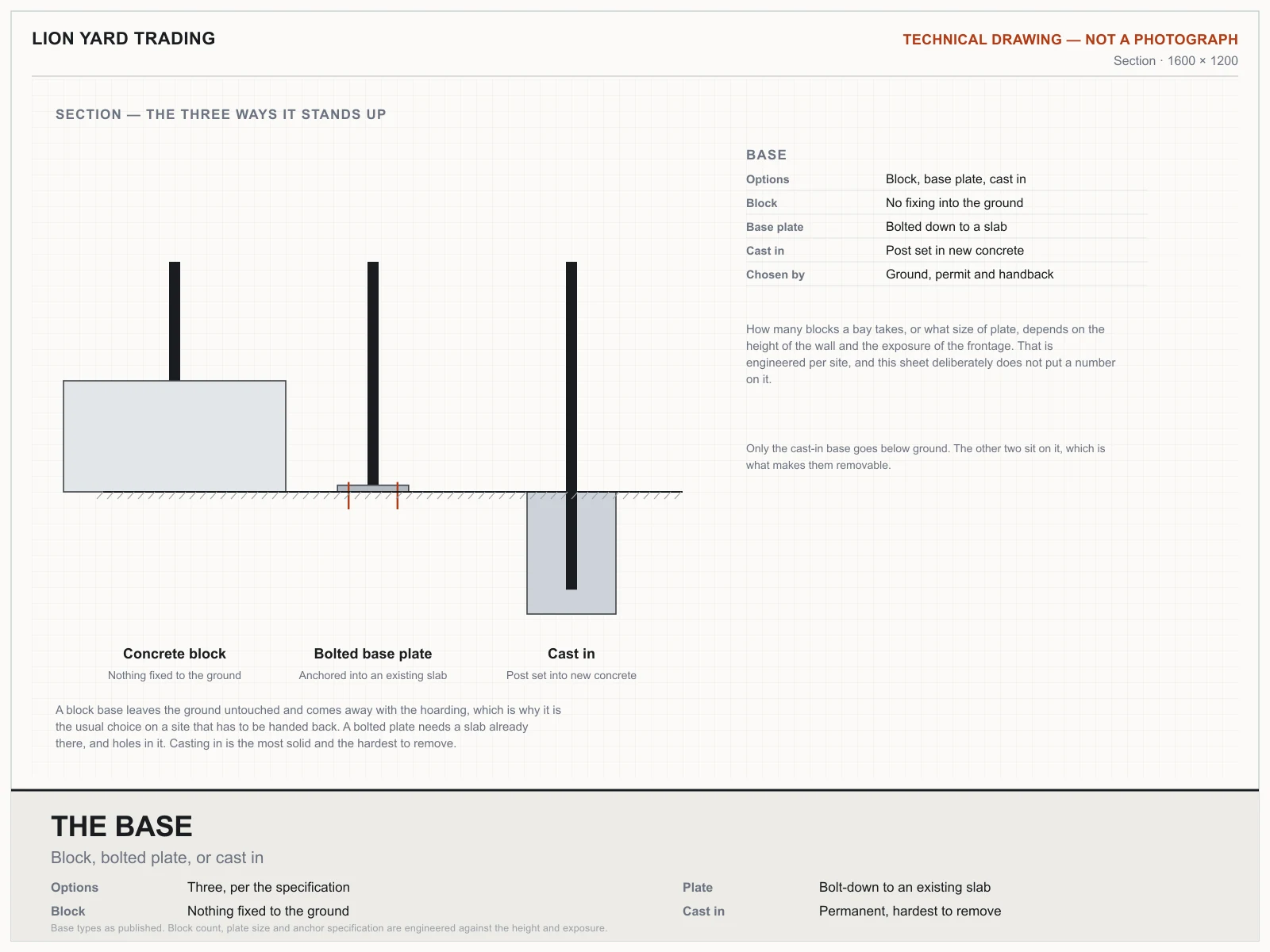

- Concrete blocks, steel base plate, bolt-down or cast-in

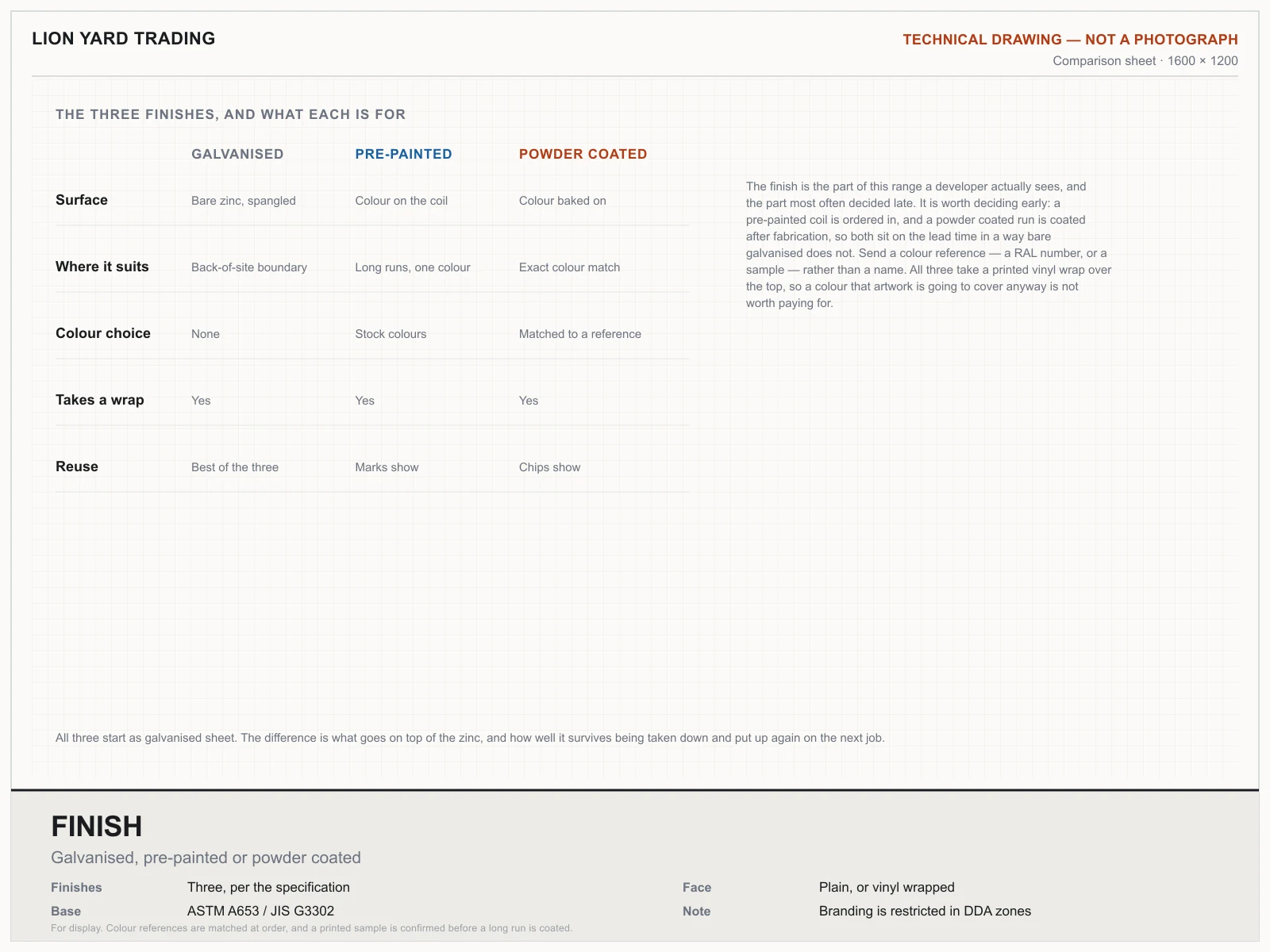

- Finish
- HDG, pre-painted or powder coated; plain or vinyl wrapped
- Branding
- Prohibited in DDA zones — Circular 331
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Continuous Hoarding — flat panel wall — every figure comes from the price table above or from the published standard it is made to.

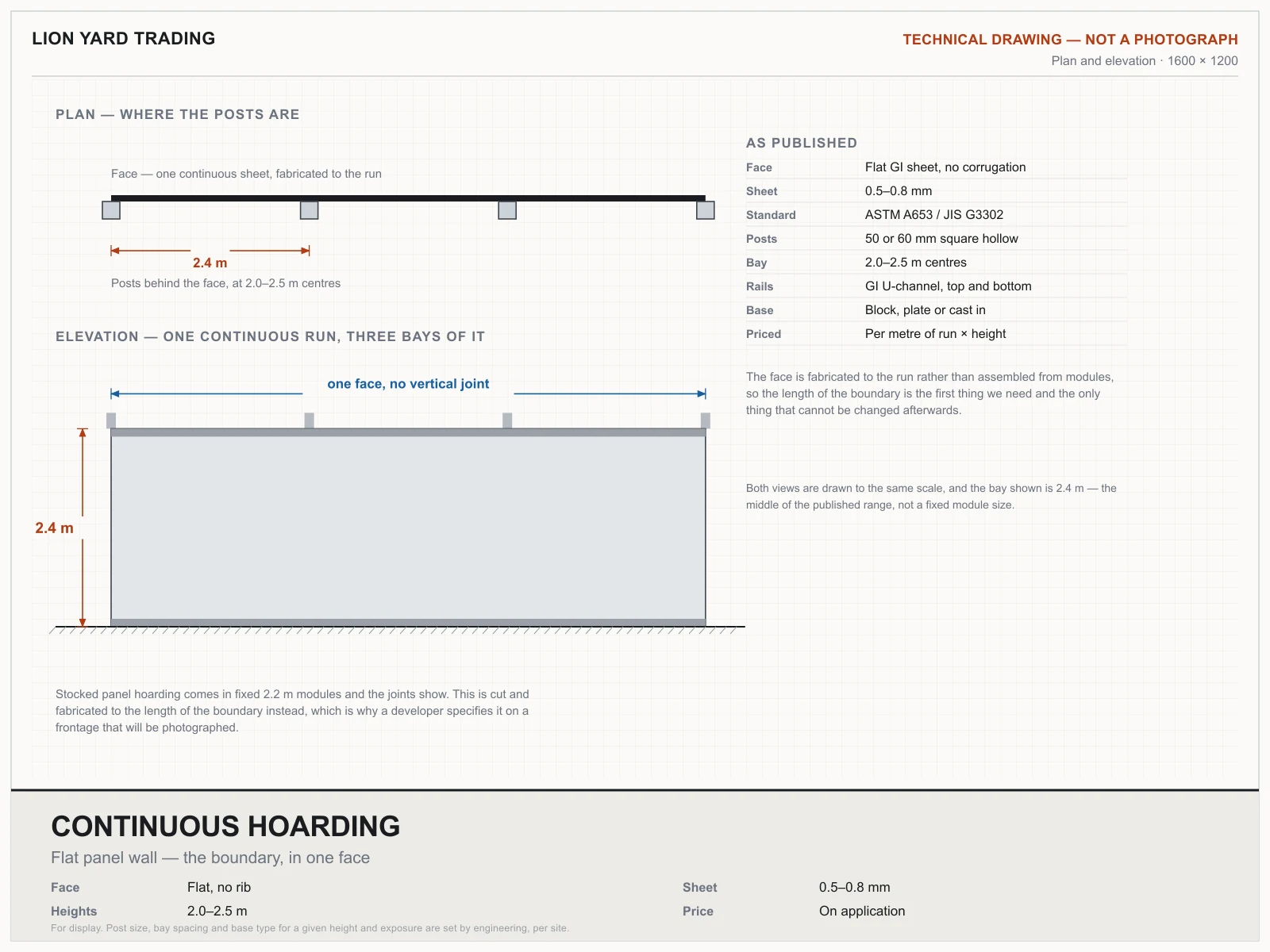

The wallOne face, no joints
1 of 10

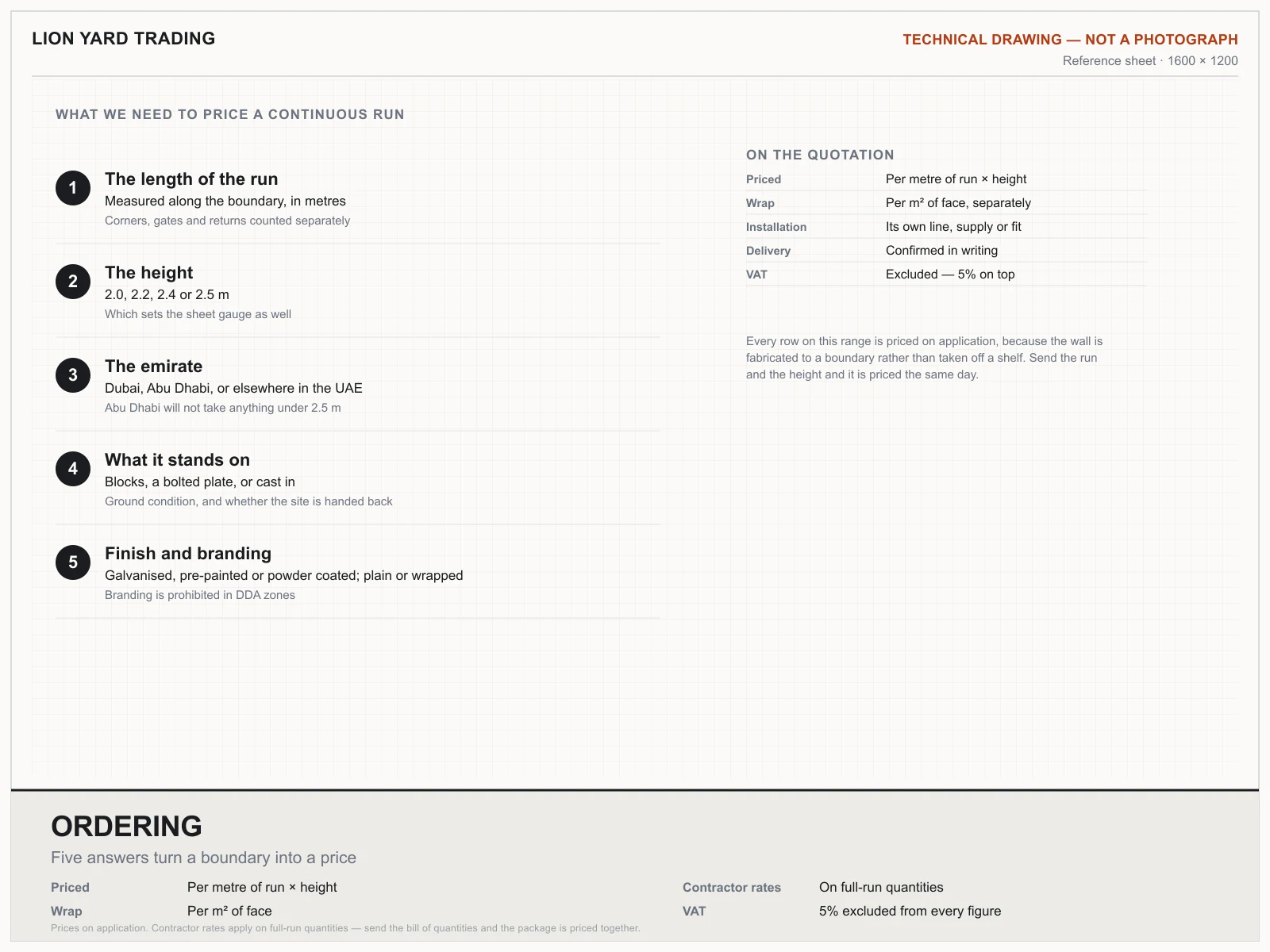

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your continuous hoarding — flat panel wall?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
