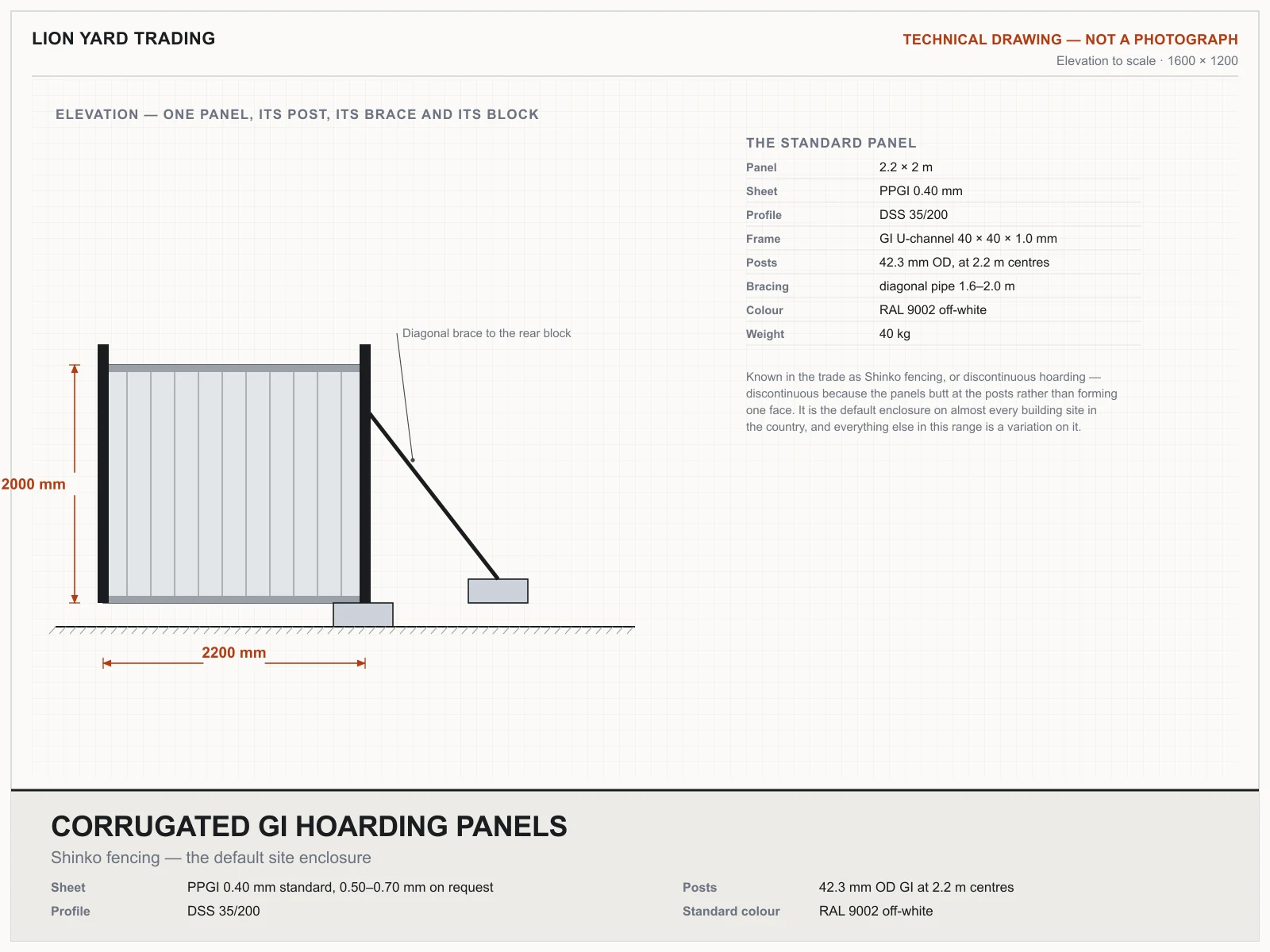

Corrugated GI Hoarding Panels (Shinko)

Specification

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

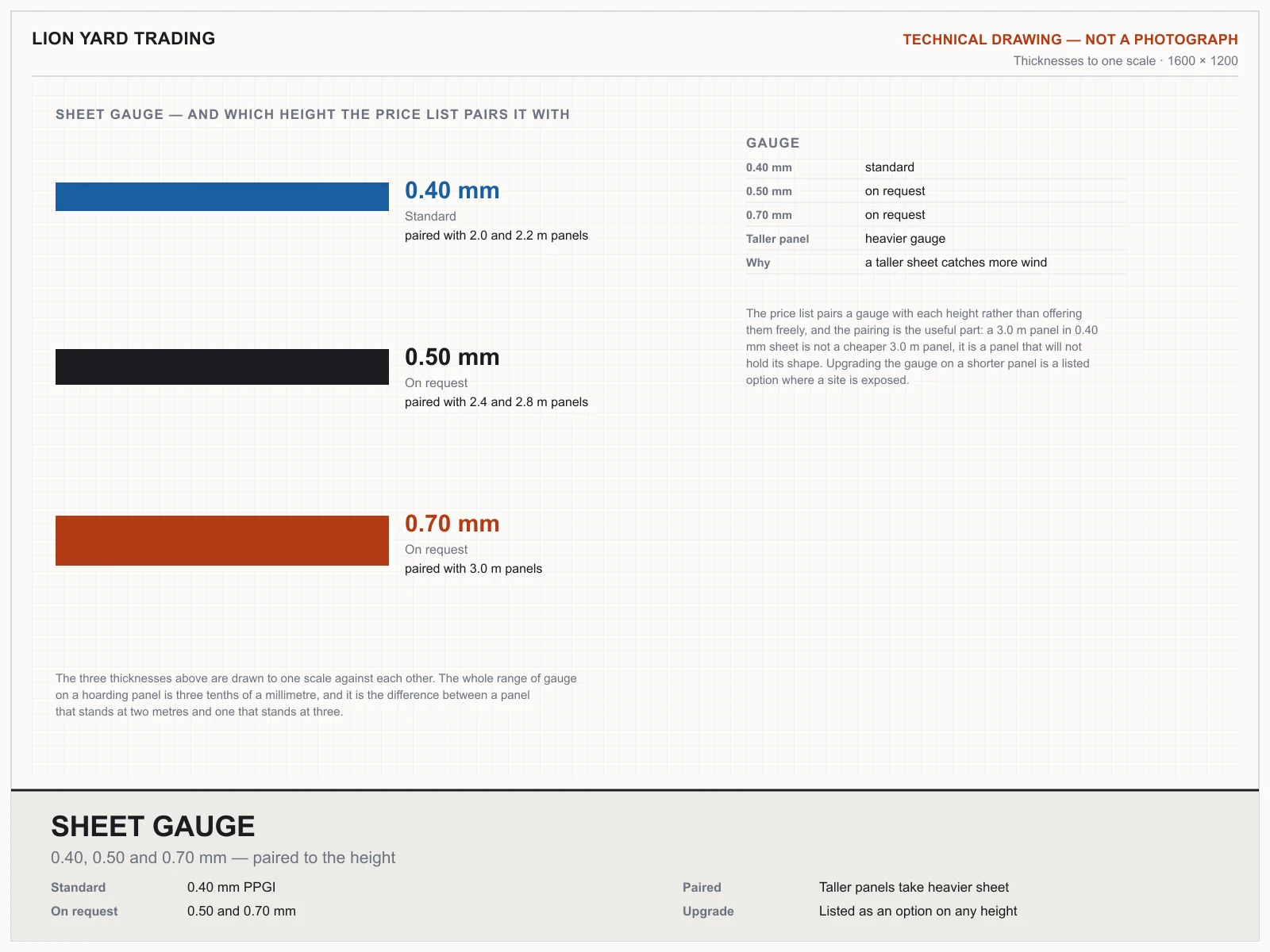

Sheet

PPGI 0.40 mm standard · 0.50–0.70 mm on request

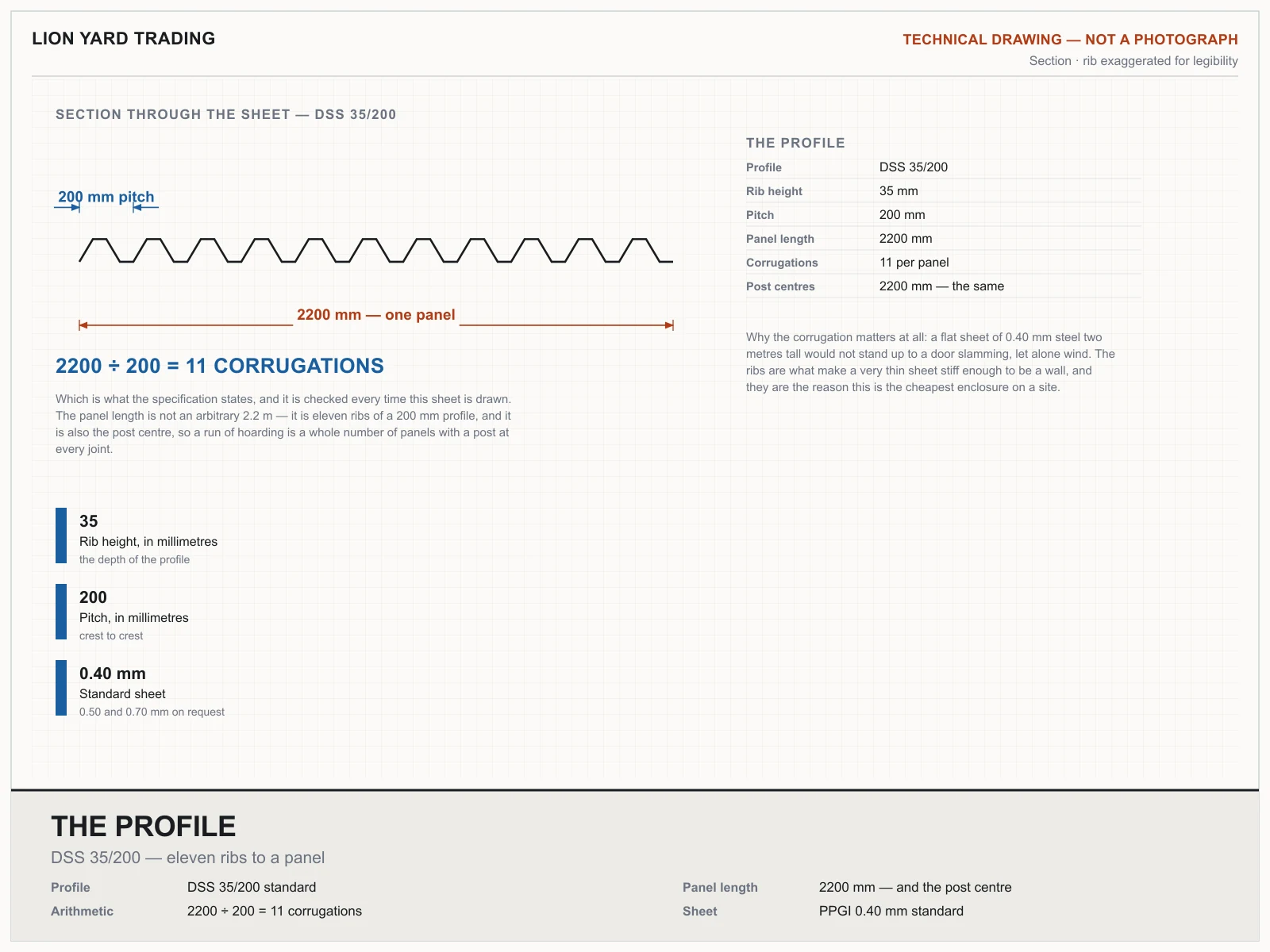

Profile

DSS 35/200 standard · 11 corrugations per 2200 mm panel (2200 ÷ 200 mm pitch)

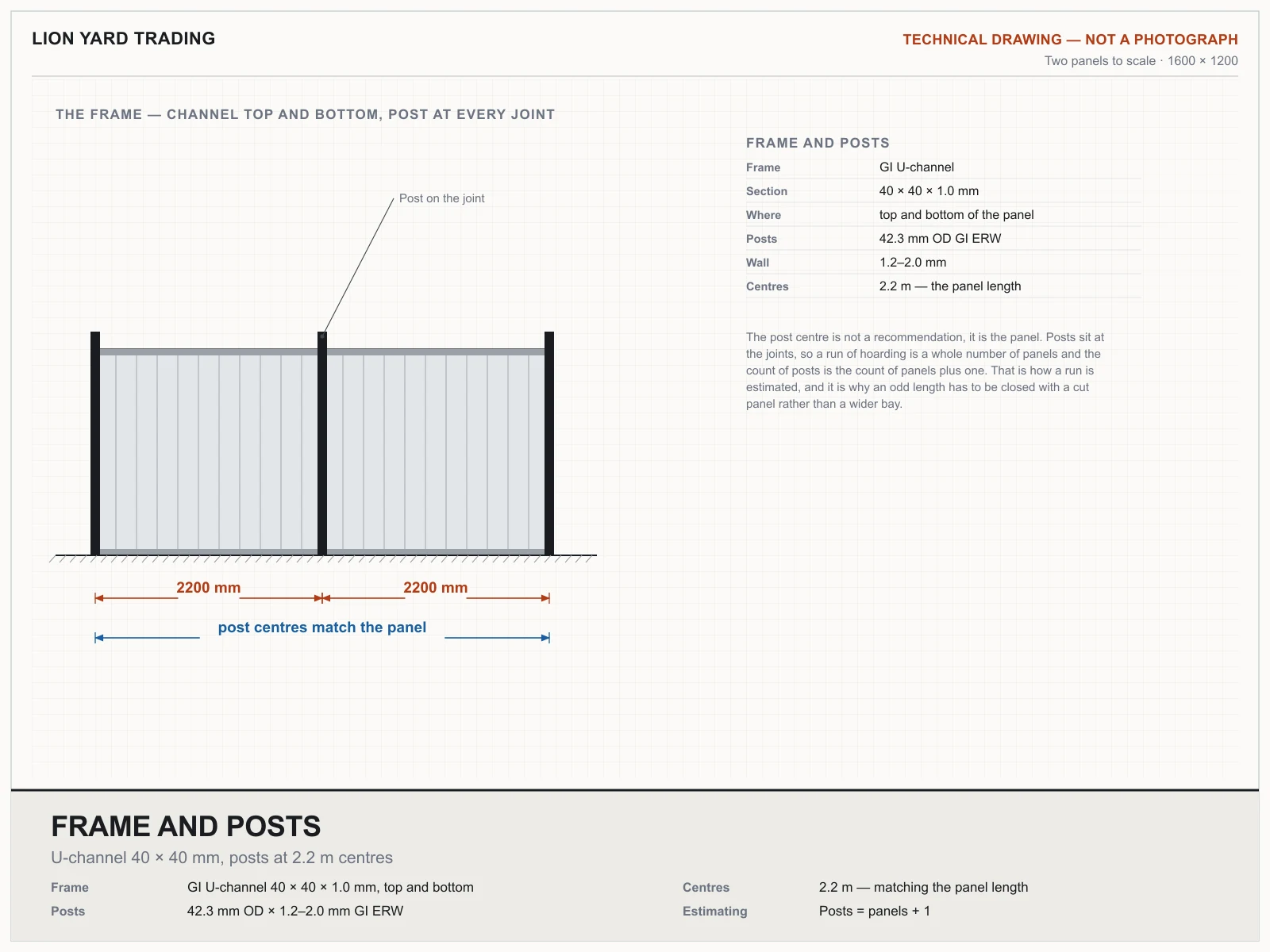

Frame

GI U-channel 40 × 40 × 1.0 mm, top and bottom

Posts

42.3 mm OD × 1.2–2.0 mm GI ERW at 2.2 m centres — posts sit at the panel joints, so the centre matches the 2200 mm panel length

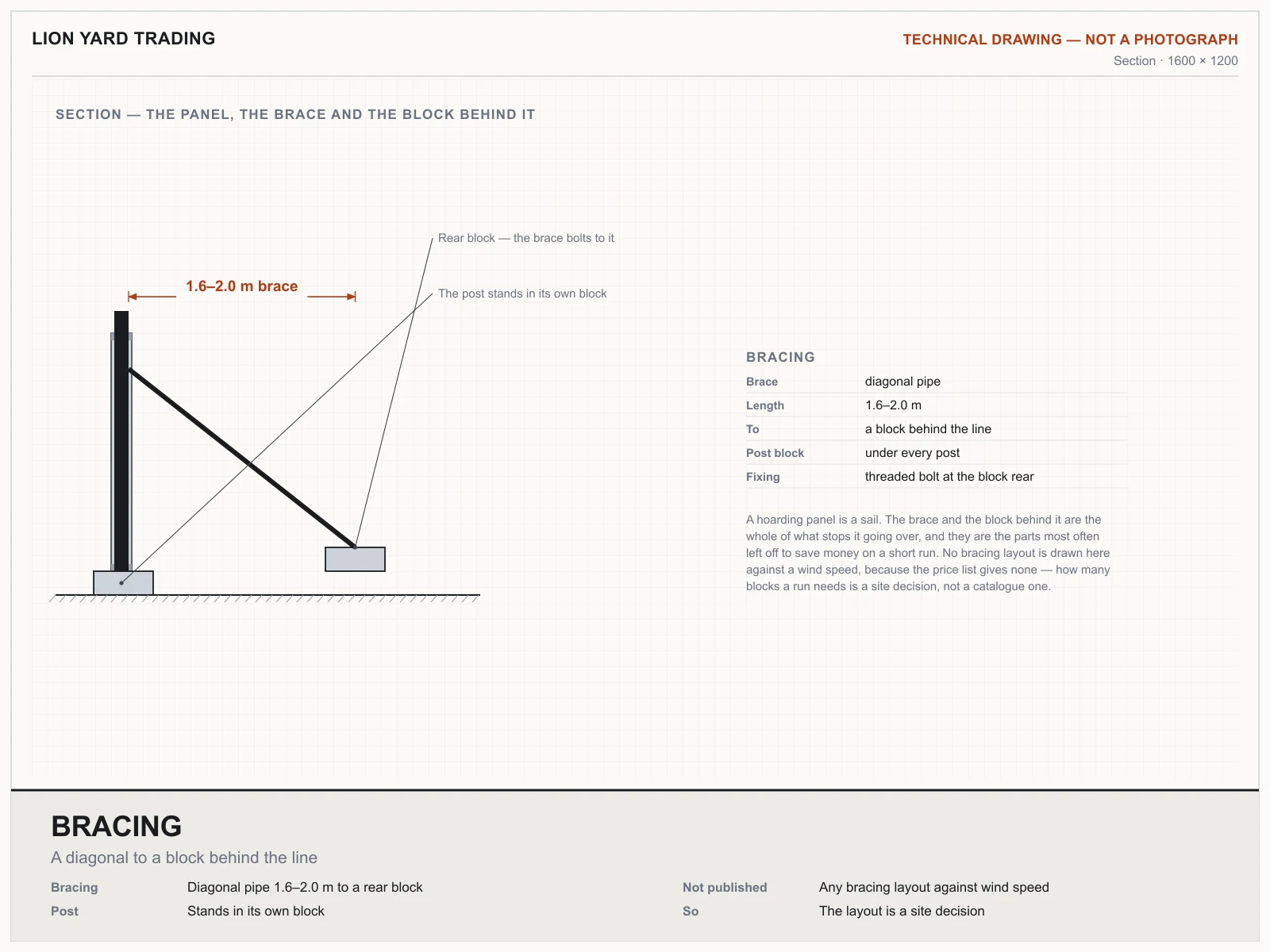

Bracing

Diagonal pipe 1.6–2.0 m to rear block

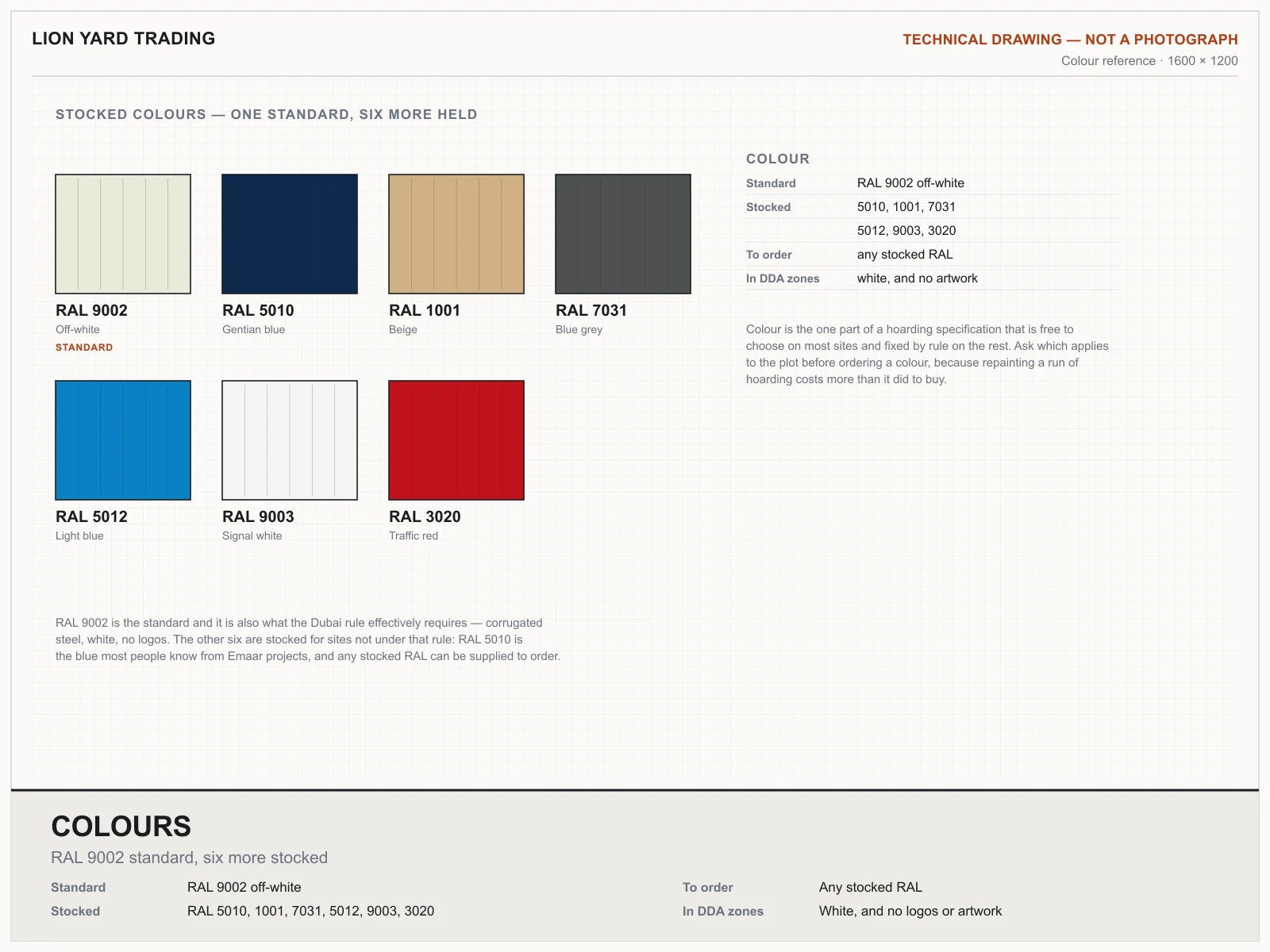

Standard colour

RAL 9002 off-white

Stocked colours

RAL 5010 (Emaar blue), 1001 beige, 7031 grey, 5012, 9003, 3020

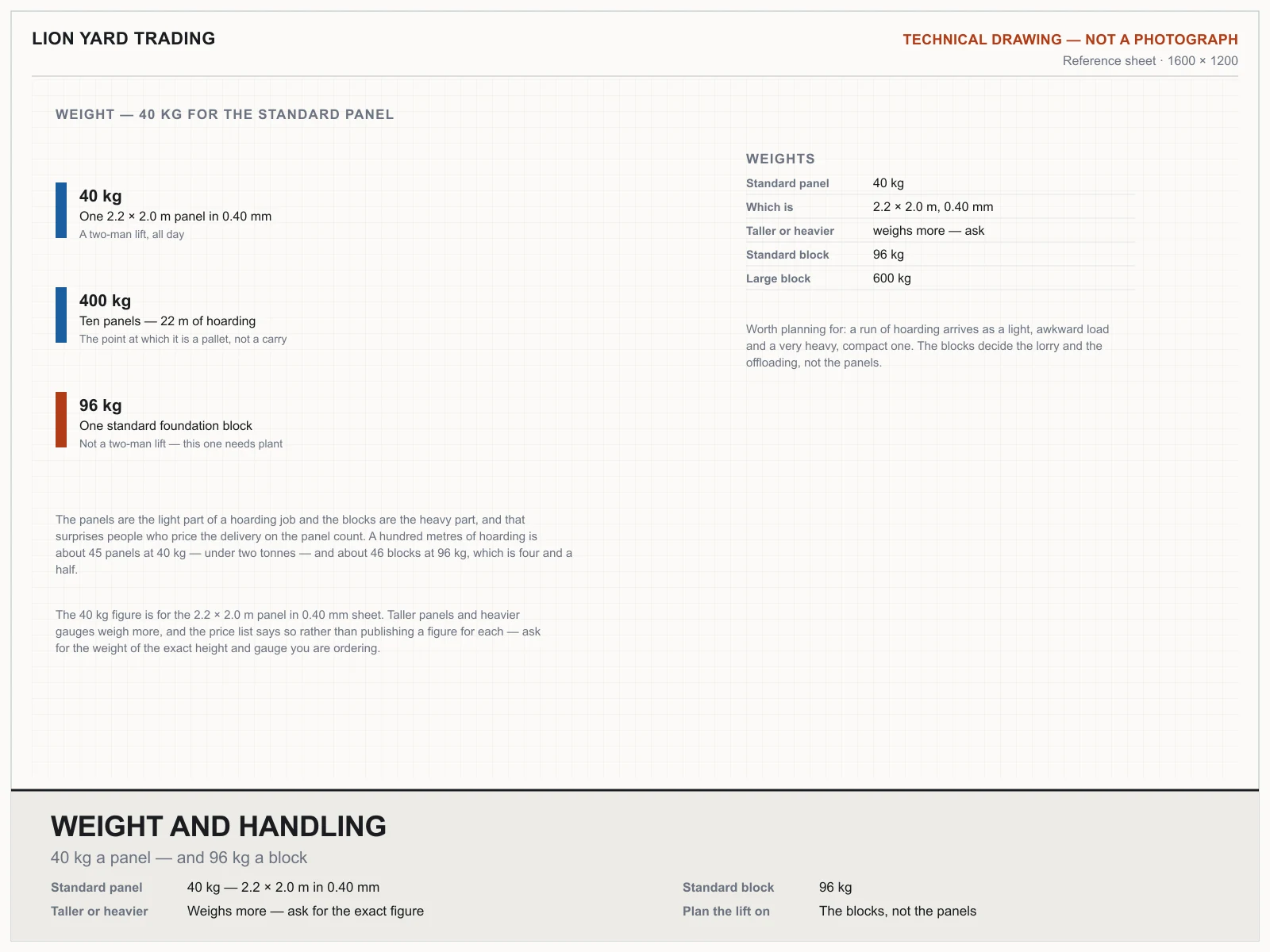

Weight

40 kg for the 2.2 × 2.0 m panel in 0.40 mm sheet. Taller panels and heavier gauges weigh more — ask for the figure on the exact height and gauge you are ordering.

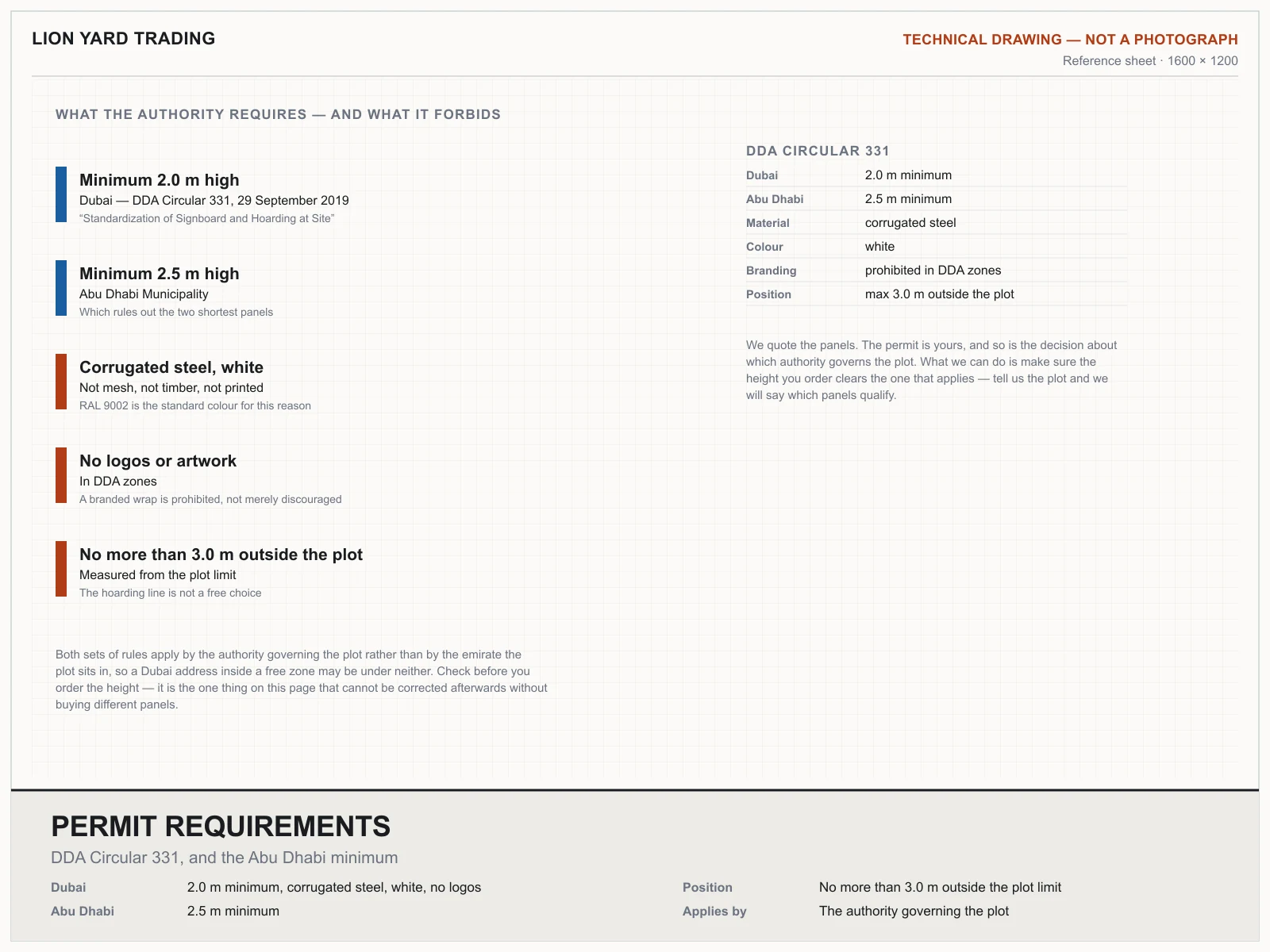

Permit note

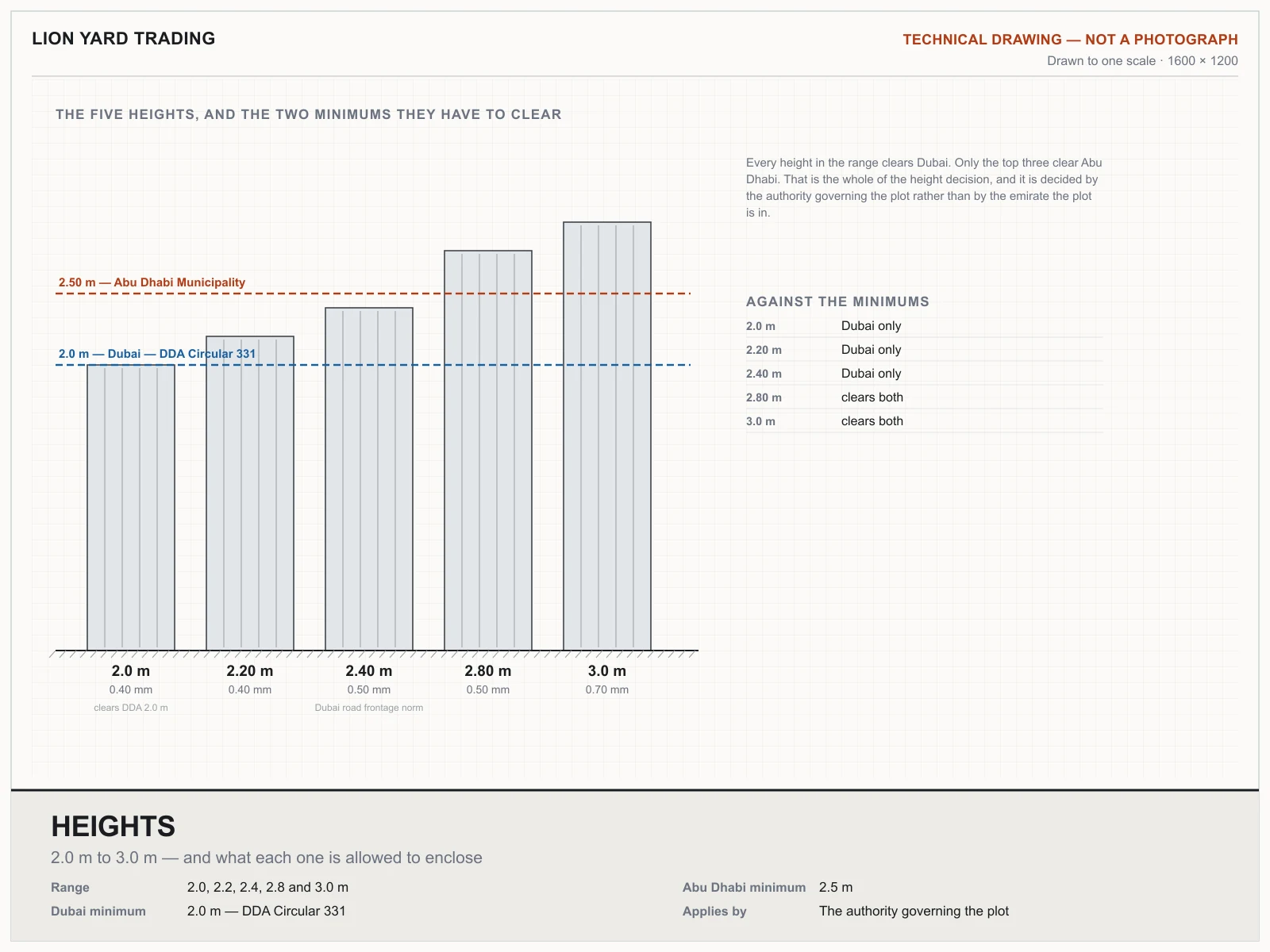

DDA Circular 331 "Standardization of Signboard and Hoarding at Site" (29 September 2019): corrugated steel, white, no logos or artwork, minimum 2.0 m high, and no more than 3.0 m outside the plot limit. Abu Dhabi Municipality: 2.5 m minimum. Both apply by the authority governing the plot, not by emirate.

Delivery

All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.

Installation

Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.

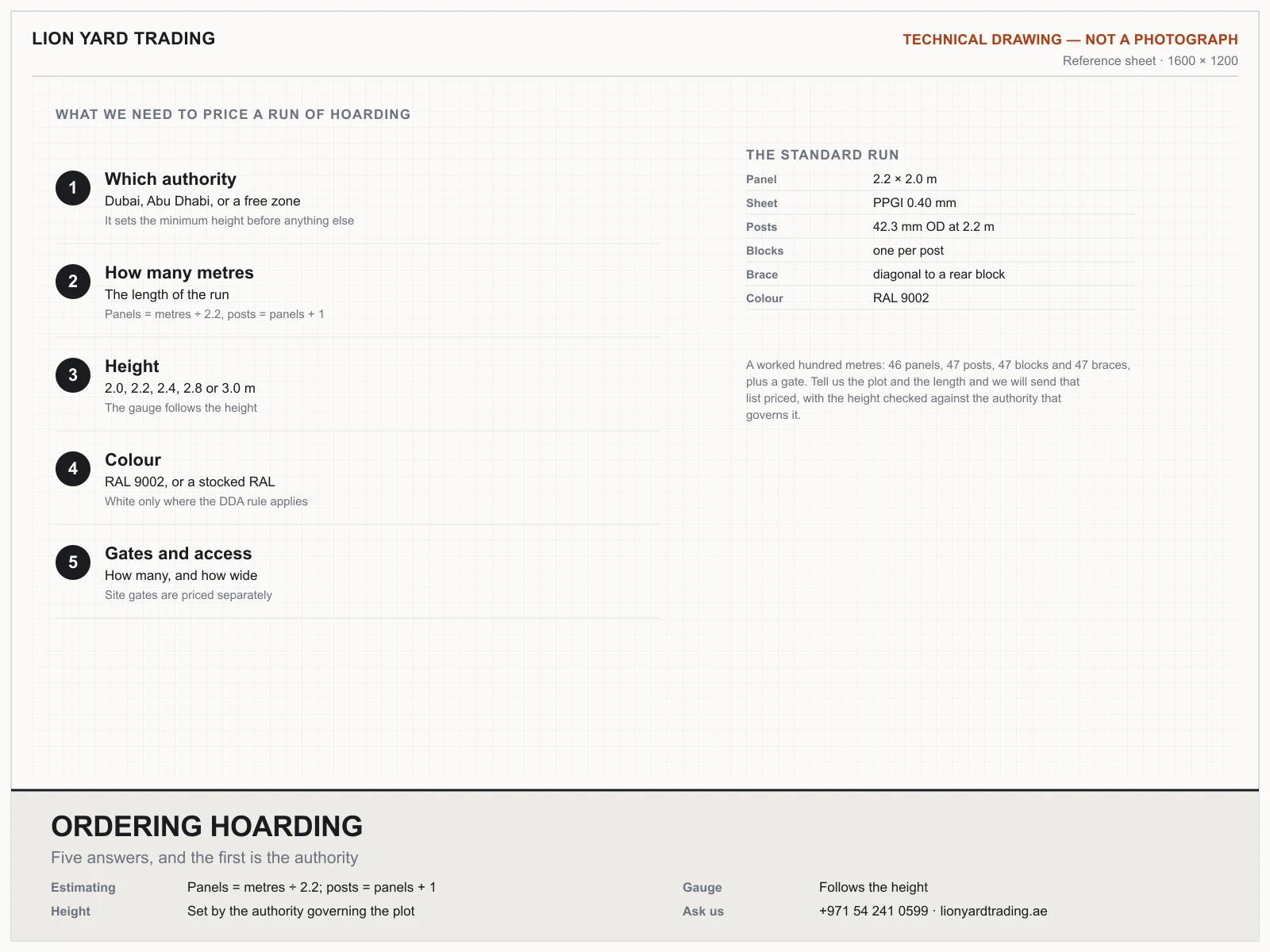

Ordering

Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
