Flashings & Trims
Roofing & Cladding
Priced on enquiry
Made to the exact roof/wall profile and colour on the job, so this is quoted against a sample or profile rather than stocked as a fixed item.
Tell us the size and where it is going.
About this product
- What it is: Sheet metal (GI or pre-painted GI) folded to a fixed profile on a brake press, used at…
- Who buys it: Whoever is supplying or fixing the sheet or sandwich panel roof/wall itself - flashings…
- Made of: Same base material as the roof sheet it finishes (plain GI or colour-matched PPGI), bent…
- Why it matters: A roof or wall that is watertight everywhere except the ridge and the eaves is not…

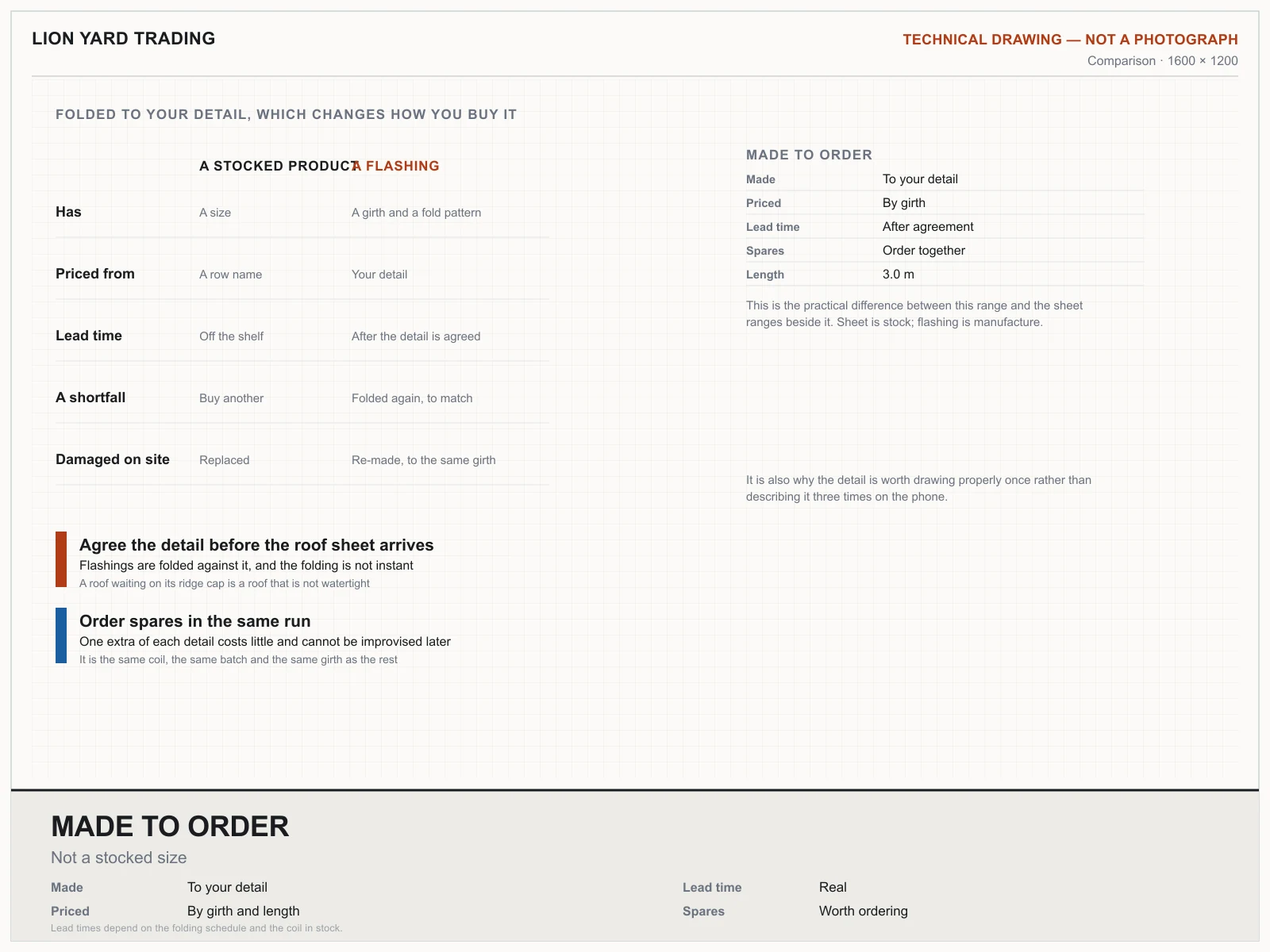

- Ordering: Made to the actual roof or wall profile and colour on the job - send the panel profile…
- Delivery: All 7 Emirates from our own yard.
All 8 options
Every option on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| Ridge Cap — GI, 3 mLY-BLDG-050 | Folded to your roof profile from GI coil, 0.20–1.20 mm · girth set by the ridge detail. | Ask |
| Ridge Cap — Aluzinc / aluminium, 3 mLY-BLDG-138 | Folded from Aluzinc or aluminium coil, 0.40–2.00 mm · girth set by the ridge detail. | Ask |
| Eave / Gutter Flashing — GI, 3 mLY-BLDG-051 | Folded from GI coil, 0.20–1.20 mm · girth set by the roof edge detail, colour matched to the sheet. | Ask |
| Eave / Gutter Flashing — Aluzinc / aluminium, 3 mLY-BLDG-139 | Folded from Aluzinc or aluminium coil, 0.40–2.00 mm · colour matched to the sheet. | Ask |
| Corner Trim — GI, 3 mLY-BLDG-052 | Girth and bend angle set by the corner it closes · colour matched to the sheet. | Ask |
| Corner Trim — Aluzinc / aluminium, 3 mLY-BLDG-140 | Girth and bend angle set by the corner · colour matched to the sheet. | Ask |
| Barge / End Flashing — GI, 3 mLY-BLDG-053 | Girth set by the verge detail · colour matched to the sheet. 3 m. | Ask |
| Barge / End Flashing — Aluzinc / aluminium, 3 mLY-BLDG-141 | Girth set by the verge detail · colour matched to the sheet. 3 m. | Ask |
- Folded to your roof profile from GI coil, 0.20–1.20 mm · girth set by the ridge detail.Ask on WhatsApp
- Folded from Aluzinc or aluminium coil, 0.40–2.00 mm · girth set by the ridge detail.Ask on WhatsApp
- Folded from GI coil, 0.20–1.20 mm · girth set by the roof edge detail, colour matched to the sheet.Ask on WhatsApp
- Folded from Aluzinc or aluminium coil, 0.40–2.00 mm · colour matched to the sheet.Ask on WhatsApp
- Girth and bend angle set by the corner it closes · colour matched to the sheet.Ask on WhatsApp
- Girth and bend angle set by the corner · colour matched to the sheet.Ask on WhatsApp
- Girth set by the verge detail · colour matched to the sheet. 3 m.Ask on WhatsApp
- Girth set by the verge detail · colour matched to the sheet. 3 m.Ask on WhatsApp
Made to the exact roof/wall profile and colour on the job, so this is quoted against a sample or profile rather than stocked as a fixed item.
What it is

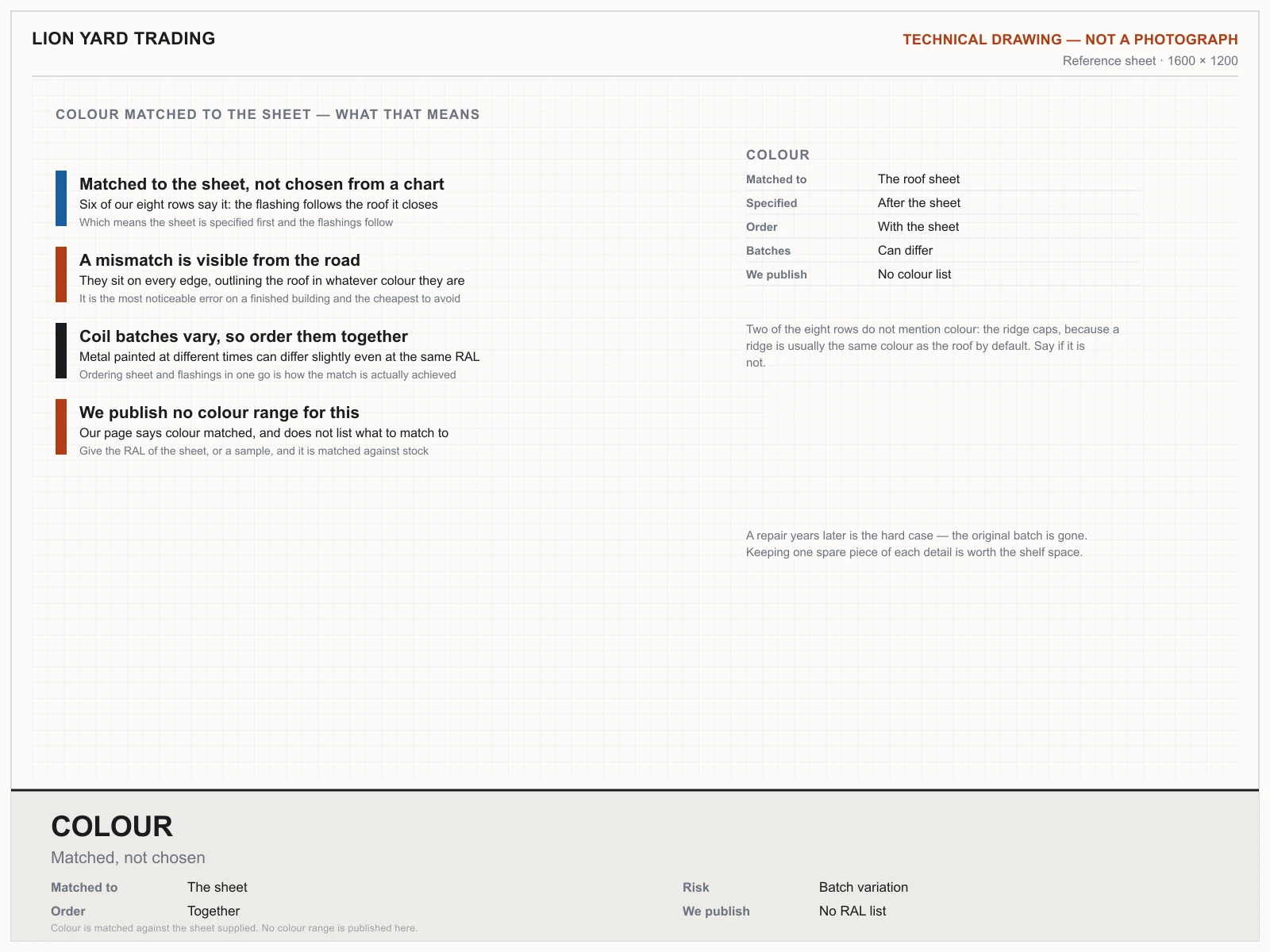

Bent GI and pre-painted sheet metal trims — ridge caps, gutters, corner and end flashings — that finish and weatherproof a panel or sheet roof. Standard length is 3 m; the girth and the bend angle are set by your detail, and the colour is matched to the sheet they finish. GI 0.20–1.20 mm, Aluzinc and aluminium 0.40–2.00 mm. A roof that is watertight everywhere except the ridge and the eaves is not watertight — send the roof detail and the flashings are folded to it.
Specification

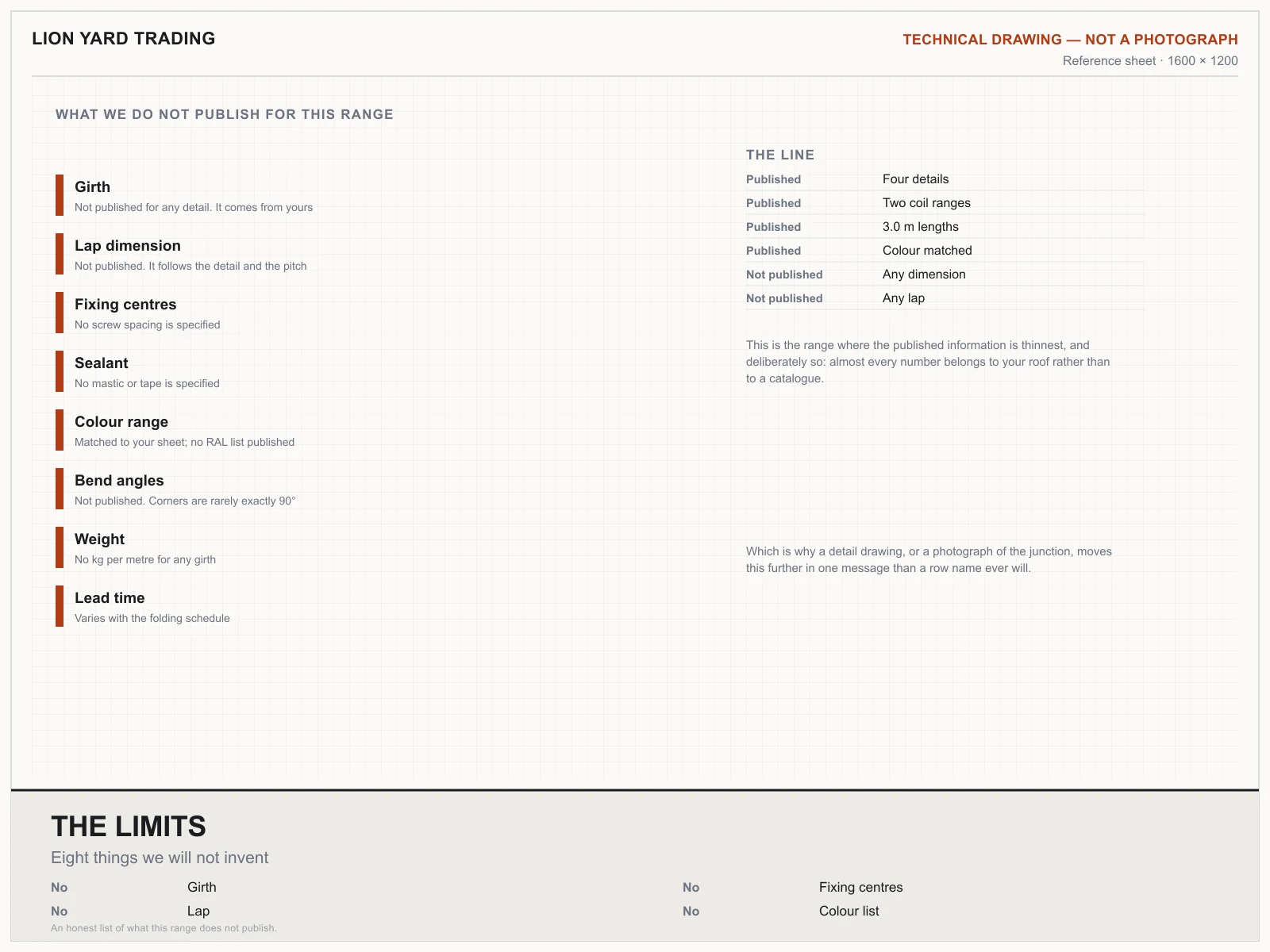

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is
- Sheet metal (GI or pre-painted GI) folded to a fixed profile on a brake press, used at every roof and wall junction a flat sheet or panel can't cover on its own - ridges, eaves, corners and openings.
- Who buys it
- Whoever is supplying or fixing the sheet or sandwich panel roof/wall itself - flashings are bought against that same job, since they only fit if they match the panel profile they are finishing.
- Made of
- Same base material as the roof sheet it finishes (plain GI or colour-matched PPGI), bent to the specific profile and lap the job needs.
- Why it matters
- A roof or wall that is watertight everywhere except the ridge and the eaves is not watertight - flashings are what stop wind-driven rain getting in at every joint.
- Ordering

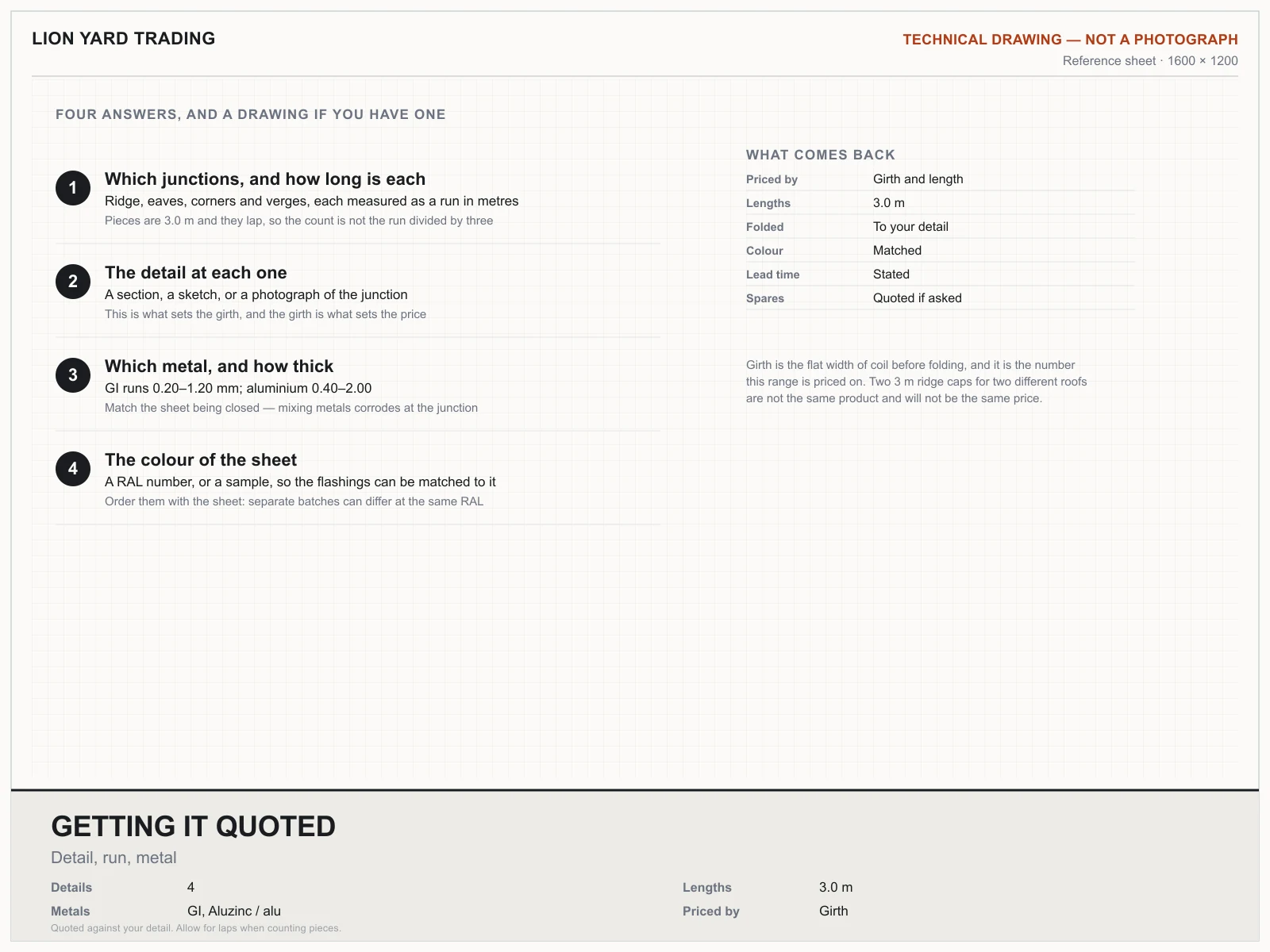

- Made to the actual roof or wall profile and colour on the job - send the panel profile (or a sample) and the running length needed. This is not a stock item picked off a shelf.
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation service
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Flashings & Trims — every figure comes from the price table above or from the published standard it is made to.

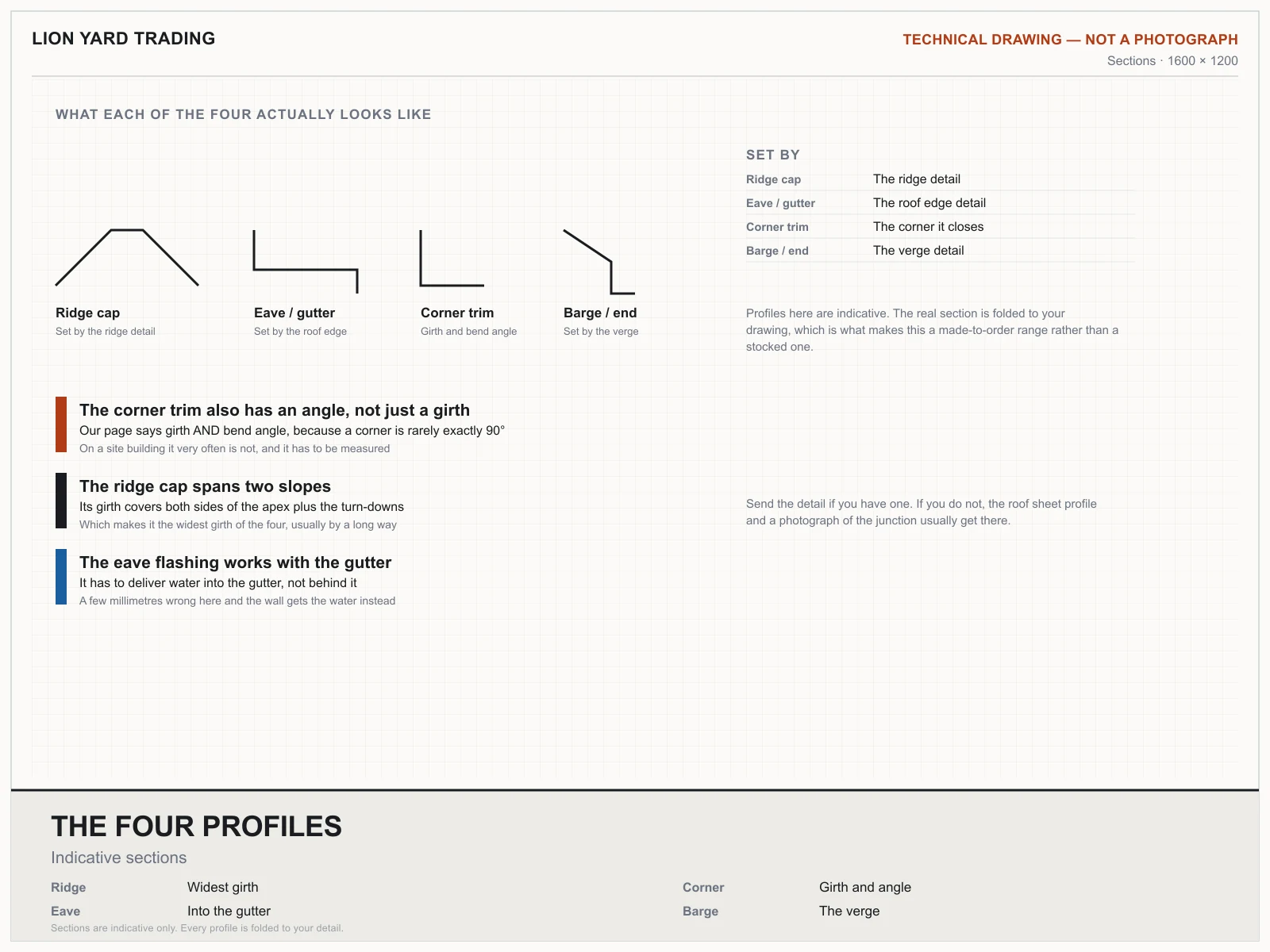

The four detailsRidge, eave, corner, barge
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your flashings & trims?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
