GI Sheets
Roofing & Cladding
3sizes10technical drawings10photos of our stock
Priced on enquiry
Steel sheet is priced off the mill rate, so it is quoted against the day's rate, the sheet size and the quantity rather than published.
Tell us the size and where it is going.
About this product
- Sold by: At the retail counter corrugated trades by GAUGE — 28G, 34G — not on a millimetre ladder.
- Plain retail size: 4 × 8 ft (1220 × 2440 mm) is the dominant stock size
- Corrugated retail: 3×8 ft · 3×10 ft · 3×12 ft · 4×12 ft
- Mill widths: 602 · 720 · 740 · 762 · 780 · 800 · 840 · 910 · 1100 mm after forming
- Mill lengths: 1830 · 2135 · 2440 · 2745 · 3000 · 3050 · 3660 · 4270 · 4880 mm
- Zinc coating: Z80 indoor · Z180 agricultural and HVAC · Z275 roofing, fencing and structural · Z350+…
Delivered across all 7 Emirates
All 3 sizes
Every size on one list. Tap any row to ask about that one.
How many sheets for your roof or wall?
Enter the width to cover and the sheet length, and get the count.
You need
- Sheets, 3.05 m long762 mm covered by each29 sheets
- Area covered67.4 m2
How that was worked out
- 20 m + 7% = 21.4 m to cover
- 21.4 m / 0.762 m covered per sheet = 28.1 -> 29 sheets
- 29 x 3.05 m x 0.762 m = 67.4 m2 covered
| Size / product | Details | Enquire |
|---|---|---|
| GI Sheet 0.4mmLY-BLDG-010 | 0.4 mm galvanised steel sheet, priced per sheet. The lightest gauge here - suited to cladding, partitions, temporary enclosures and hoarding infill where the sheet is supported by a frame and carries no load itself. Zinc coated on both faces for corrosion resistance in coastal and humid conditions. Confirm the sheet size and coating weight with us when you order. | Ask |
| GI Sheet 0.5mmLY-BLDG-011 | 0.5 mm galvanised steel sheet, priced per sheet. The general-purpose gauge: stiff enough to span between supports without oil-canning, and the usual choice for site hoarding, roofing underlays and enclosure panels. Zinc coated both faces. Confirm the sheet size and coating weight when you order. | Ask |
| GI Sheet 0.7mmLY-BLDG-012 | 0.7 mm galvanised steel sheet, priced per sheet. The heaviest gauge listed - used where the sheet takes handling, foot traffic or wind load, or where it must stay flat over a wider span. Noticeably more rigid than 0.5 mm and correspondingly heavier to fix. Confirm the sheet size and coating weight when you order. | Ask |
- 0.4 mm galvanised steel sheet, priced per sheet. The lightest gauge here - suited to cladding, partitions, temporary enclosures and hoarding infill where the sheet is supported by a frame and carries no load itself. Zinc coated on both faces for corrosion resistance in coastal and humid conditions. Confirm the sheet size and coating weight with us when you order.Ask on WhatsApp
- 0.5 mm galvanised steel sheet, priced per sheet. The general-purpose gauge: stiff enough to span between supports without oil-canning, and the usual choice for site hoarding, roofing underlays and enclosure panels. Zinc coated both faces. Confirm the sheet size and coating weight when you order.Ask on WhatsApp
- 0.7 mm galvanised steel sheet, priced per sheet. The heaviest gauge listed - used where the sheet takes handling, foot traffic or wind load, or where it must stay flat over a wider span. Noticeably more rigid than 0.5 mm and correspondingly heavier to fix. Confirm the sheet size and coating weight when you order.Ask on WhatsApp
Steel sheet is priced off the mill rate, so it is quoted against the day's rate, the sheet size and the quantity rather than published.
What it is

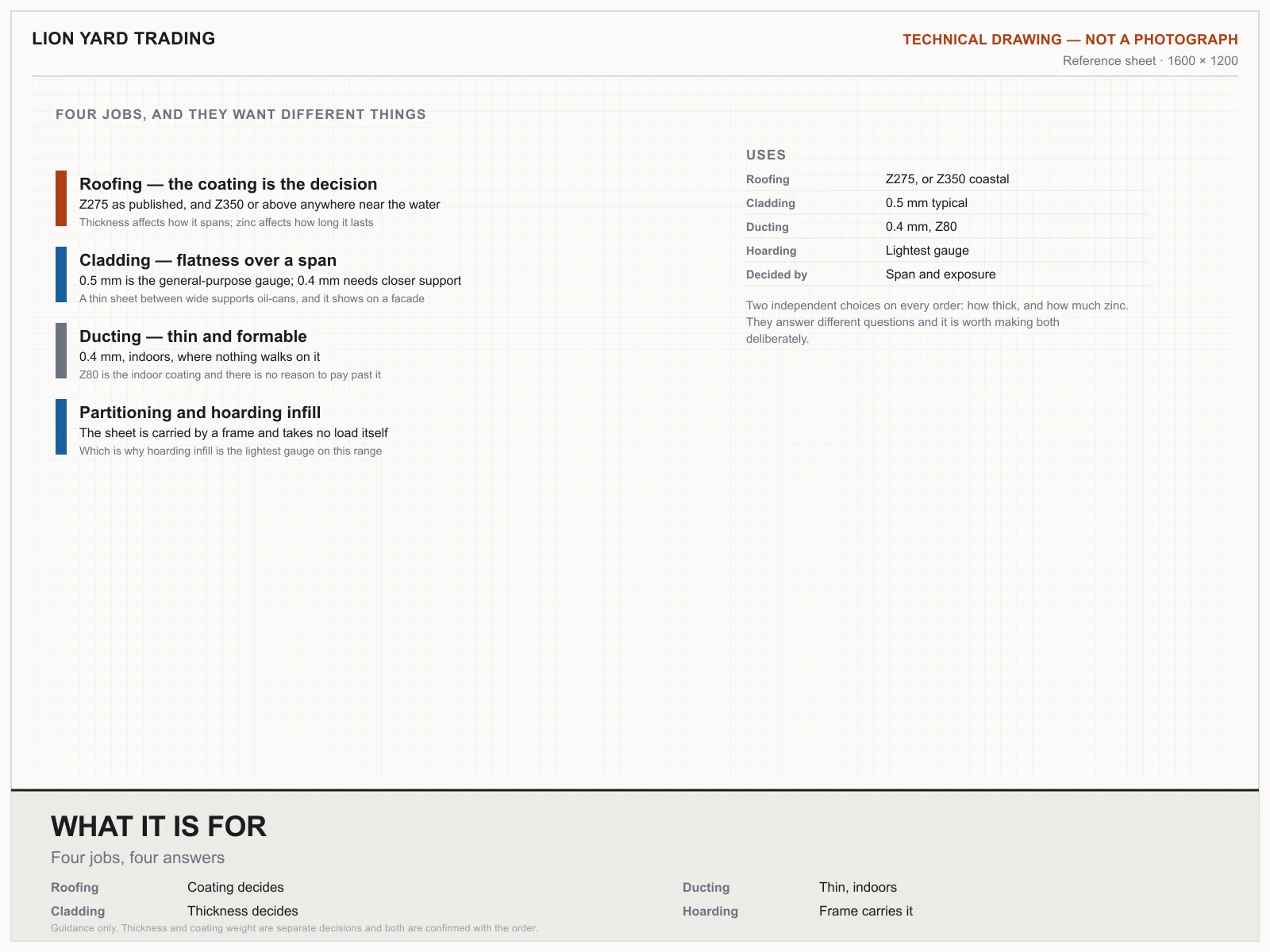

Galvanised steel sheet for roofing, cladding, ducting and partitioning.
Specification

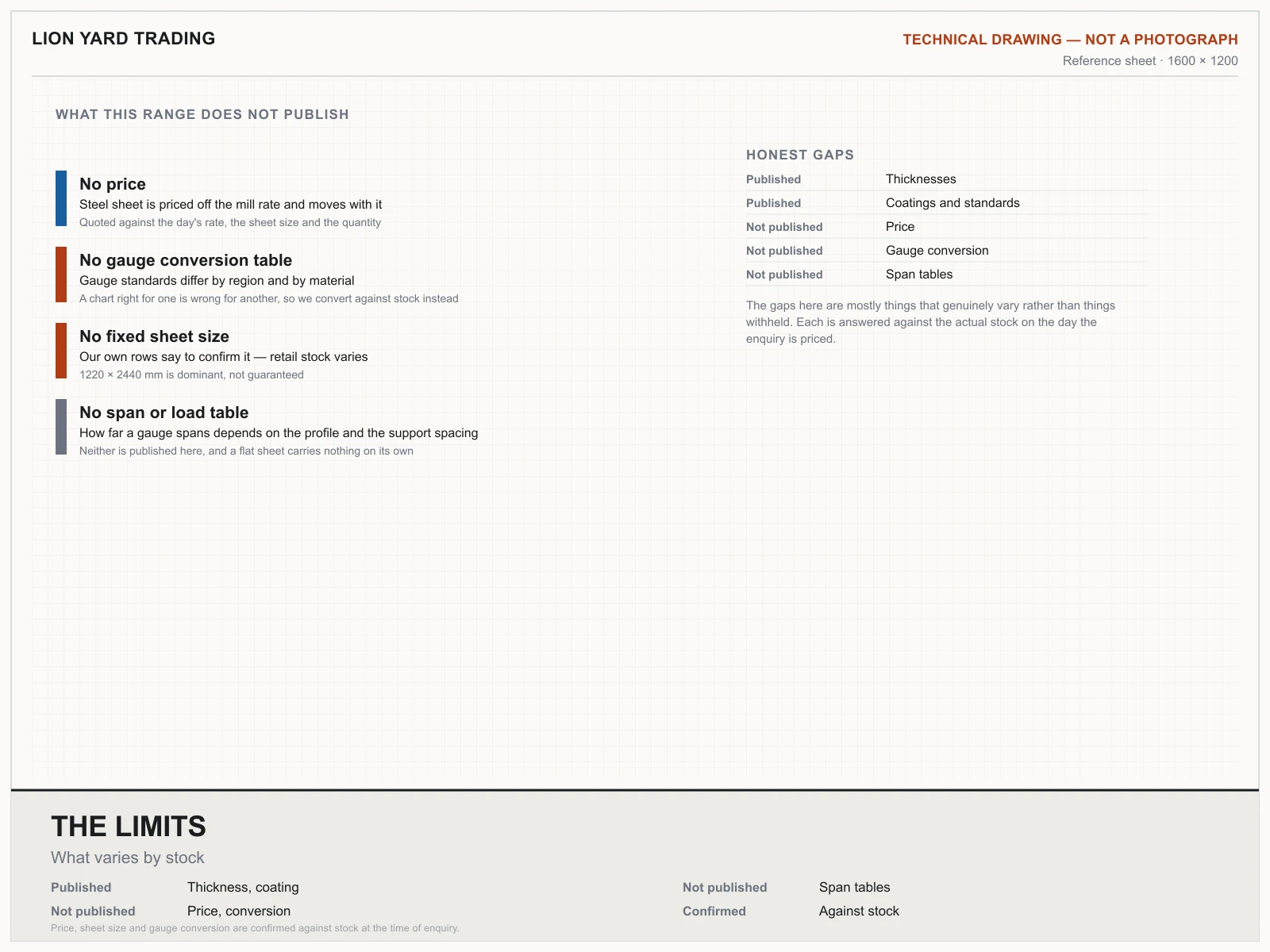

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Sold by
- At the retail counter corrugated trades by GAUGE — 28G, 34G — not on a millimetre ladder. Plain sheet trades in mm. Tell us which you want and we will convert.
- Plain retail size
- 4 × 8 ft (1220 × 2440 mm) is the dominant stock size
- Corrugated retail
- 3×8 ft · 3×10 ft · 3×12 ft · 4×12 ft
- Mill widths
- 602 · 720 · 740 · 762 · 780 · 800 · 840 · 910 · 1100 mm after forming
- Mill lengths
- 1830 · 2135 · 2440 · 2745 · 3000 · 3050 · 3660 · 4270 · 4880 mm
- Zinc coating
- Z80 indoor · Z180 agricultural and HVAC · Z275 roofing, fencing and structural · Z350+ coastal

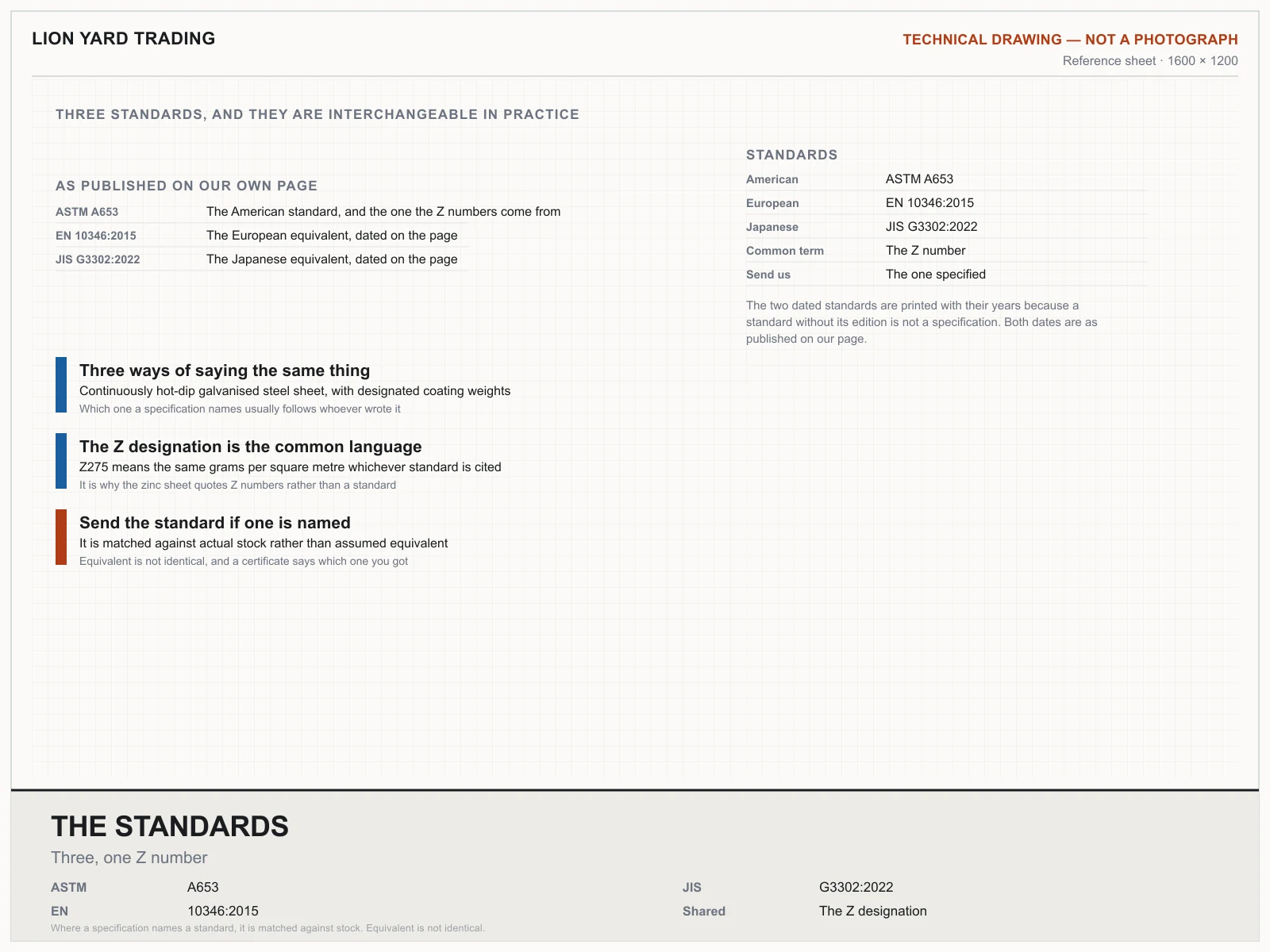

- Standards
- ASTM A653 · EN 10346:2015 · JIS G3302:2022

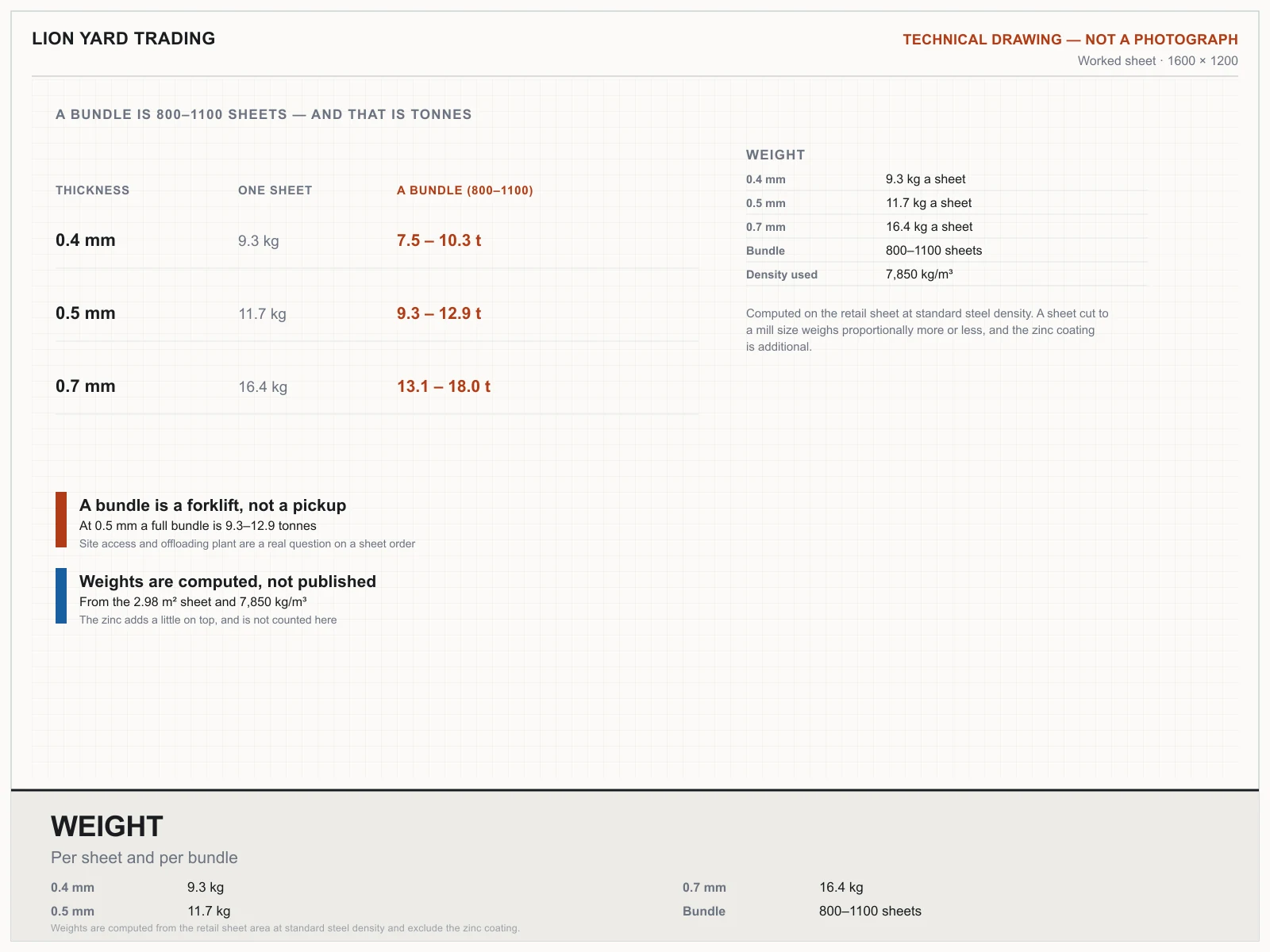

- Bundle
- 800–1,100 sheets
- Material
- Galvanised steel
- Thickness
- 0.4 mm, 0.5 mm and 0.7 mm
- Sold by
- The sheet — confirm the sheet size with your enquiry, it varies by stock
- Finish
- Mill spangle; profiled or plain depending on stock
- Versus aluminium
- Heavier and stronger, and cheaper per sheet; aluminium wins where weight or corrosion matters
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
GI Sheets
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price GI Sheets — every figure comes from the price table above or from the published standard it is made to.
GI sheetsThree gauges, zinc both faces
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your gi sheets?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
