Scaffold Couplers & Clamps
Scaffolding & Access
Priced on enquiry

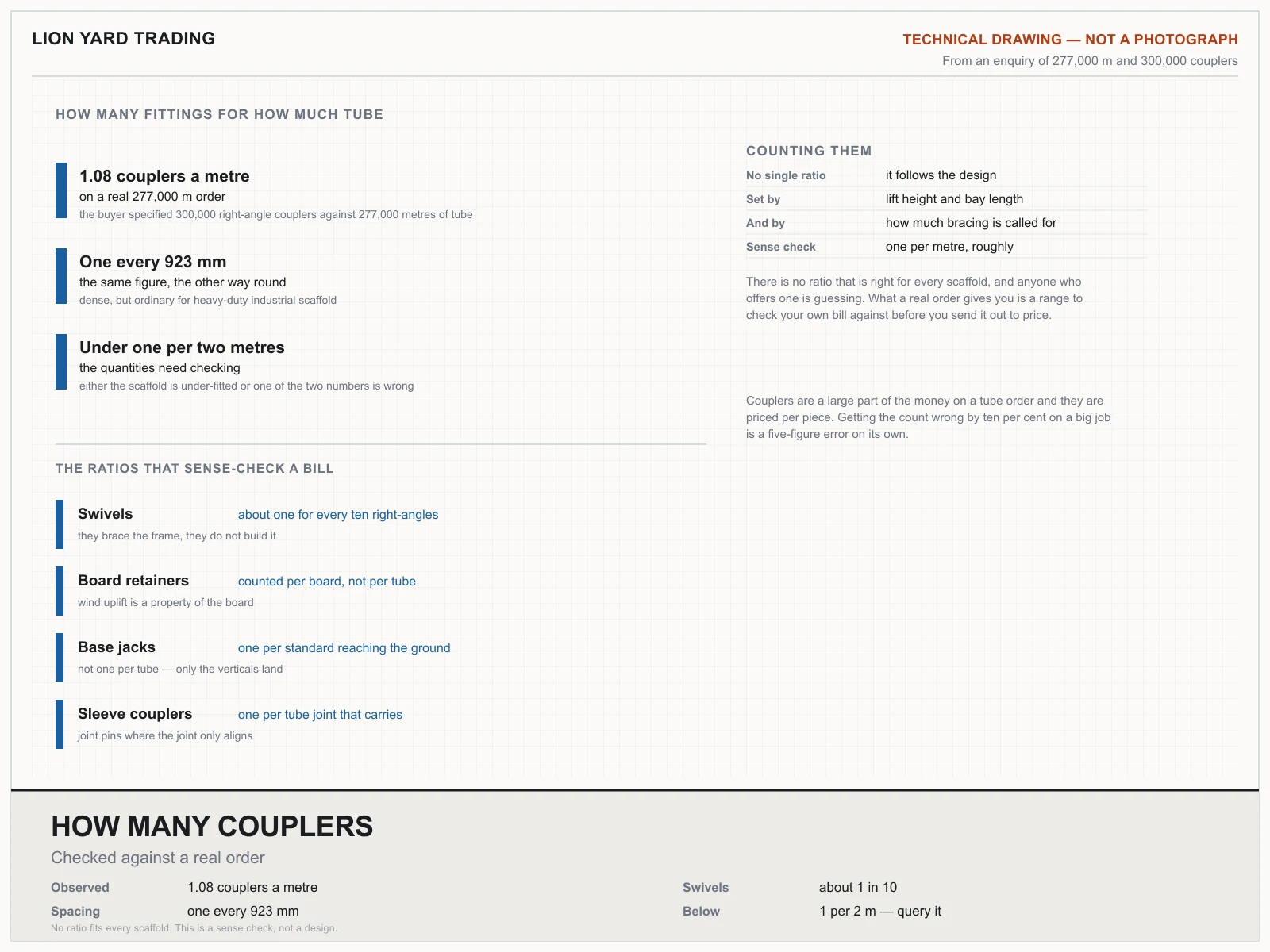

Priced per piece against quantity — a hundred couplers and three hundred thousand are not the same rate.
Tell us the size and where it is going.
About this product
- What it is: The fittings that join one tube to another, to a beam, or to a board.
- Standards: EN 74-1:2005 Class B · BS 1139-2.2
- Load: EN 74 prototype test minima, not working loads.
- Material: Drop-forged Q235 / S235 body, grade 8.8 T-bolt and nut, heat treated
- Weight: A genuine drop-forged right-angle coupler is about 1.55 kg.
- Finish: Hot-dip galvanised · electro-galvanised on request
All 8 options
Every option on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|

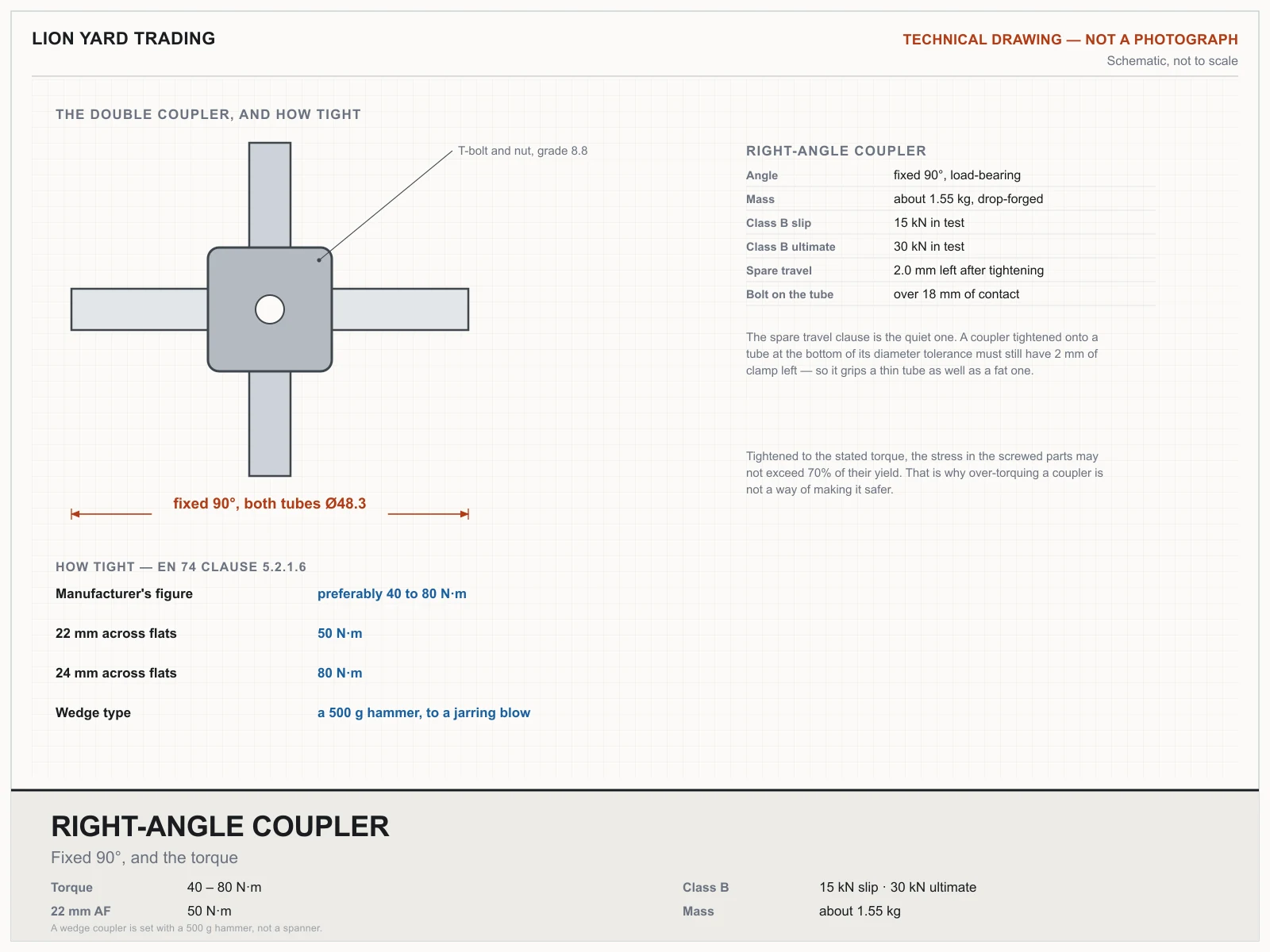

| Right-angle coupler (double coupler) | Drop-forged · fixed 90° · for 48.3 mm tube · about 1.55 kg · slip ≥15 kN, failure ≥30 kN | Ask |

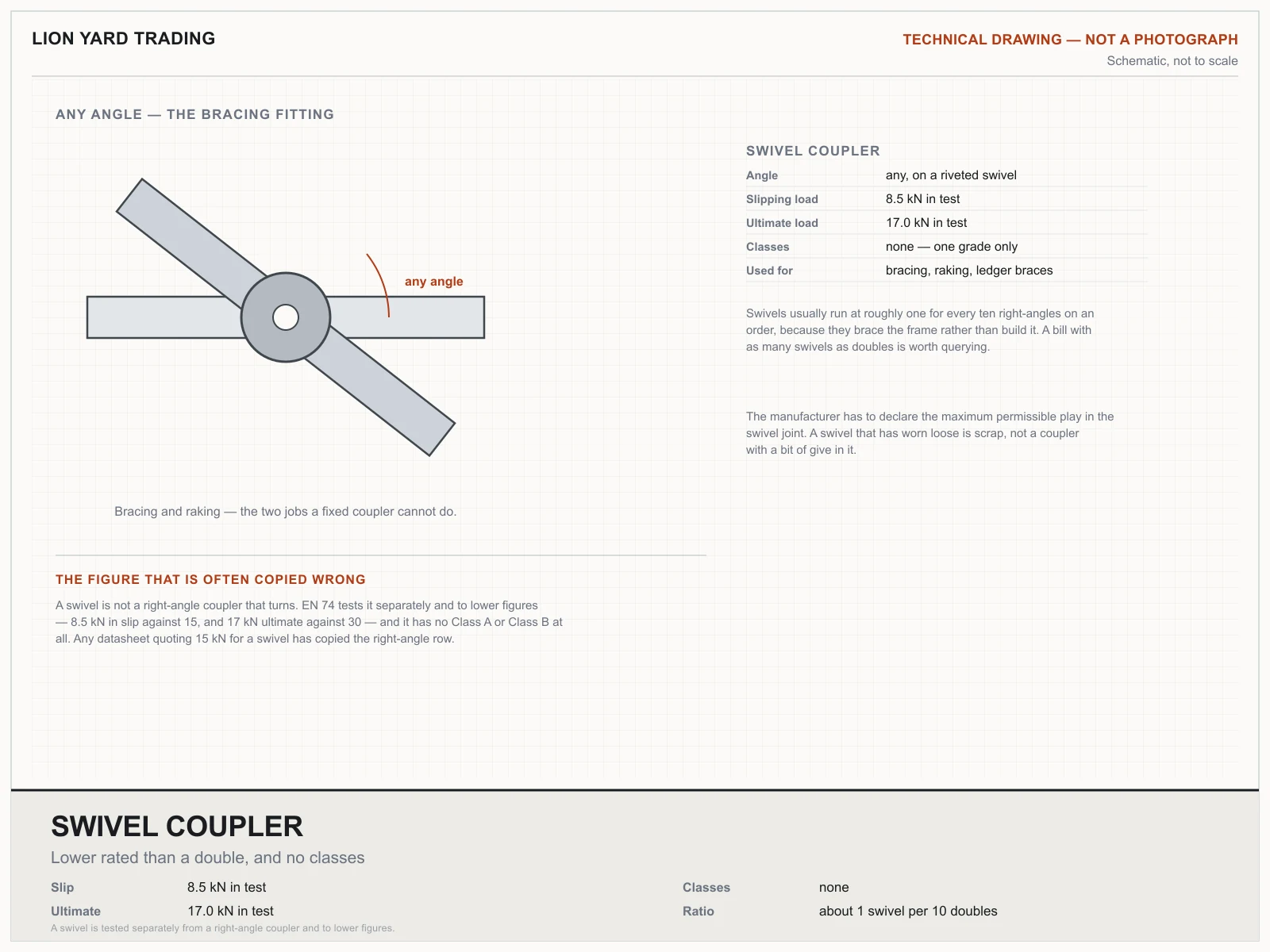

| Swivel coupler | Drop-forged · rotates to any angle · for 48.3 mm tube · the fitting for bracing and raking · EN 74 test minima 8.5 kN slip, 17 kN ultimate — no Class A/B split on a swivel | Ask |

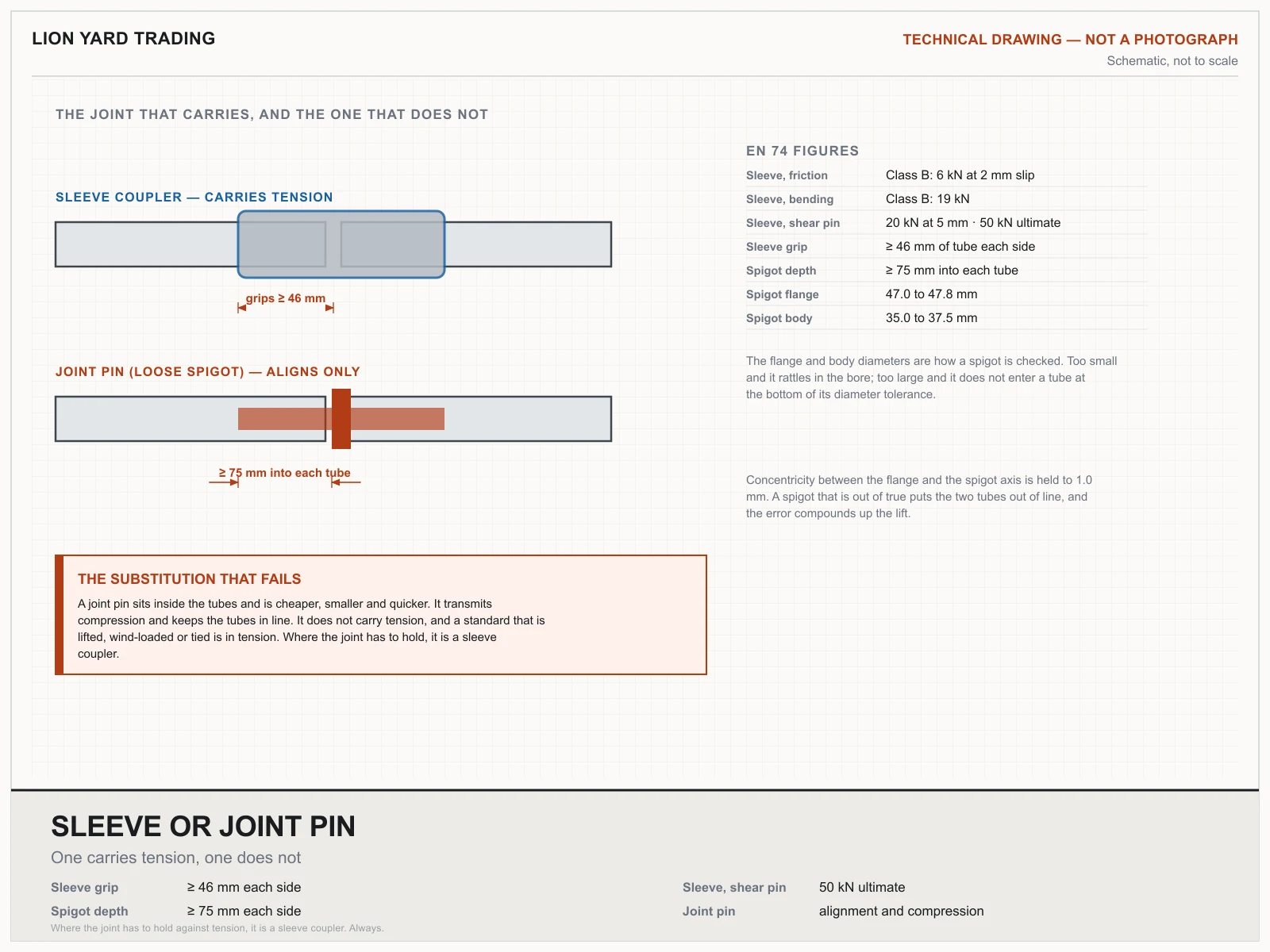

| Sleeve coupler | Drop-forged · joins two tubes end to end externally · carries load across the joint | Ask |
| Joint pin (inner spigot) | Expanding pin inside the tube · aligns two tubes but does not carry tension — use a sleeve coupler where it does | Ask |
| Putlog coupler (single coupler) | Drop-forged · fixes a transom to a ledger · not for load-bearing connections, which is what the double coupler is for | Ask |
| Board-retaining coupler (limpet clamp) | Drop-forged · clamps the tube with a flat footed bracket that holds the board down against wind uplift | Ask |

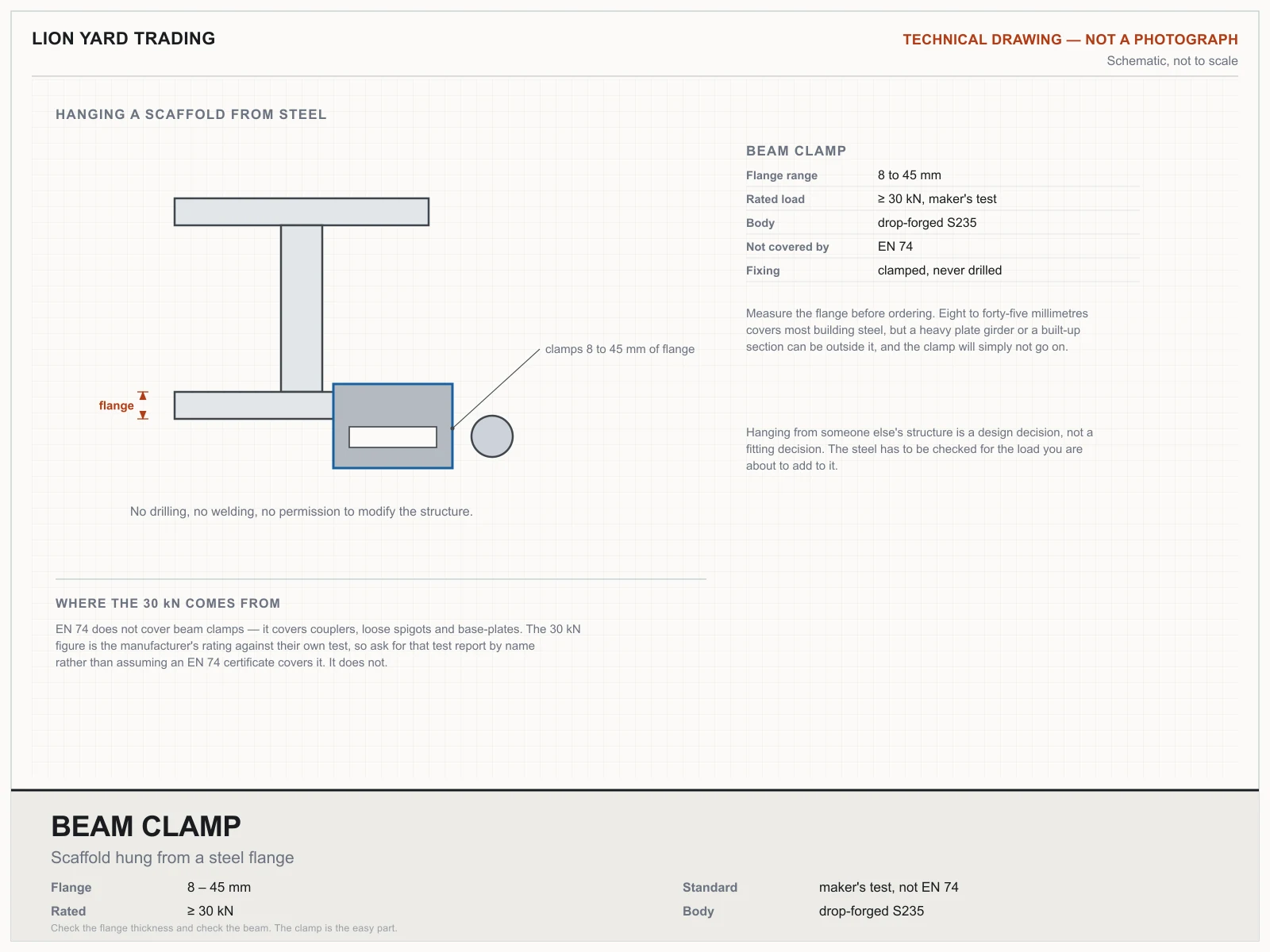

| Beam clamp / girder coupler | Drop-forged S235 · flange range 8–45 mm · load ≥30 kN · hangs scaffold from a steel beam without drilling it | Ask |
| Toe-board clip | Holds the toe board against the standard · required wherever there is a working platform | Ask |
- Drop-forged · fixed 90° · for 48.3 mm tube · about 1.55 kg · slip ≥15 kN, failure ≥30 kNAsk on WhatsApp
- Drop-forged · rotates to any angle · for 48.3 mm tube · the fitting for bracing and raking · EN 74 test minima 8.5 kN slip, 17 kN ultimate — no Class A/B split on a swivelAsk on WhatsApp
- Drop-forged · joins two tubes end to end externally · carries load across the jointAsk on WhatsApp
- Expanding pin inside the tube · aligns two tubes but does not carry tension — use a sleeve coupler where it doesAsk on WhatsApp
- Drop-forged · fixes a transom to a ledger · not for load-bearing connections, which is what the double coupler is forAsk on WhatsApp
- Drop-forged · clamps the tube with a flat footed bracket that holds the board down against wind upliftAsk on WhatsApp
- Drop-forged S235 · flange range 8–45 mm · load ≥30 kN · hangs scaffold from a steel beam without drilling itAsk on WhatsApp
- Holds the toe board against the standard · required wherever there is a working platformAsk on WhatsApp
Priced per piece against quantity — a hundred couplers and three hundred thousand are not the same rate.
What it is

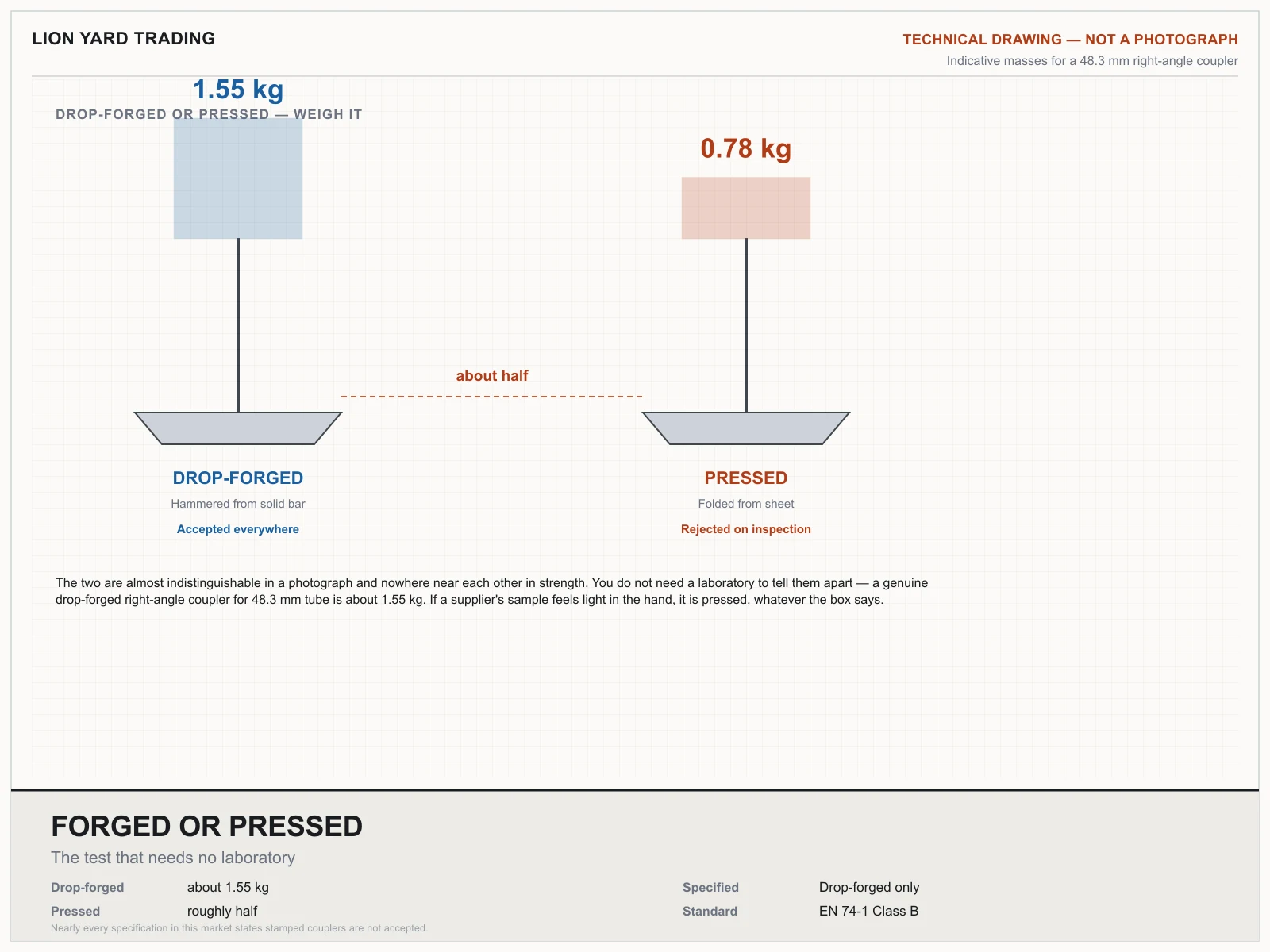

Drop-forged fittings to EN 74-1 Class B. Drop-forged means the body is hammered from solid bar, not folded from sheet — a pressed coupler looks the same on a photograph, weighs half as much and is rejected on every serious site.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is
- The fittings that join one tube to another, to a beam, or to a board. The coupler is what makes tube-and-fitting scaffold adaptable to any shape a building happens to be.
- Standards
- EN 74-1:2005 Class B · BS 1139-2.2
- Load

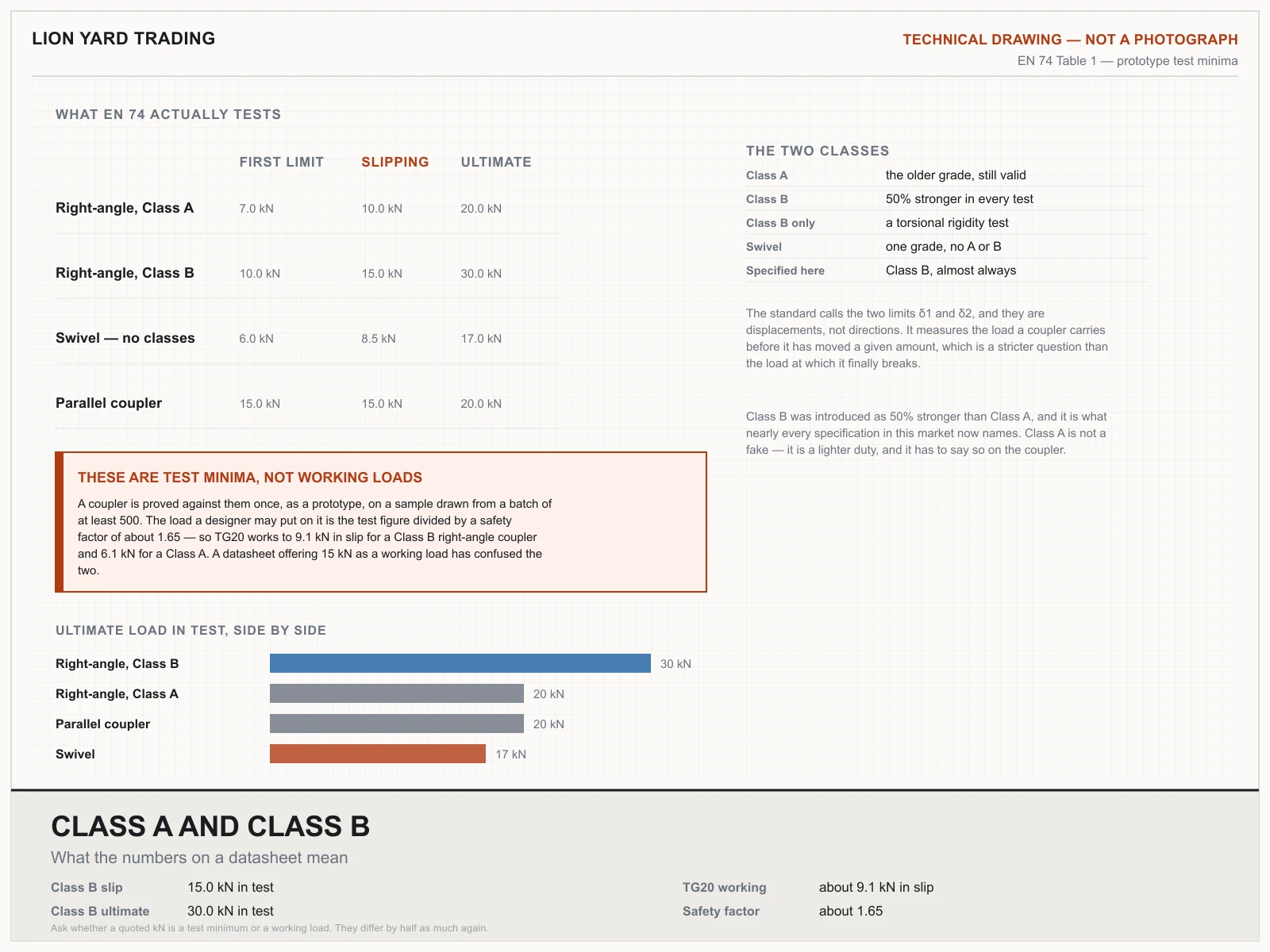

- EN 74 prototype test minima, not working loads. Right-angle Class B: 15 kN slip, 30 kN ultimate (Class A: 10 and 20). Swivel, which has no classes: 8.5 kN slip, 17 kN ultimate. Friction sleeve Class B: 6 kN at 2 mm slip, 19 kN in bending. Beam clamp not less than 30 kN, which is the manufacturer's rating rather than an EN 74 figure. TG20 designs to roughly the test figure divided by 1.65.
- Material
- Drop-forged Q235 / S235 body, grade 8.8 T-bolt and nut, heat treated
- Weight
- A genuine drop-forged right-angle coupler is about 1.55 kg. Anything much lighter is pressed, whatever the label says.
- Finish
- Hot-dip galvanised · electro-galvanised on request
- Certification
- Test certificates with the quotation
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Scaffold Couplers & Clamps — every figure comes from the price table above or from the published standard it is made to.
The fitting familyEight couplers, one tube
1 of 10

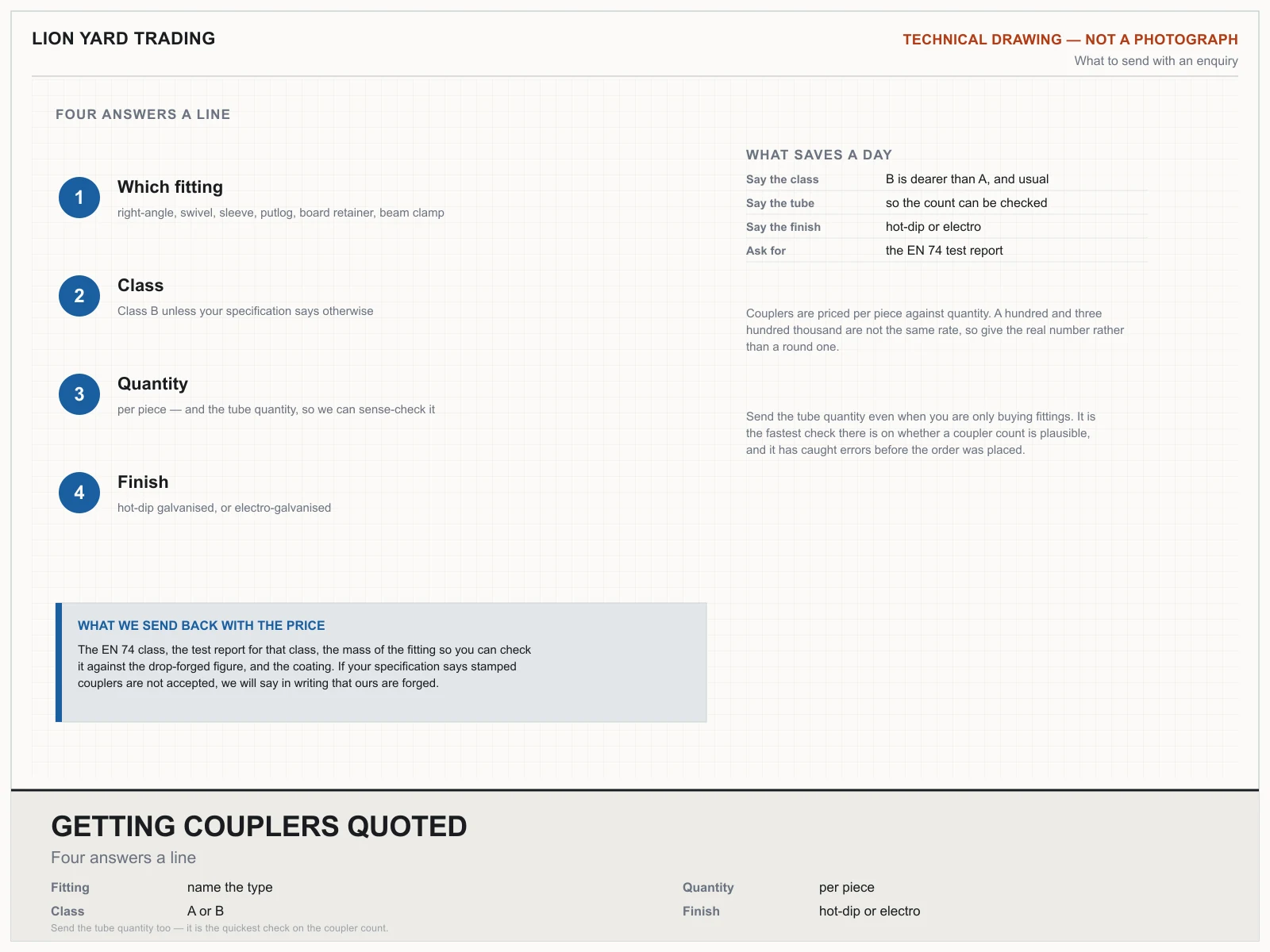

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your scaffold couplers & clamps?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
