Steel Planks & Springboards
Scaffolding & Access
Priced on enquiry
Priced against width, length and whether you need hooked ends.
Tell us the size and where it is going.
About this product
- What it is: A roll-formed steel channel with a perforated, embossed deck, used as the working…
- Widths: 210 · 225 · 240 · 250 · 300 · 320 mm
- Depth: 45 · 55 · 65 mm, deeper for longer spans
- Thickness: 1.2 – 1.5 mm base metal
- Material: Q195 / Q235 steel, hot-dip galvanised
- Thickness and the standard: EN 12811-1 §4.2.1.5 asks a platform unit for 2.0 mm nominal, and these planks are 1.2 to…
All 7 options
Every option on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| Steel plank 240 × 45 mm × 2.0 m | Hot-dip galvanised · punched anti-slip deck · about 8.5 kg | Ask |
| Steel plank 240 × 45 mm × 2.5 m | Hot-dip galvanised · punched anti-slip deck · about 10.6 kg | Ask |
| Steel plank 240 × 45 mm × 3.0 m | Hot-dip galvanised · punched anti-slip deck · about 12.7 kg · the most-used size on site | Ask |
| Steel plank 240 × 45 mm × 4.0 m | Hot-dip galvanised · check the span against the load before ordering 4 m | Ask |
| Steel plank 210 / 225 / 250 mm — any length | Other widths rolled to order · 1.0 to 4.0 m | Ask |
| Steel plank with welded hooks | Hooked ends to sit on a ledger without a board retainer · state the tube diameter the hook must fit | Ask |

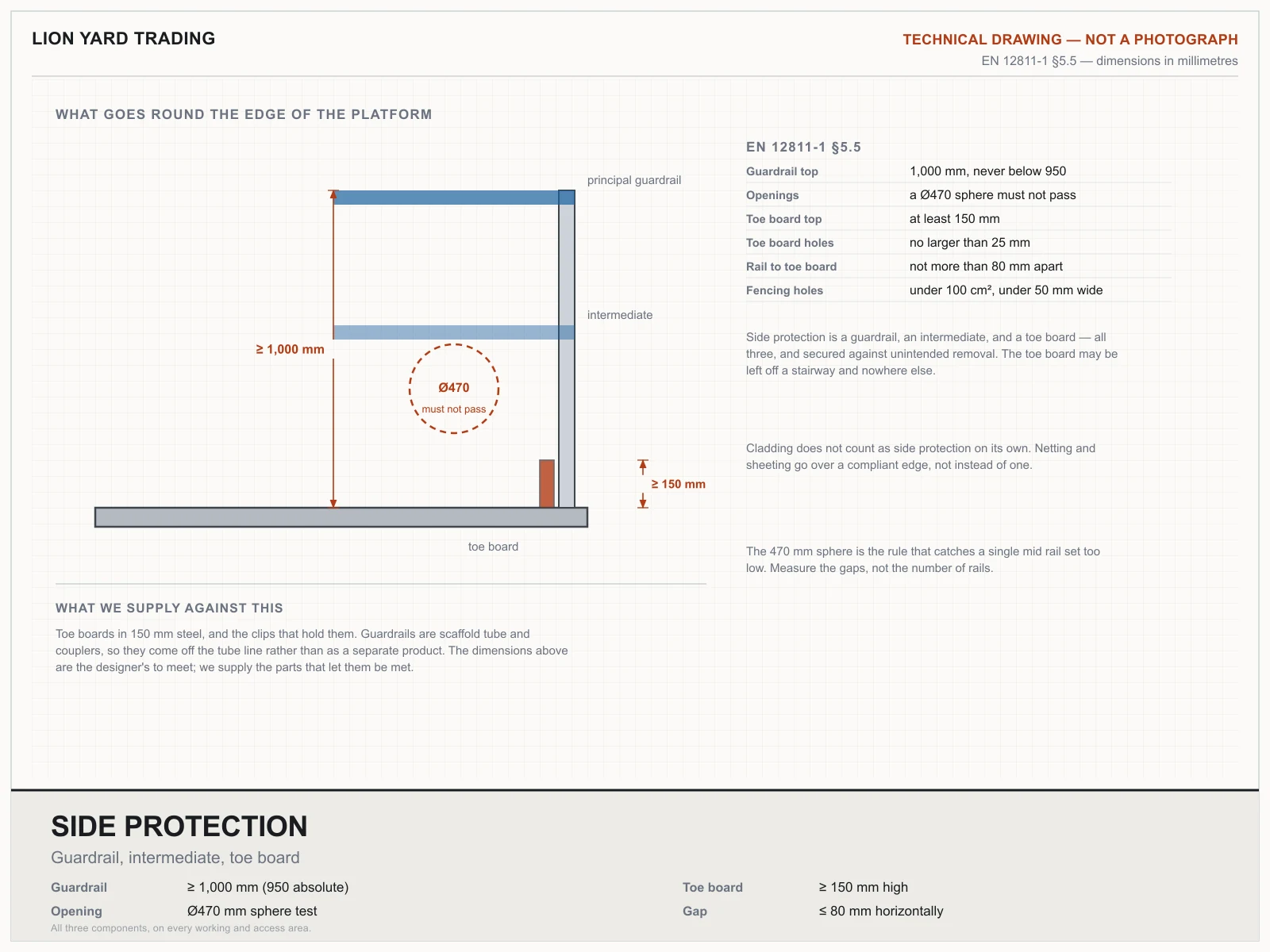

| Toe board, steel, 150 mm × 3.0 m | Hot-dip galvanised · fixed with toe-board clips | Ask |
- Hot-dip galvanised · punched anti-slip deck · about 8.5 kgAsk on WhatsApp
- Hot-dip galvanised · punched anti-slip deck · about 10.6 kgAsk on WhatsApp
- Hot-dip galvanised · punched anti-slip deck · about 12.7 kg · the most-used size on siteAsk on WhatsApp
- Hot-dip galvanised · check the span against the load before ordering 4 mAsk on WhatsApp
- Other widths rolled to order · 1.0 to 4.0 mAsk on WhatsApp
- Hooked ends to sit on a ledger without a board retainer · state the tube diameter the hook must fitAsk on WhatsApp
- Hot-dip galvanised · fixed with toe-board clipsAsk on WhatsApp
Priced against width, length and whether you need hooked ends.
What it is

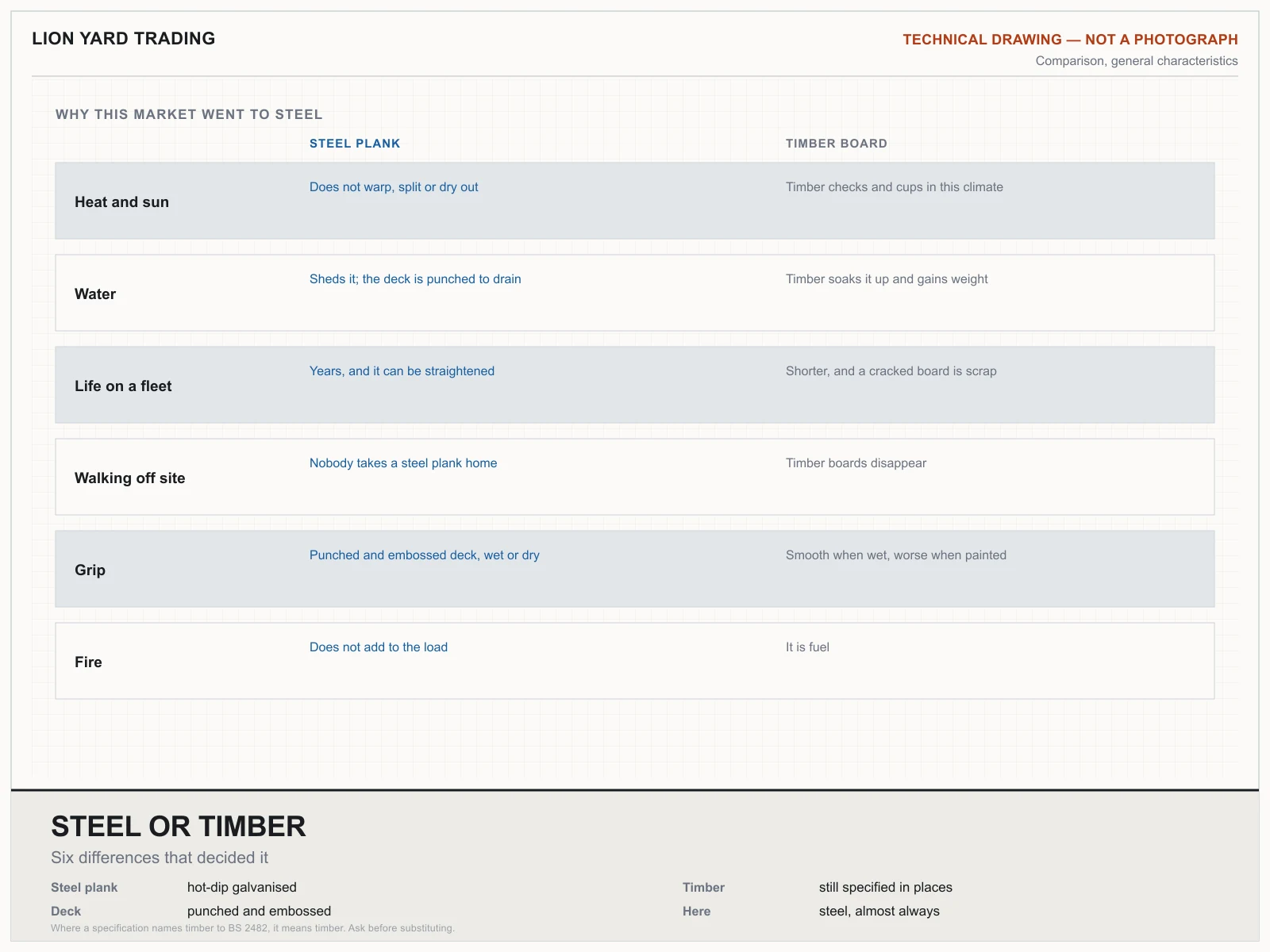

Hot-dip galvanised steel decking with a punched anti-slip surface. It outlasts timber several times over in this climate, it does not warp, and it cannot be taken home for firewood.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is
- A roll-formed steel channel with a perforated, embossed deck, used as the working platform on tube-and-fitting and frame scaffold. Also called a springboard or catwalk plank.

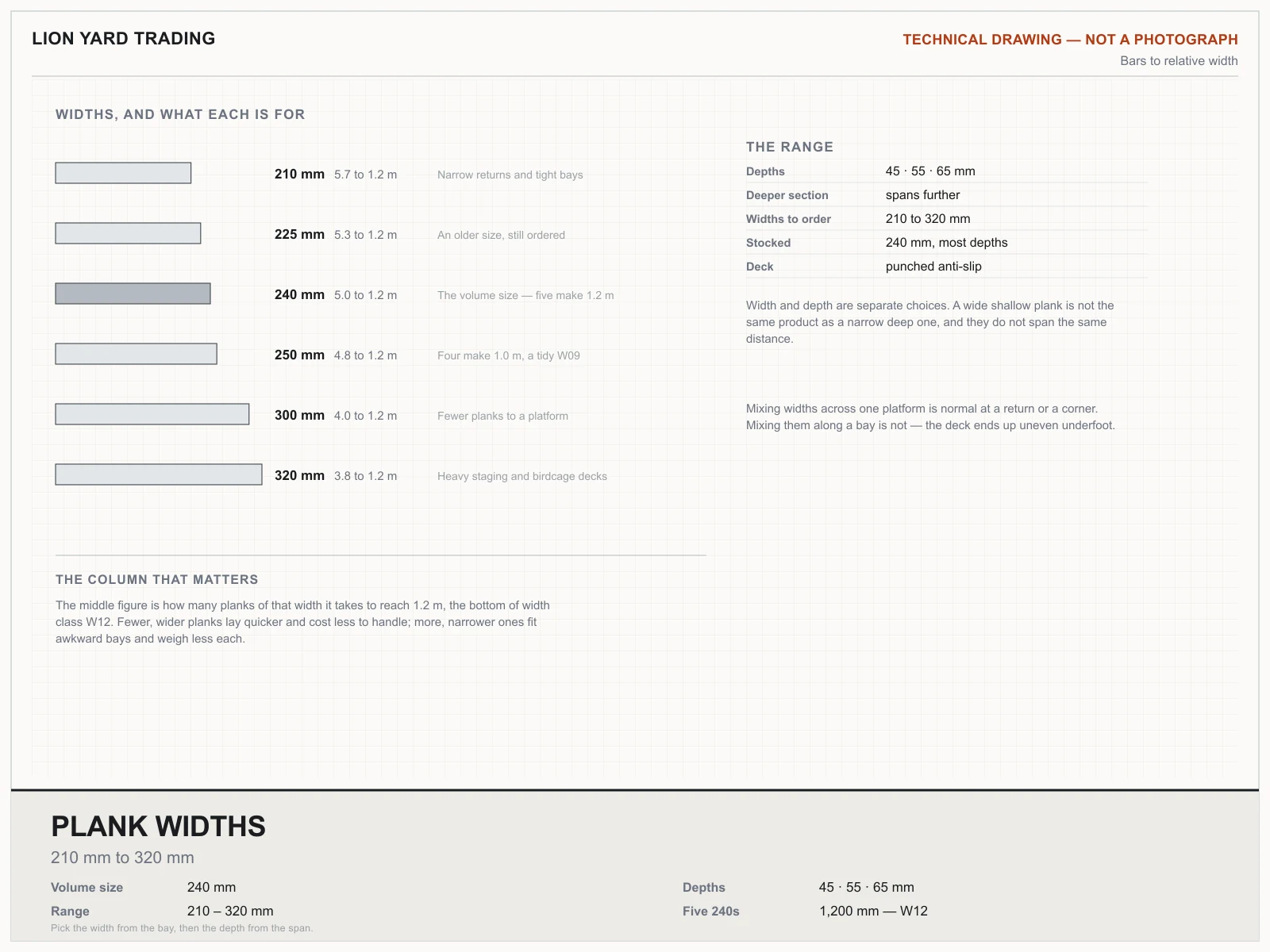

- Widths
- 210 · 225 · 240 · 250 · 300 · 320 mm
- Depth
- 45 · 55 · 65 mm, deeper for longer spans
- Thickness
- 1.2 – 1.5 mm base metal
- Material
- Q195 / Q235 steel, hot-dip galvanised

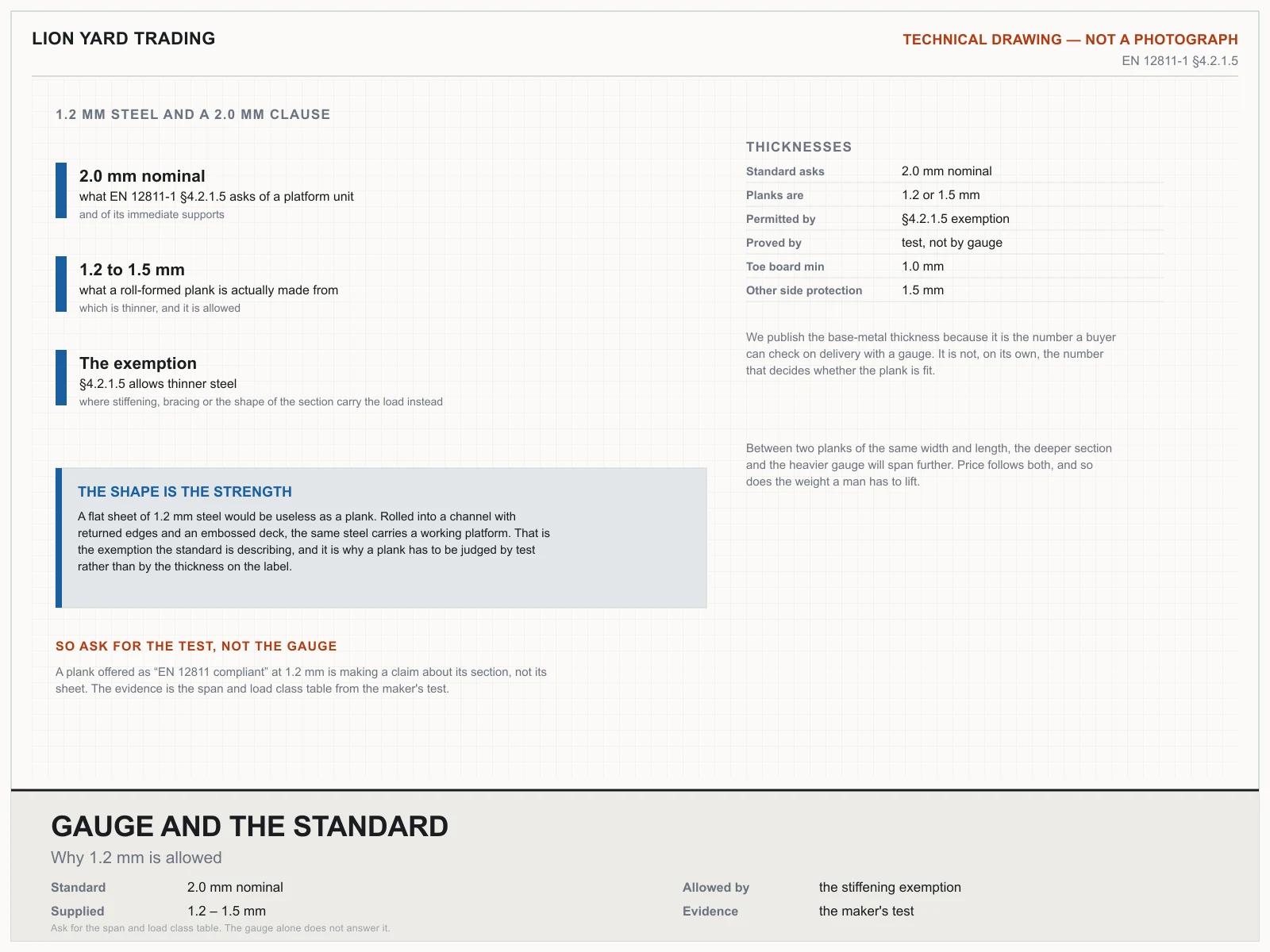

- Thickness and the standard
- EN 12811-1 §4.2.1.5 asks a platform unit for 2.0 mm nominal, and these planks are 1.2 to 1.5 mm. The same clause allows less where stiffening, bracing or the shape of the section carries the load instead — which is exactly what a roll-formed channel with a returned edge and an embossed deck does. Ask for the maker's span and load class table rather than judging the plank by its gauge.
- Standards

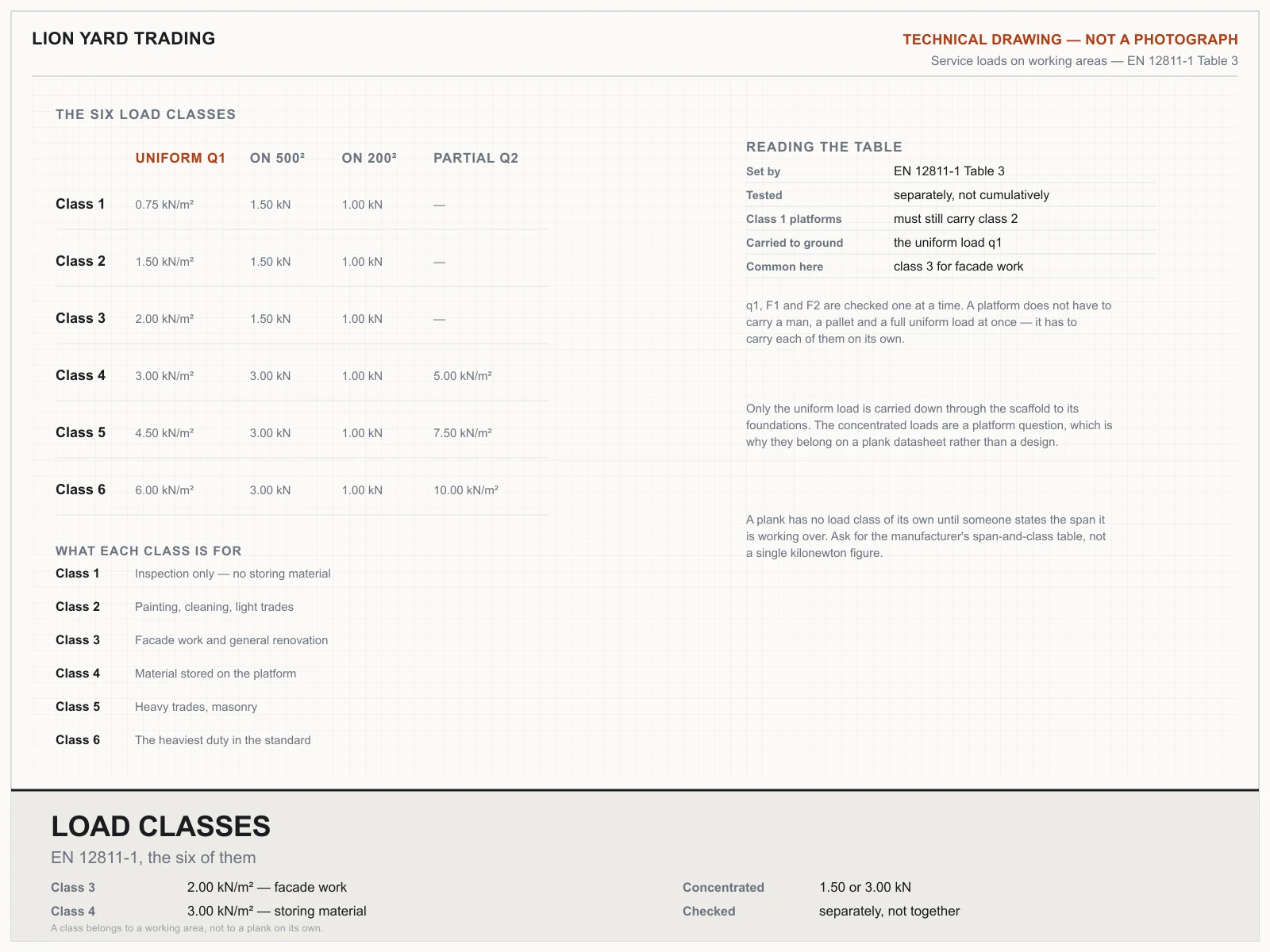

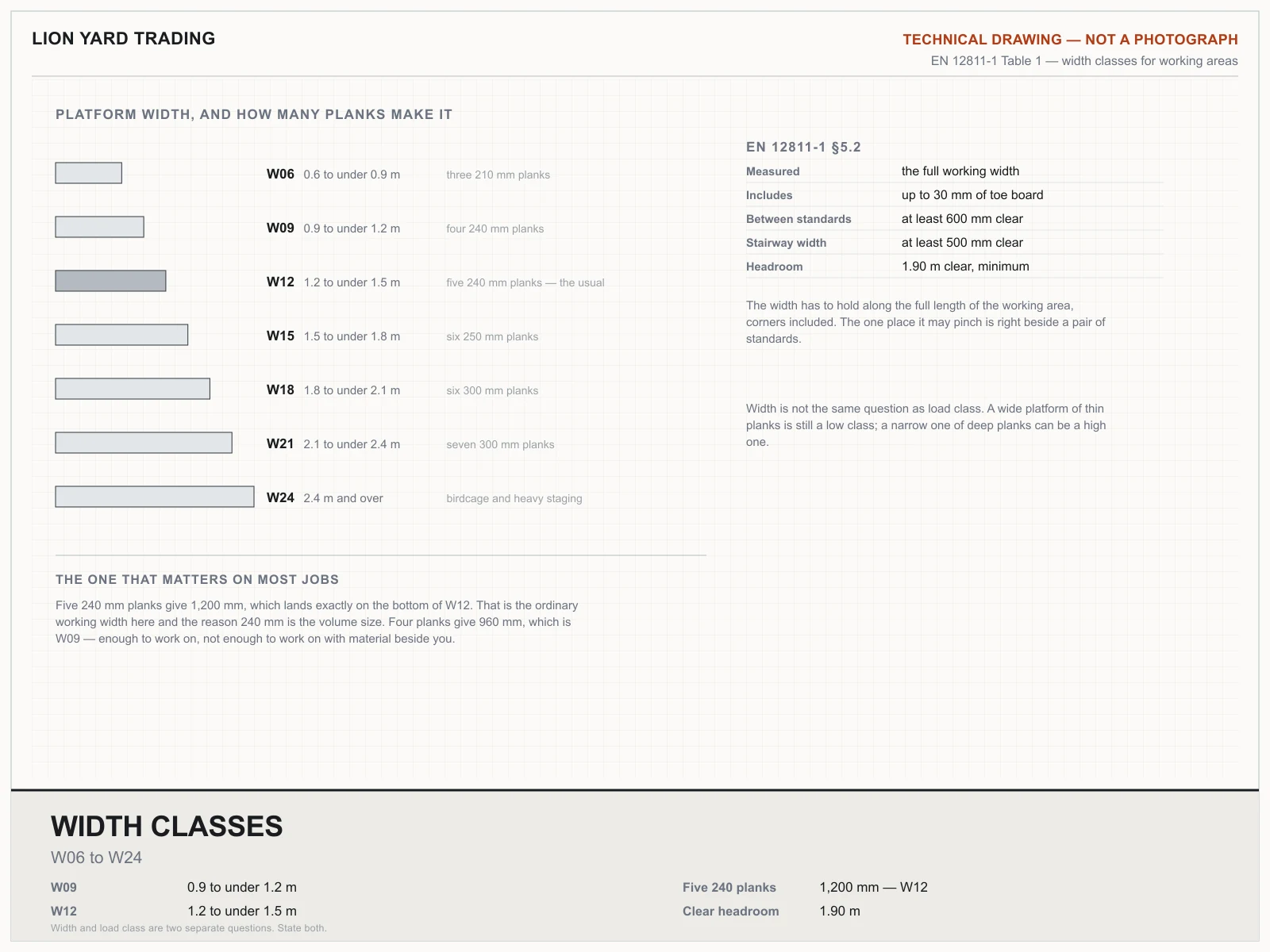

- EN 12811-1 working platform requirements · load classes 1 to 6 (0.75 to 6.00 kN/m² uniform) · width classes W06 to W24

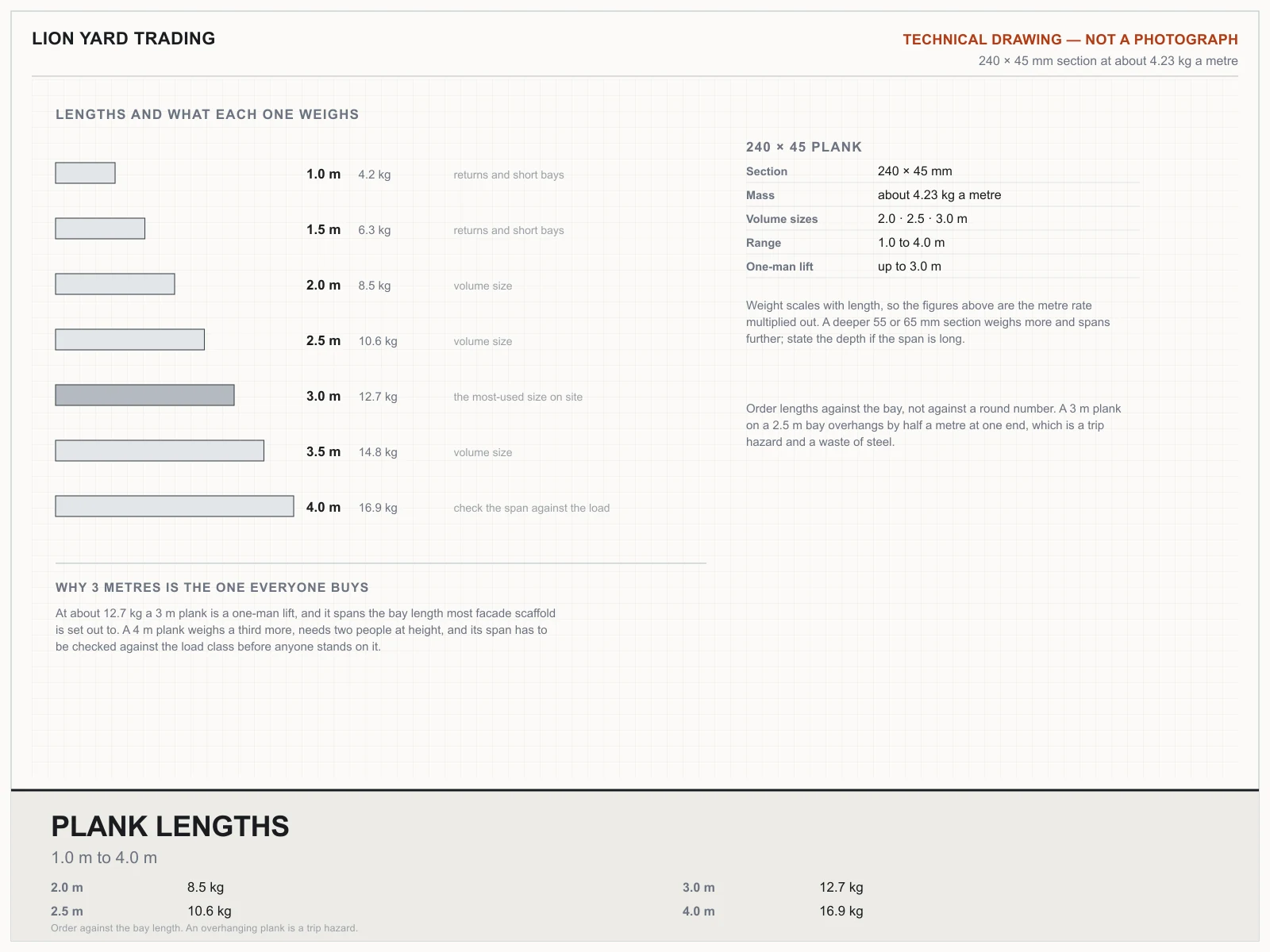

- Lengths
- 1.0 to 4.0 m · 2.0, 2.5 and 3.0 m are the volume sizes

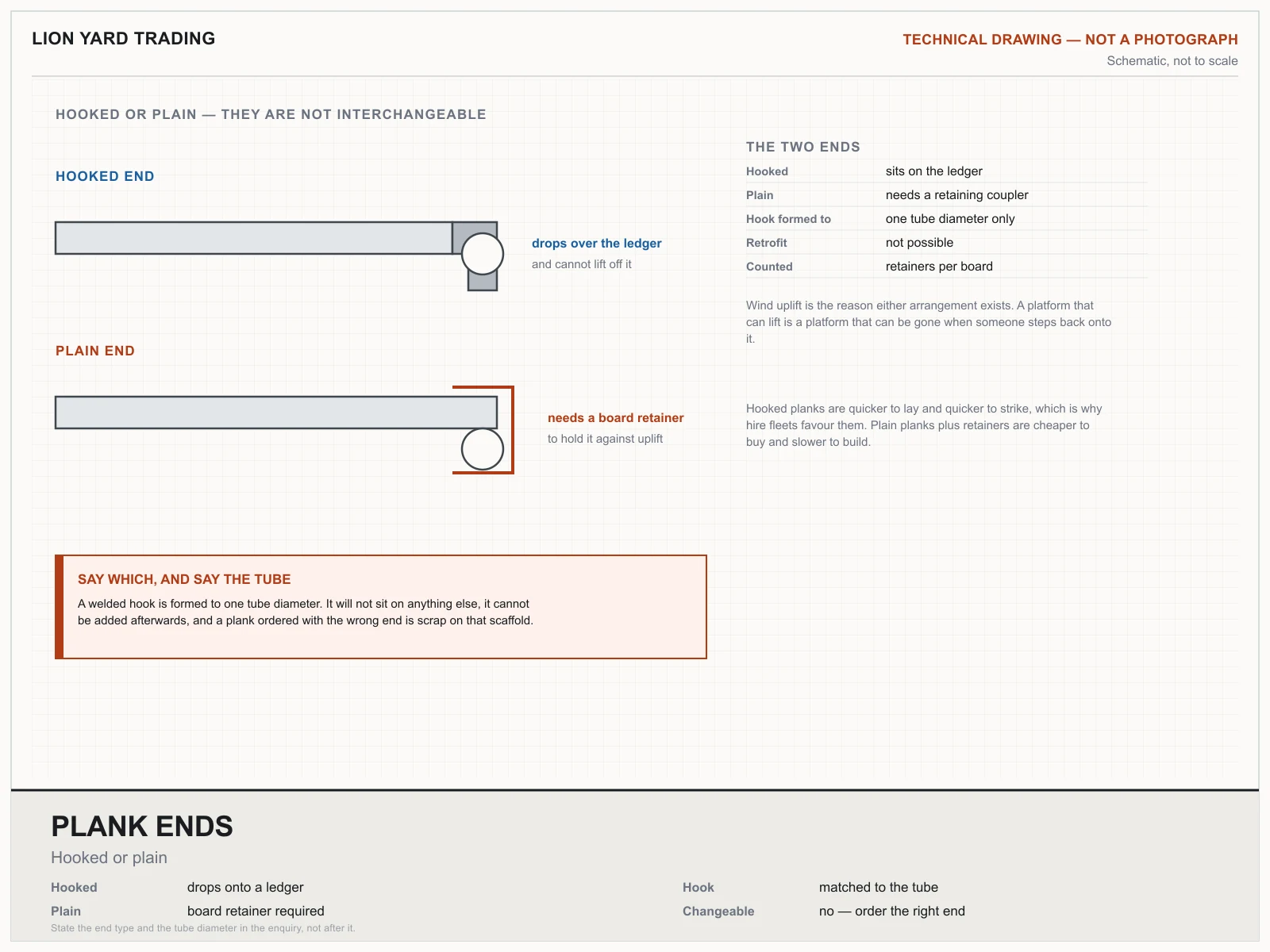

- Ends
- Plain, or with welded hooks to drop straight onto a ledger — say which when you enquire, they are not interchangeable
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Steel Planks & Springboards — every figure comes from the price table above or from the published standard it is made to.
Steel plankSection and platform
1 of 10

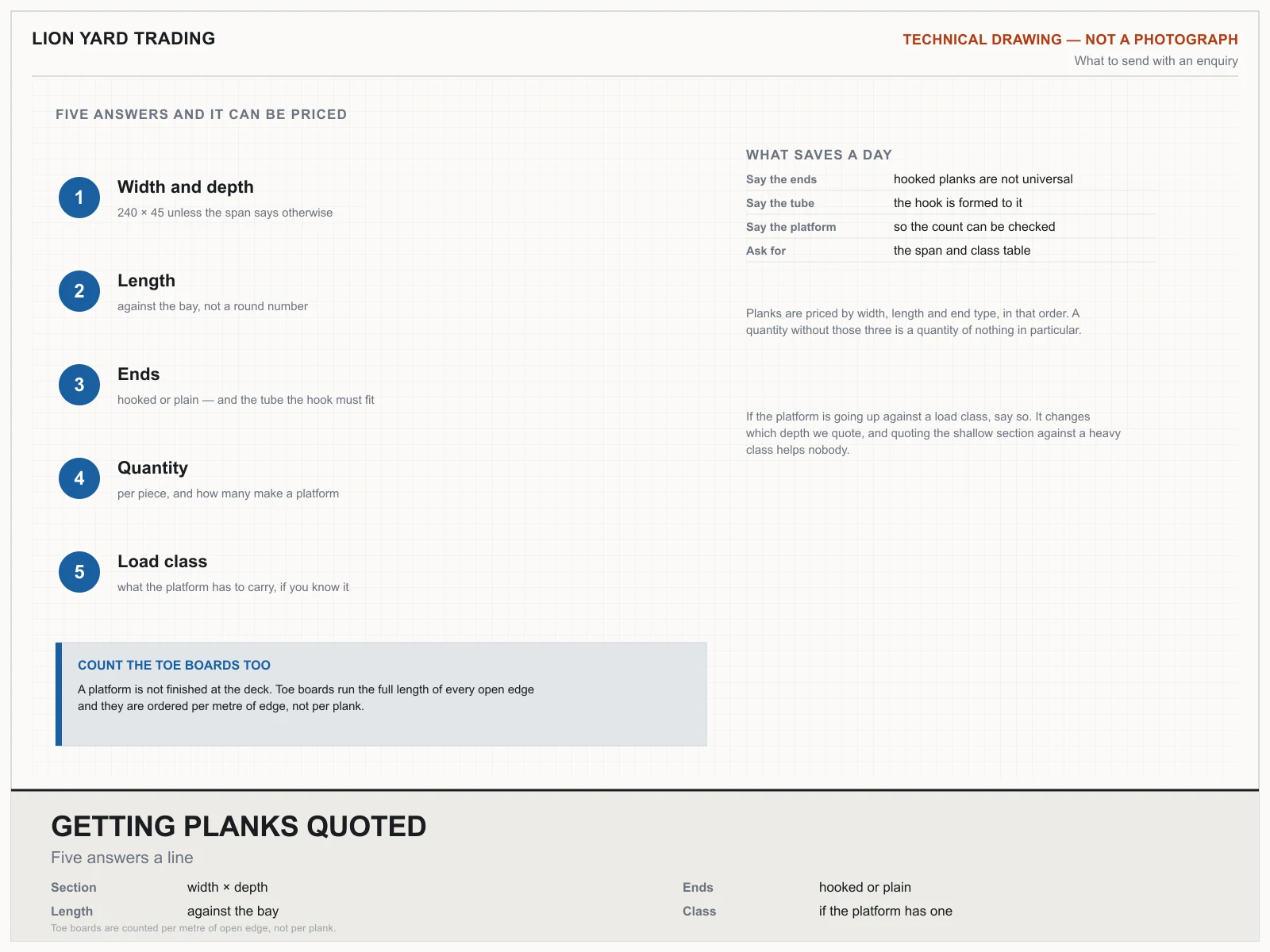

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your steel planks & springboards?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
