Scaffold Tube
Scaffolding & Access
Priced on enquiry
Scaffold steel moves with the mill. Priced against wall thickness, length and quantity on the day.
Tell us the size and where it is going.
About this product
- What it is: Welded steel tube of 48.3 mm outside diameter, the dimension that BS 1139 and EN 39 fix…
- Outside diameter: 48.3 mm on every wall thickness
- Wall and weight: 3.2 mm — 3.56 kg/m (EN 39 Type 3) · 3.25 mm — 3.61 kg/m · 4.0 mm — 4.37 kg/m (Type 4)
- Material: S235GT — EN 39's own grade.
- Tolerances: Outside diameter ±0.5 mm with out-of-roundness inside it, wall −10% with no plus, and a…
- Standards: EN 39 · BS 1139-1 · flattening test to EN 10233
All 5 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| Tube Ø48.3 × 3.2 mm × 6.0 m | EN 39 Type 3 · 3.56 kg/m · 21.4 kg a length · the general-purpose wall | Ask |
| Tube Ø48.3 × 3.25 mm × 6.0 m | 3.61 kg/m · 21.7 kg a length · the wall most Gulf specifications call for | Ask |
| Tube Ø48.3 × 4.0 mm × 6.0 m | EN 39 Type 4 · 4.37 kg/m · 26.2 kg a length · heavy duty and longer spans | Ask |
| Tube Ø48.3 mm — cut to length | 1.0 to 5.0 m in 0.5 m steps · any wall · cut and re-galvanised at the ends | Ask |

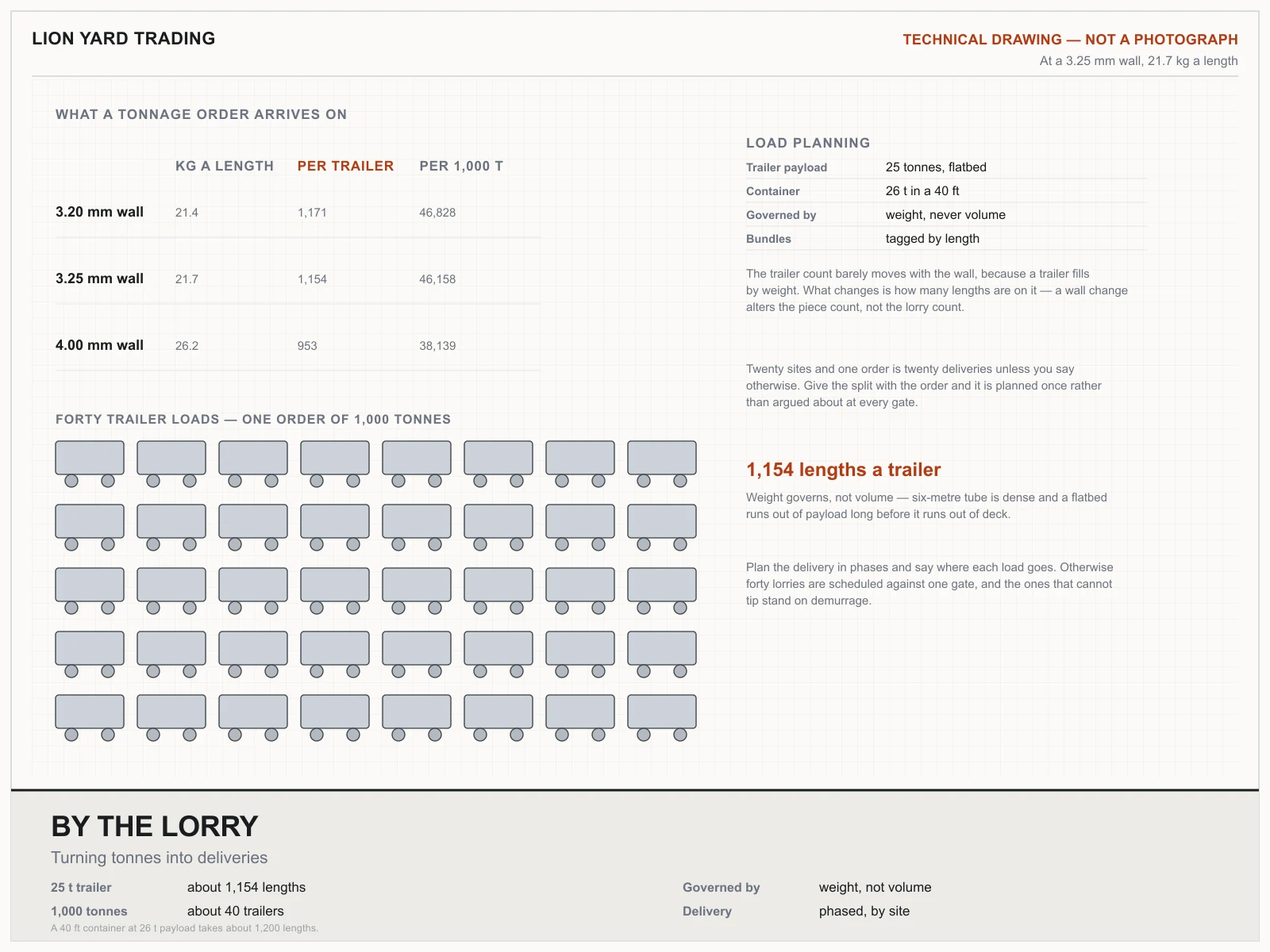

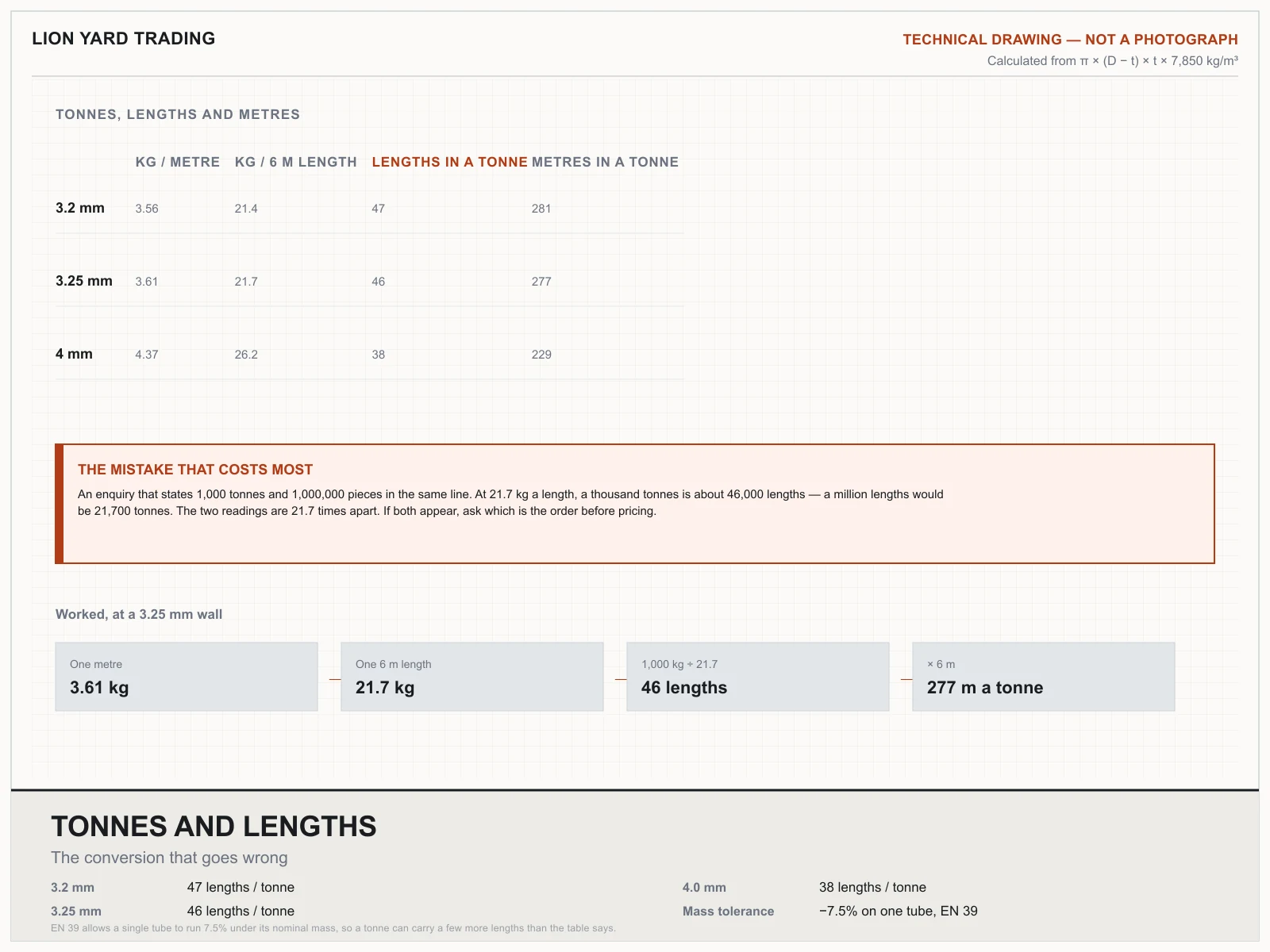

| Tube Ø48.3 mm — by weight | Bulk supply priced per tonne. At 3.25 mm wall a tonne is about 46 lengths of 6 m, or 277 m of tube. | Ask |
- EN 39 Type 3 · 3.56 kg/m · 21.4 kg a length · the general-purpose wallAsk on WhatsApp
- 3.61 kg/m · 21.7 kg a length · the wall most Gulf specifications call forAsk on WhatsApp
- EN 39 Type 4 · 4.37 kg/m · 26.2 kg a length · heavy duty and longer spansAsk on WhatsApp
- 1.0 to 5.0 m in 0.5 m steps · any wall · cut and re-galvanised at the endsAsk on WhatsApp
- Bulk supply priced per tonne. At 3.25 mm wall a tonne is about 46 lengths of 6 m, or 277 m of tube.Ask on WhatsApp
Scaffold steel moves with the mill. Priced against wall thickness, length and quantity on the day.
What it is
Ø48.3 mm steel tube to EN 39 — the size every coupler, clamp and fitting in the trade is cut to. Hot-dip galvanised for outdoor and coastal work, which is most of it here.
Specification

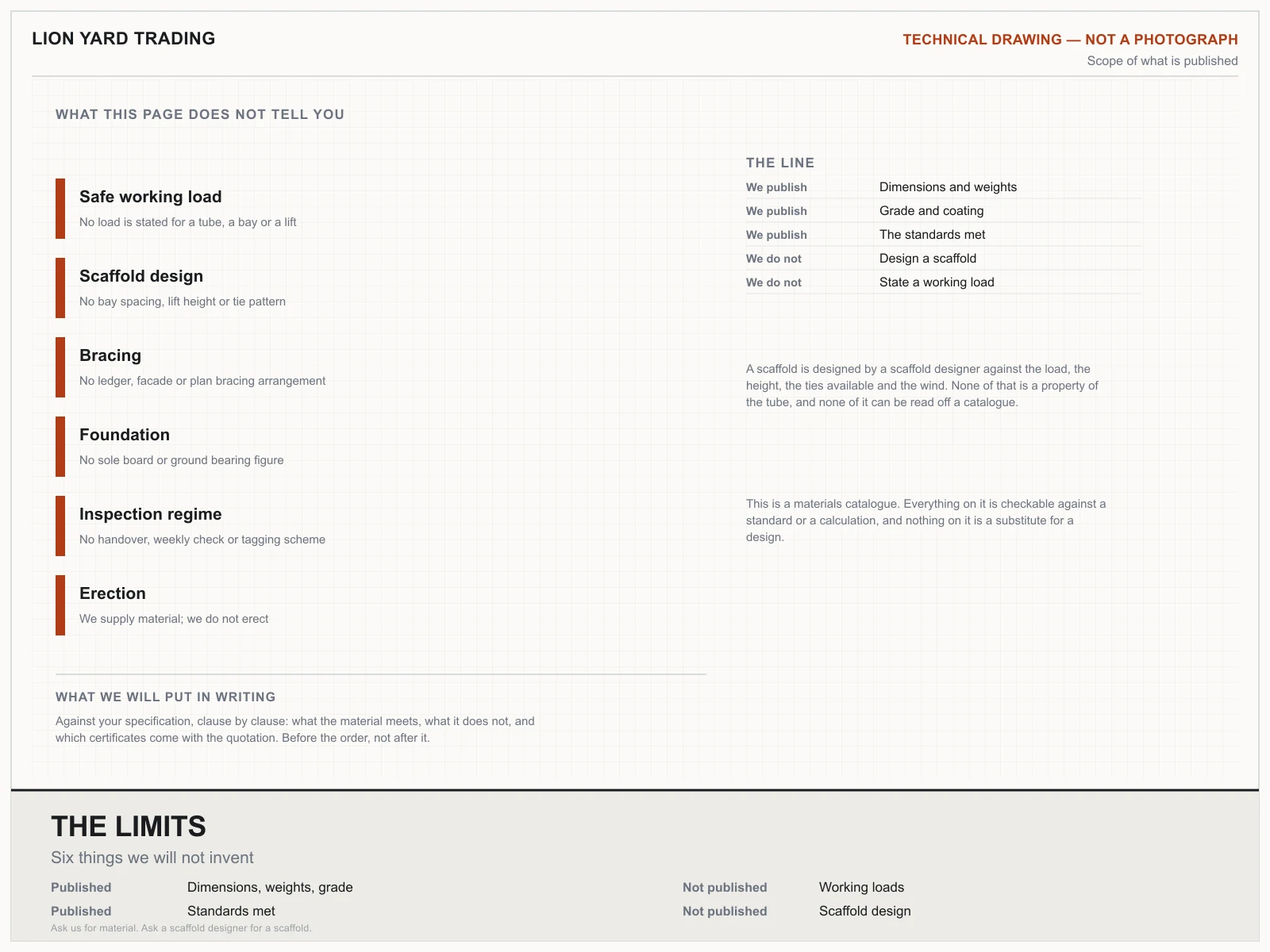

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is
- Welded steel tube of 48.3 mm outside diameter, the dimension that BS 1139 and EN 39 fix so that any coupler fits any tube. Wall thickness is what changes, and it changes the load the tube carries.
- Outside diameter
- 48.3 mm on every wall thickness
- Wall and weight
- 3.2 mm — 3.56 kg/m (EN 39 Type 3) · 3.25 mm — 3.61 kg/m · 4.0 mm — 4.37 kg/m (Type 4)
- Material
- S235GT — EN 39's own grade. Yield not less than 235 N/mm², tensile 340–520 N/mm² (a band, not a floor) and elongation not less than 24%. Q235 and S235JR are the mill equivalents most certificates carry.
- Tolerances

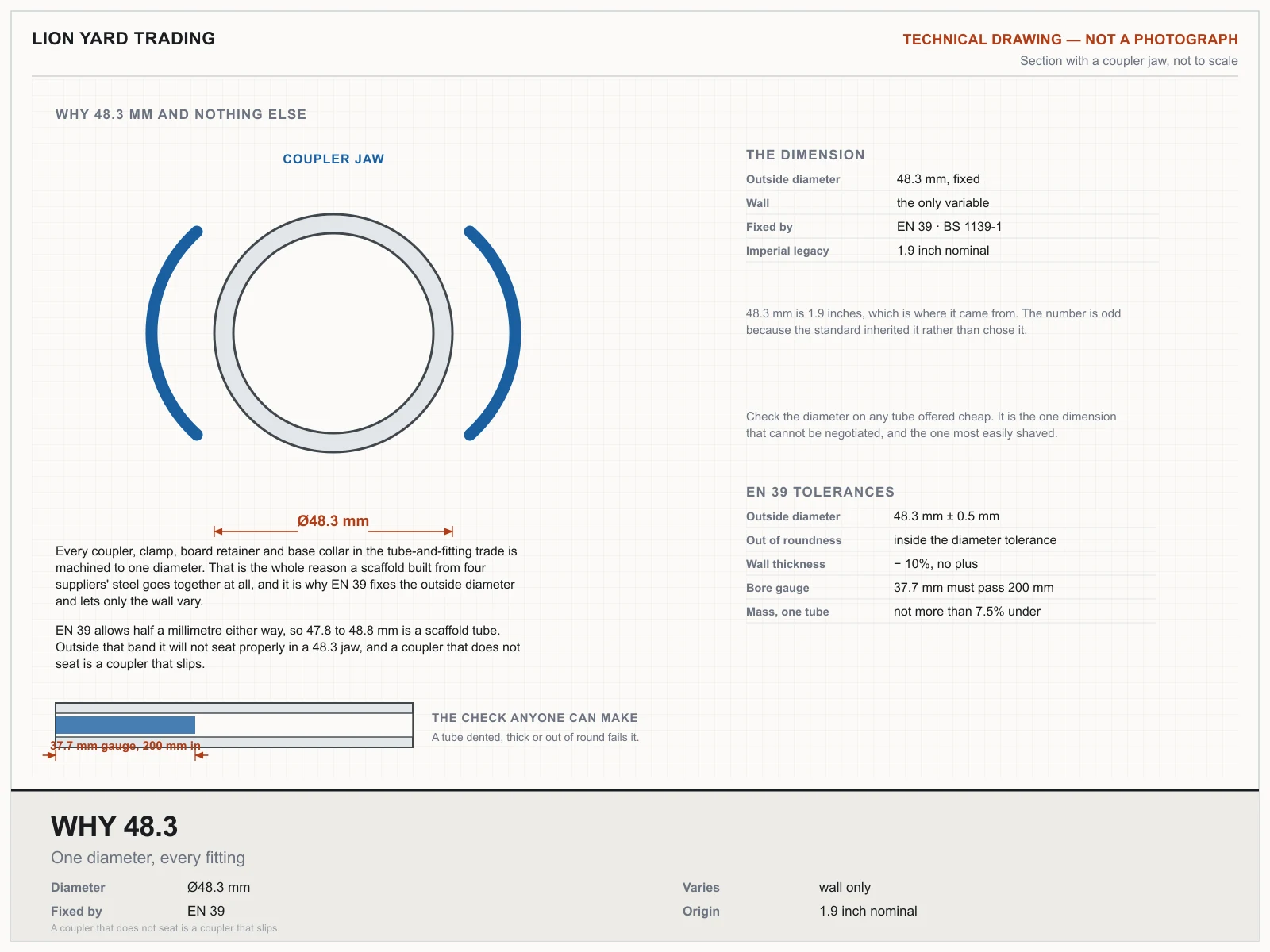

- Outside diameter ±0.5 mm with out-of-roundness inside it, wall −10% with no plus, and a 37.7 mm gauge must enter the bore 200 mm. A single tube may run up to 7.5% under its nominal mass.
- Standards
- EN 39 · BS 1139-1 · flattening test to EN 10233
- Finish

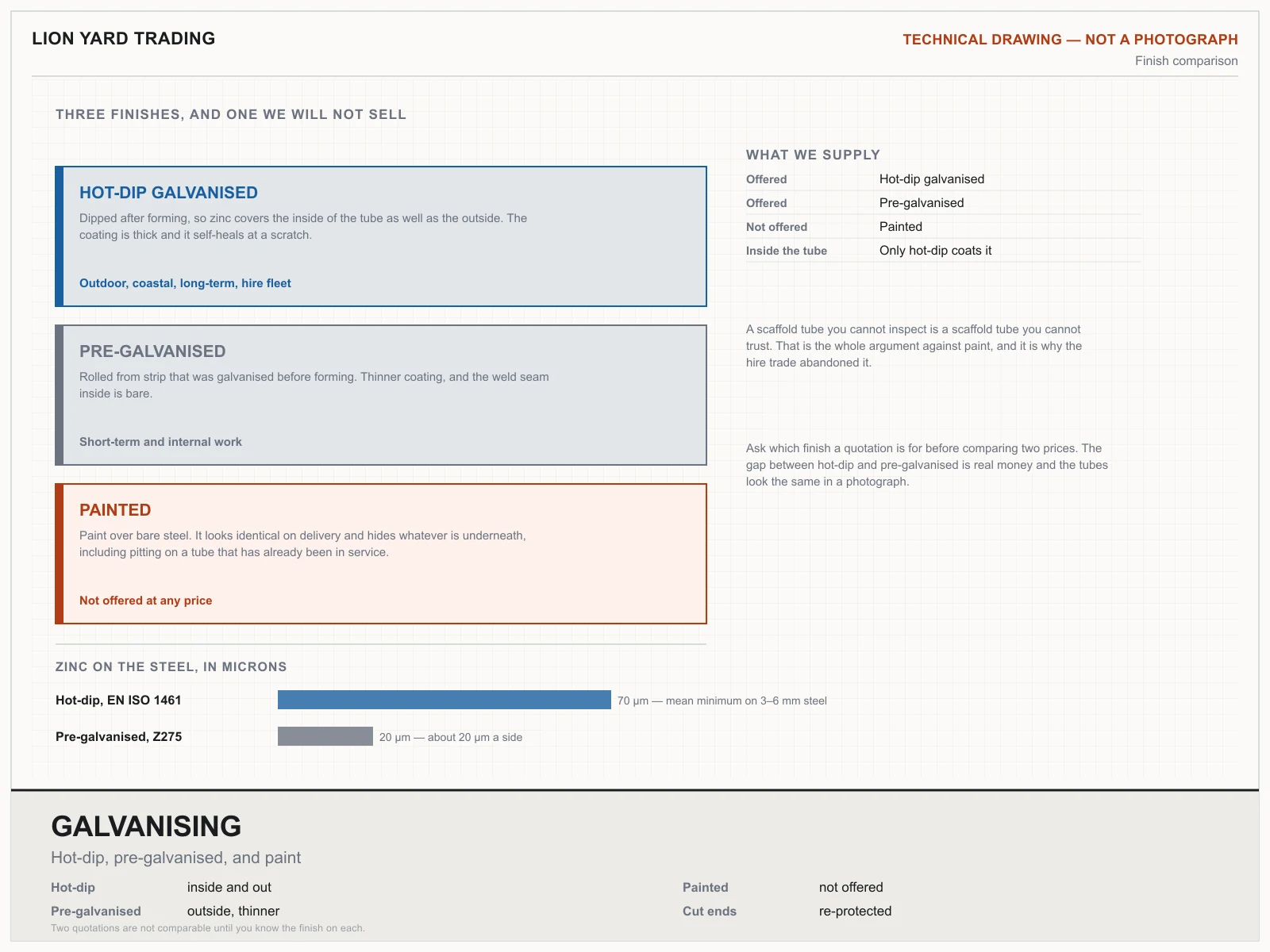

- Hot-dip galvanised inside and out, or pre-galvanised. Painted tube is not offered — it hides the pitting underneath.
- Lengths

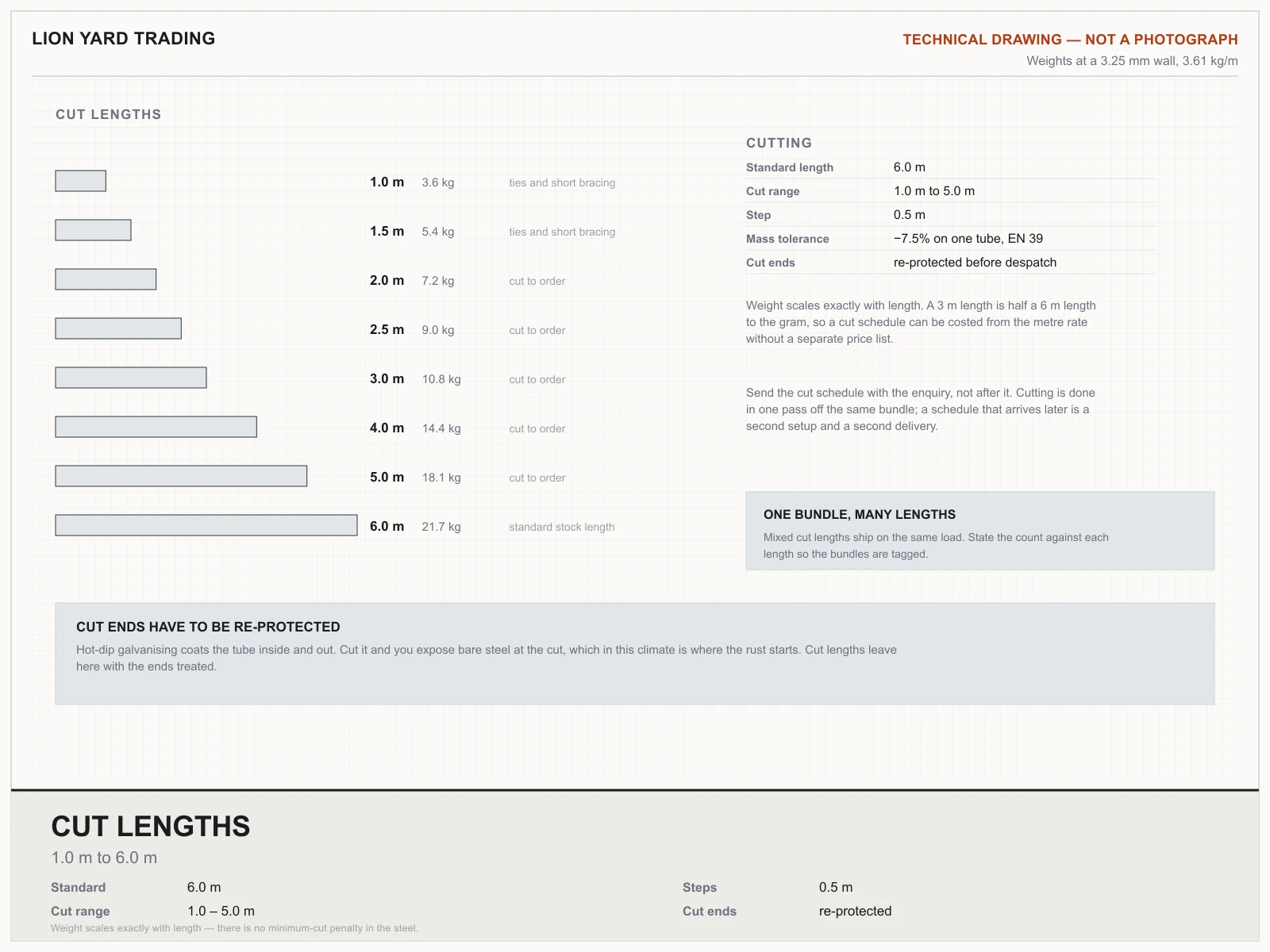

- 6 m standard. Cut to 1.0, 1.5, 2.0, 2.5, 3.0, 4.0 and 5.0 m.
- Certification

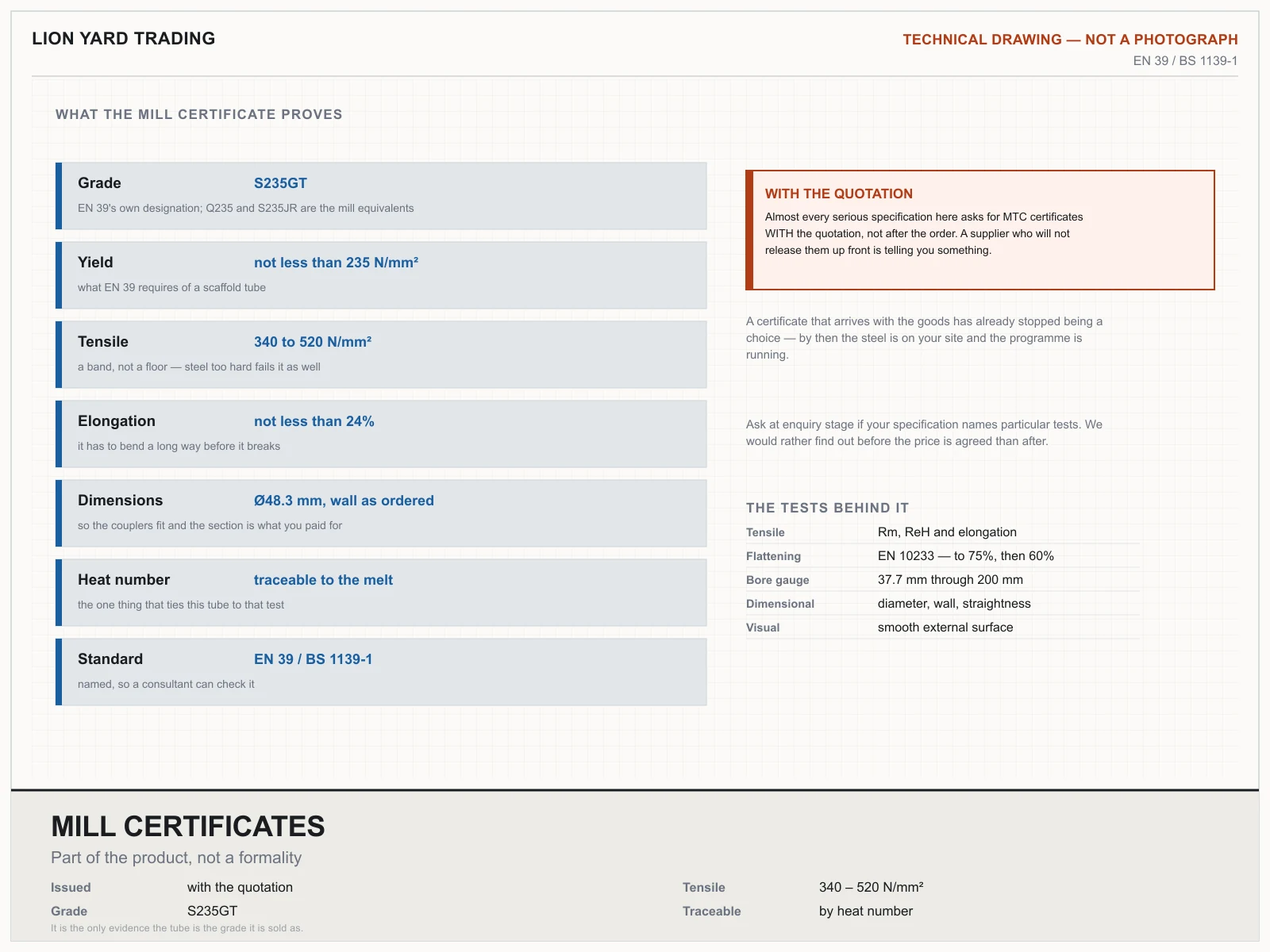

- Mill test certificate with every delivery
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Scaffold Tube — every figure comes from the price table above or from the published standard it is made to.

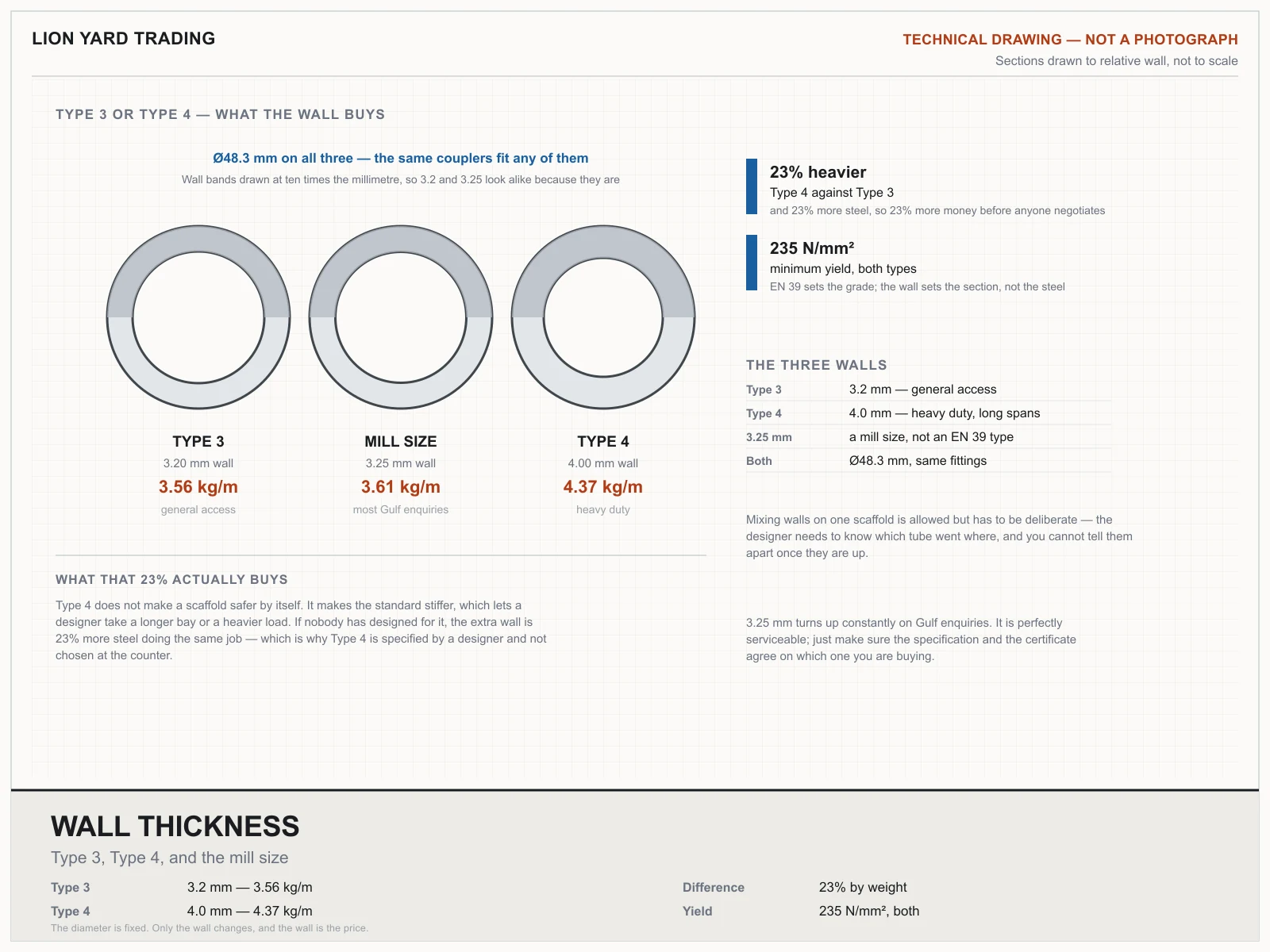

Scaffold tubeØ48.3, three walls
1 of 10

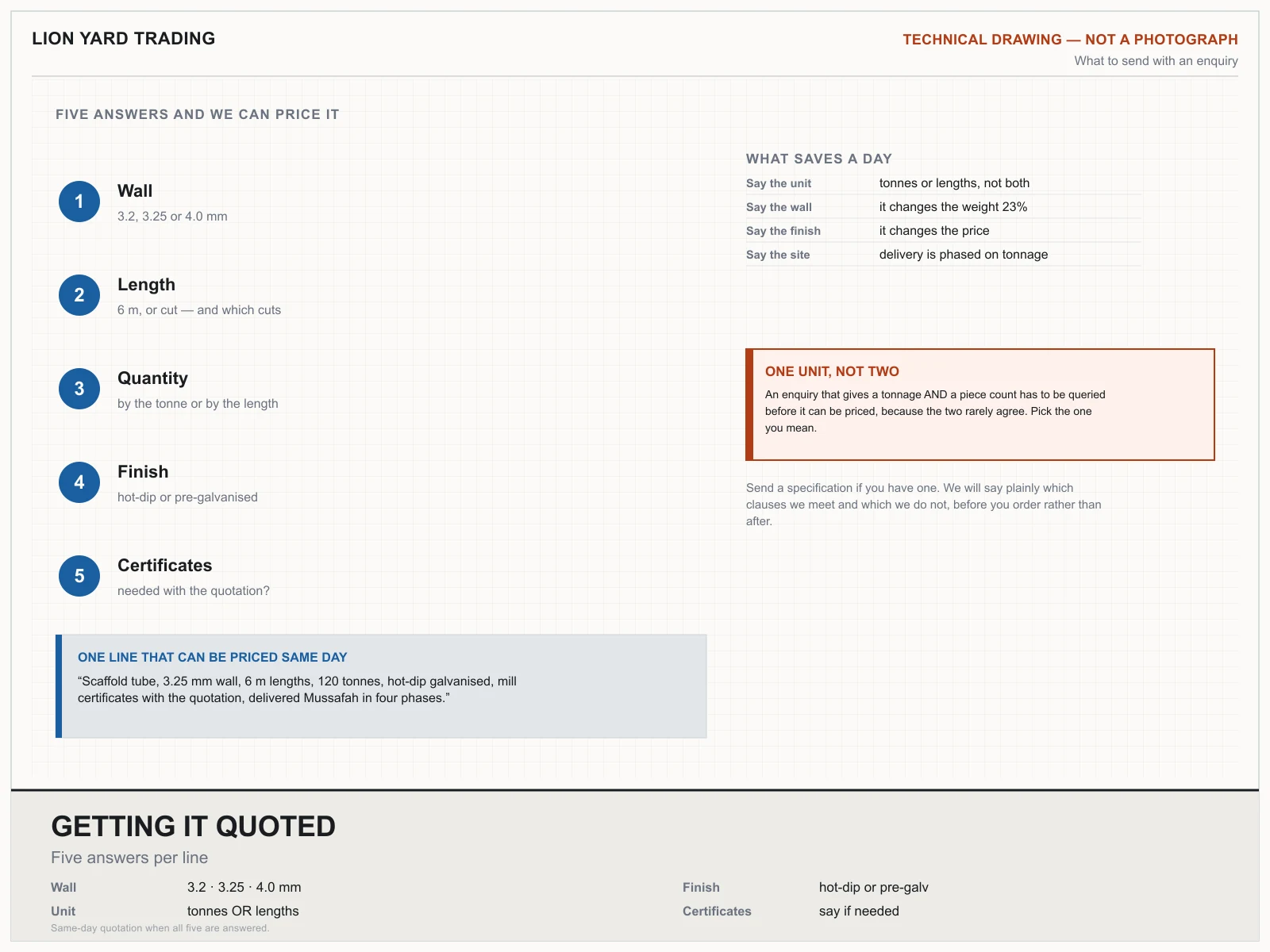

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your scaffold tube?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
