Security Guard Porta Cabins
Containers & Porta Cabins
Priced on enquiry
A guard cabin is priced on the footprint, the glazing, and the fit-out — lighting, air conditioning, the workstation, and whether it needs a toilet. Tell us where it sits and what the guard has to do from it.
Tell us the size and where it is going.
About this product
- What it is: A small gatehouse with glazing on several sides, so the guard can see the approach, the…
- Who buys it: Compounds, gated communities, industrial estates, car parks, and any entrance that is…
- Made of: A steel frame and chassis, sandwich panel or GRP body, large aluminium windows with a…
- Panel core: Confirmed per unit on request.
- How it works: Sightlines are what make a guard cabin work.
- Where it is the wrong choice: A guard cabin is not a security barrier.
All 6 sizes
Every size on one list. Tap any row to ask about that one.
How many cabins for your headcount?
Enter the people and the floor area each needs, and get the cabin count.
You need
- 20 ft cabins14.8 m2 each5 cabins
- Floor area required72 m2
- Per cabin at that allowance4 people
How that was worked out
- 24 people x 3 m2 = 72 m2 of floor
- 72 m2 / 14.8 m2 per 20 ft cabin = 4.9 -> 5 cabins

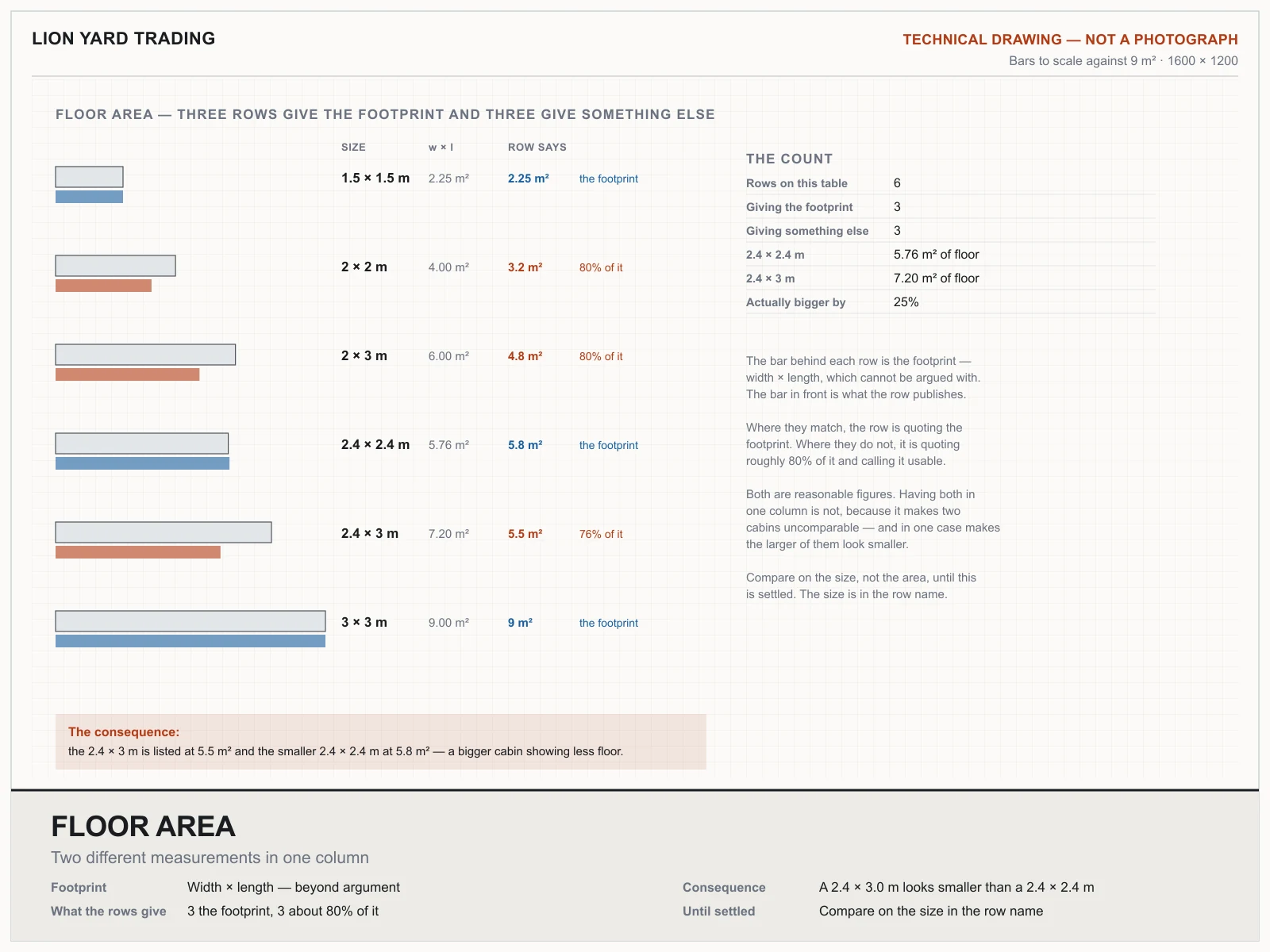

| Size / product | Details | Enquire |
|---|---|---|

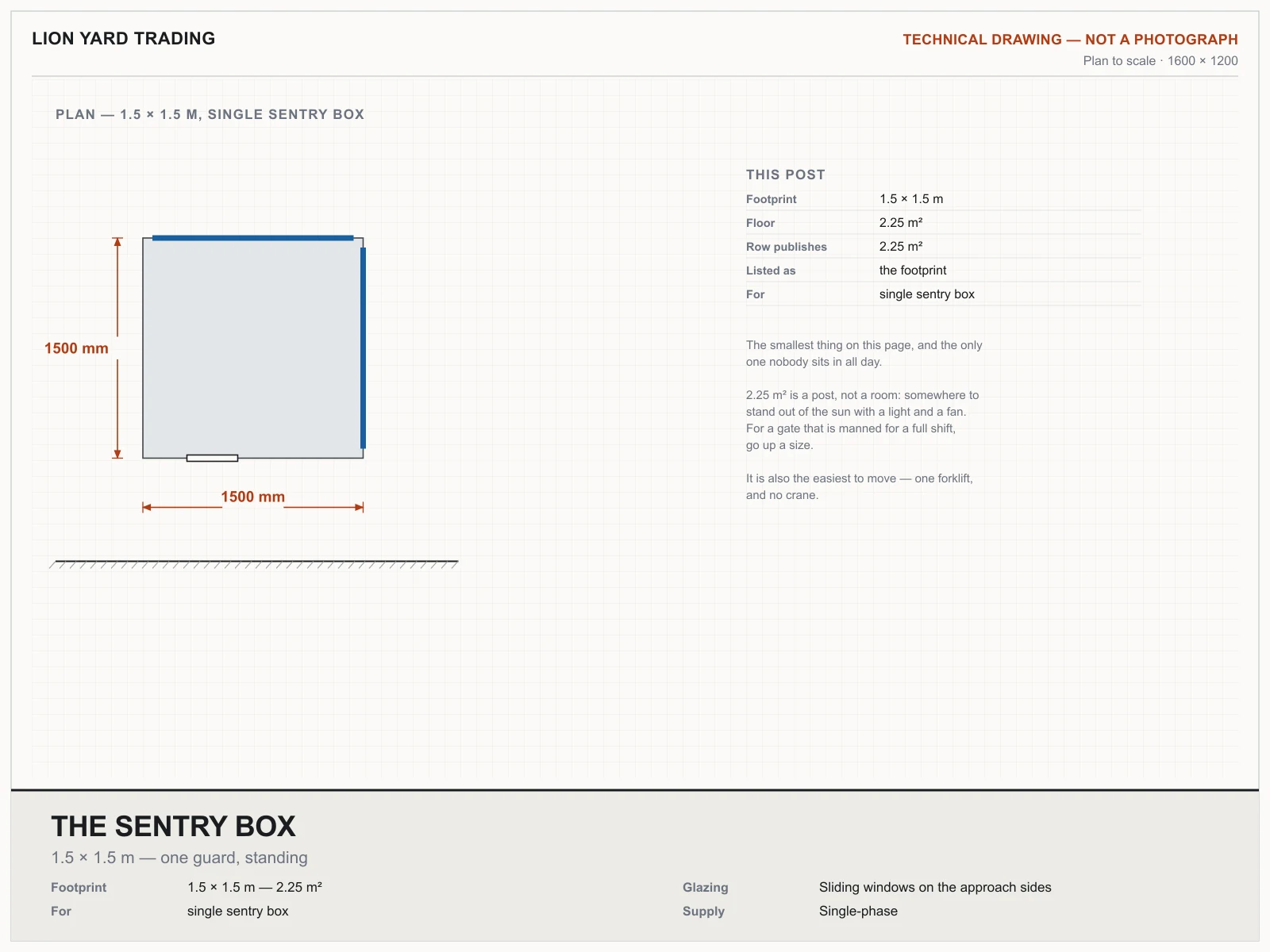

| 1.5 × 1.5 mLY-CNT-028 | 2.25 m² gross · 1.82 m² usable at 75 mm panel · single sentry box | Ask |
| 2.0 × 2.0 mLY-CNT-029 | 4 m² gross · 3.42 m² usable at 75 mm panel · guard kiosk or parking barrier post | Ask |
| 2.0 × 3.0 mLY-CNT-030 | 6 m² gross · 5.27 m² usable at 75 mm panel · single-guard entry or toll booth | Ask |

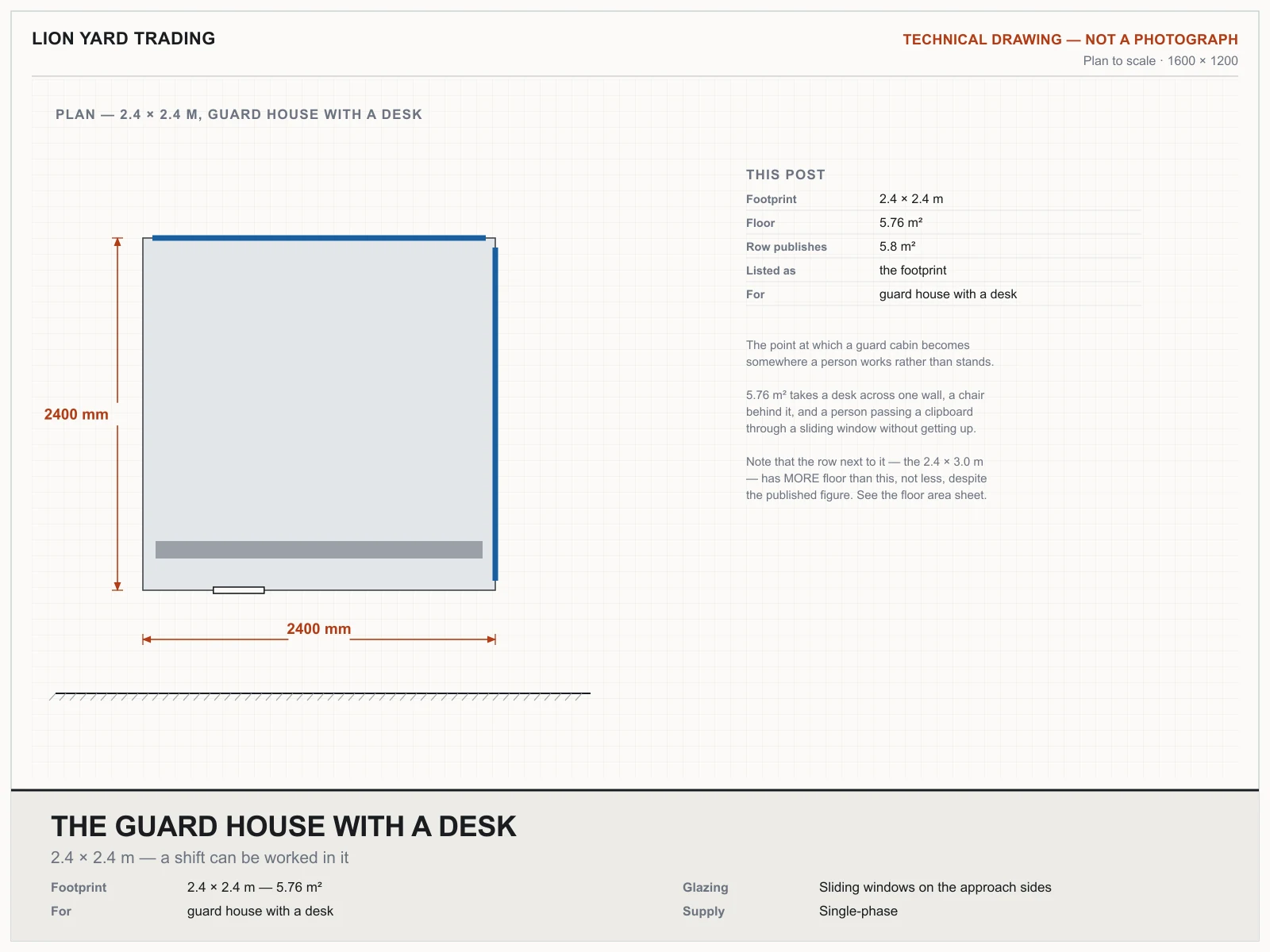

| 2.4 × 2.4 mLY-CNT-031 | 5.76 m² gross · 5.06 m² usable at 75 mm panel · guard house with a desk | Ask |
| 2.4 × 3.0 mLY-CNT-032 | 7.2 m² gross · 6.41 m² usable at 75 mm panel · guard house or reception booth | Ask |

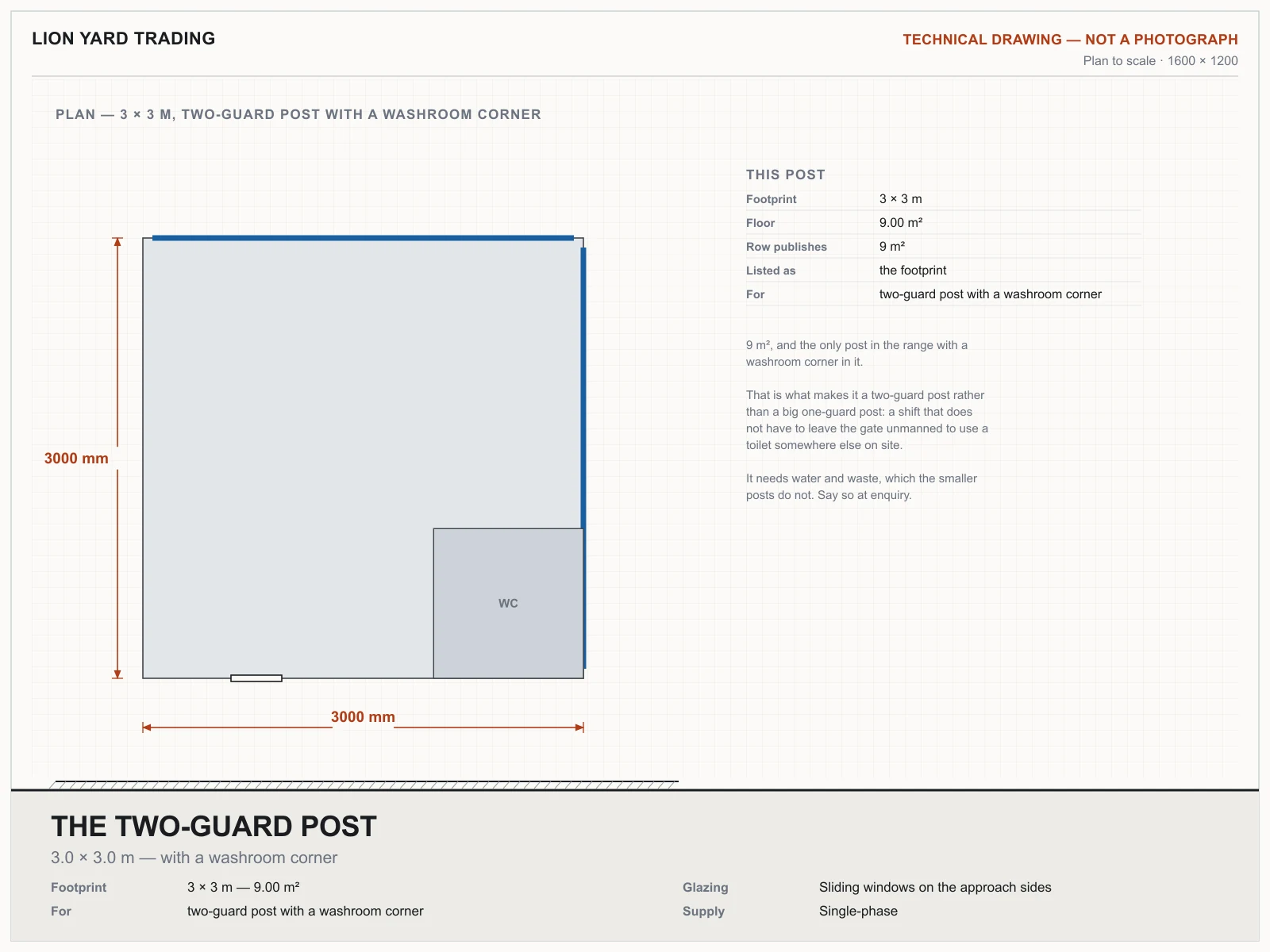

| 3.0 × 3.0 mLY-CNT-033 | 9 m² gross · 8.12 m² usable at 75 mm panel · two-guard post with a washroom corner | Ask |
- 2.25 m² gross · 1.82 m² usable at 75 mm panel · single sentry boxAsk on WhatsApp
- 4 m² gross · 3.42 m² usable at 75 mm panel · guard kiosk or parking barrier postAsk on WhatsApp
- 6 m² gross · 5.27 m² usable at 75 mm panel · single-guard entry or toll boothAsk on WhatsApp
- 5.76 m² gross · 5.06 m² usable at 75 mm panel · guard house with a deskAsk on WhatsApp
- 7.2 m² gross · 6.41 m² usable at 75 mm panel · guard house or reception boothAsk on WhatsApp
- 9 m² gross · 8.12 m² usable at 75 mm panel · two-guard post with a washroom cornerAsk on WhatsApp
A guard cabin is priced on the footprint, the glazing, and the fit-out — lighting, air conditioning, the workstation, and whether it needs a toilet. Tell us where it sits and what the guard has to do from it.
What it is

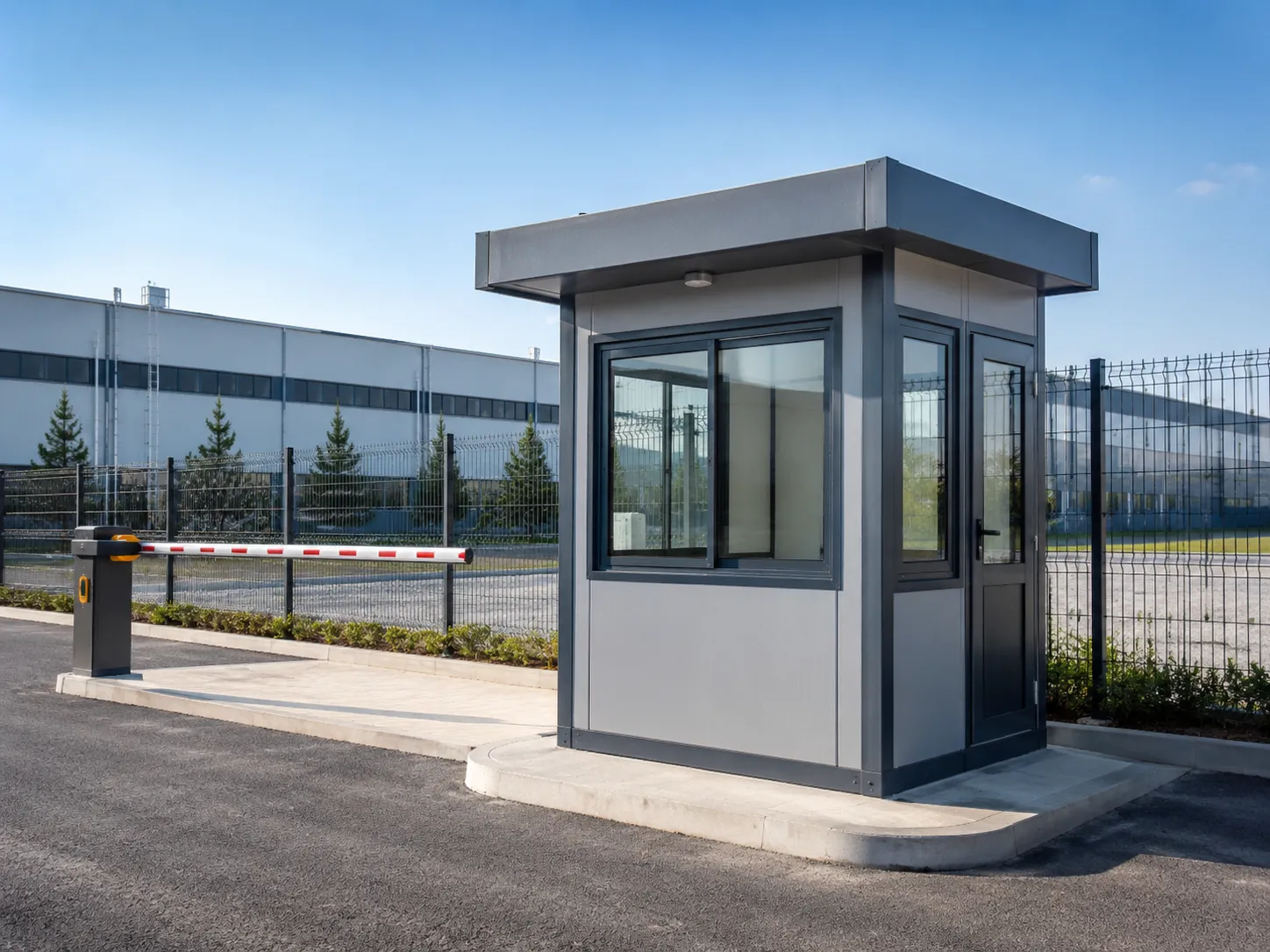

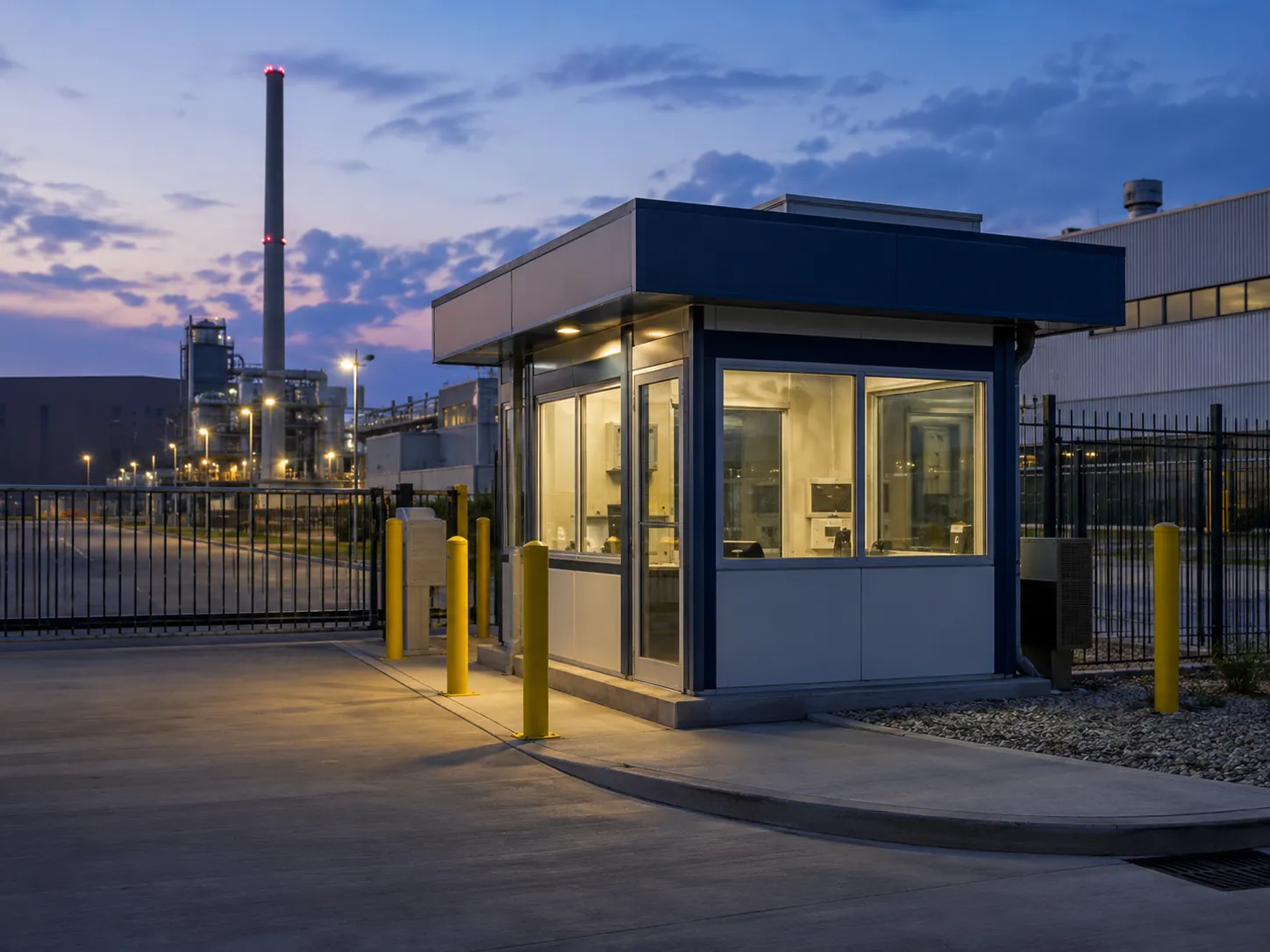

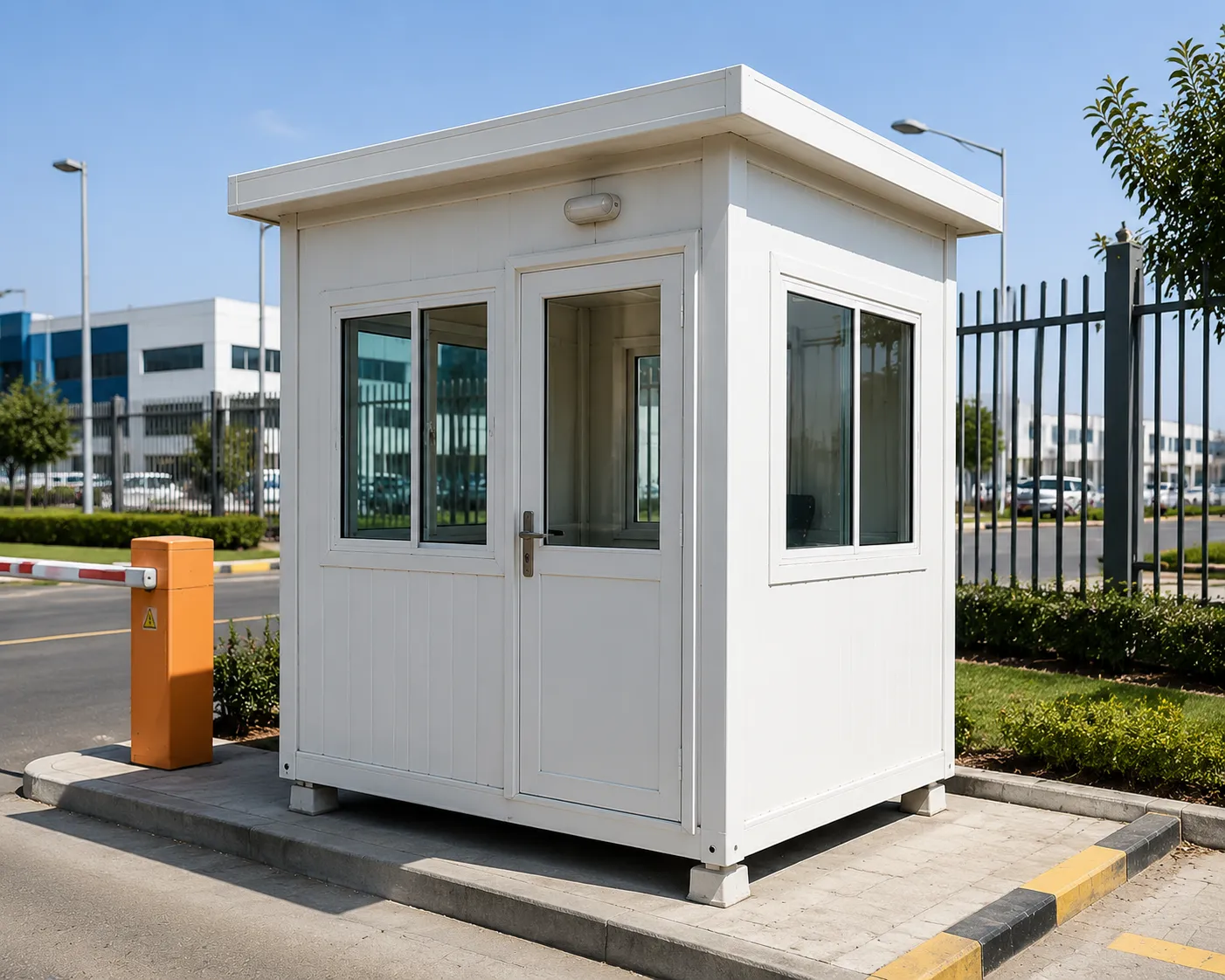

Gatehouse and watch cabins with all-round glazing, for entrances and checkpoints.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is

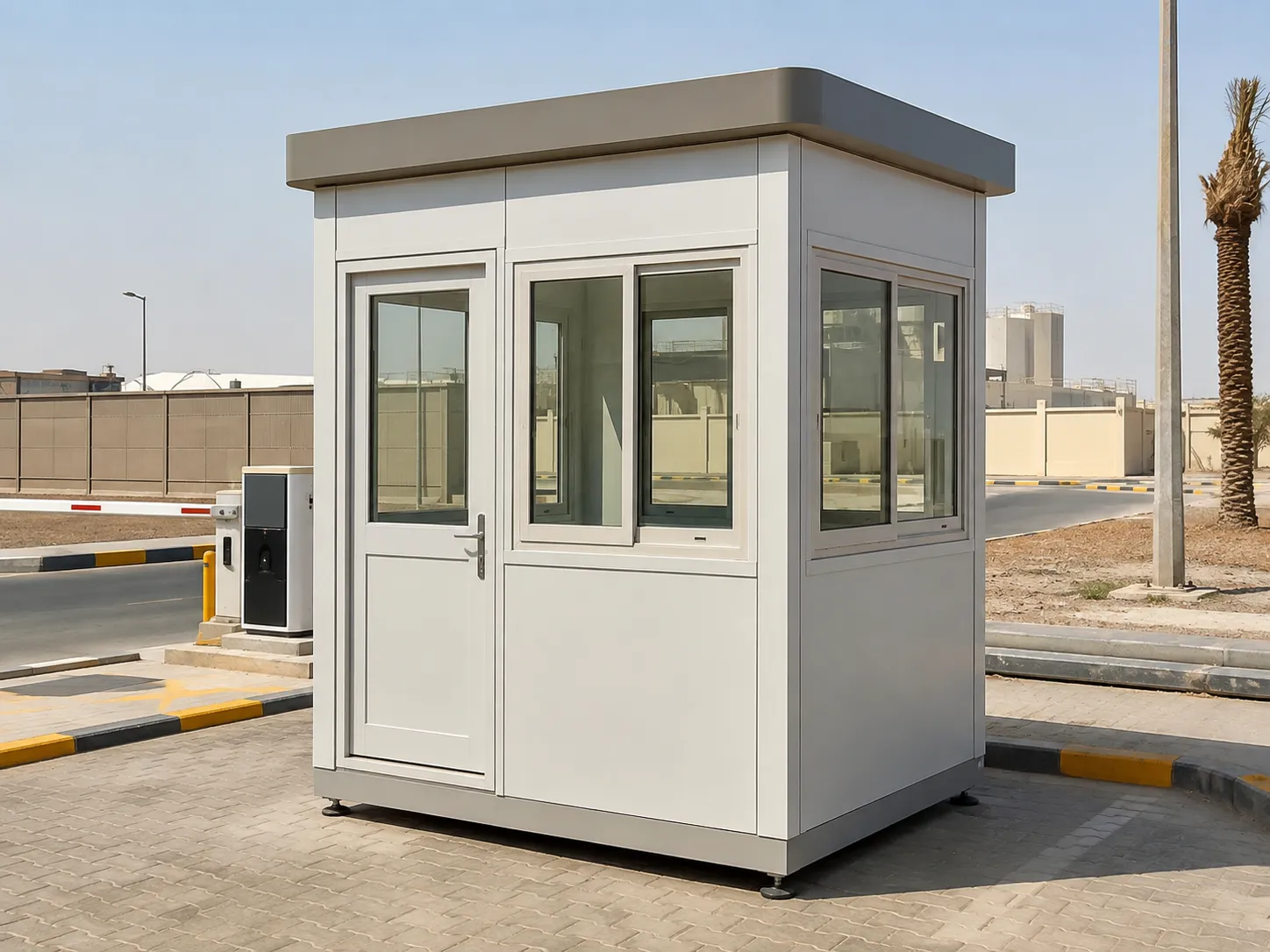

- A small gatehouse with glazing on several sides, so the guard can see the approach, the gate and the barrier without leaving the seat.
- Who buys it
- Compounds, gated communities, industrial estates, car parks, and any entrance that is manned.
- Made of

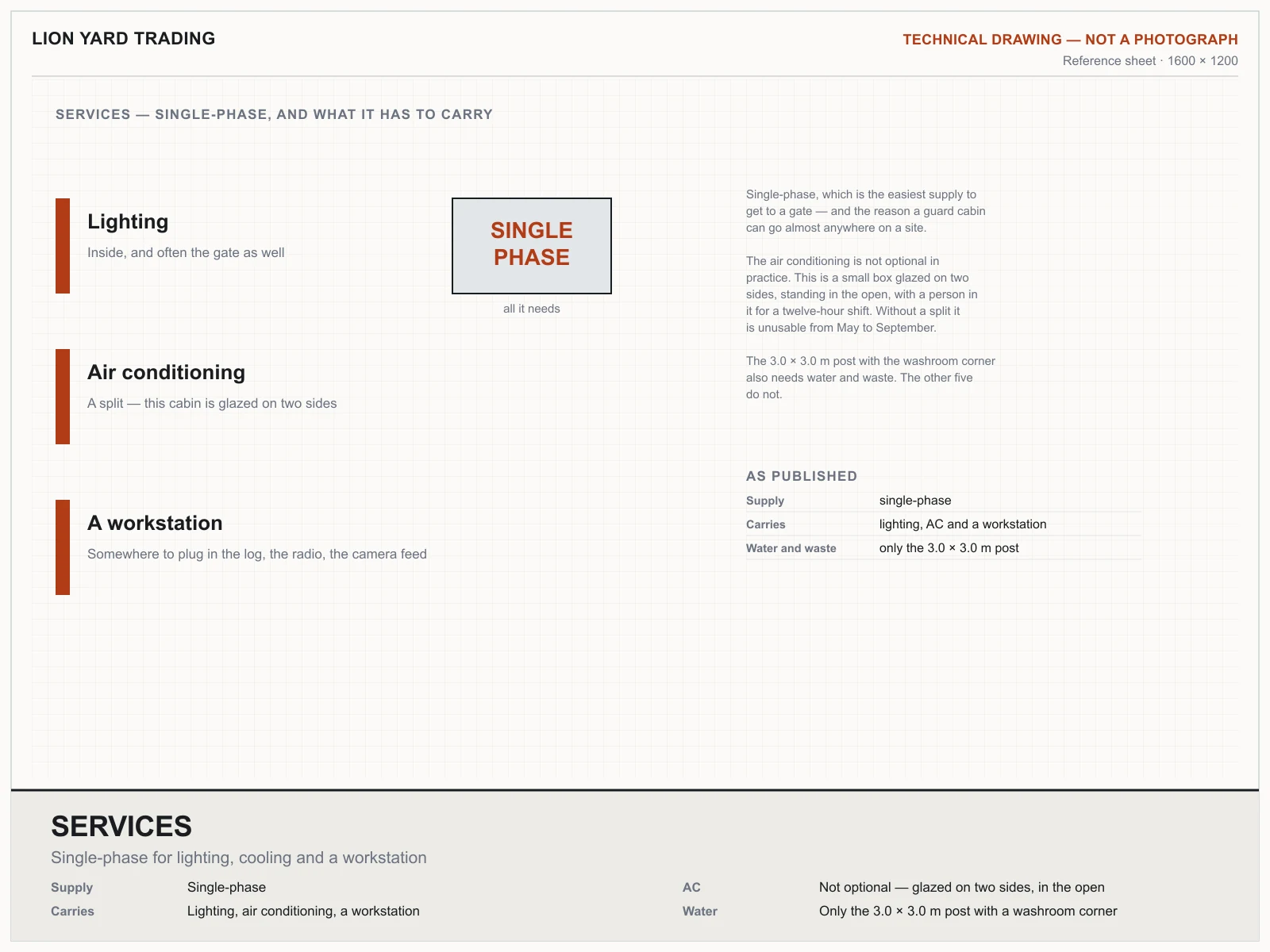

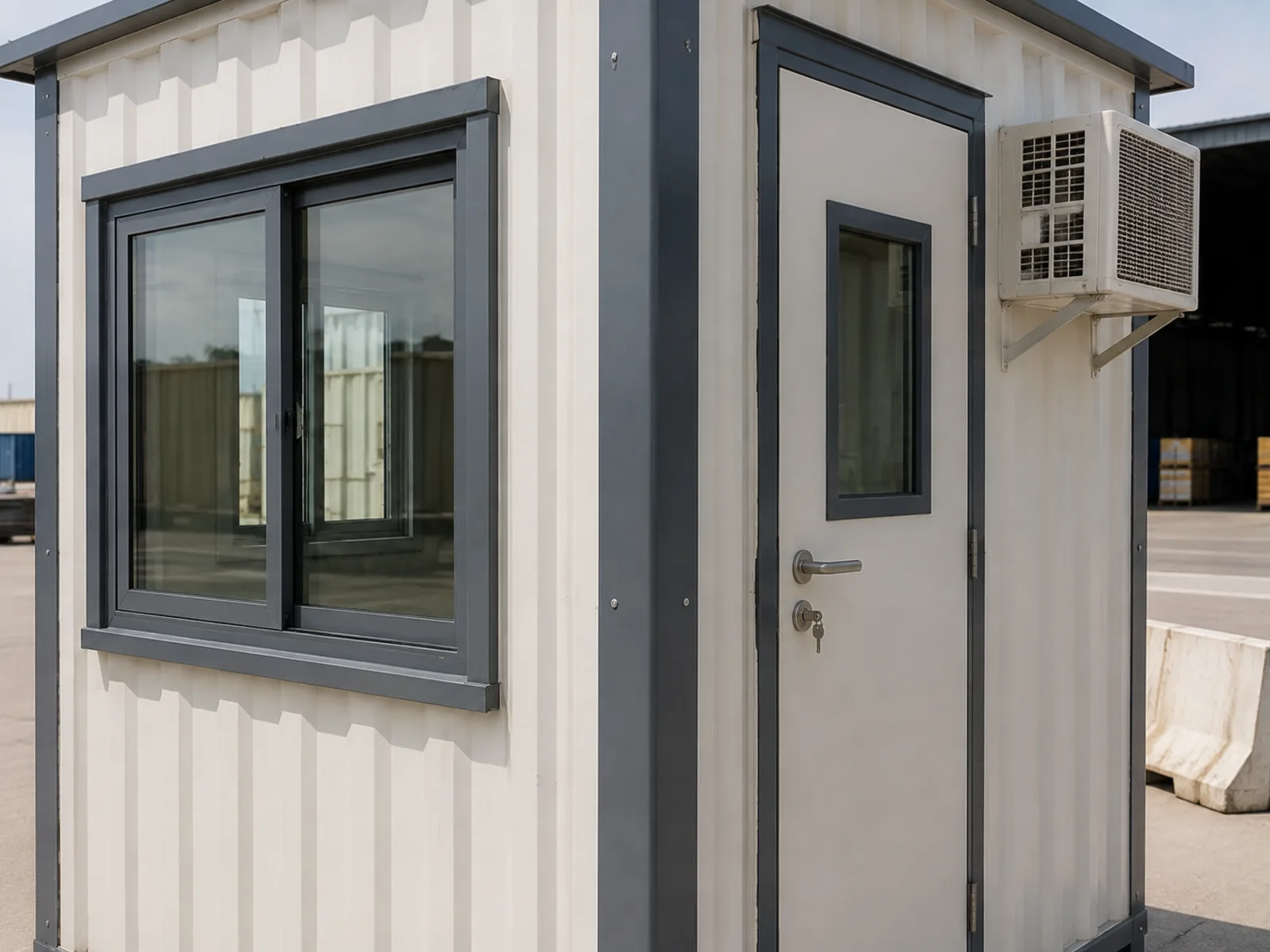

- A steel frame and chassis, sandwich panel or GRP body, large aluminium windows with a sliding service hatch, a personnel door, and electrics for lighting and a small air conditioner.
- Panel core
- Confirmed per unit on request. The UAE Fire & Life Safety Code restricts combustible cores, so ask before you order — especially for accommodation and anywhere with an ignition source. Standard PUF is combustible; a rock wool core is the choice where a fire rating matters.
- How it works

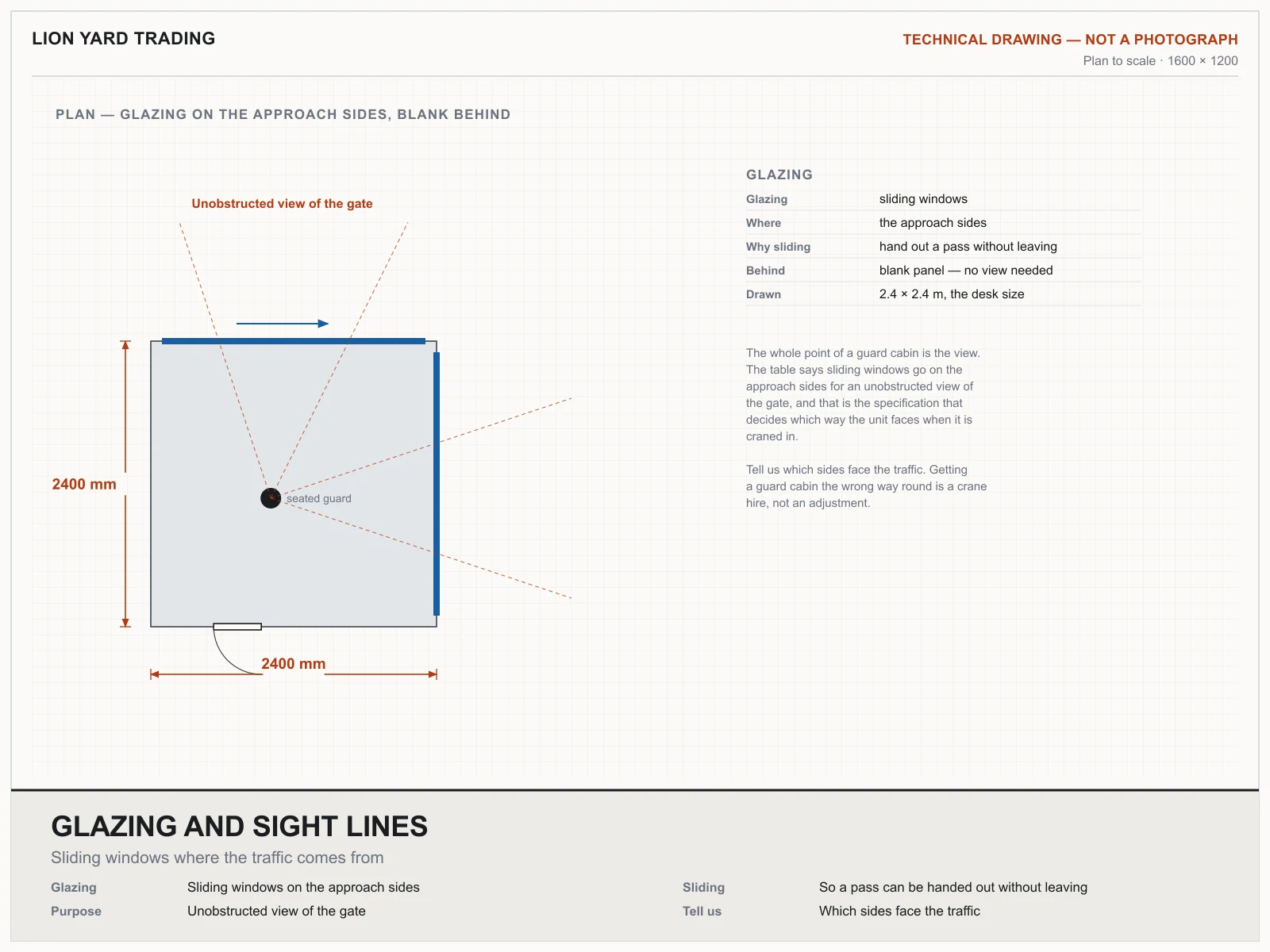

- Sightlines are what make a guard cabin work. Glazing on the approach side and the gate side matters more than floor area - a bigger box with worse sightlines is a worse cabin.
- Where it is the wrong choice
- A guard cabin is not a security barrier. It houses the person; the control comes from the gate, the boom or the turnstile beside it. If the requirement is to stop a vehicle, that is a bollard or a road blocker, not a cabin. And it needs power and shade - an un-air-conditioned glass box in a UAE summer will not be occupied.
- Sold by
- The unit, excluding 5% VAT.
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
Technical Procurement & Ordering Guides

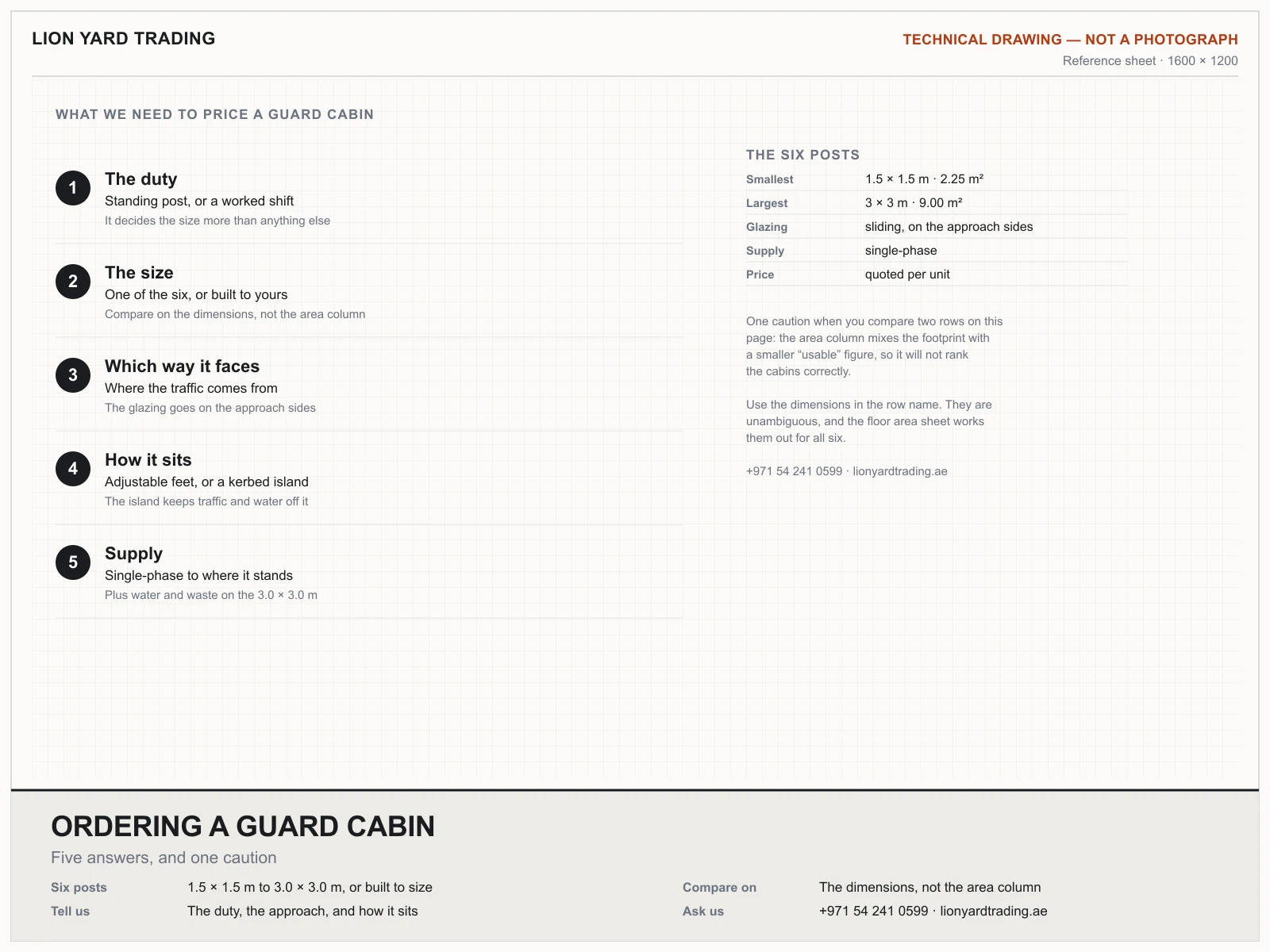

10 drawings covering every answer we need to price Security Guard Porta Cabins — every figure comes from the price table above or from the published standard it is made to.

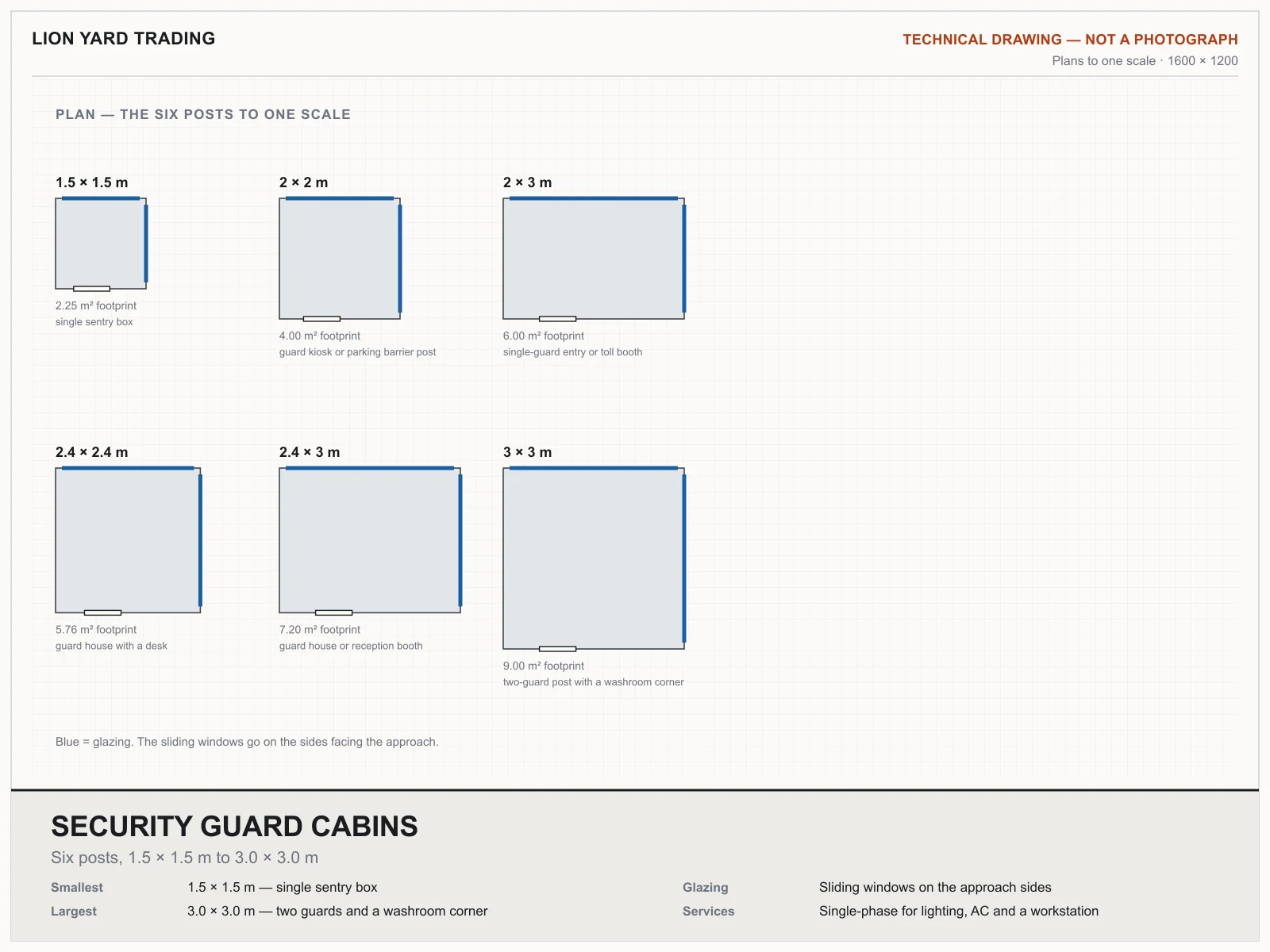

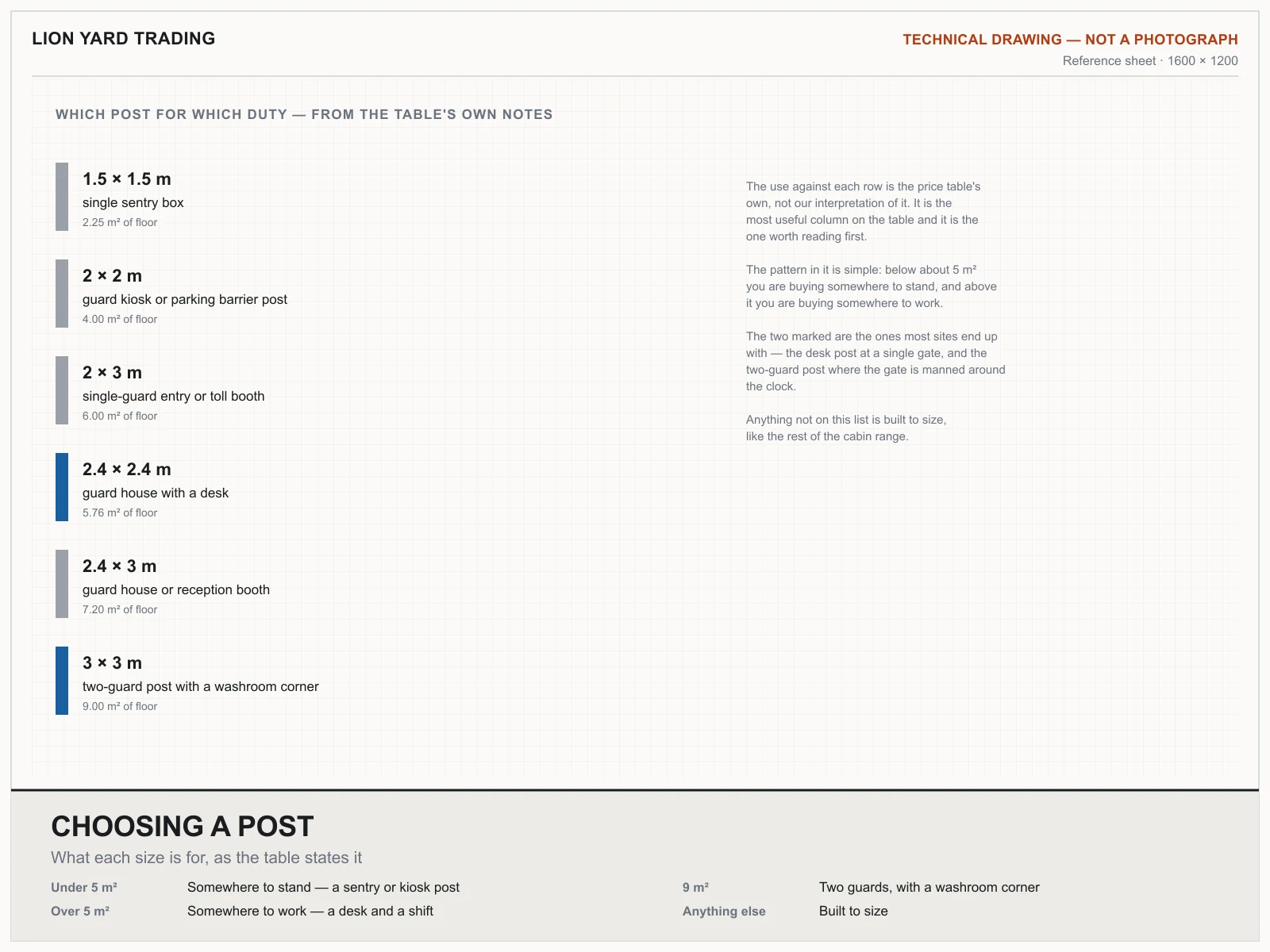

The six posts1.5 × 1.5 m to 3.0 × 3.0 m
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your security guard porta cabins?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
