GI Sheet 0.4mm

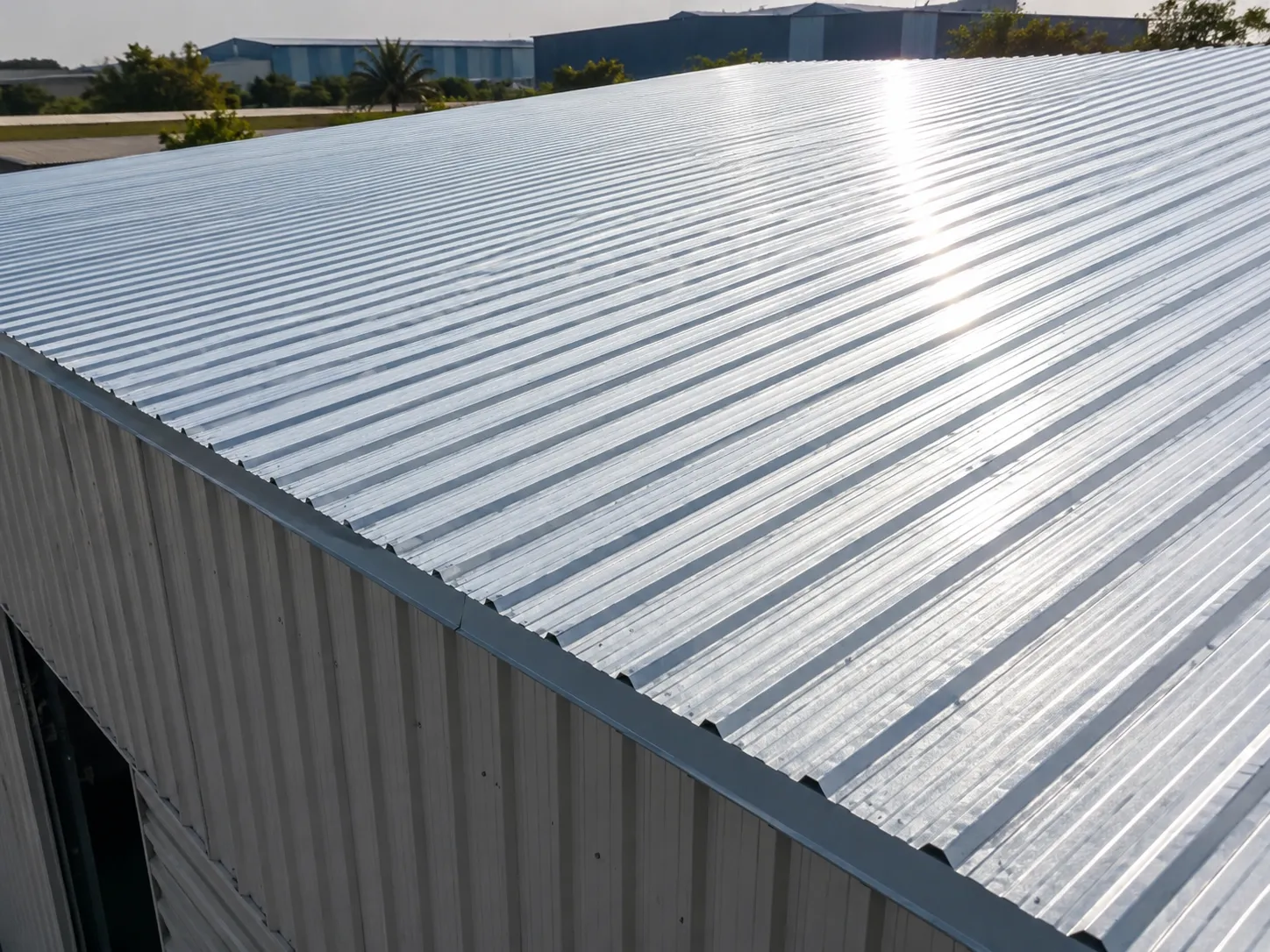

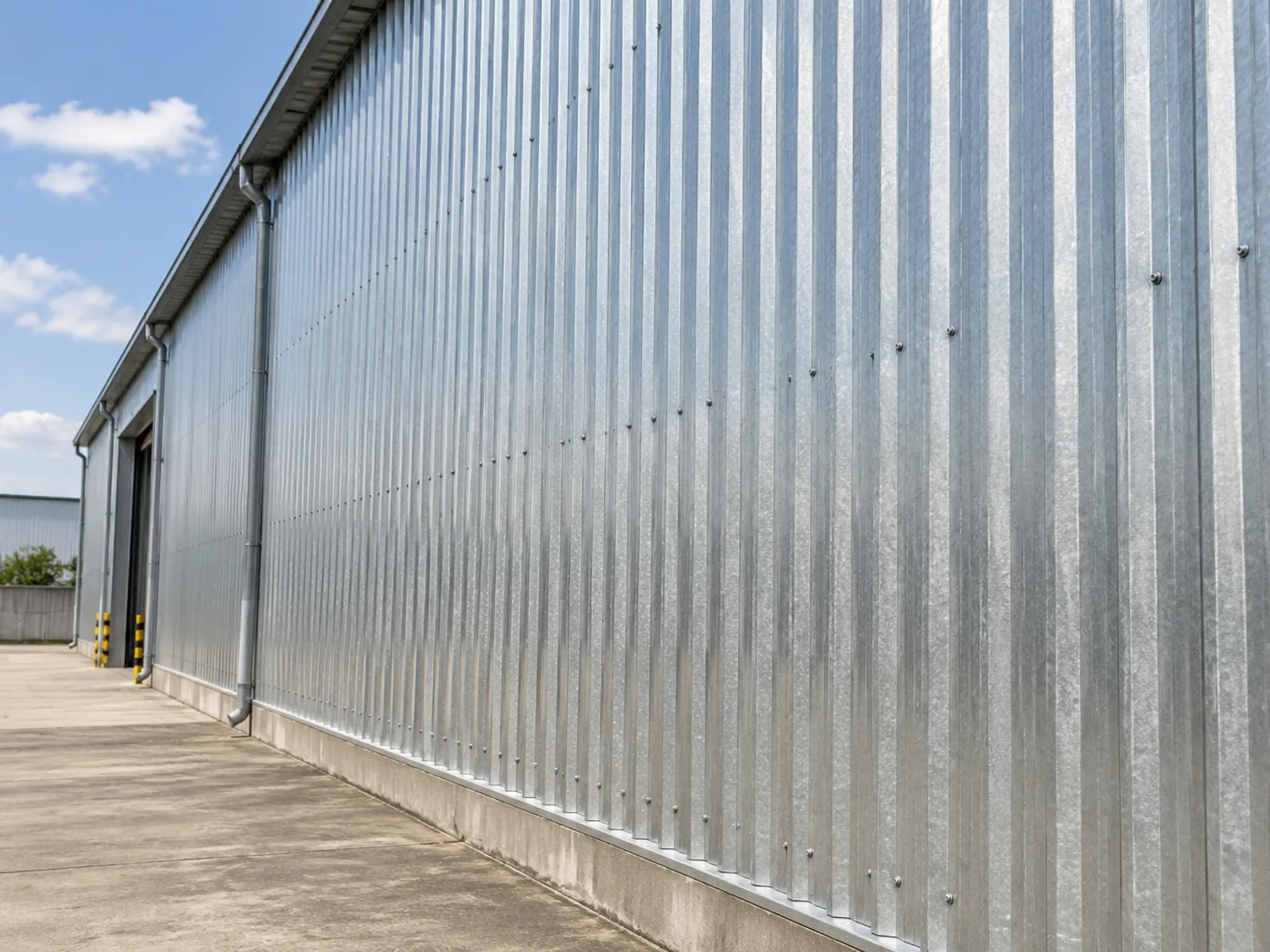

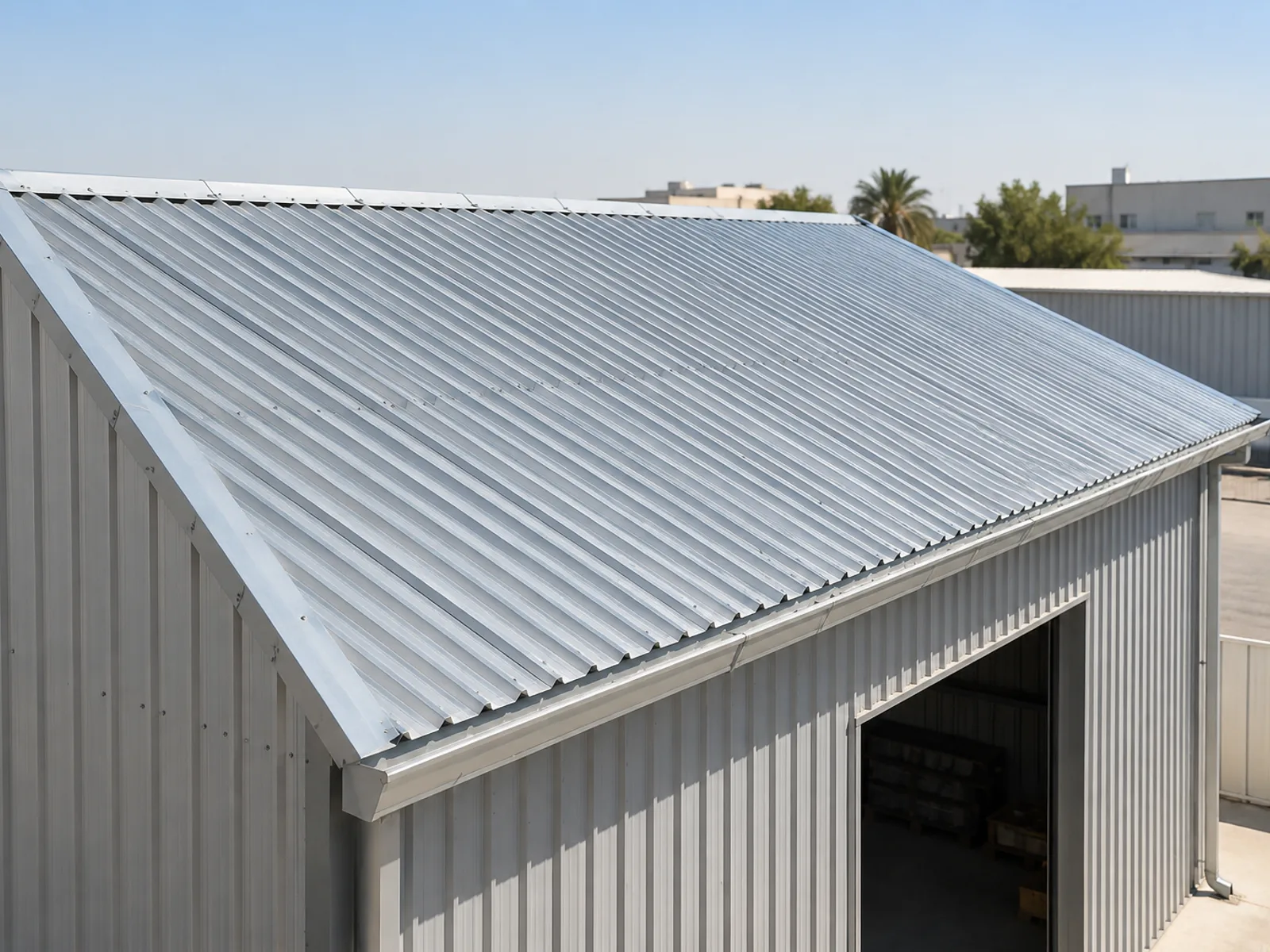

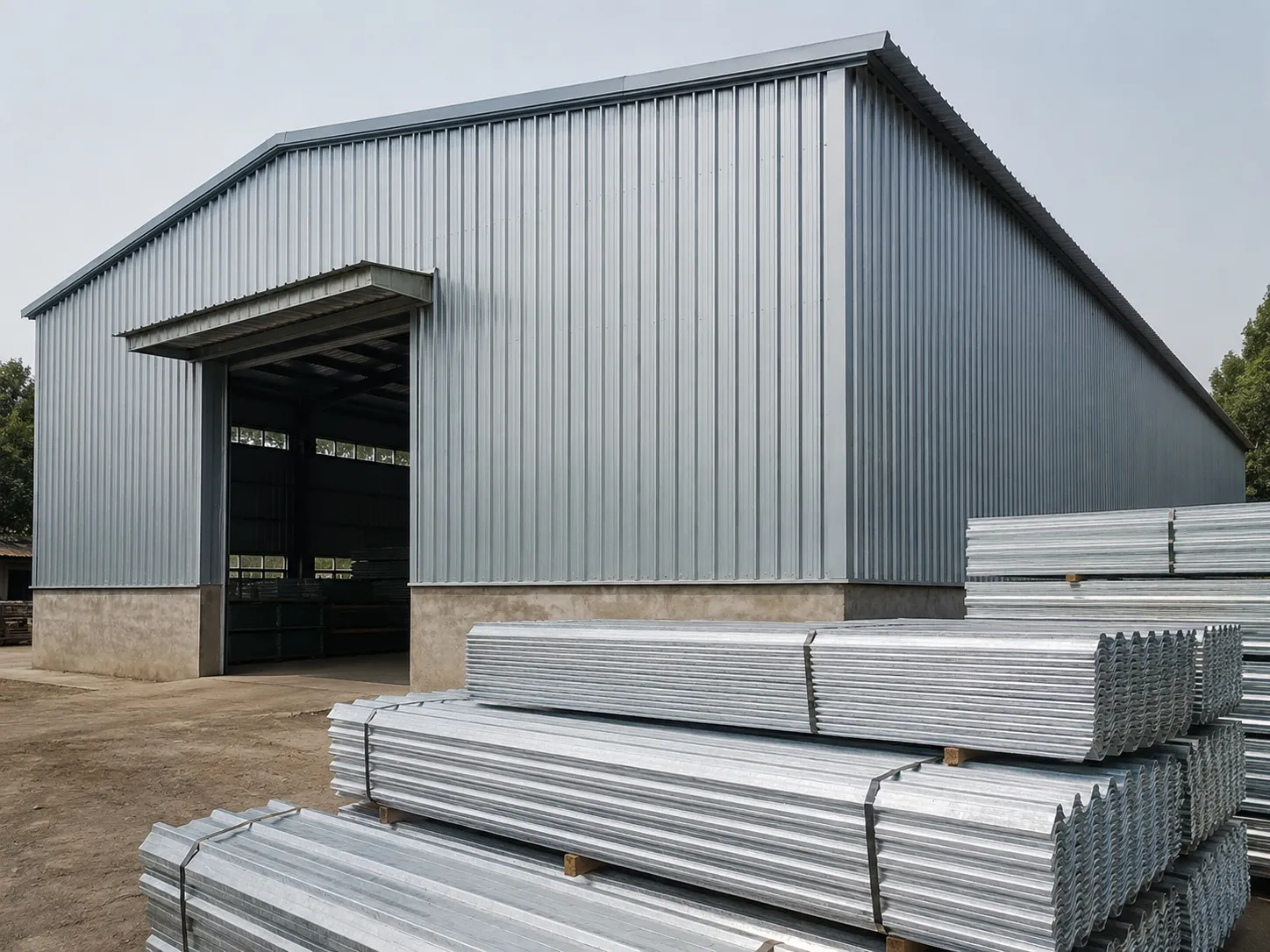

0.4 mm galvanised steel sheet, priced per sheet. The lightest gauge here - suited to cladding, partitions, temporary enclosures and hoarding infill where the sheet is supported by a frame and carries no load itself. Zinc coated on both faces for corrosion resistance in coastal and humid conditions. Confirm the sheet size and coating weight with us when you order. Galvanised steel sheet for roofing, cladding, ducting and partitioning.
Published price
GI Sheet 0.4mm
Quoted on the day
Steel sheet is priced off the mill rate, so it is quoted against the day's rate, the sheet size and the quantity rather than published.
One message, no form — we reply with the price.
Prices exclude 5% VAT and are subject to change. Bulk discounts available.
Delivered across all 7 Emirates. How delivery works
How many sheets for your roof or wall?
Enter the width to cover and the sheet length, and get the count.
You need
- Sheets, 3.05 m long762 mm covered by each29 sheets
- Area covered67.4 m2
How that was worked out
- 20 m + 7% = 21.4 m to cover
- 21.4 m / 0.762 m covered per sheet = 28.1 -> 29 sheets
- 29 x 3.05 m x 0.762 m = 67.4 m2 covered
This size
0.4 mm galvanised steel sheet, priced per sheet. The lightest gauge here - suited to cladding, partitions, temporary enclosures and hoarding infill where the sheet is supported by a frame and carries no load itself. Zinc coated on both faces for corrosion resistance in coastal and humid conditions. Confirm the sheet size and coating weight with us when you order.
What this is
- Thickness
- 0.4 mm
Taken from the product’s own name, converted where the unit differs, and from the standard where the range cites one. Tell us the application and we will confirm the exact item before you order.
Specification
- Sold by

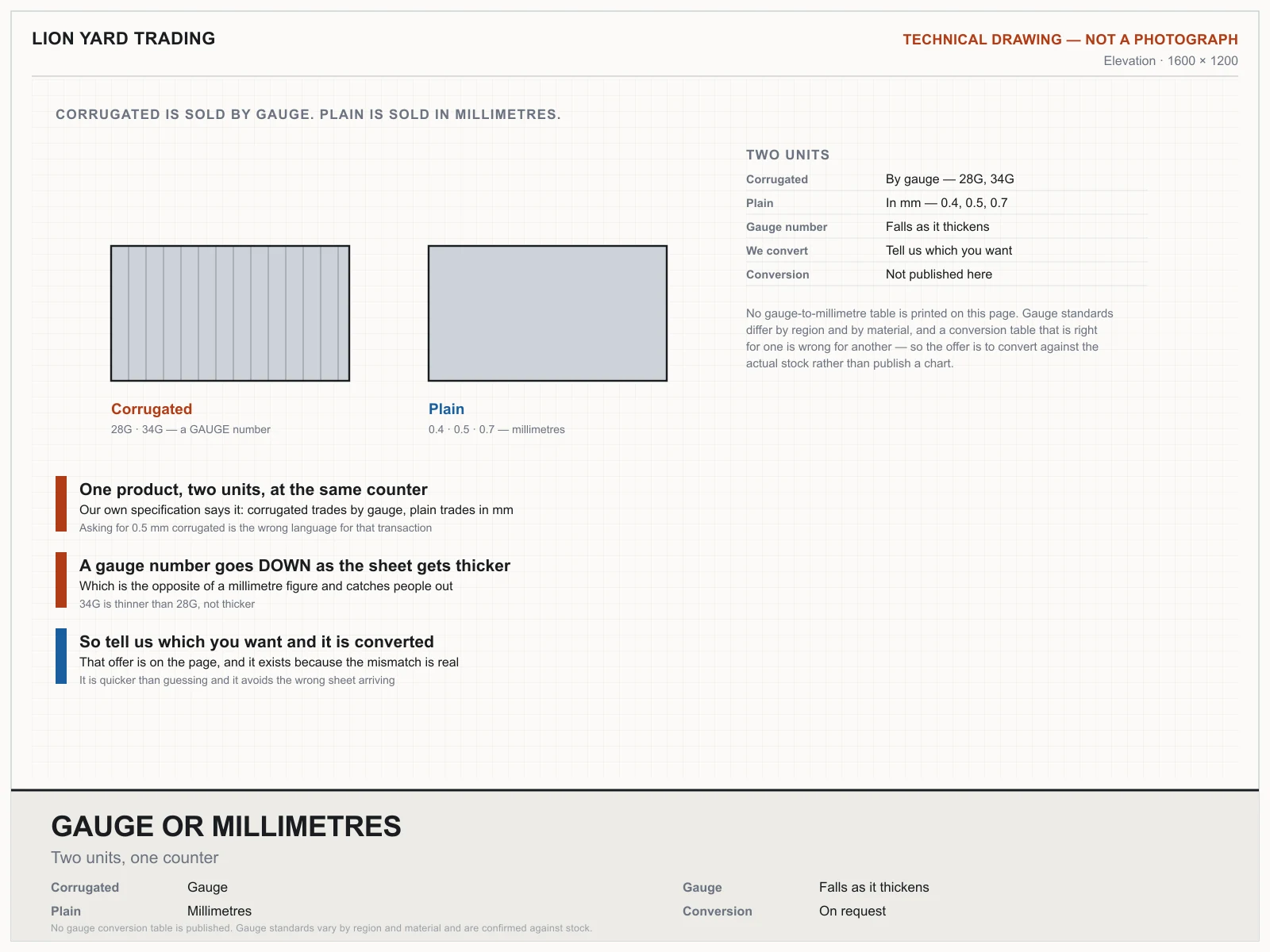

- At the retail counter corrugated trades by GAUGE — 28G, 34G — not on a millimetre ladder. Plain sheet trades in mm. Tell us which you want and we will convert.

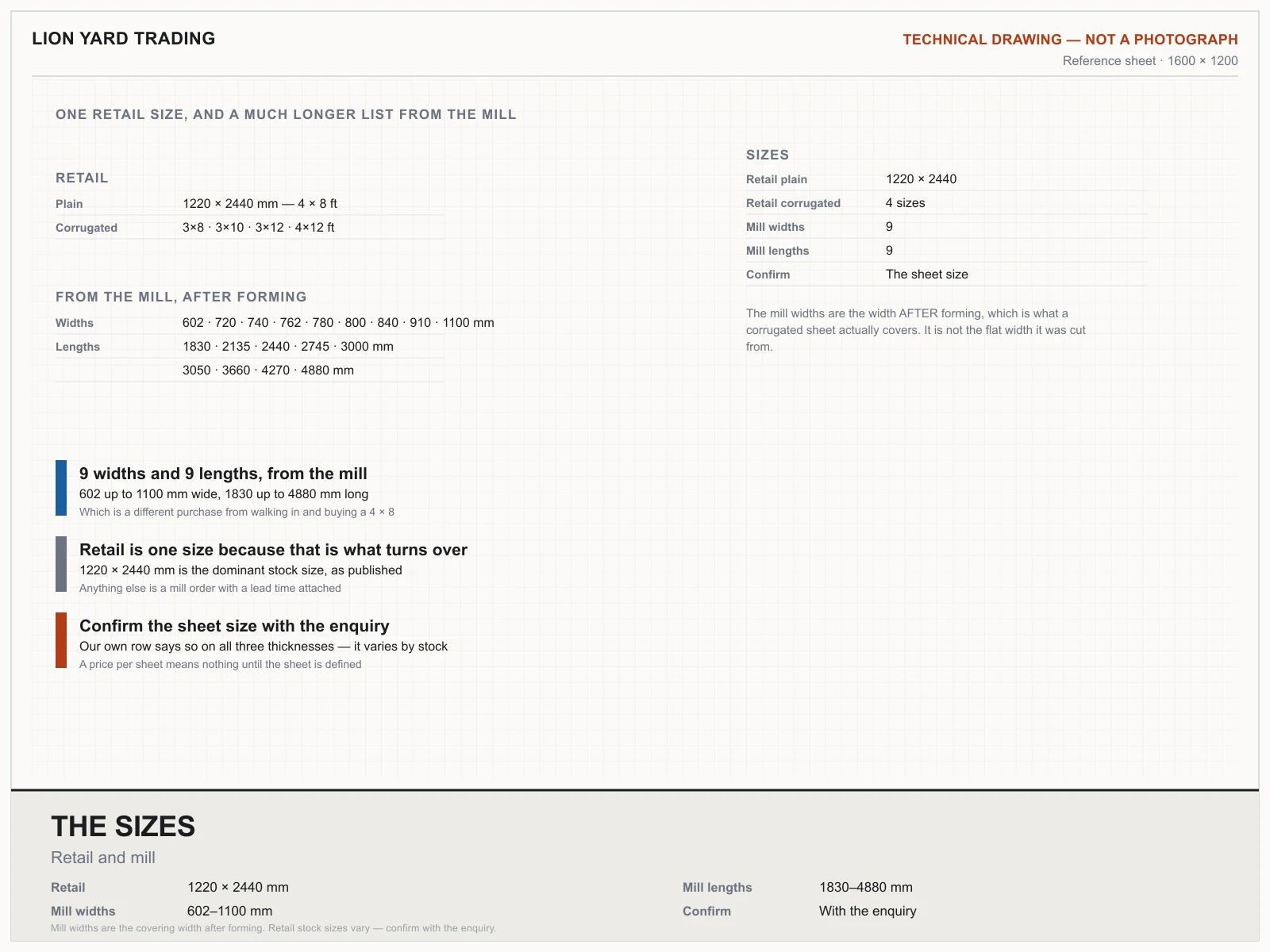

- Plain retail size

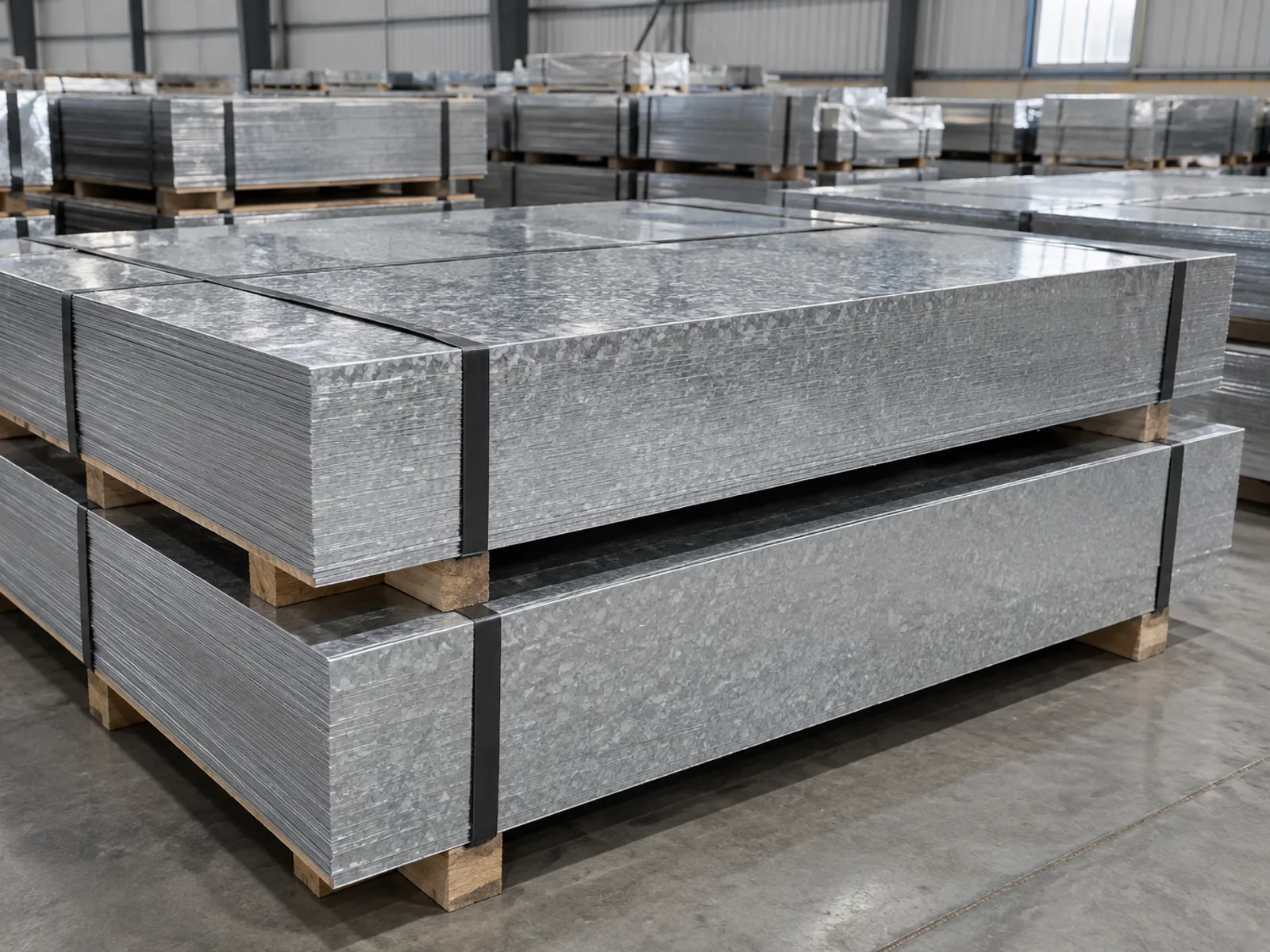

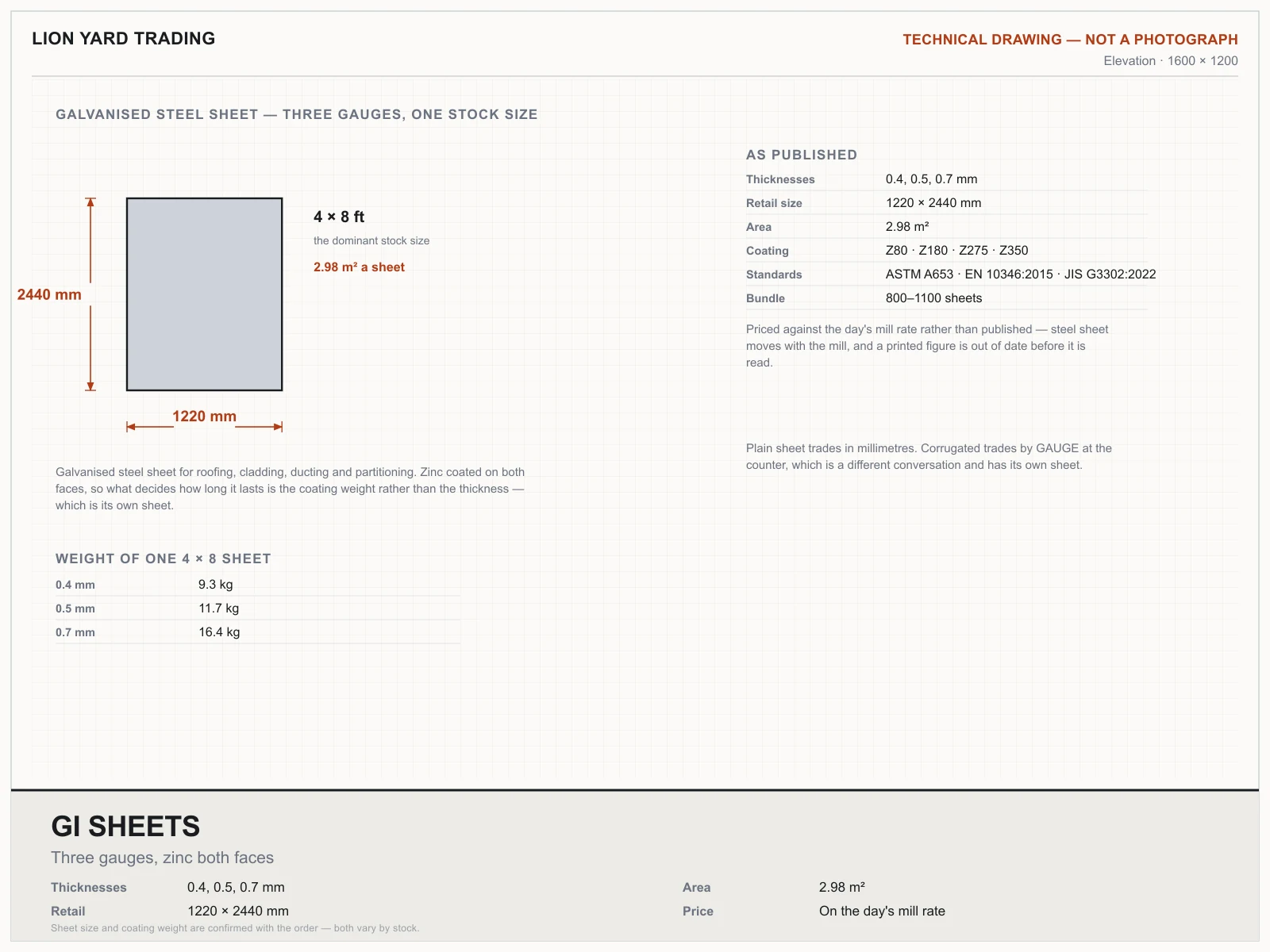

- 4 × 8 ft (1220 × 2440 mm) is the dominant stock size

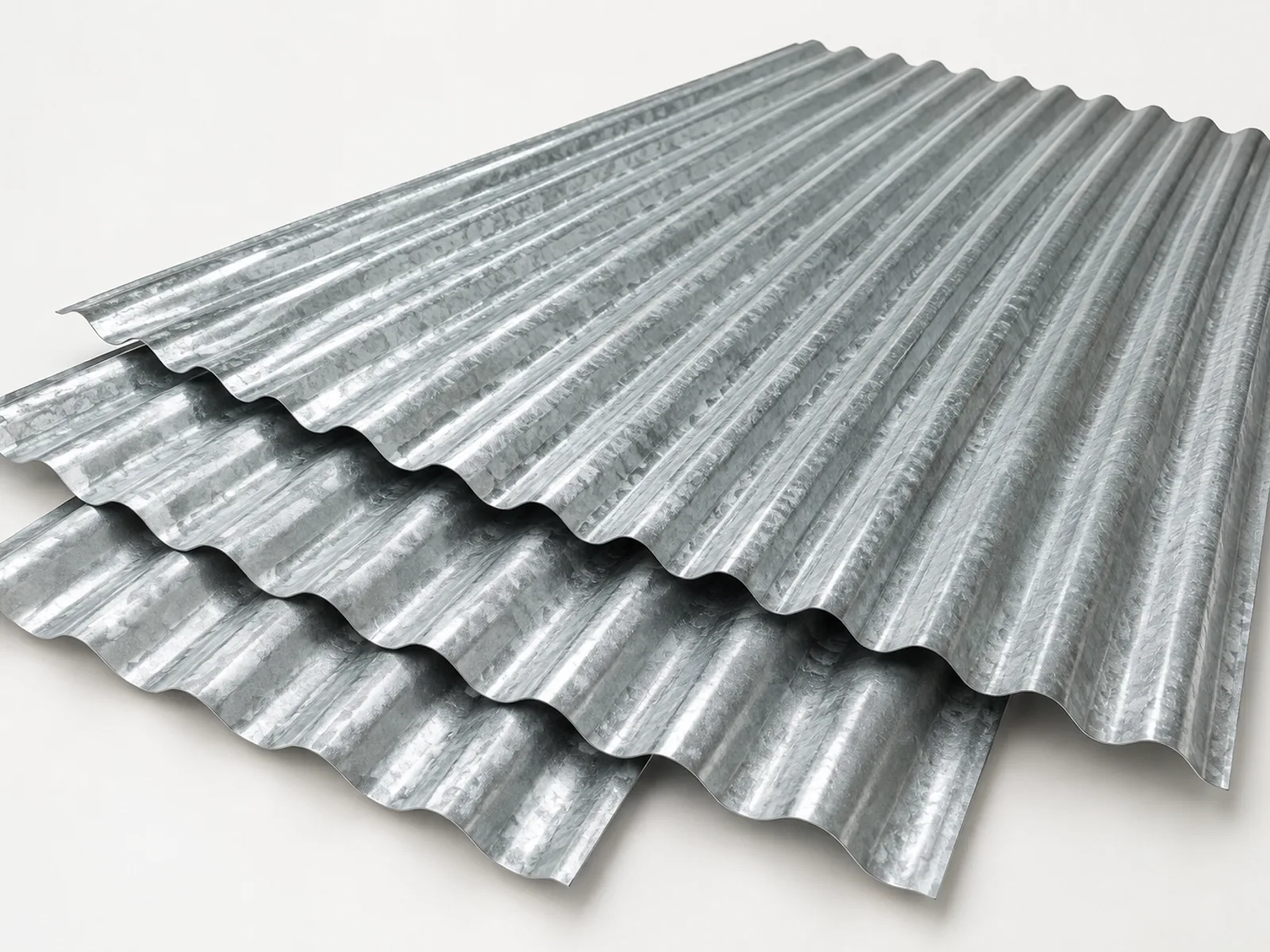

- Corrugated retail
- 3×8 ft · 3×10 ft · 3×12 ft · 4×12 ft
- Mill widths
- 602 · 720 · 740 · 762 · 780 · 800 · 840 · 910 · 1100 mm after forming
- Mill lengths
- 1830 · 2135 · 2440 · 2745 · 3000 · 3050 · 3660 · 4270 · 4880 mm

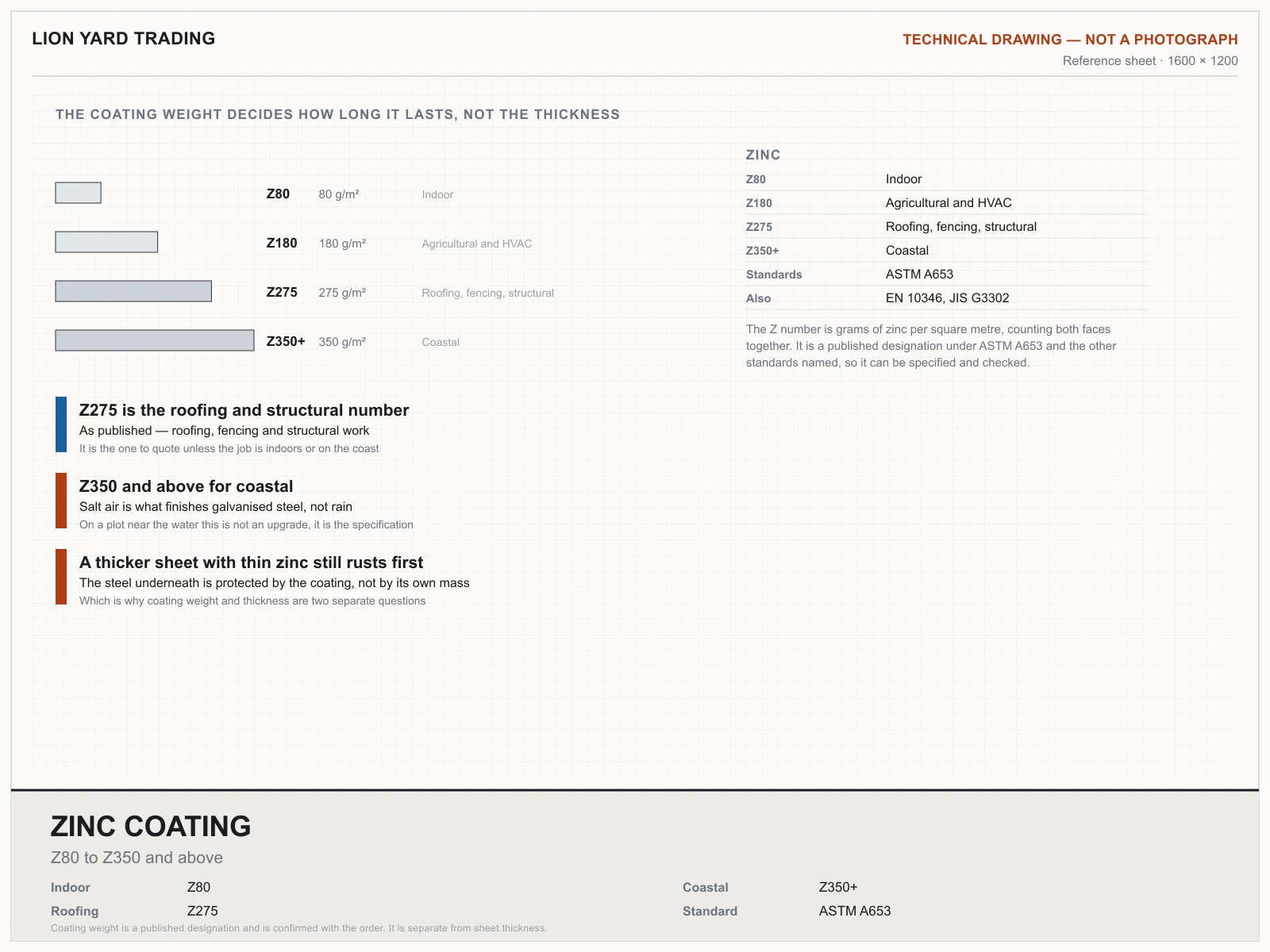

- Zinc coating
- Z80 indoor · Z180 agricultural and HVAC · Z275 roofing, fencing and structural · Z350+ coastal
- Standards
- ASTM A653 · EN 10346:2015 · JIS G3302:2022

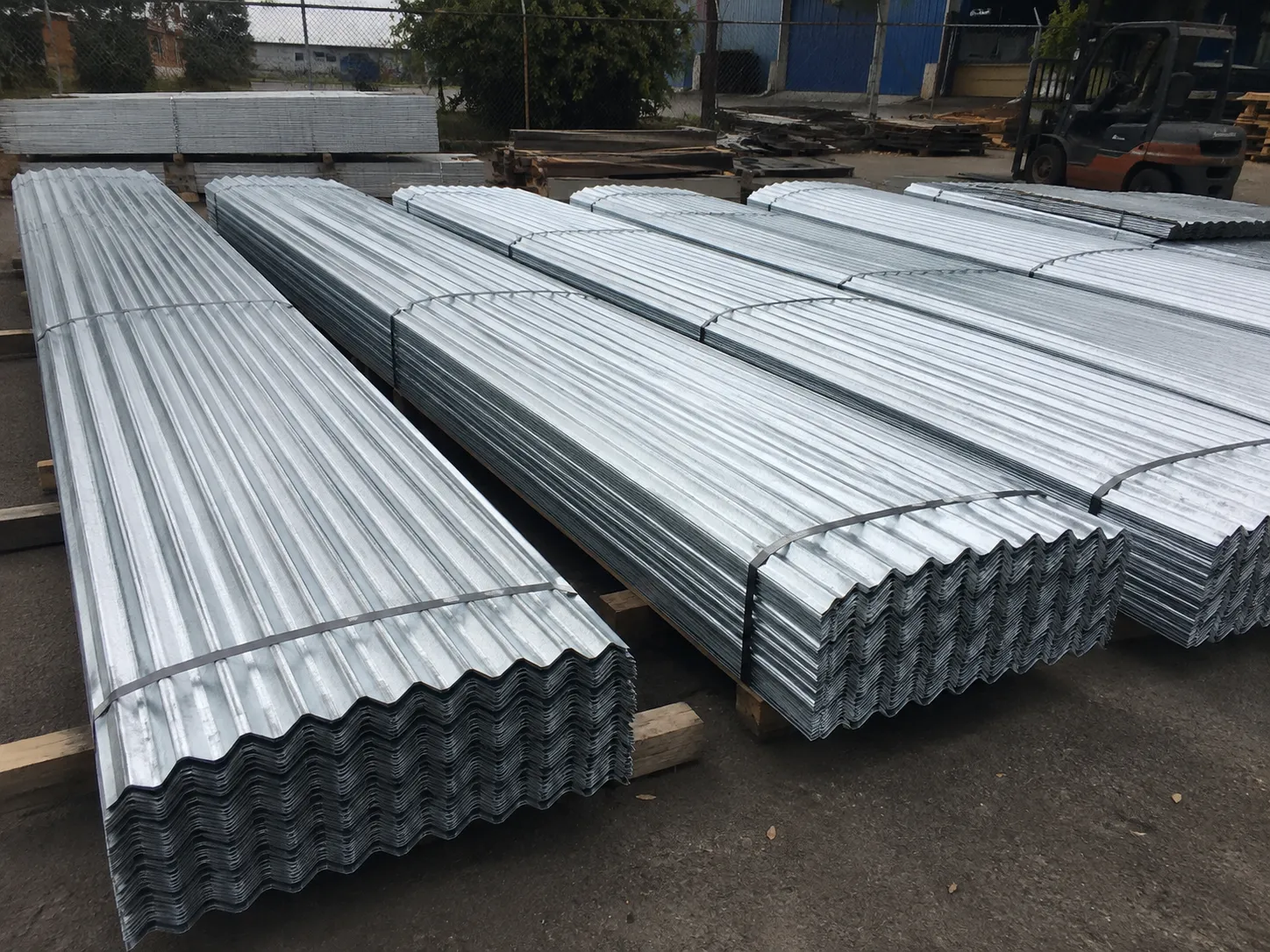

- Bundle
- 800–1,100 sheets
- Material
- Galvanised steel
- Thickness
- 0.4 mm, 0.5 mm and 0.7 mm
- Sold by
- The sheet — confirm the sheet size with your enquiry, it varies by stock
- Finish

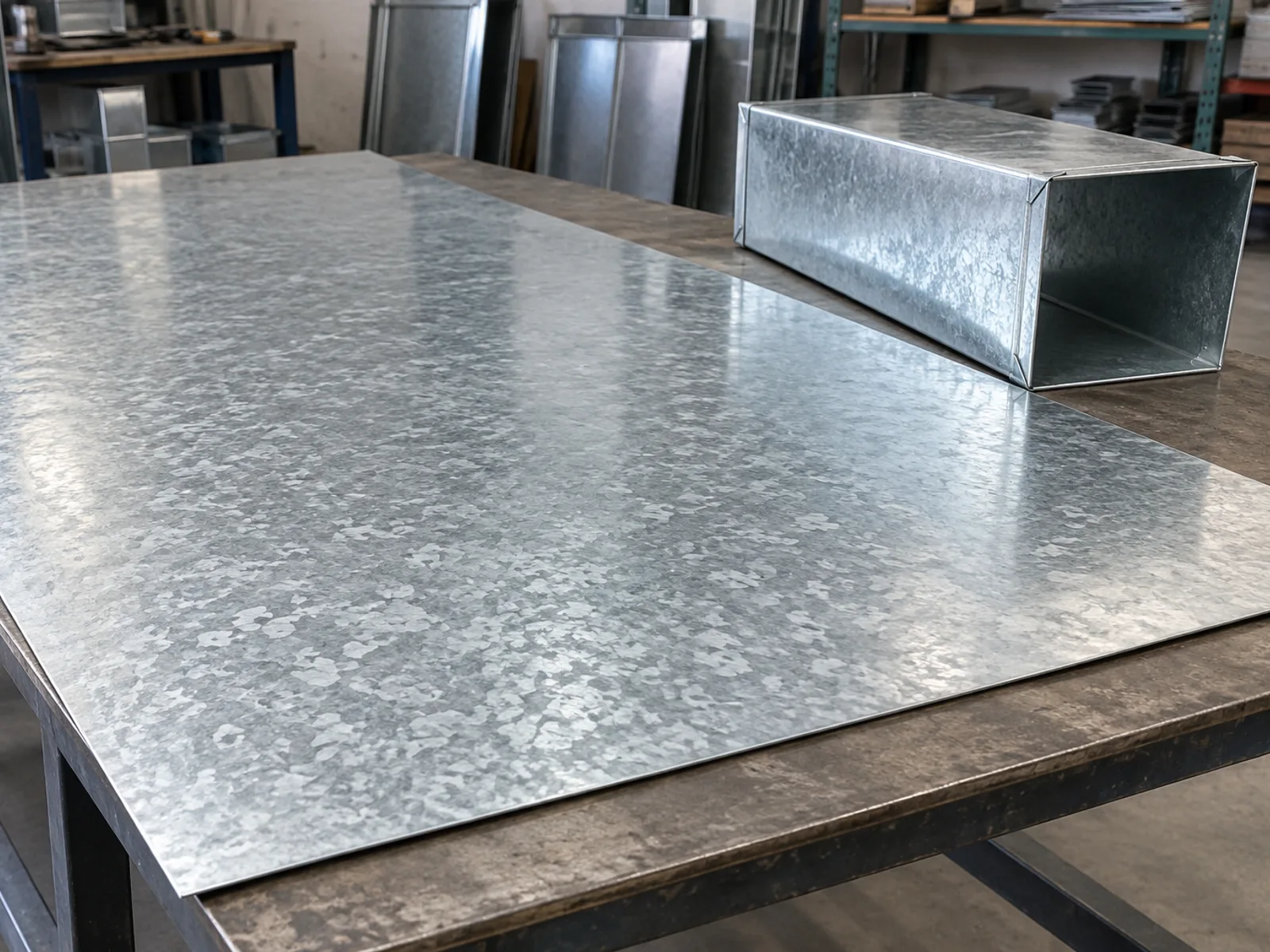

- Mill spangle; profiled or plain depending on stock
- Versus aluminium
- Heavier and stronger, and cheaper per sheet; aluminium wins where weight or corrosion matters
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
Not the right size?
Every option in the GI Sheets range. Tell us the quantity and all of them are quoted together.
Back to the full GI Sheets tableTechnical Procurement & Ordering Guides
10 drawings covering every answer we need to price GI Sheets — every figure comes from the price table above or from the published standard it is made to.
GI sheetsThree gauges, zinc both faces
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
GI Sheet 0.4mm — questions we get asked
Anything not covered here, ask on WhatsApp — you will get a person, not a form reply.
