Strut Channel — 41 × 41 Unistrut Type
Pipes, Pipework & Supports
Priced on enquiry
Priced against thickness, slotting and quantity. Hot-dip galvanised carries a premium over pre-galvanised.
Tell us the size and where it is going.
About this product
- What it is: Cold roll-formed channel with inturned lips, so a channel nut drops in anywhere along the…
- Sizes: 41 × 41 mm standard · 41 × 21 mm shallow · back-to-back for heavier runs
- Thickness: 1.5 · 2.0 · 2.5 · 3.0 mm
- Weights: 41 × 41 at 1.5 mm — 1.73 kg/m · 2.0 — 2.31 · 2.5 — 2.88 · 3.0 — 3.46 kg/m
- Slotting: Plain, or slotted at 50 mm centres. Slotted takes a bolt anywhere; plain is stiffer.
- Length: 3.0 m standard · 6.0 m to order
All 10 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| Strut channel 41 × 41 × 1.5 mm × 3.0 m | 1.73 kg/m · pre-galvanised · light services | Ask |
| Strut channel 41 × 41 × 2.0 mm × 3.0 m | 2.31 kg/m · pre-galvanised · the general-purpose section | Ask |
| Strut channel 41 × 41 × 2.5 mm × 3.0 m | 2.88 kg/m · the most-specified wall on MEP jobs | Ask |
| Strut channel 41 × 41 × 3.0 mm × 3.0 m | 3.46 kg/m · heavy runs and long spans between hangers | Ask |
| Strut channel 41 × 21 × 2.5 mm × 3.0 m | 2.10 kg/m · shallow section where depth is tight | Ask |
| Strut channel back-to-back 41 × 82 × 3.0 m | Two channels welded back to back for the heaviest runs | Ask |
| Strut channel — hot-dip galvanised | Any size · for external, coastal and plant-room use | Ask |
| Channel nut with spring | M6 to M12 · drops into the channel and locks on a quarter turn | Ask |
| Channel bracket — 90°, flat, or gusseted | Pre-galvanised or HDG · to suit 41 mm channel | Ask |
| Threaded rod and pipe clip to suit | M8 / M10 / M12 rod, and clips sized to the pipe | Ask |
- 1.73 kg/m · pre-galvanised · light servicesAsk on WhatsApp
- 2.31 kg/m · pre-galvanised · the general-purpose sectionAsk on WhatsApp
- 2.88 kg/m · the most-specified wall on MEP jobsAsk on WhatsApp
- 3.46 kg/m · heavy runs and long spans between hangersAsk on WhatsApp
- 2.10 kg/m · shallow section where depth is tightAsk on WhatsApp
- Two channels welded back to back for the heaviest runsAsk on WhatsApp
- Any size · for external, coastal and plant-room useAsk on WhatsApp
- M6 to M12 · drops into the channel and locks on a quarter turnAsk on WhatsApp
- Pre-galvanised or HDG · to suit 41 mm channelAsk on WhatsApp
- M8 / M10 / M12 rod, and clips sized to the pipeAsk on WhatsApp
Priced against thickness, slotting and quantity. Hot-dip galvanised carries a premium over pre-galvanised.
What it is

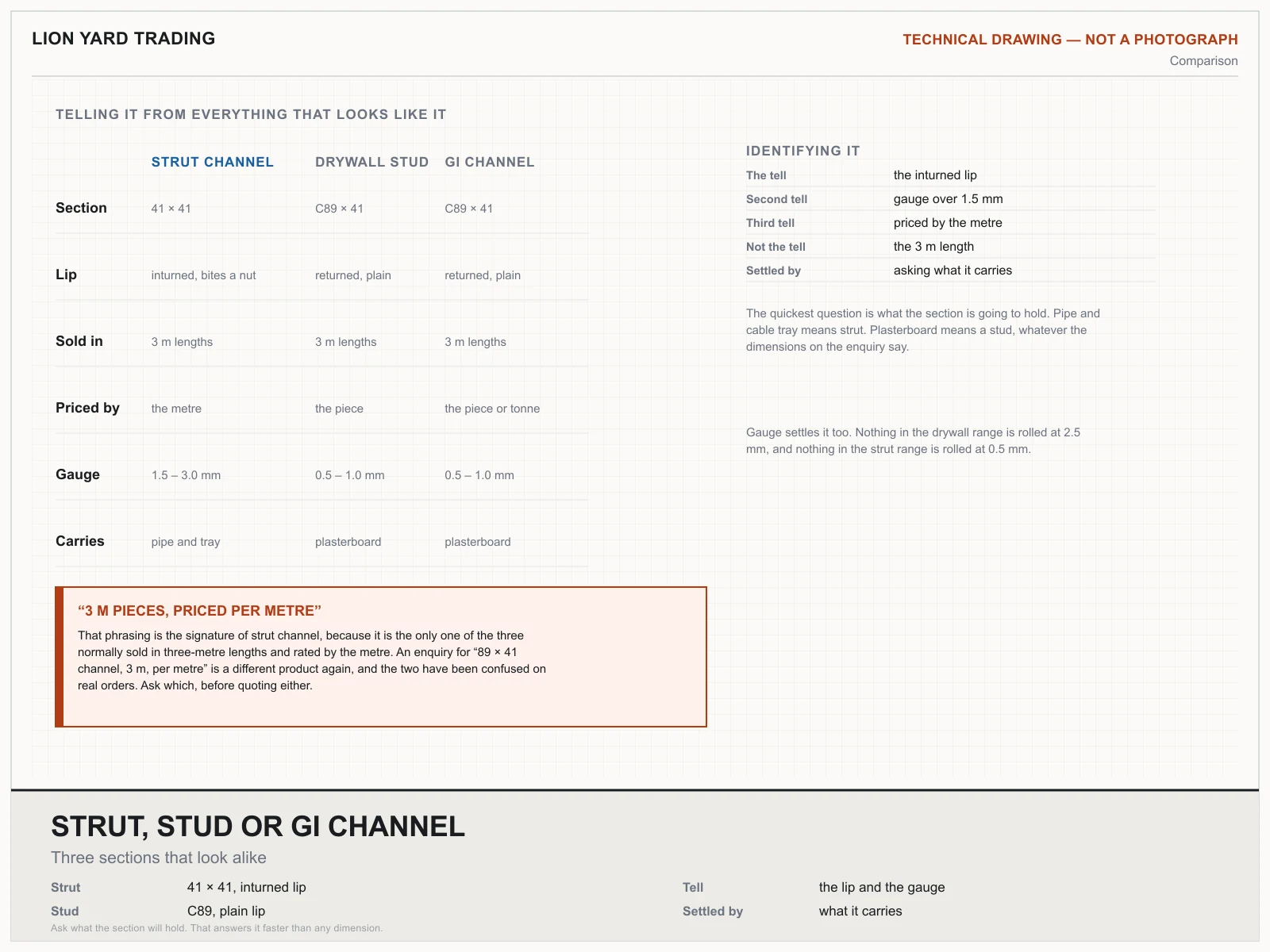

The slotted channel that carries pipe, cable tray and ducting under every ceiling on site. Sold in 3 m lengths and priced by the metre — which is why a quote for '3 m pieces, per metre' is almost always this and not a drywall stud.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is

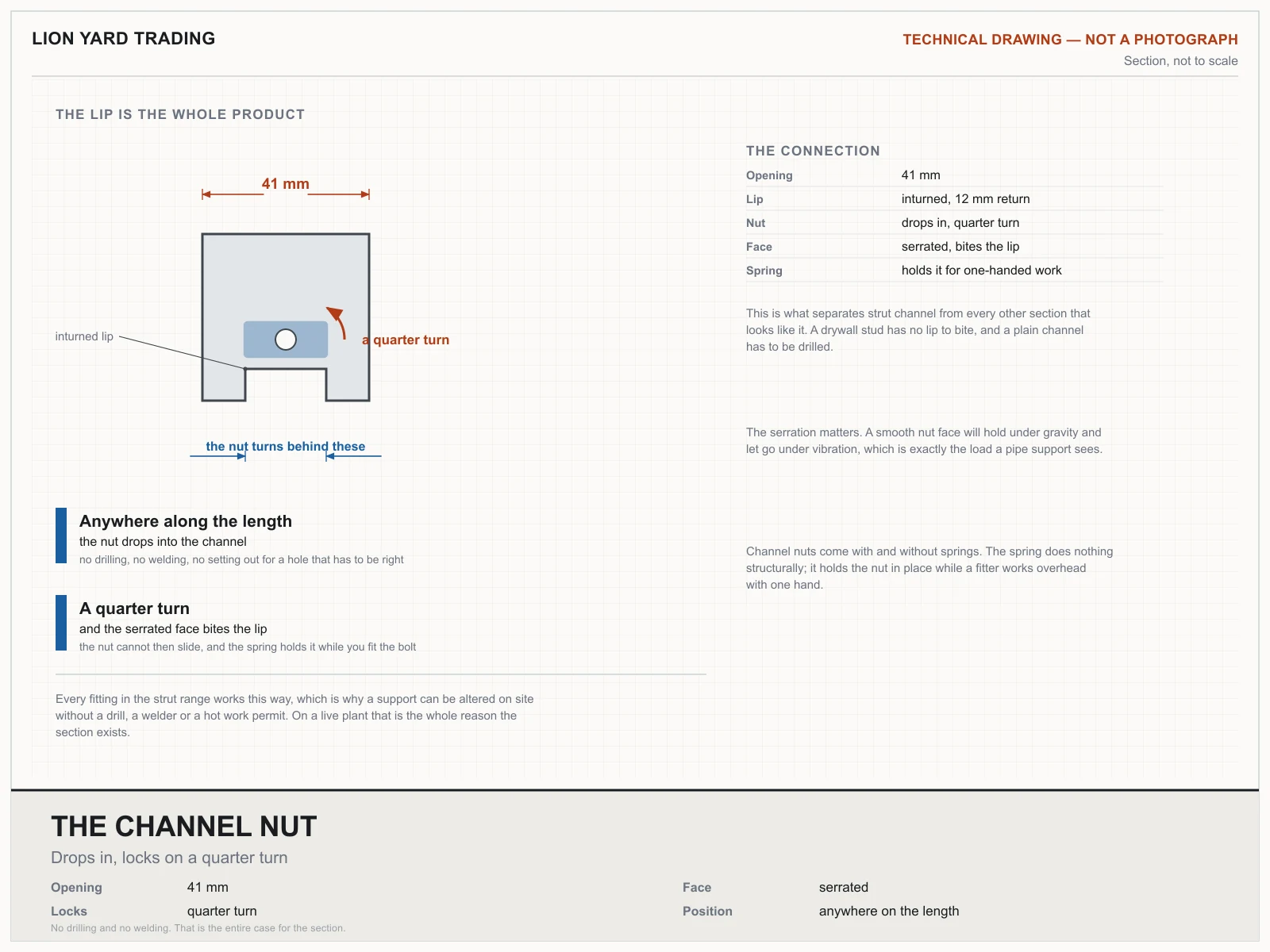

- Cold roll-formed channel with inturned lips, so a channel nut drops in anywhere along the length and locks with a quarter turn. Supports are built without drilling or welding.
- Sizes

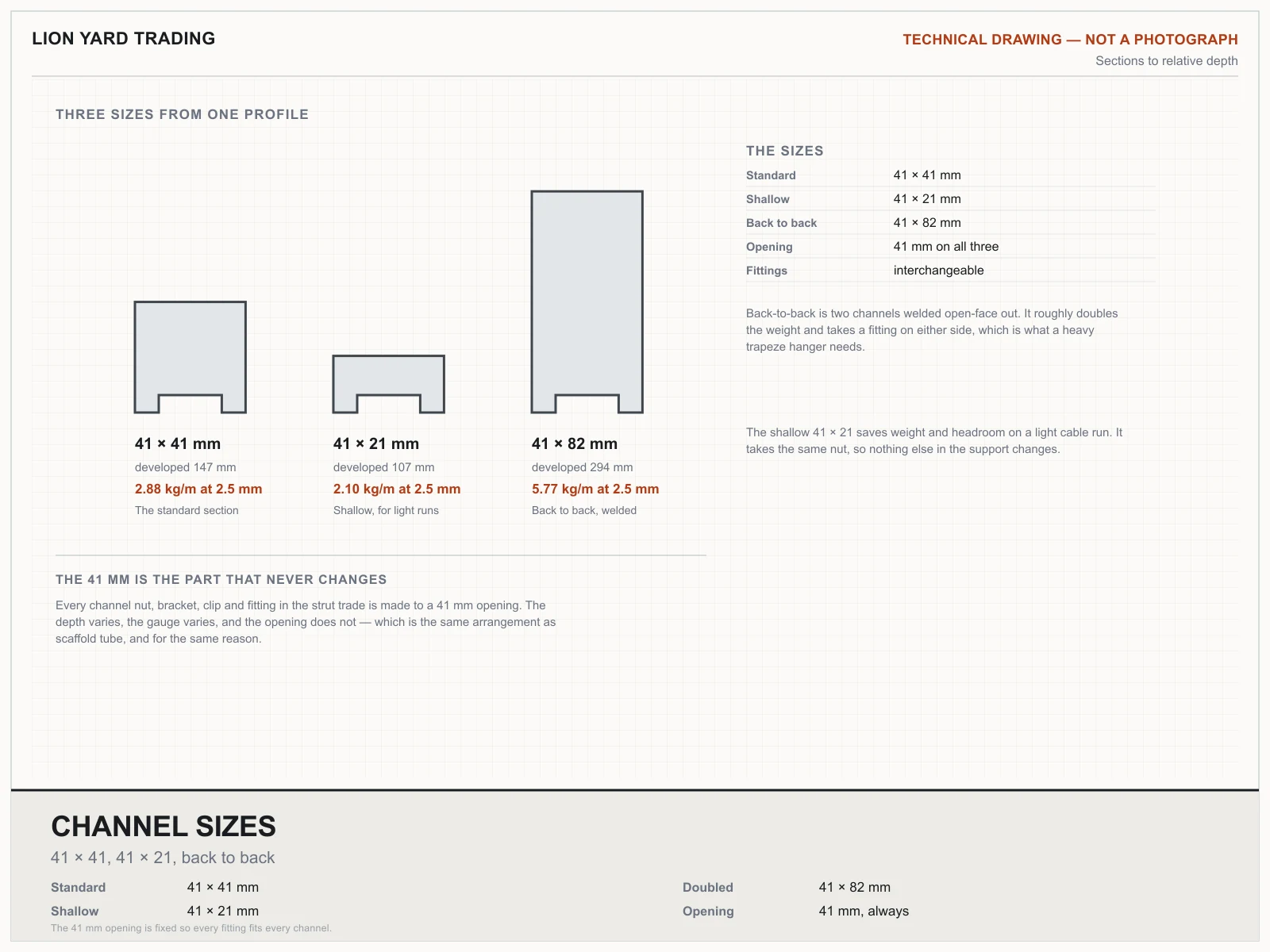

- 41 × 41 mm standard · 41 × 21 mm shallow · back-to-back for heavier runs
- Thickness
- 1.5 · 2.0 · 2.5 · 3.0 mm
- Weights

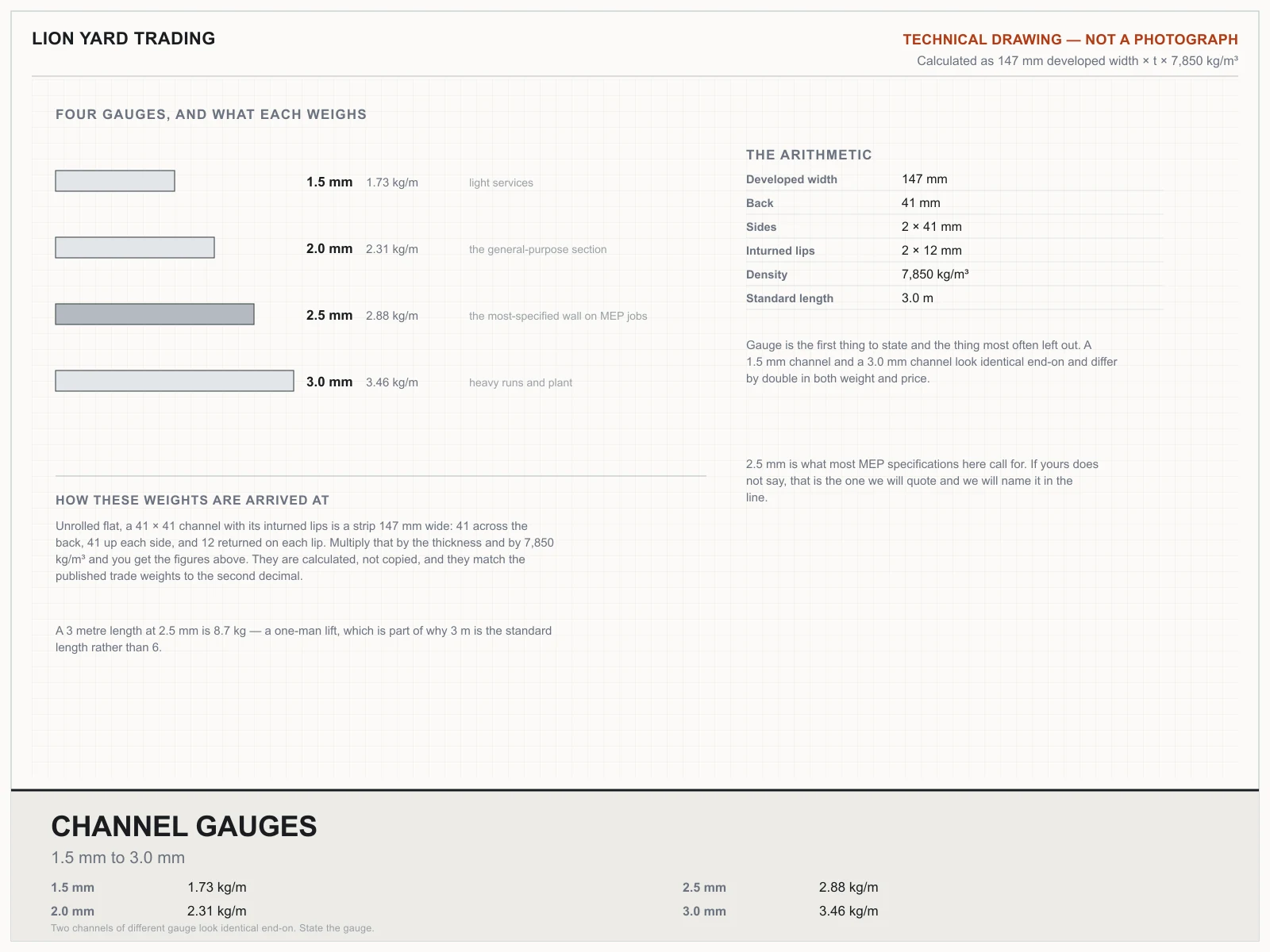

- 41 × 41 at 1.5 mm — 1.73 kg/m · 2.0 — 2.31 · 2.5 — 2.88 · 3.0 — 3.46 kg/m
- Slotting

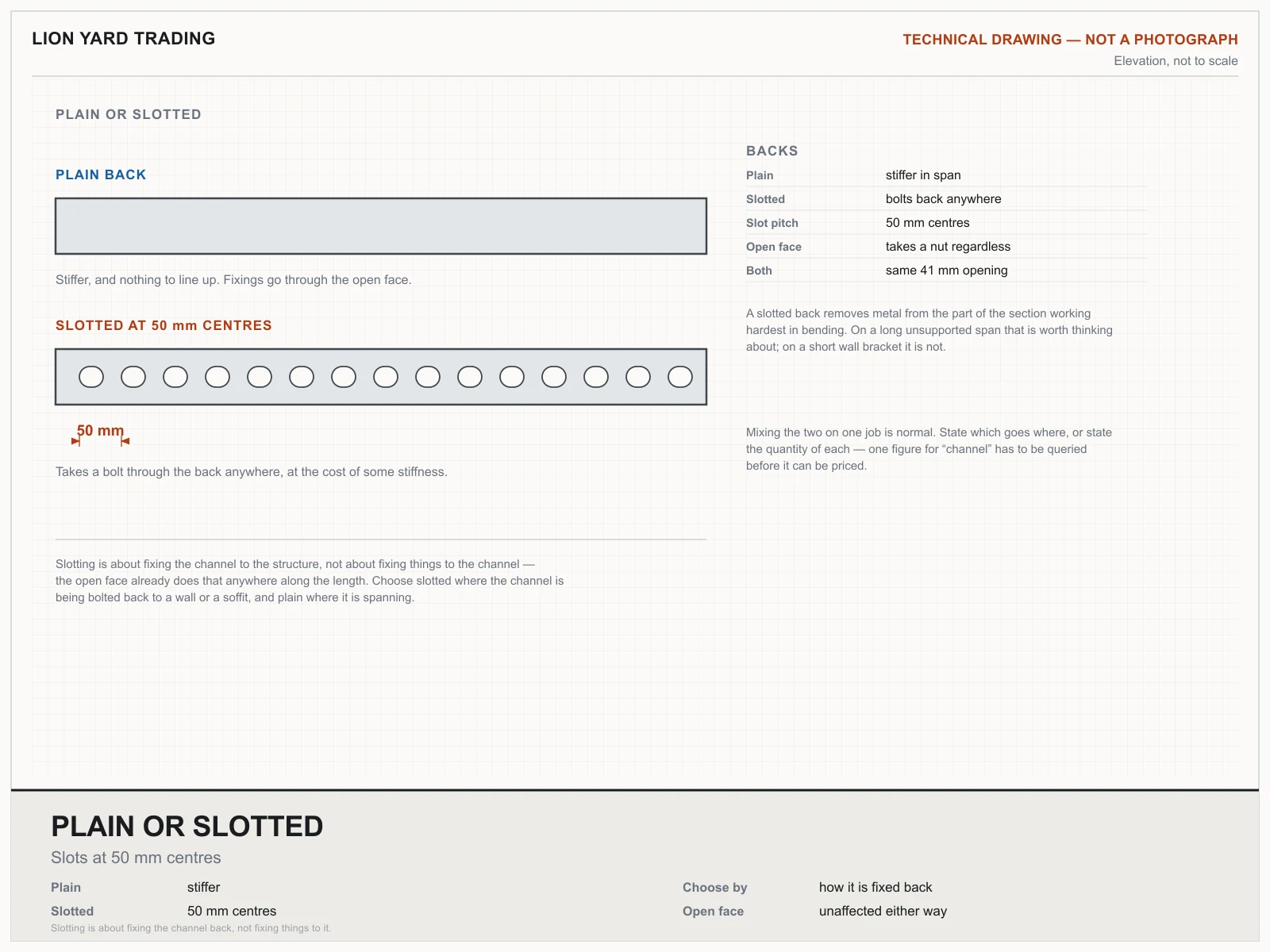

- Plain, or slotted at 50 mm centres. Slotted takes a bolt anywhere; plain is stiffer.
- Length

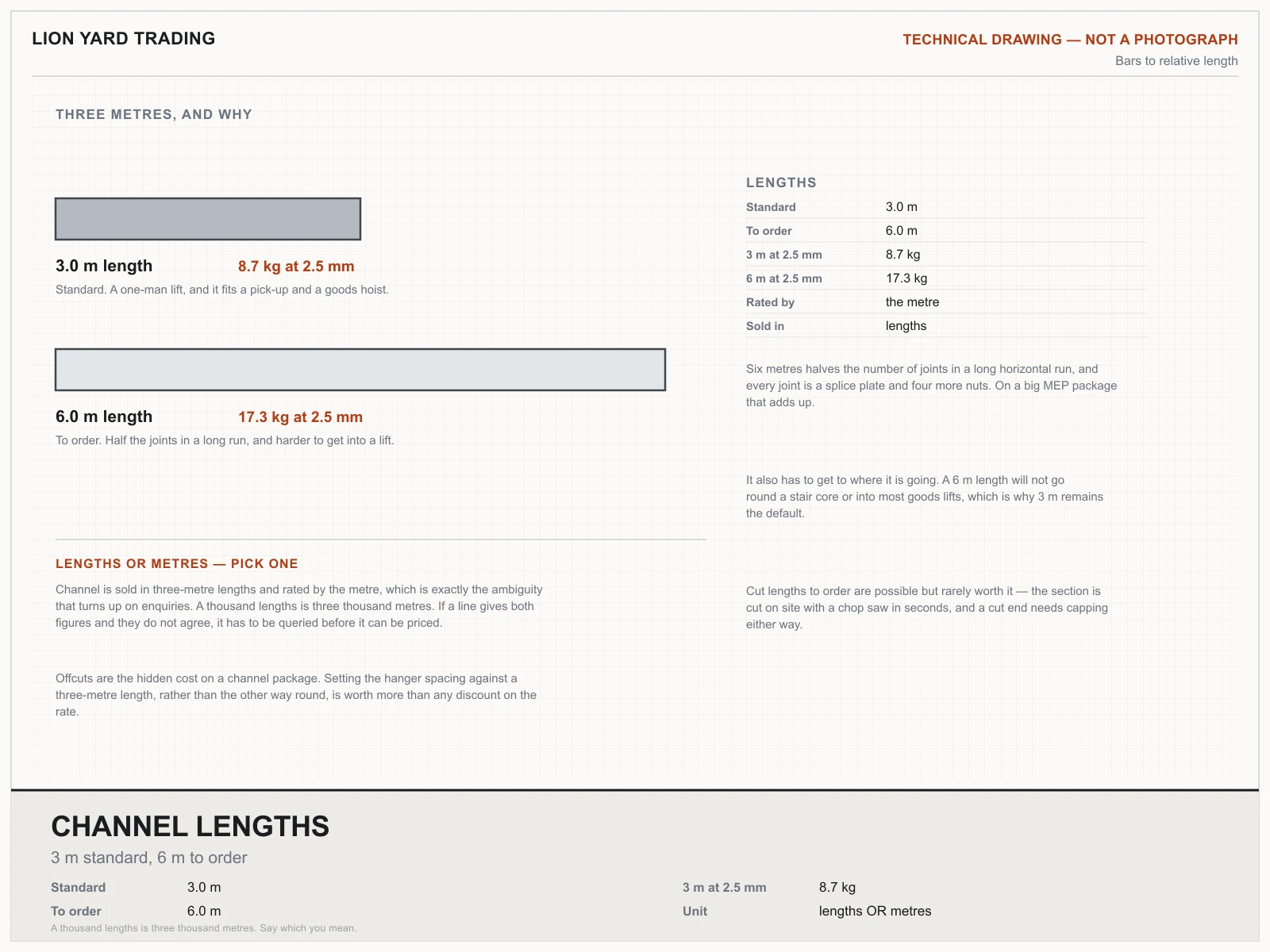

- 3.0 m standard · 6.0 m to order

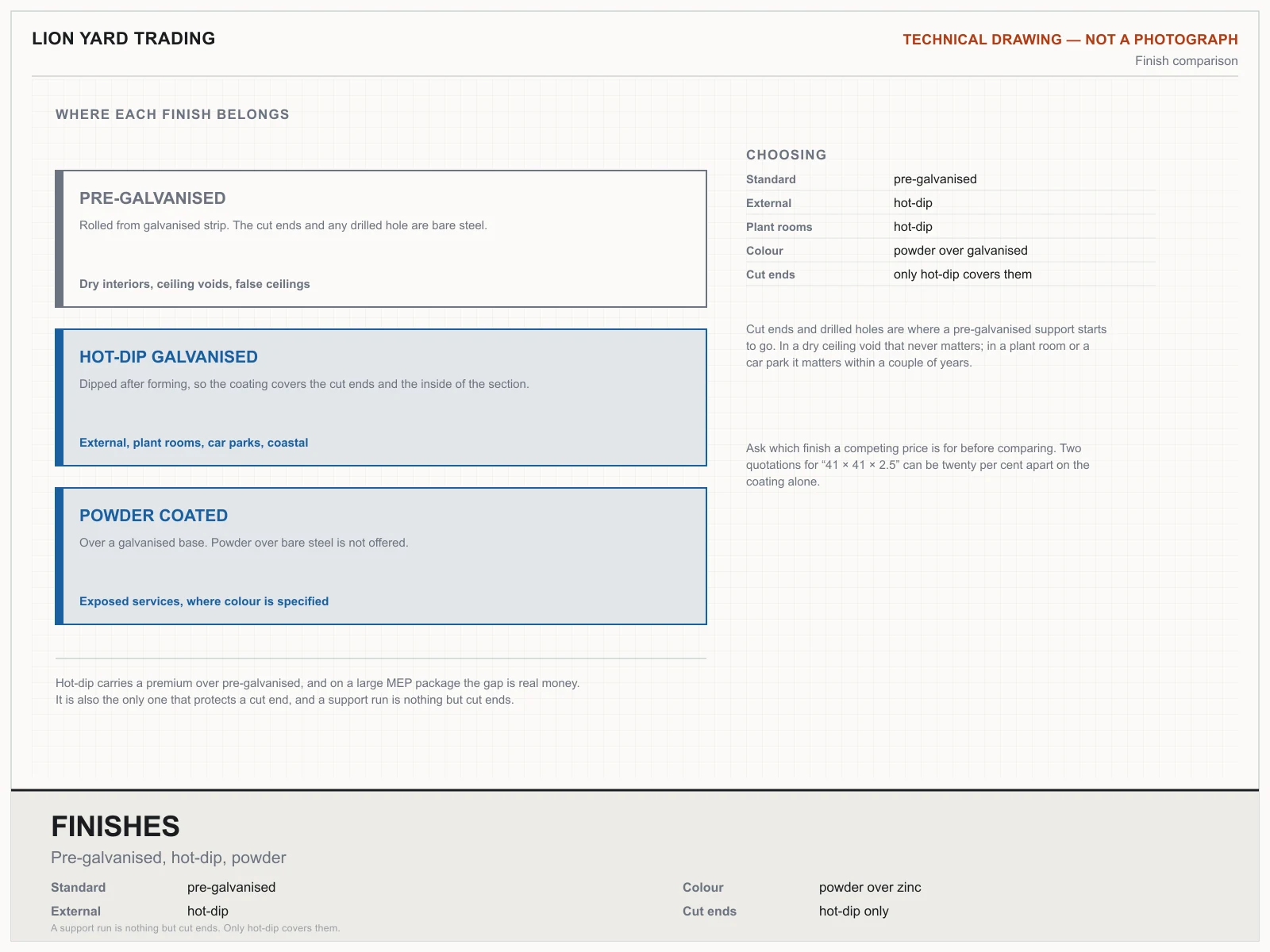

- Finish
- Pre-galvanised standard · hot-dip galvanised for external and plant rooms · powder coat on request
- Accessories

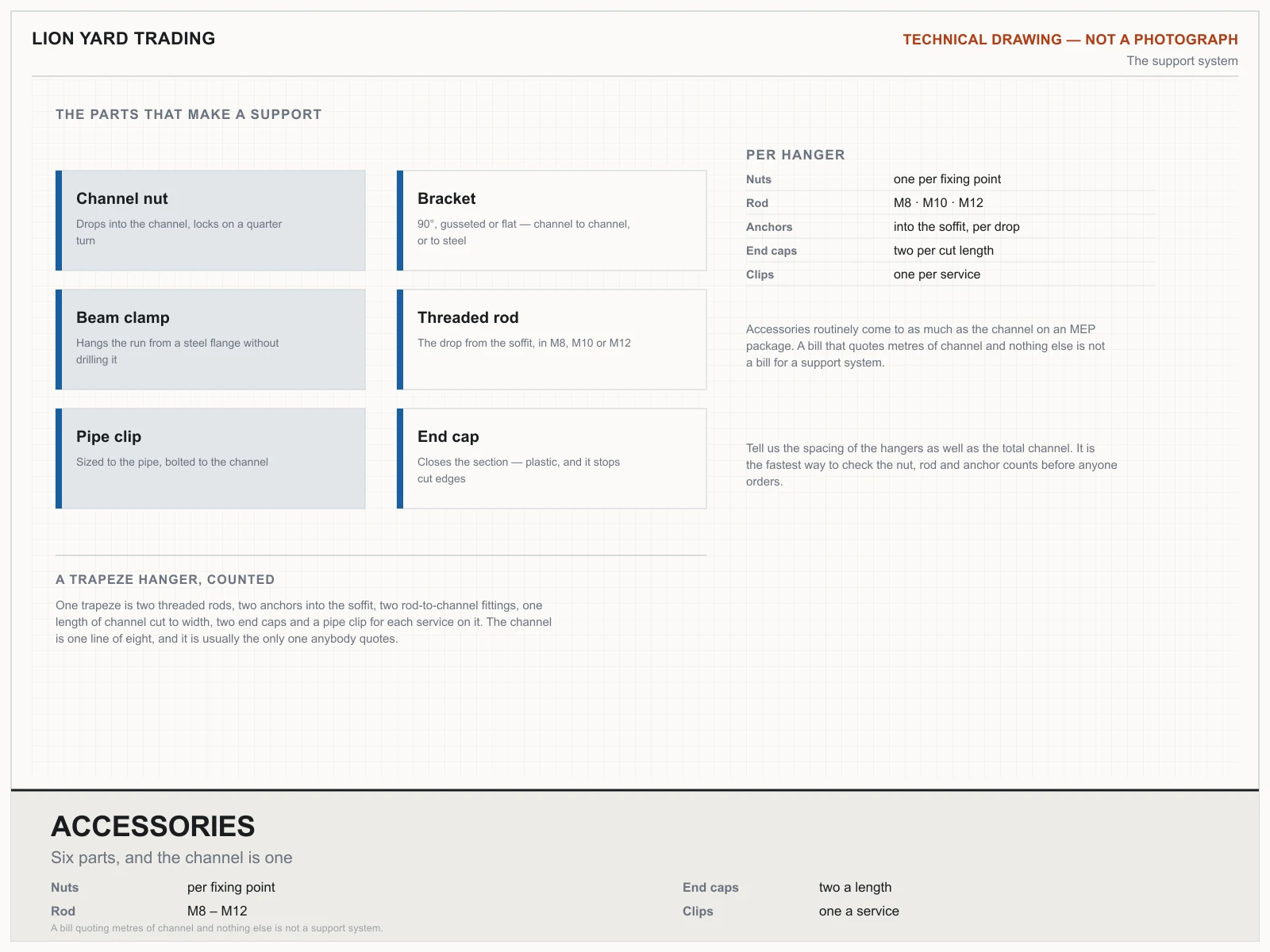

- Channel nuts, brackets, beam clamps, threaded rod, pipe clips and end caps
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Strut Channel — 41 × 41 Unistrut Type — every figure comes from the price table above or from the published standard it is made to.
Strut channel41 × 41, inturned lip
1 of 10

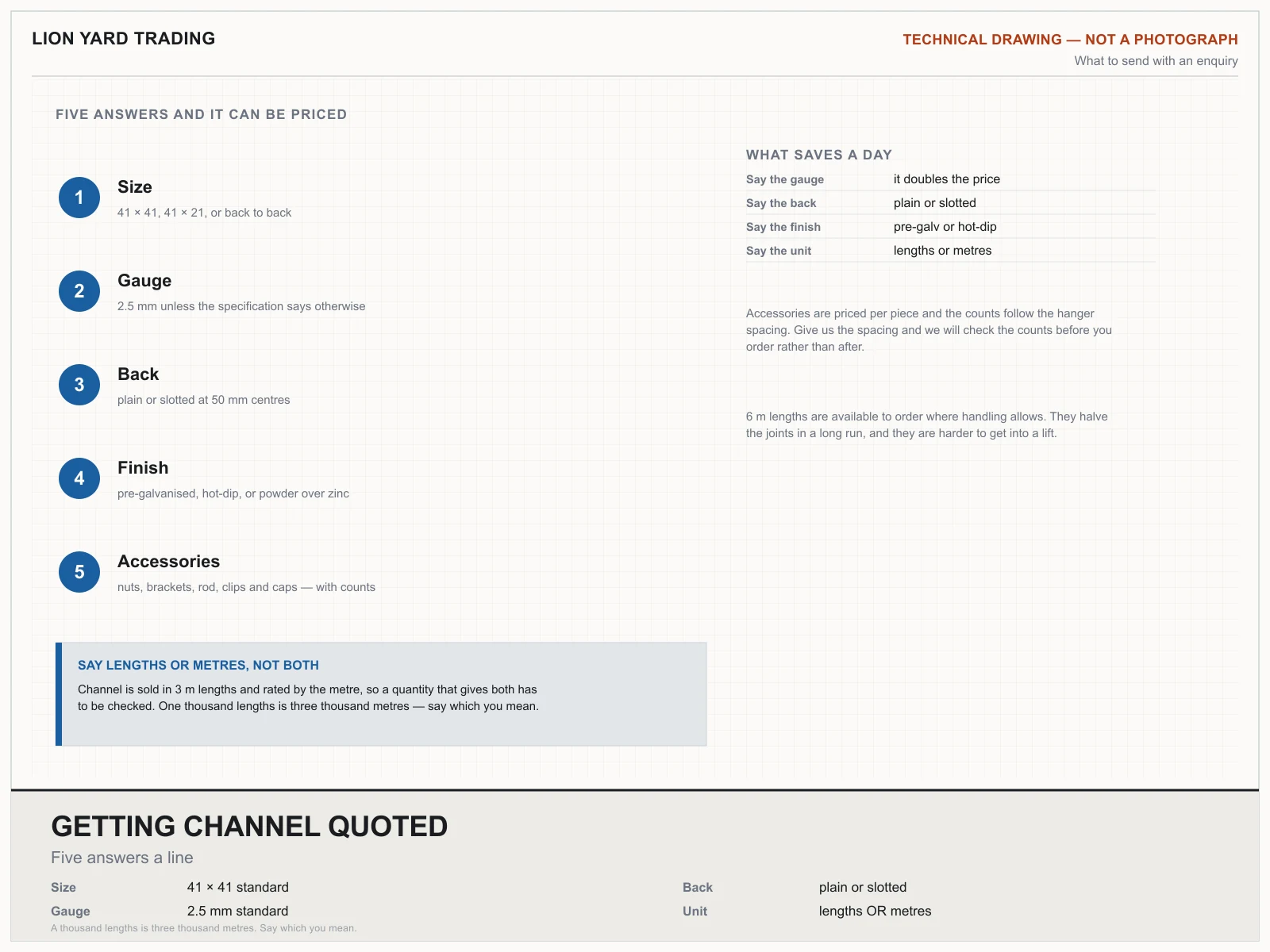

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your strut channel — 41 × 41 unistrut type?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
