Stainless Steel Pipe
Pipes, Pipework & Supports
Priced on enquiry
Grade and size change the price substantially, so this is quoted against your specification.
Tell us the size and where it is going.
About this product
- What it is: Pipe/tube in corrosion-resistant stainless steel, grade 304 (general corrosion…
- Who buys it: Food and beverage processing, chemical handling, architectural and handrail work, and any…
- Grade: 304 is the general-purpose grade; 316 costs more but is what a marine, coastal or…

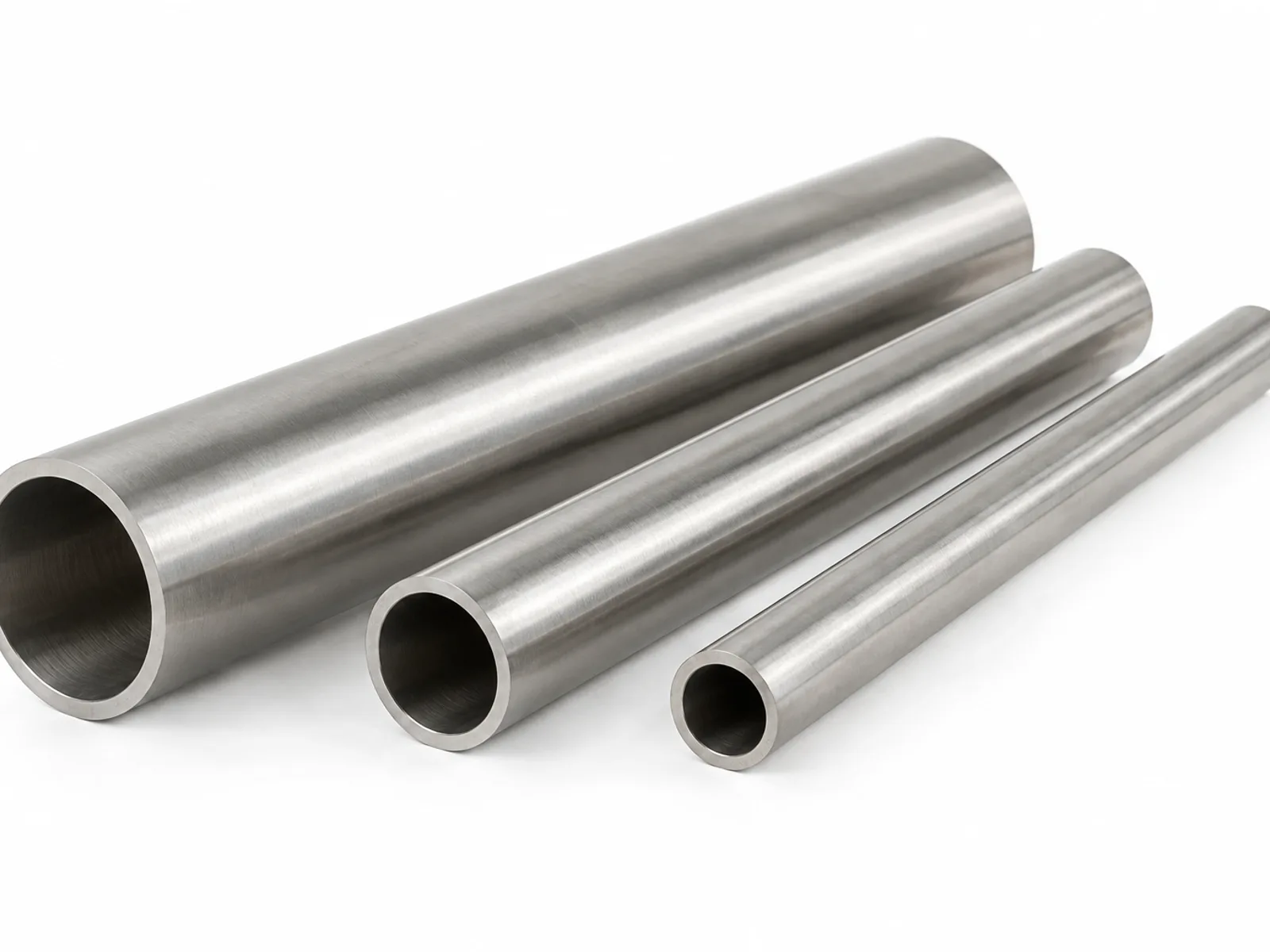

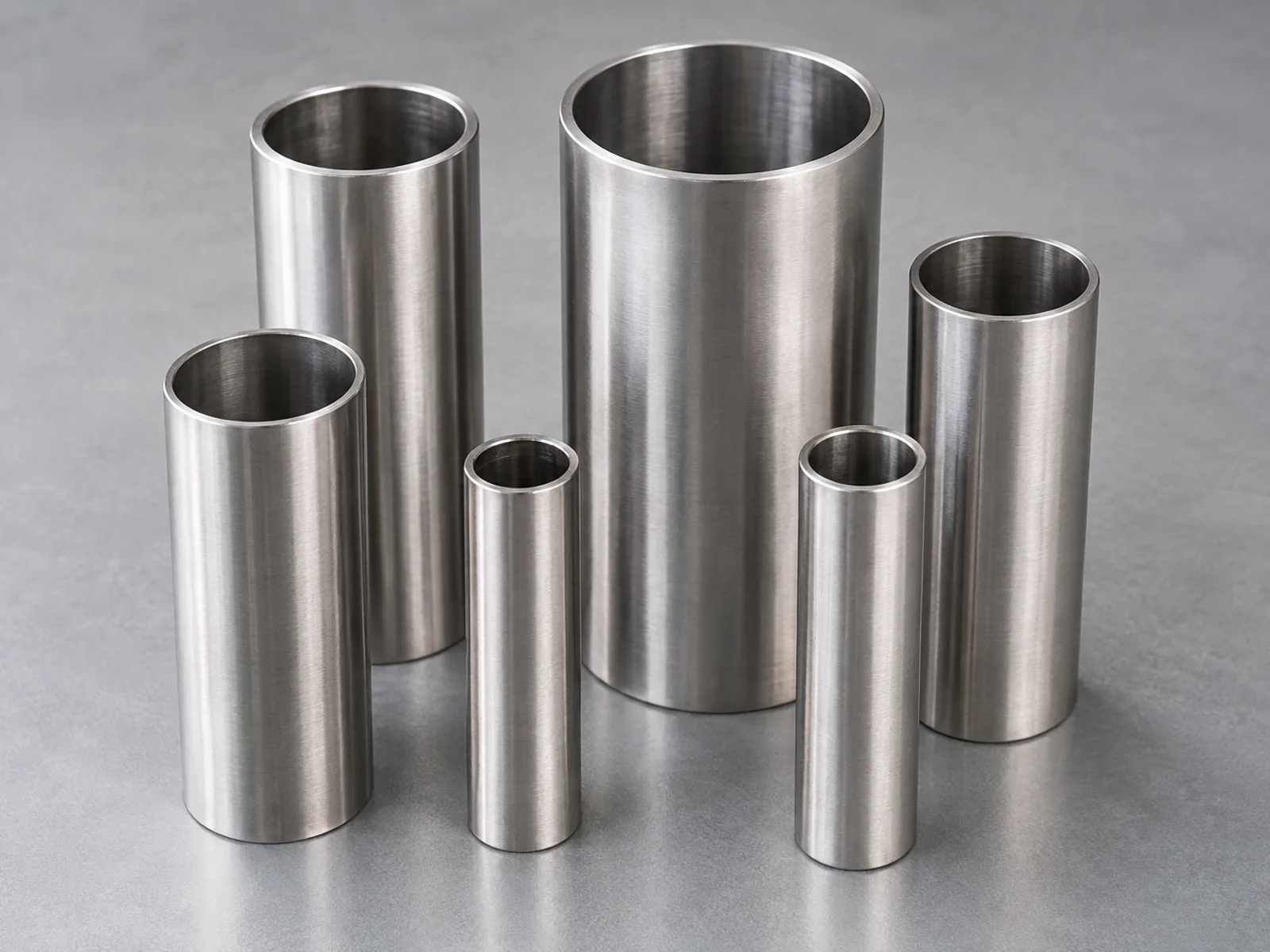

- Sizing: 1, 2 and 3 inch nominal the common stock range, in standard lengths.
- Delivery: All 7 Emirates from our own yard.
- Installation service: Supply only, or supplied and installed by our own crew rather than a subcontractor.
All 5 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| 1 inch — Grade 304LY-BLDG-076 | 1 inch nominal bore. | Ask |
| 1 inch — Grade 316LY-BLDG-077 | 1 inch nominal bore. Higher corrosion resistance, including chloride exposure — the grade for marine, coastal or chemical applications. | Ask |
| 2 inch — Grade 304LY-BLDG-078 | 2 inch nominal bore. | Ask |
| 2 inch — Grade 316LY-BLDG-079 | 2 inch nominal bore. Higher corrosion resistance, including chloride exposure — the grade for marine, coastal or chemical applications. | Ask |
| 3 inch — Grade 304LY-BLDG-080 | 3 inch nominal bore. | Ask |
- 1 inch nominal bore.Ask on WhatsApp
- 1 inch nominal bore. Higher corrosion resistance, including chloride exposure — the grade for marine, coastal or chemical applications.Ask on WhatsApp
- 2 inch nominal bore.Ask on WhatsApp
- 2 inch nominal bore. Higher corrosion resistance, including chloride exposure — the grade for marine, coastal or chemical applications.Ask on WhatsApp
- 3 inch nominal bore.Ask on WhatsApp
Grade and size change the price substantially, so this is quoted against your specification.
What it is

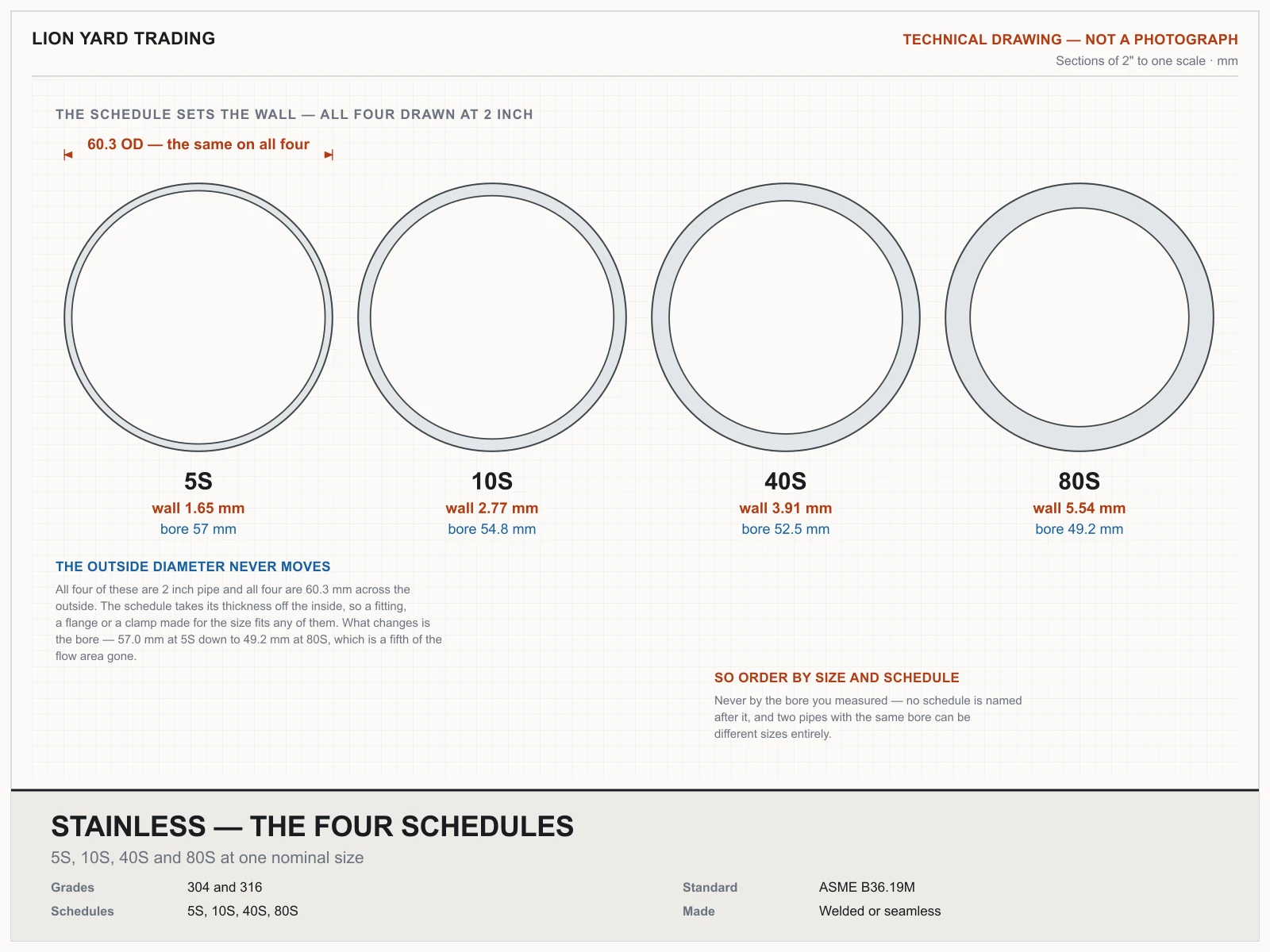

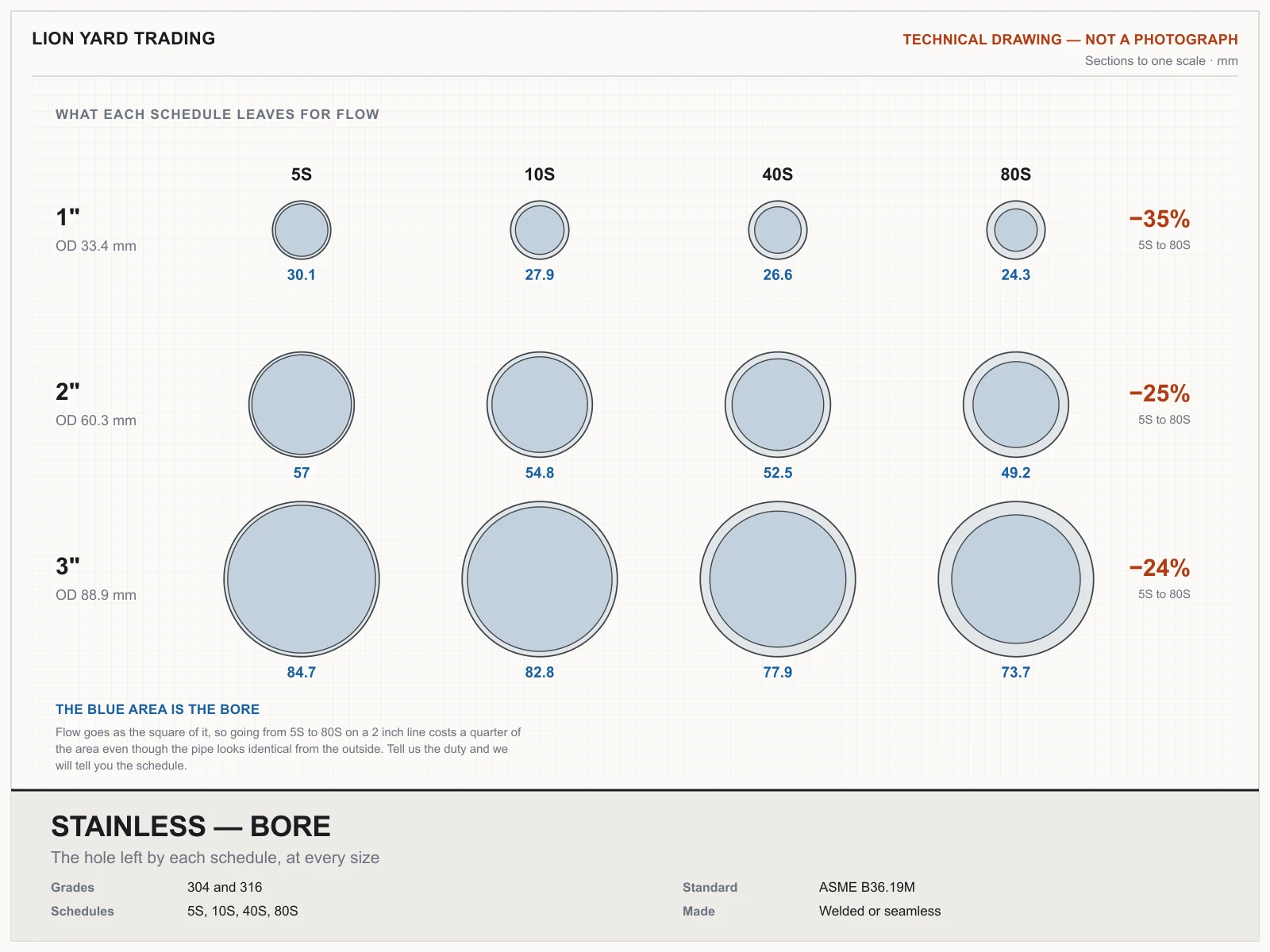

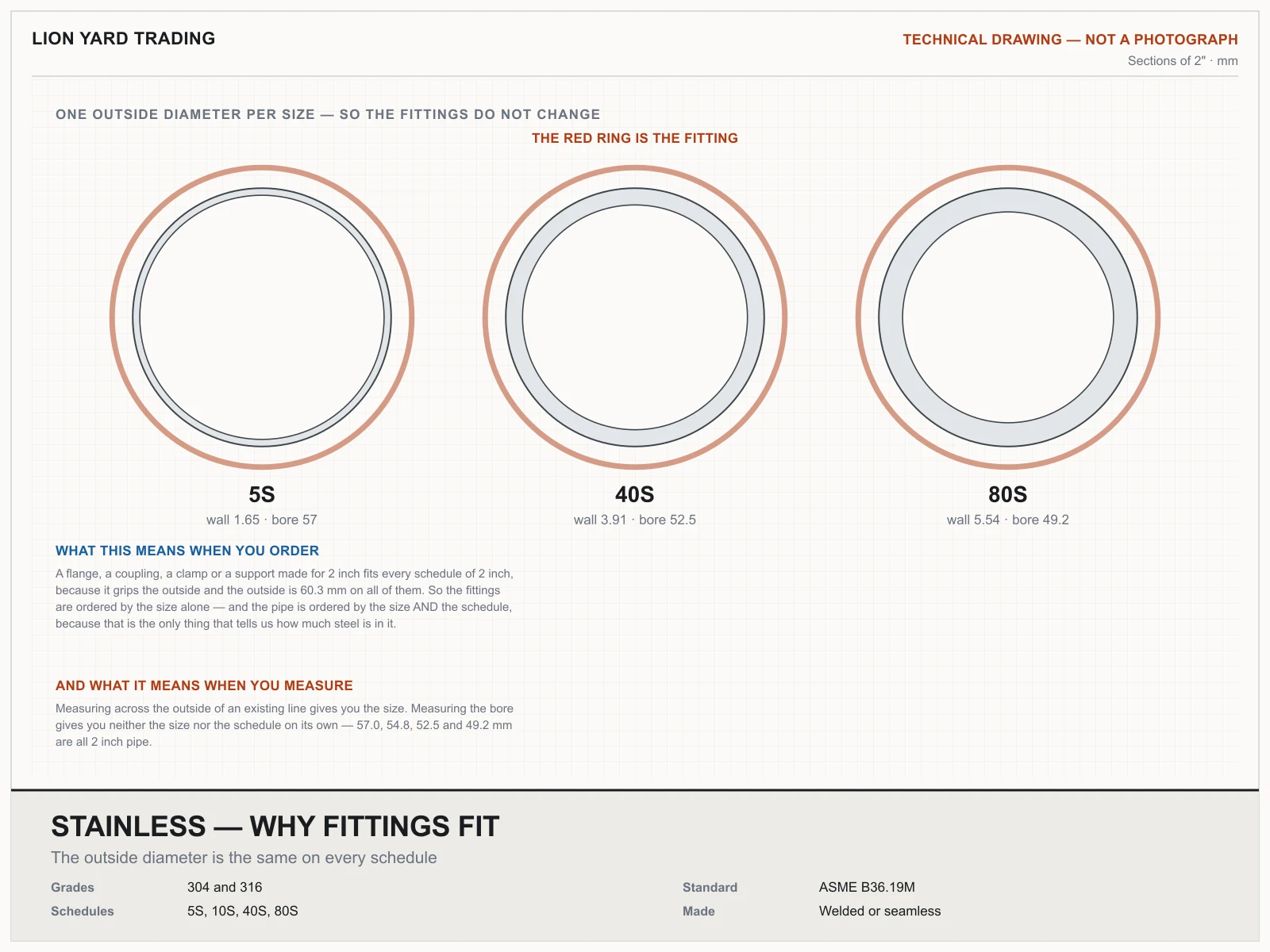

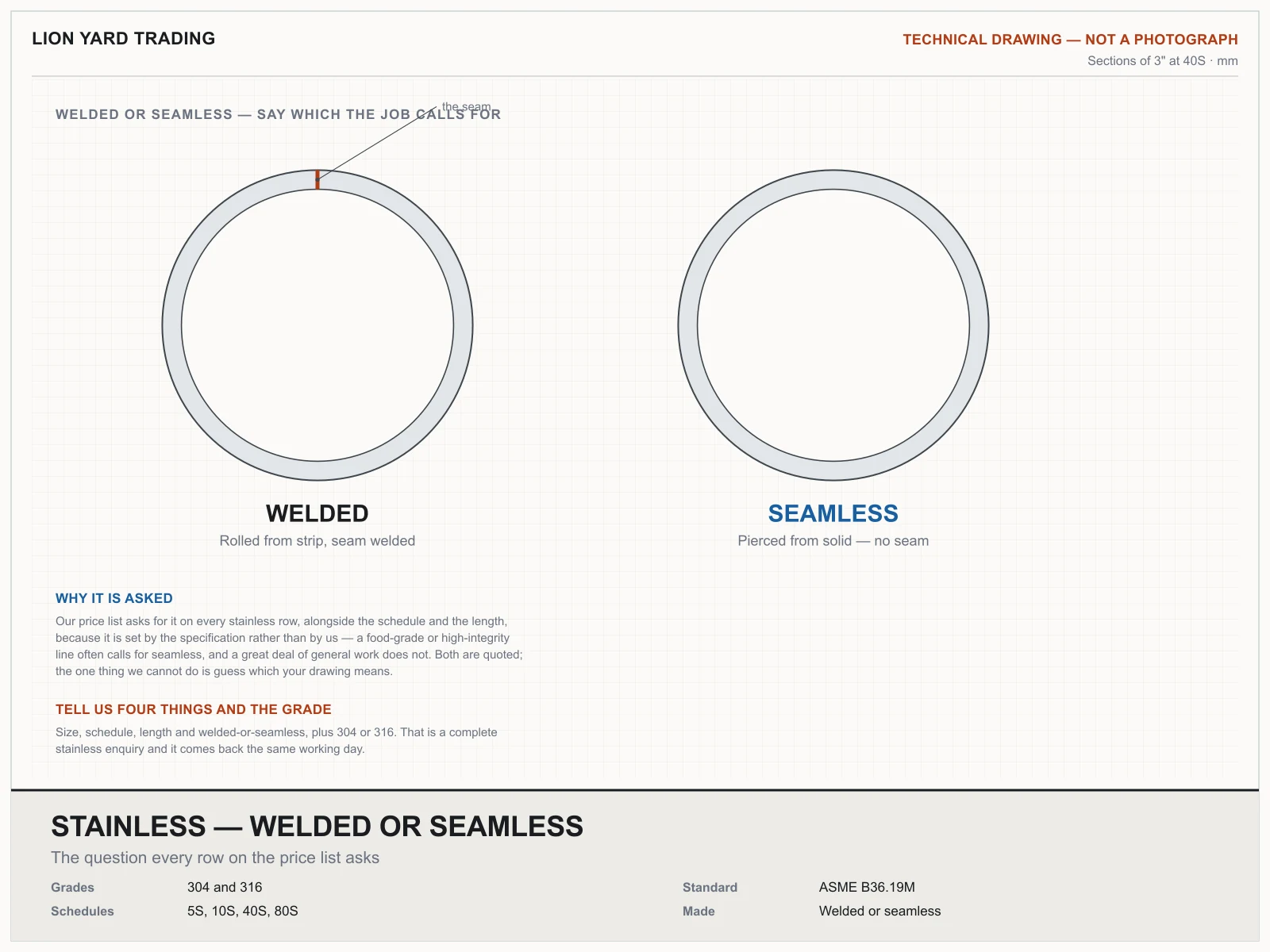

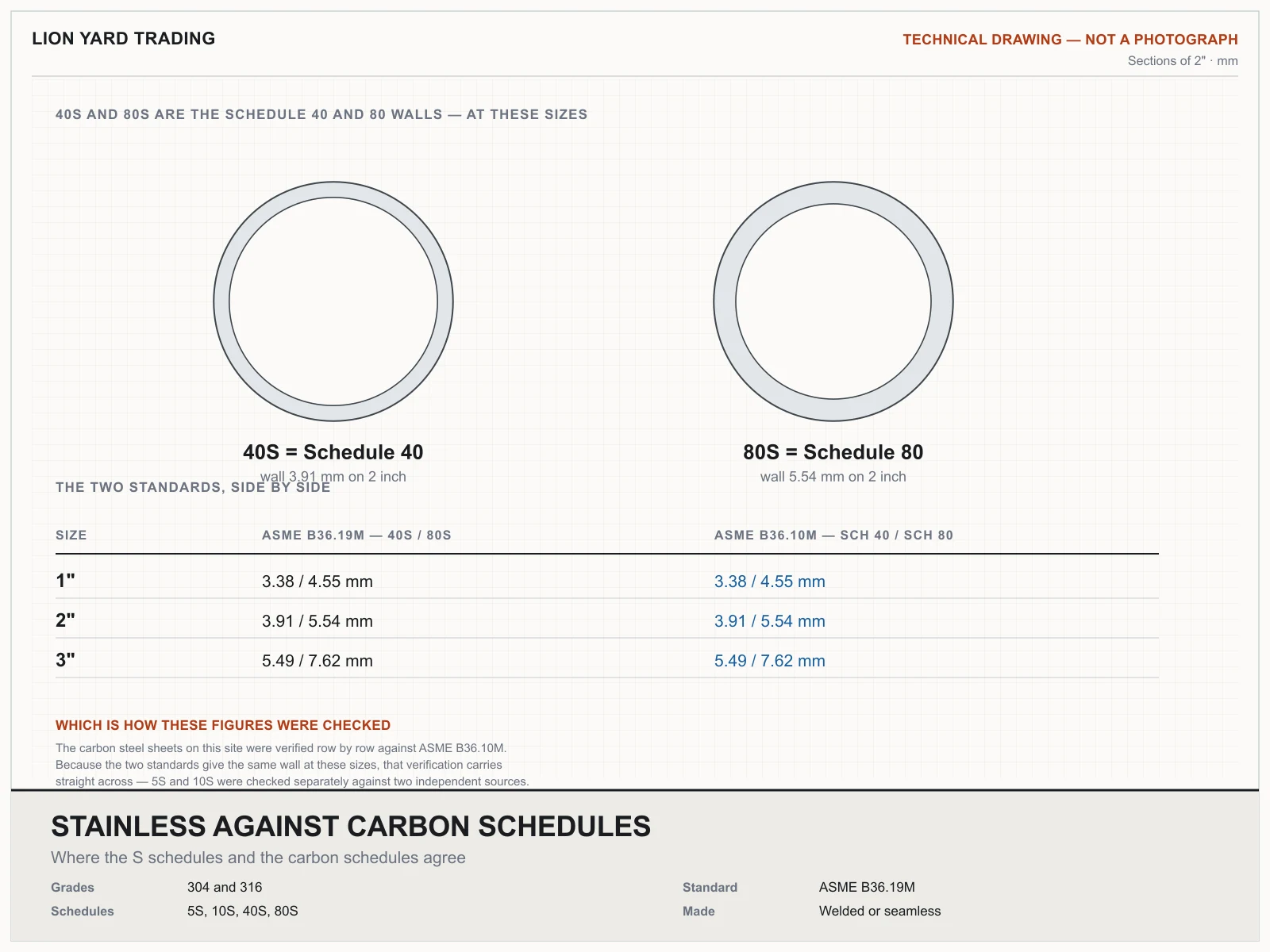

Grade 304/316 stainless steel pipe and tube for food-grade, corrosive or architectural applications. The schedule sets the wall, not the bore: 5S, 10S, 40S and 80S under ASME B36.19M, with 40S the usual general-purpose choice. 304 is the standard grade unless the application is marine, coastal or chemical, where 316 gives higher corrosion resistance including chloride exposure. Tell us the schedule, the length, and whether the job calls for welded or seamless.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is
- Pipe/tube in corrosion-resistant stainless steel, grade 304 (general corrosion resistance) or 316 (higher resistance, including chloride/marine exposure).
- Who buys it

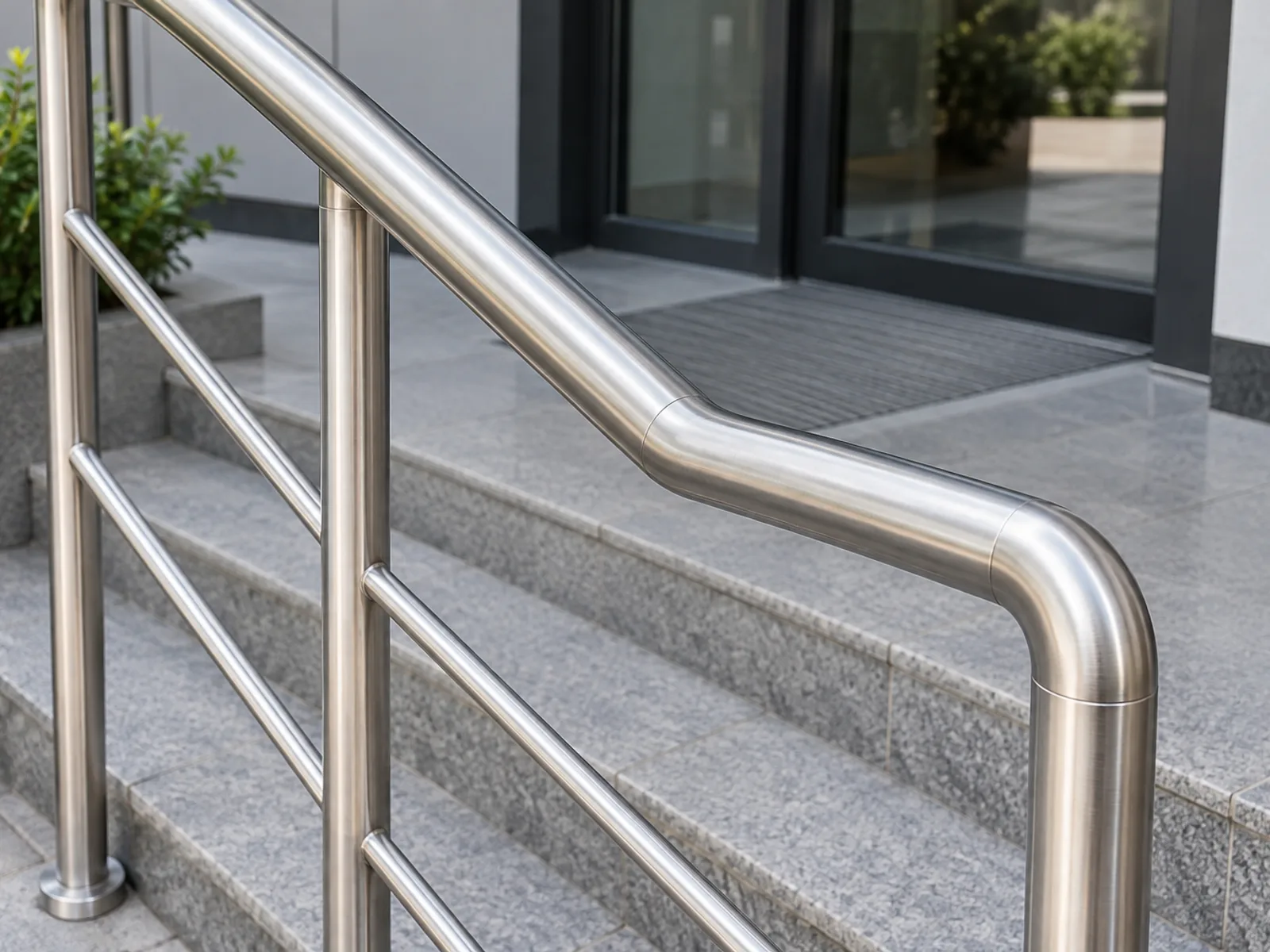

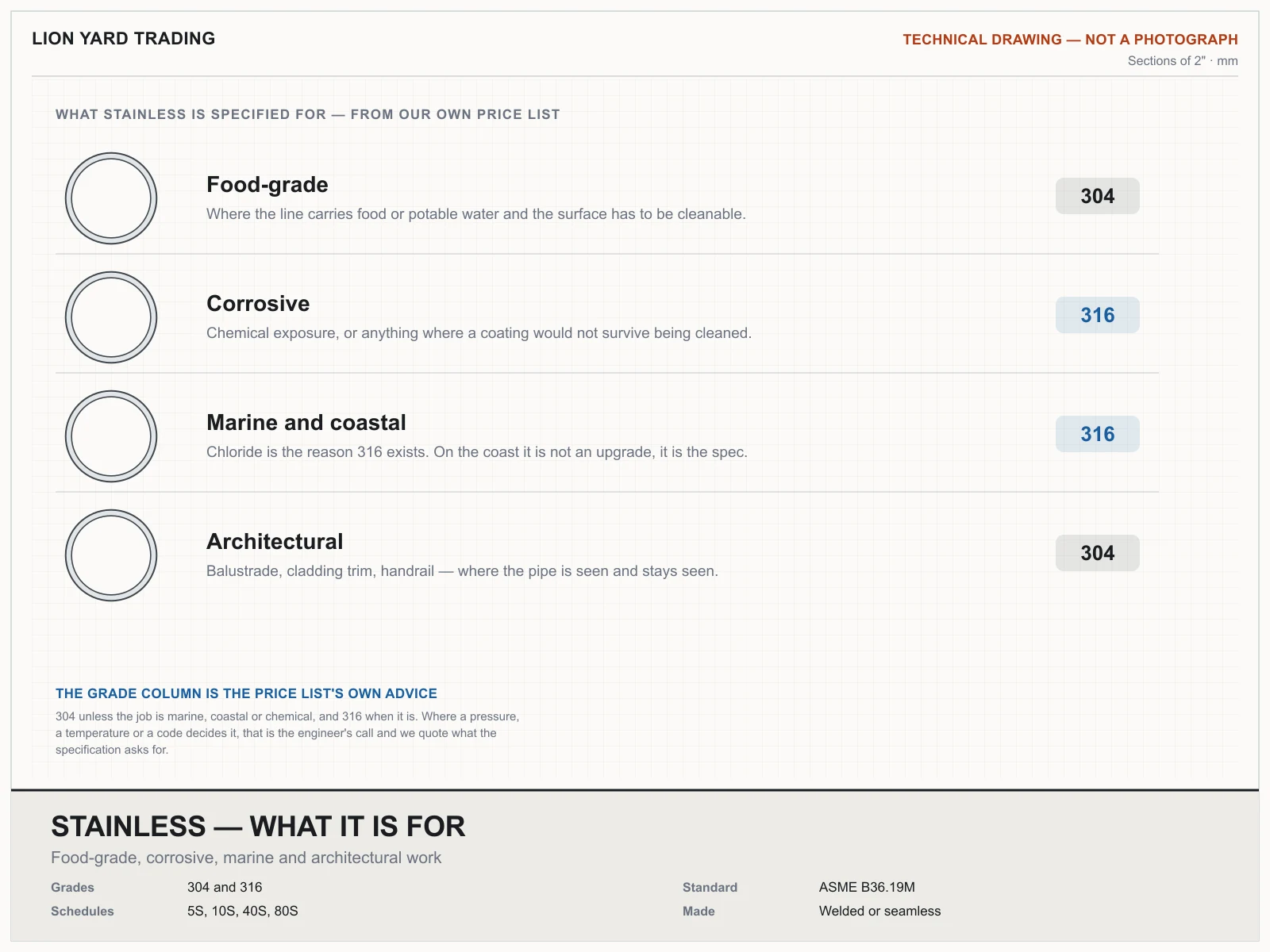

- Food and beverage processing, chemical handling, architectural and handrail work, and any coastal or corrosive-environment application where galvanized steel will not last.
- Grade

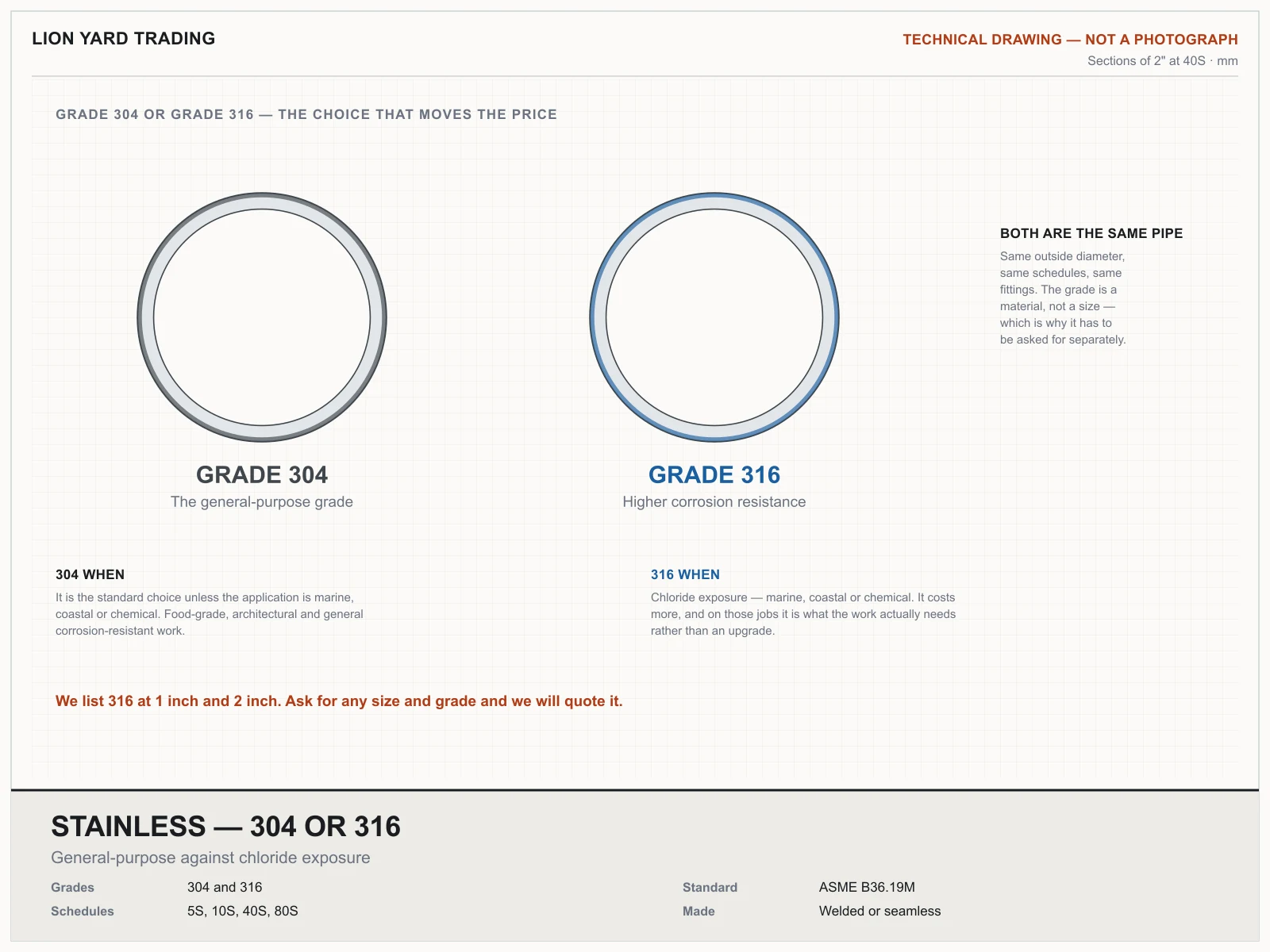

- 304 is the general-purpose grade; 316 costs more but is what a marine, coastal or chemical-exposure job actually needs - using 304 in that environment is a false saving.
- Sizing
- 1, 2 and 3 inch nominal the common stock range, in standard lengths.
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation service
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Say the grade (304 or 316) the application needs. Priced per piece or per project quantity, excluding 5% VAT.
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Stainless Steel Pipe — every figure comes from the price table above or from the published standard it is made to.

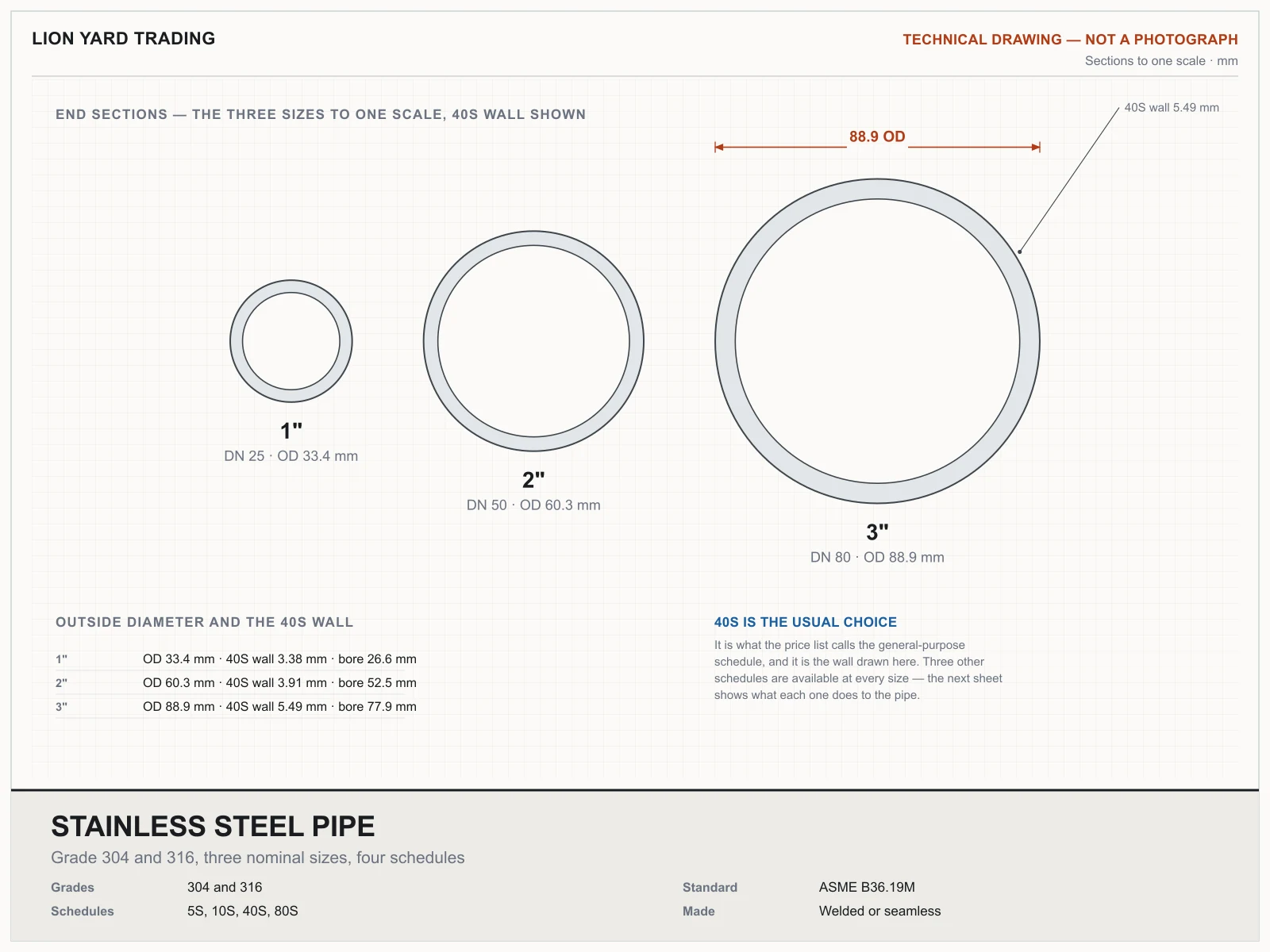

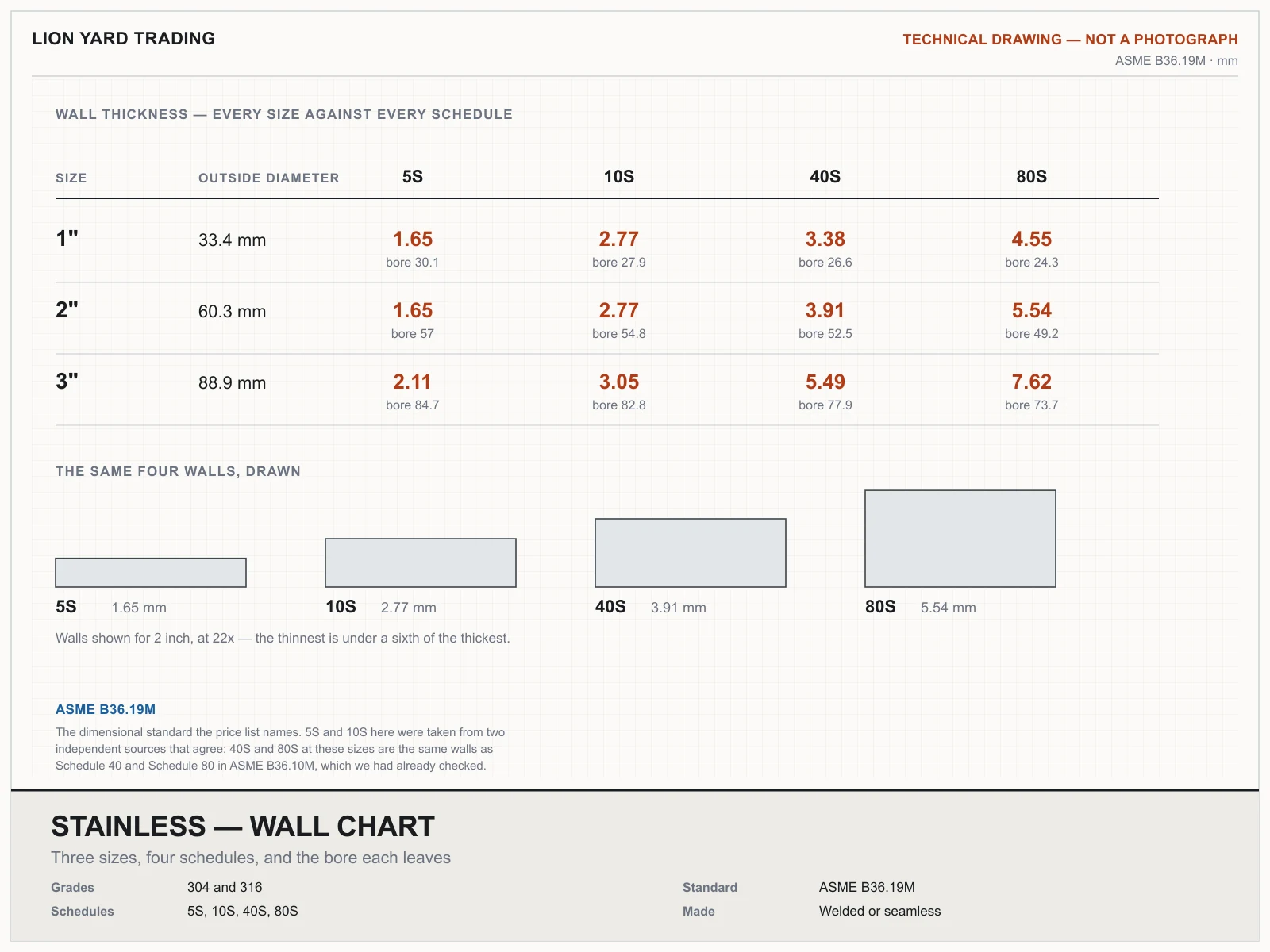

SizeThree sizes at one true scale
1 of 10

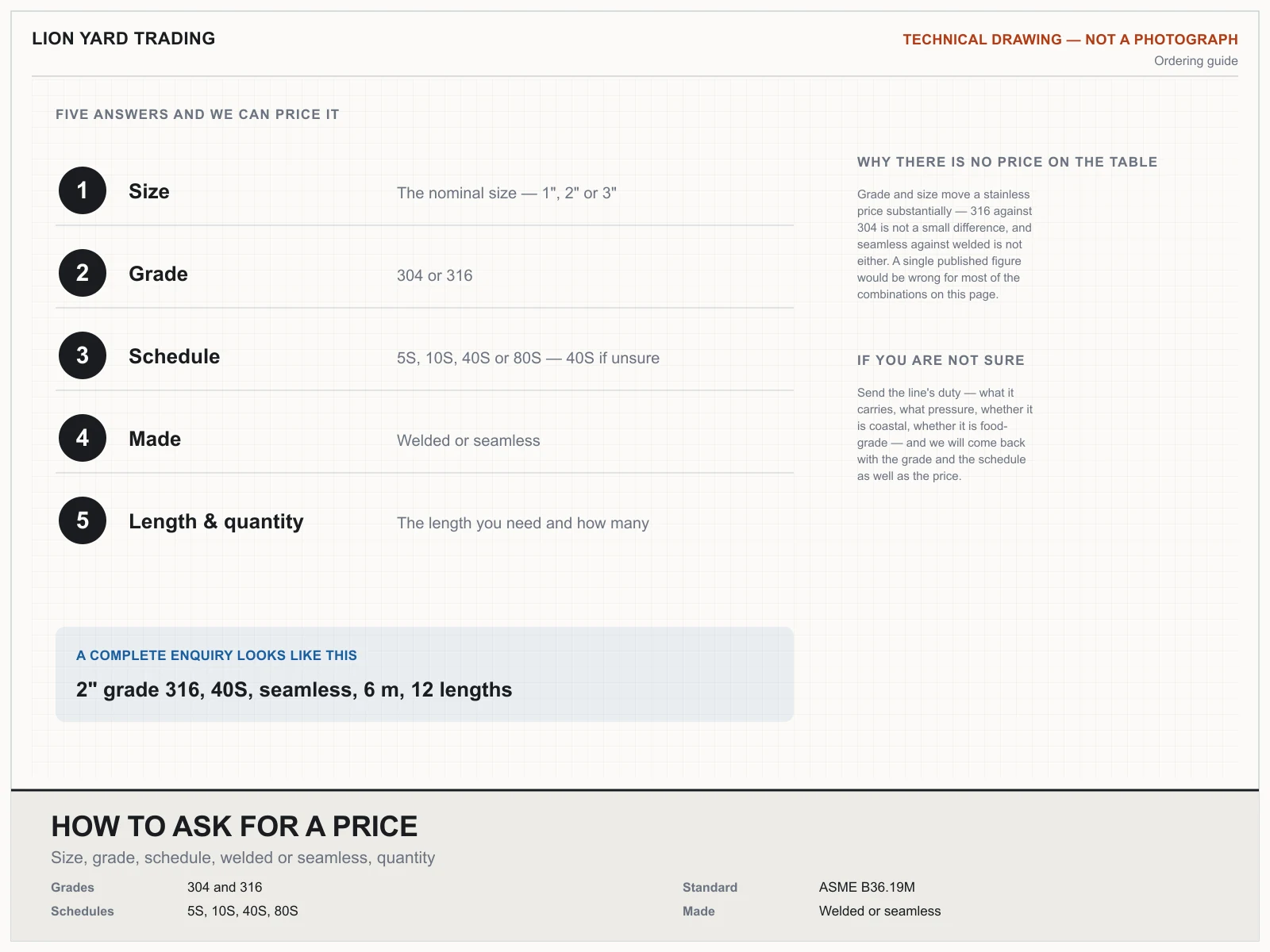

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your stainless steel pipe?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
