PVC Pipe
Pipes, Pipework & Supports
4sizes10technical drawings
Priced on enquiry
Class (drainage vs pressure-rated) and quantity change the price, so this is quoted against your requirement.
Tell us the size and where it is going.
About this product
- What it is: Unplasticised PVC (uPVC) pipe, rigid, for gravity drainage or pressure water lines…
- Who buys it: Drainage and civil contractors, plumbers, and landscaping/irrigation contractors.
- Classes: Drainage/sewerage (unpressured, solvent-weld or rubber-ring joint) versus pressure-rated…

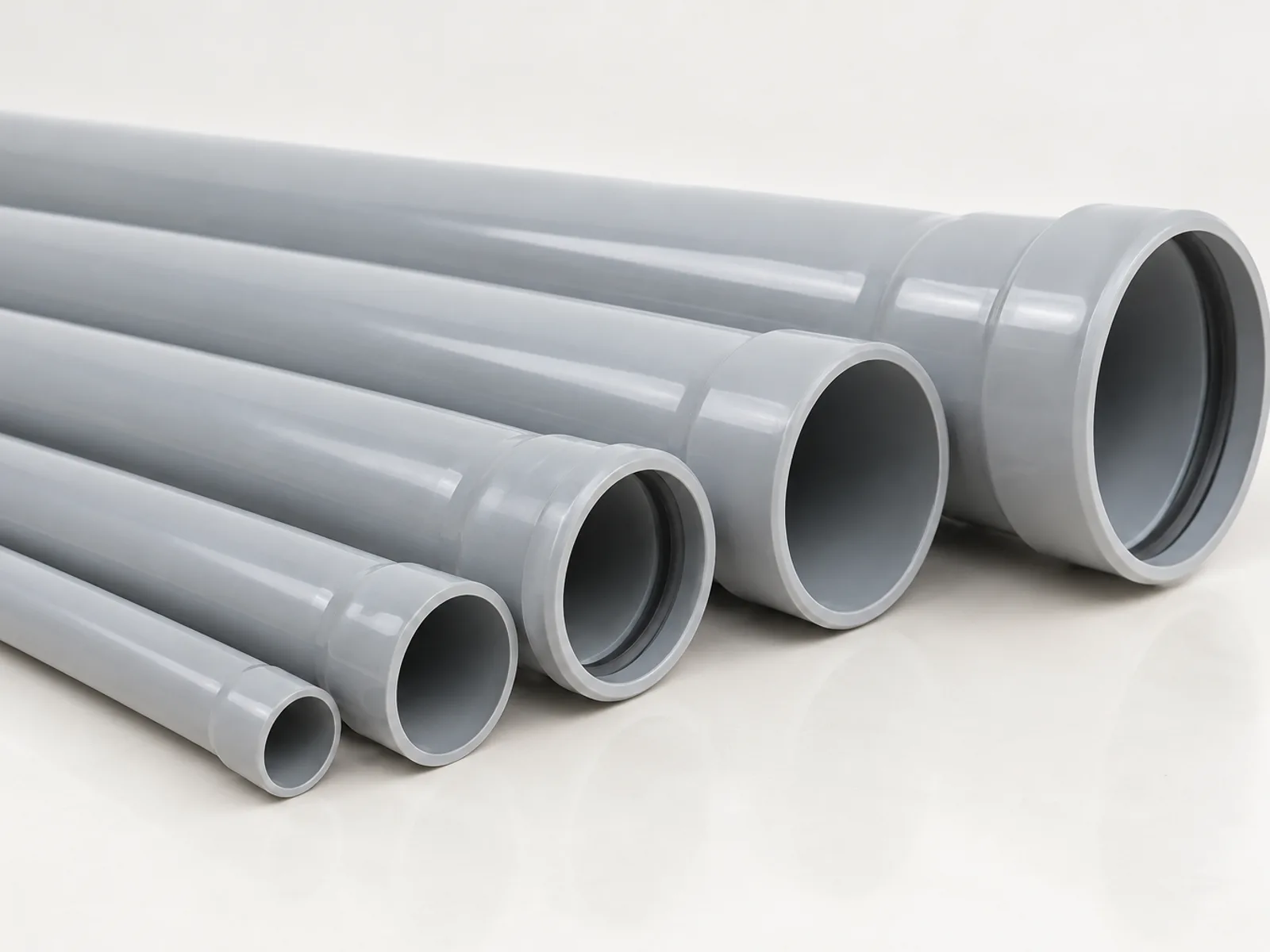

- Sizing: 50, 75, 110, 160 and 200 mm OD the common stock sizes, in 3 or 6 m lengths.
- Delivery: All 7 Emirates from our own yard.
- Installation service: Supply only, or supplied and installed by our own crew rather than a subcontractor.
Delivered across all 7 Emirates
All 4 sizes
Every size on one list. Tap any row to ask about that one.

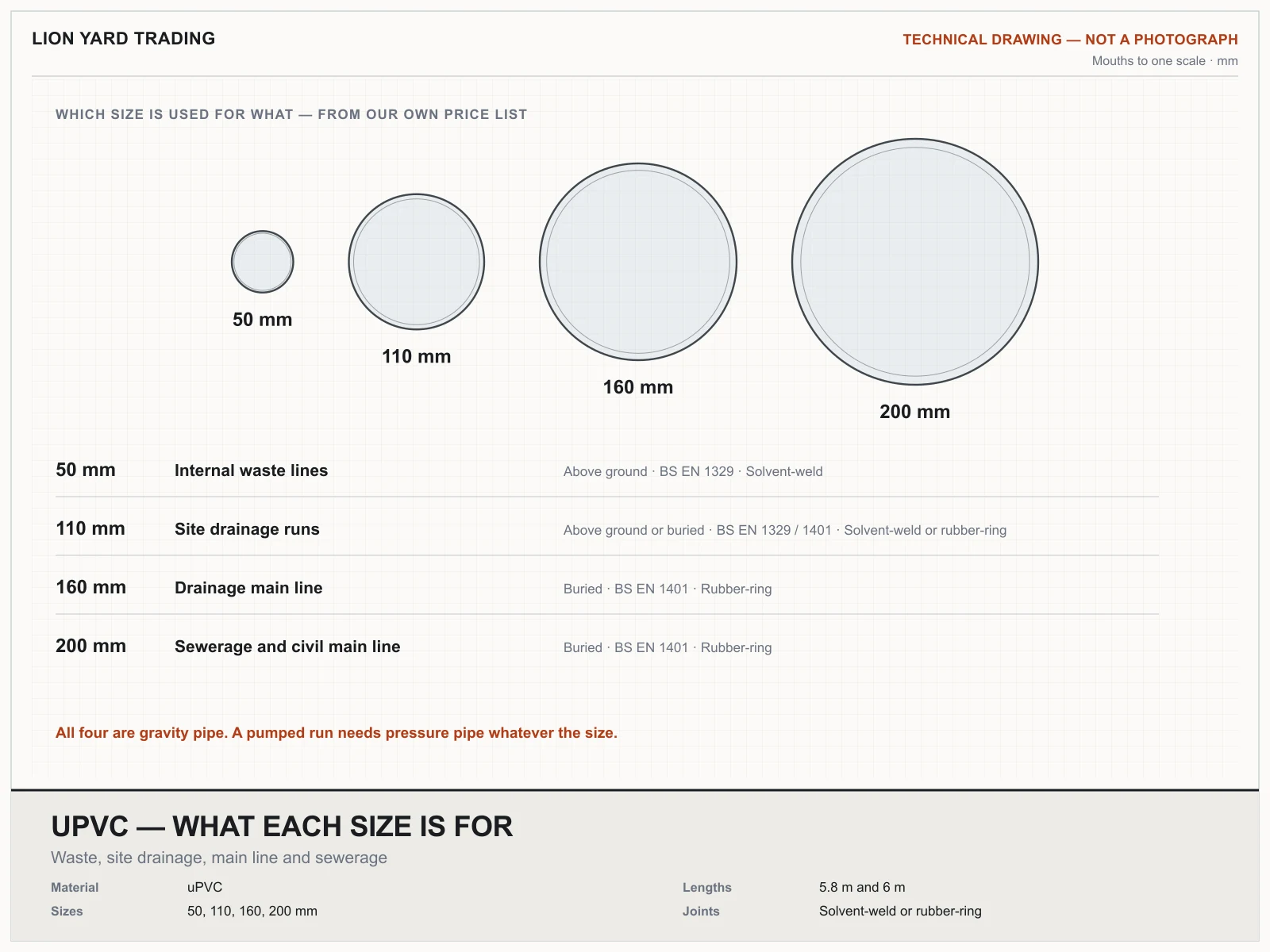

| Size / product | Details | Enquire |
|---|---|---|

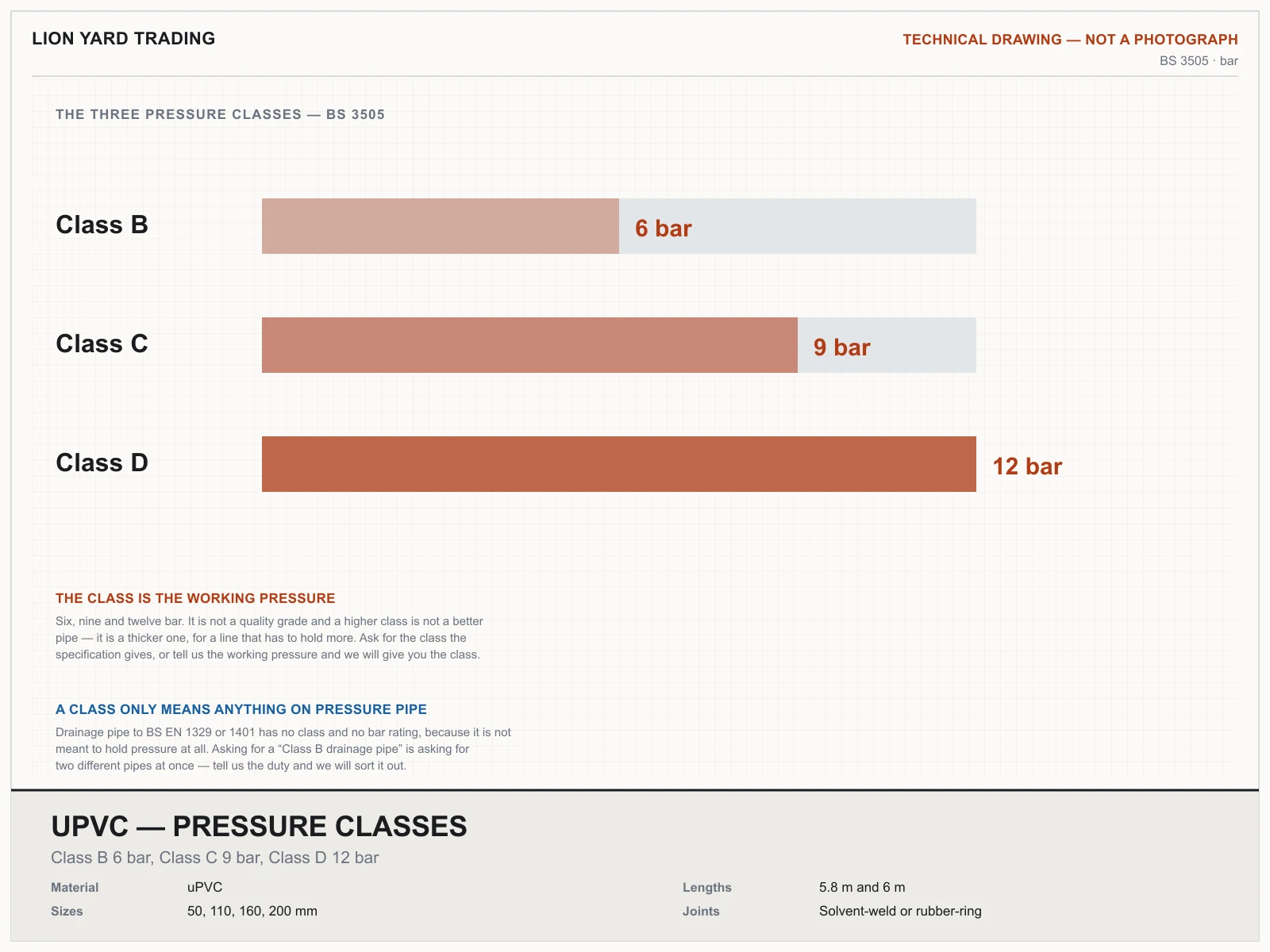

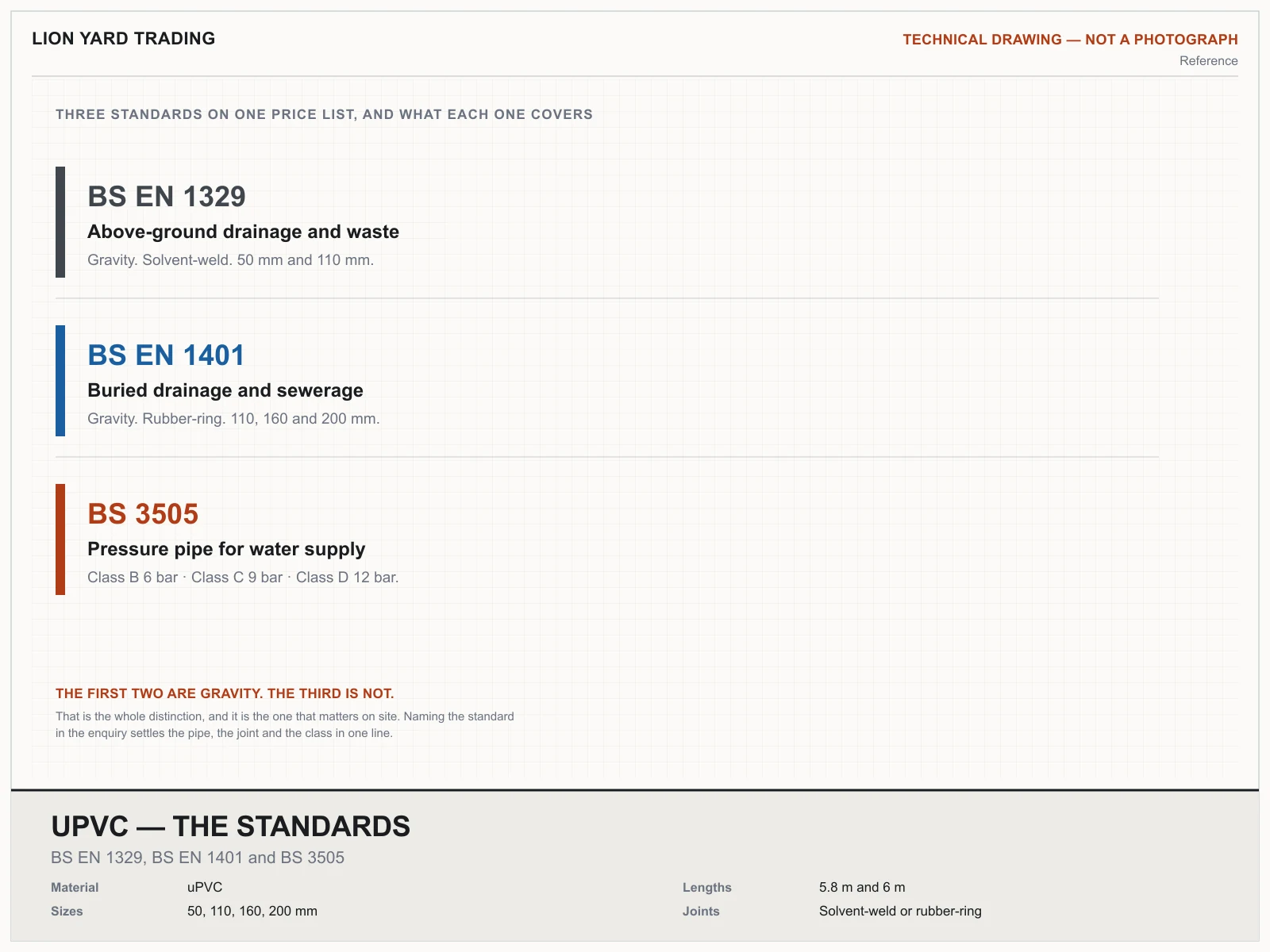

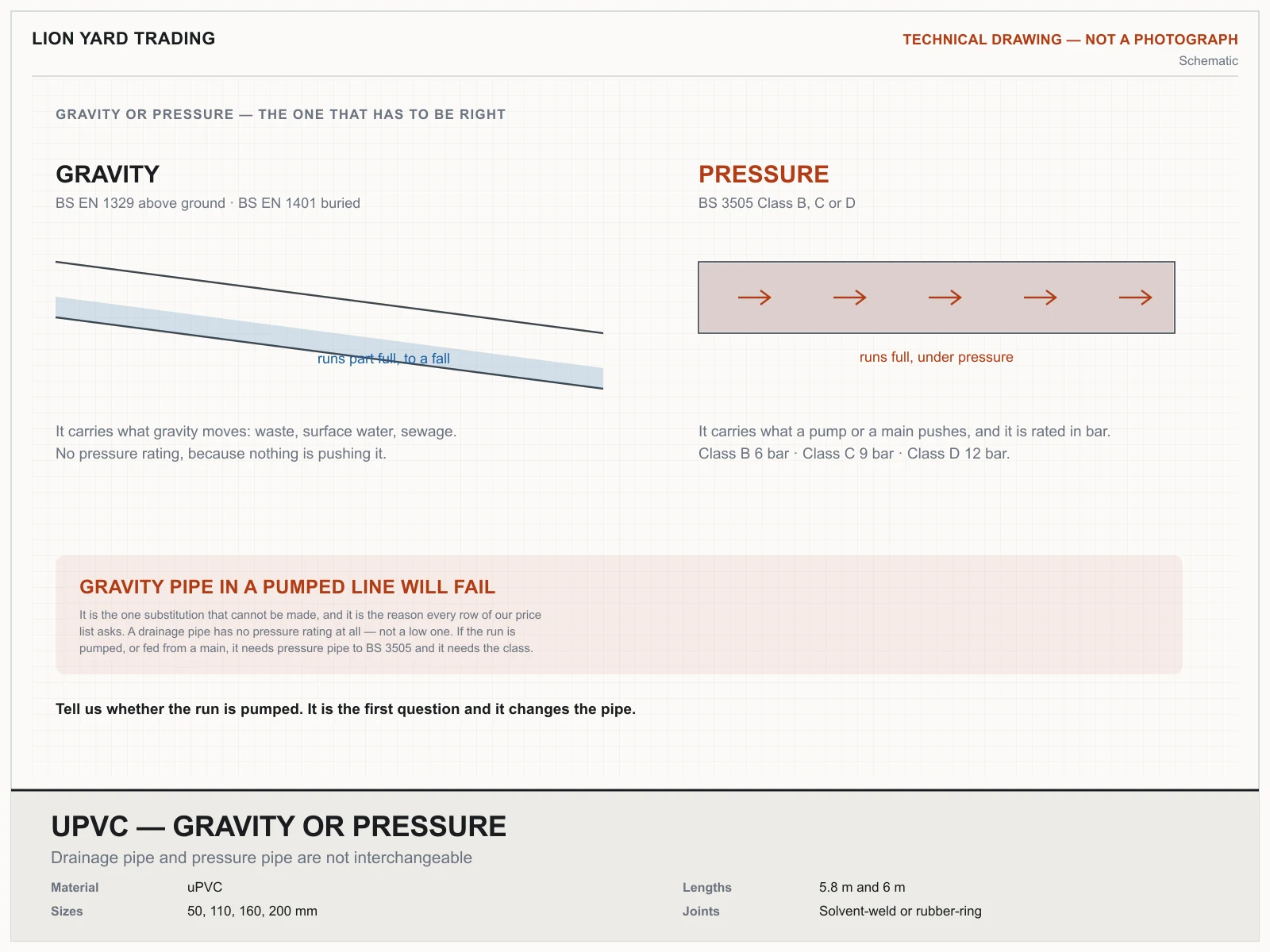

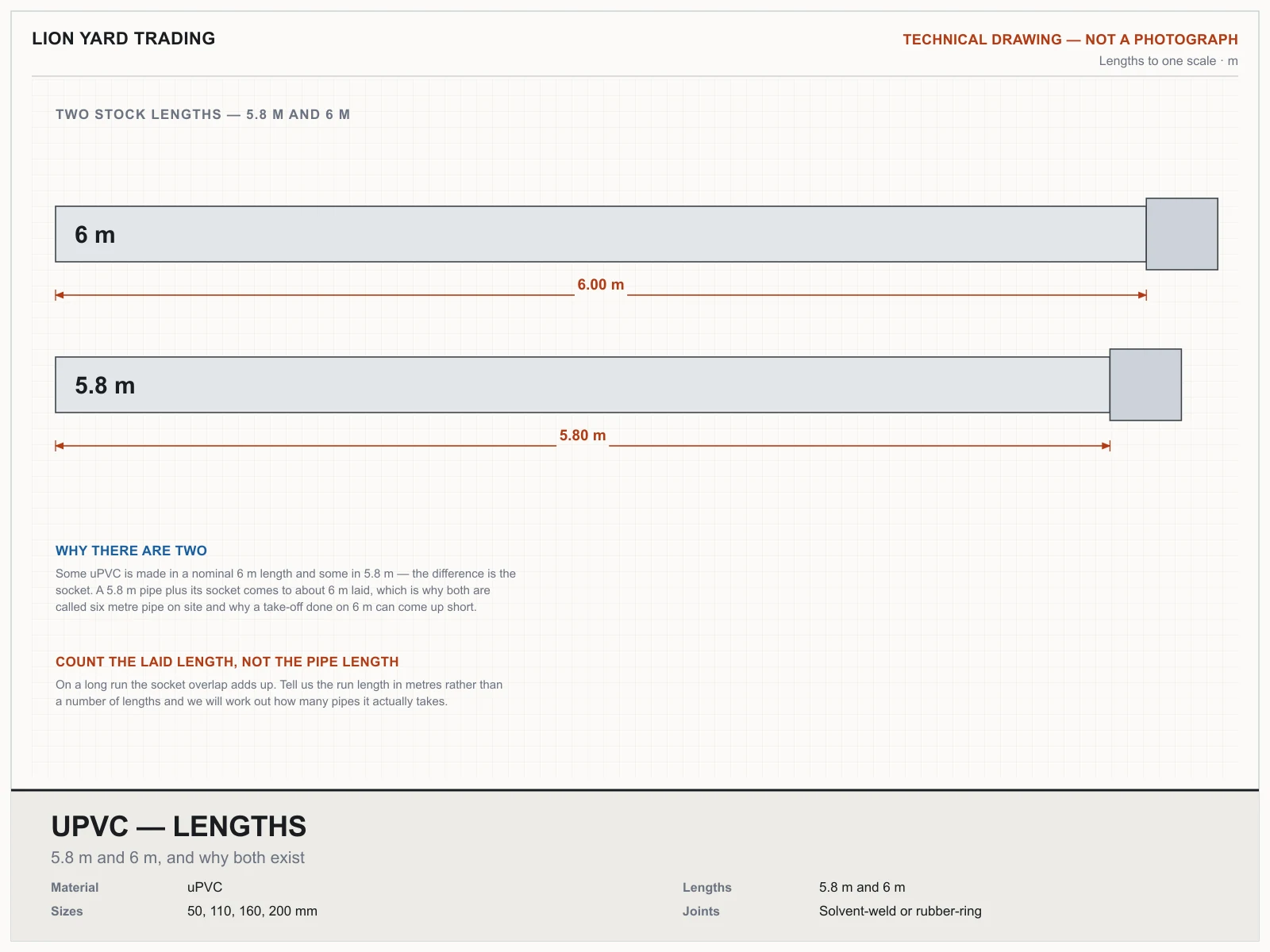

| 50mmLY-BLDG-068 | 50 mm · above-ground drainage grade to BS EN 1329, supplied in 5.8 m and 6 m lengths. Drainage/waste-grade uPVC, solvent-weld joint — the common size for internal waste lines. This is gravity pipe: a pressurised line needs pressure pipe to BS 3505 Class B (6 bar), C (9 bar) or D (12 bar) instead, so tell us if the run is pumped. | Ask |

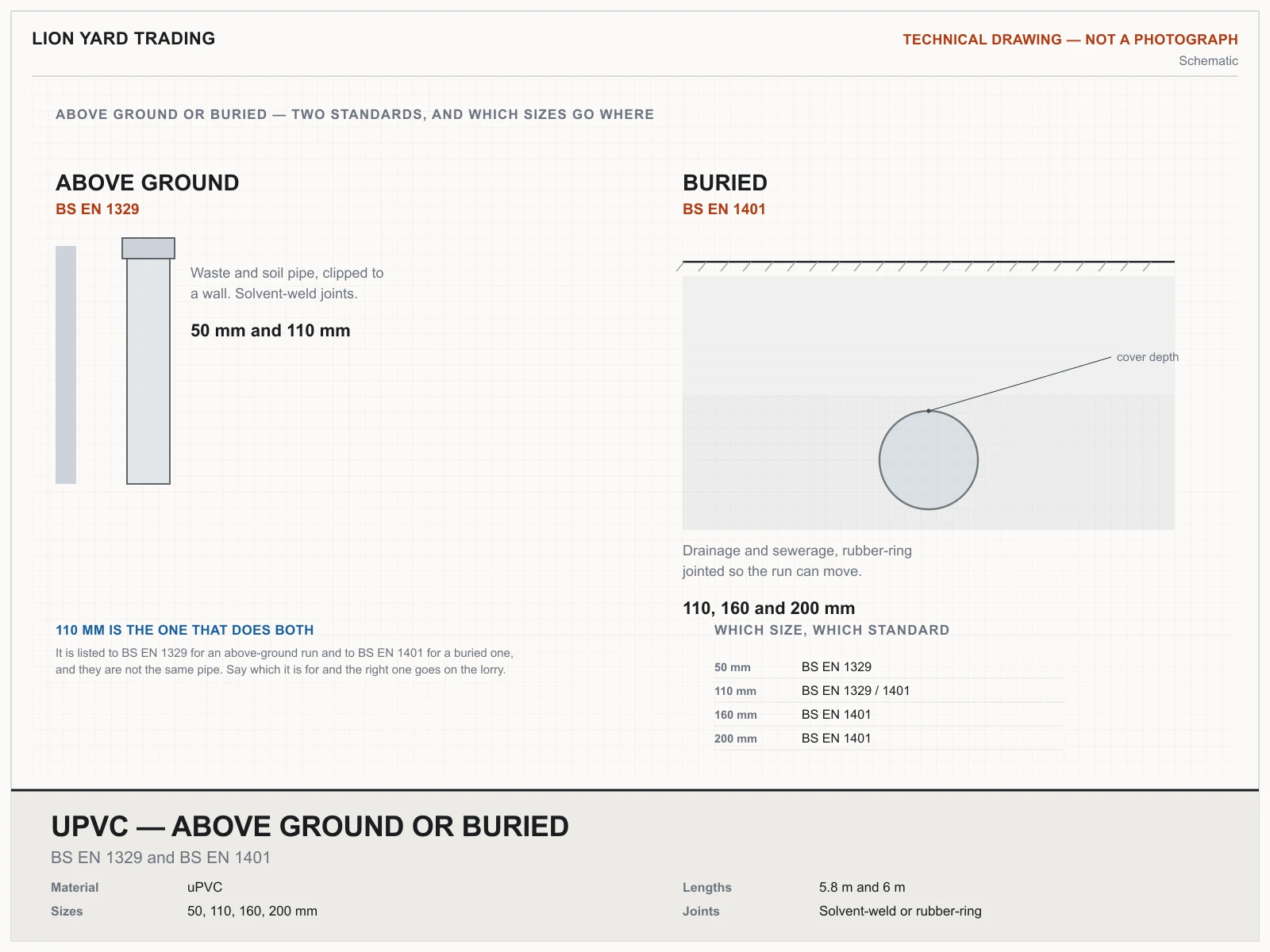

| 110mmLY-BLDG-069 | 110 mm · above-ground drainage to BS EN 1329 or buried drainage to BS EN 1401, supplied in 5.8 m and 6 m lengths. Drainage and sewerage-grade uPVC, solvent-weld or rubber-ring joint — the common size for site drainage runs. Gravity pipe: a pumped or pressurised line needs pressure pipe to BS 3505 Class B, C or D instead. | Ask |

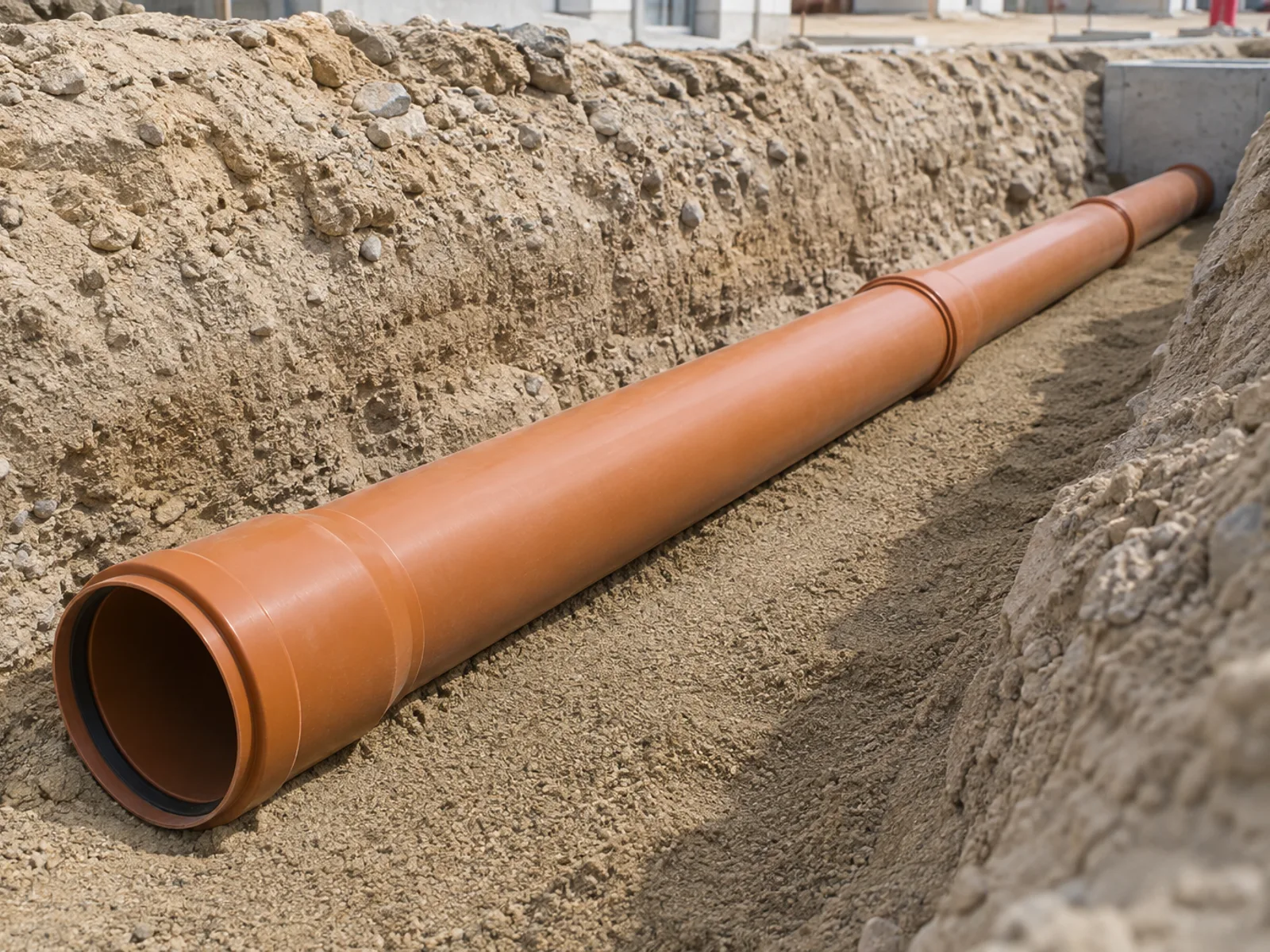

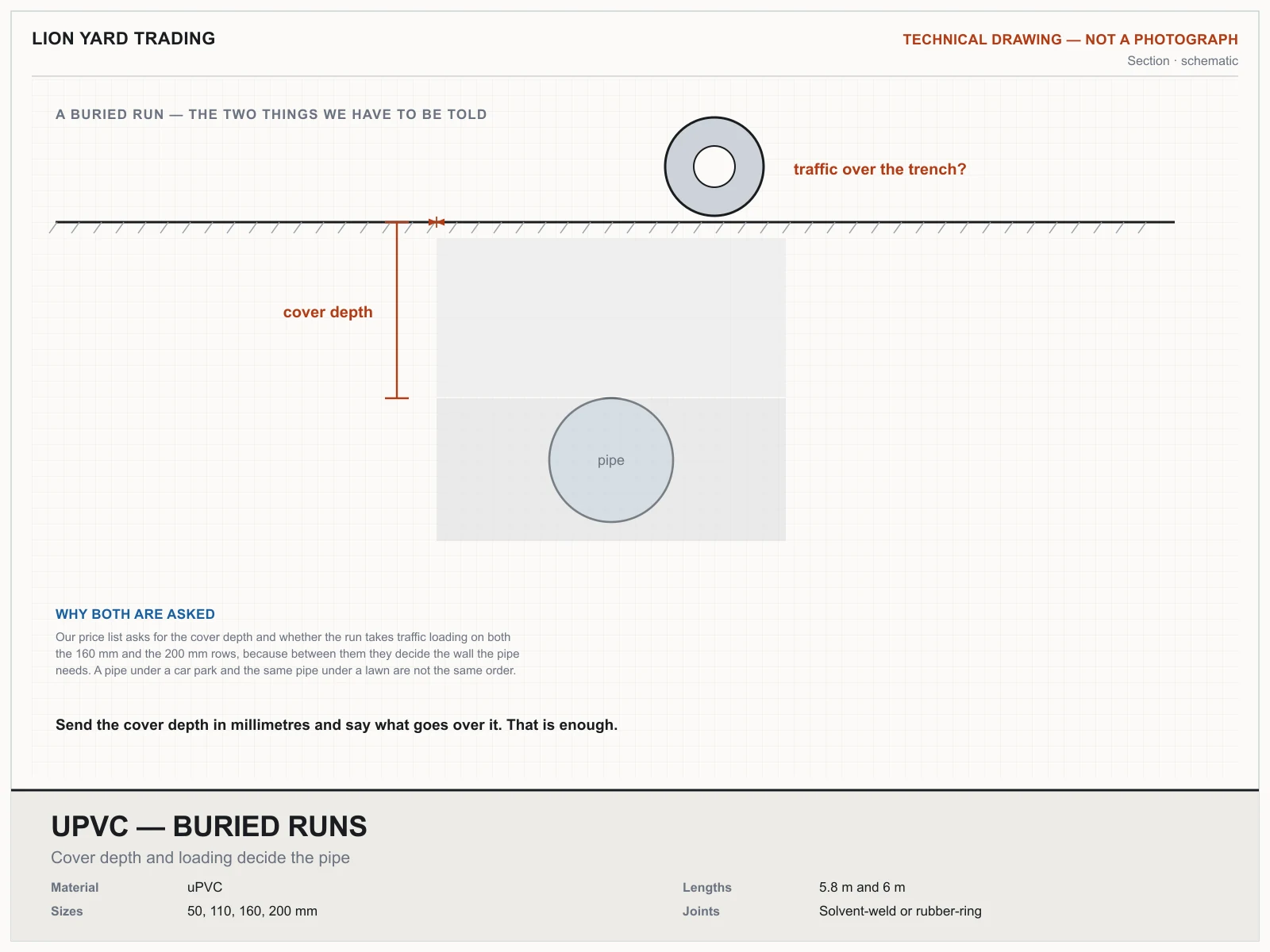

| 160mmLY-BLDG-070 | 160 mm · buried drainage to BS EN 1401, supplied in 5.8 m and 6 m lengths. Drainage/sewerage main-line size, rubber-ring jointed for buried runs. Tell us the cover depth and whether the run takes traffic loading, since both decide the wall you need. | Ask |
| 200mmLY-BLDG-071 | 200 mm · buried drainage to BS EN 1401, supplied in 5.8 m and 6 m lengths. Sewerage and civil main-line size, rubber-ring jointed for buried runs. Tell us the cover depth and the loading over the trench. | Ask |
- 50 mm · above-ground drainage grade to BS EN 1329, supplied in 5.8 m and 6 m lengths. Drainage/waste-grade uPVC, solvent-weld joint — the common size for internal waste lines. This is gravity pipe: a pressurised line needs pressure pipe to BS 3505 Class B (6 bar), C (9 bar) or D (12 bar) instead, so tell us if the run is pumped.Ask on WhatsApp
- 110 mm · above-ground drainage to BS EN 1329 or buried drainage to BS EN 1401, supplied in 5.8 m and 6 m lengths. Drainage and sewerage-grade uPVC, solvent-weld or rubber-ring joint — the common size for site drainage runs. Gravity pipe: a pumped or pressurised line needs pressure pipe to BS 3505 Class B, C or D instead.Ask on WhatsApp
- 160 mm · buried drainage to BS EN 1401, supplied in 5.8 m and 6 m lengths. Drainage/sewerage main-line size, rubber-ring jointed for buried runs. Tell us the cover depth and whether the run takes traffic loading, since both decide the wall you need.Ask on WhatsApp
- 200 mm · buried drainage to BS EN 1401, supplied in 5.8 m and 6 m lengths. Sewerage and civil main-line size, rubber-ring jointed for buried runs. Tell us the cover depth and the loading over the trench.Ask on WhatsApp
Class (drainage vs pressure-rated) and quantity change the price, so this is quoted against your requirement.
What it is

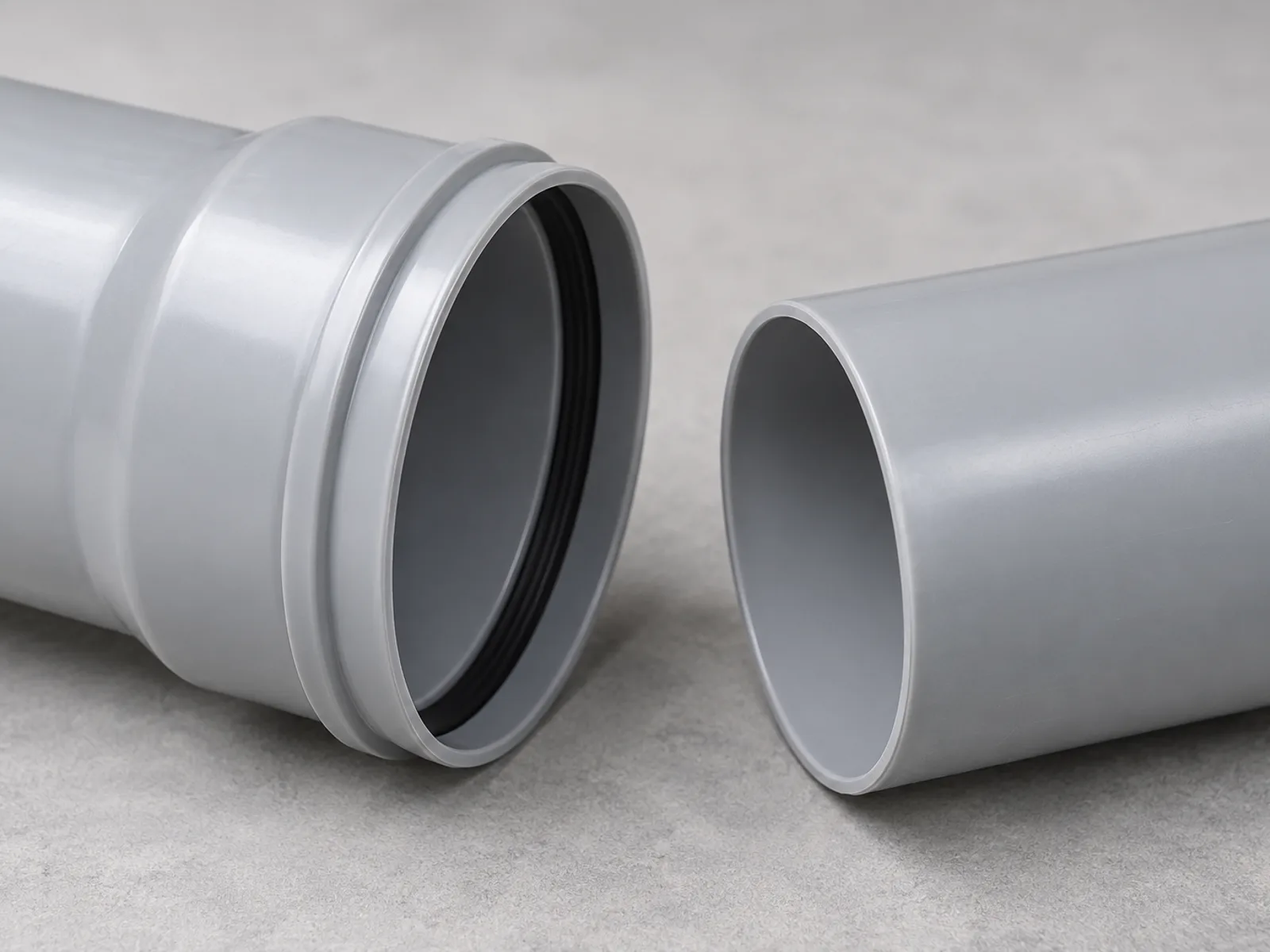

uPVC pipe for drainage, sewerage and low-pressure water lines - solvent-welded or rubber-ring jointed.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is
- Unplasticised PVC (uPVC) pipe, rigid, for gravity drainage or pressure water lines depending on the class specified.
- Who buys it
- Drainage and civil contractors, plumbers, and landscaping/irrigation contractors.
- Classes

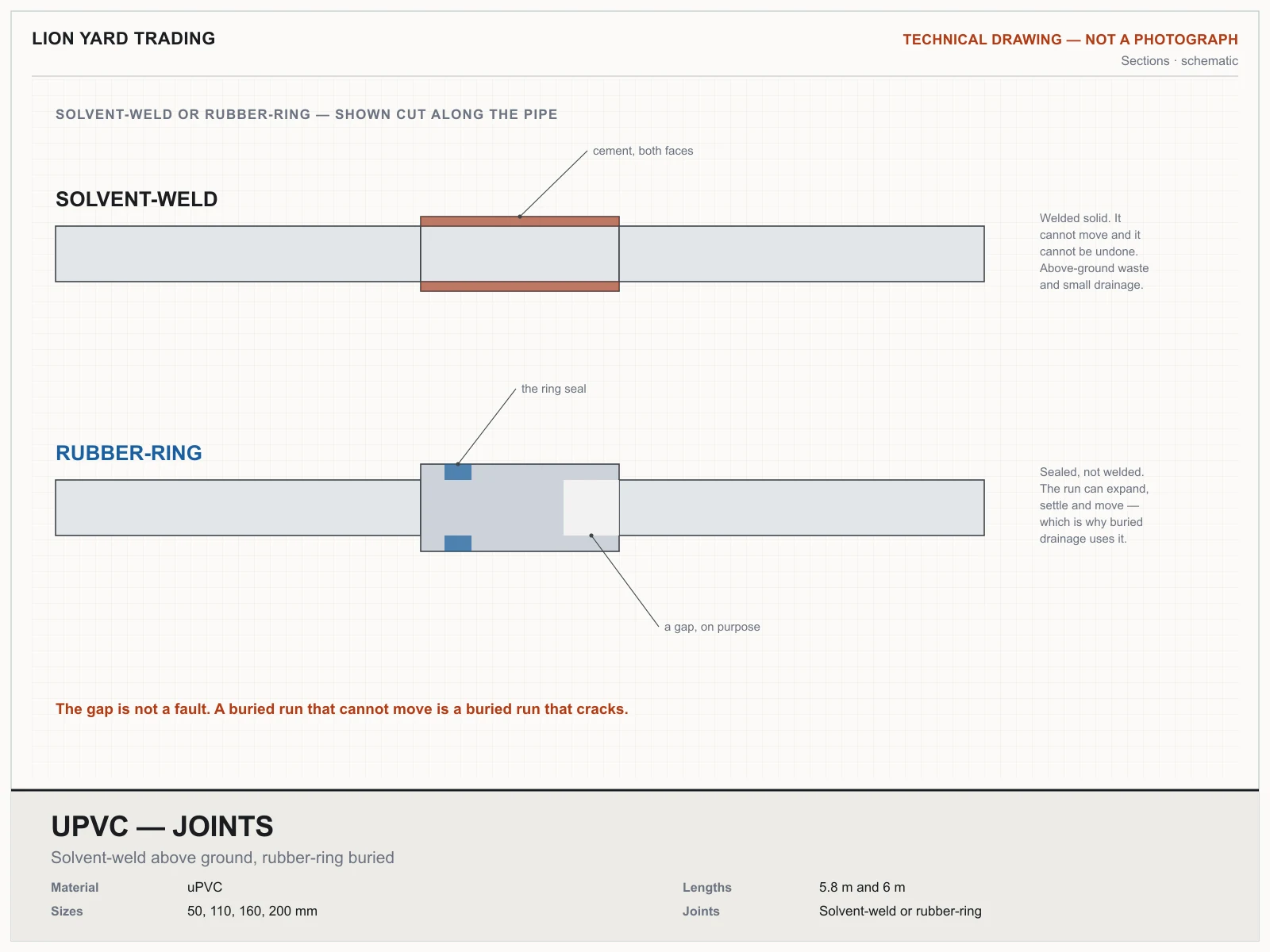

- Drainage/sewerage (unpressured, solvent-weld or rubber-ring joint) versus pressure-rated (PN class) for water supply - these are different products, say which the job needs.
- Sizing
- 50, 75, 110, 160 and 200 mm OD the common stock sizes, in 3 or 6 m lengths.
- Delivery

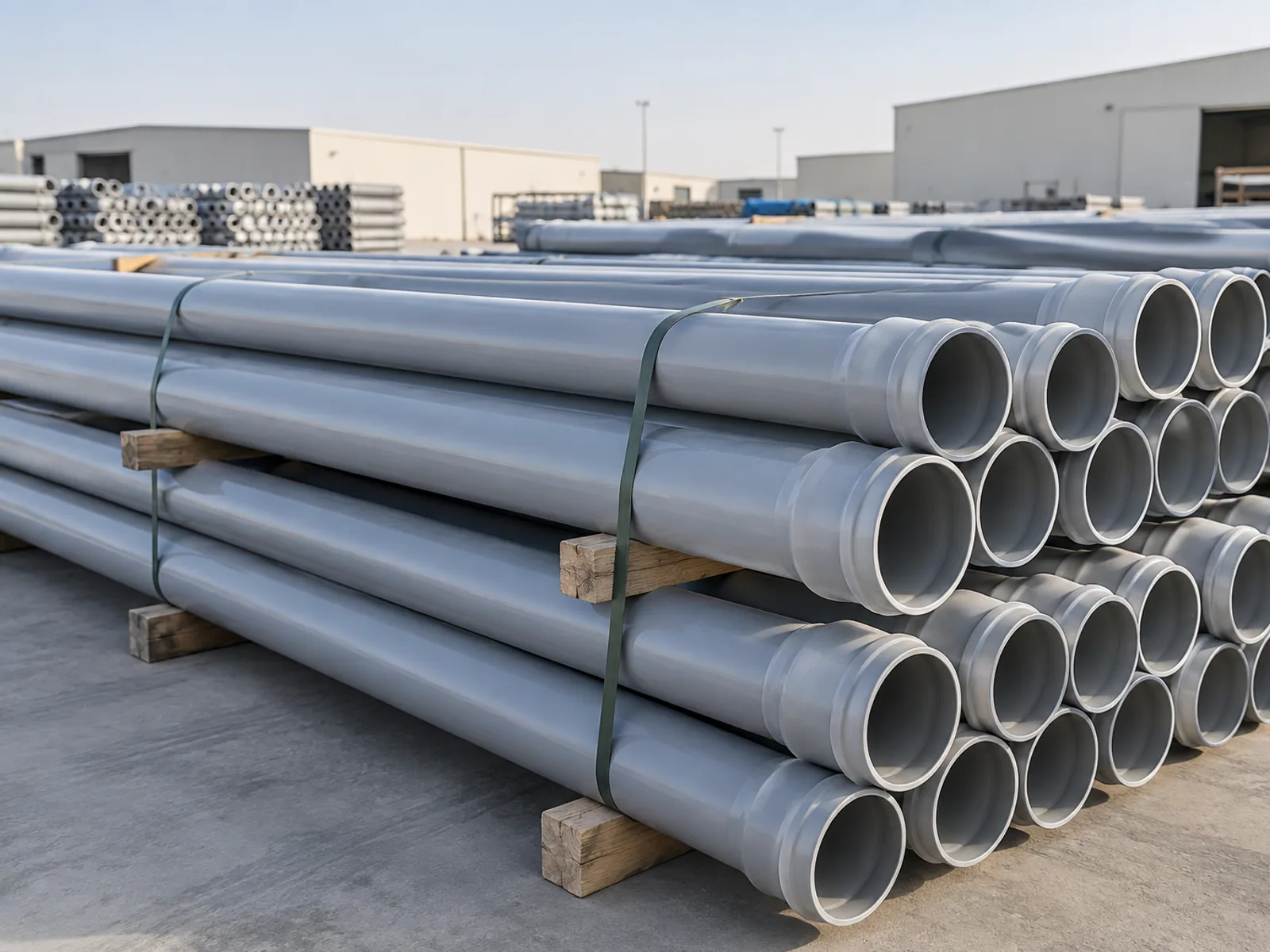

- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation service
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per length or per project quantity, excluding 5% VAT.
PVC Pipe
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price PVC Pipe — every figure comes from the price table above or from the published standard it is made to.

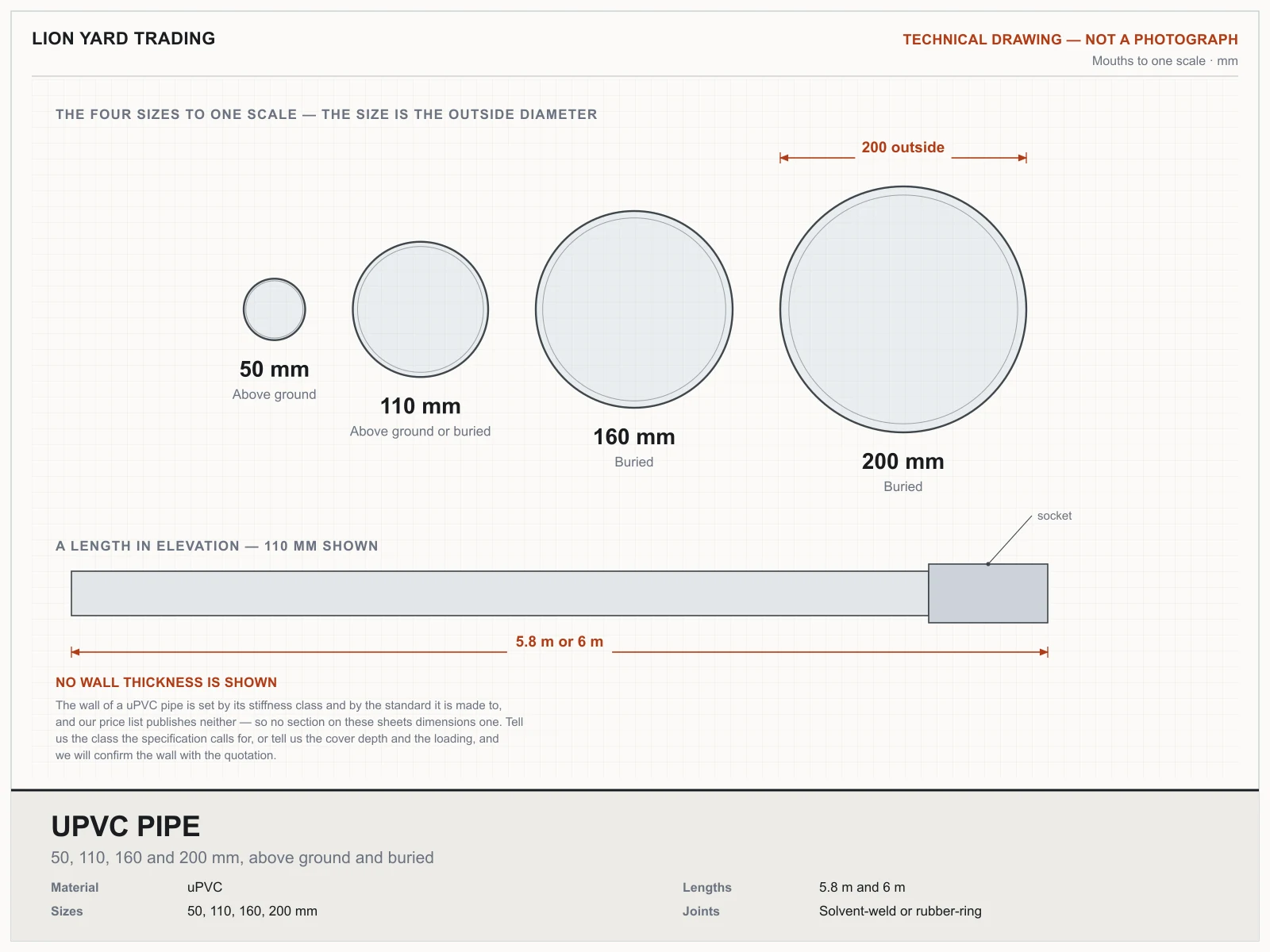

SizeFour sizes at one true scale
1 of 10

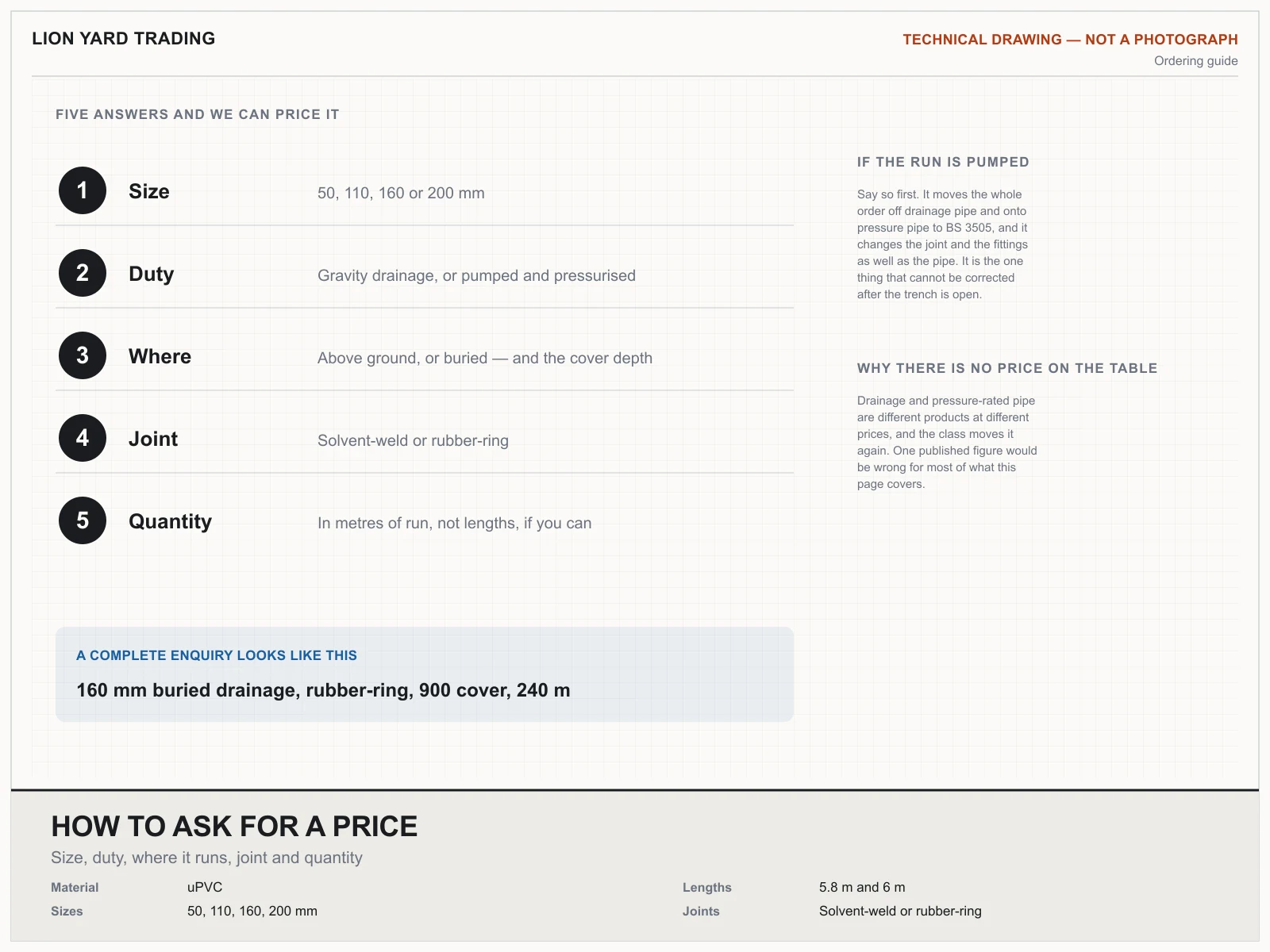

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your pvc pipe?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
