GI Pipe (Galvanized)
Pipes, Pipework & Supports

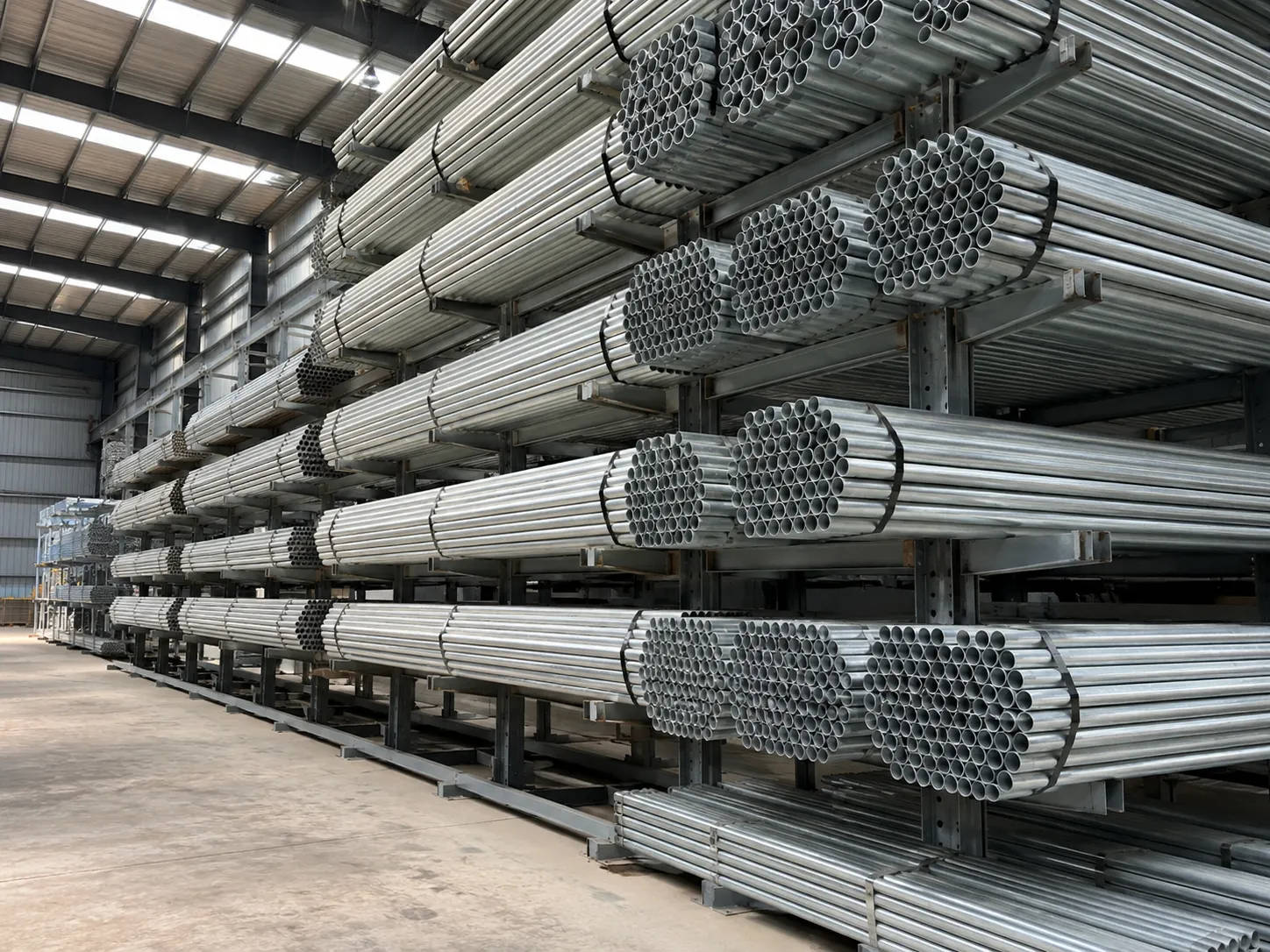

5sizes10technical drawings1photos of our stock
Priced on enquiry
Steel moves with the mill price, so pipe is quoted on the day against your bore, wall class, length and quantity.
Tell us the size and where it is going.
About this product
- What it is: Steel pipe hot-dip galvanized inside and out - distinct from the bare carbon steel line…

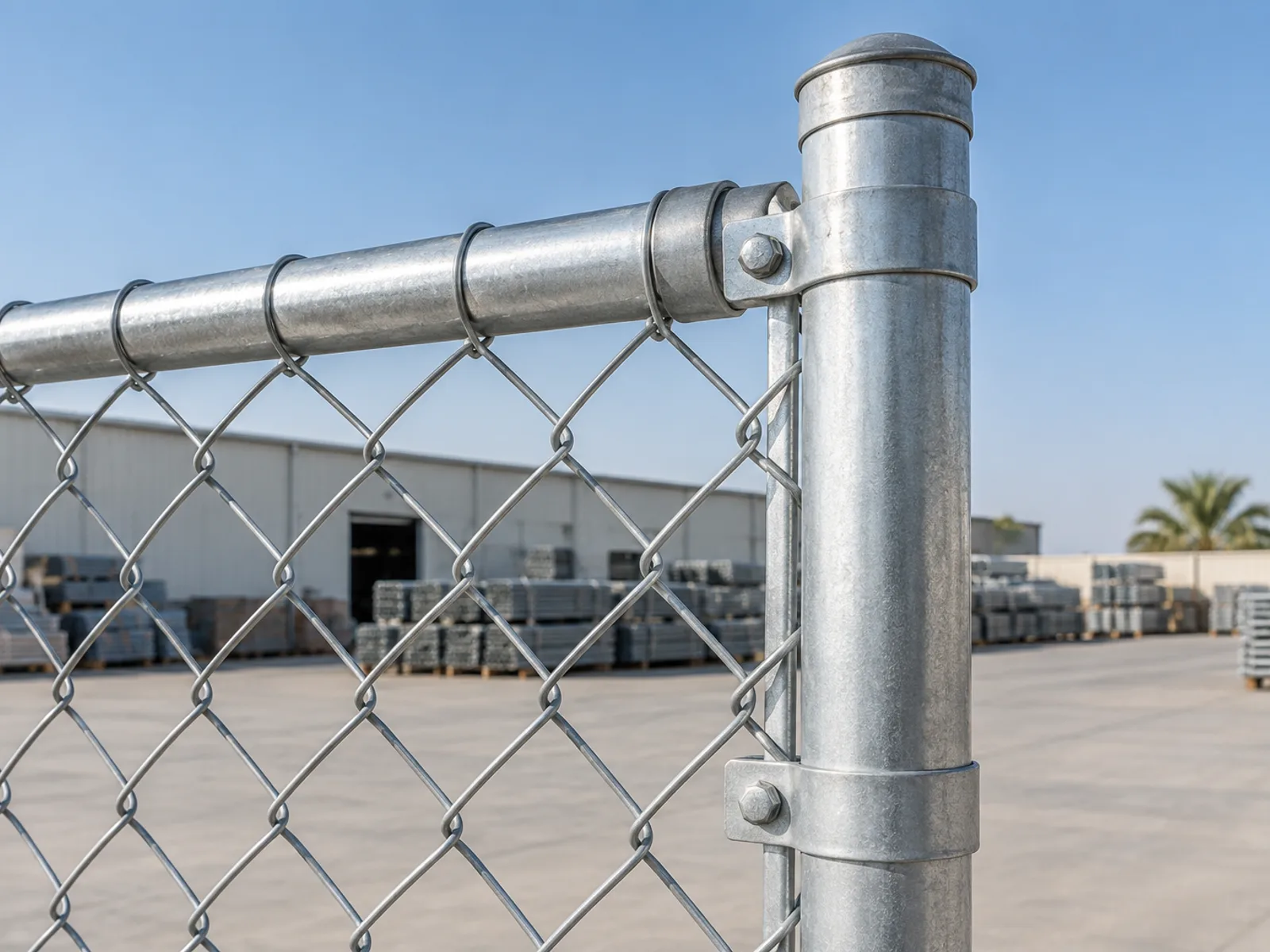

- Who buys it: Fencing contractors (posts and rails), scaffolders, plumbers running exposed or buried…
- Classes: Light, medium (Class B) and heavy (Class C) wall thickness - medium is the common stock…
- Dimensions & weight: Outside diameter and wall thickness follow the medium (Class B) series of BS EN 10255 /…

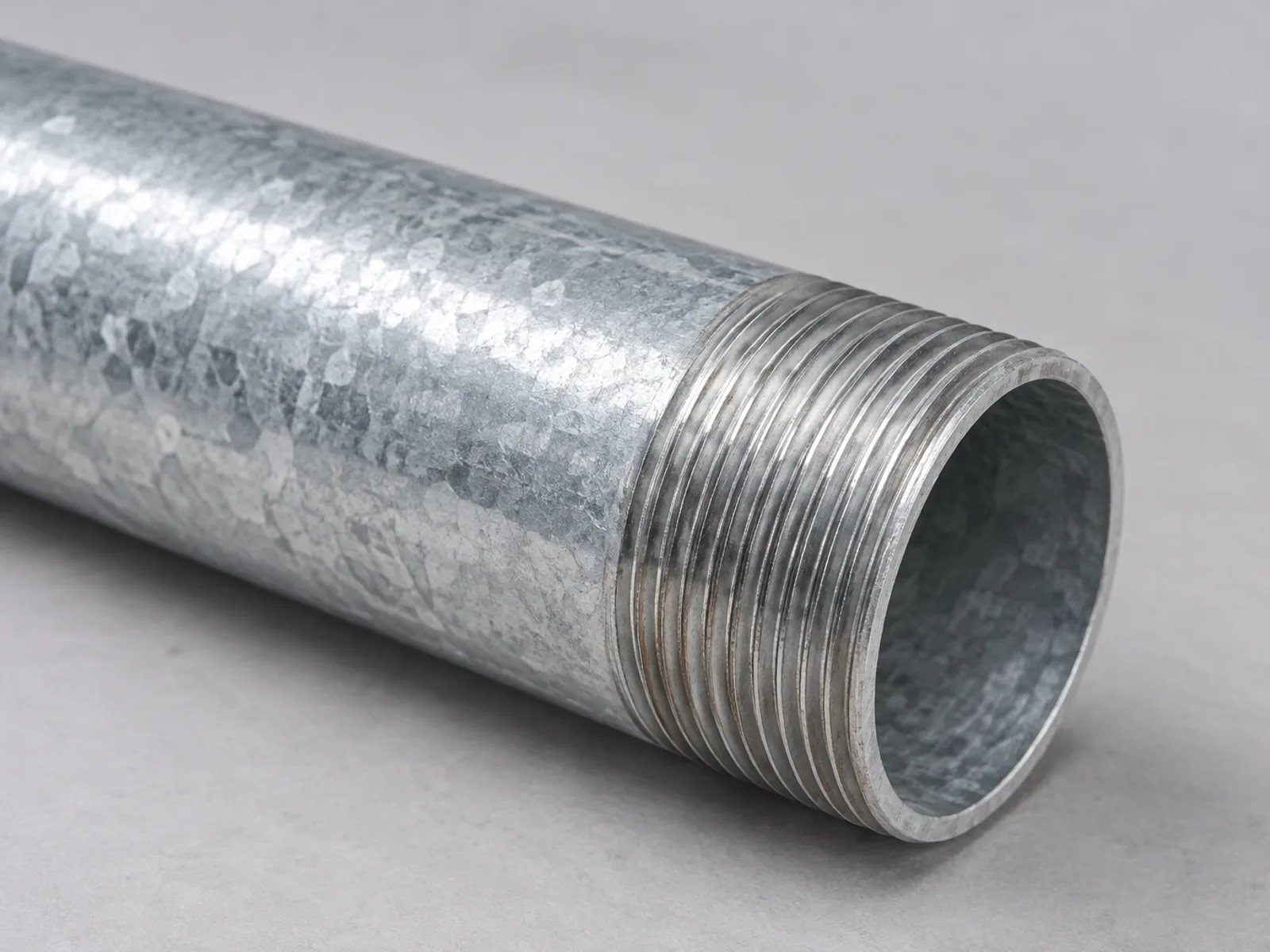

- Sizing: Nominal bore in inches, standard 6 m lengths, threaded or plain end.

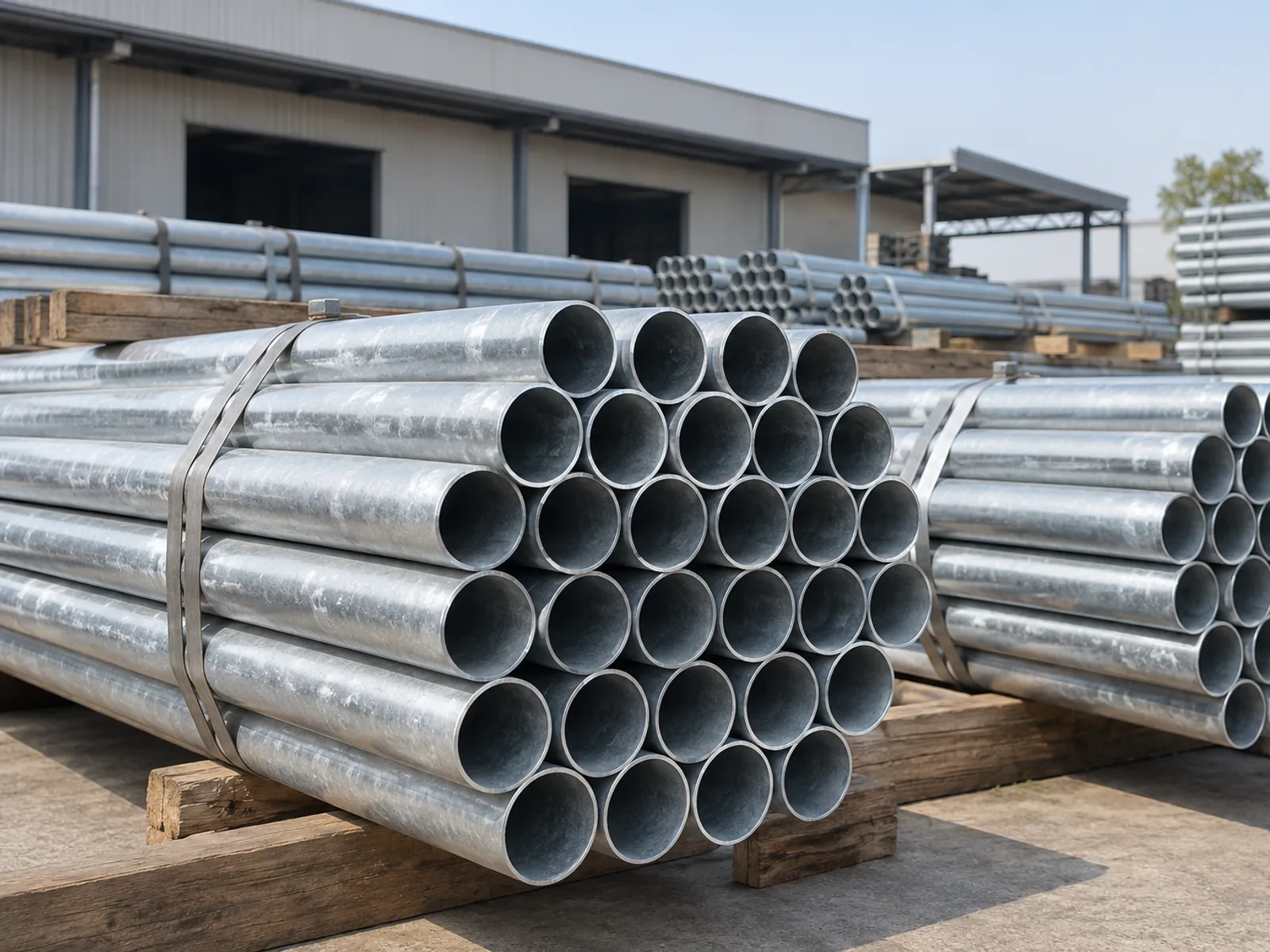

- Delivery: All 7 Emirates from our own yard.
Delivered across all 7 Emirates

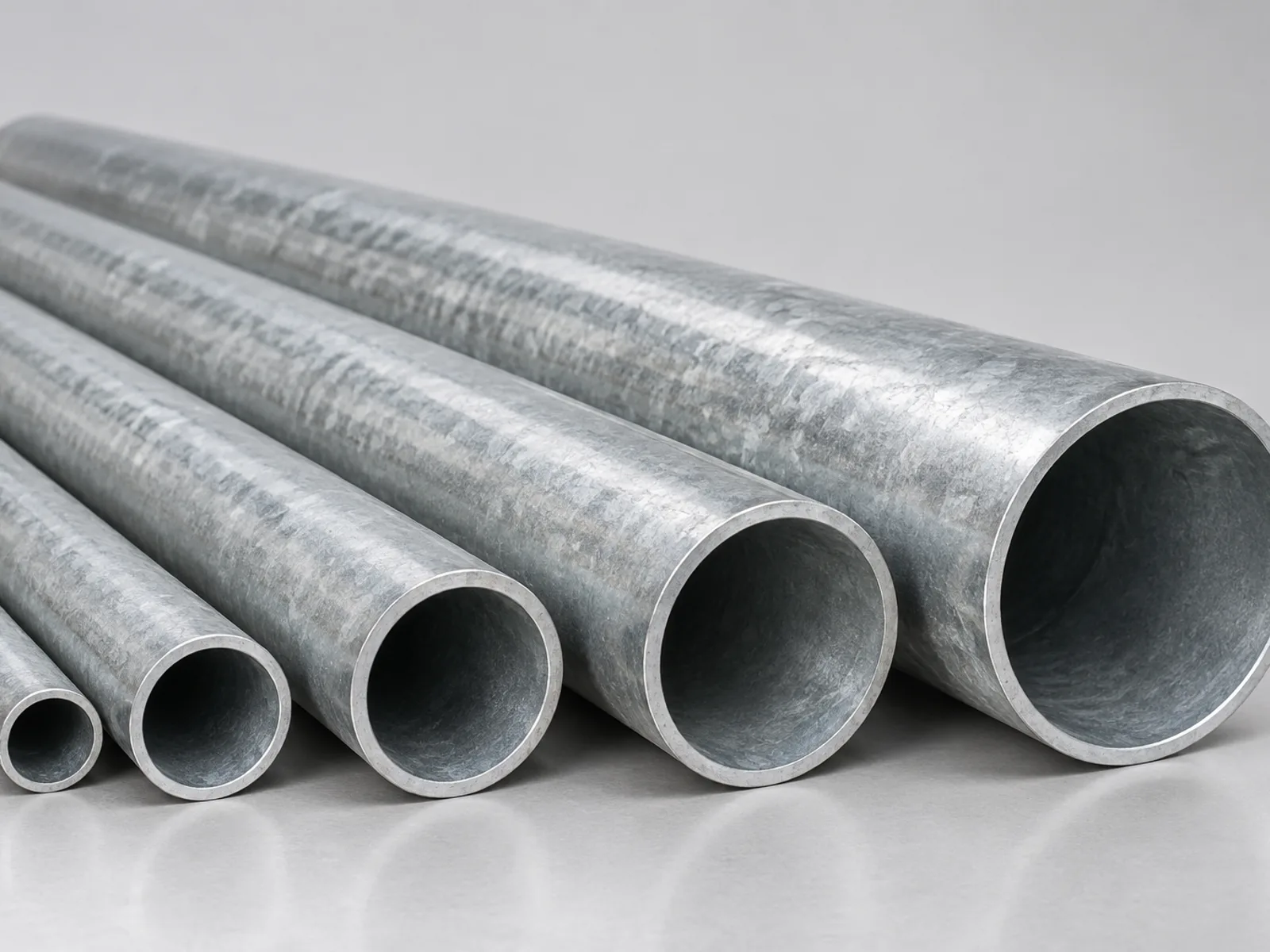

All 5 sizes
Every size on one list. Tap any row to ask about that one.

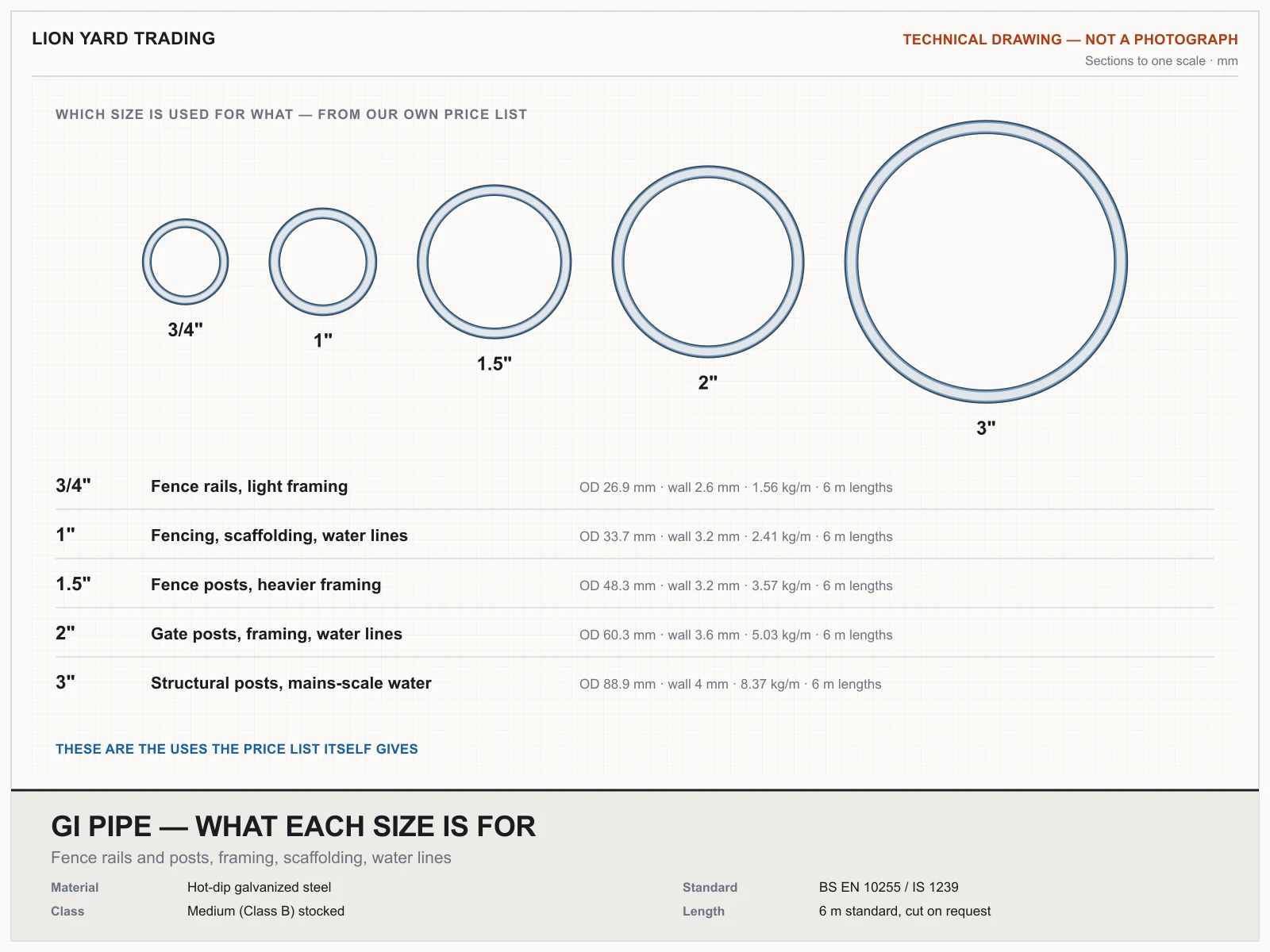

| Size / product | Details | Enquire |
|---|---|---|
| 3/4 inchLY-BLDG-058 | OD 26.9 mm · medium (Class B) wall 2.6 mm · 1.56 kg per metre · 6 m standard length — the common size for fence rails and light structural framing. Hot-dip galvanized, so it sits outdoors without painting. | Ask |
| 1 inchLY-BLDG-059 | OD 33.7 mm · medium (Class B) wall 3.2 mm · 2.41 kg per metre · 6 m standard length — a common general-purpose size for fencing, scaffolding and water lines. | Ask |
| 1.5 inchLY-BLDG-060 | OD 48.3 mm · medium (Class B) wall 3.2 mm · 3.57 kg per metre · 6 m standard length — used for fence posts and heavier framing. | Ask |
| 2 inchLY-BLDG-061 | OD 60.3 mm · medium (Class B) wall 3.6 mm · 5.03 kg per metre · 6 m standard length — used for gate posts, heavier framing and water lines. | Ask |
| 3 inchLY-BLDG-062 | OD 88.9 mm · medium (Class B) wall 4.0 mm · 8.37 kg per metre · 6 m standard length — used for larger structural posts and mains-scale water lines. | Ask |
- OD 26.9 mm · medium (Class B) wall 2.6 mm · 1.56 kg per metre · 6 m standard length — the common size for fence rails and light structural framing. Hot-dip galvanized, so it sits outdoors without painting.Ask on WhatsApp
- OD 33.7 mm · medium (Class B) wall 3.2 mm · 2.41 kg per metre · 6 m standard length — a common general-purpose size for fencing, scaffolding and water lines.Ask on WhatsApp
- OD 48.3 mm · medium (Class B) wall 3.2 mm · 3.57 kg per metre · 6 m standard length — used for fence posts and heavier framing.Ask on WhatsApp
- OD 60.3 mm · medium (Class B) wall 3.6 mm · 5.03 kg per metre · 6 m standard length — used for gate posts, heavier framing and water lines.Ask on WhatsApp
- OD 88.9 mm · medium (Class B) wall 4.0 mm · 8.37 kg per metre · 6 m standard length — used for larger structural posts and mains-scale water lines.Ask on WhatsApp
Steel moves with the mill price, so pipe is quoted on the day against your bore, wall class, length and quantity.
What it is

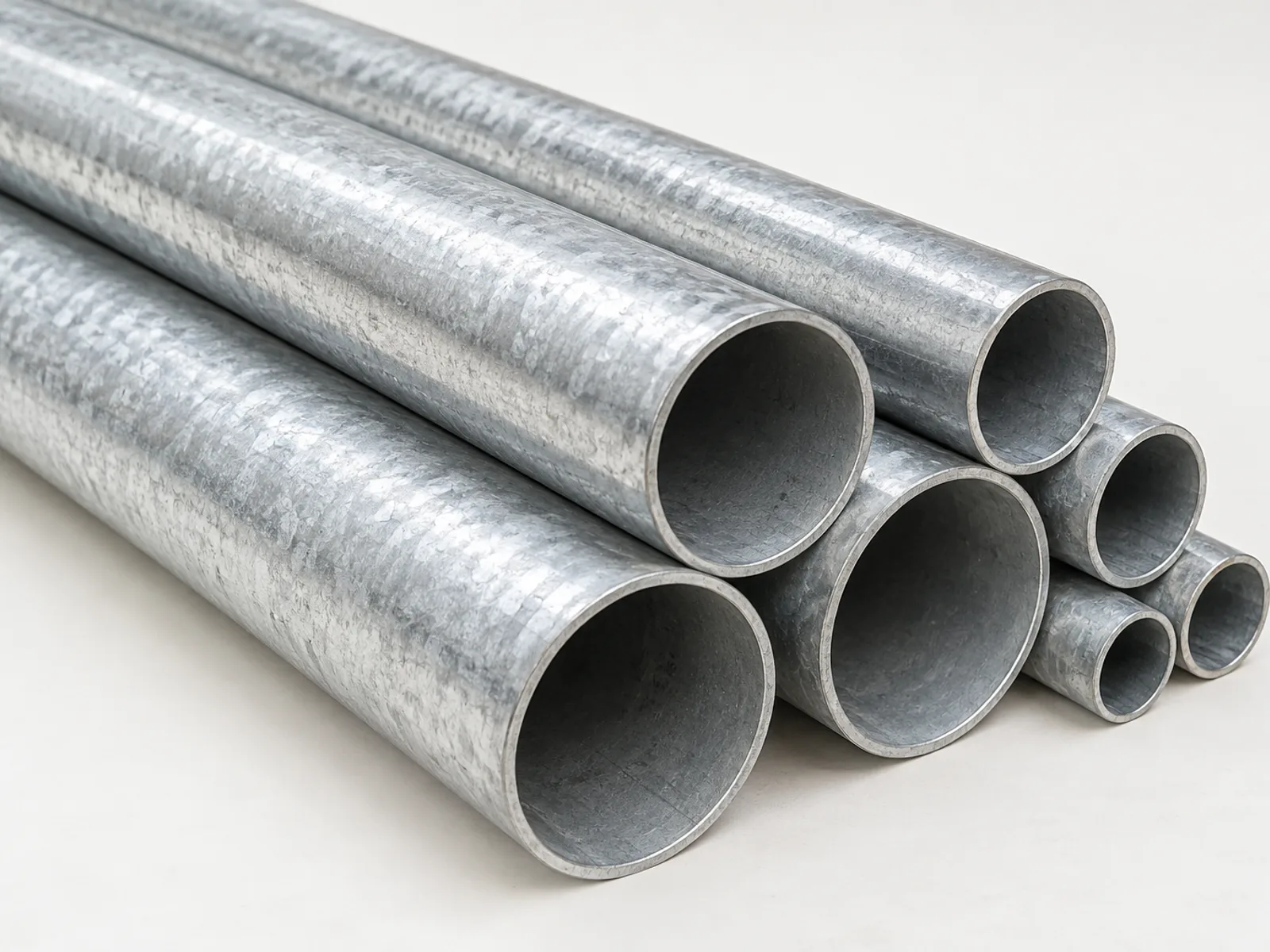

Hot-dip galvanized steel pipe for fencing posts, scaffolding, water lines and general structural use outdoors.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is

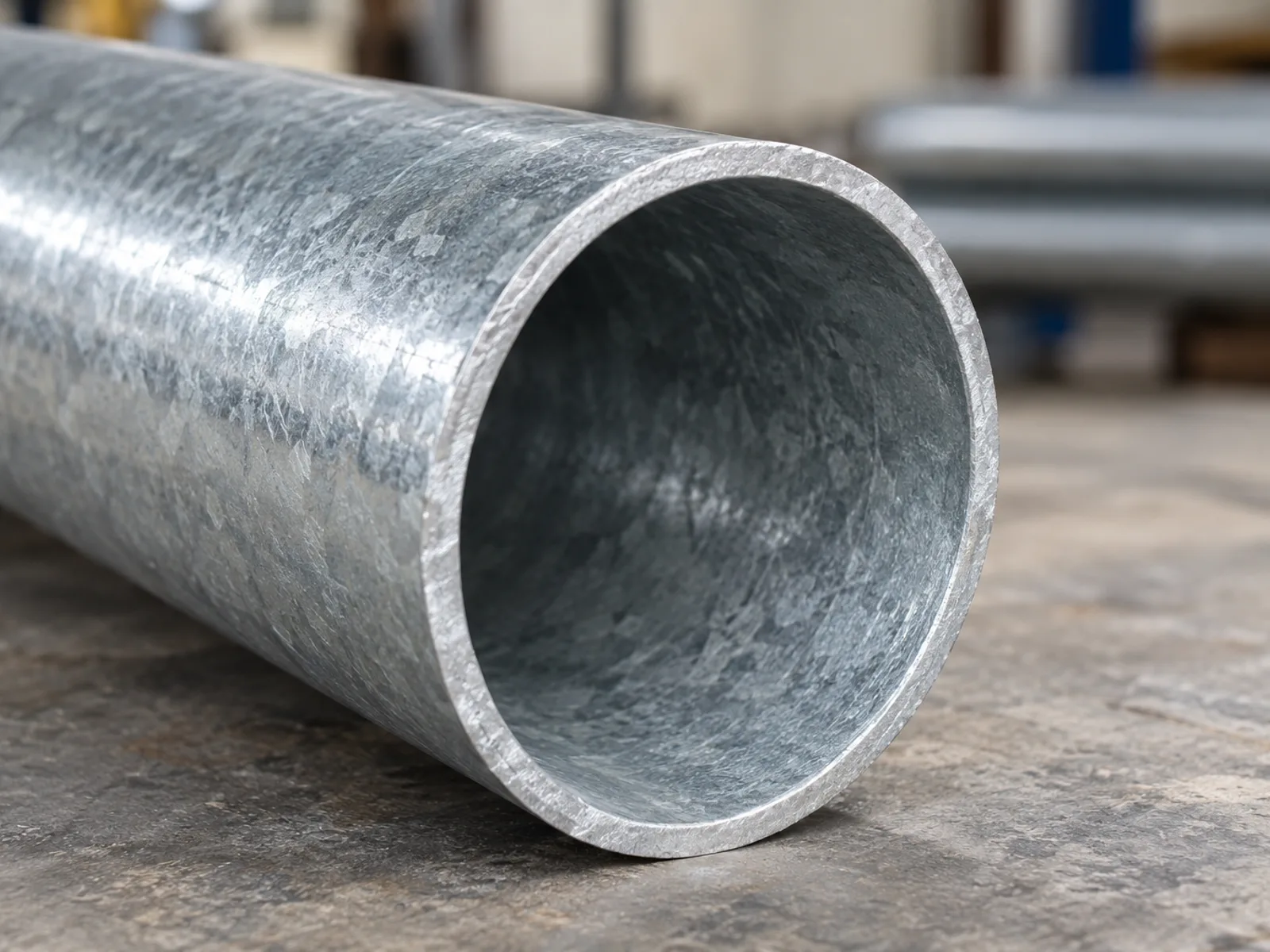

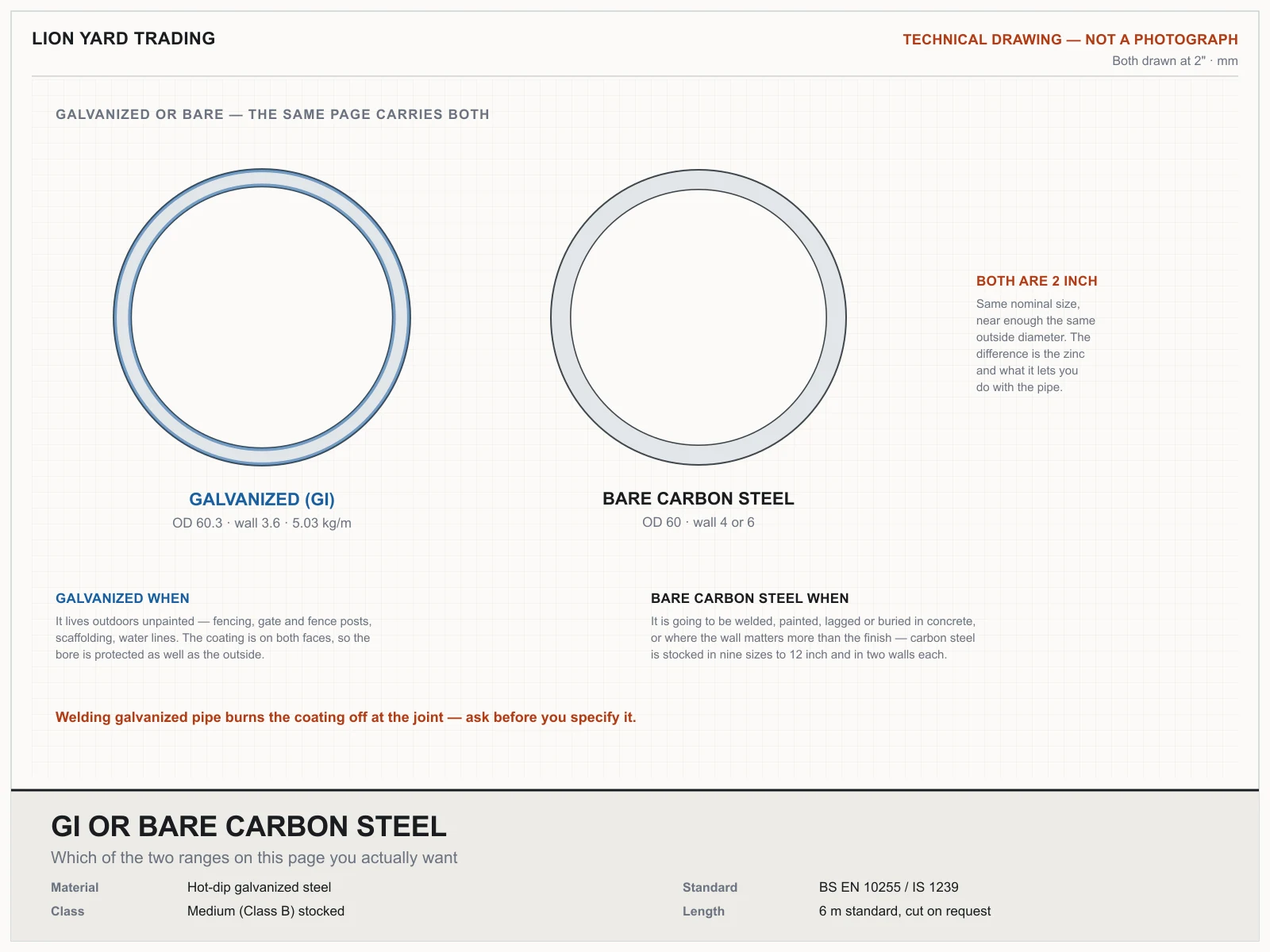

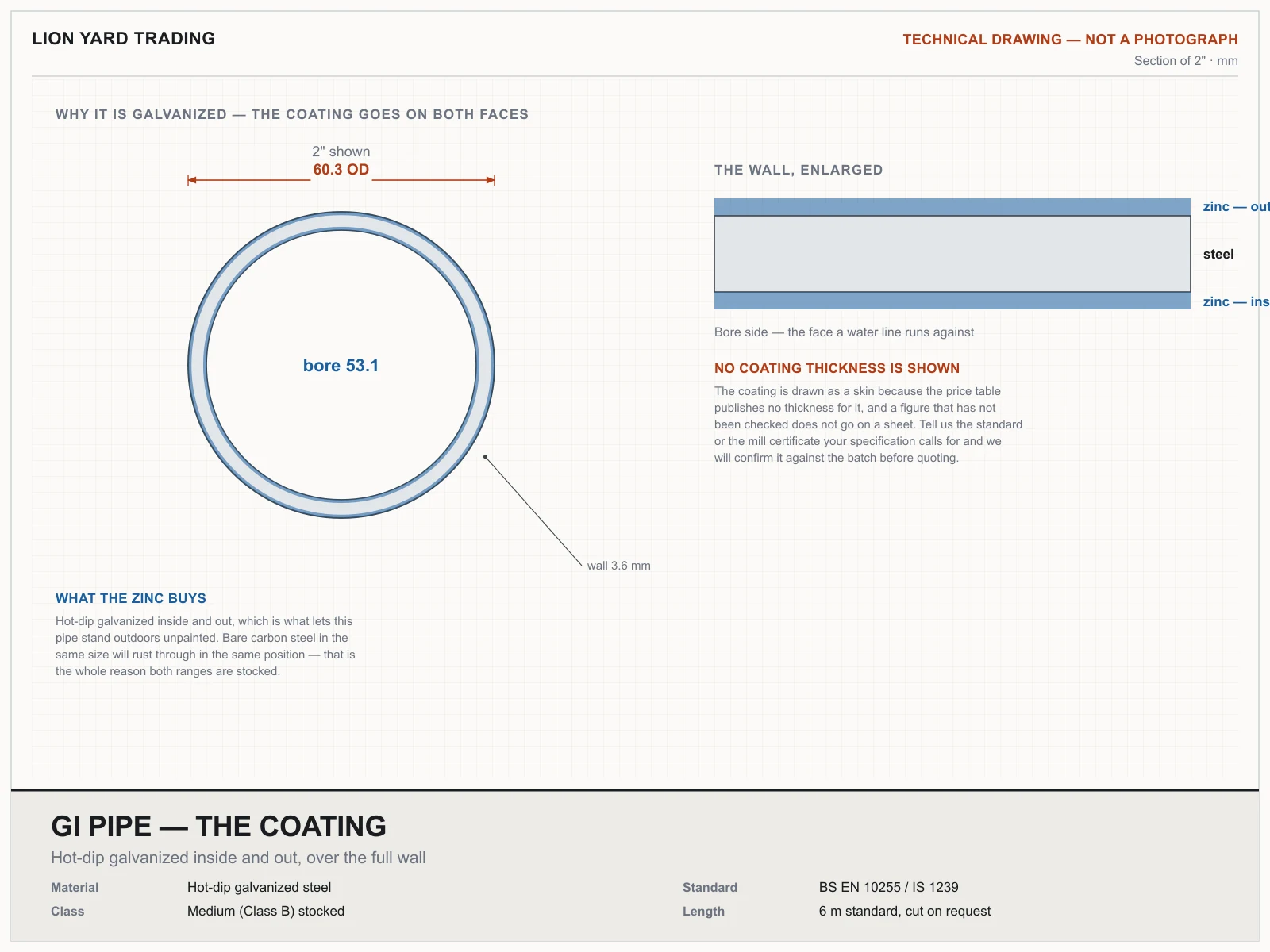

- Steel pipe hot-dip galvanized inside and out - distinct from the bare carbon steel line on this page, since the zinc coating is what lets it sit outdoors or carry water without rusting through in a few seasons.
- Who buys it

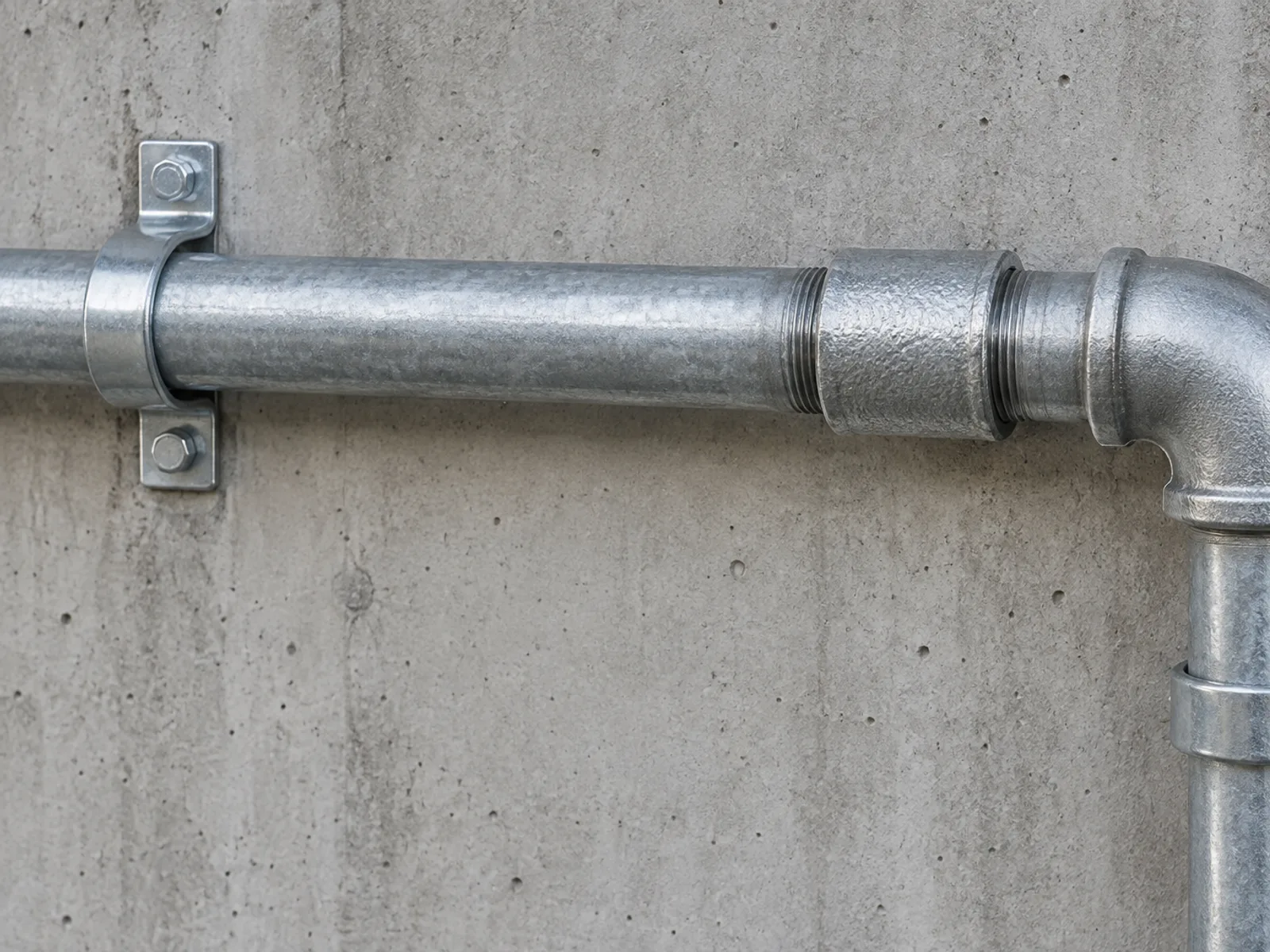

- Fencing contractors (posts and rails), scaffolders, plumbers running exposed or buried water lines, and anyone needing pipe that survives outdoors without painting.

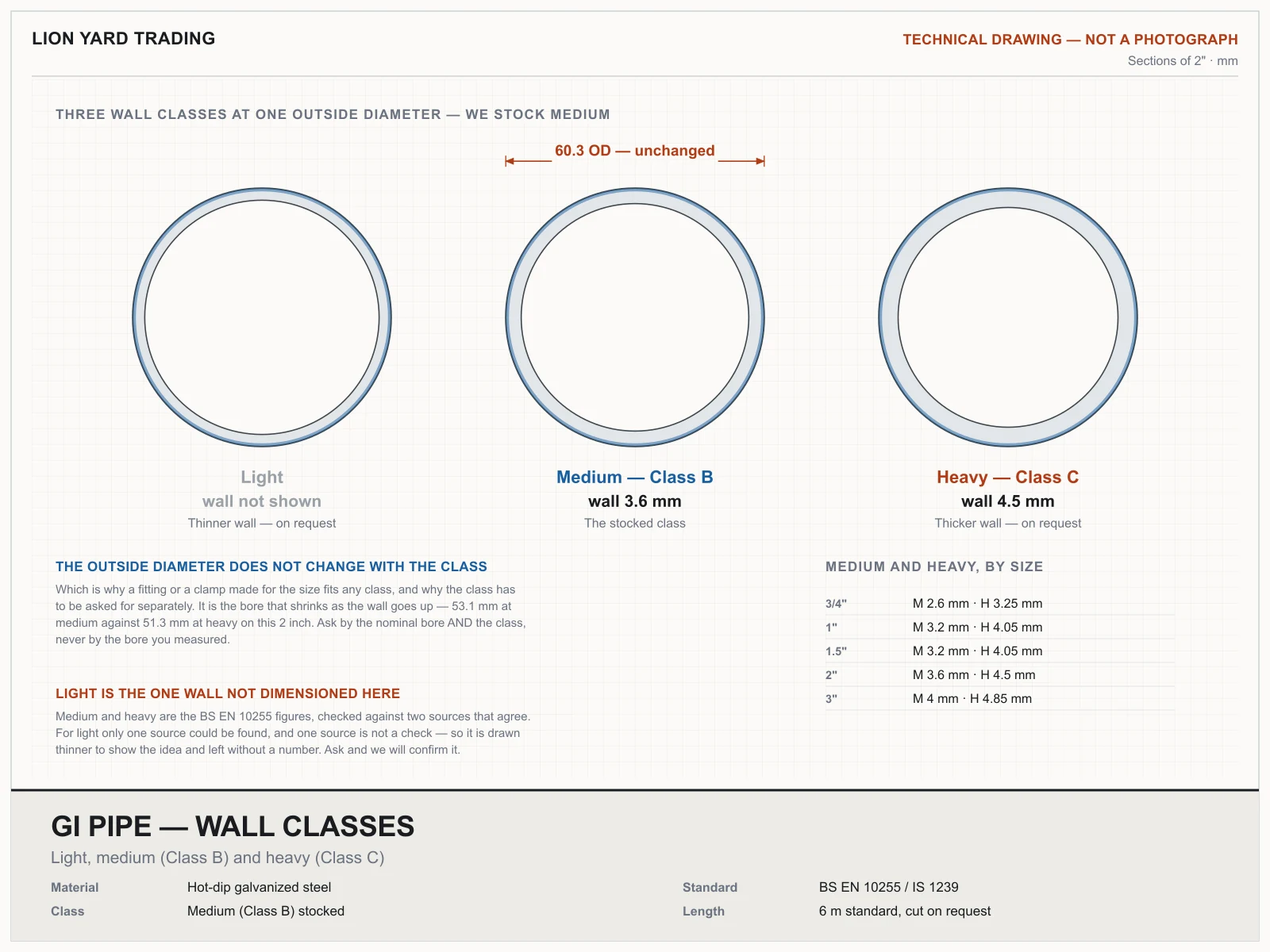

- Classes
- Light, medium (Class B) and heavy (Class C) wall thickness - medium is the common stock for fencing and general use, heavy for structural or high-pressure lines.

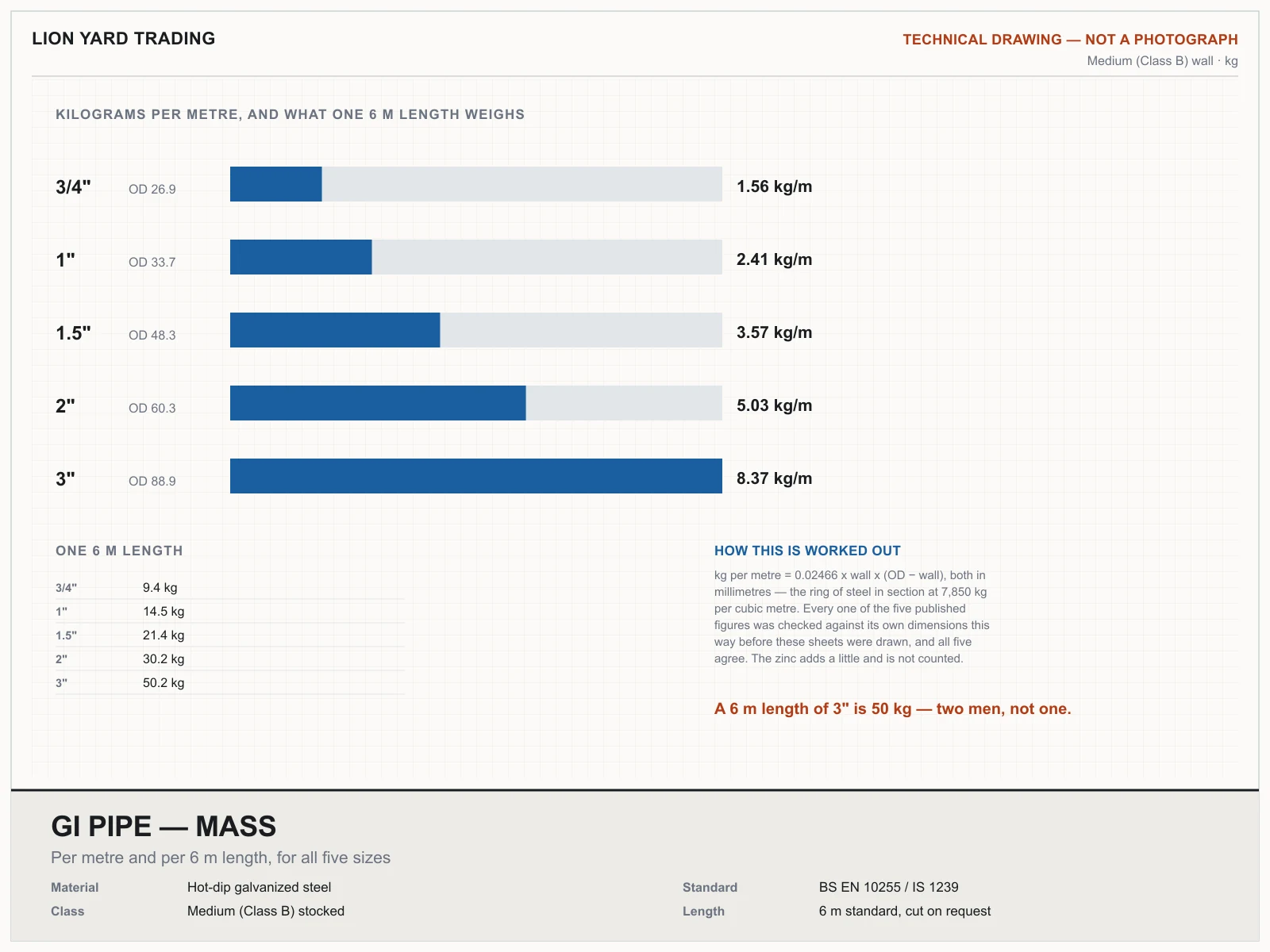

- Dimensions & weight
- Outside diameter and wall thickness follow the medium (Class B) series of BS EN 10255 / IS 1239. Weights are calculated from those dimensions at 7,850 kg/m³, not weighed. Tell us the mill certificate or standard your specification calls for and we will confirm it against the batch before we quote.

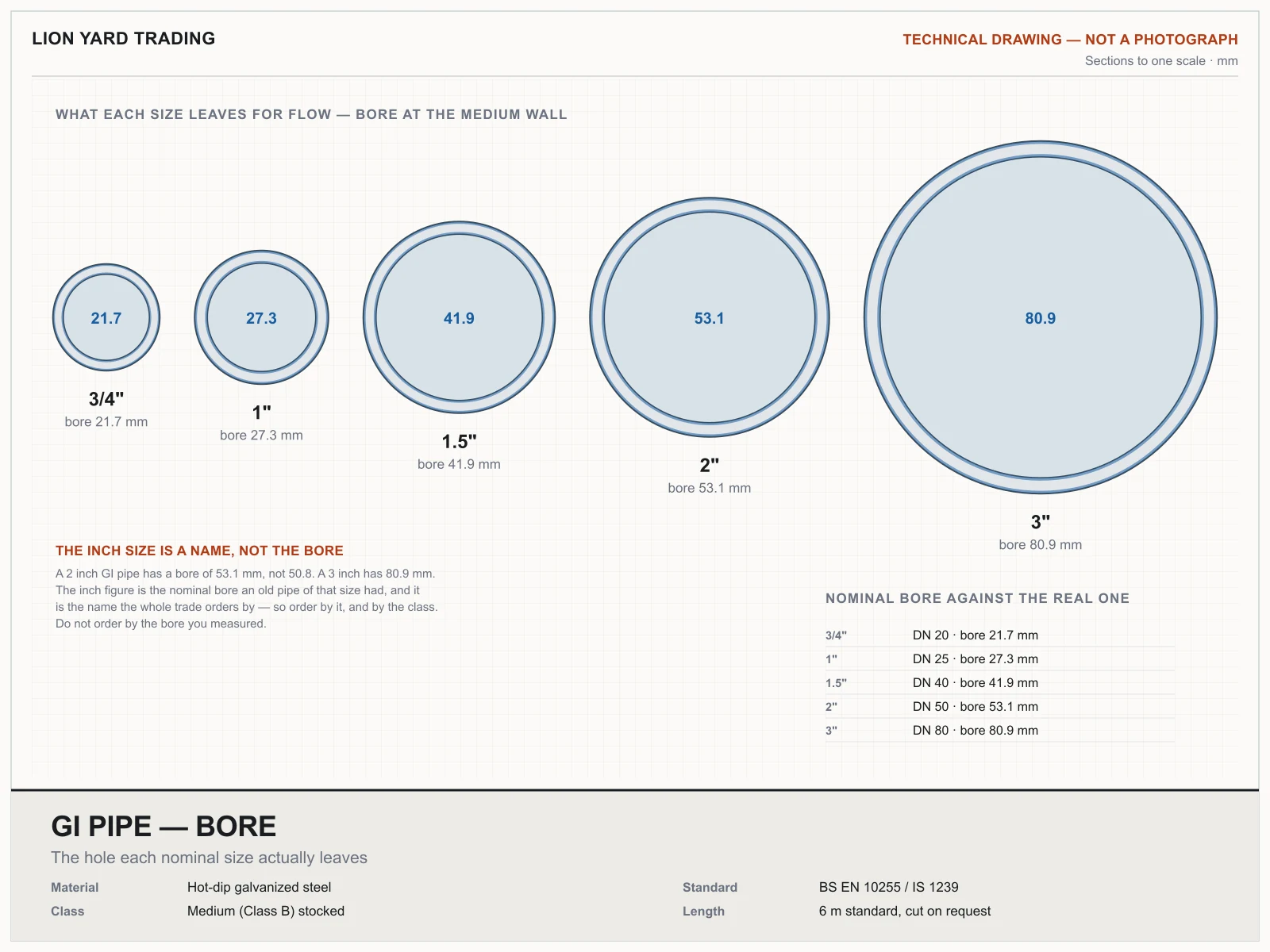

- Sizing

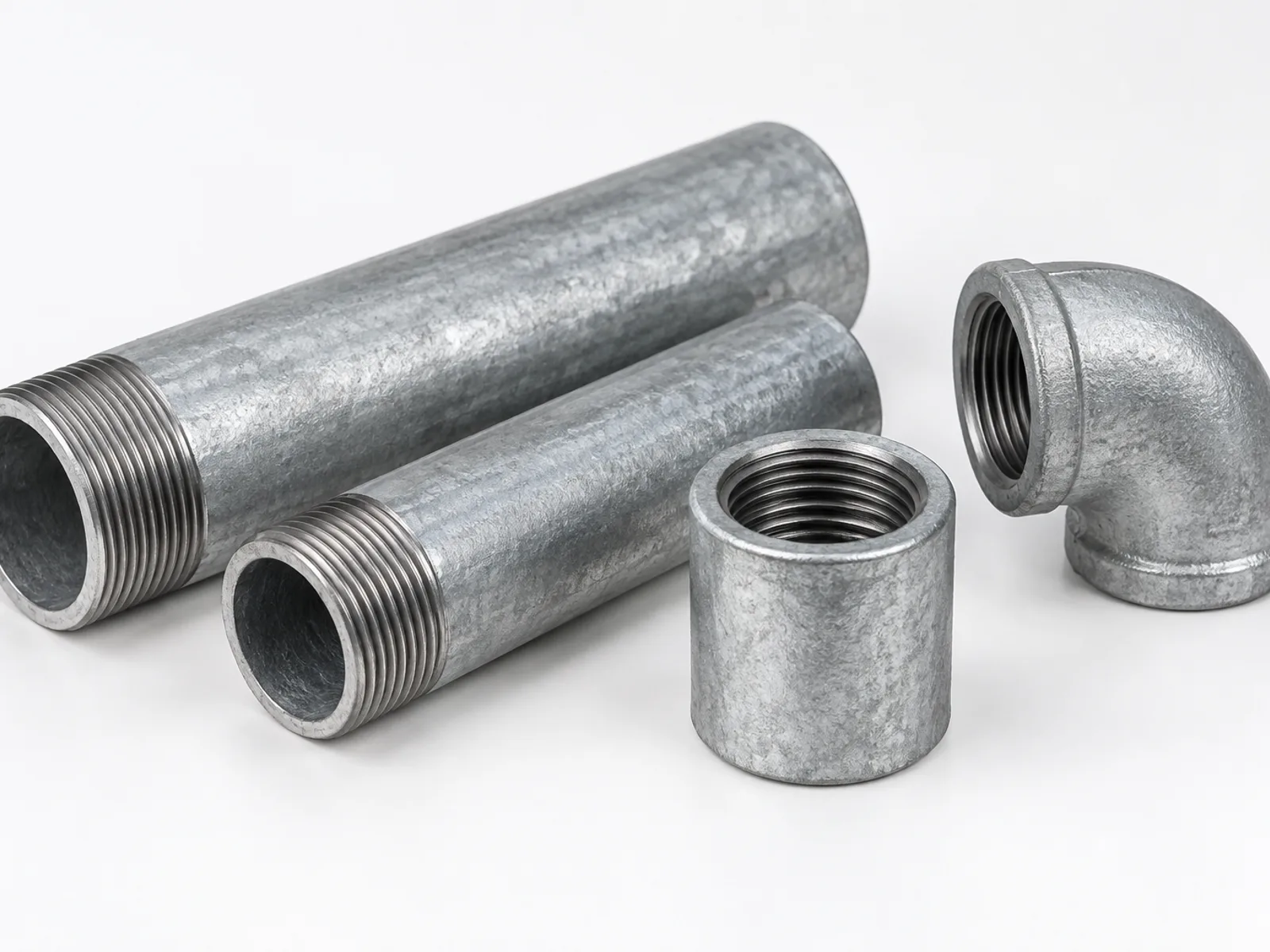

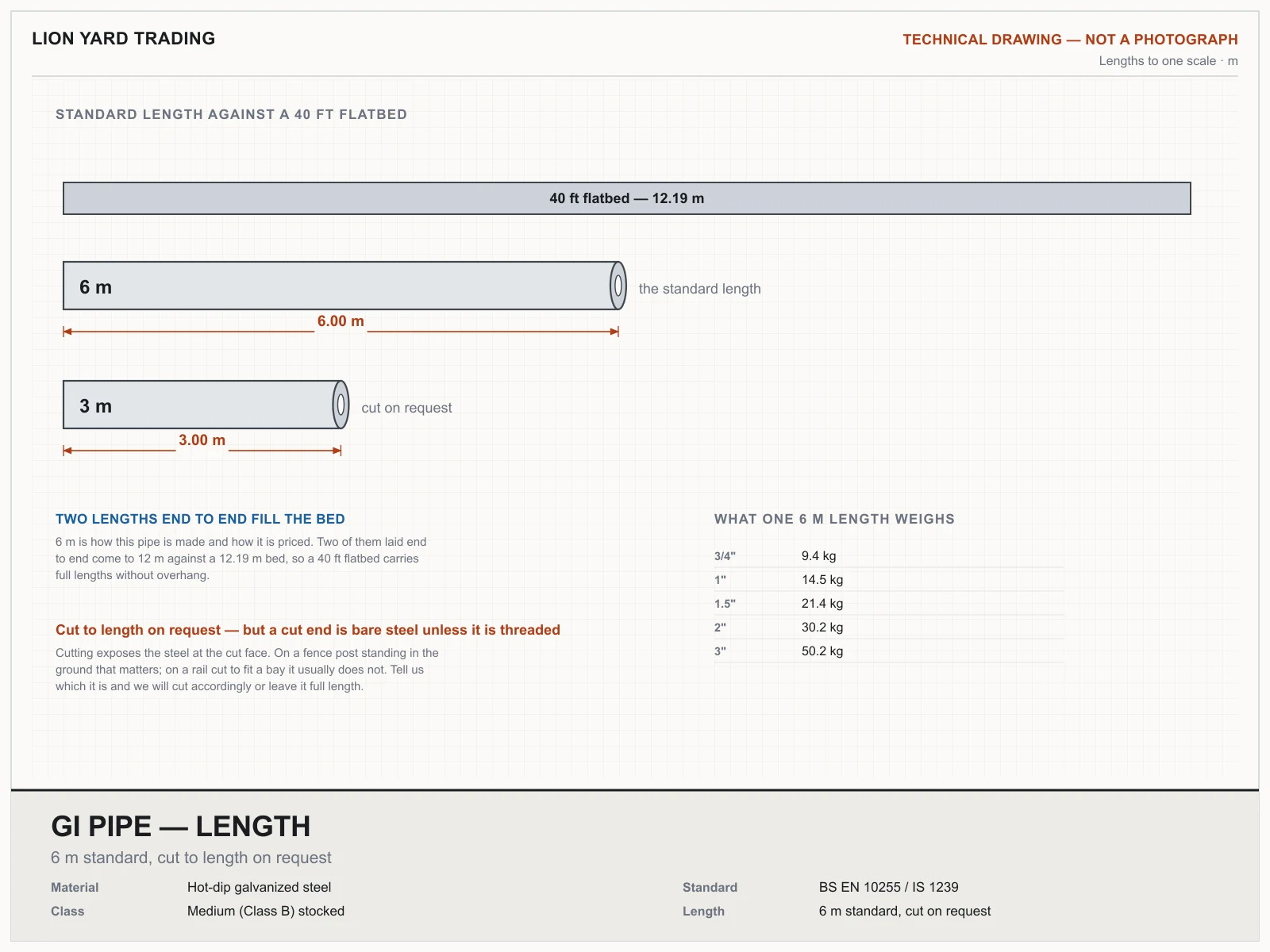

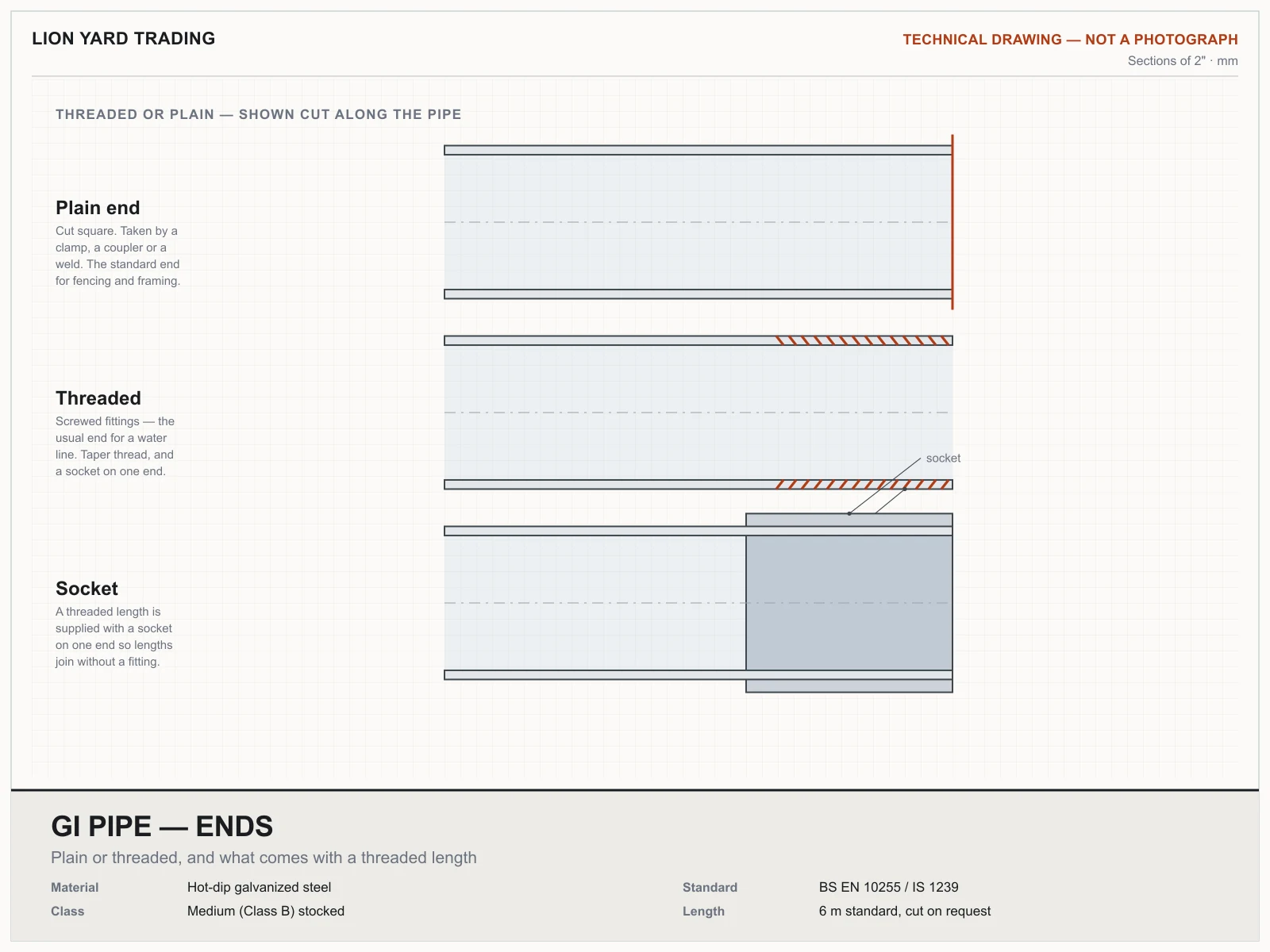

- Nominal bore in inches, standard 6 m lengths, threaded or plain end.
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation service
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Cut to length on request. Priced per piece or per project quantity, excluding 5% VAT.
GI Pipe (Galvanized)
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price GI Pipe (Galvanized) — every figure comes from the price table above or from the published standard it is made to.

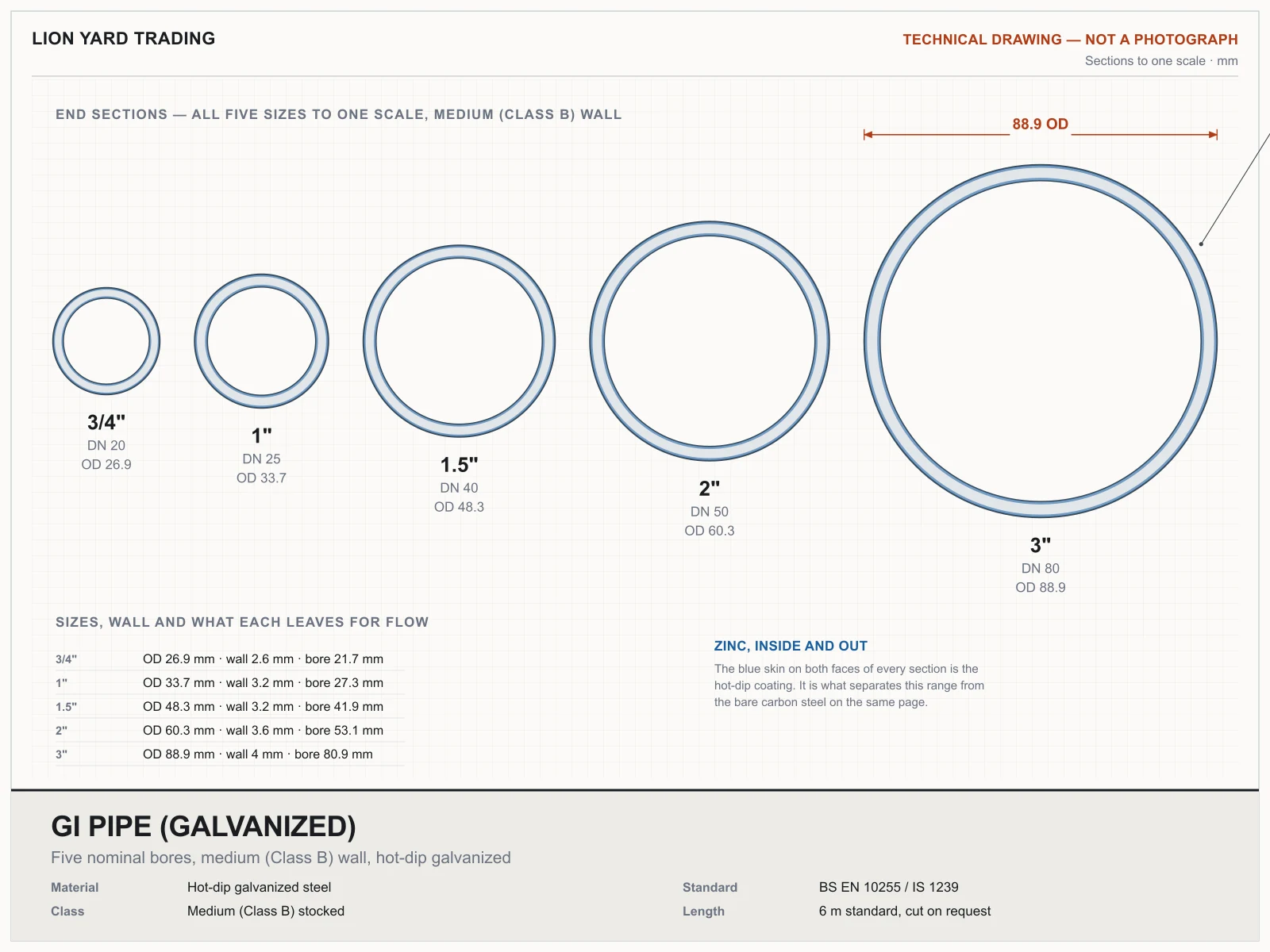

SizeAll five bores at one true scale
1 of 10

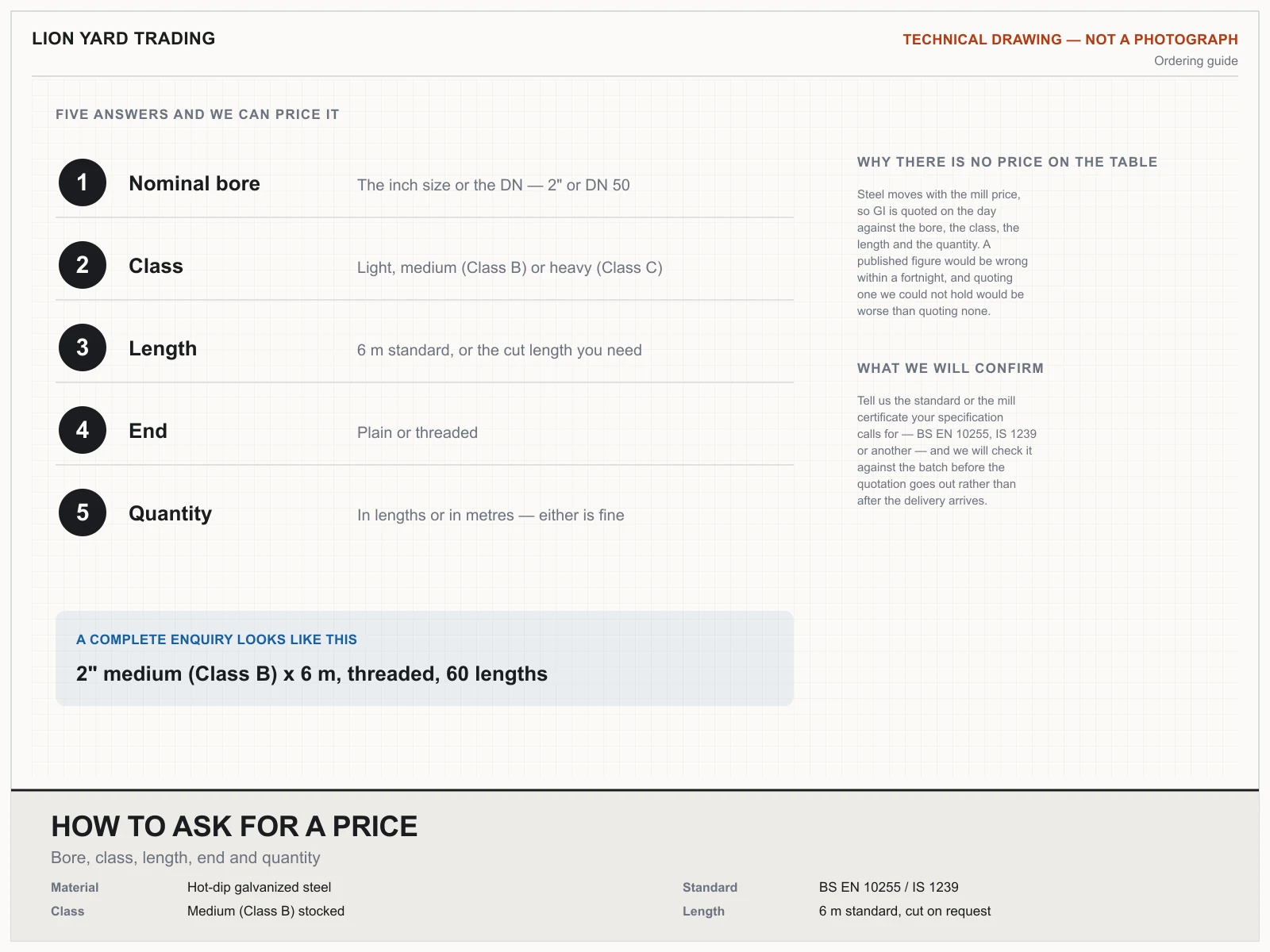

Send us the size, wall and length — or send the drawing and we will read it off.
