Acoustic / Noise Barrier Panels
Road & Site Barriers
Priced on enquiry
Quoted against your specification, usually the same day.
Tell us the size and where it is going.
About this product

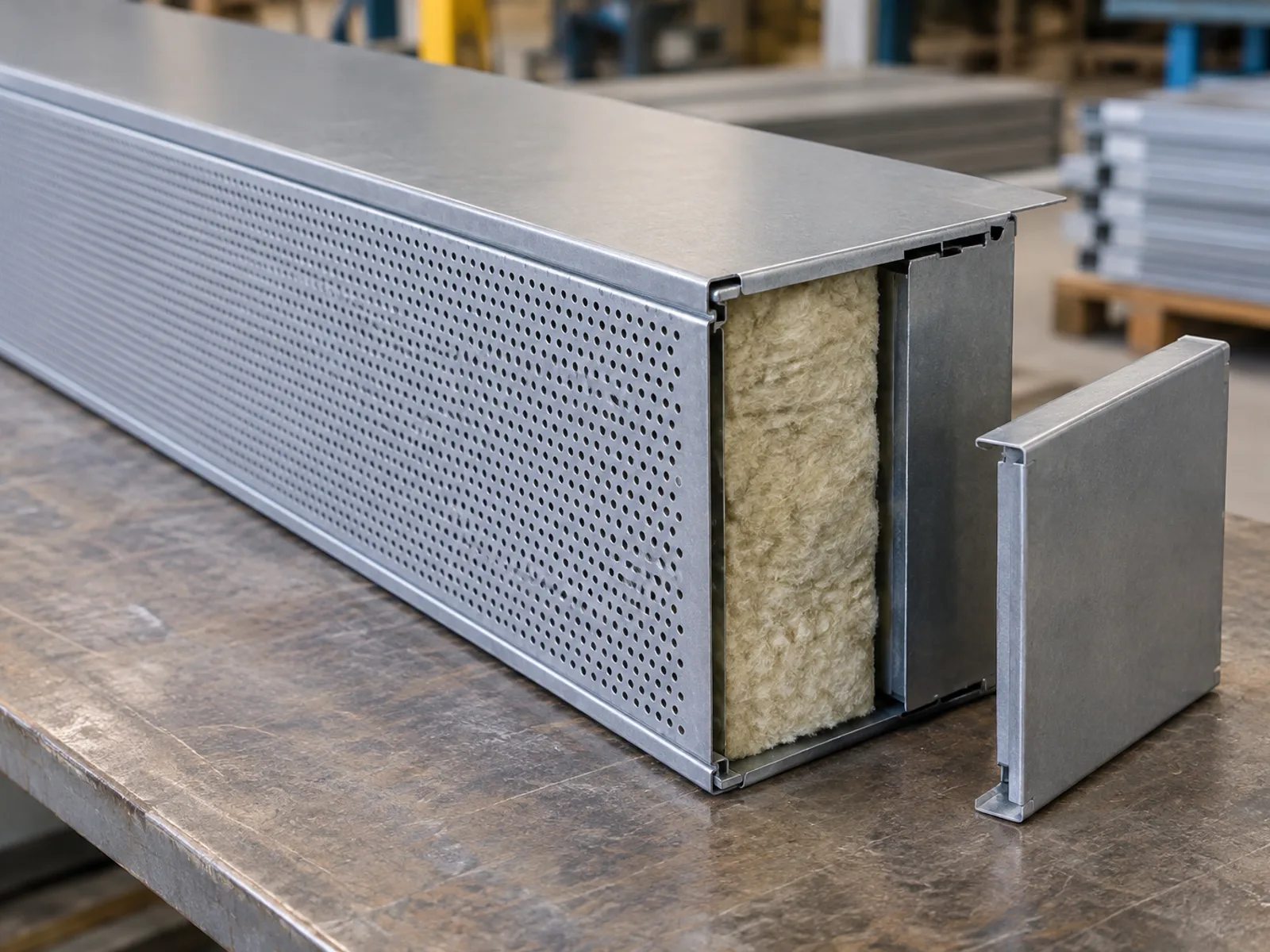

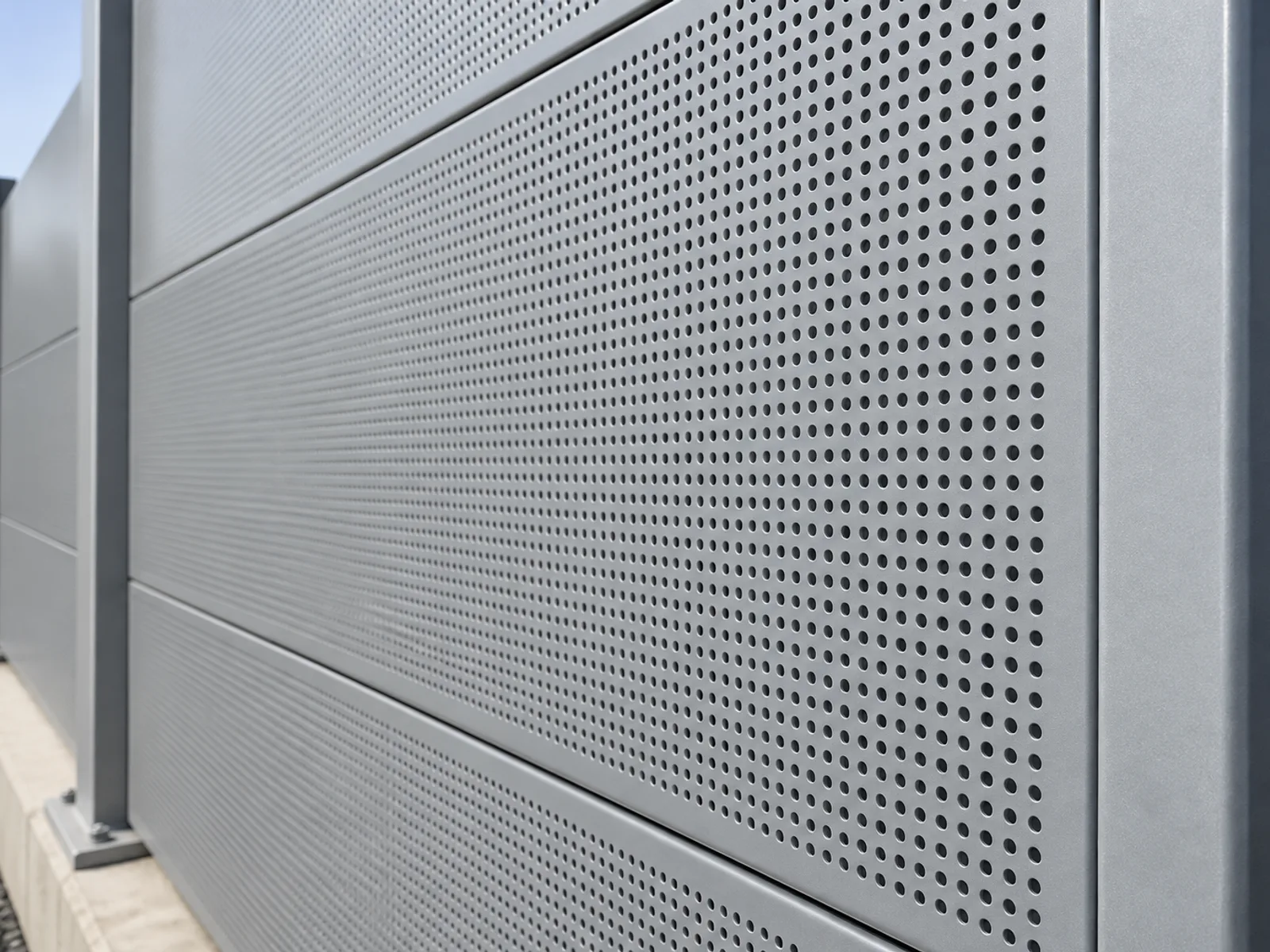

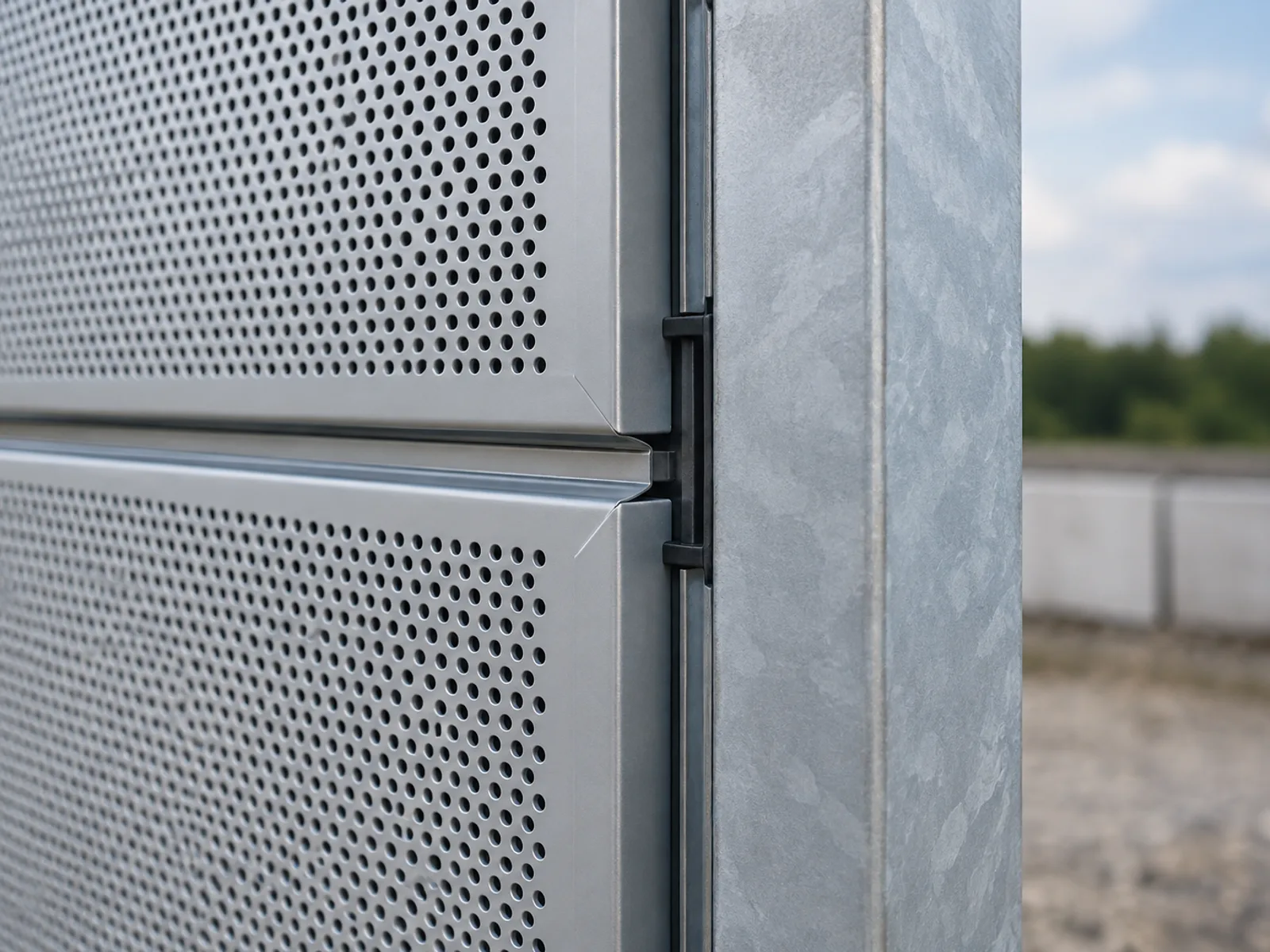

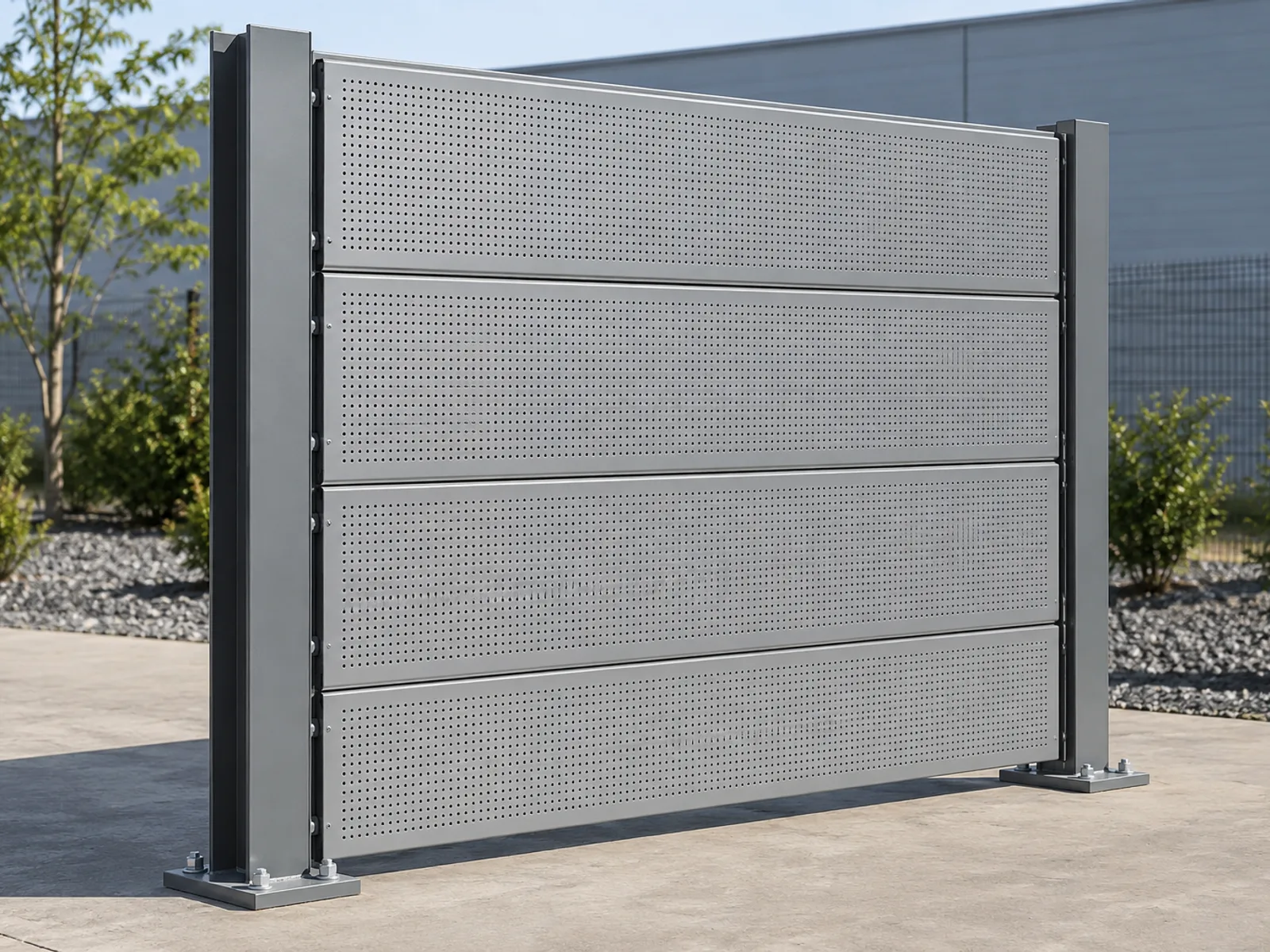

- Construction: Solid outer shell, perforated inner shell, mineral wool or fibreglass infill

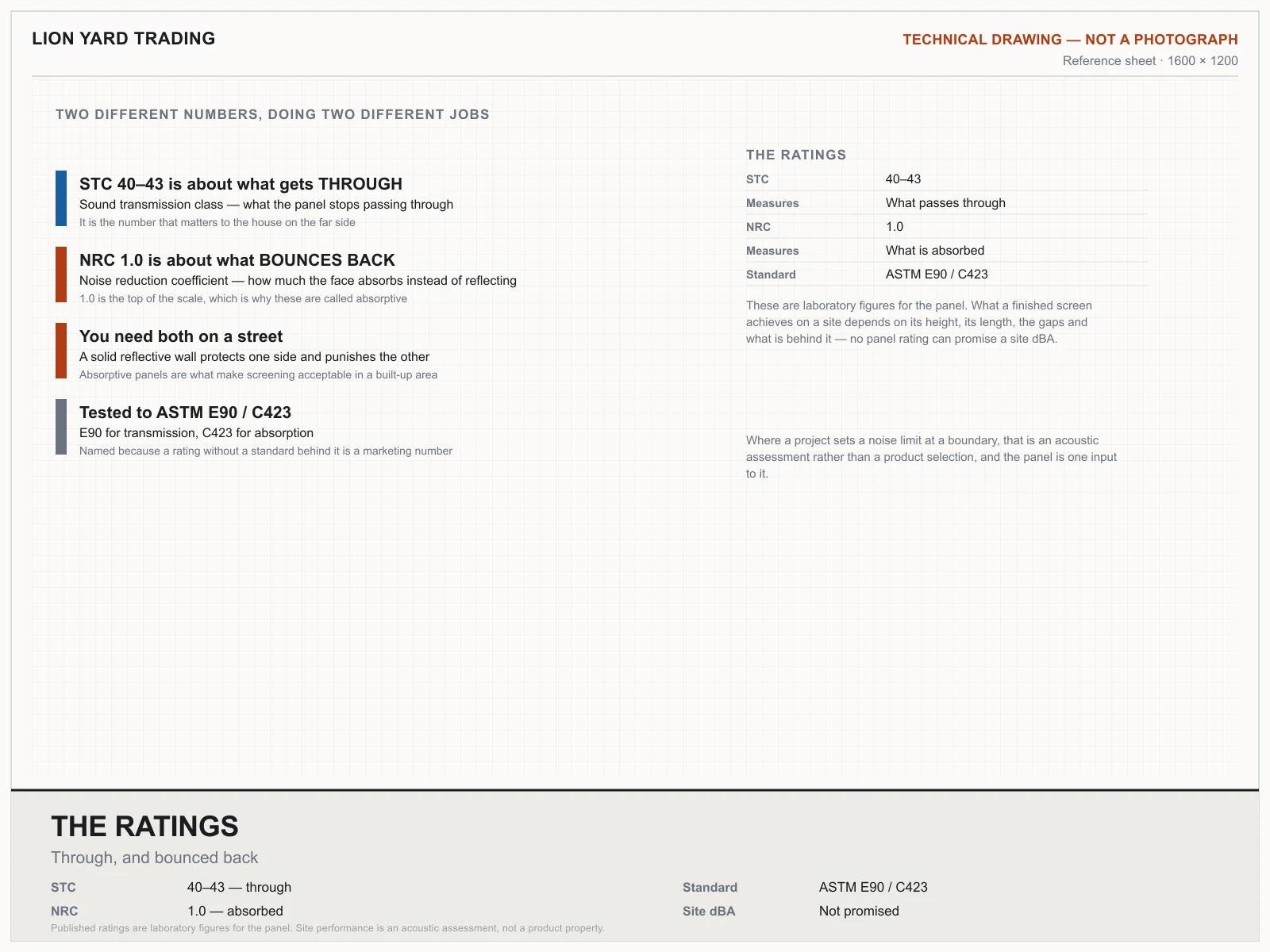

- Acoustic rating: STC 40–43 · NRC 1.0 to ASTM E90 / C423

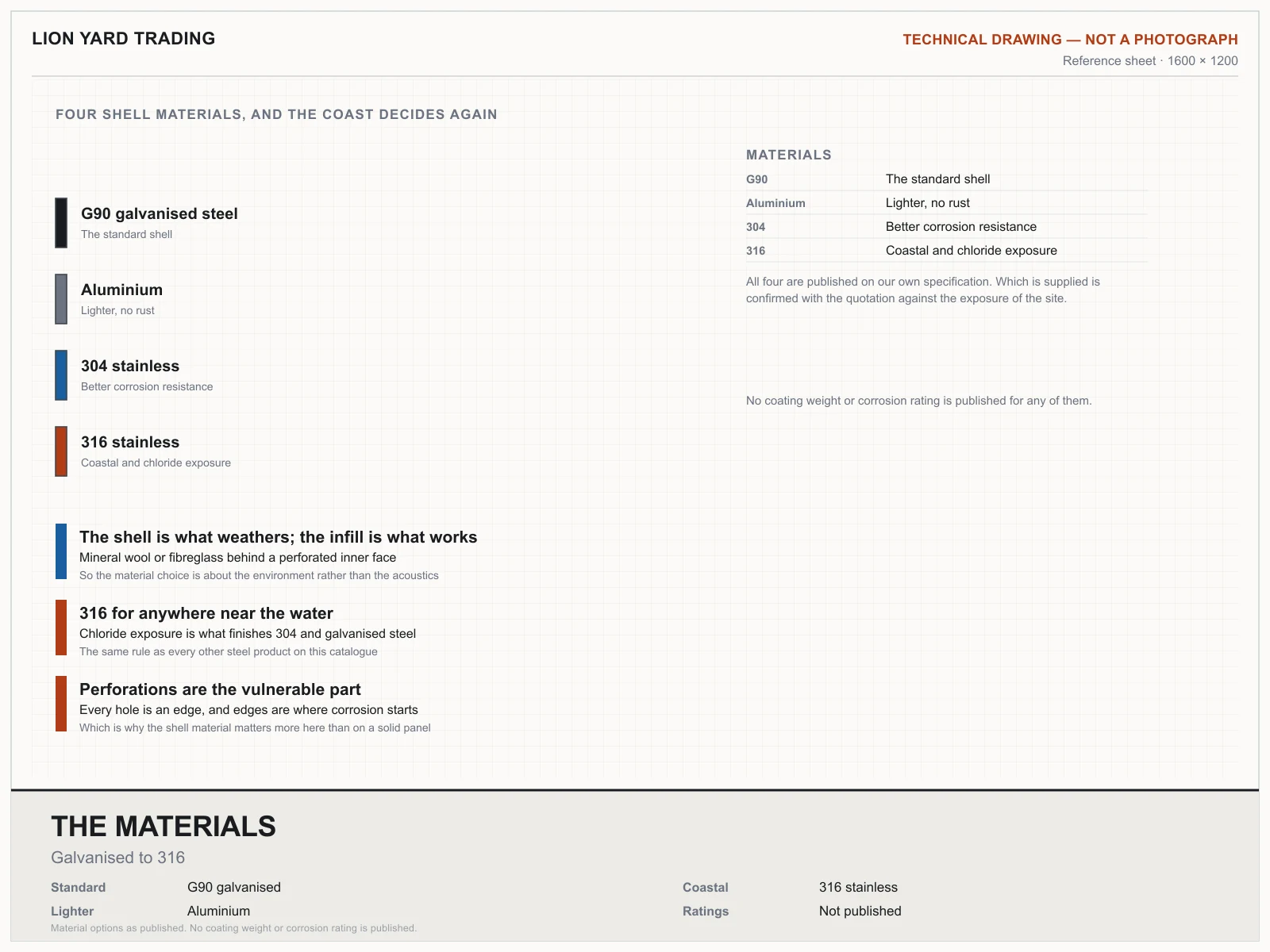

- Materials: G90 galvanised steel, aluminium, 304 or 316 stainless

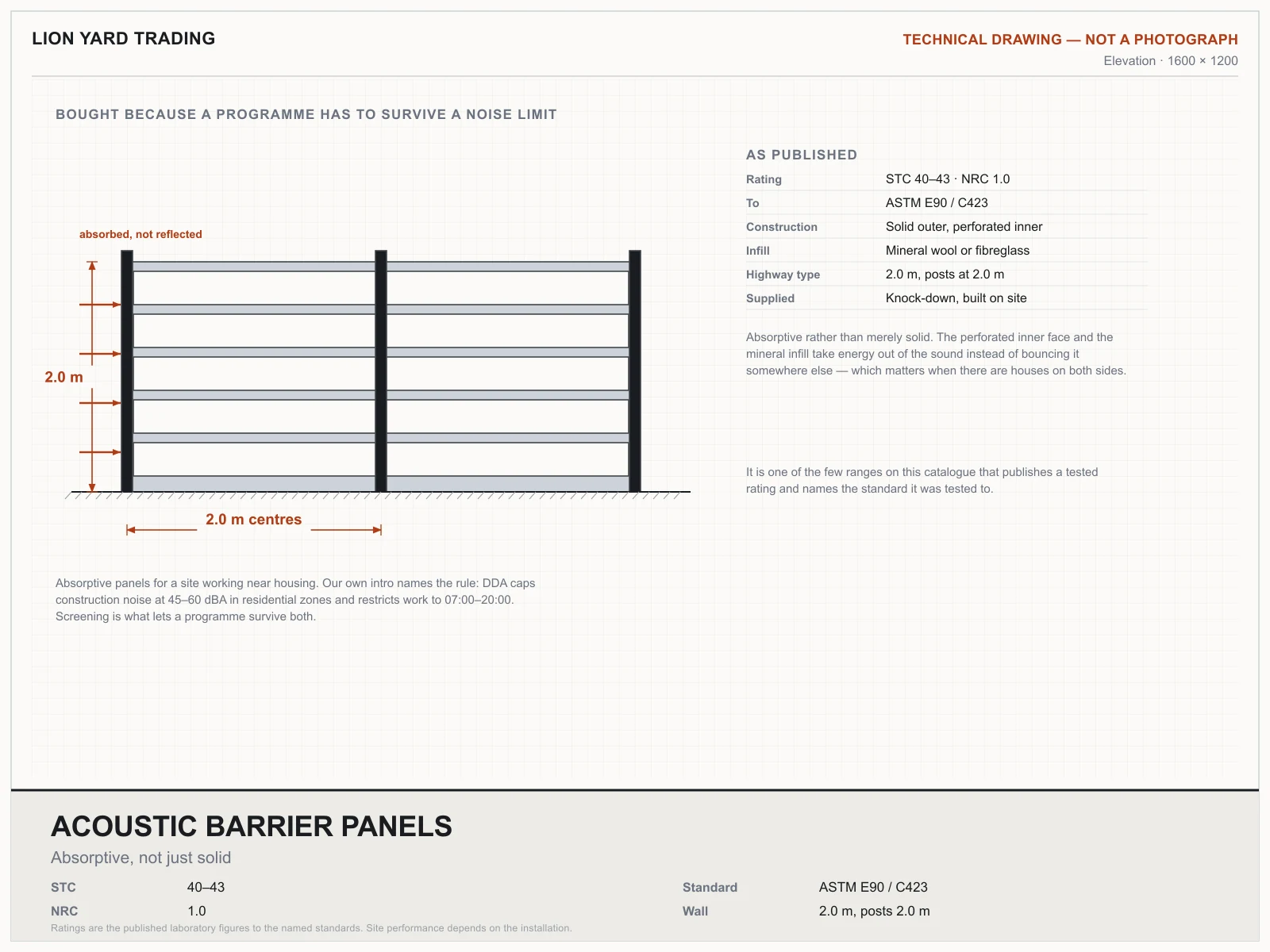

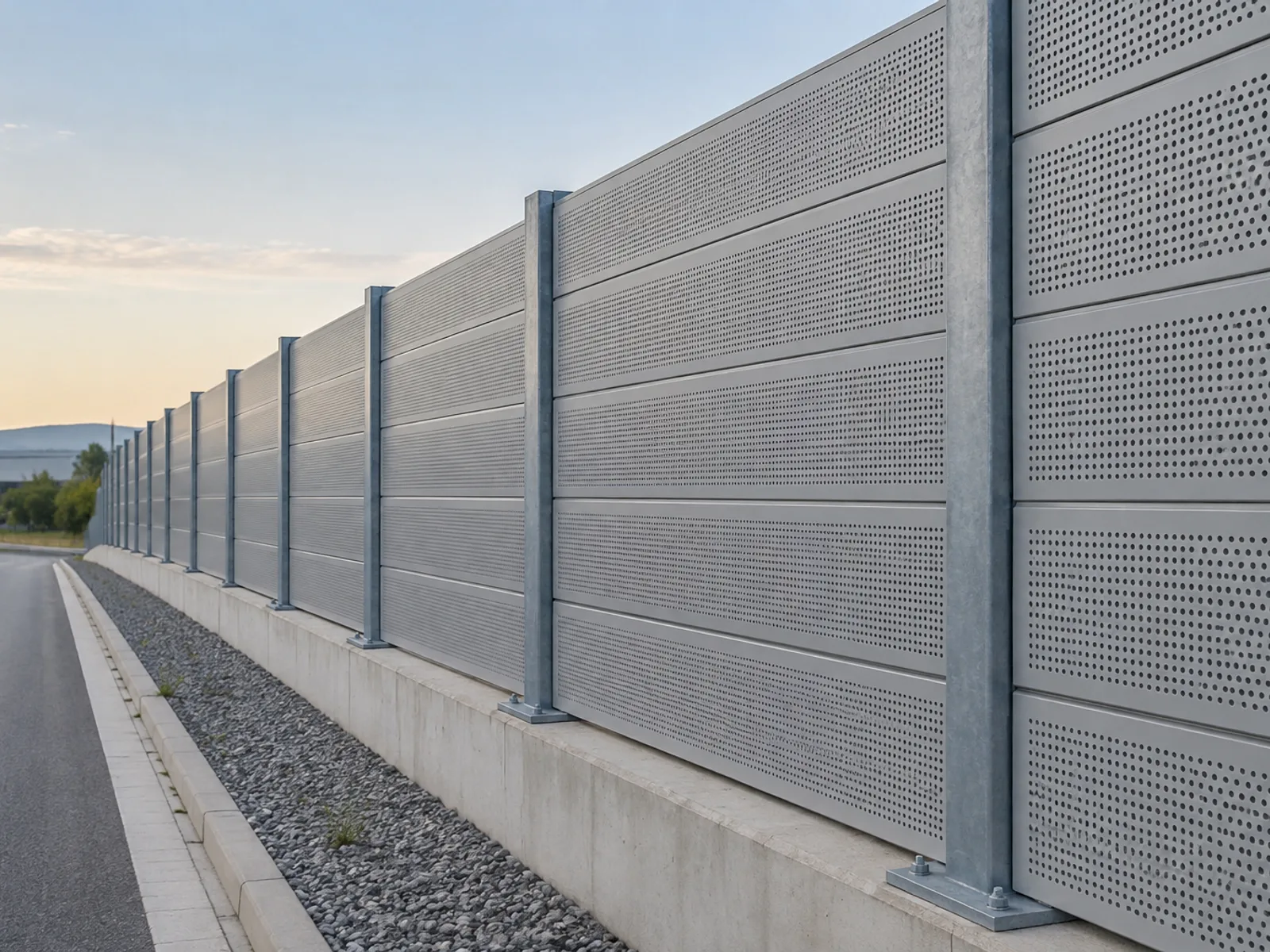

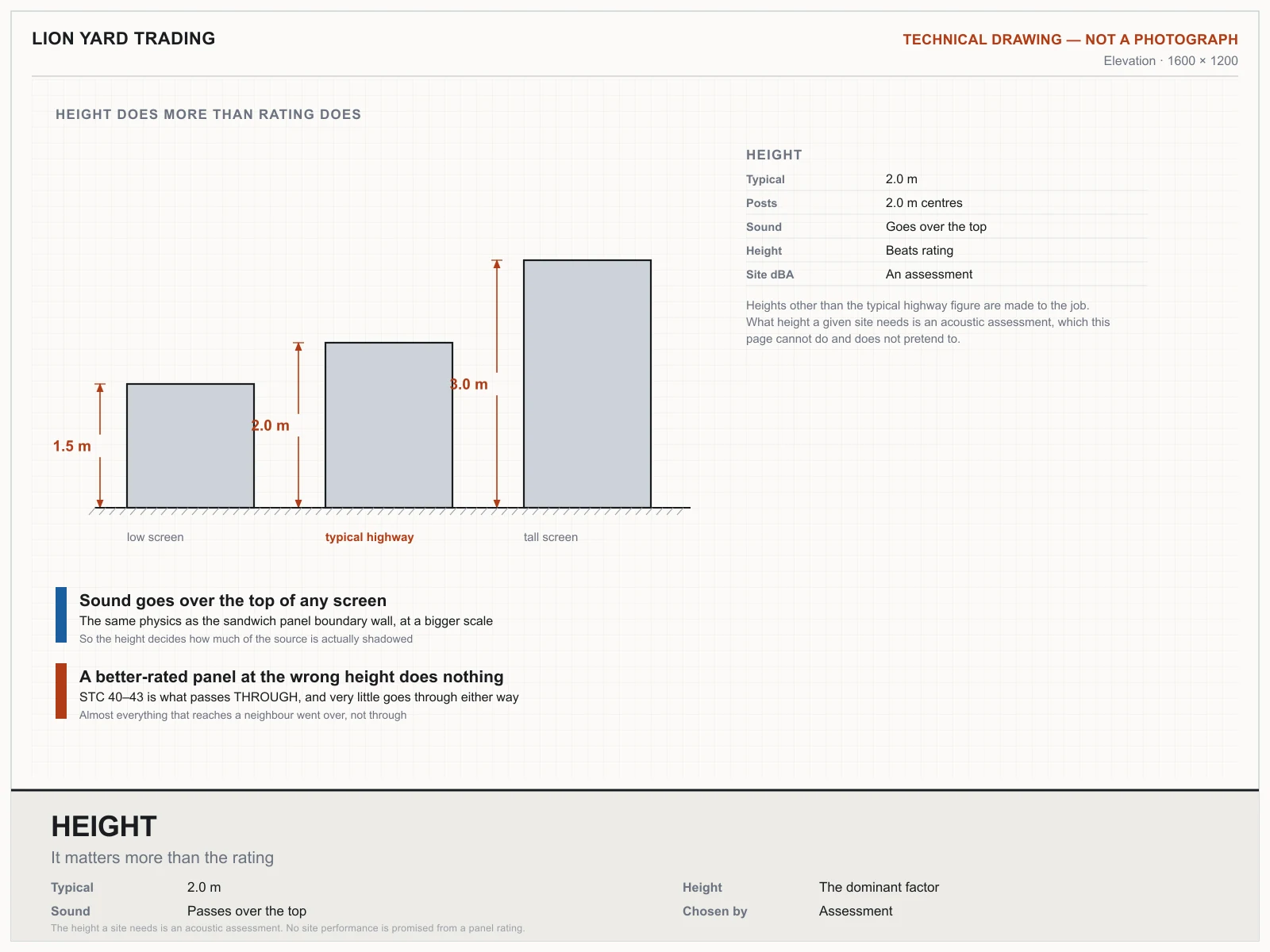

- Highway type: Typically 2 m high with posts at 2 m centres

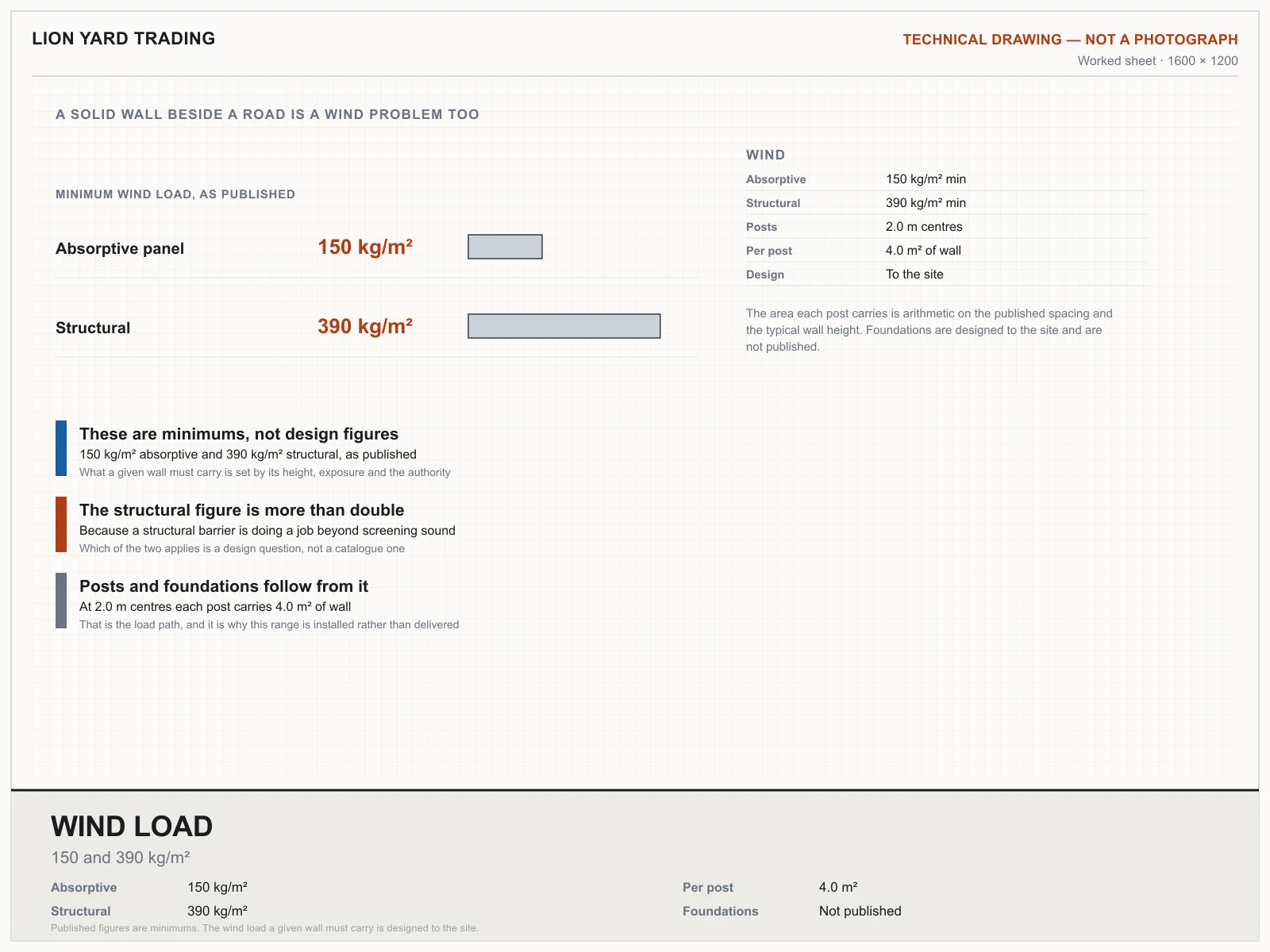

- Wind load: Minimum 150 kg/m² absorptive, 390 kg/m² structural

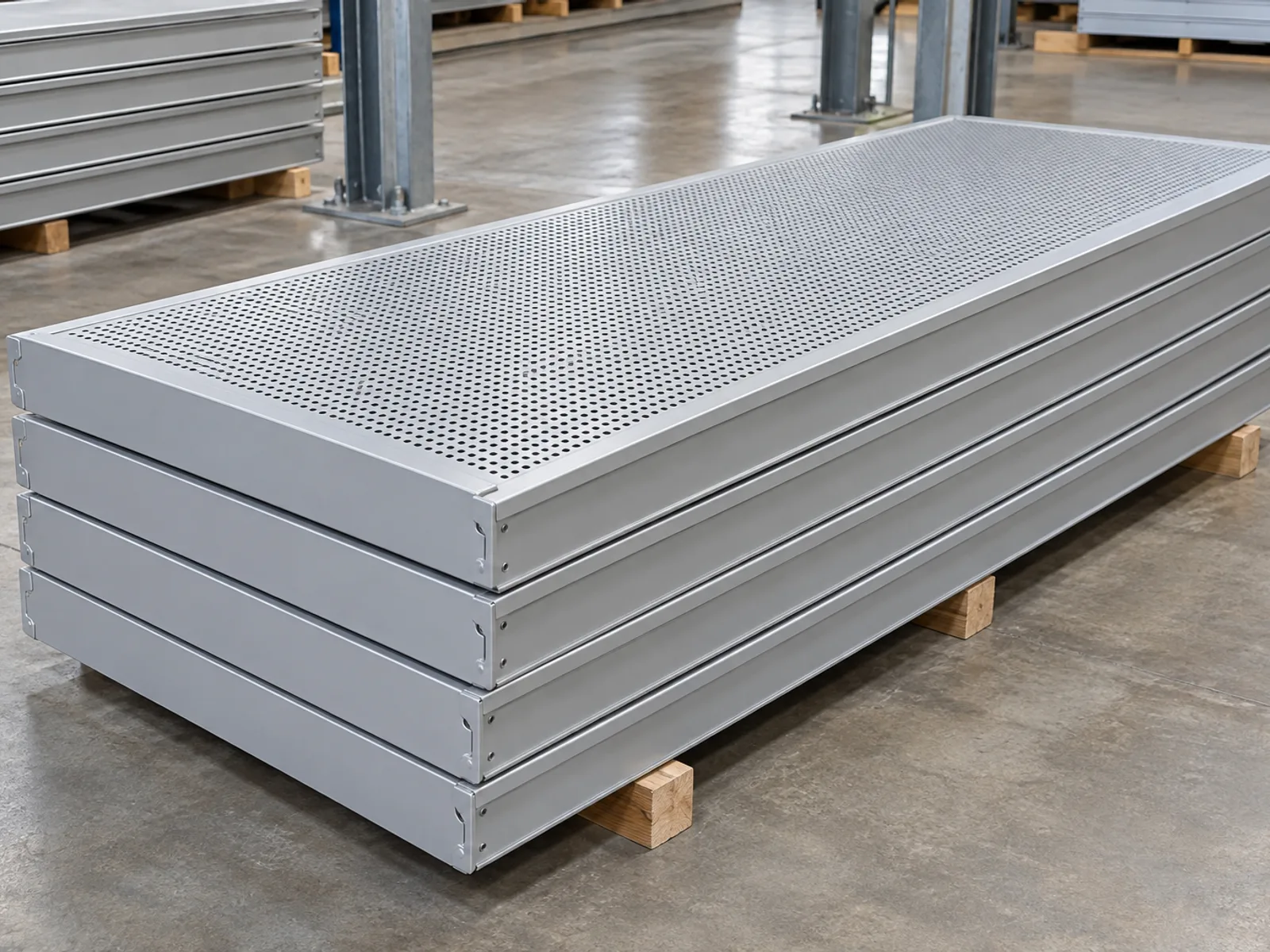

- Supplied: Knock-down, assembled on site
All 4 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|

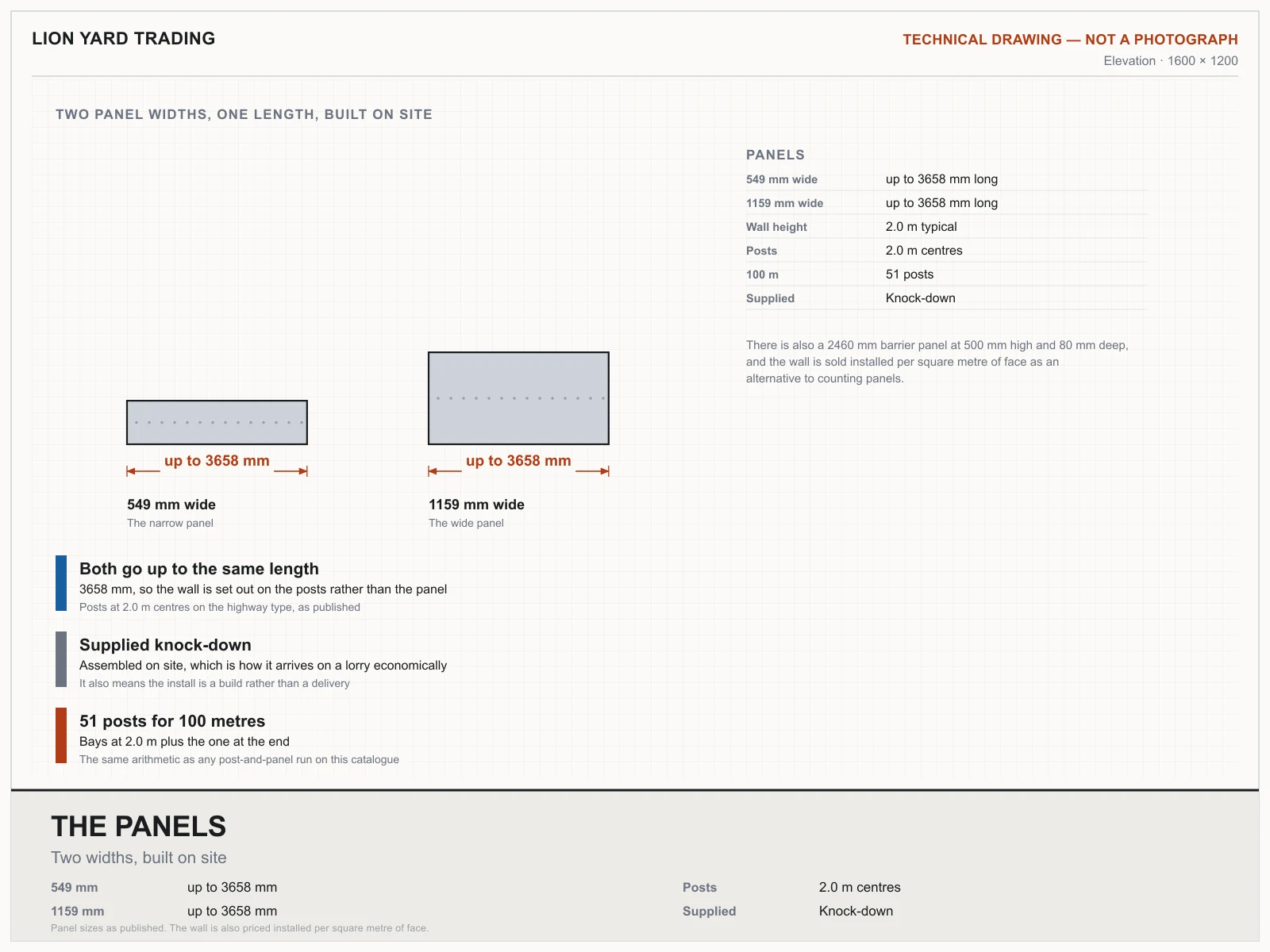

| Panel 550 mm wideLY-ROAD-055 | Up to 3658 mm long × 549 mm wide | Ask |
| Panel 1160 mm wideLY-ROAD-056 | Up to 3658 mm long × 1159 mm wide | Ask |

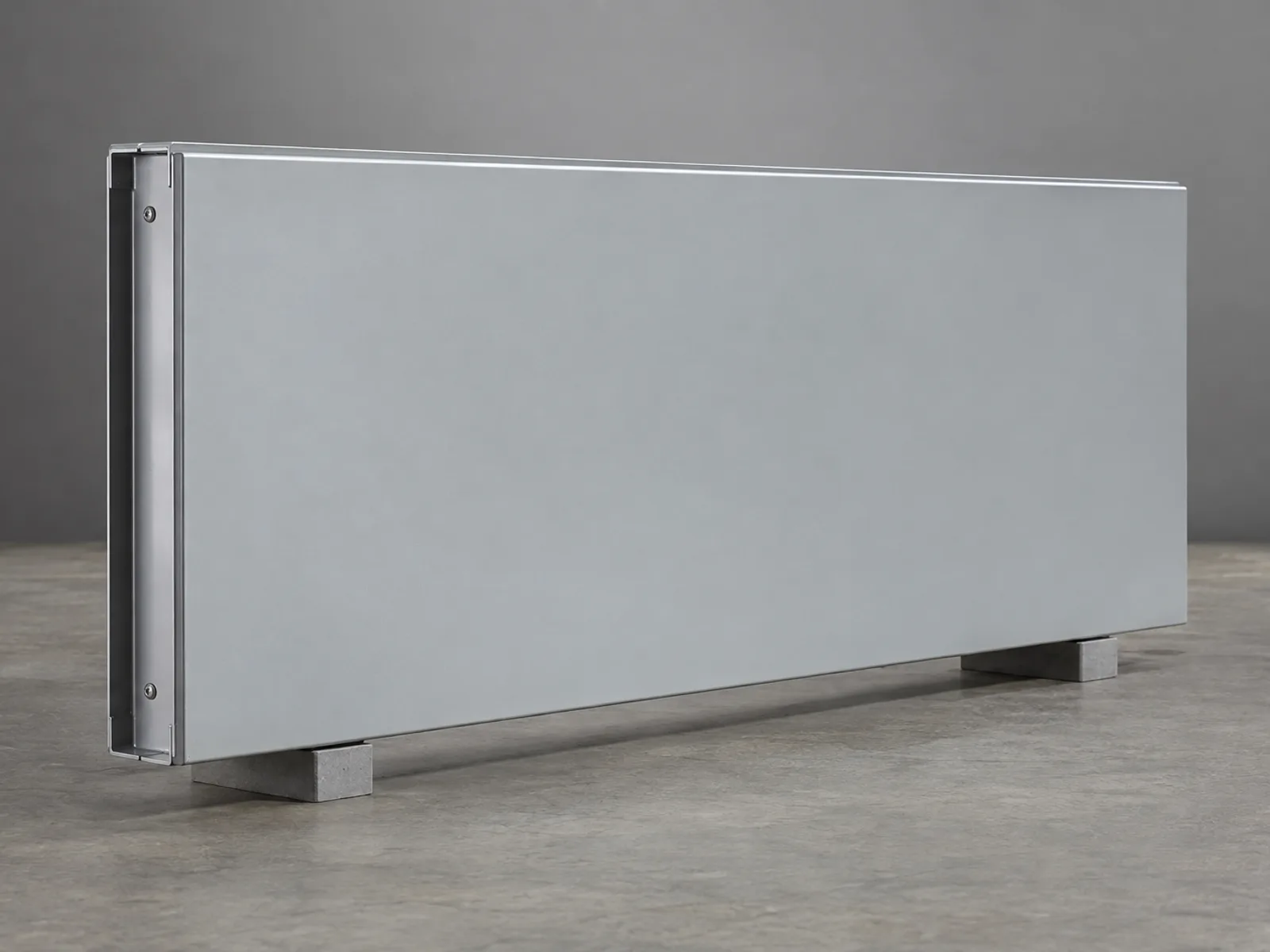

| Barrier panel 2460 mmLY-ROAD-043 | 2460 mm long × 80 mm deep × 500 mm high | Ask |
| Acoustic wall — installedLY-ROAD-044 | Per m² of barrier face, 2 m high, posts at 2 m centres | Ask |
- Up to 3658 mm long × 549 mm wideAsk on WhatsApp
- Up to 3658 mm long × 1159 mm wideAsk on WhatsApp
- 2460 mm long × 80 mm deep × 500 mm highAsk on WhatsApp
- Per m² of barrier face, 2 m high, posts at 2 m centresAsk on WhatsApp
Priced on enquiry against your specification.
What it is

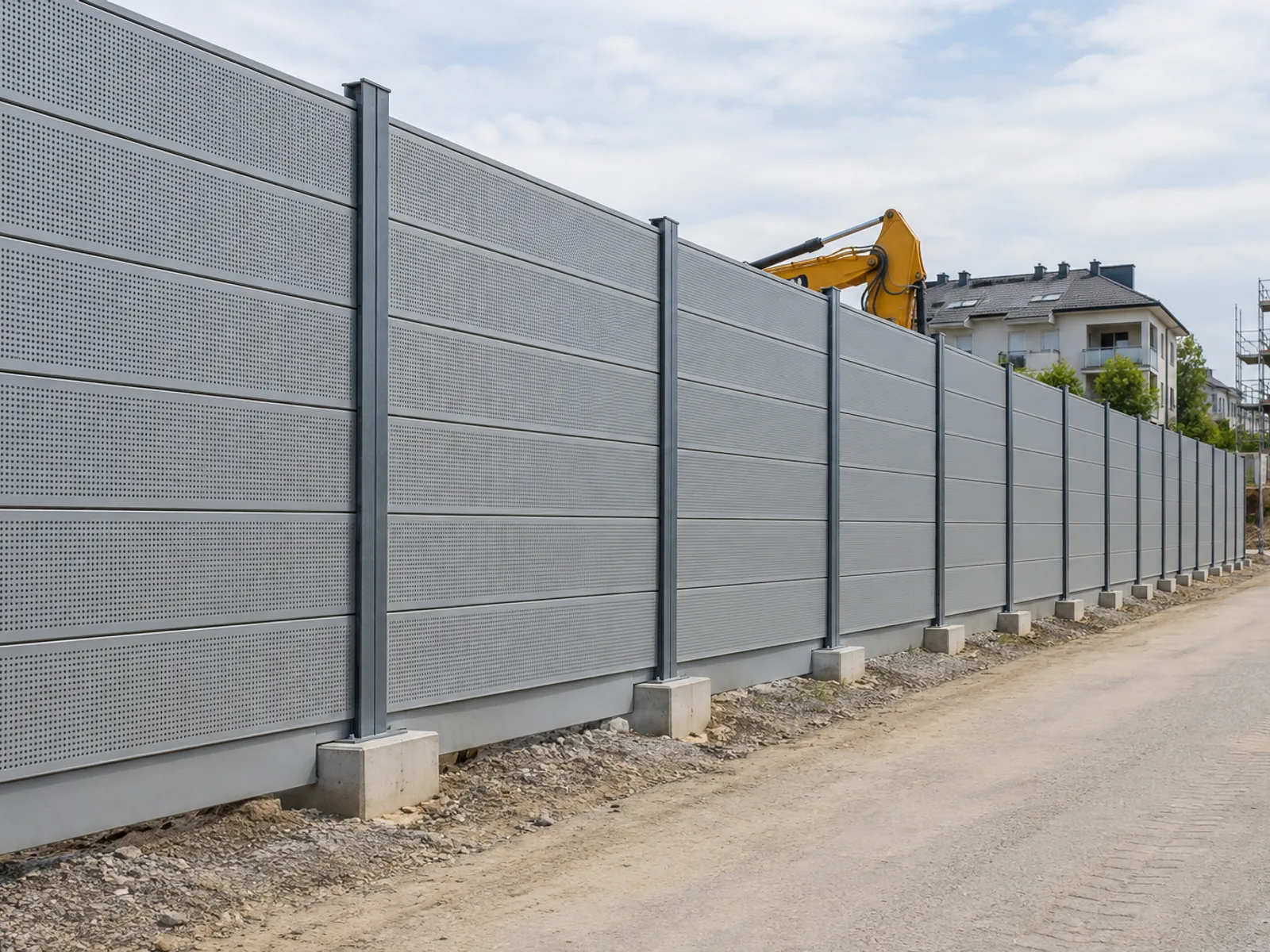

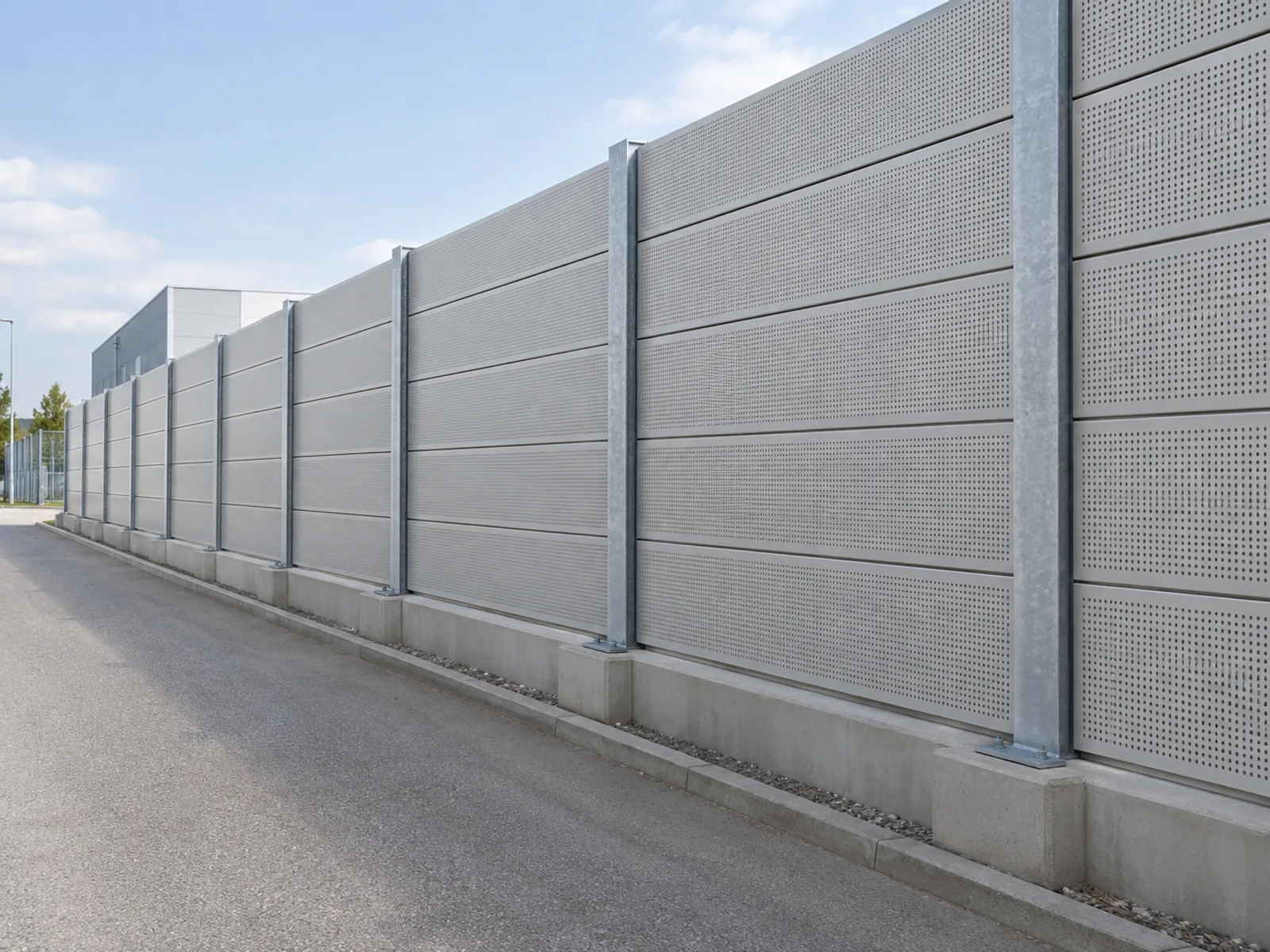

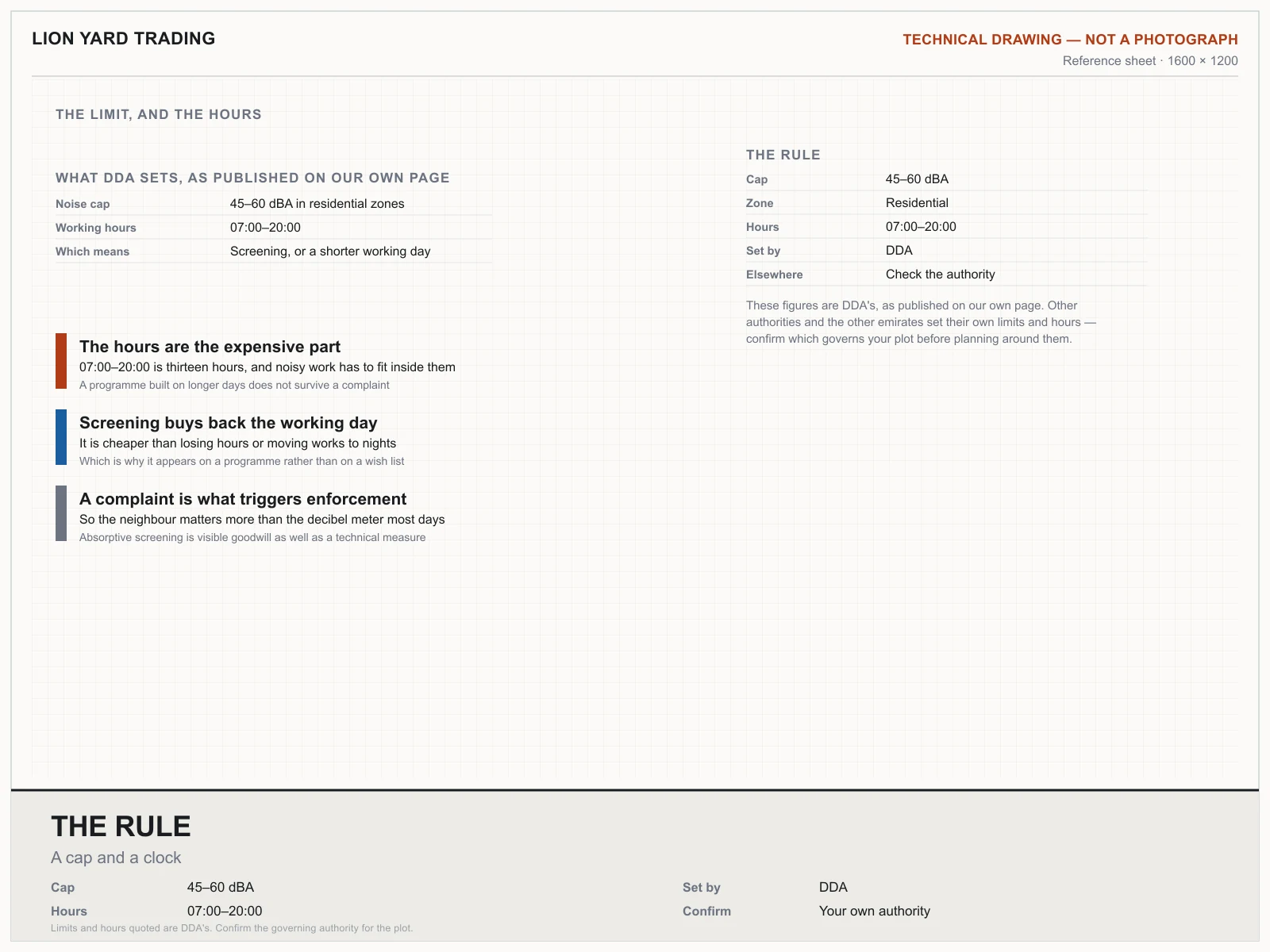

Absorptive panels for sites working near housing. DDA caps construction noise at 45–60 dBA in residential zones and restricts work to 07:00–20:00 — screening is what lets a programme survive both.
Specification

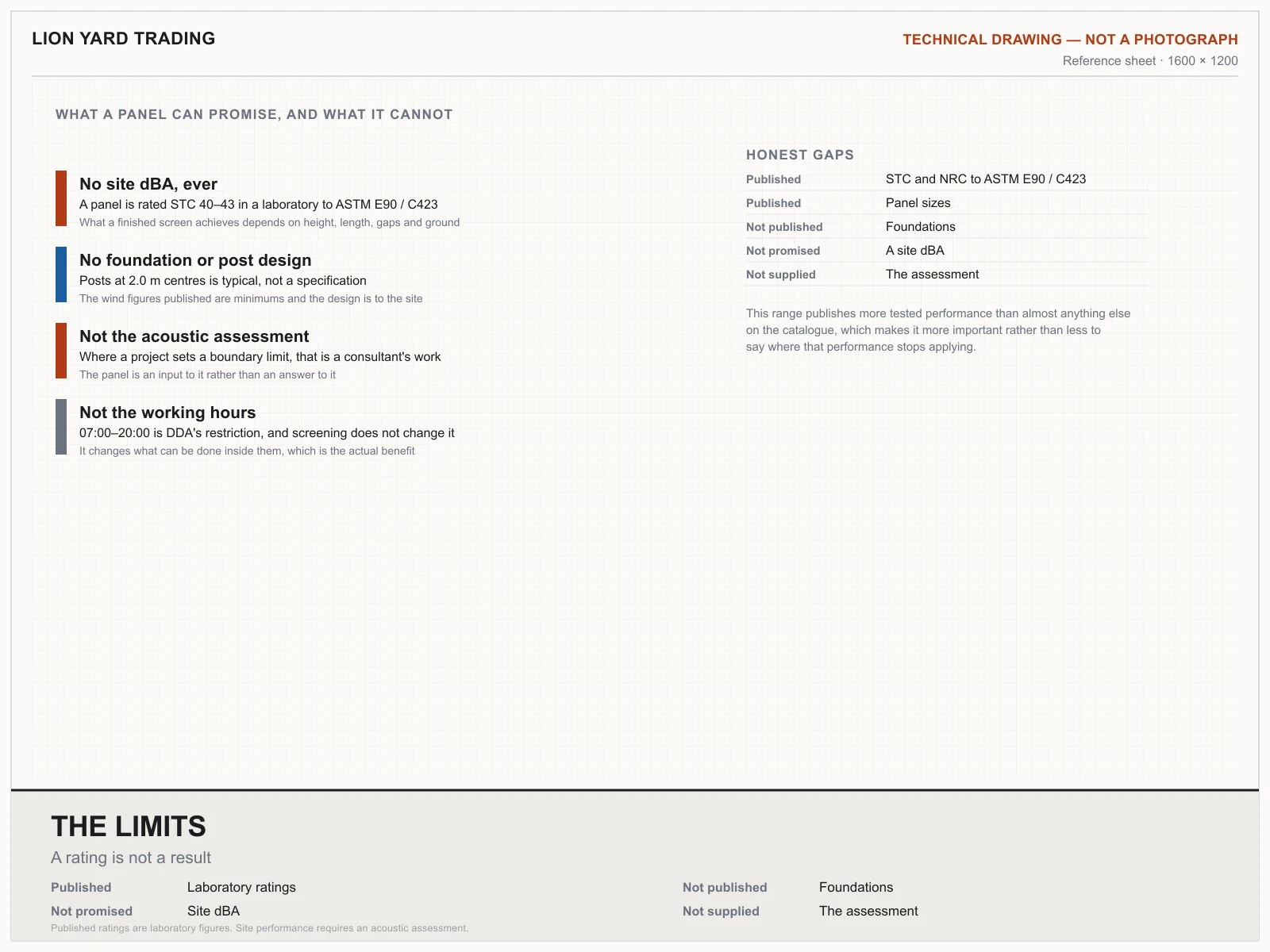

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Construction
- Solid outer shell, perforated inner shell, mineral wool or fibreglass infill
- Acoustic rating
- STC 40–43 · NRC 1.0 to ASTM E90 / C423
- Materials
- G90 galvanised steel, aluminium, 304 or 316 stainless
- Highway type
- Typically 2 m high with posts at 2 m centres
- Wind load
- Minimum 150 kg/m² absorptive, 390 kg/m² structural
- Supplied
- Knock-down, assembled on site
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.

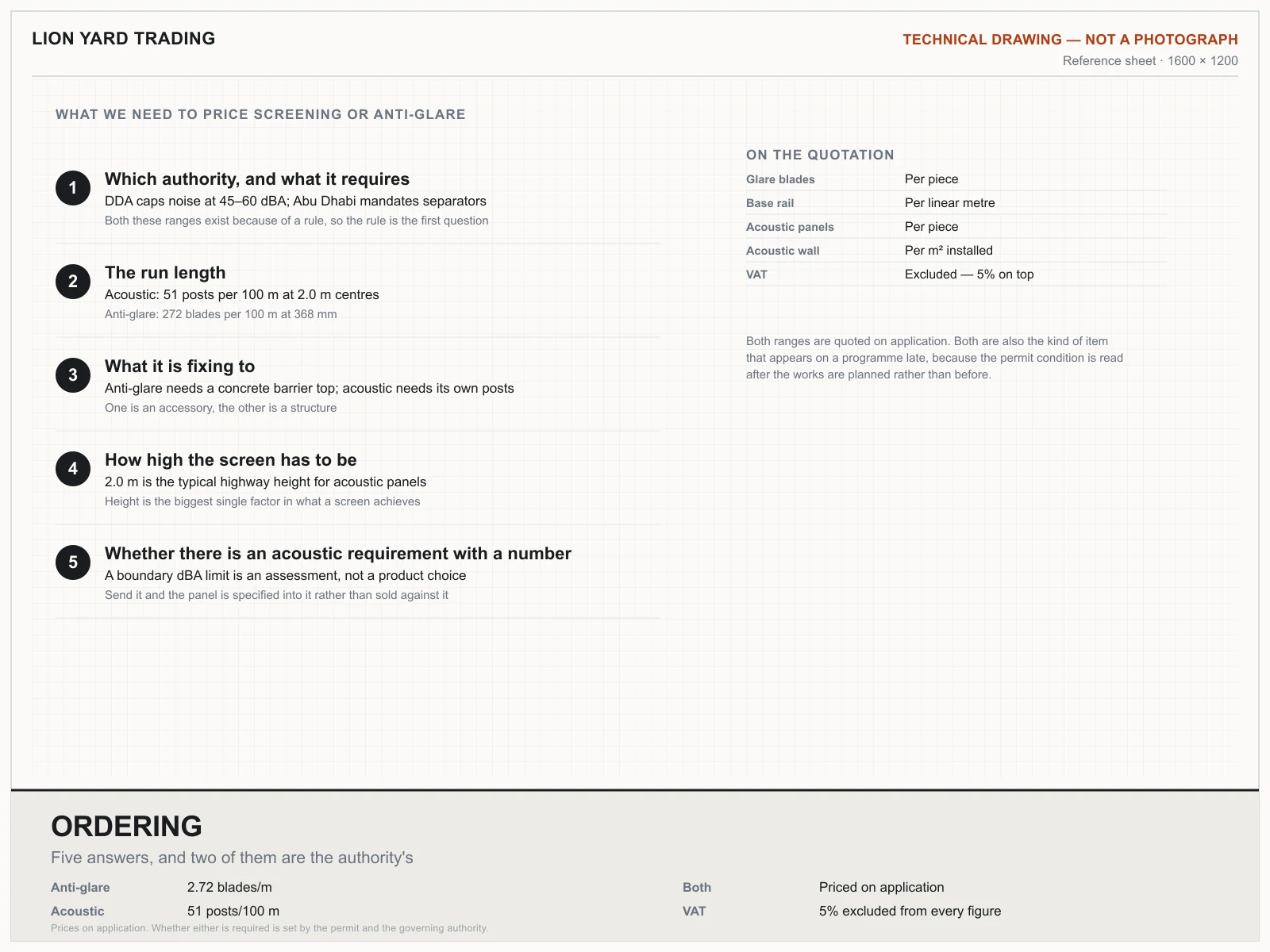

Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Acoustic / Noise Barrier Panels — every figure comes from the price table above or from the published standard it is made to.

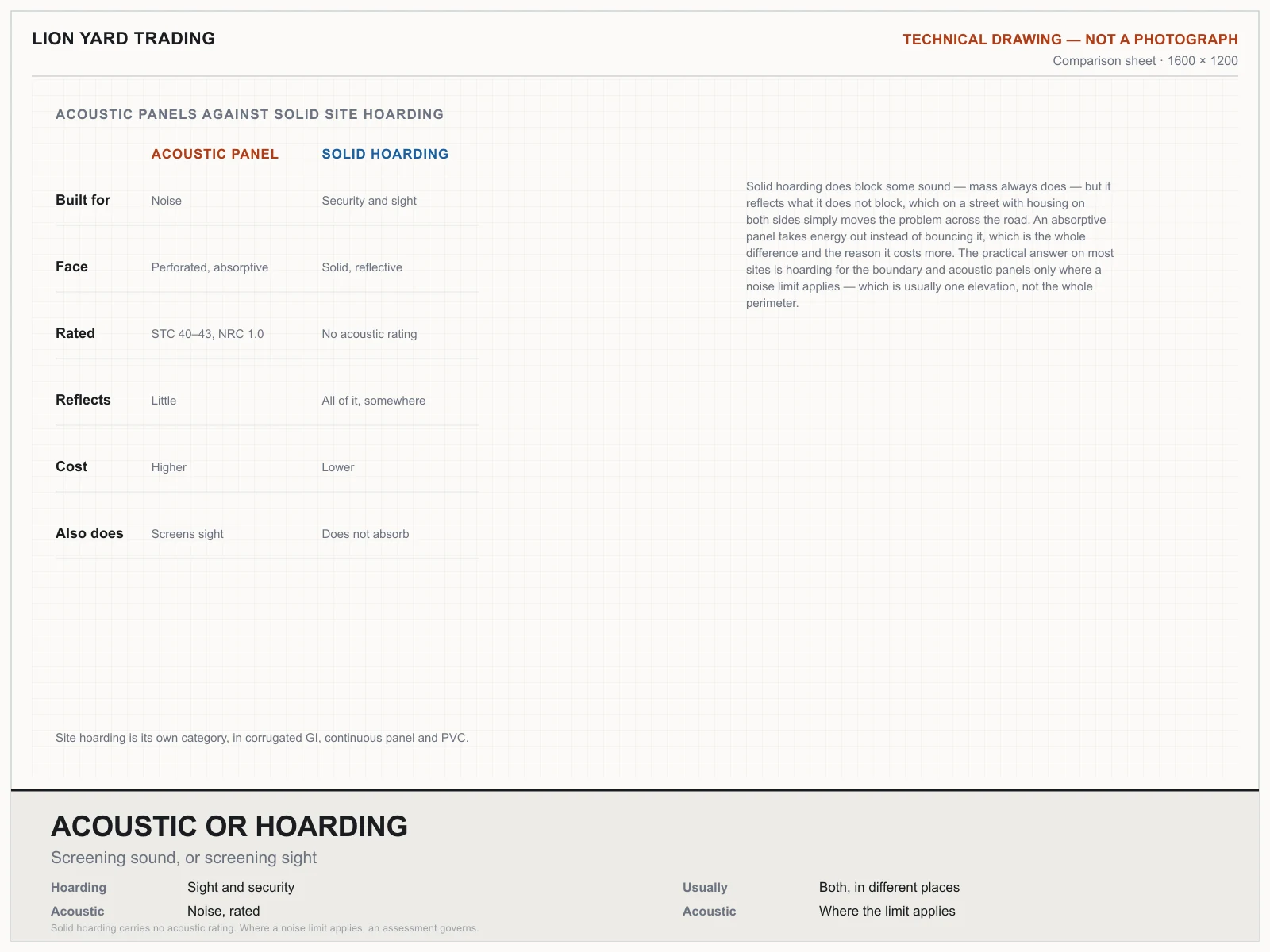

Acoustic barrier panelsAbsorptive, not just solid
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your acoustic / noise barrier panels?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
