Traffic Cones & Delineators
Road & Site Barriers
Priced on enquiry
Quoted against your specification, usually the same day.
Tell us the size and where it is going.
About this product

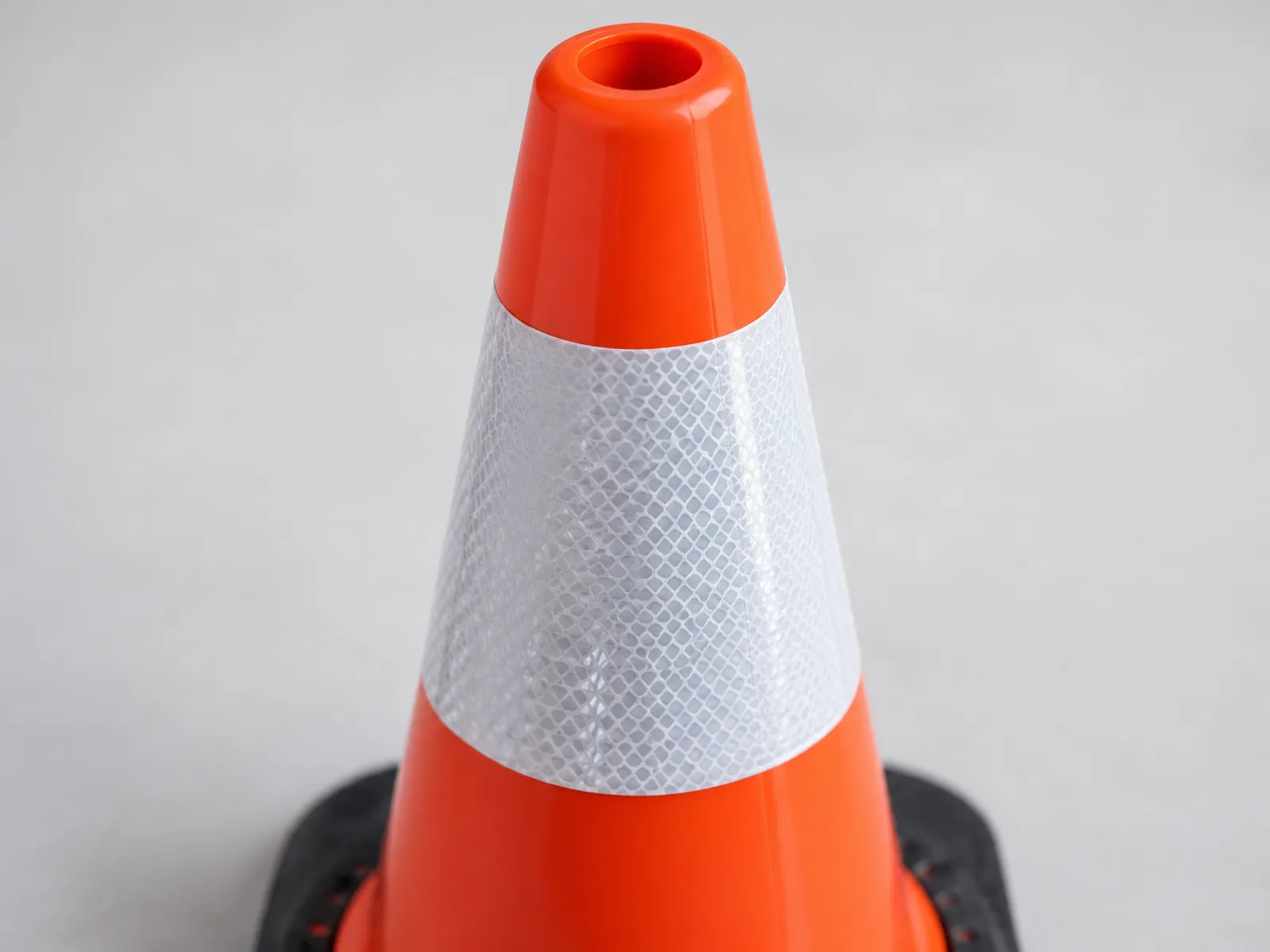

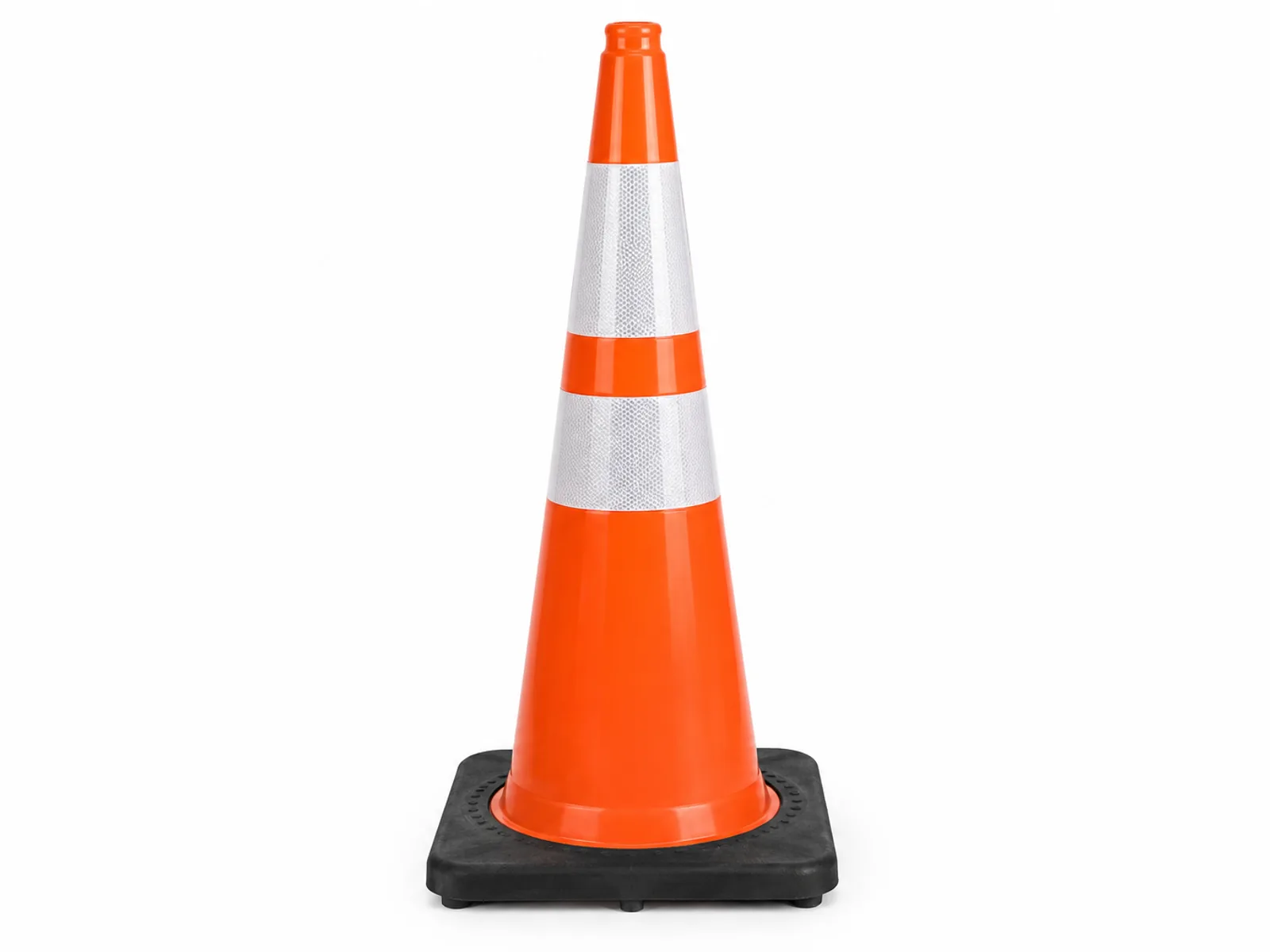

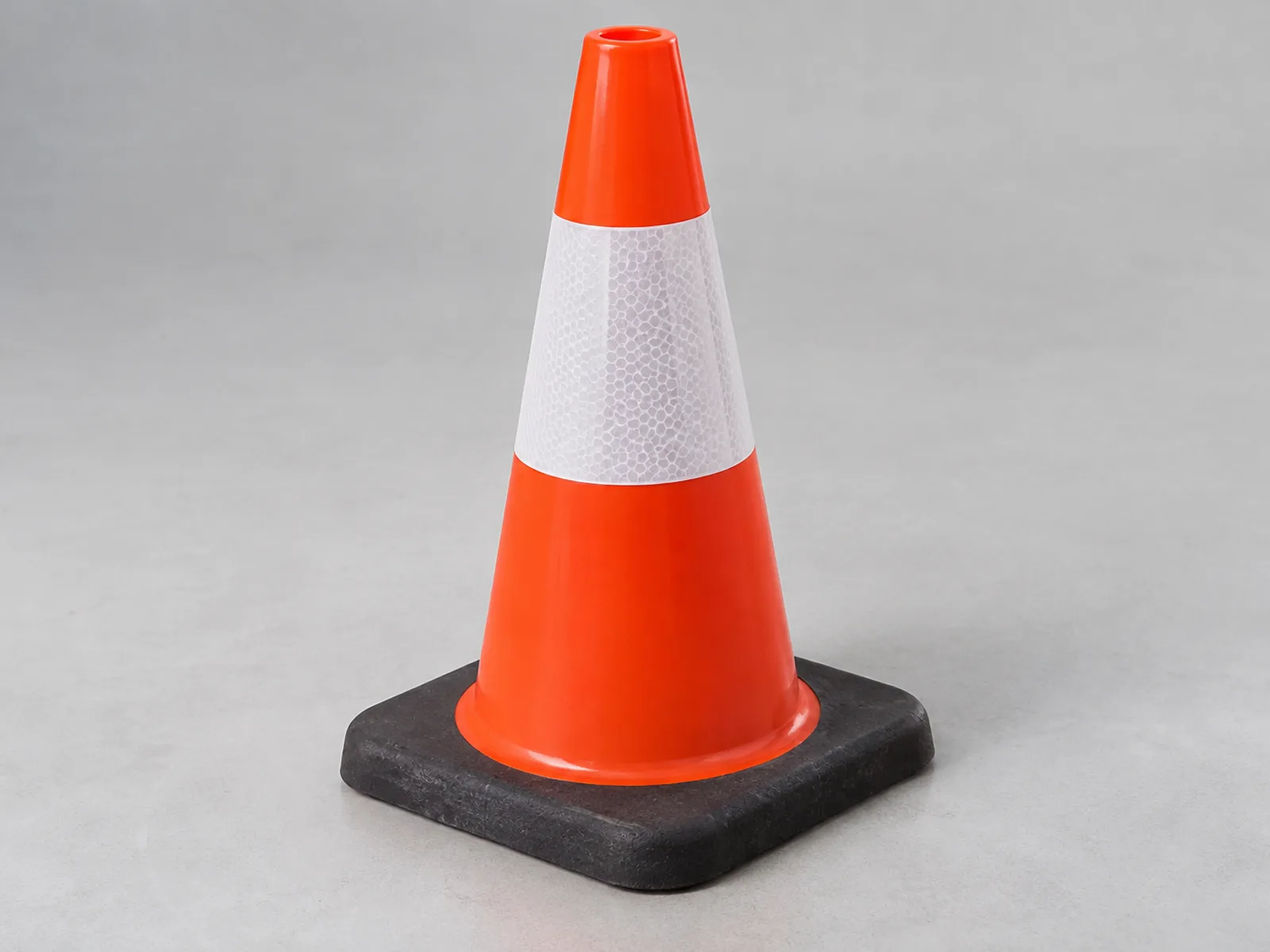

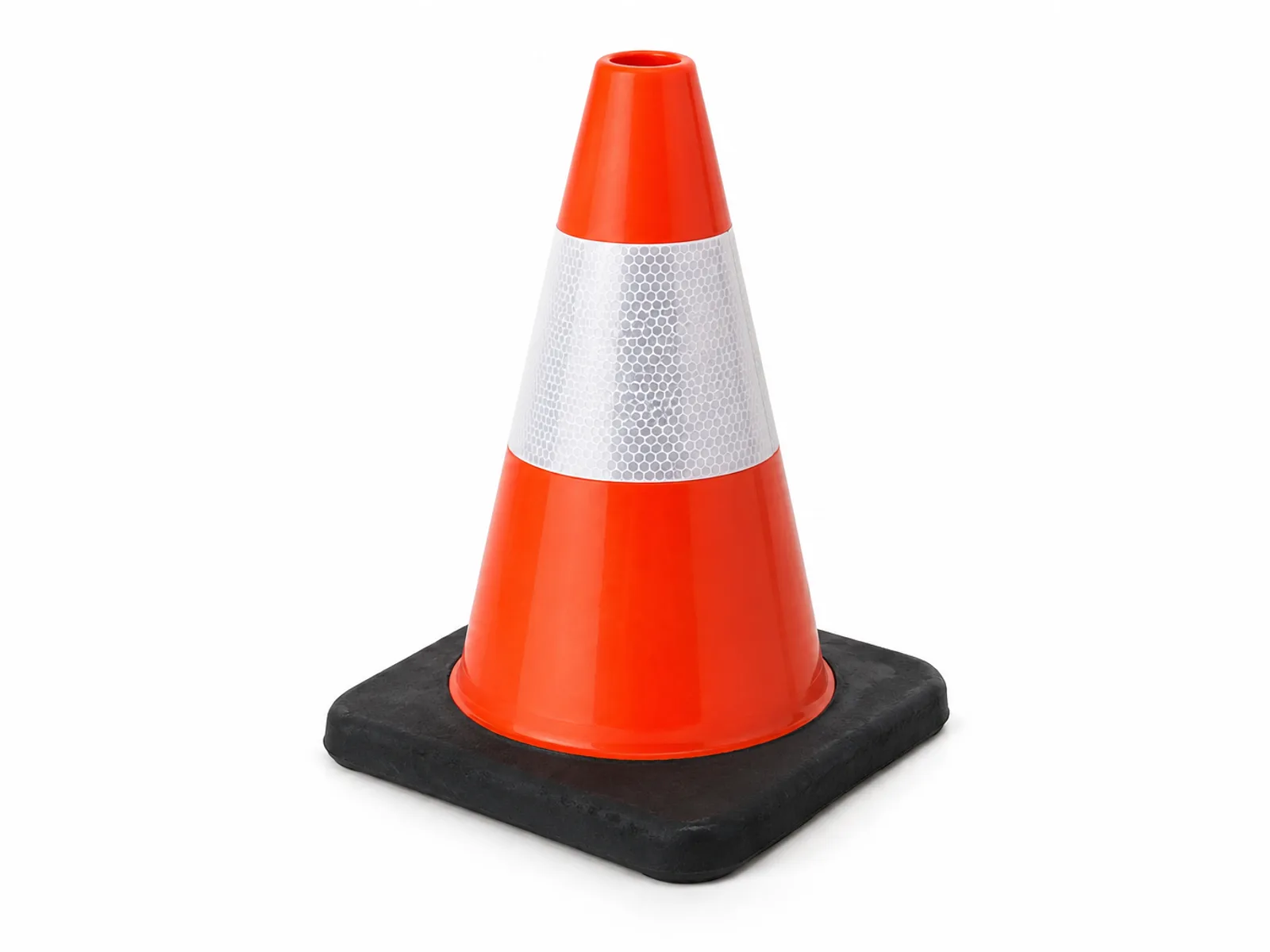

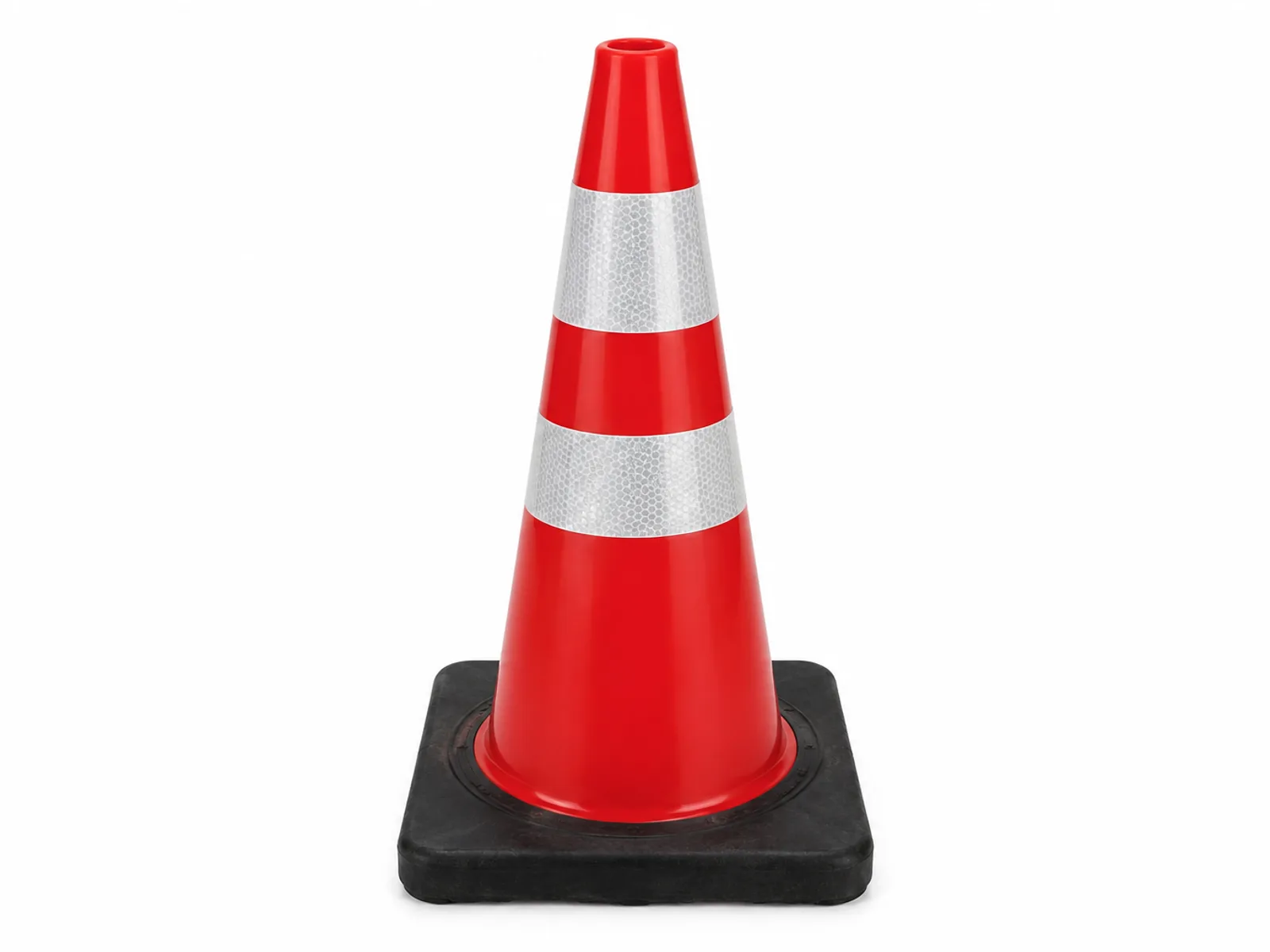

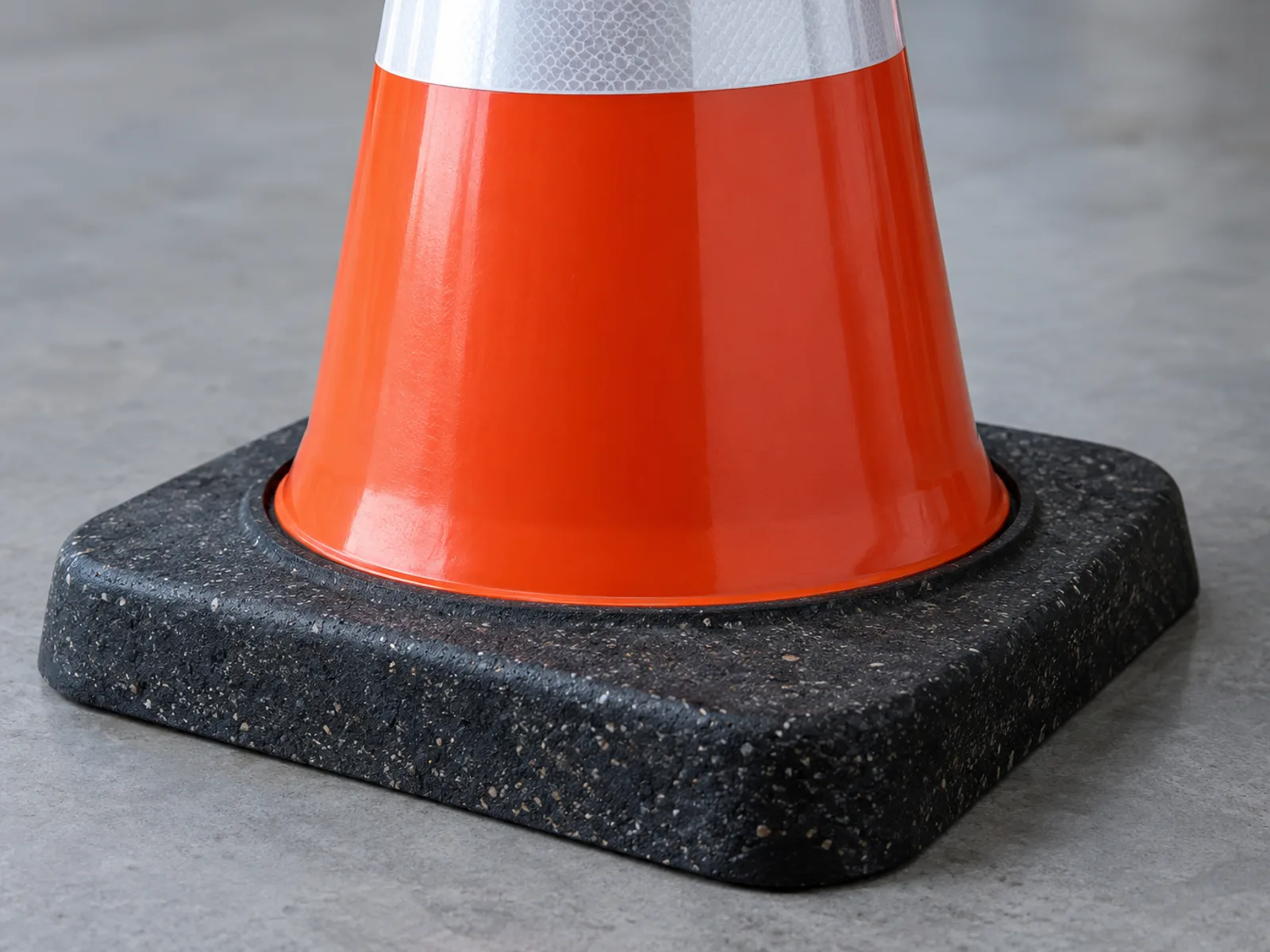

- Cone body: PE or PVC on a black rubber or recycled-rubber base

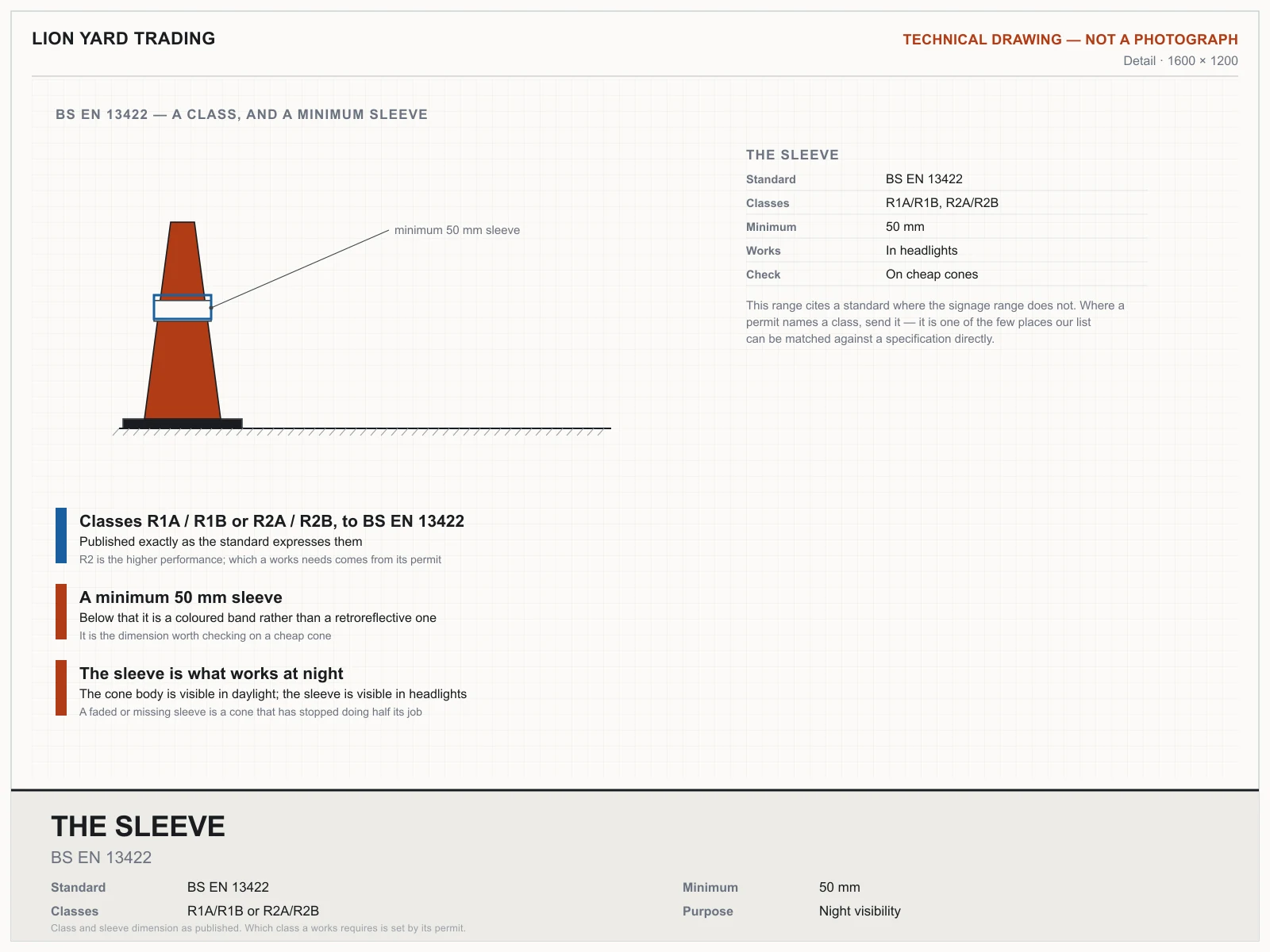

- Reflective sleeve: BS EN 13422 class R1A/R1B or R2A/R2B · minimum 50 mm sleeve
- Colours: Red and orange
- Abu Dhabi OSHAD: Maximum cone spacing 9 m; 1.2 m through a taper
- Delivery: All 7 Emirates from our own yard.
- Installation: Supply only, or supplied and installed by our own crew rather than a subcontractor.
All 6 items
Every item on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|

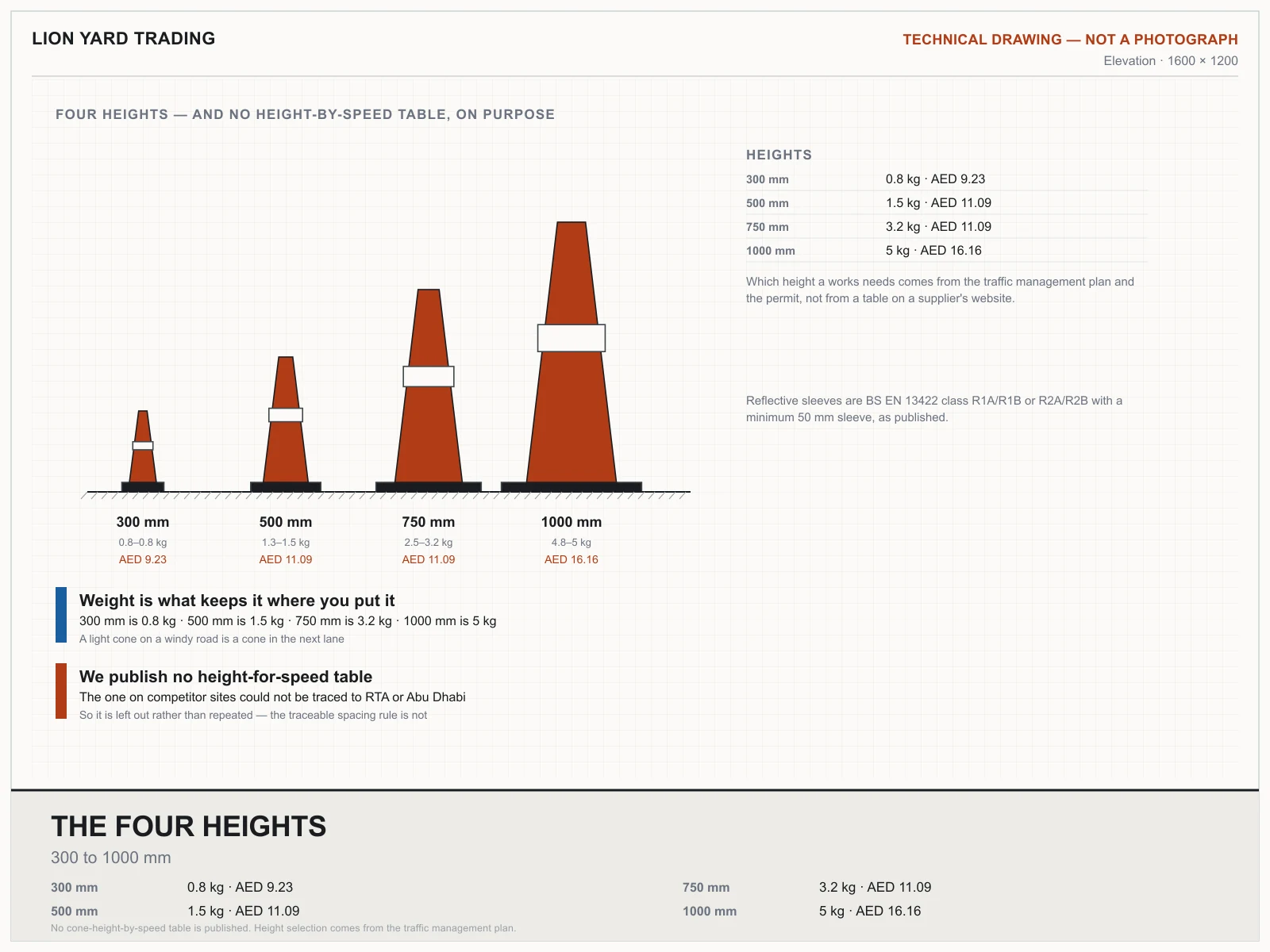

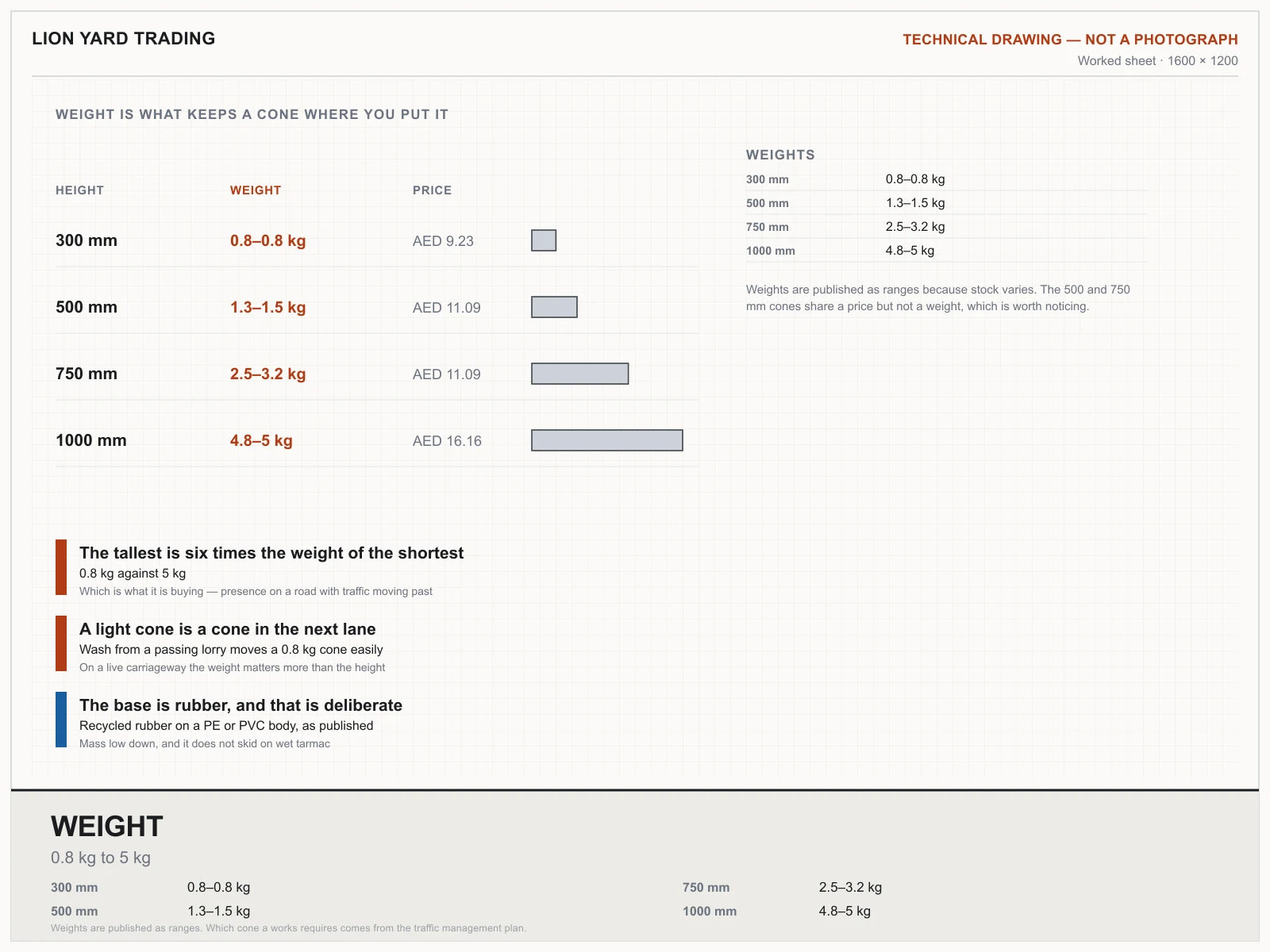

| Traffic cone 300 mmLY-ROAD-001 | 300 mm high · 0.8 kg | Ask |
| Traffic cone 500 mmLY-ROAD-002 | 500 mm high × 280–380 mm base · 1.3–1.5 kg | Ask |
| Traffic cone 750 mmLY-ROAD-003 | 750 mm high × 380 mm base · 2.5–3.2 kg | Ask |
| Traffic cone 1000 mmLY-ROAD-004 | 1000 mm high × 490 mm base · 4.8–5.0 kg | Ask |

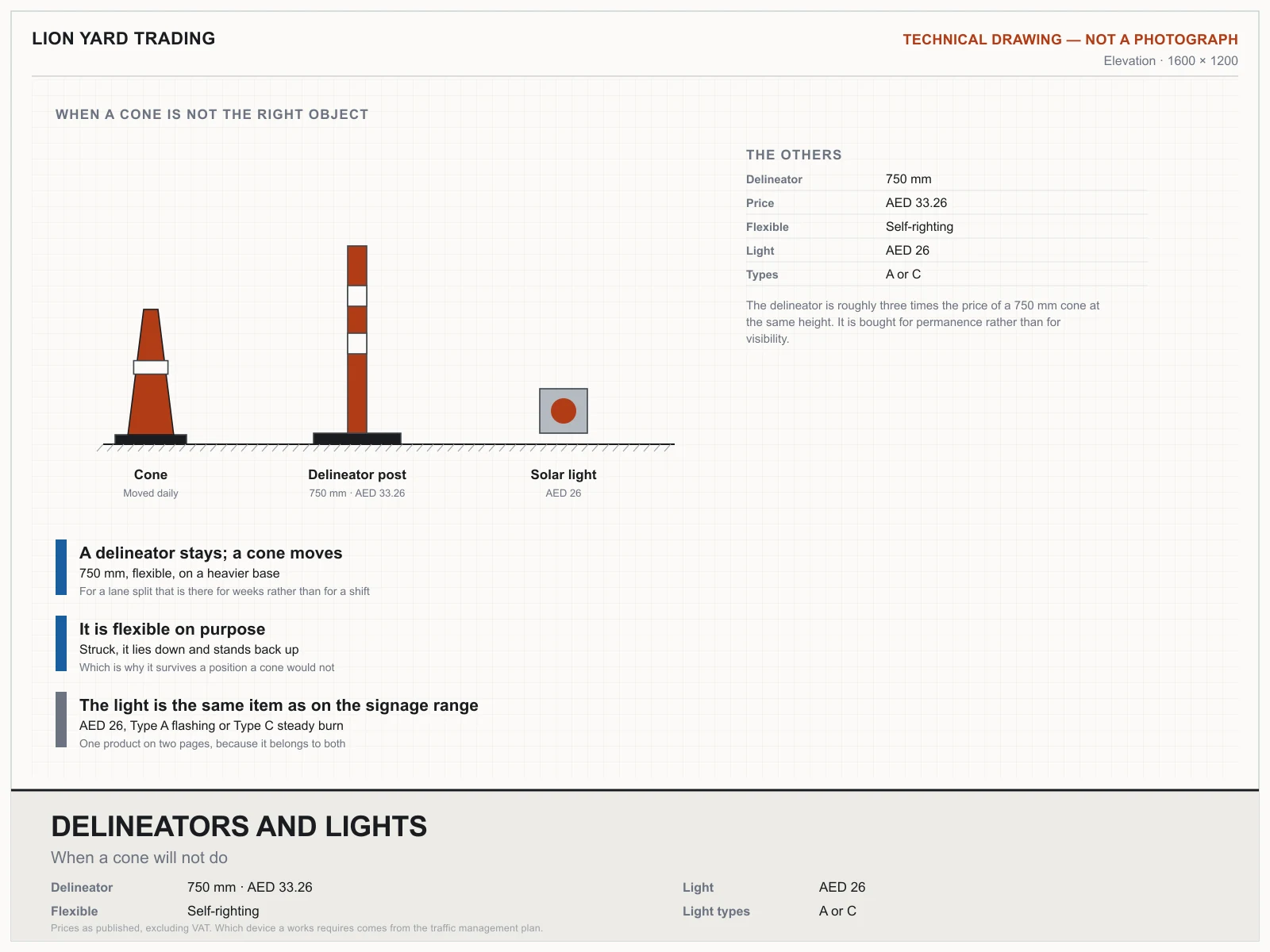

| Delineator post 750 mmLY-ROAD-005 | 750 mm high × 200–250 mm base × 80 mm post · flexible | Ask |

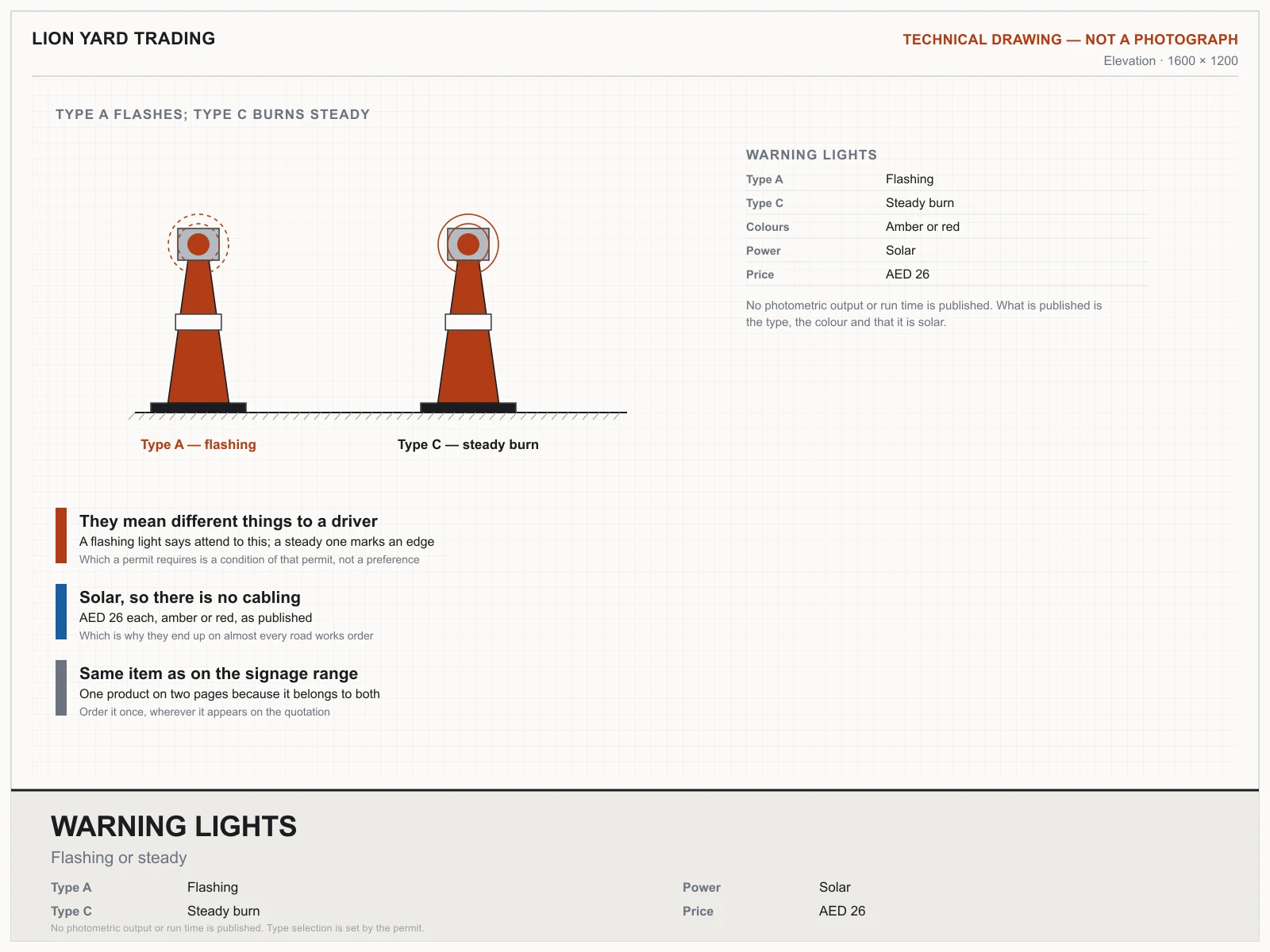

| Barricade light — solarLY-ROAD-006 | Type A flashing or Type C steady burn · amber or red | Ask |
- 300 mm high · 0.8 kgAsk on WhatsApp
- 500 mm high × 280–380 mm base · 1.3–1.5 kgAsk on WhatsApp
- 750 mm high × 380 mm base · 2.5–3.2 kgAsk on WhatsApp
- 1000 mm high × 490 mm base · 4.8–5.0 kgAsk on WhatsApp
- 750 mm high × 200–250 mm base × 80 mm post · flexibleAsk on WhatsApp
- Type A flashing or Type C steady burn · amber or redAsk on WhatsApp
Priced on enquiry against your specification.
What it is

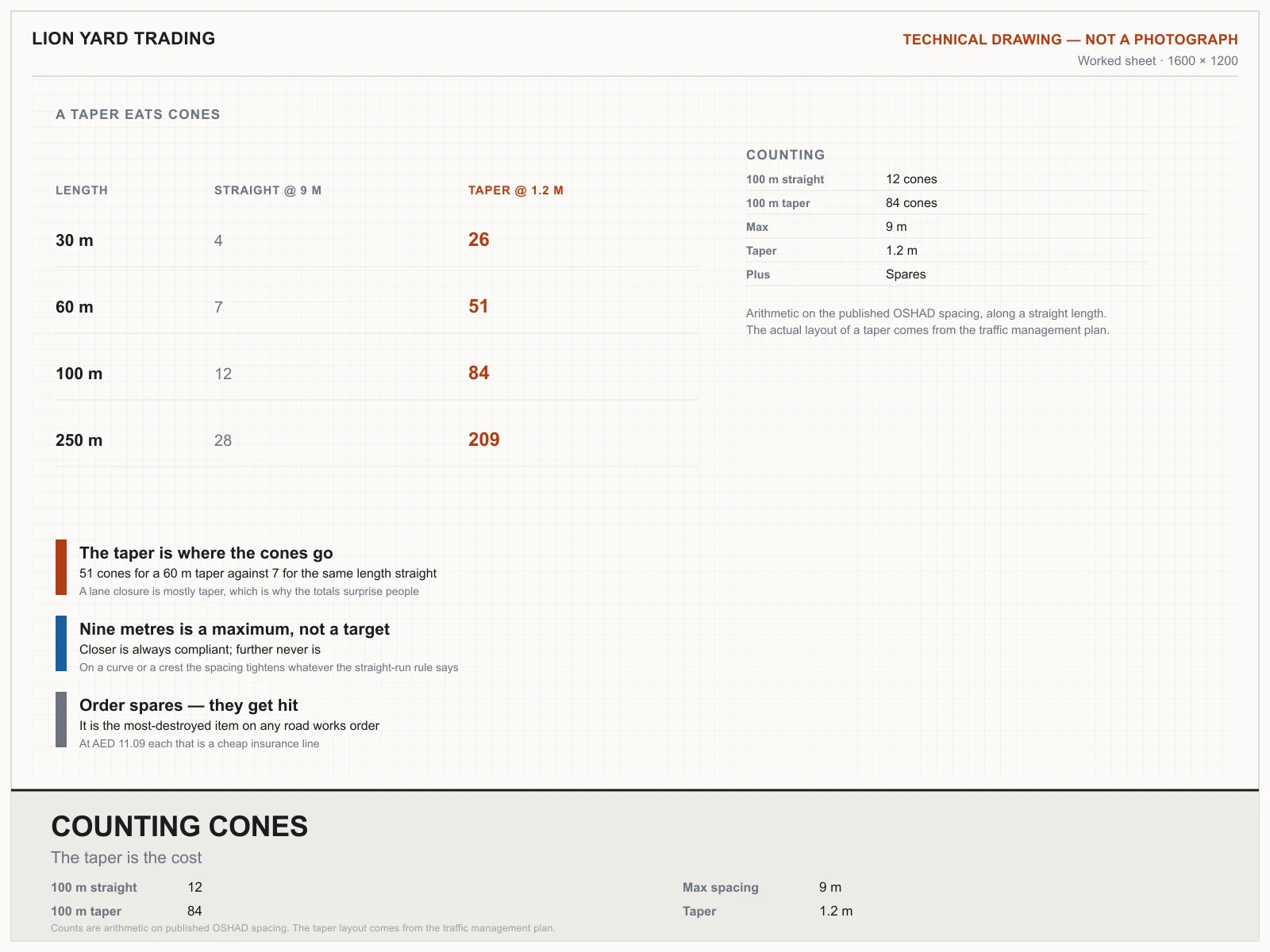

Low value, high frequency, and almost always added to a barrier order. Abu Dhabi OSHAD sets cone spacing at a maximum of 9 m, and 1.2 m through a taper — which is what decides how many you need for a run.
Specification

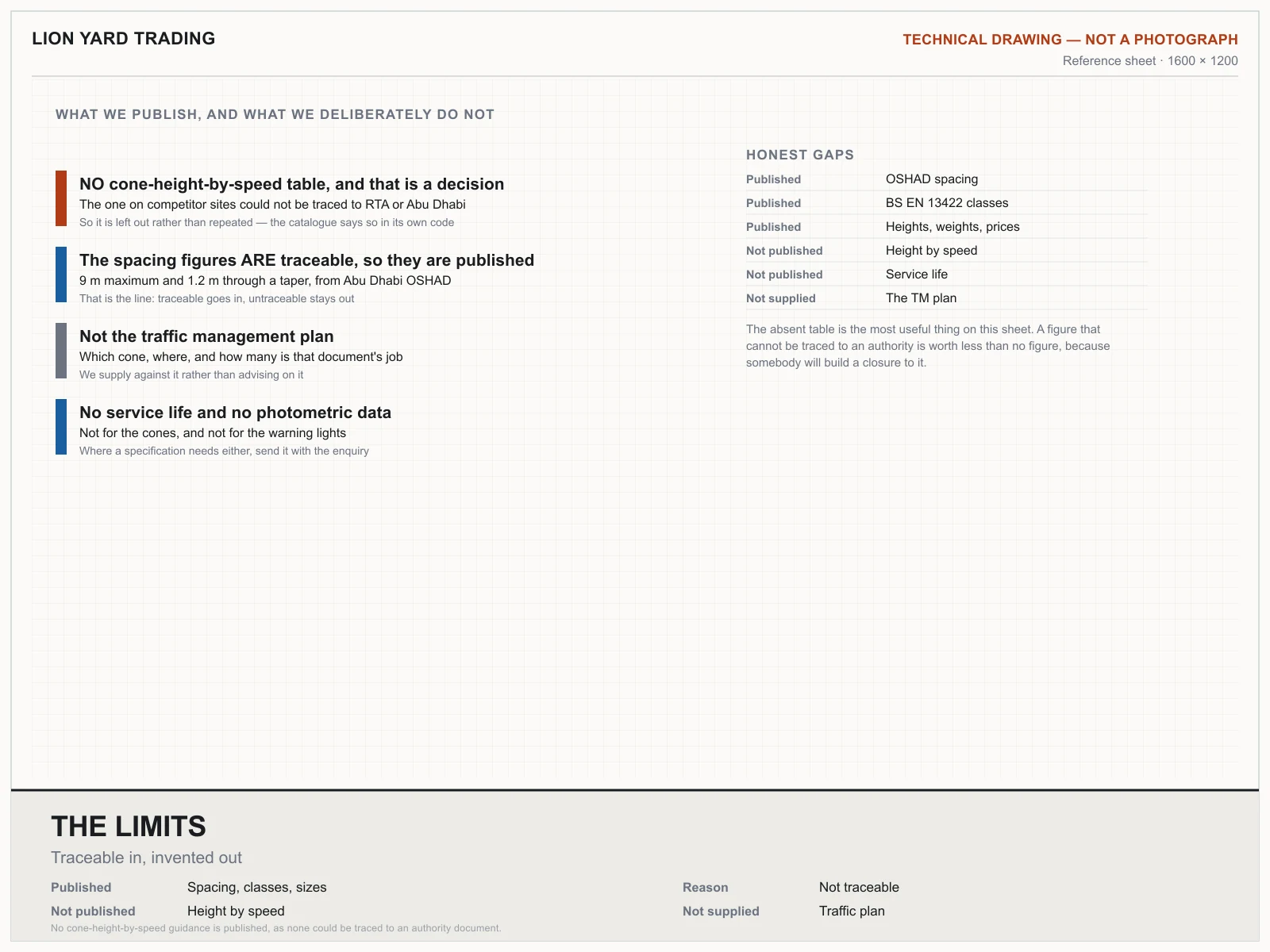

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Cone body
- PE or PVC on a black rubber or recycled-rubber base
- Reflective sleeve
- BS EN 13422 class R1A/R1B or R2A/R2B · minimum 50 mm sleeve
- Colours
- Red and orange
- Abu Dhabi OSHAD
- Maximum cone spacing 9 m; 1.2 m through a taper
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Technical Procurement & Ordering Guides

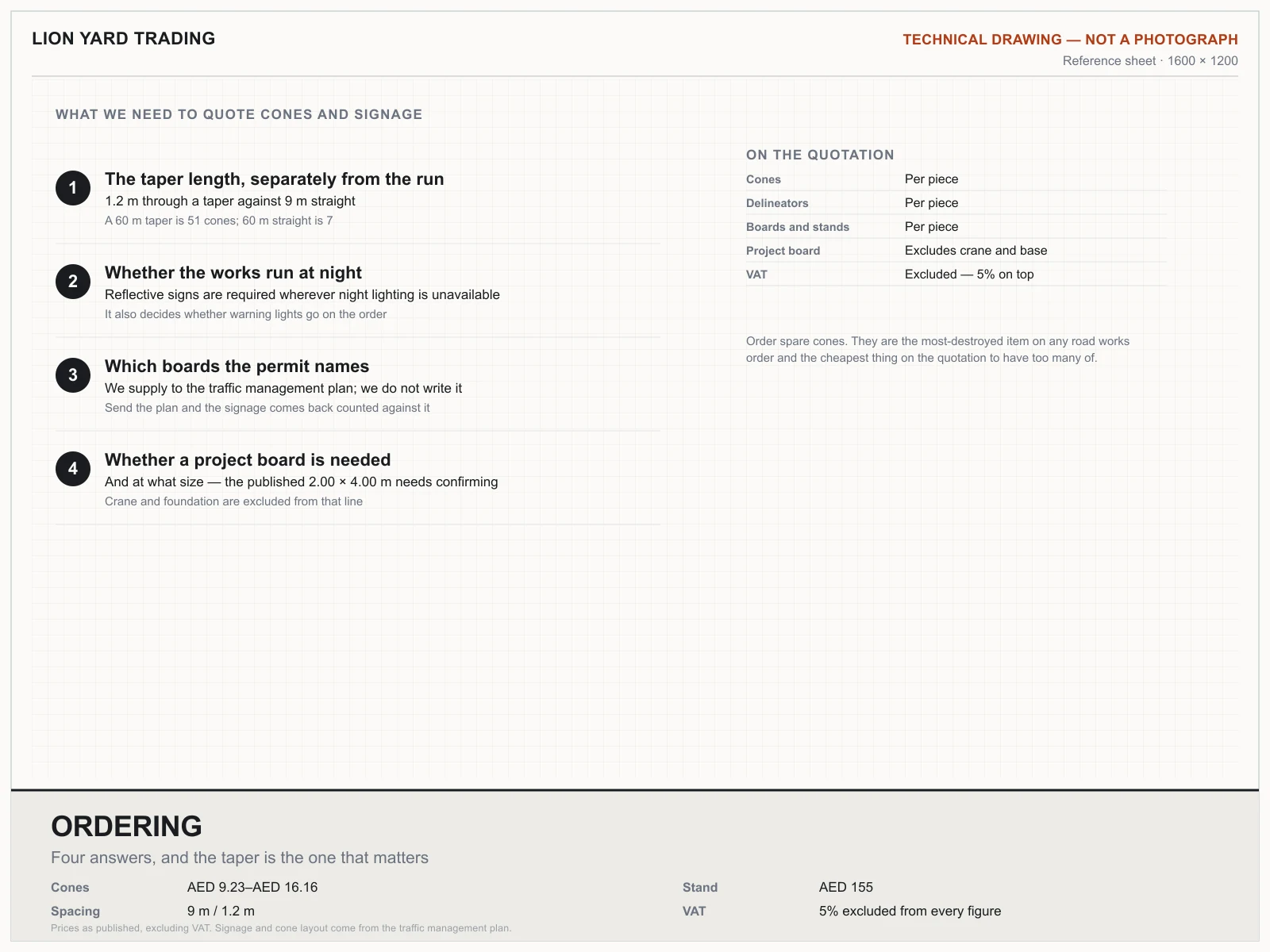

10 drawings covering every answer we need to price Traffic Cones & Delineators — every figure comes from the price table above or from the published standard it is made to.

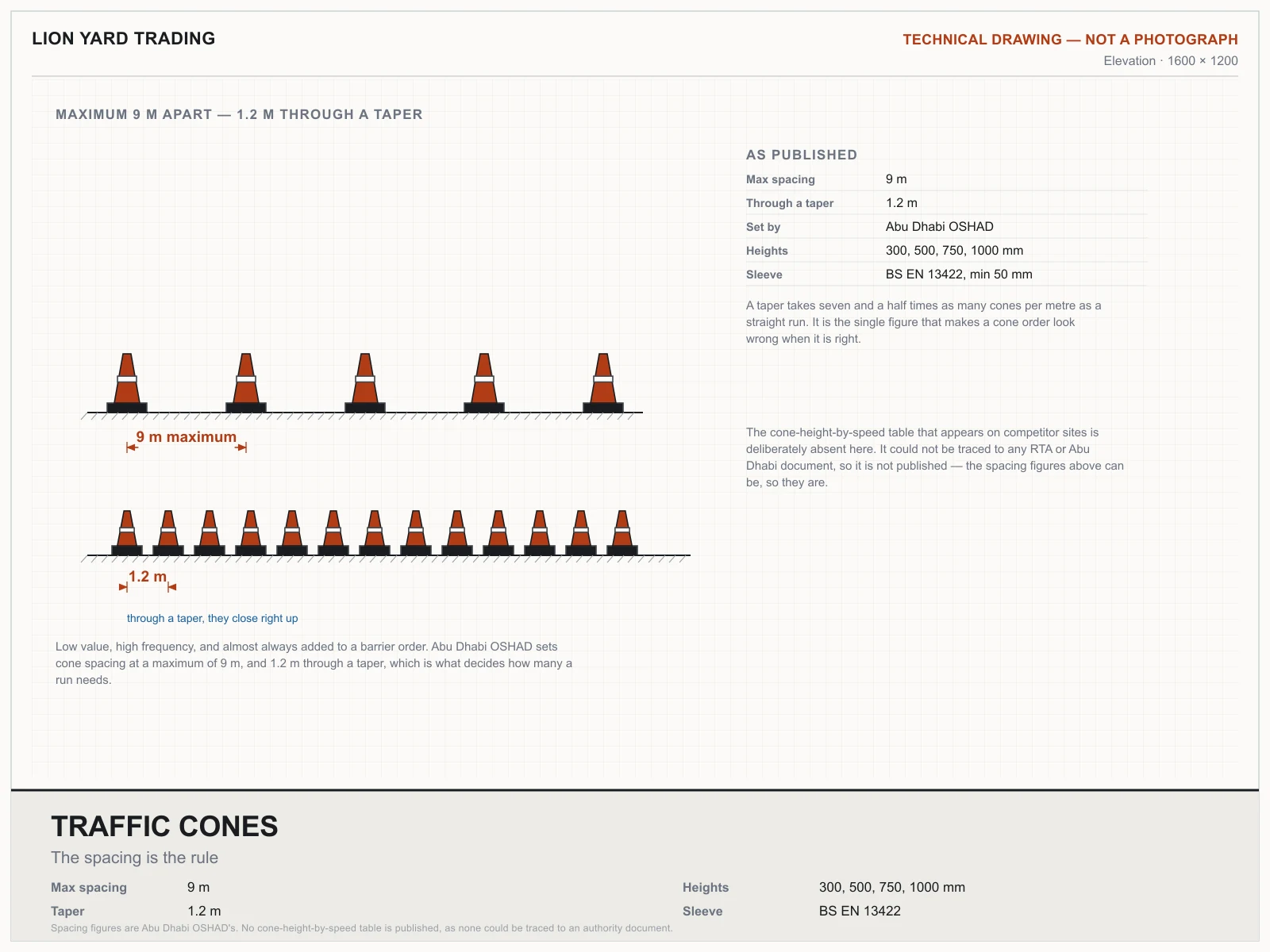

Traffic conesThe spacing is the rule
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your traffic cones & delineators?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
