Plastic Water-Filled Jersey Barriers
Road & Site Barriers
Priced on enquiry
Quoted against your specification, usually the same day.
Tell us the size and where it is going.
About this product
- Material: High-density UV-stabilised polyethylene
- Colours: Safety orange, red, white
- Jointing: Built-in interlocking hinge system
- Ballast: Water or sand filled on site — the customer fills, we deliver empty

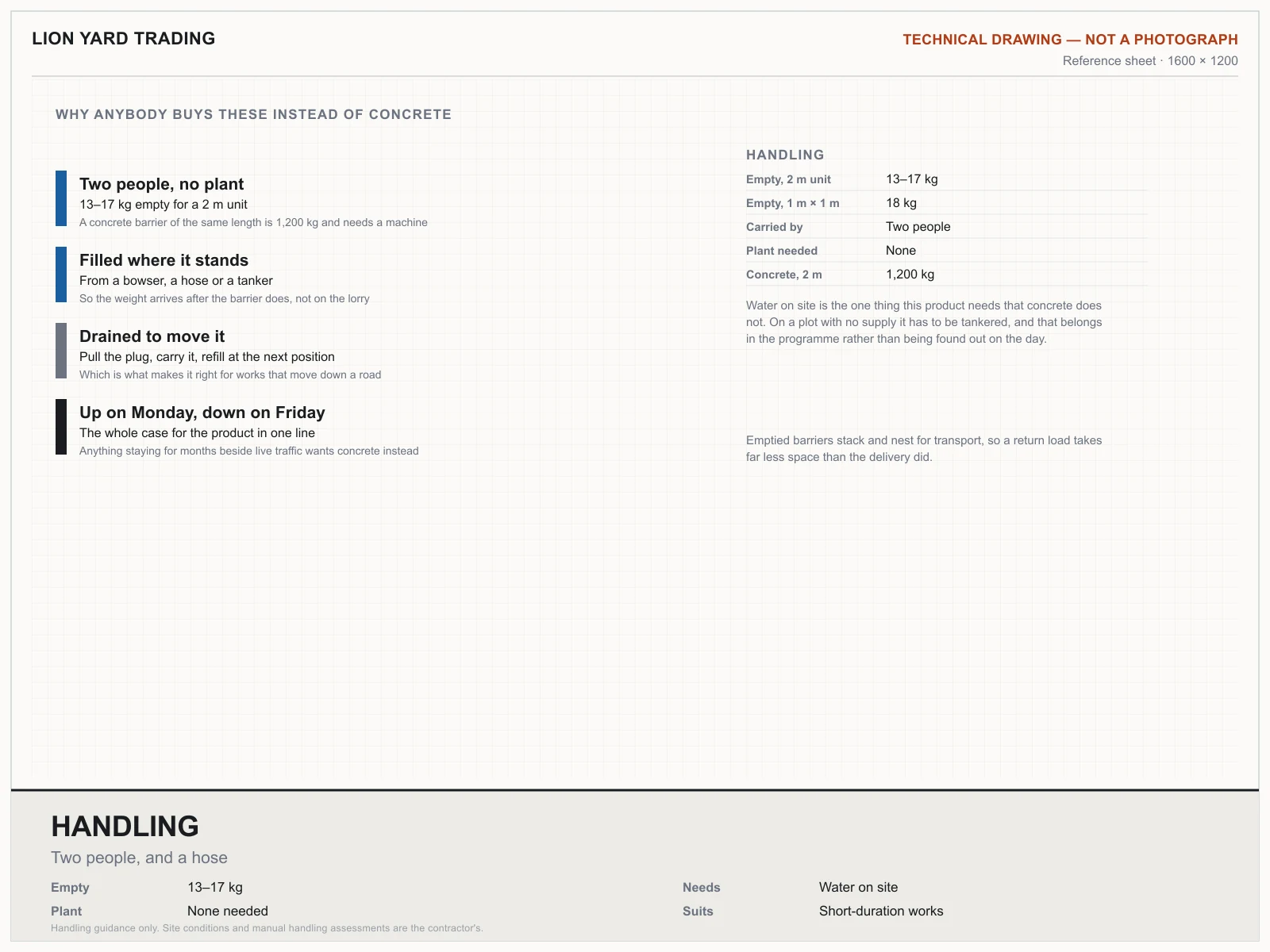

- Empty weight: 13-18 kg depending on model — one person can reposition an empty barrier
- Empty handling: Light enough to position by hand
All 5 models
Every model on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| 2.0 m barrier — 800 mm highLY-ROAD-051 | 2000 mm long × 500 mm wide × 800 mm high · 13–17 kg empty · UAE standard | Ask |
| 1.5 m barrier — 500 mm highLY-ROAD-052 | 1500 mm long × 500 mm wide × 500 mm high | Ask |
| 1.0 m barrier — 800 mm highLY-ROAD-053 | 1000 mm long × 500 mm wide × 800 mm high | Ask |
| 1.0 m barrier — 1.0 m highLY-ROAD-054 | 1000 mm long × 500 mm wide × 1000 mm high · 18 kg empty | Ask |

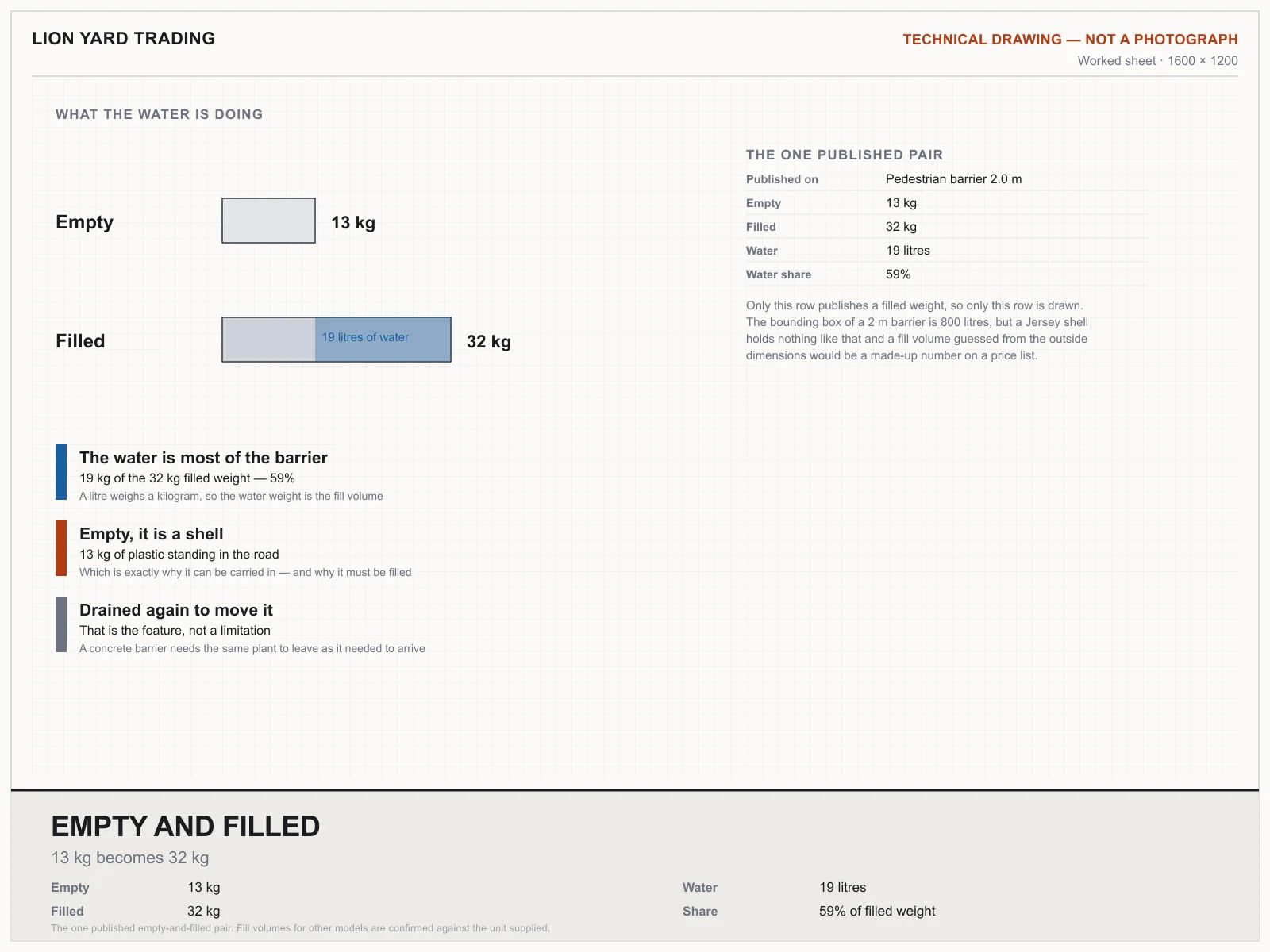

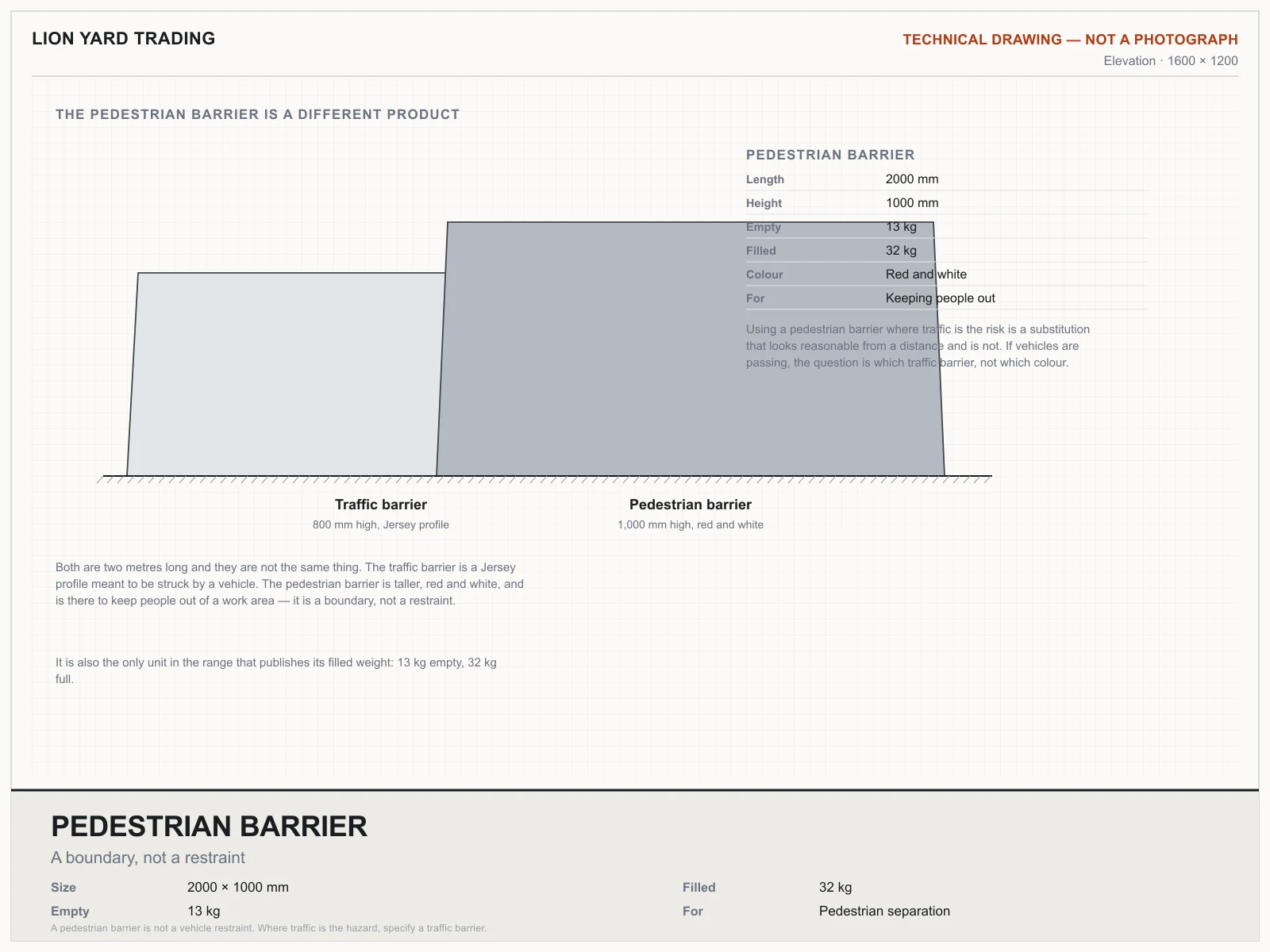

| Pedestrian barrier 2.0 mLY-ROAD-027 | 2000 mm long × 1000 mm high · 13 kg empty, 32 kg filled · red/white | Ask |
- 2000 mm long × 500 mm wide × 800 mm high · 13–17 kg empty · UAE standardAsk on WhatsApp
- 1500 mm long × 500 mm wide × 500 mm highAsk on WhatsApp
- 1000 mm long × 500 mm wide × 800 mm highAsk on WhatsApp
- 1000 mm long × 500 mm wide × 1000 mm high · 18 kg emptyAsk on WhatsApp
- 2000 mm long × 1000 mm high · 13 kg empty, 32 kg filled · red/whiteAsk on WhatsApp
Priced on enquiry against your specification.
What it is

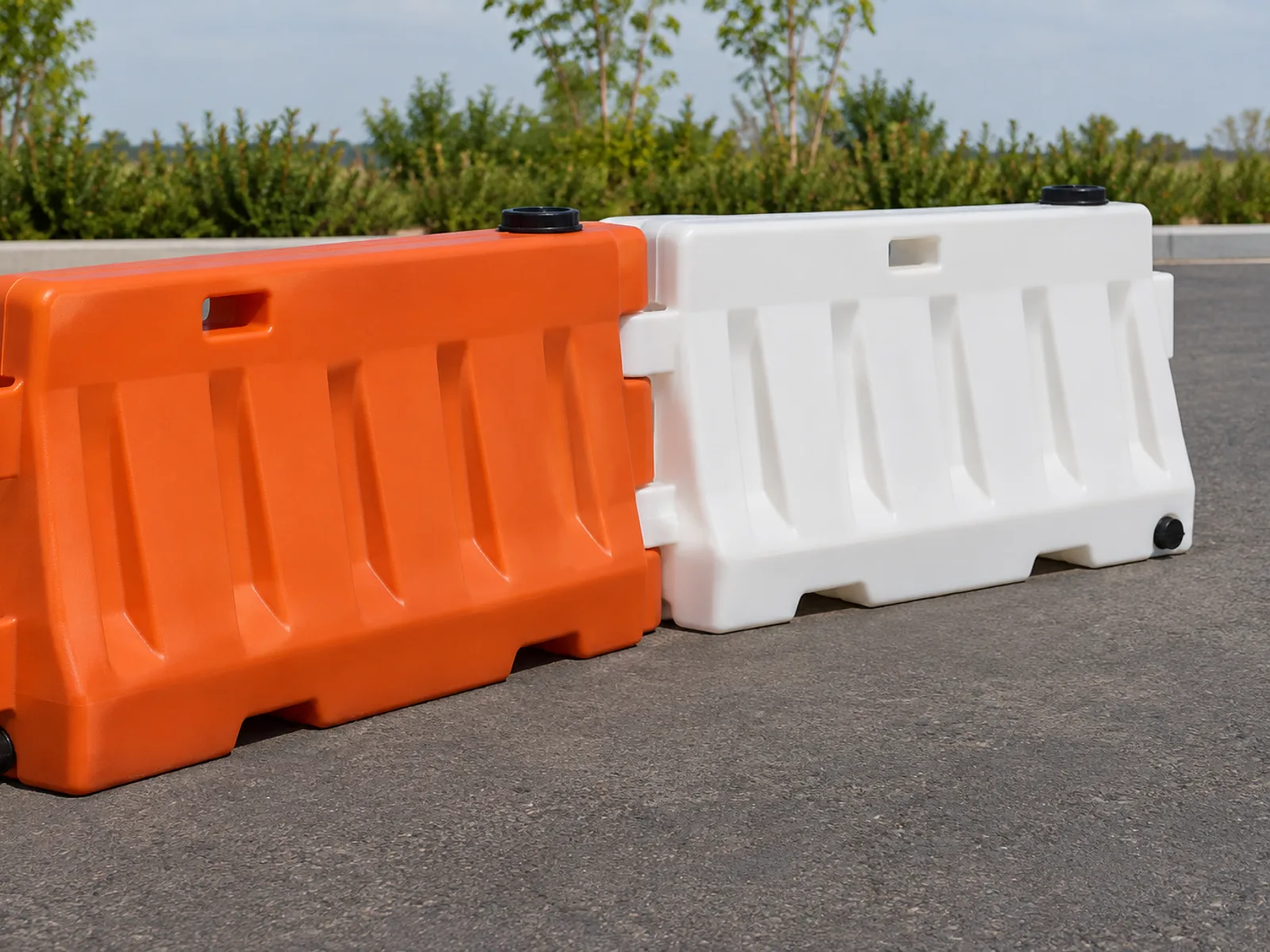

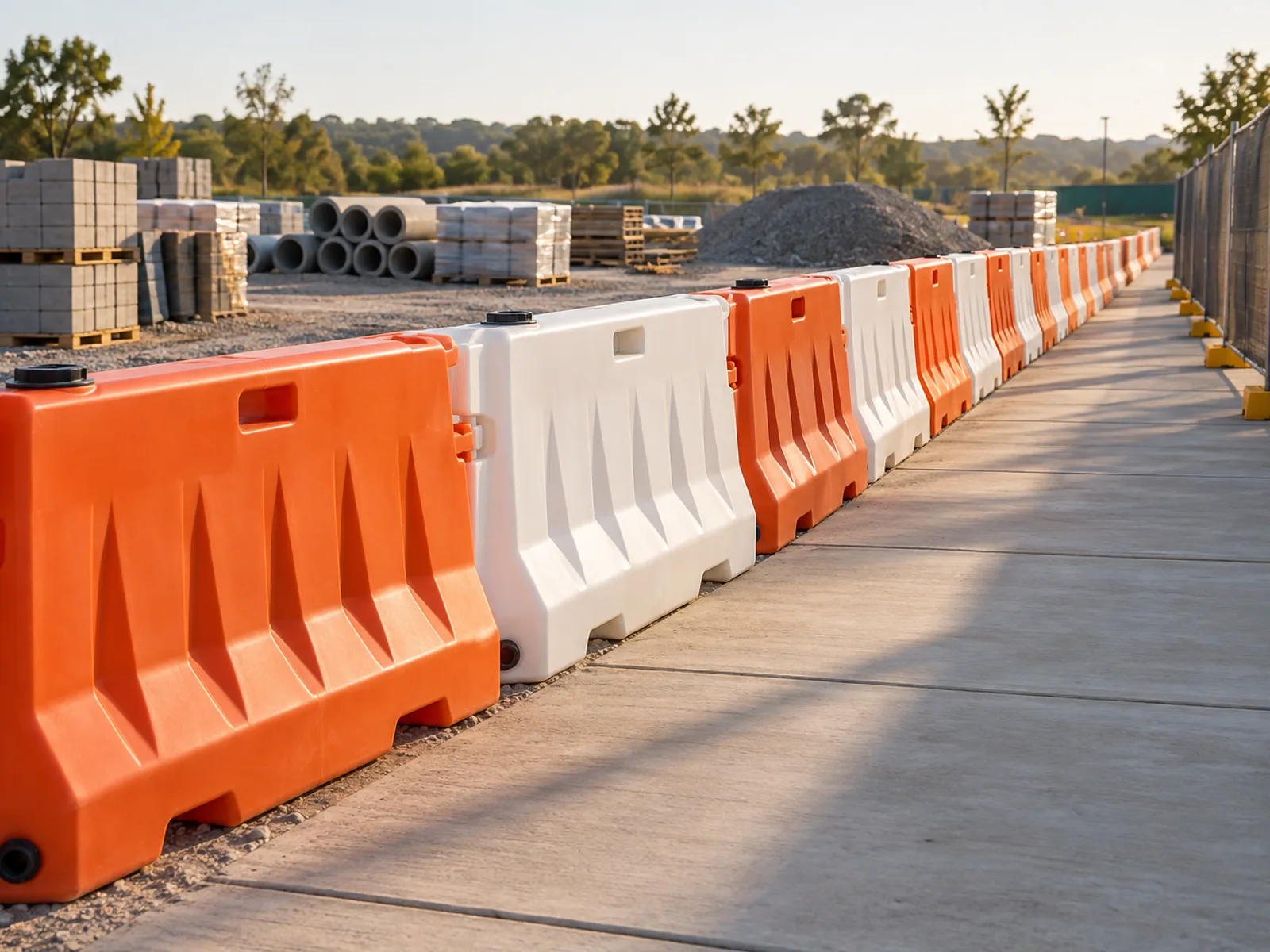

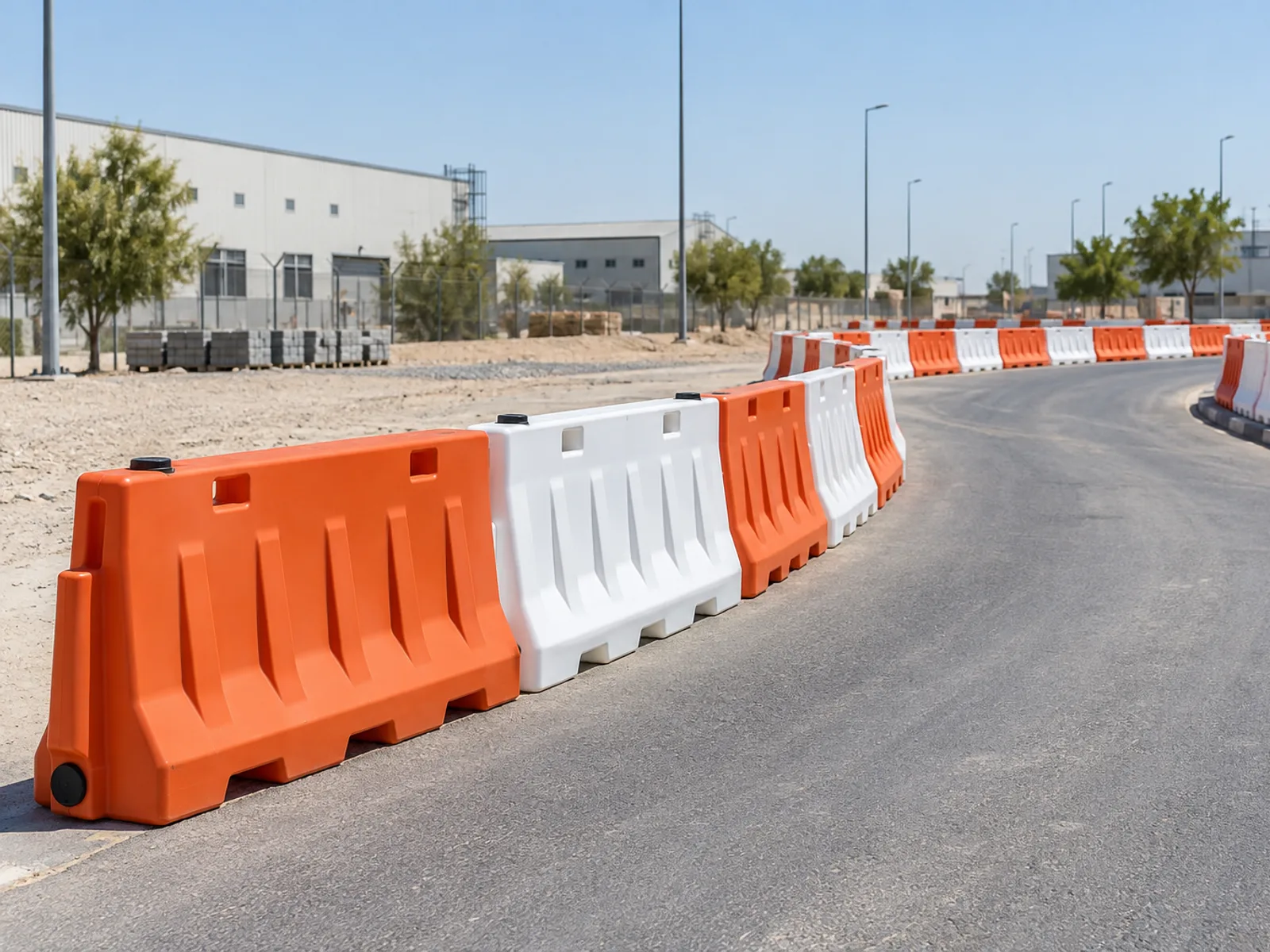

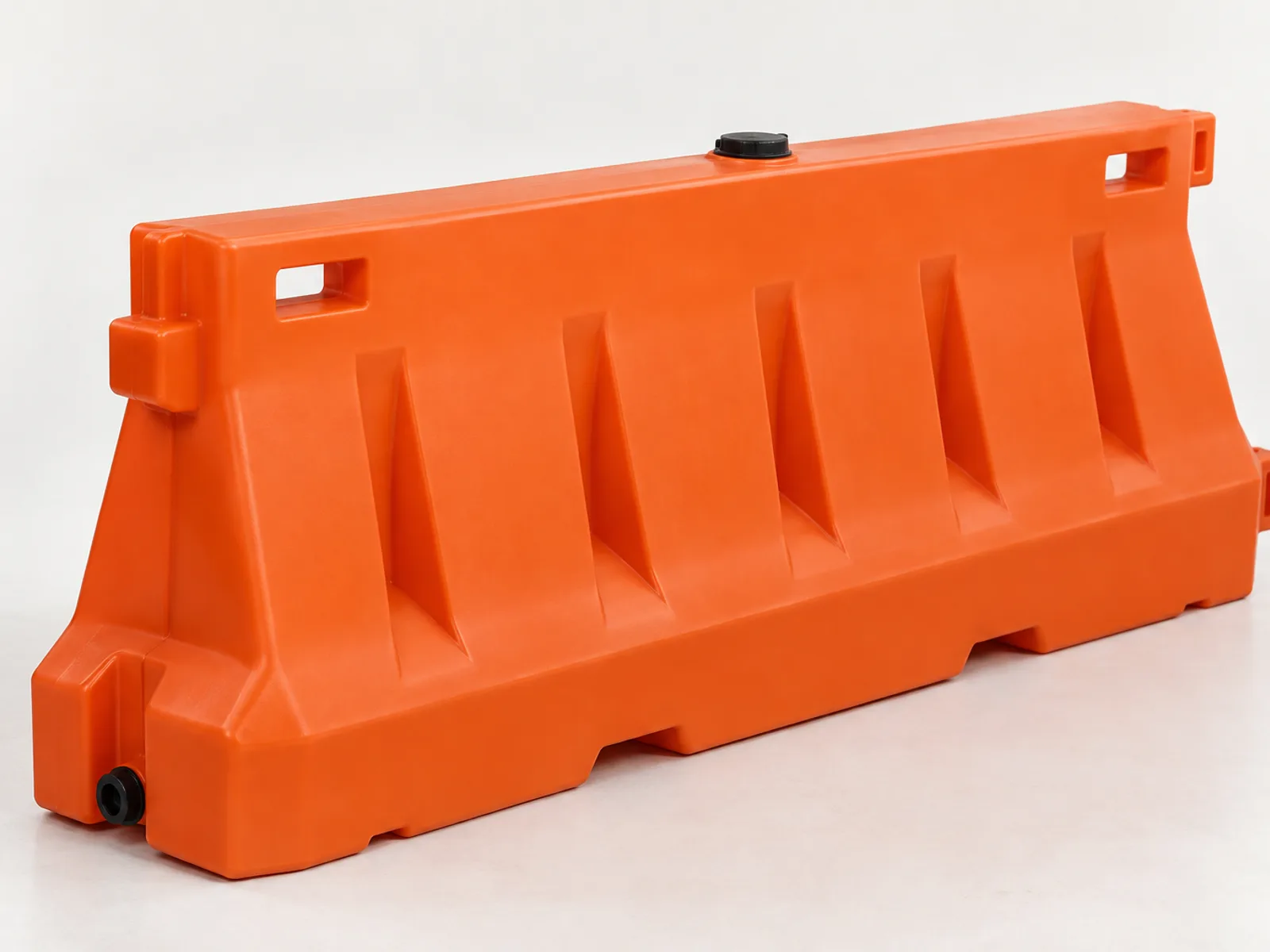

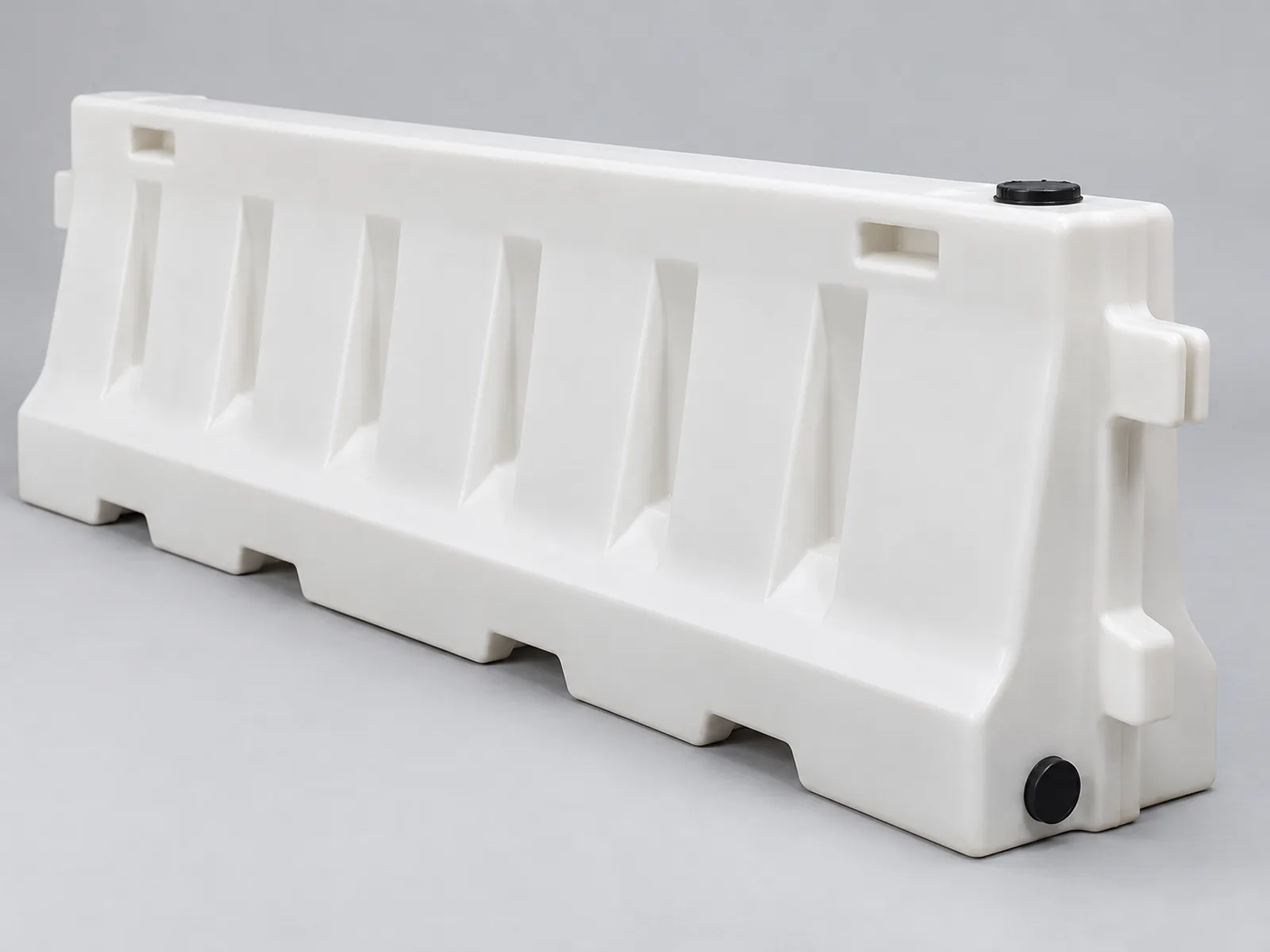

High-density, UV-stabilised plastic safety barriers. Light enough to move by hand when empty and locked together by a built-in interlocking hinge; filled with water or sand on site they become a heavy, stable wall that absorbs vehicle impact.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Material
- High-density UV-stabilised polyethylene
- Colours
- Safety orange, red, white
- Jointing
- Built-in interlocking hinge system
- Ballast
- Water or sand filled on site — the customer fills, we deliver empty
- Empty weight
- 13-18 kg depending on model — one person can reposition an empty barrier
- Empty handling
- Light enough to position by hand
- Fittings

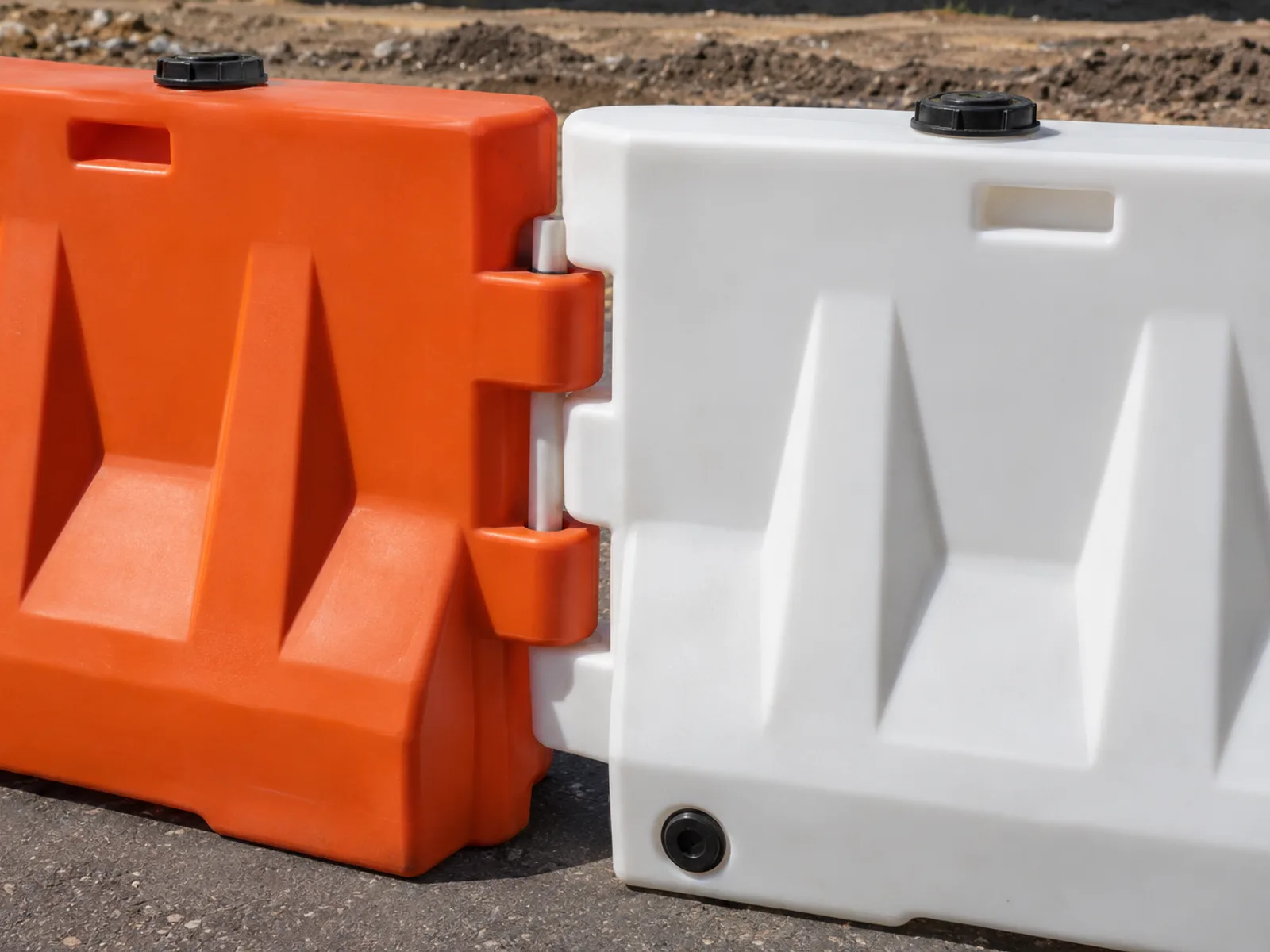

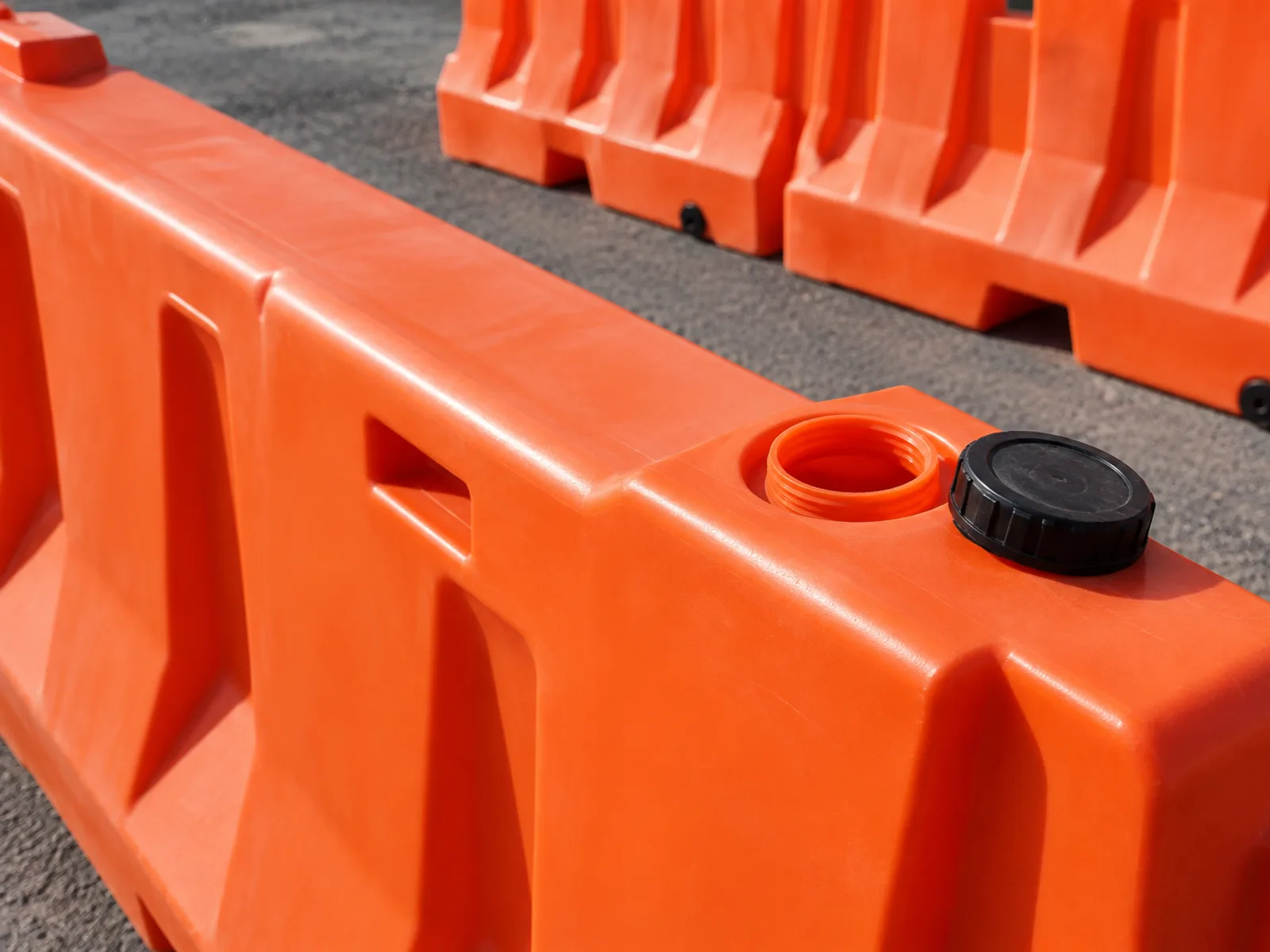

- 88 mm fill hole · 58 mm drain cap · male-female pin connection
- Articulation
- 180° rotation at the joint, so a run can follow a curve
- What it is not

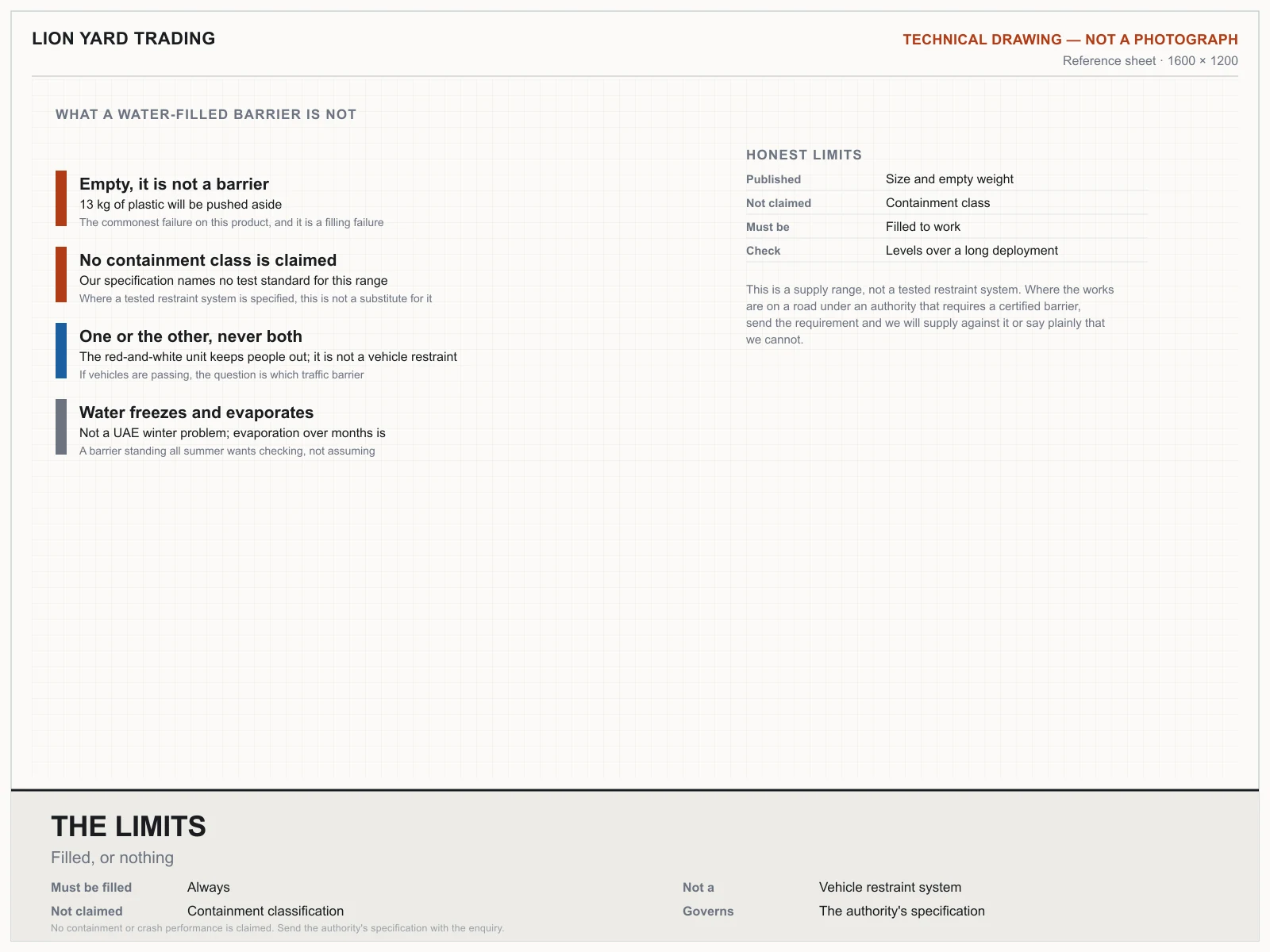

- An unanchored water-filled barrier is a channelizing device, not a crash barrier, unless the specific model is MASH or NCHRP-350 tested. Ask us if the job needs a tested restraint.
- Abu Dhabi rule
- An excavation deeper than 0.5 m requires a concrete barrier, or a plastic barrier filled with water or sand
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering

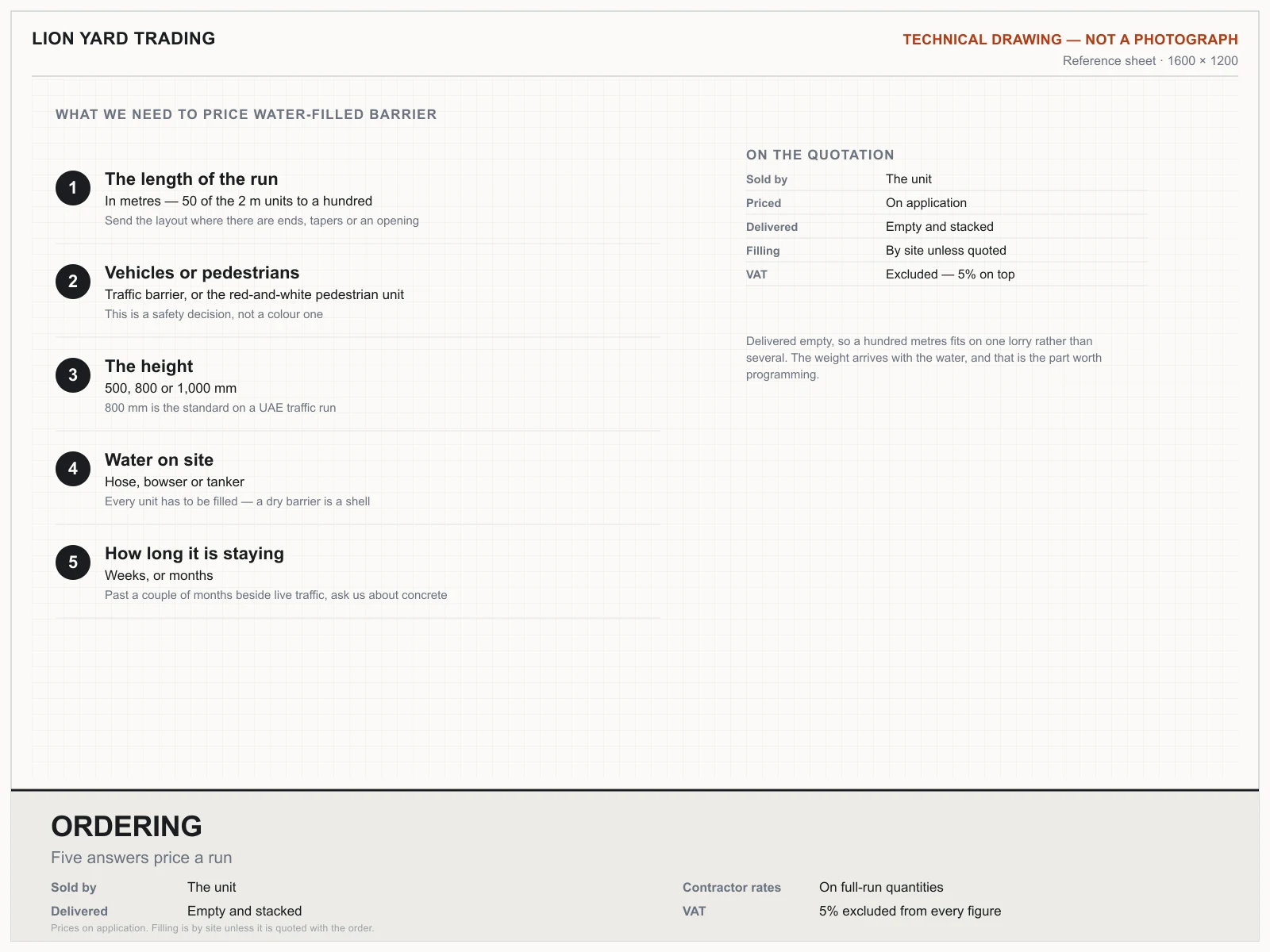

- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Technical Procurement & Ordering Guides

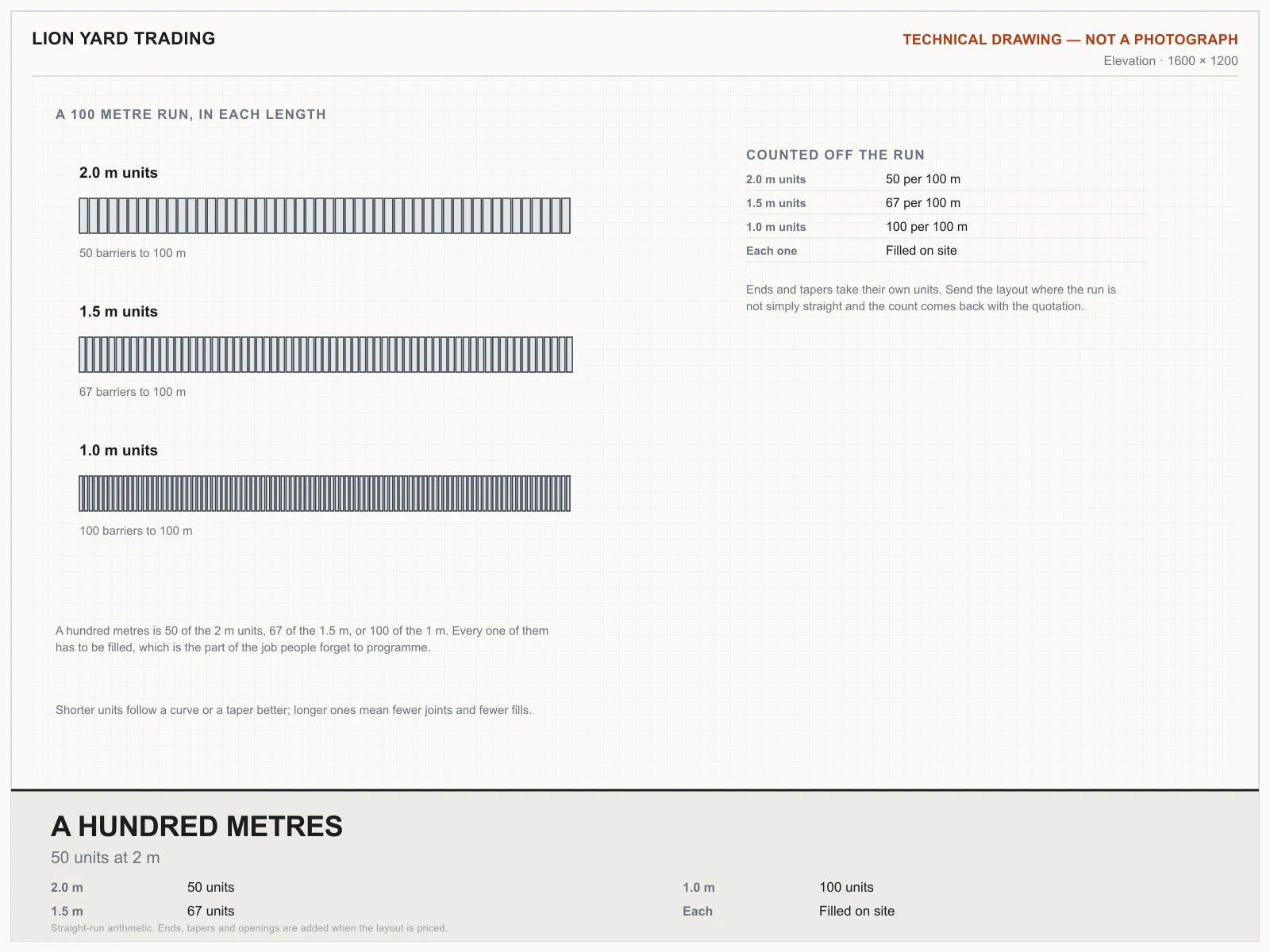

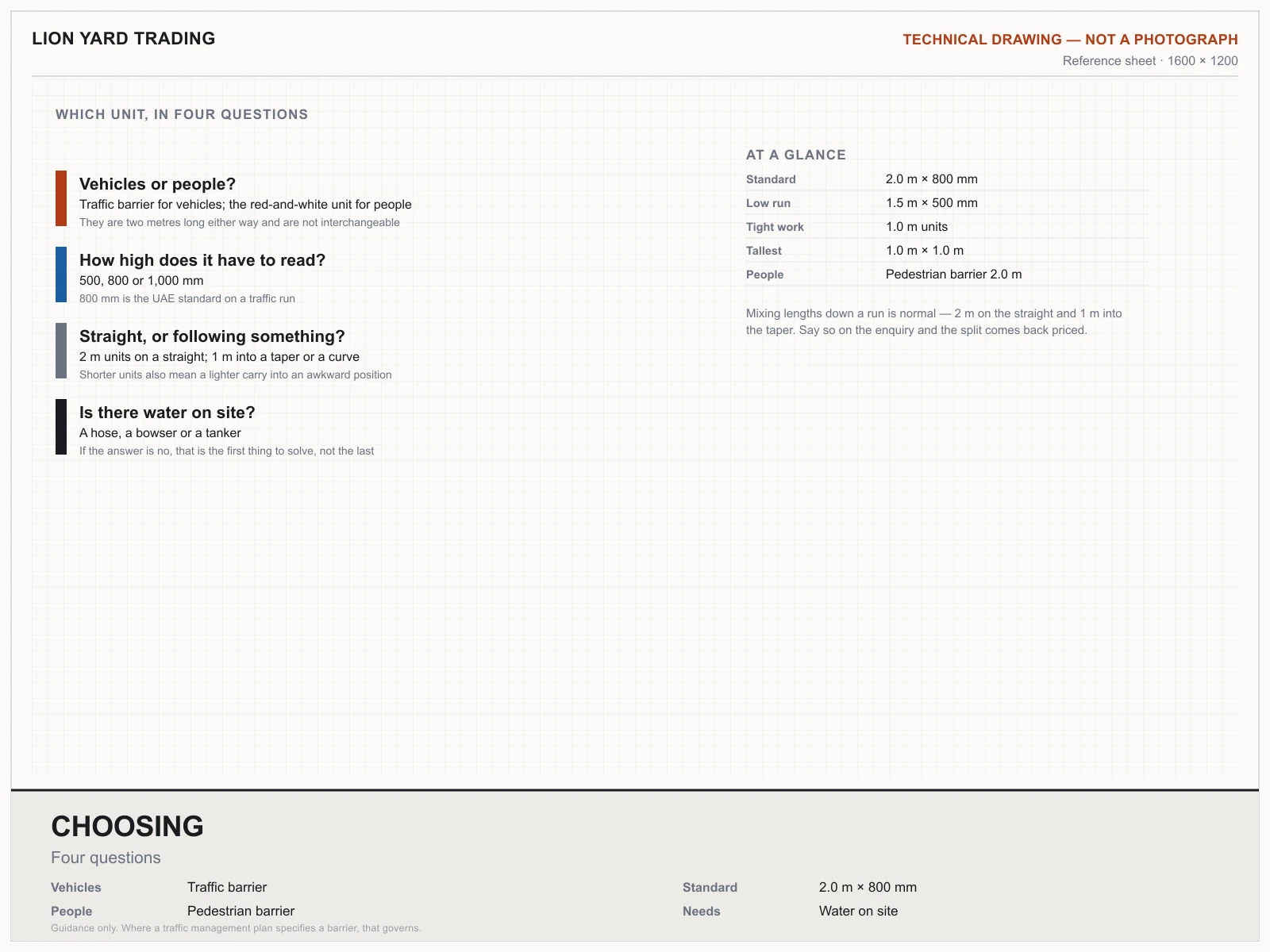

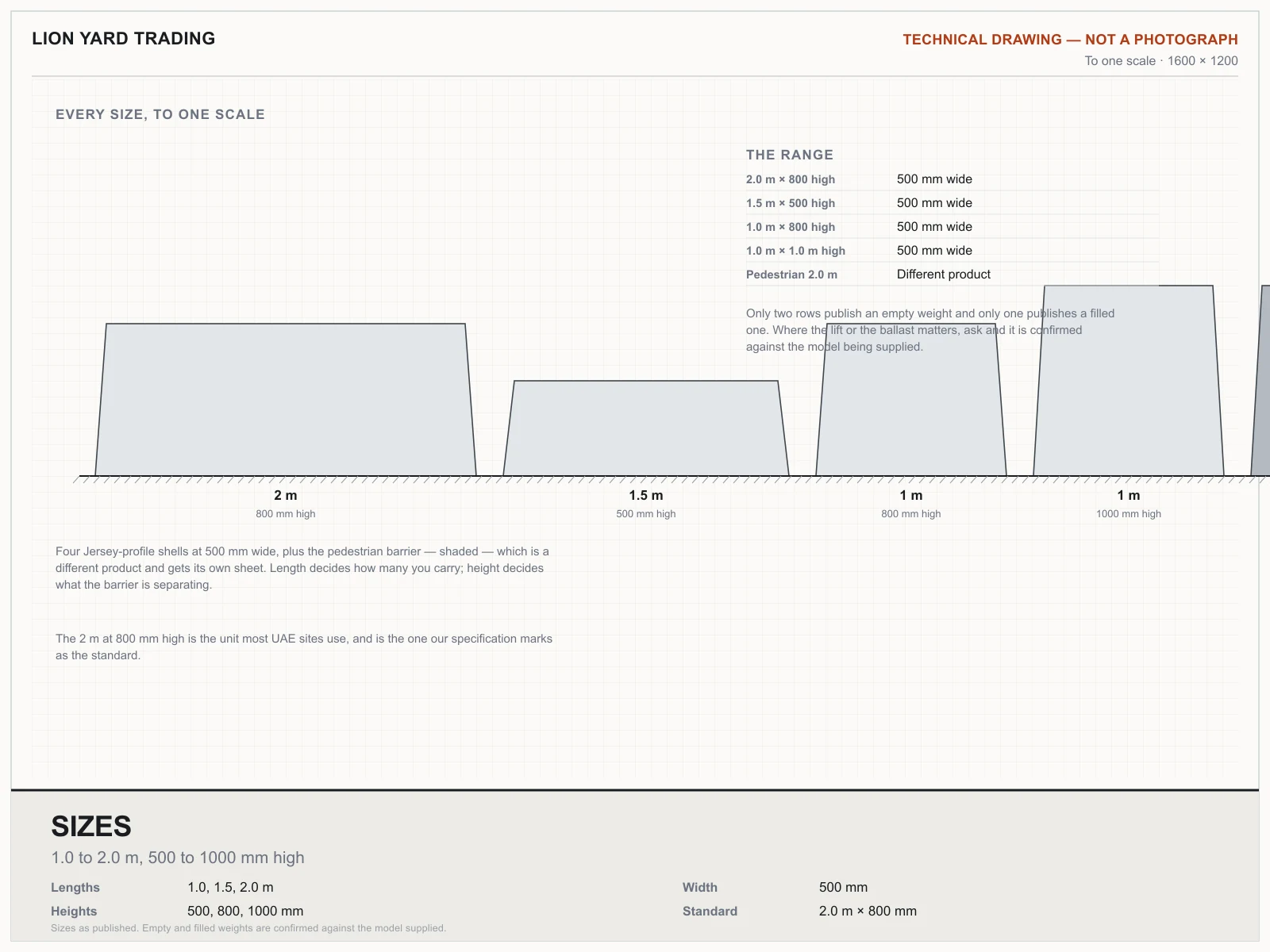

10 drawings covering every answer we need to price Plastic Water-Filled Jersey Barriers — every figure comes from the price table above or from the published standard it is made to.

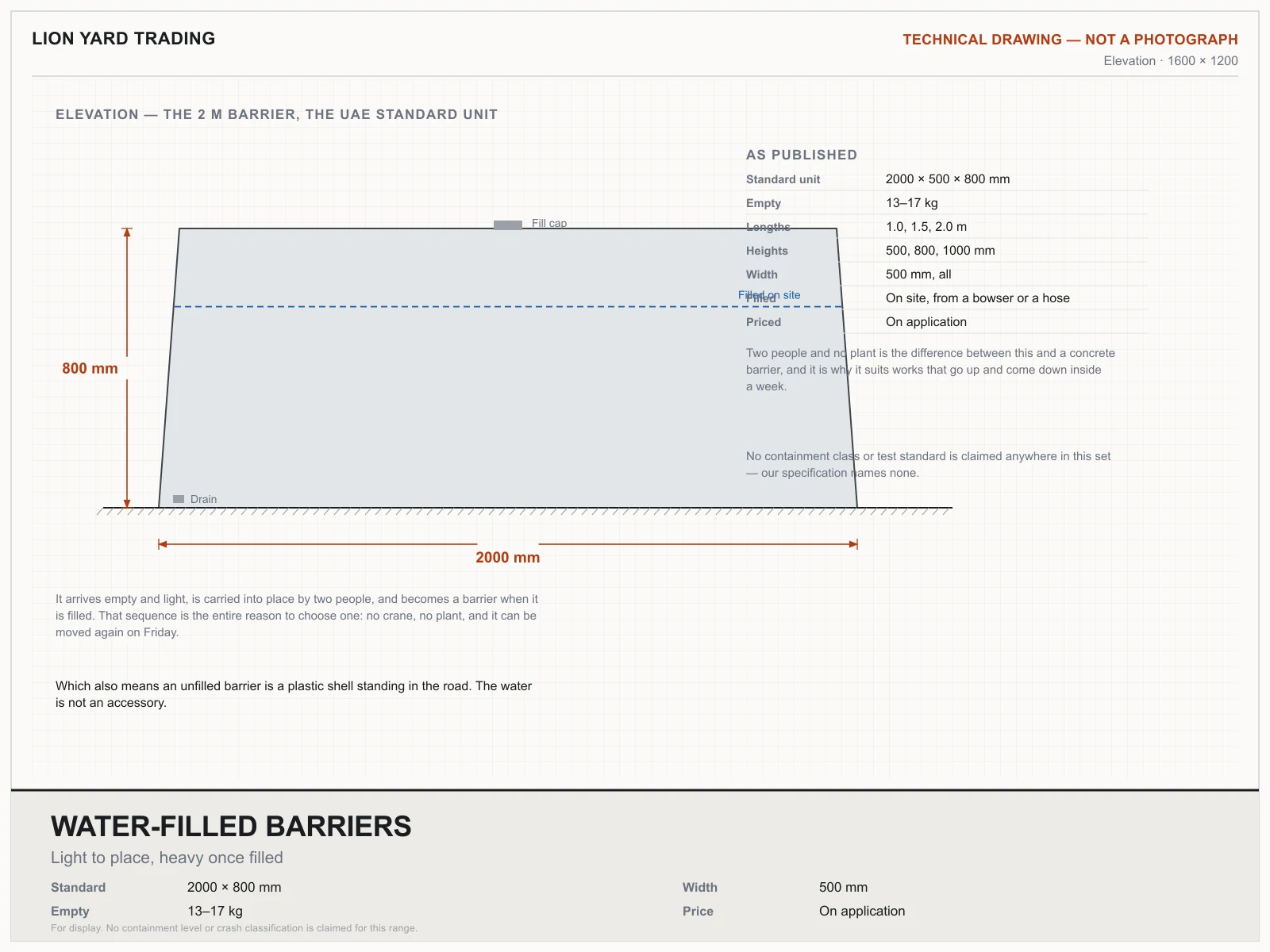

The barrier2 m, filled on site
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your plastic water-filled jersey barriers?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
