Acoustic wall — installed
Per m² of barrier face, 2 m high, posts at 2 m centres. Absorptive panels for sites working near housing. DDA caps construction noise at 45–60 dBA in residential zones and restricts work to 07:00–20:00 — screening is what lets a programme survive both.
Published price
Acoustic wall — installed
Quoted on the day
This one is priced against your specification rather than published. Send us what you need and we will come back with a figure.
Prices exclude 5% VAT and are subject to change. Bulk discounts available.
New: 2 year warranty | Refurbished: 6 month warranty
Delivered across all 7 Emirates from Ajman Free Zone. How delivery works
This size

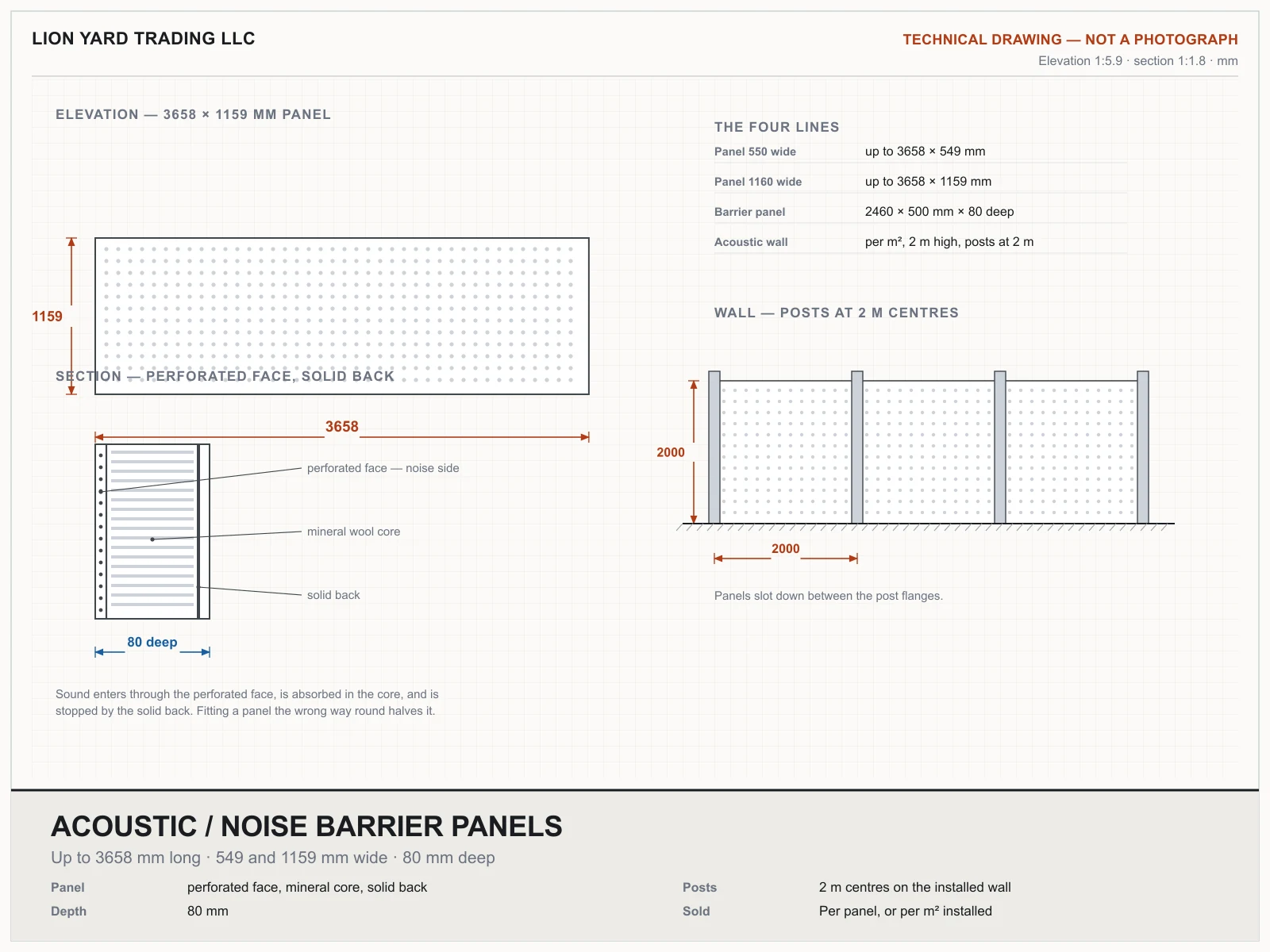

Per m² of barrier face, 2 m high, posts at 2 m centres
Specification
- Construction
- Solid outer shell, perforated inner shell, mineral wool or fibreglass infill
- Acoustic rating
- STC 40–43 · NRC 1.0 to ASTM E90 / C423
- Materials
- G90 galvanised steel, aluminium, 304 or 316 stainless
- Highway type
- Typically 2 m high with posts at 2 m centres
- Wind load
- Minimum 150 kg/m² absorptive, 390 kg/m² structural
- Supplied
- Knock-down, assembled on site
Not the right size?
Every size in the Acoustic / Noise Barrier Panels table, with the figure next to it.
Back to the full Acoustic / Noise Barrier Panels table
