Turnstiles & Physical Access
IT & Security Systems
Priced on enquiry
Priced per unit against your access-control requirement.
Tell us the size and where it is going.
About this product
- Overall height: 2220 mm on the mechanical and RFID single lanes · 2300 mm on the stainless
- Passage: 2100 mm high · lane width per unit, see the table
- Rotor arm: 600 mm long × 38 mm diameter
- Locking: 3 positions at 120°, or 4 at 90°
- Casework: Mild steel painted RAL 7004, or 304 / 316 stainless
- Rating: IP54 typical · MCBF 2 million cycles
All 4 items
Every item on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| Tripod Turnstile, single lane — 580 mm laneLY-PERI-103 | 1400 deep × 1320 wide × 2220 mm high · SUS304 stainless · mechanical. 30–40 people a minute. | Ask |
| Tripod Turnstile, single lane with RFID — 580 mm laneLY-PERI-104 | 1400 × 1320 × 2220 mm · SUS304 · IP54 · card reader integrated into the head. | Ask |
| Tripod Turnstile, single lane stainless — 580 mm laneLY-PERI-105 | 1630 deep × 1500 wide × 2300 mm high · heavier stainless housing for an exposed entrance. | Ask |
| Tripod Turnstile, double lane — 2442 mm wideLY-PERI-106 | Two independent rotors in one housing · two lanes through one opening. | Ask |
- 1400 deep × 1320 wide × 2220 mm high · SUS304 stainless · mechanical. 30–40 people a minute.Ask on WhatsApp
- 1400 × 1320 × 2220 mm · SUS304 · IP54 · card reader integrated into the head.Ask on WhatsApp
- 1630 deep × 1500 wide × 2300 mm high · heavier stainless housing for an exposed entrance.Ask on WhatsApp
- Two independent rotors in one housing · two lanes through one opening.Ask on WhatsApp
Priced per unit against your access-control requirement.
What it is

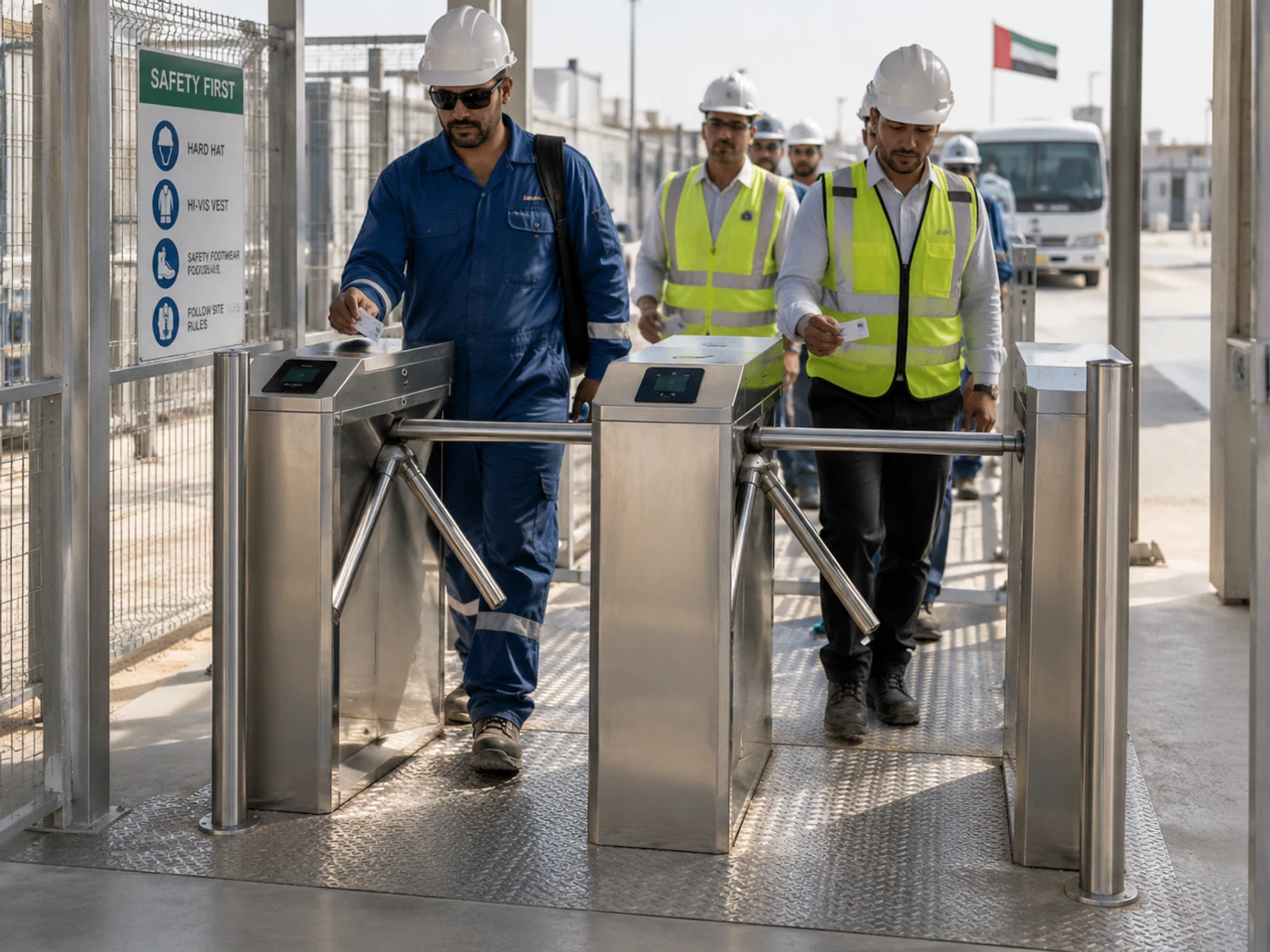

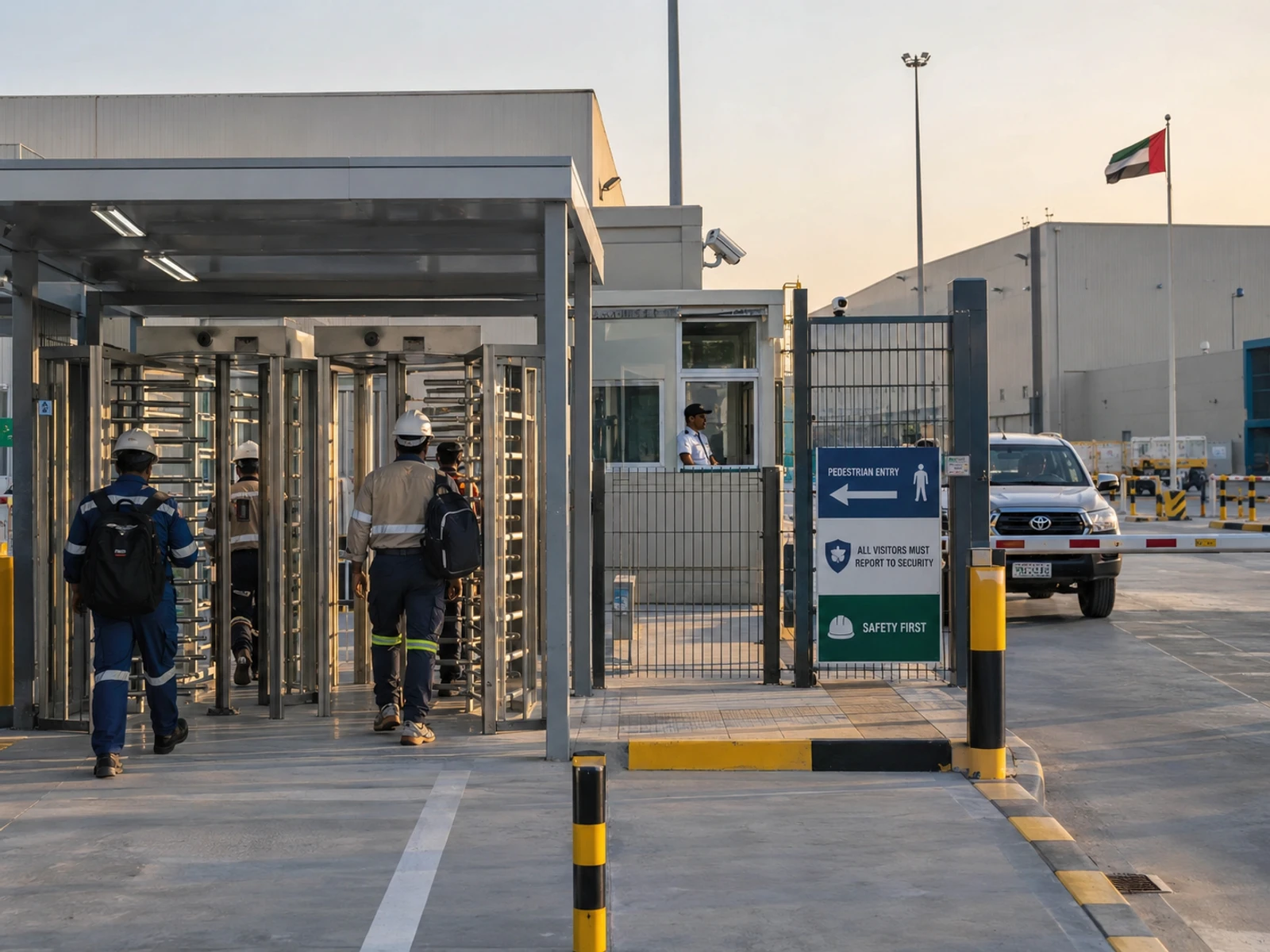

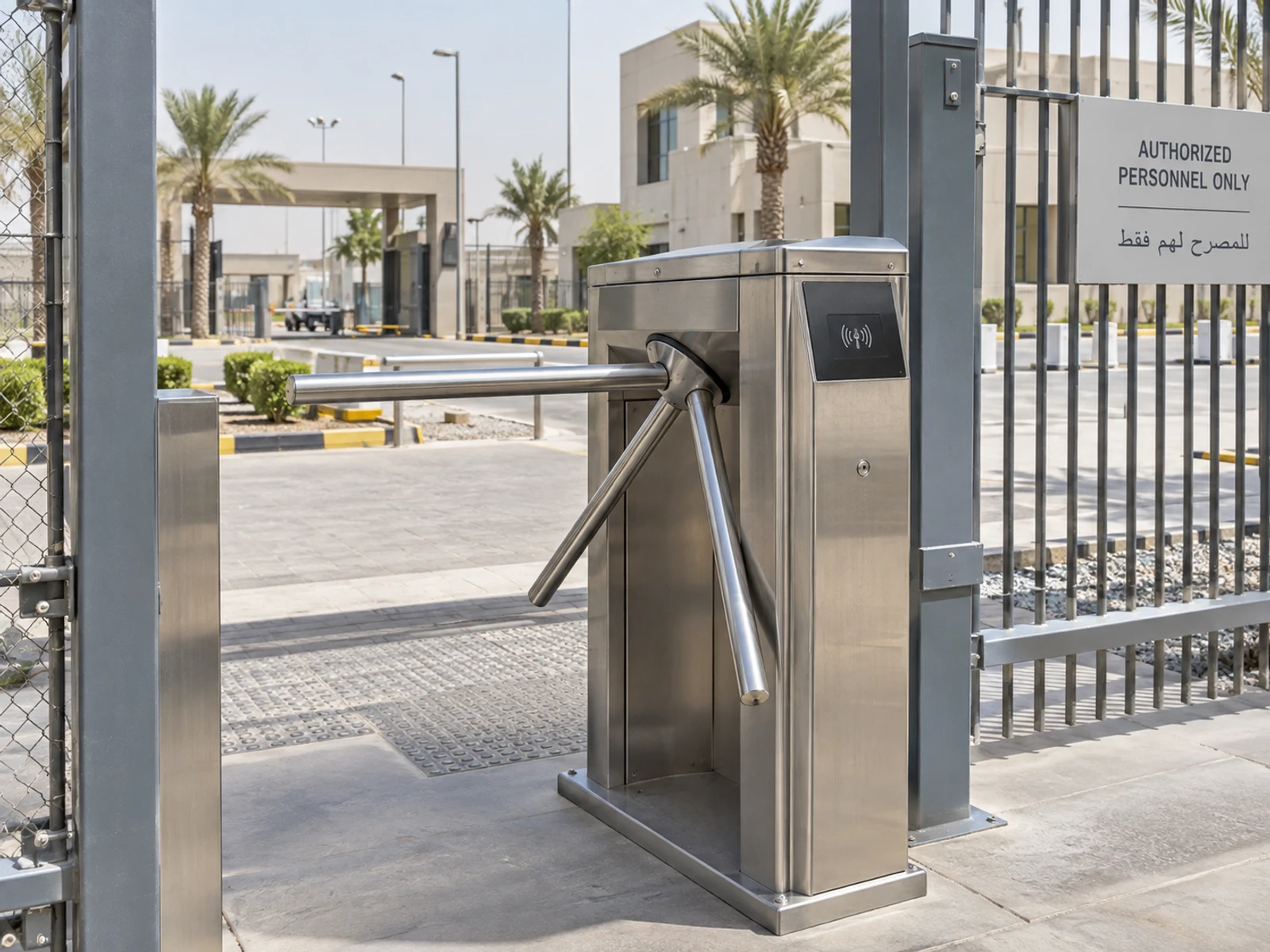

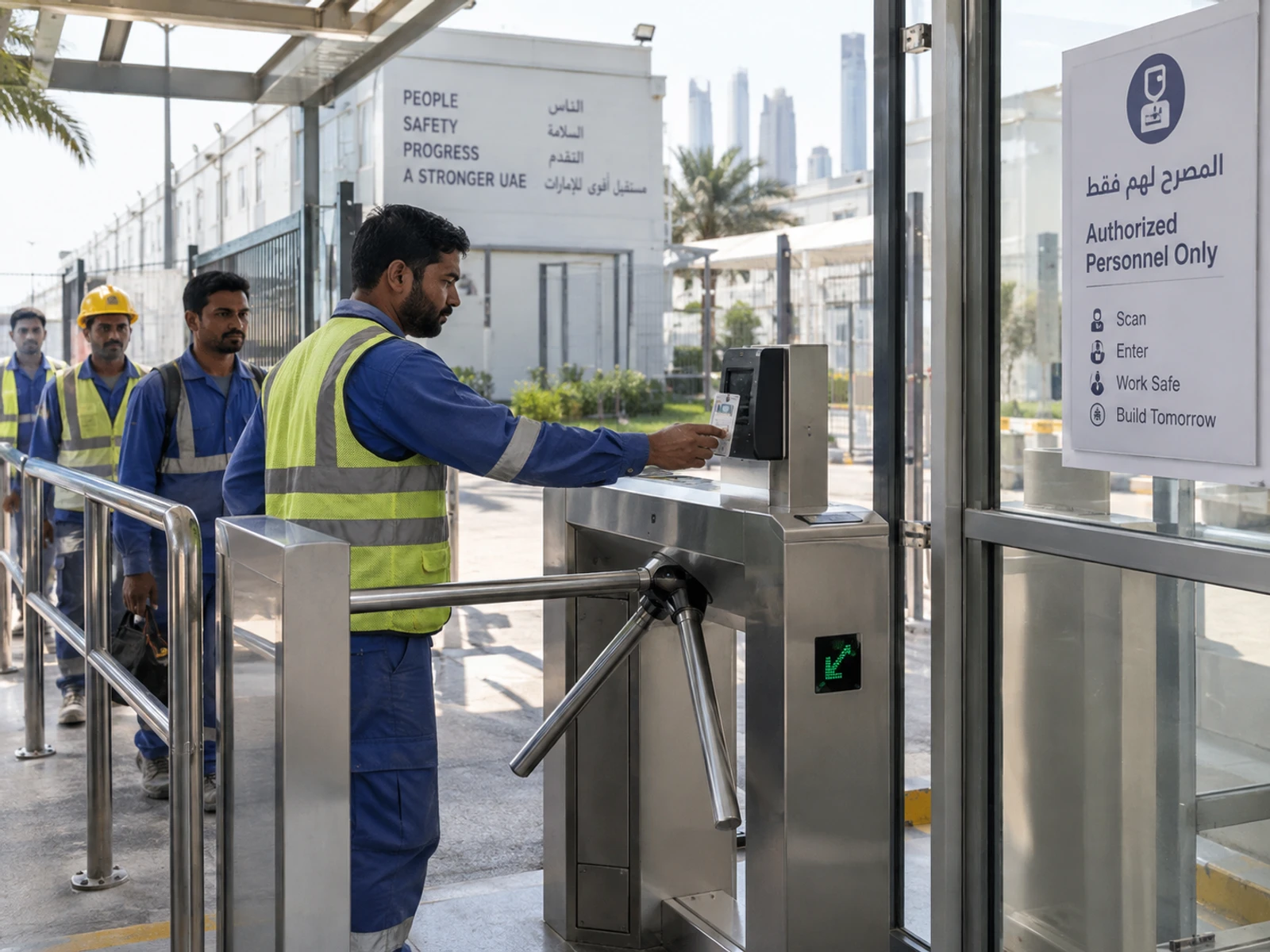

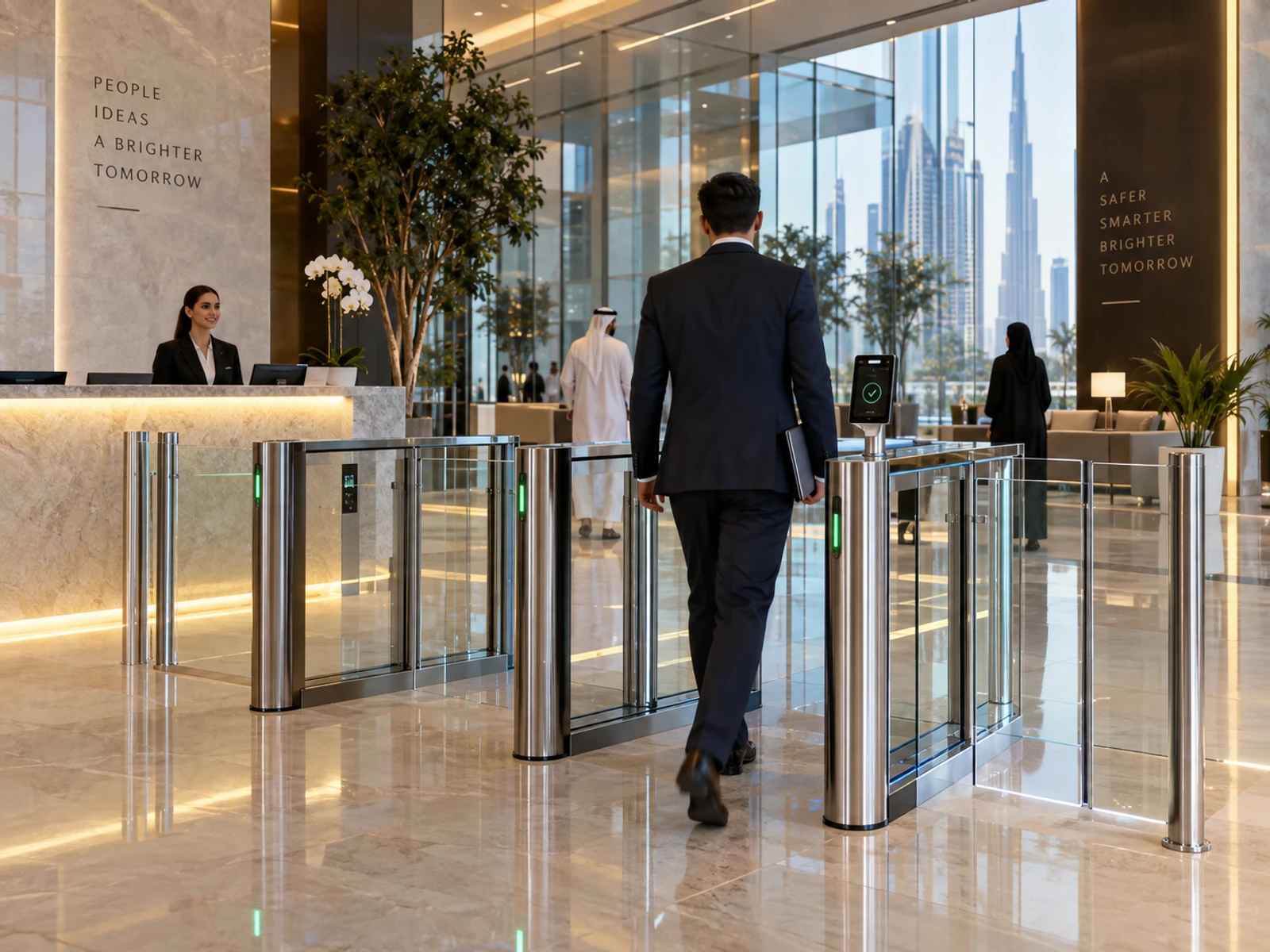

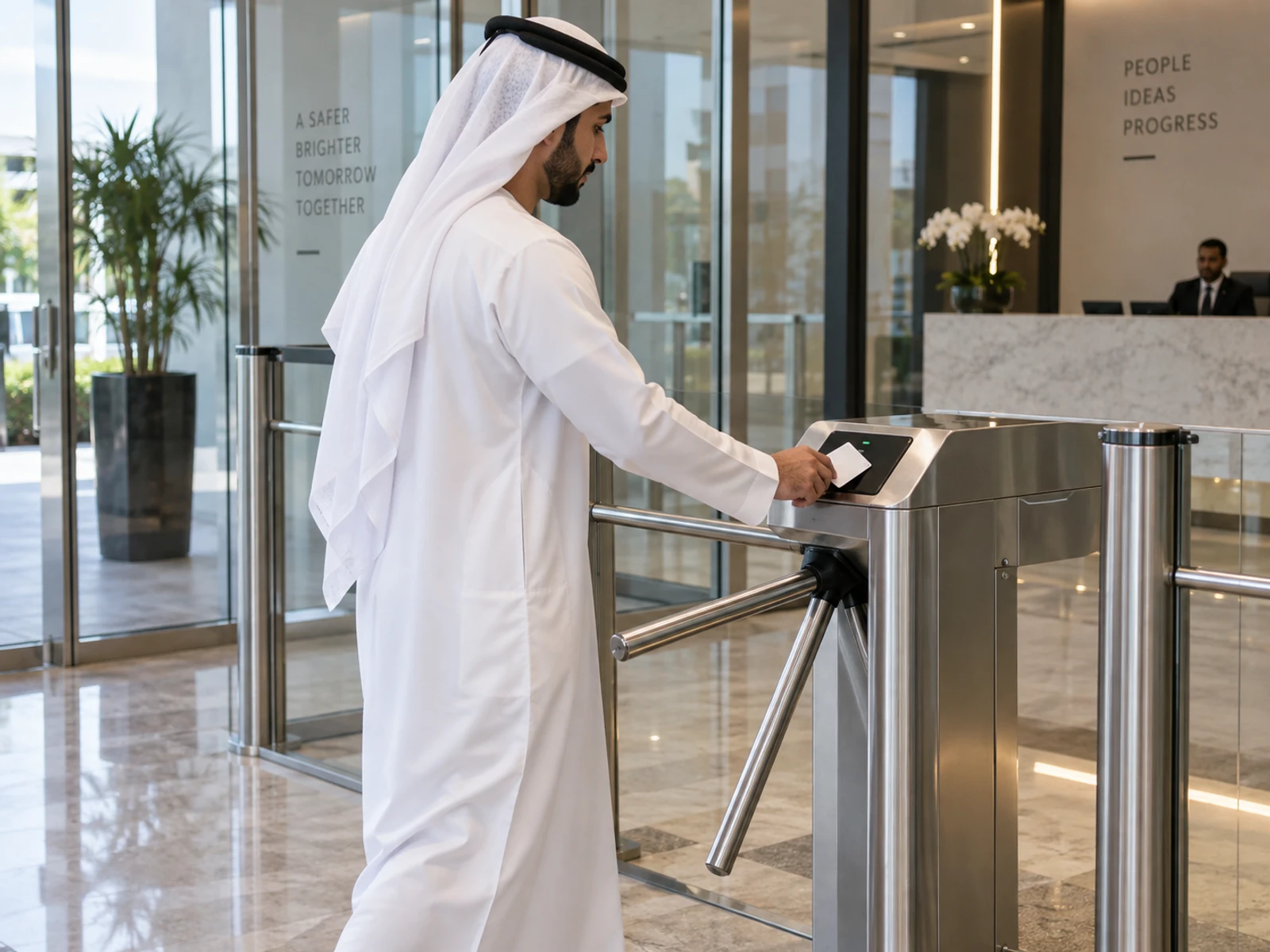

Turnstiles control people one at a time, which is what a gate cannot do. Single and double lane tripod units, powder-coated or SUS304 stainless, with a 580 mm pass lane and a throughput of thirty to forty people a minute — enough for a site gate at shift change. Mechanical, or with RFID card control built into the head. Full-height and speed-gate types are available where the entrance is unmanned or the building is a lobby rather than a yard: tell us the headcount and whether anybody is watching the door.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- Overall height
- 2220 mm on the mechanical and RFID single lanes · 2300 mm on the stainless
- Passage
- 2100 mm high · lane width per unit, see the table
- Rotor arm
- 600 mm long × 38 mm diameter
- Locking
- 3 positions at 120°, or 4 at 90°
- Casework
- Mild steel painted RAL 7004, or 304 / 316 stainless
- Rating
- IP54 typical · MCBF 2 million cycles
- Service life
- At 2 million cycles: about 22 years at 250 passes a day, 11 years at 500, 5.5 years at 1,000, and 2.7 years at 2,000 — a labour accommodation gate is a different purchase from an office door
- Supply
- Imported rather than made locally — allow for the lead time
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation

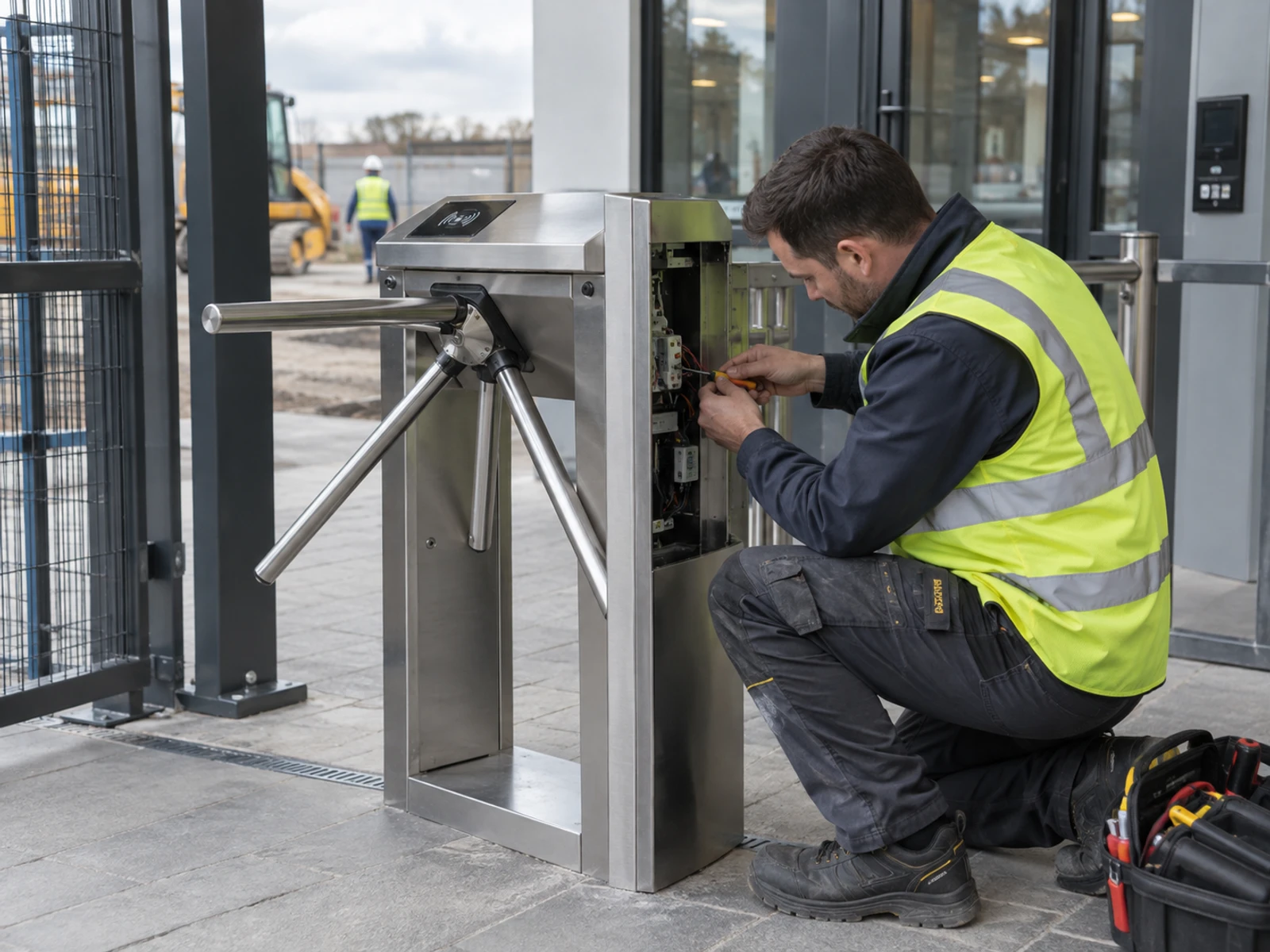

- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Ready to price your turnstiles & physical access?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
