Structured Cabling (Cat6/Cat6A & Fibre)

IT & Security Systems

4options10technical drawings

Priced on enquiry

Priced per point/run against your building's layout.

WhatsApp us

Tell us the size and where it is going.

About this product

  • What it is: The physical cable, patch panels and termination that every camera, door reader, network…
  • Cat6 vs Cat6A: Cat6 and Cat6A share the same 100 m channel limit - 90 m in the wall plus the patch leads…
  • Fibre: Used between buildings, between floors, or over any distance copper cabling can't…
  • Testing & certification: Every run is tested end to end before handover, not just installed and left — a cable…
  • Delivery / Installation: Installed across all 7 Emirates from our own team.
Read the full specification →
Delivered across all 7 Emirates

All 4 options

Every option on one list. Tap any row to ask about that one.

Priced per point/run against your building's layout.

What it is

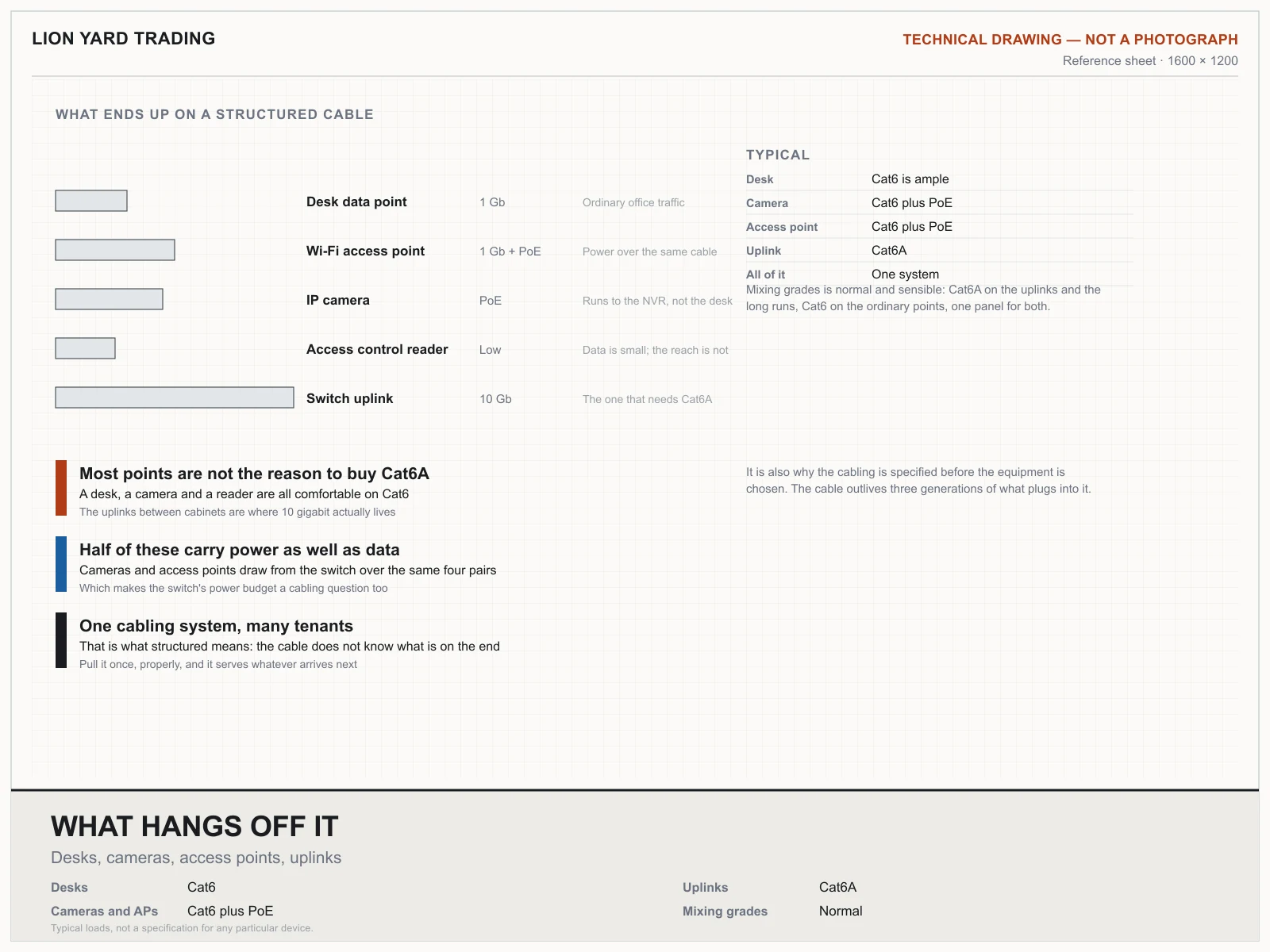

Cat6, Cat6A and fibre-optic data cabling, patch panels and testing — the cabling backbone behind the CCTV, access control and office network alike.

Specification

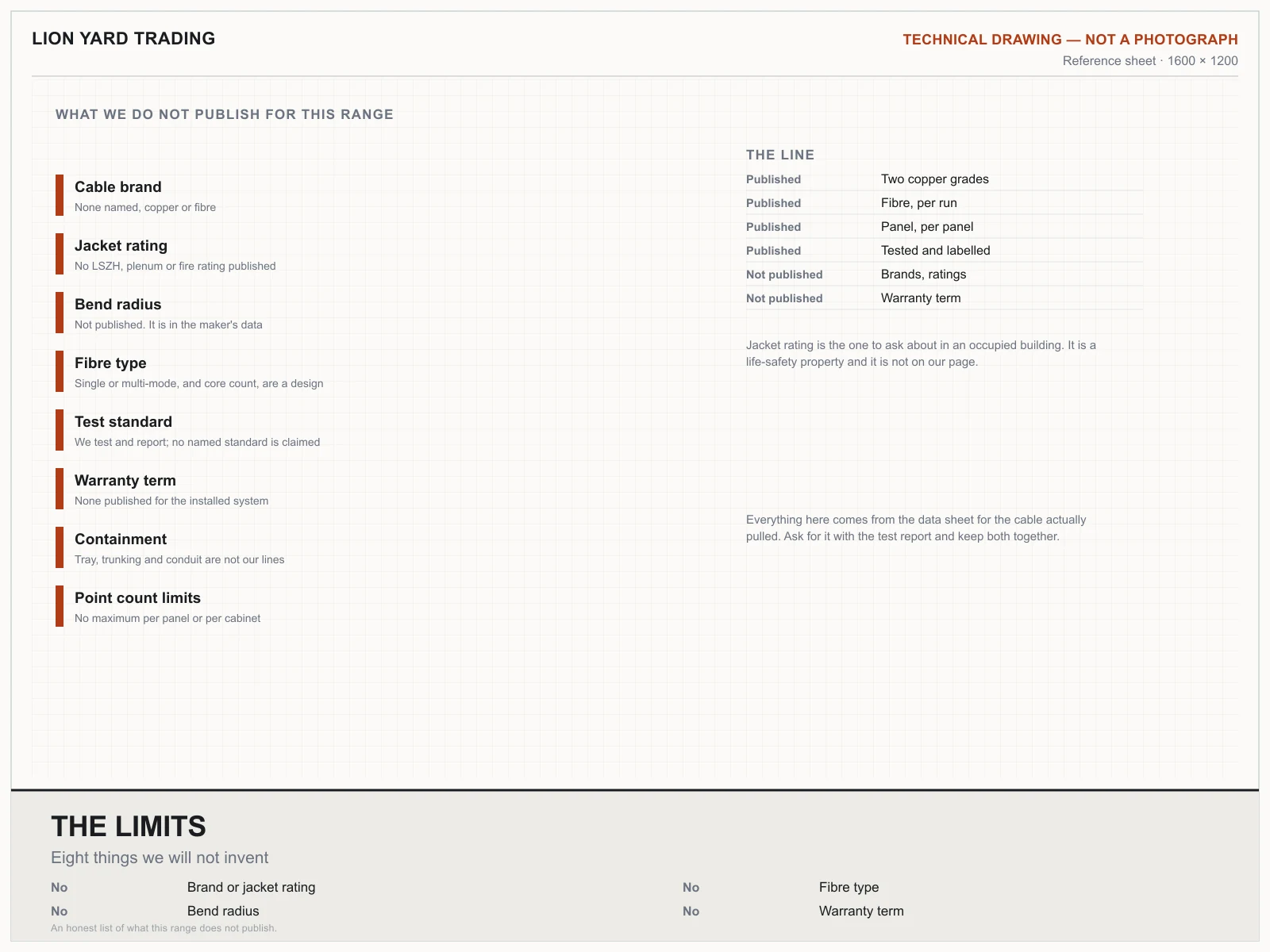

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

What it is

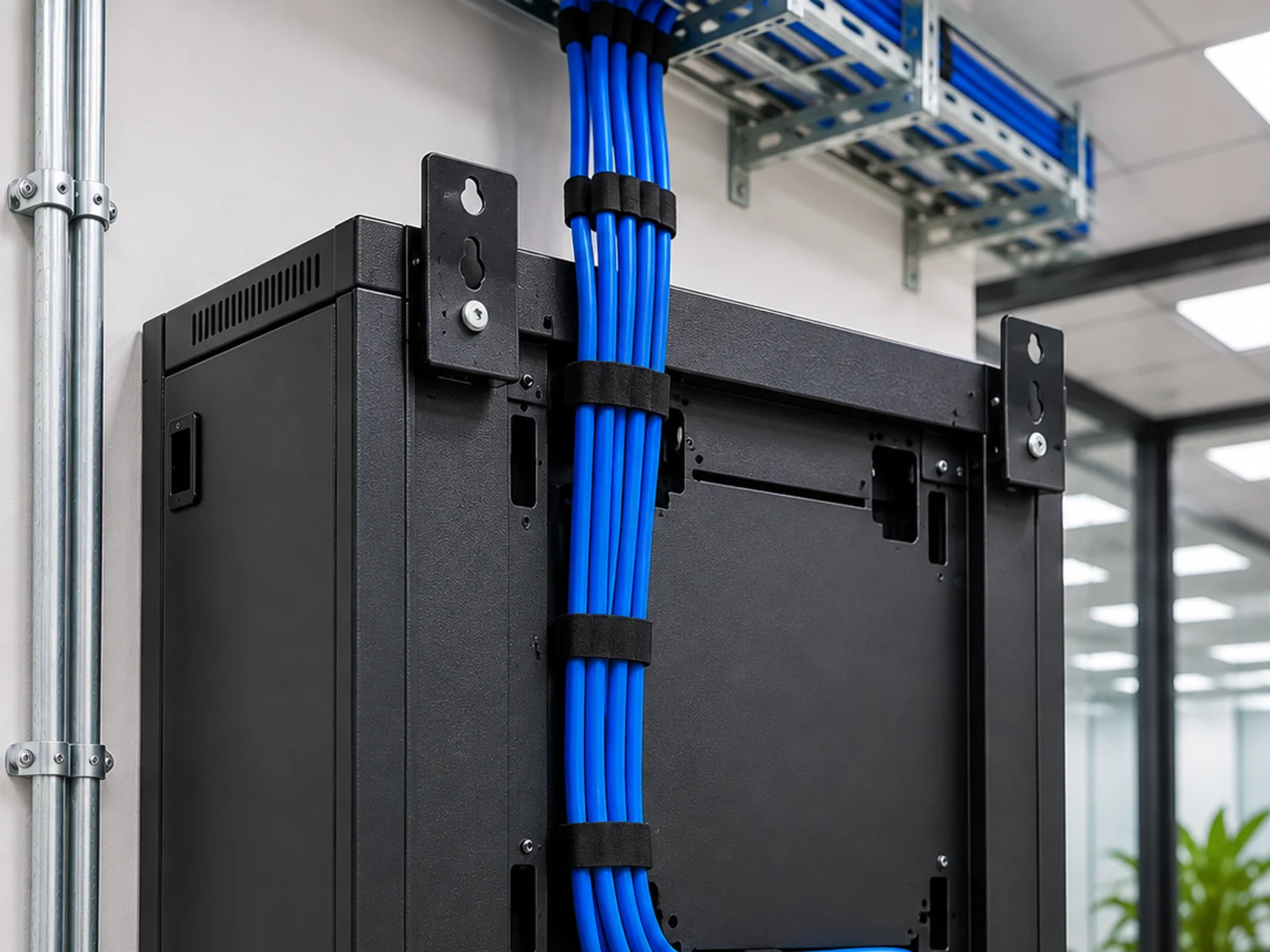

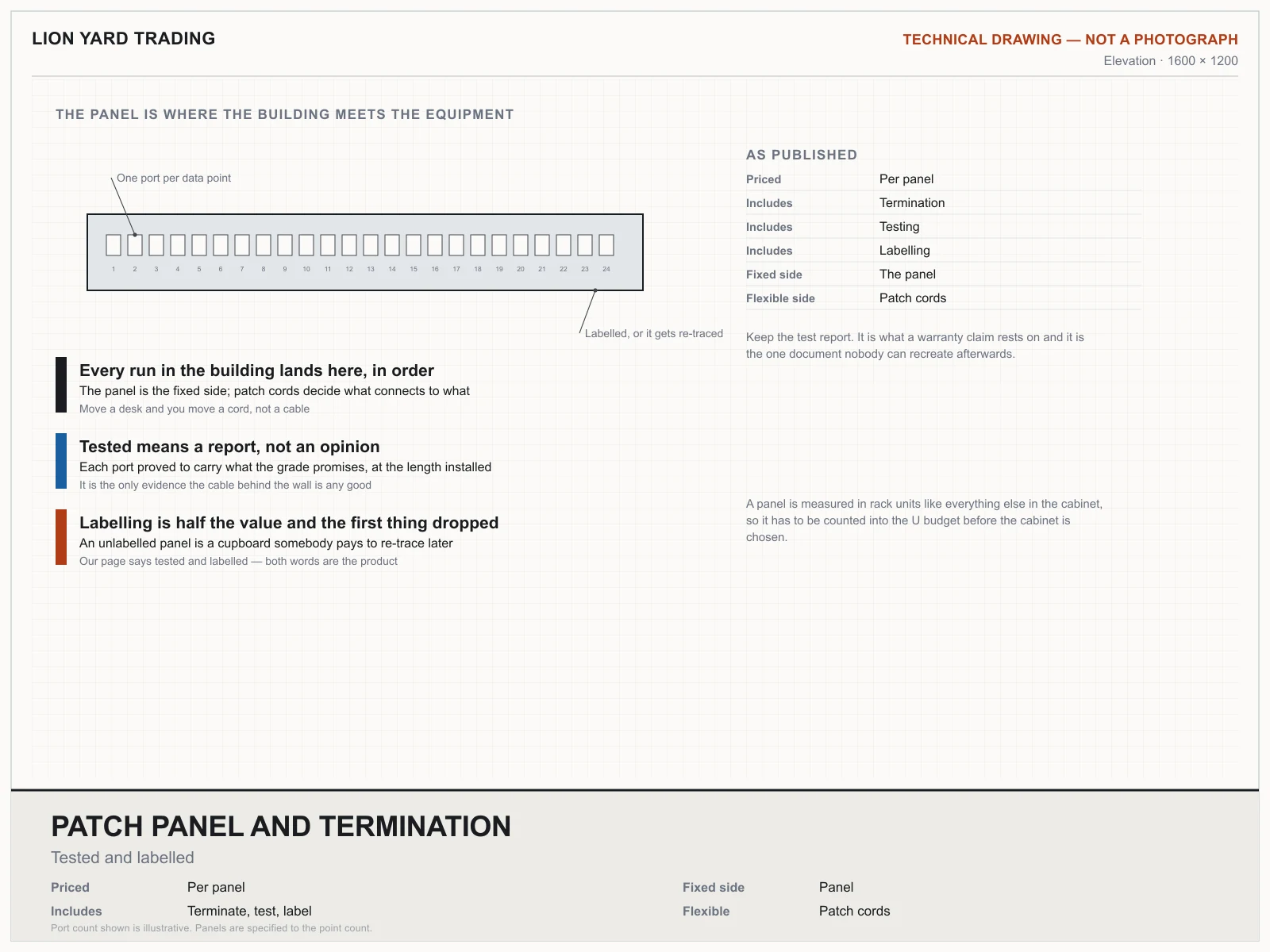

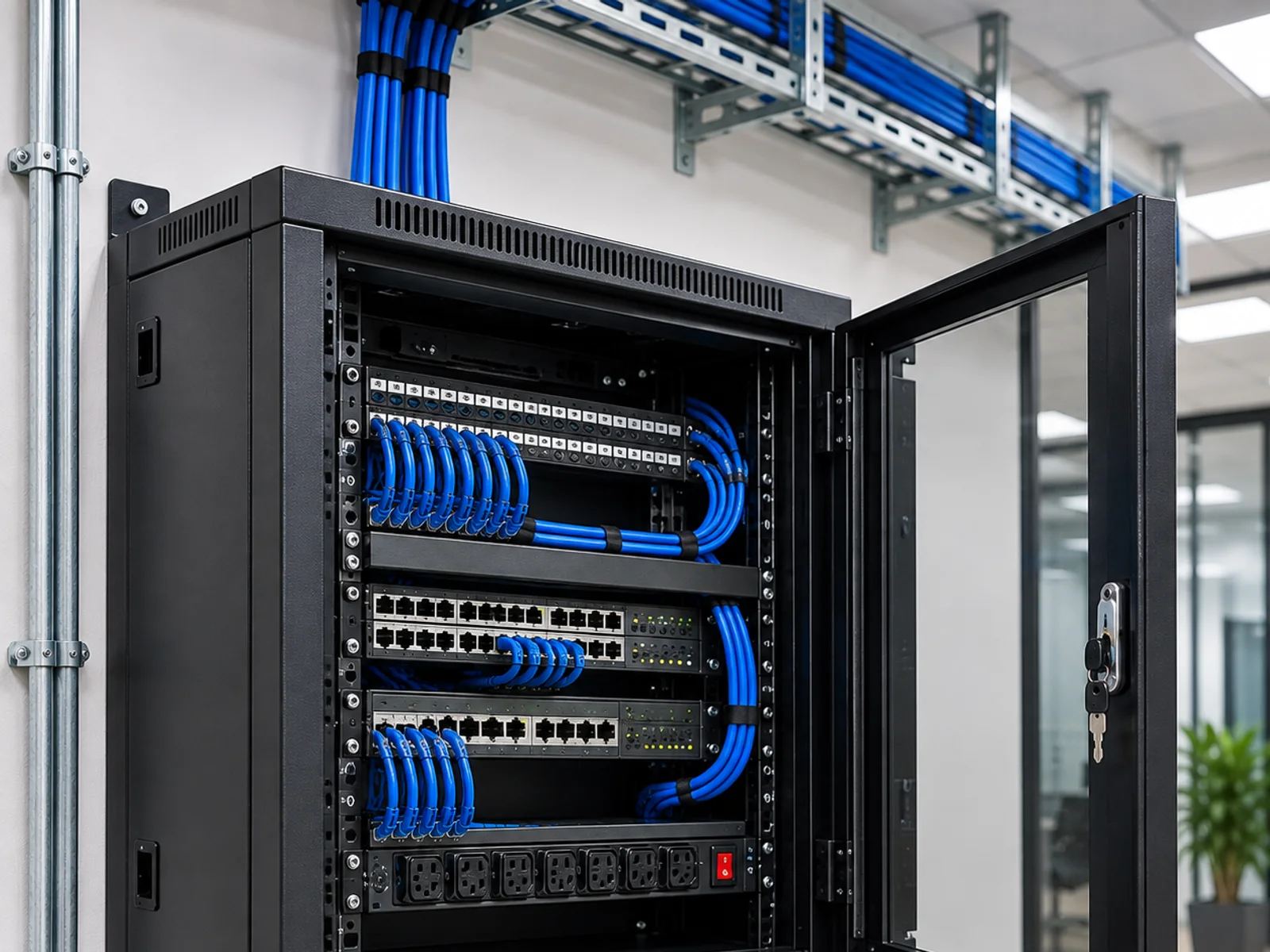

The physical cable, patch panels and termination that every camera, door reader, network switch and desk in the building actually plugs into — the part that's invisible once the walls close up, and expensive to redo if it's wrong.

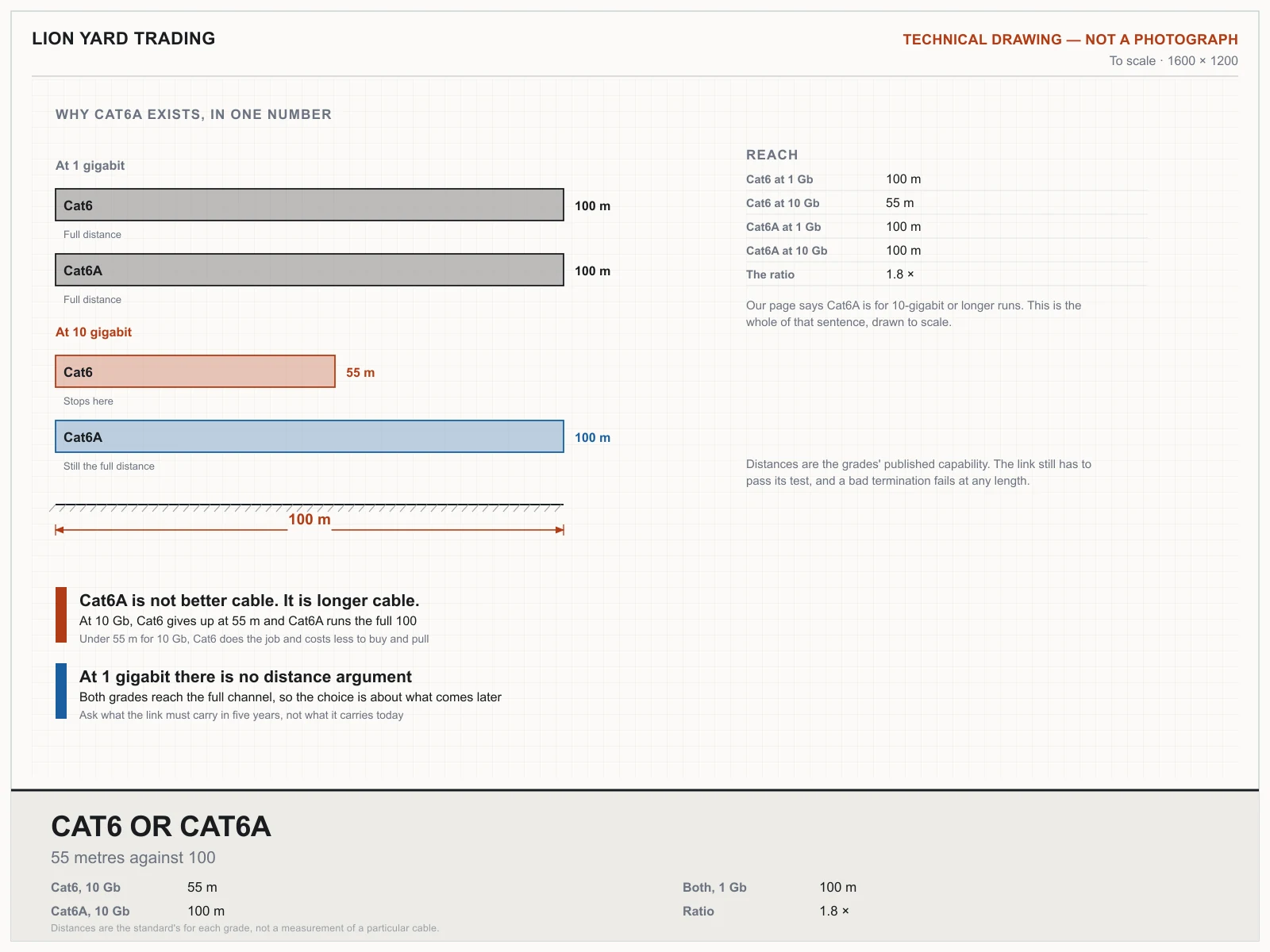

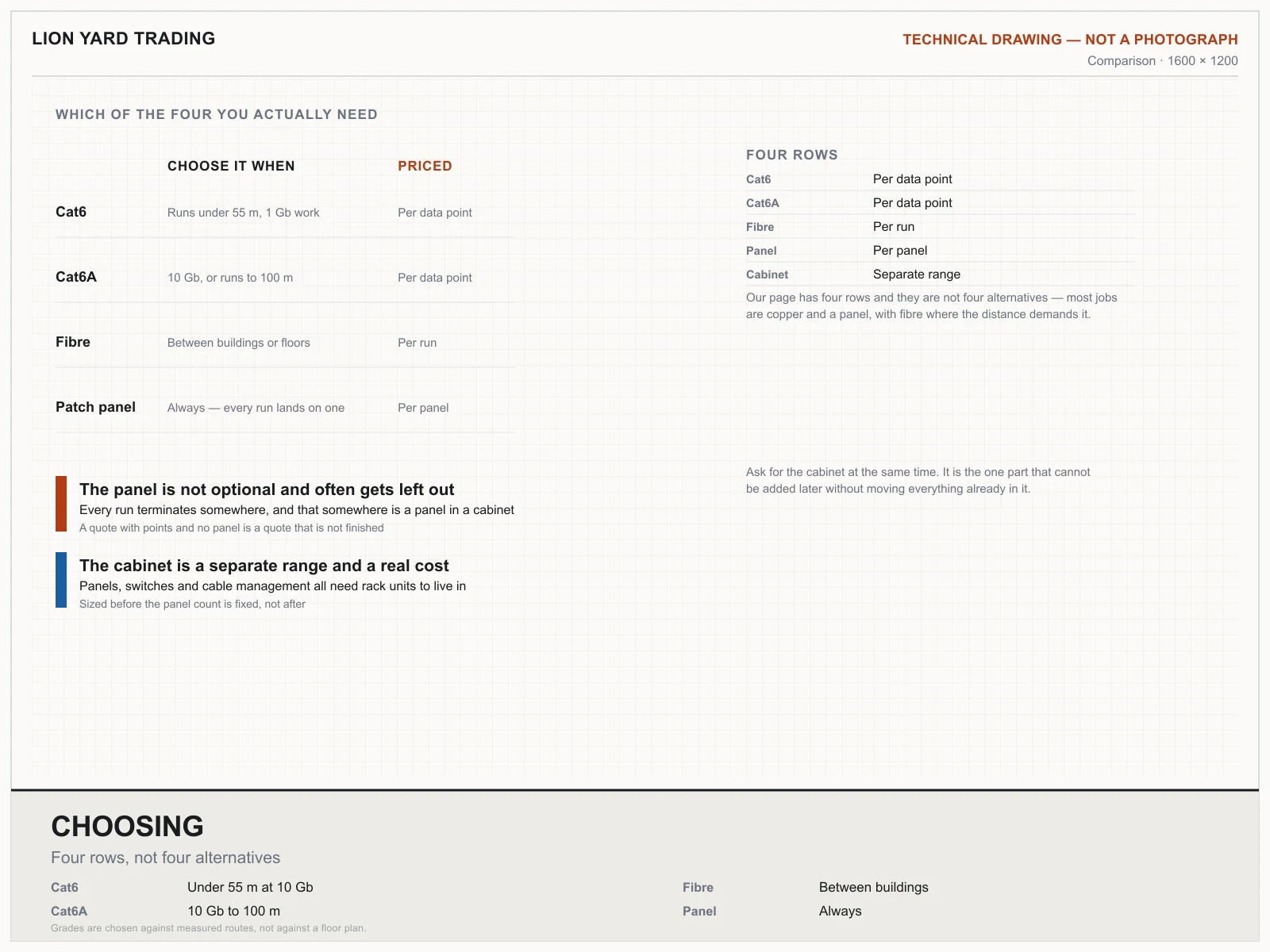

Cat6 vs Cat6A

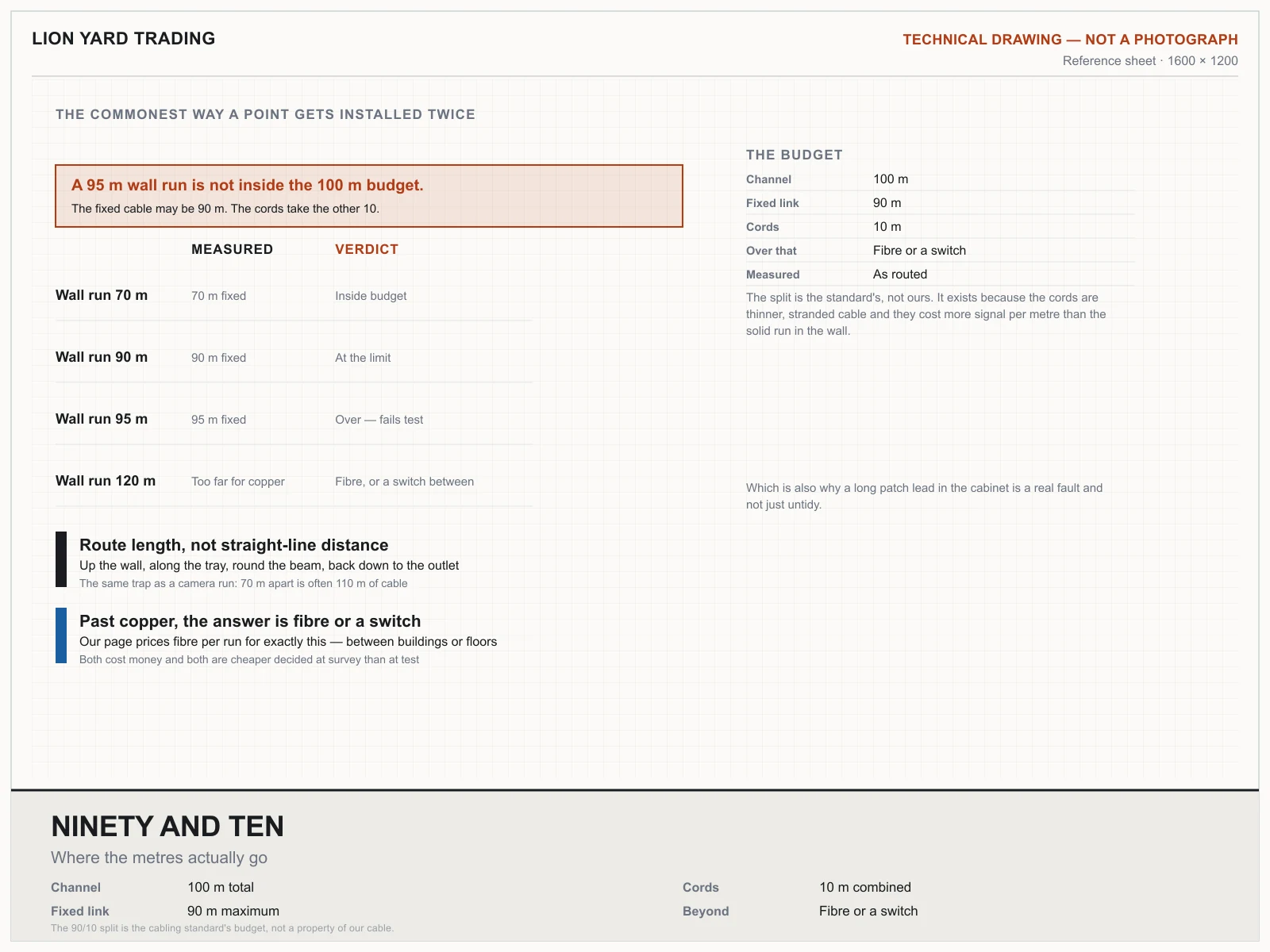

Cat6 and Cat6A share the same 100 m channel limit - 90 m in the wall plus the patch leads at each end. Cat6A does not buy a longer run; it buys 10-gigabit over the full 100 m, where Cat6 carries gigabit the whole way but 10-gigabit only to about 37-55 m. Any run over 100 m needs fibre or a switch in between. Cat6A is the right call for a server room or a backbone, not every desk in the building — the right call for a server room or a future-proofed backbone, not every desk in the building.

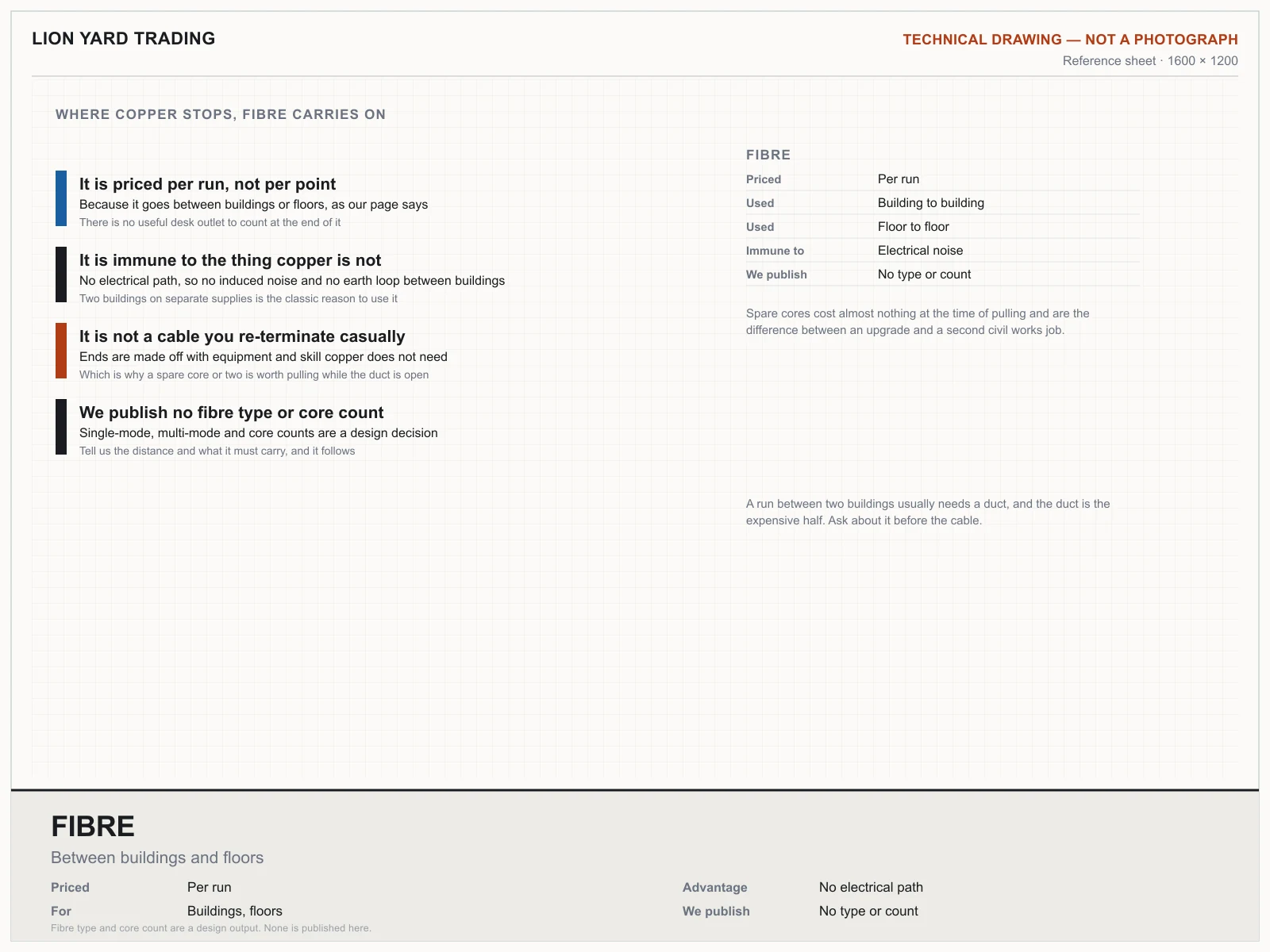

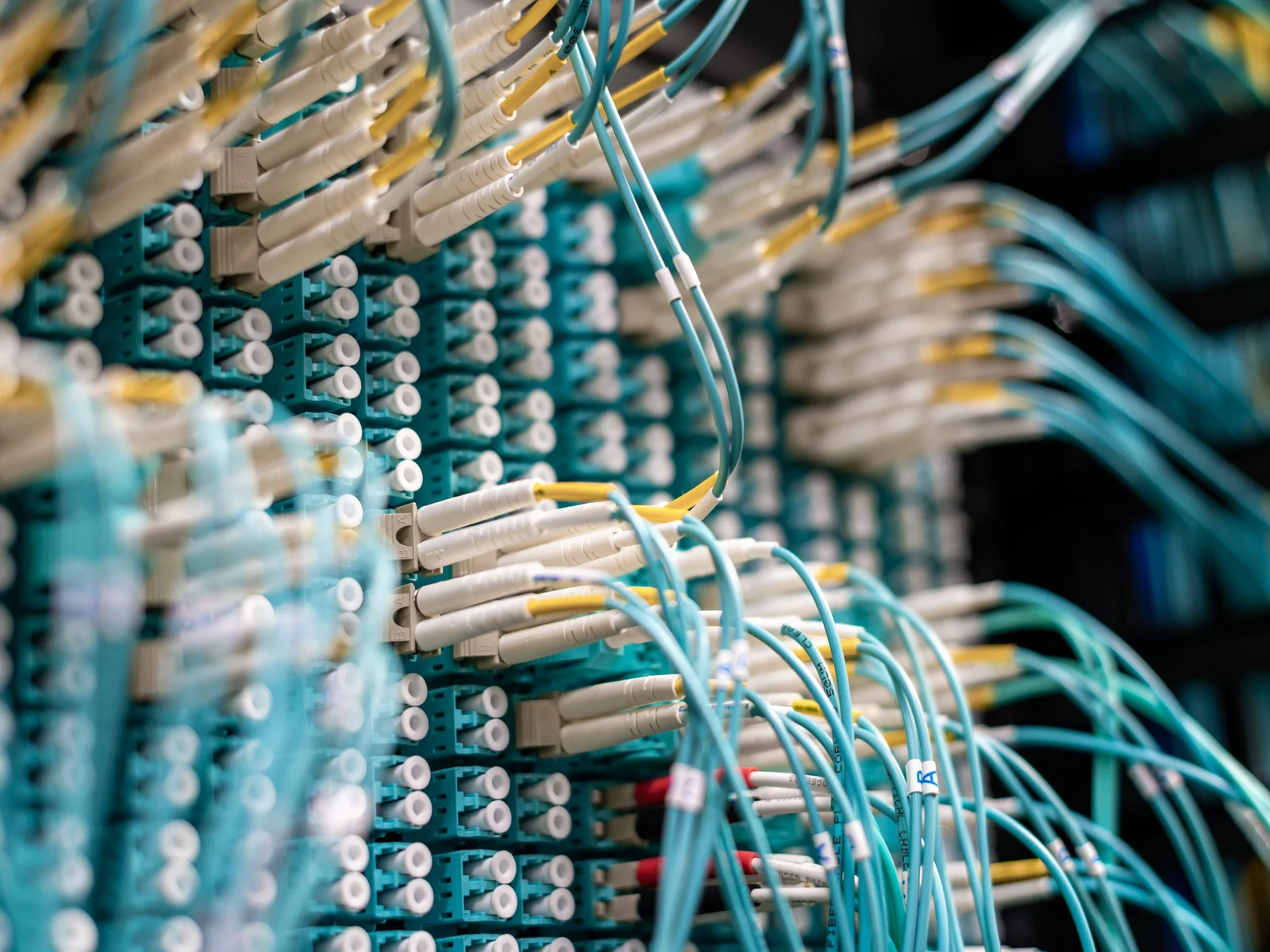

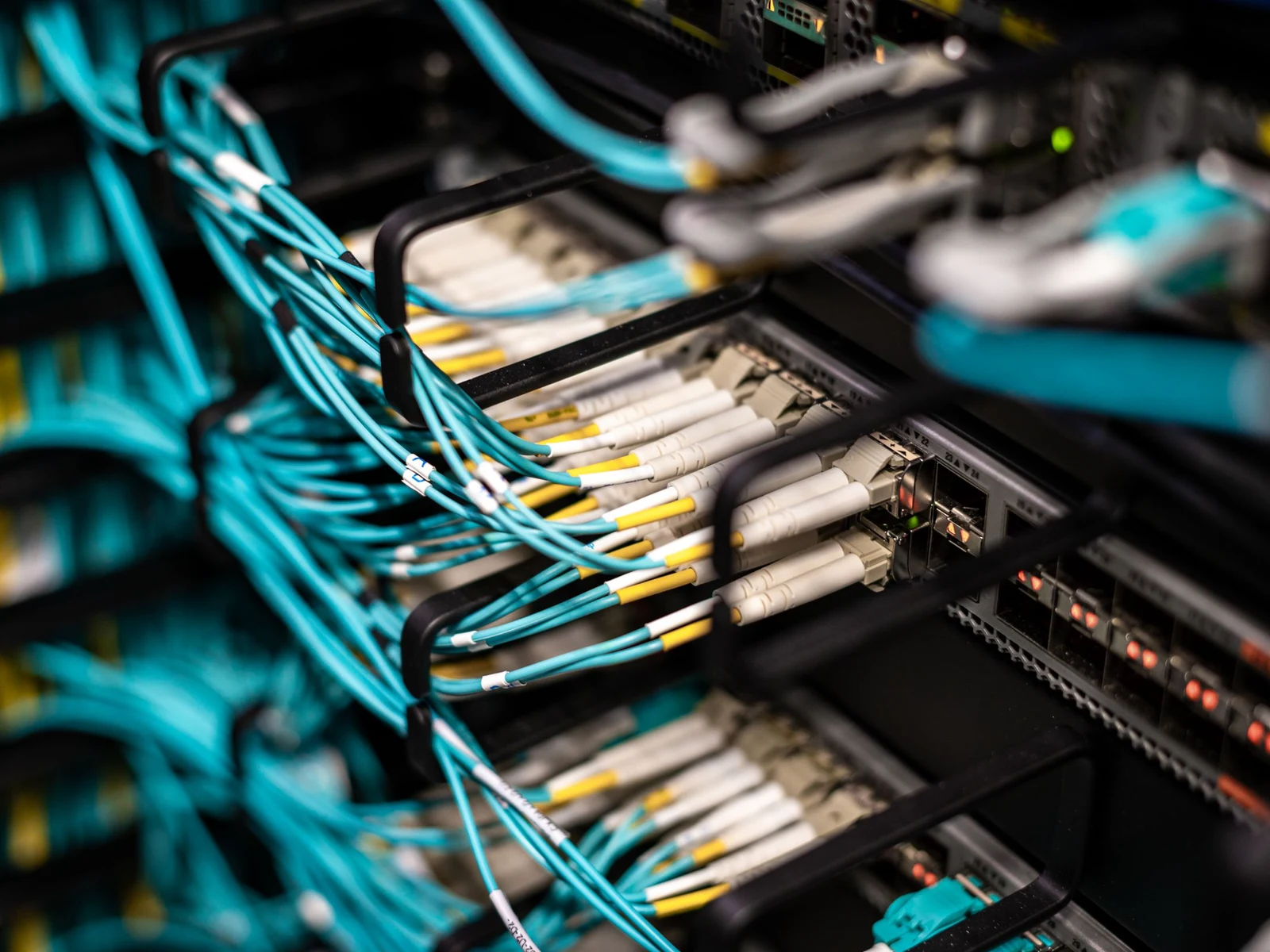

Fibre
Used between buildings, between floors, or over any distance copper cabling can't reliably cover — a different job from desk cabling, priced and run separately.
Testing & certification
Every run is tested end to end before handover, not just installed and left — a cable that fails months later costs far more to trace than one checked at the time.
Delivery / Installation
Installed across all 7 Emirates from our own team. Site survey first, then a written quotation with the scope, the equipment and the timeline shown separately — not a single lump figure. Supplied and installed by our own crew. This is a project, not a shelf item — the quotation follows a site visit, not a price list.
Structured Cabling (Cat6/Cat6A & Fibre)

Technical Procurement & Ordering Guides

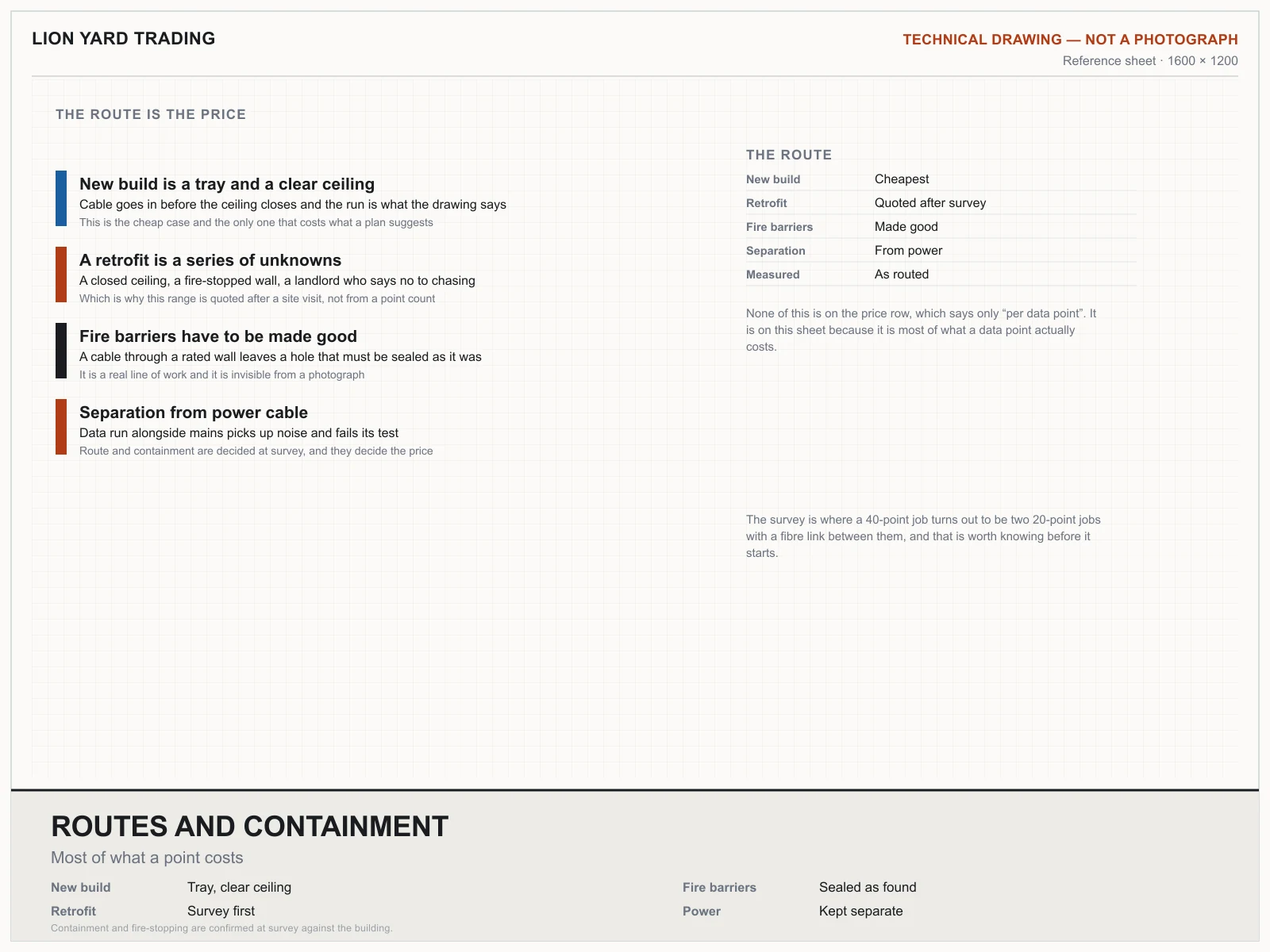

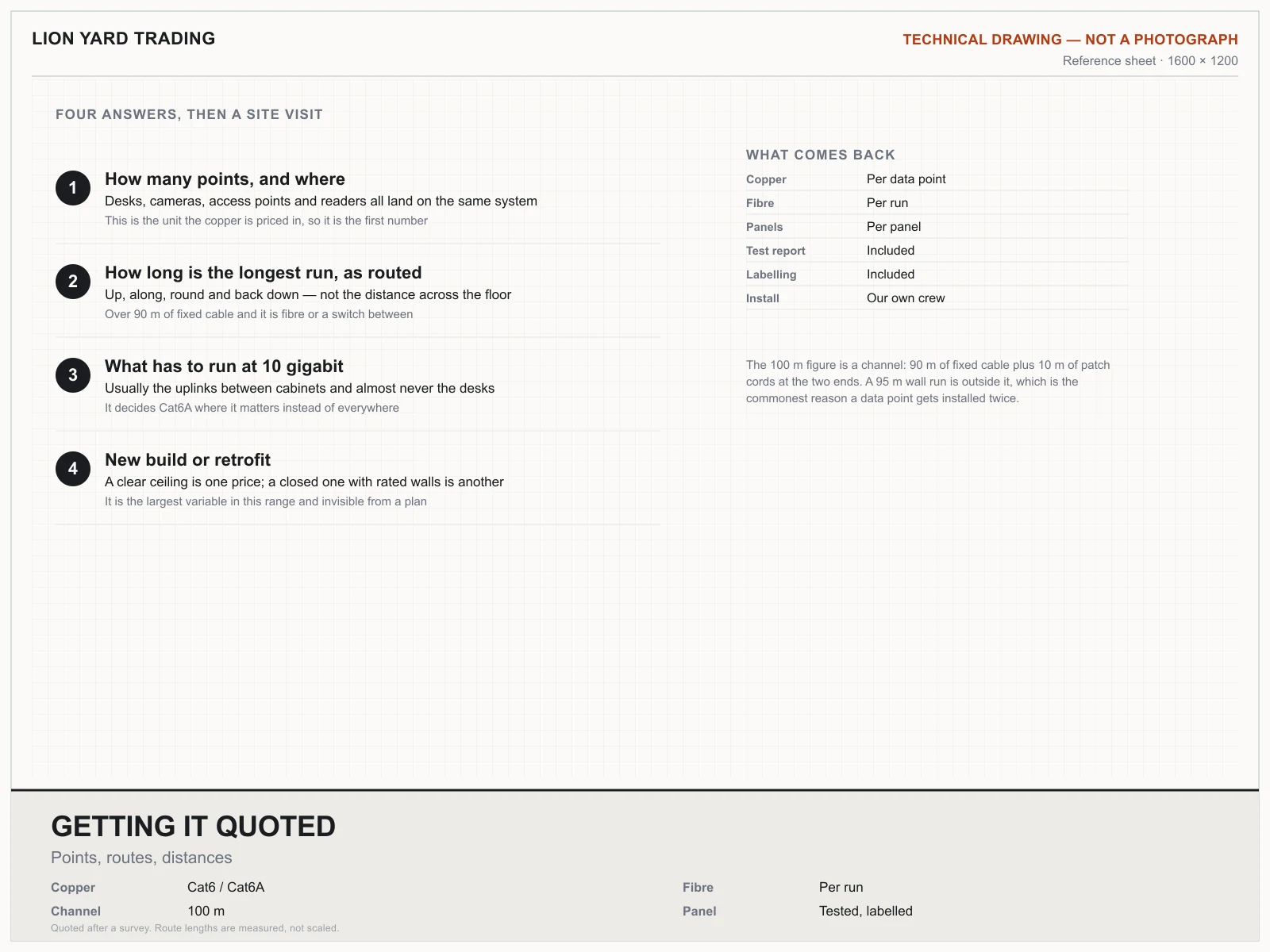

10 drawings covering every answer we need to price Structured Cabling (Cat6/Cat6A & Fibre) — every figure comes from the price table above or from the published standard it is made to.

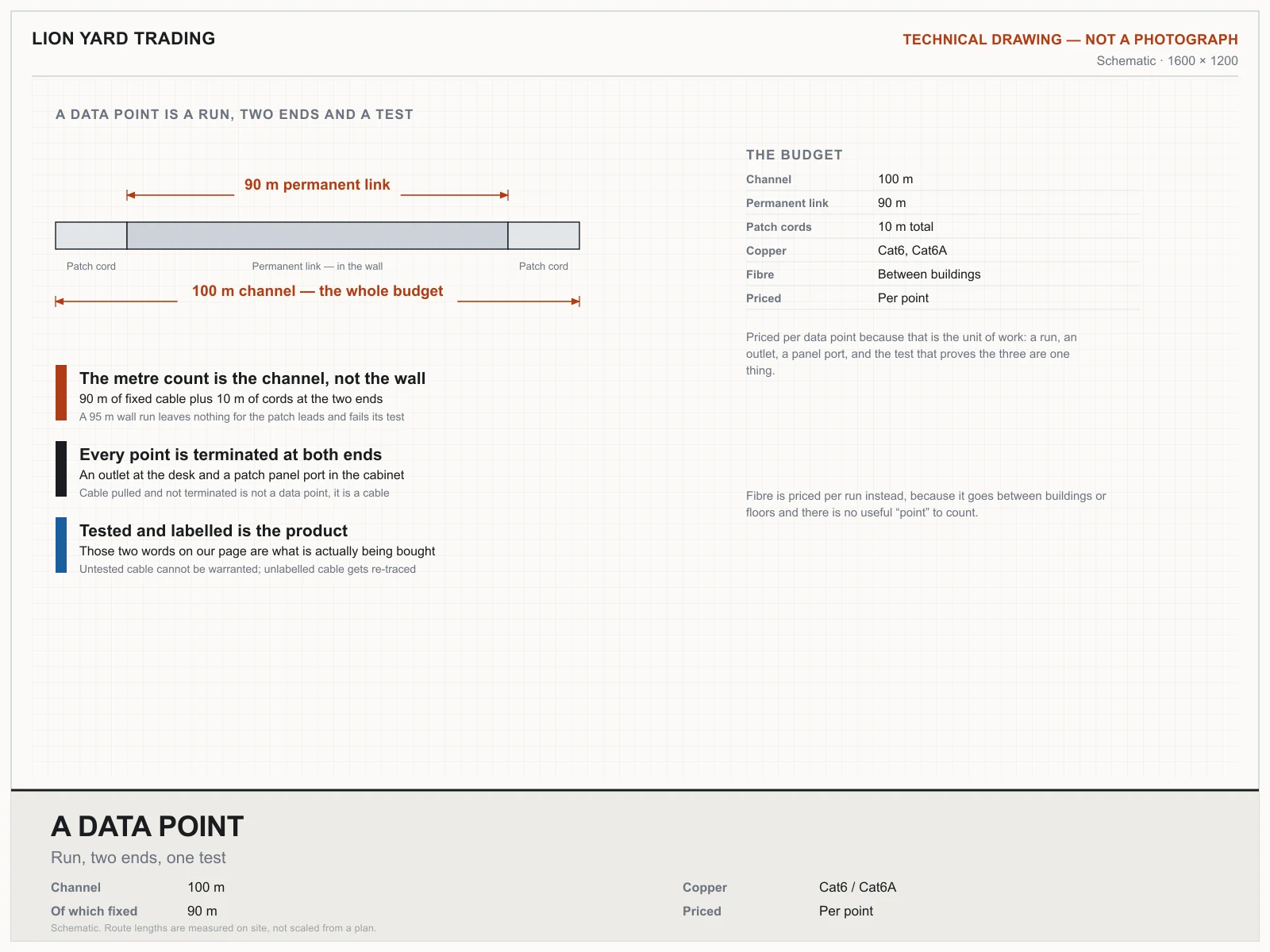

A data pointRun, two ends, one test

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your structured cabling (cat6/cat6a & fibre)?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
