CCTV & Surveillance Systems

IT & Security Systems

12options10technical drawings

Priced on enquiry

Priced against a site survey — camera count, coverage and retention period.

WhatsApp us

Tell us the size and where it is going.

About this product

  • What it is: A camera network (IP or analogue), a recorder (NVR for IP, DVR for analogue), and the…
  • SIRA — Dubai sites: Dubai's Security Industry Regulatory Agency sets installation and equipment standards for…
  • Camera types: Dome (discreet, indoor/covered), bullet (visible deterrent, outdoor), and PTZ…
  • Brands we work with: Hikvision and Dahua are the two brands most UAE sites already run, so most jobs are…
  • Storage & retention: Recording length is set by storage capacity and how many cameras are recording…
  • Delivery / Installation: Installed across all 7 Emirates from our own team.
Read the full specification →
Delivered across all 7 Emirates

All 12 options

Every option on one list. Tap any row to ask about that one.

Priced against a site survey — camera count, coverage and retention period.

What it is

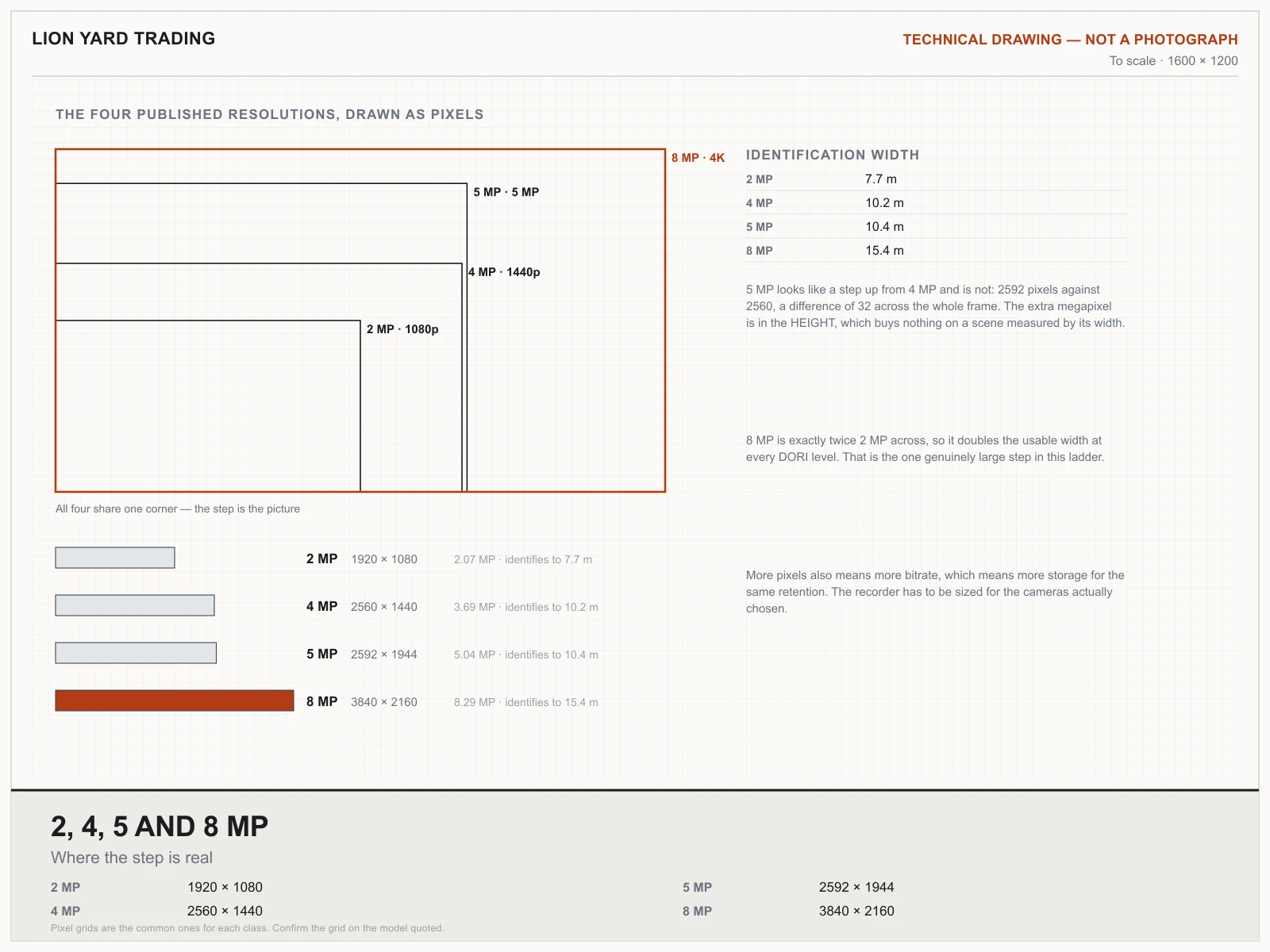

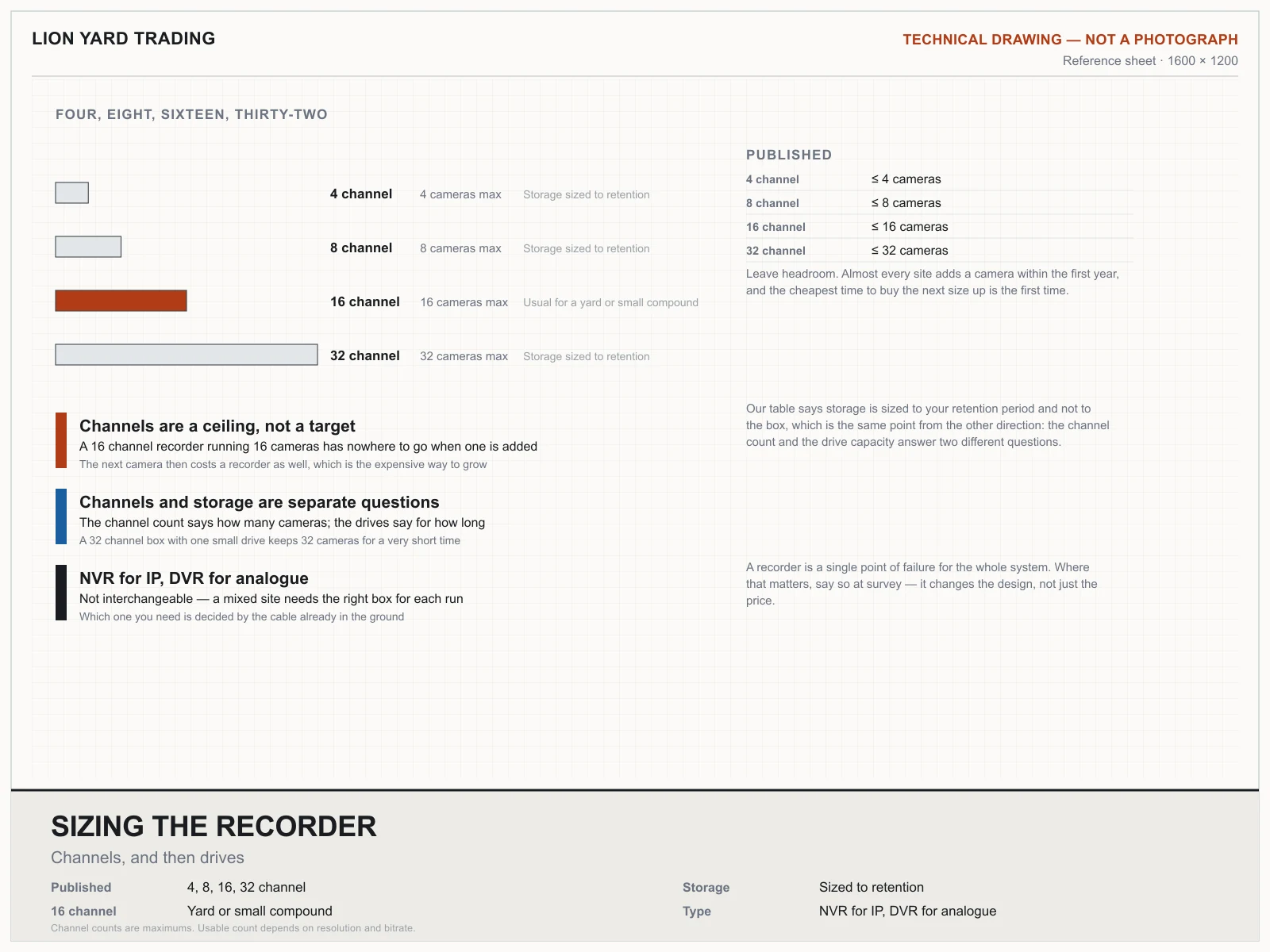

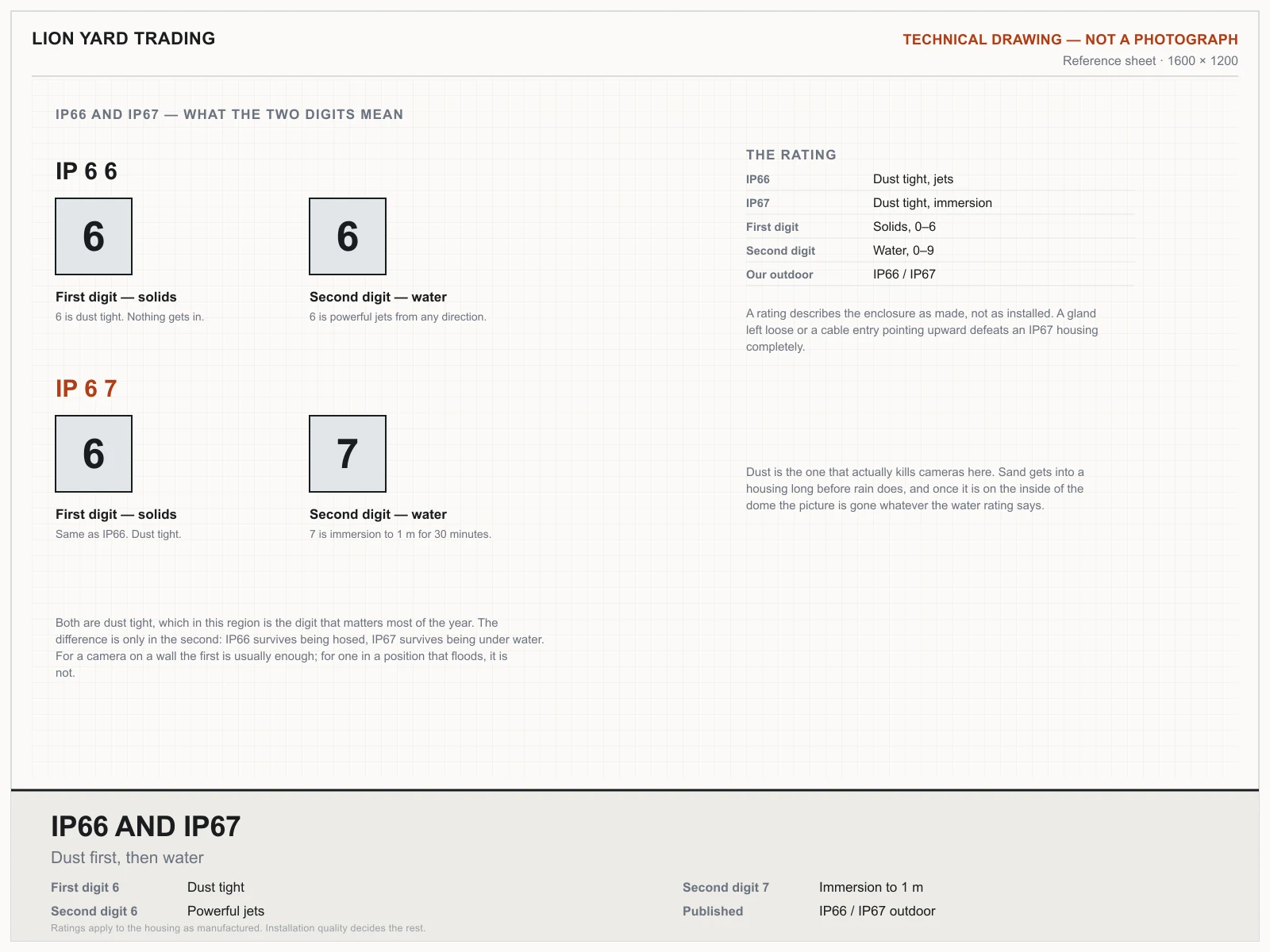

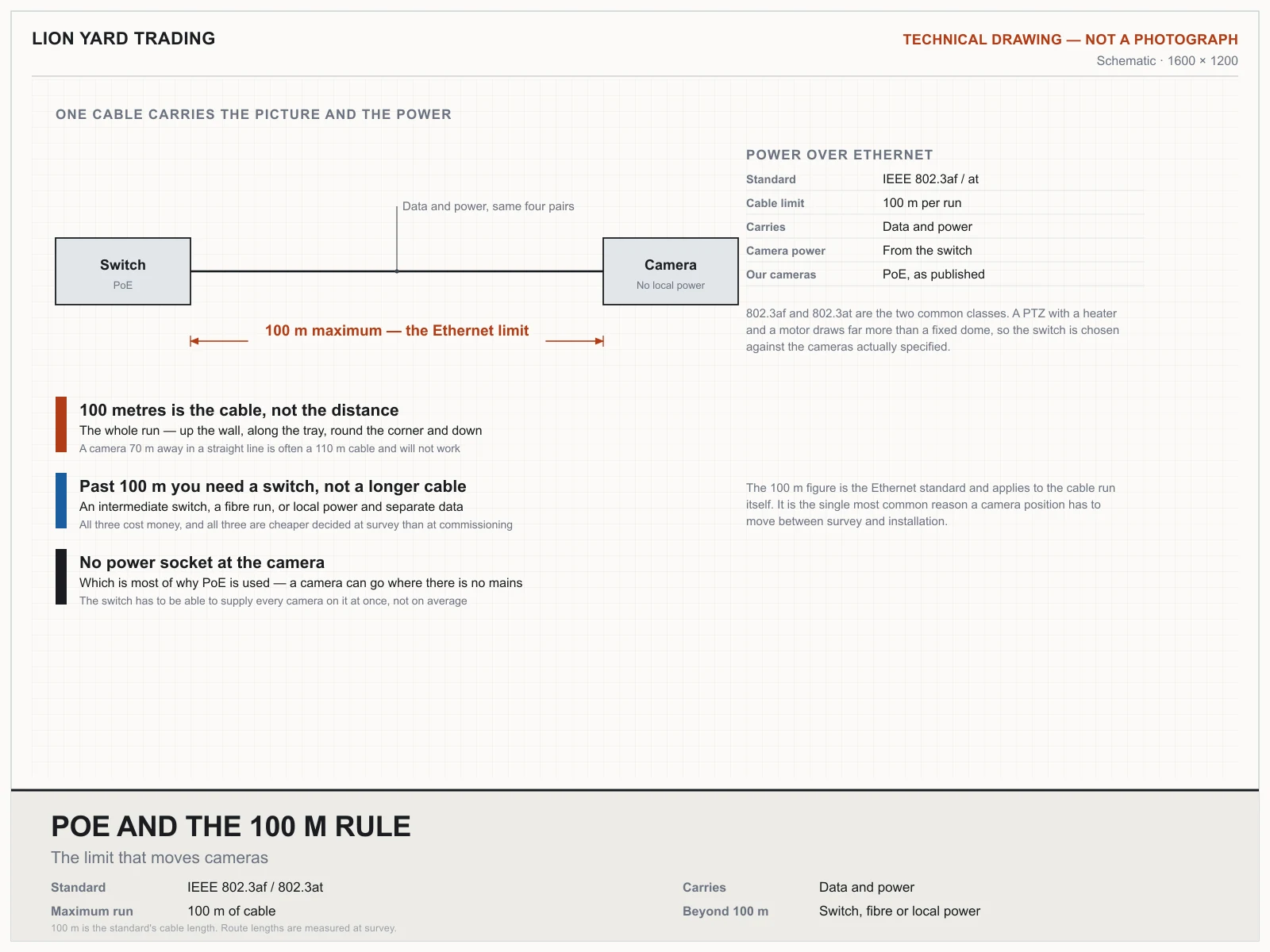

Cameras, recording and remote viewing, supplied and installed as one job. Cameras come in 2, 4, 5 and 8 MP in fixed dome and bullet, or PTZ where one camera has to cover a whole approach; all PoE, and IP66 or IP67 where they are outdoors. Recorders are 4, 8, 16 and 32 channel. Two numbers decide the system and neither is the camera count: how much detail you need at the far end of the view, and how many days of recording you have to keep. Tell us those and the number of positions, and it is priced as a system.

Specification

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

What it is
A camera network (IP or analogue), a recorder (NVR for IP, DVR for analogue), and the cabling and power that ties them together, with remote/mobile viewing configured on handover.
SIRA — Dubai sites
Dubai's Security Industry Regulatory Agency sets installation and equipment standards for commercial CCTV in the emirate, and the install itself must be done by a SIRA-licensed contractor. Tell us the emirate when you enquire: it changes who carries out the work.

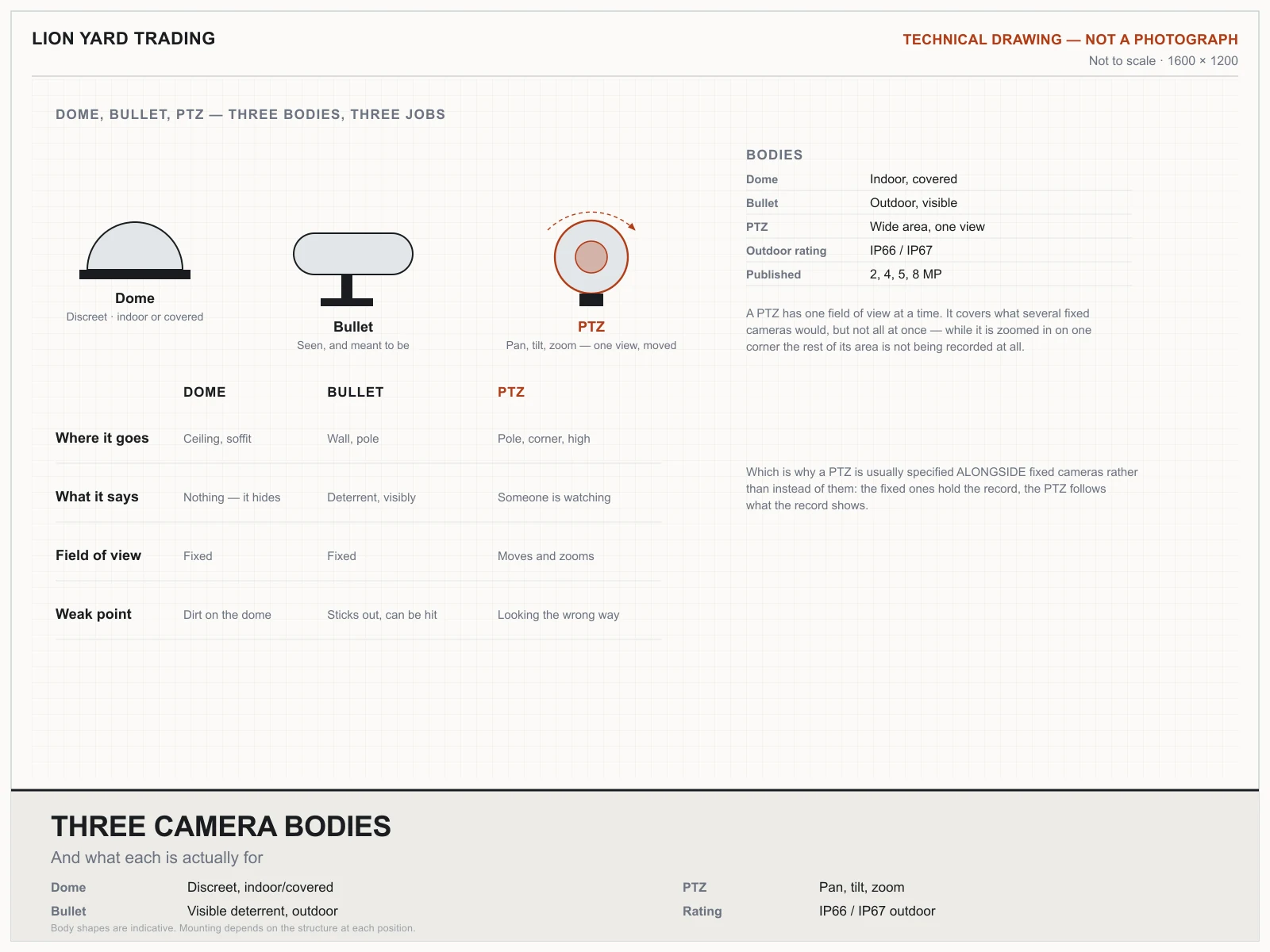

Camera types

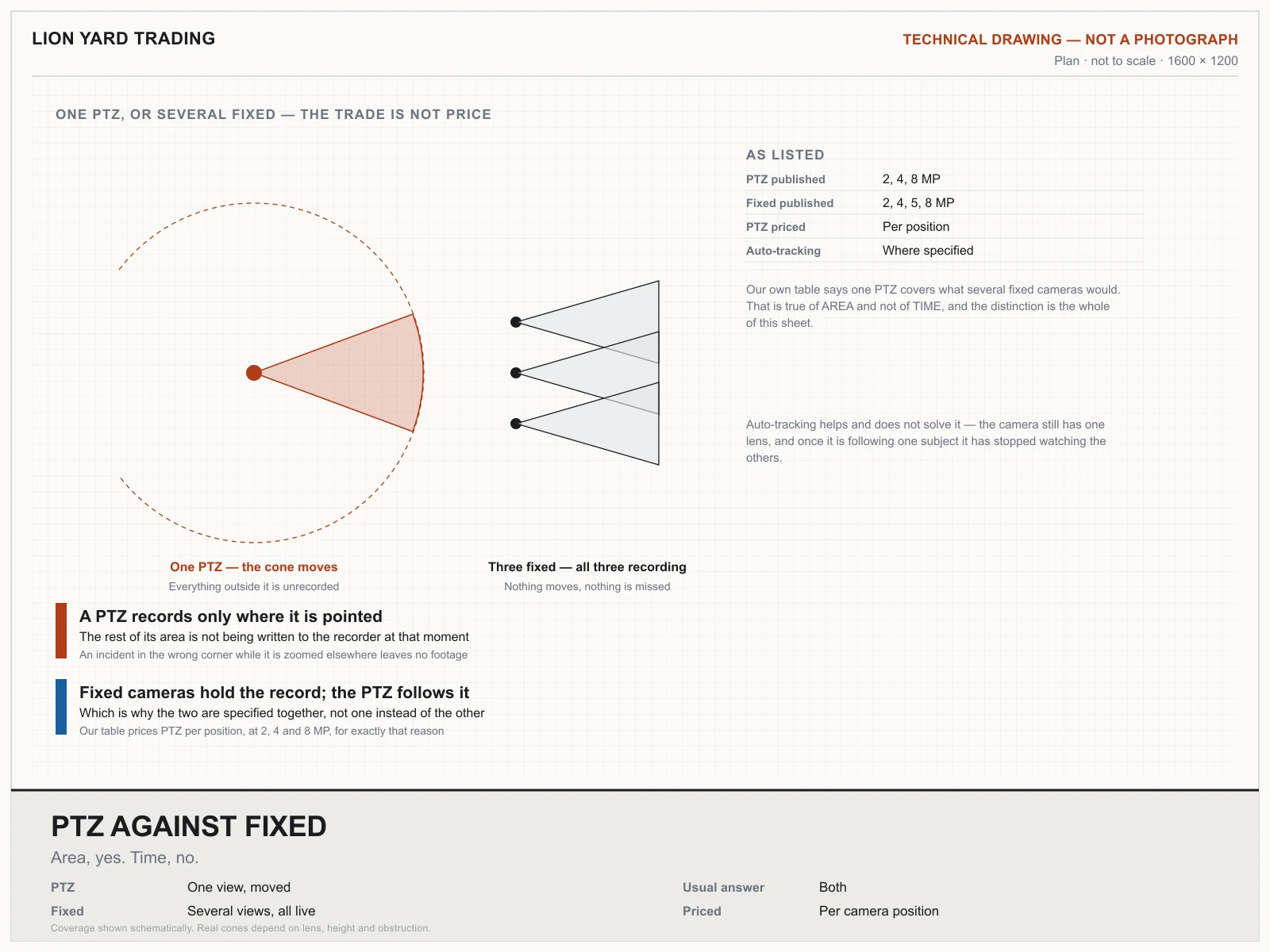

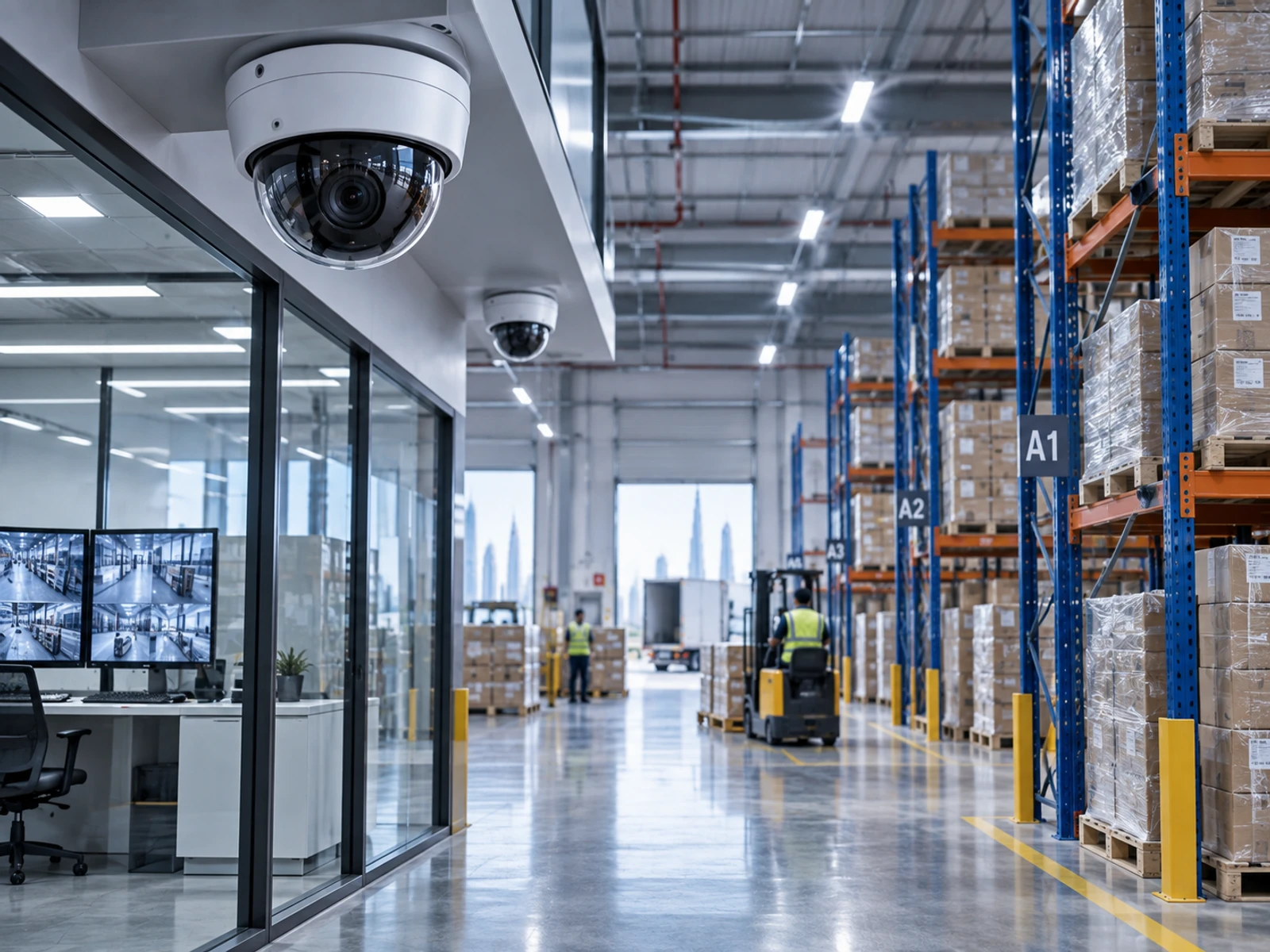

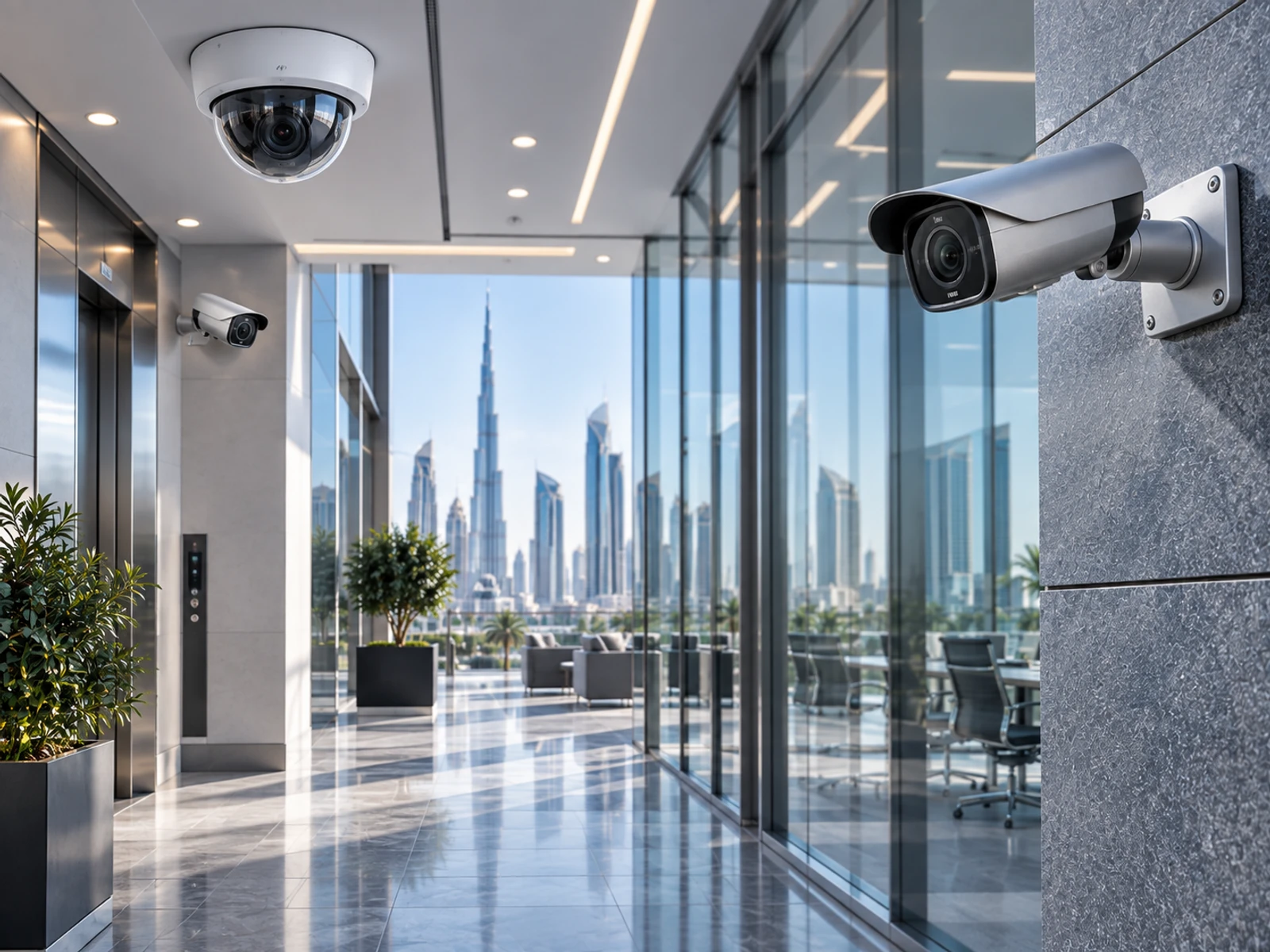

Dome (discreet, indoor/covered), bullet (visible deterrent, outdoor), and PTZ (pan-tilt-zoom, for a wide area monitored from one point).
Brands we work with
Hikvision and Dahua are the two brands most UAE sites already run, so most jobs are specified against one of them, or a mix carried over from an existing installation.
Storage & retention

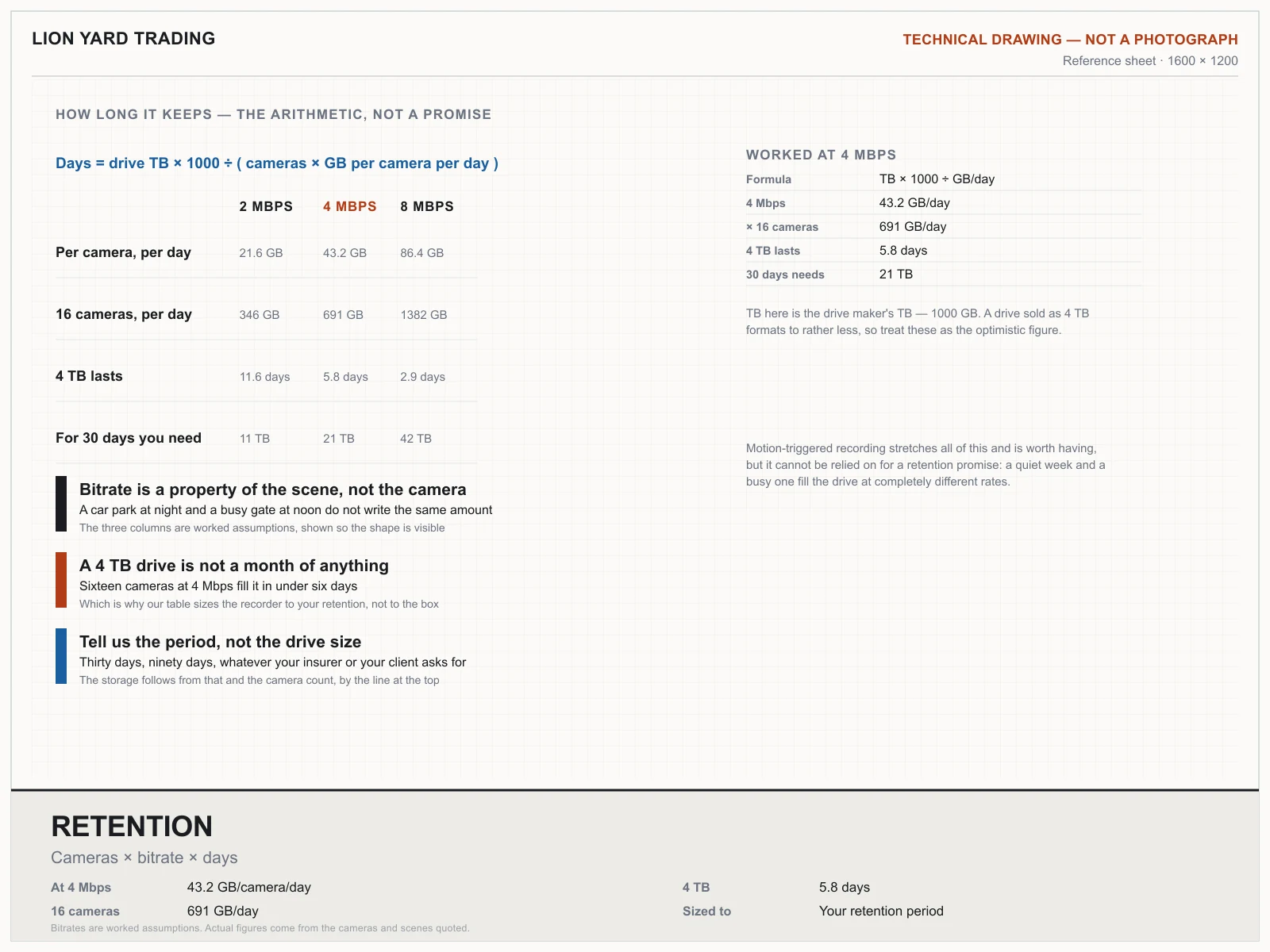

Recording length is set by storage capacity and how many cameras are recording continuously — tell us the retention period your site needs (30 days is a common baseline) and we size the recorder and drives to it.

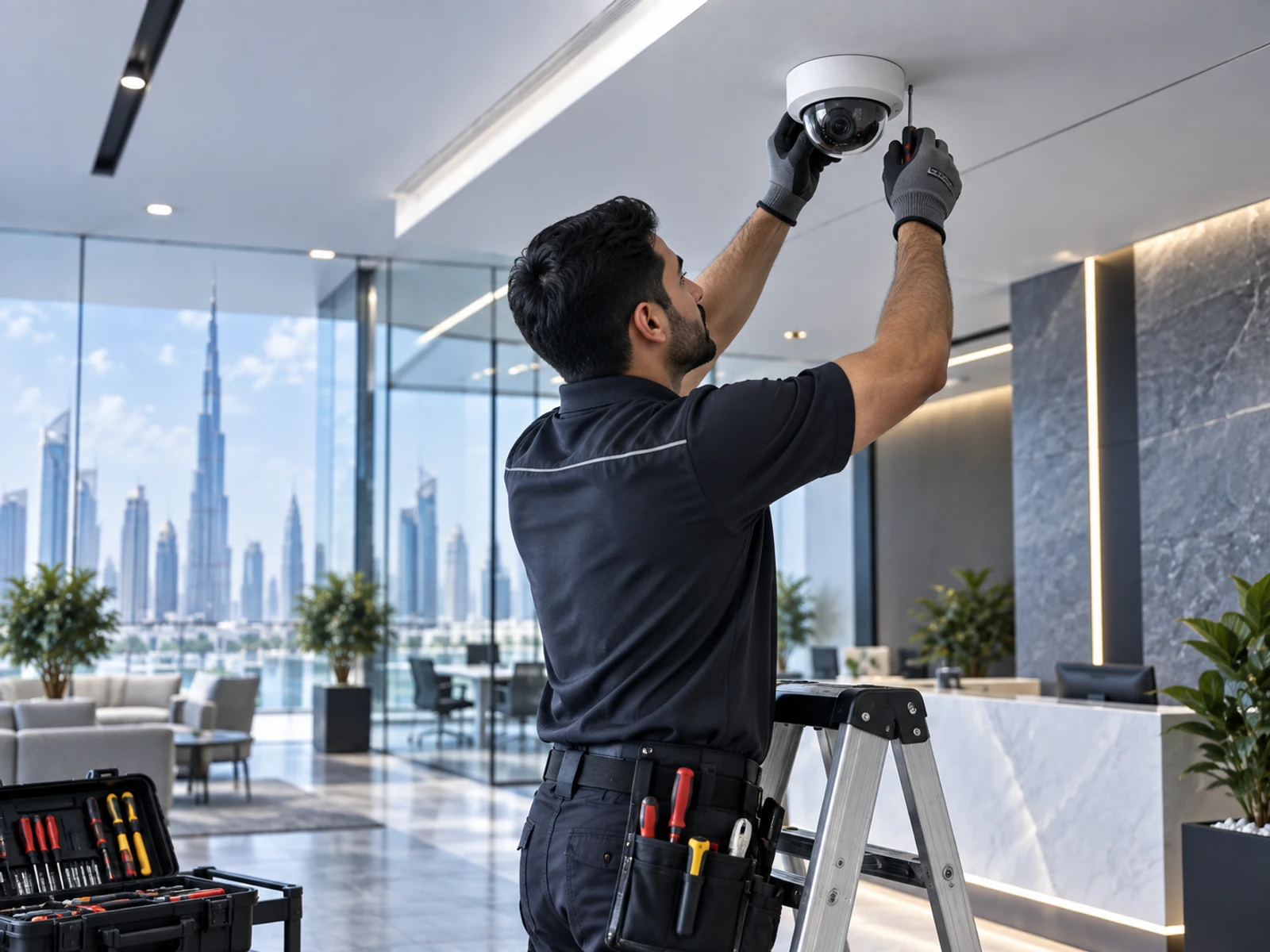

Delivery / Installation

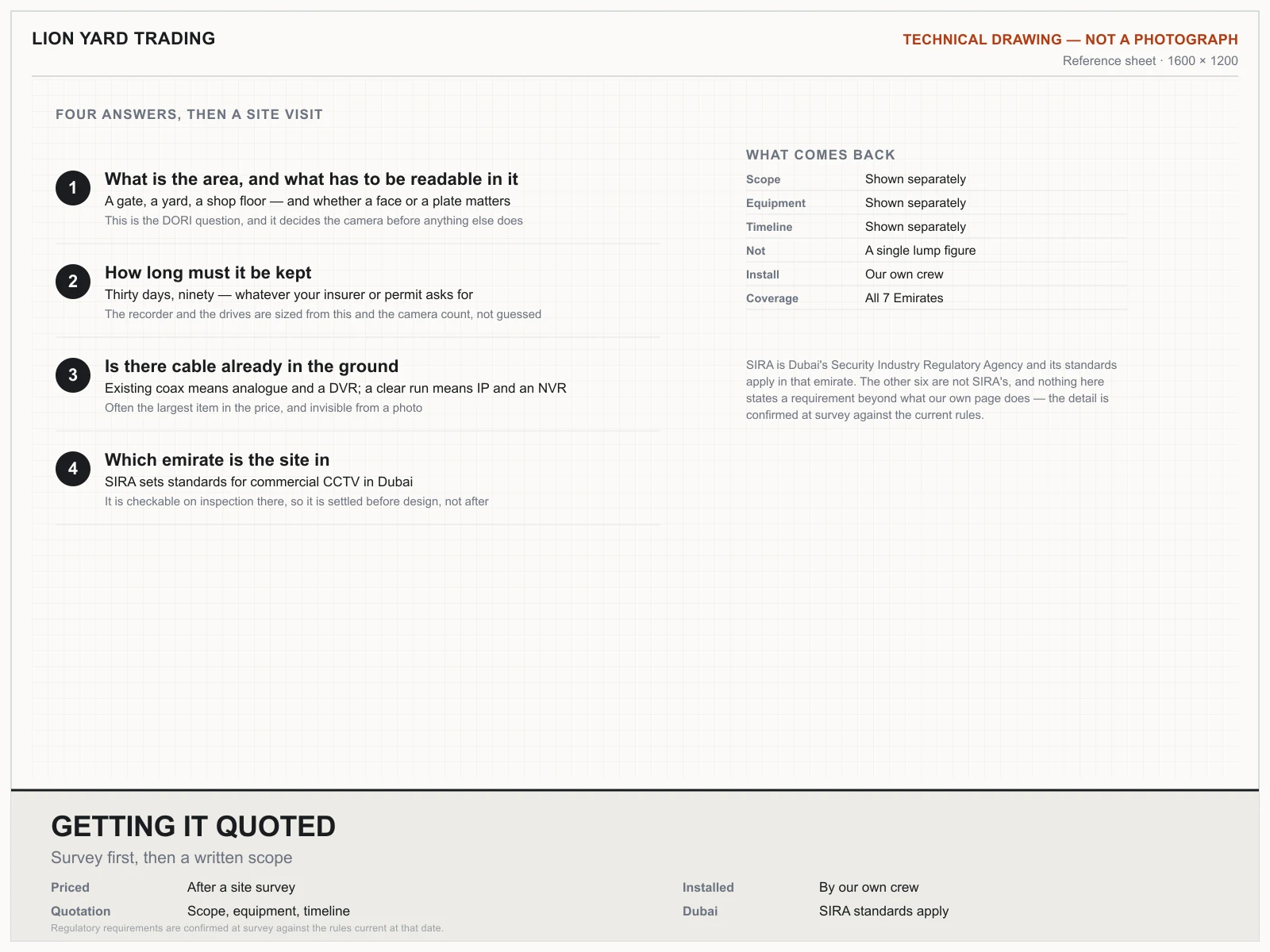

Installed across all 7 Emirates from our own team. Site survey first, then a written quotation with the scope, the equipment and the timeline shown separately — not a single lump figure. This is a project, not a shelf item — the quotation follows a site visit, not a price list.
CCTV & Surveillance Systems

Technical Procurement & Ordering Guides

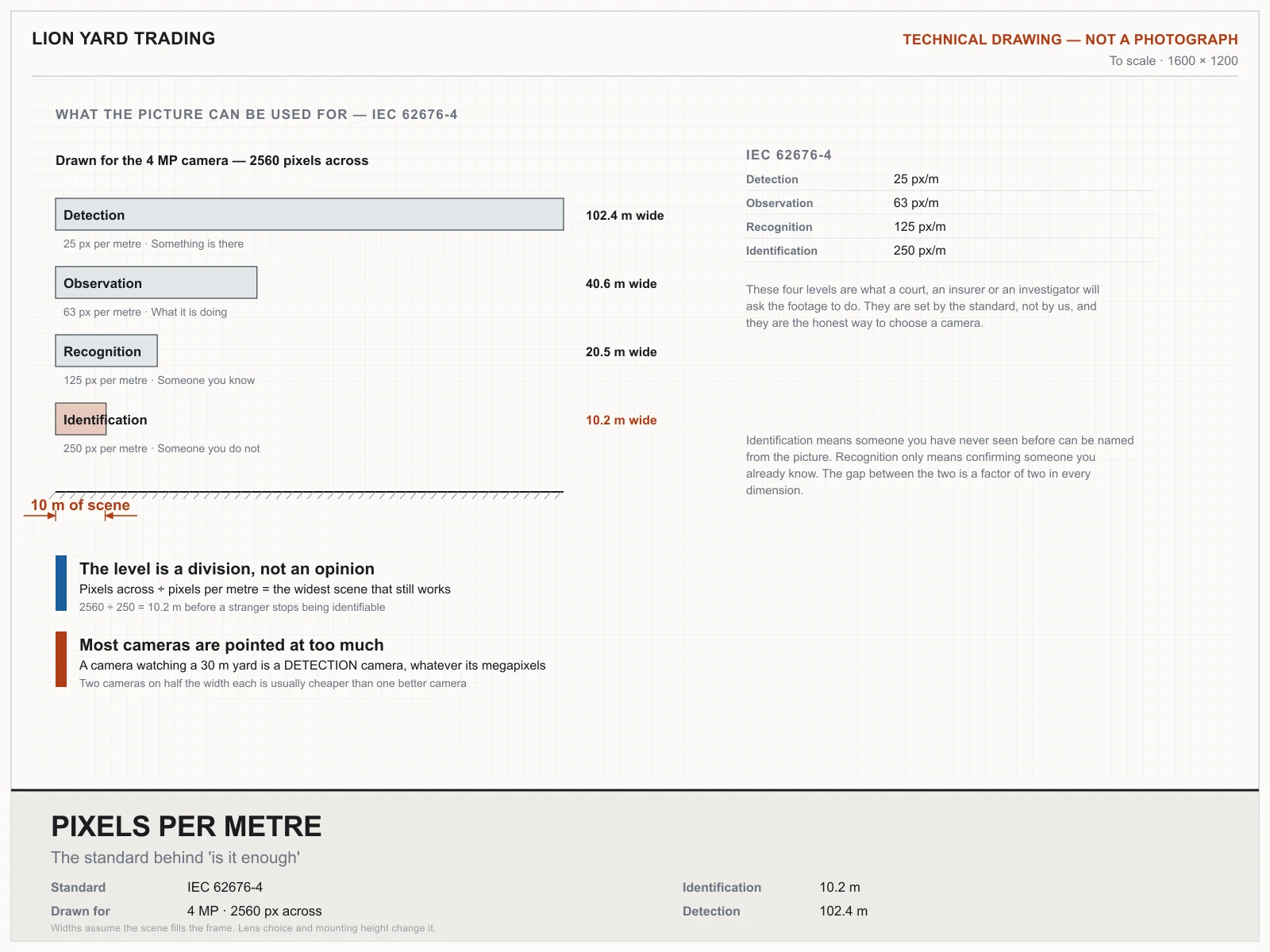

10 drawings covering every answer we need to price CCTV & Surveillance Systems — every figure comes from the price table above or from the published standard it is made to.

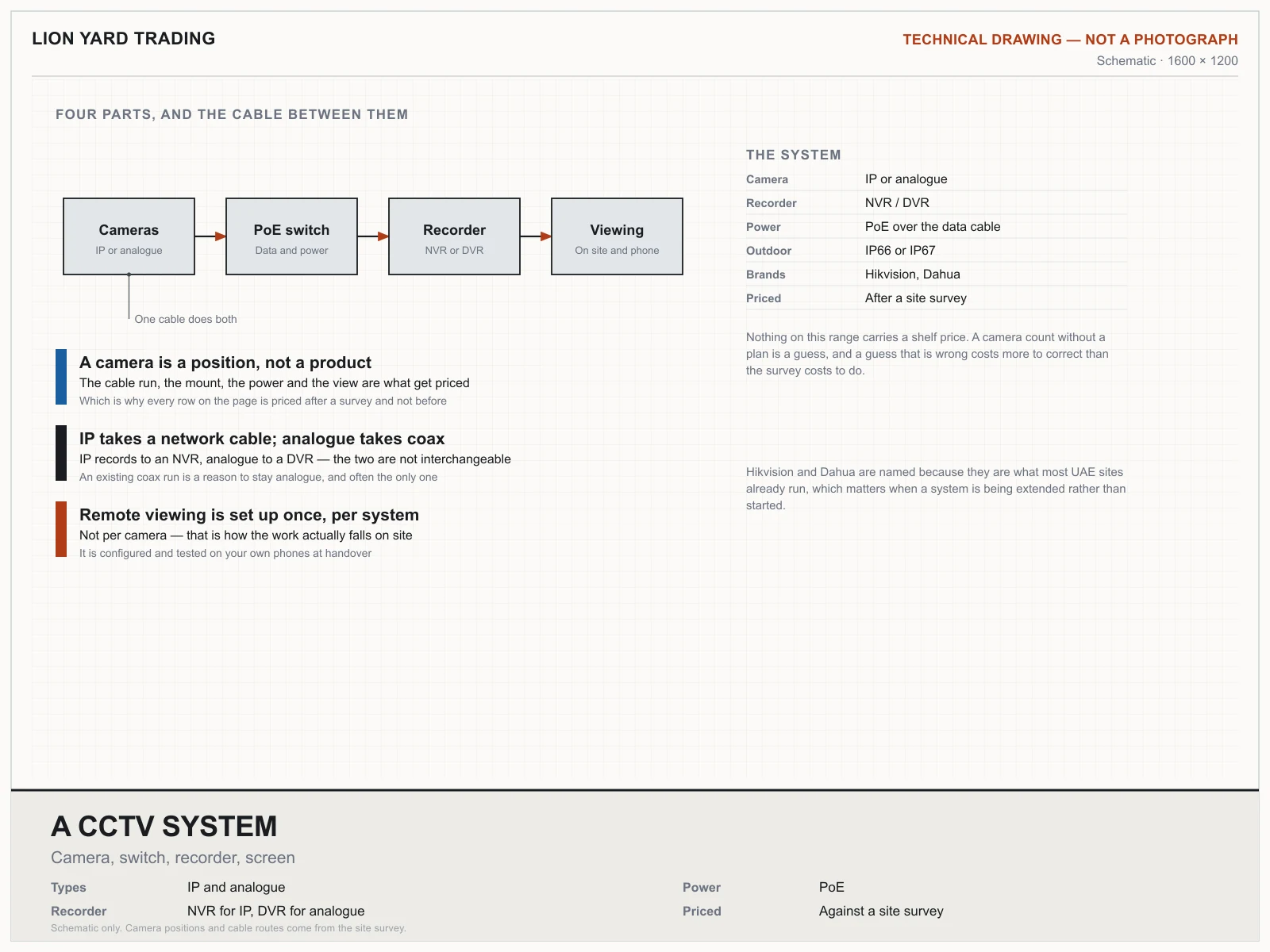

A CCTV systemCamera, switch, recorder, screen

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your cctv & surveillance systems?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
