Light Gauge Steel Framing — C89 / LGSF
Steel Framing, Studs & Sections
Priced on enquiry
Fabricated framing is priced from the structural model, not from a section size. Send the design and we will price the frame.
Tell us the size and where it is going.
About this product
- What it is: Sections rolled straight from a structural model on a framing machine.
- Standard profile: C89 × 41 × 11 mm — 89 mm web, 41 mm flange, 11 mm return lip
- Gauges: 0.55 · 0.75 · 0.95 · 1.15 · 1.55 mm base metal thickness
- Steel: G550 high-tensile — NOT the G250 of a partition stud
- Coating: Z275 galvanising, 275 g/m² both faces
- Weights: C89 at 0.55 mm — 0.83 kg/m · 0.75 — 1.14 · 0.95 — 1.44 · 1.15 — 1.74 · 1.55 — 2.35 kg/m
All 10 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| C89 × 41 × 11 — 0.55 mm BMT | G550, Z275 · 0.83 kg/m · wall studs and internal framing | Ask |
| C89 × 41 × 11 — 0.75 mm BMT | G550, Z275 · 1.14 kg/m · truss webs and struts, and the chord on spans to about 3 m | Ask |
| C89 × 41 × 11 — 0.95 mm BMT | G550, Z275 · 1.44 kg/m · chords on spans of 4 to 6 m | Ask |
| C89 × 41 × 11 — 1.15 mm BMT | G550, Z275 · 1.74 kg/m · truss and floor chords past 6 m | Ask |
| C89 × 41 × 11 — 1.55 mm BMT | G550, Z275 · 2.35 kg/m · the heaviest in the C89 range | Ask |
| C150 × 41 × 11 — 1.15 mm BMT | G550, Z275 · 2.29 kg/m · deeper web for longer spans | Ask |
| C150 × 41 × 11 — 1.55 mm BMT | G550, Z275 · 3.09 kg/m | Ask |
| U-track to suit C89 | Plain flange, no lip · the stud slides inside it | Ask |
| Fabricated frame — priced per m² of frame | Notched, punched, swaged, cut to length and part-marked from your structural model. Send the design or the CAD file, not a section size. | Ask |
| Plain C89 lengths — unpunched | Rolled section only, no machining, for fabricating yourself | Ask |
- G550, Z275 · 0.83 kg/m · wall studs and internal framingAsk on WhatsApp
- G550, Z275 · 1.14 kg/m · truss webs and struts, and the chord on spans to about 3 mAsk on WhatsApp
- G550, Z275 · 1.44 kg/m · chords on spans of 4 to 6 mAsk on WhatsApp
- G550, Z275 · 1.74 kg/m · truss and floor chords past 6 mAsk on WhatsApp
- G550, Z275 · 2.35 kg/m · the heaviest in the C89 rangeAsk on WhatsApp
- G550, Z275 · 2.29 kg/m · deeper web for longer spansAsk on WhatsApp
- G550, Z275 · 3.09 kg/mAsk on WhatsApp
- Plain flange, no lip · the stud slides inside itAsk on WhatsApp
- Notched, punched, swaged, cut to length and part-marked from your structural model. Send the design or the CAD file, not a section size.Ask on WhatsApp
- Rolled section only, no machining, for fabricating yourselfAsk on WhatsApp
Fabricated framing is priced from the structural model, not from a section size. Send the design and we will price the frame.
What it is

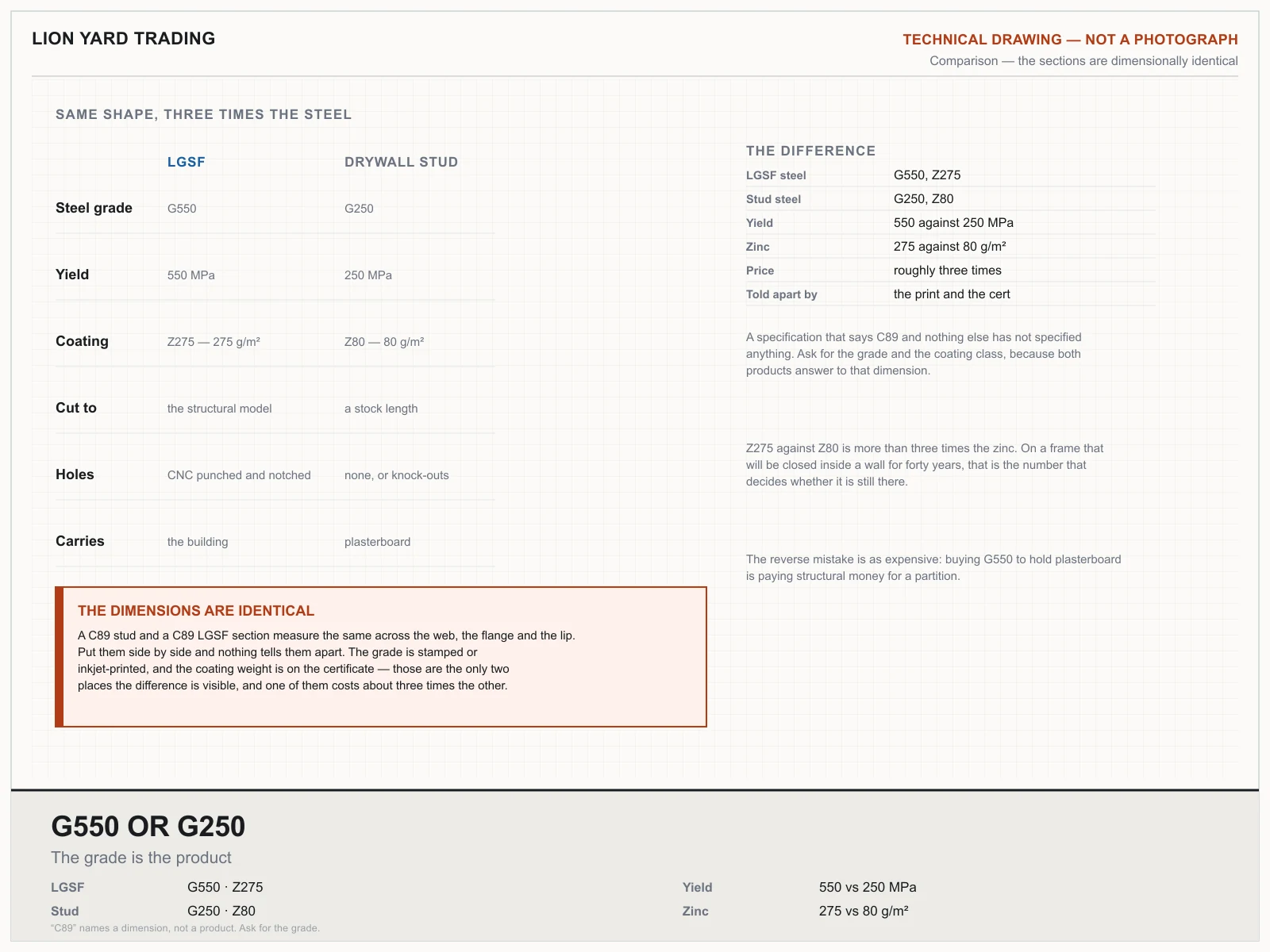

CNC roll-formed structural framing — the system that builds a whole wall, floor or roof from steel that arrives flat and bolts together like a kit. Not a drywall stud: same dimensions, three times the steel grade, and a different job entirely.
Specification

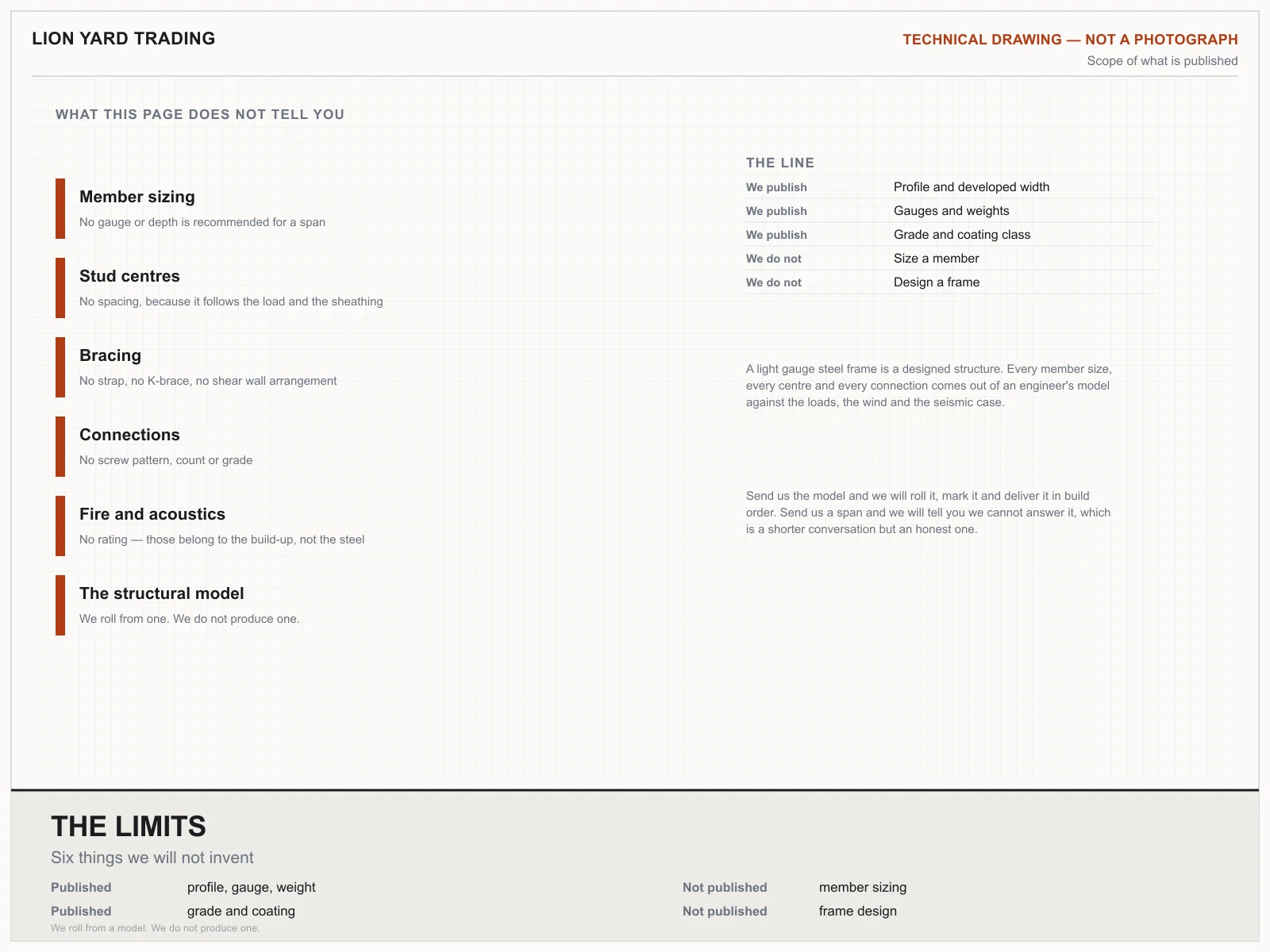

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is

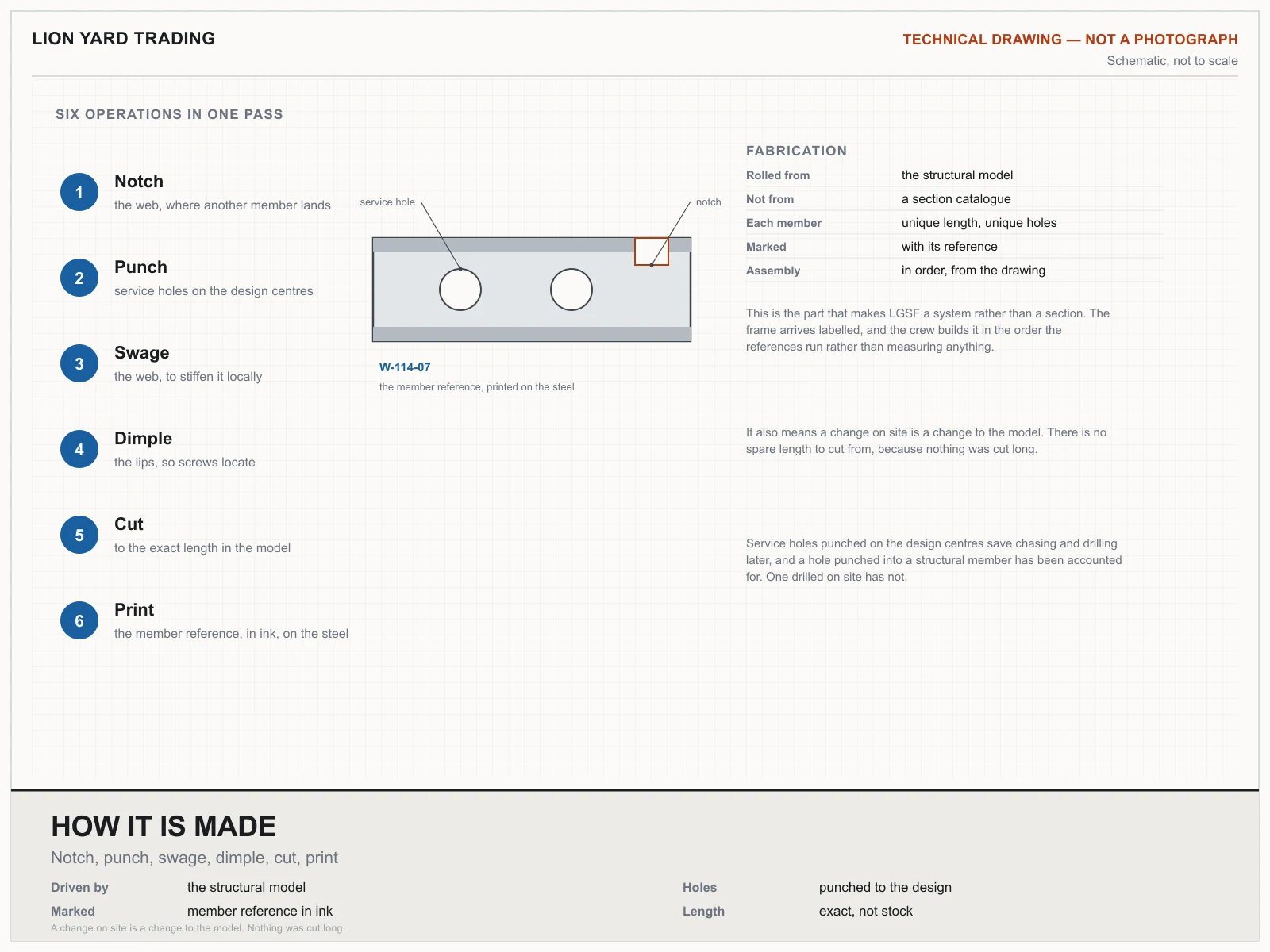

- Sections rolled straight from a structural model on a framing machine. The machine notches the web, punches service holes, swages, dimples the lips, cuts to exact length and inkjet-prints the member reference, so the frame assembles in order on site.
- Standard profile

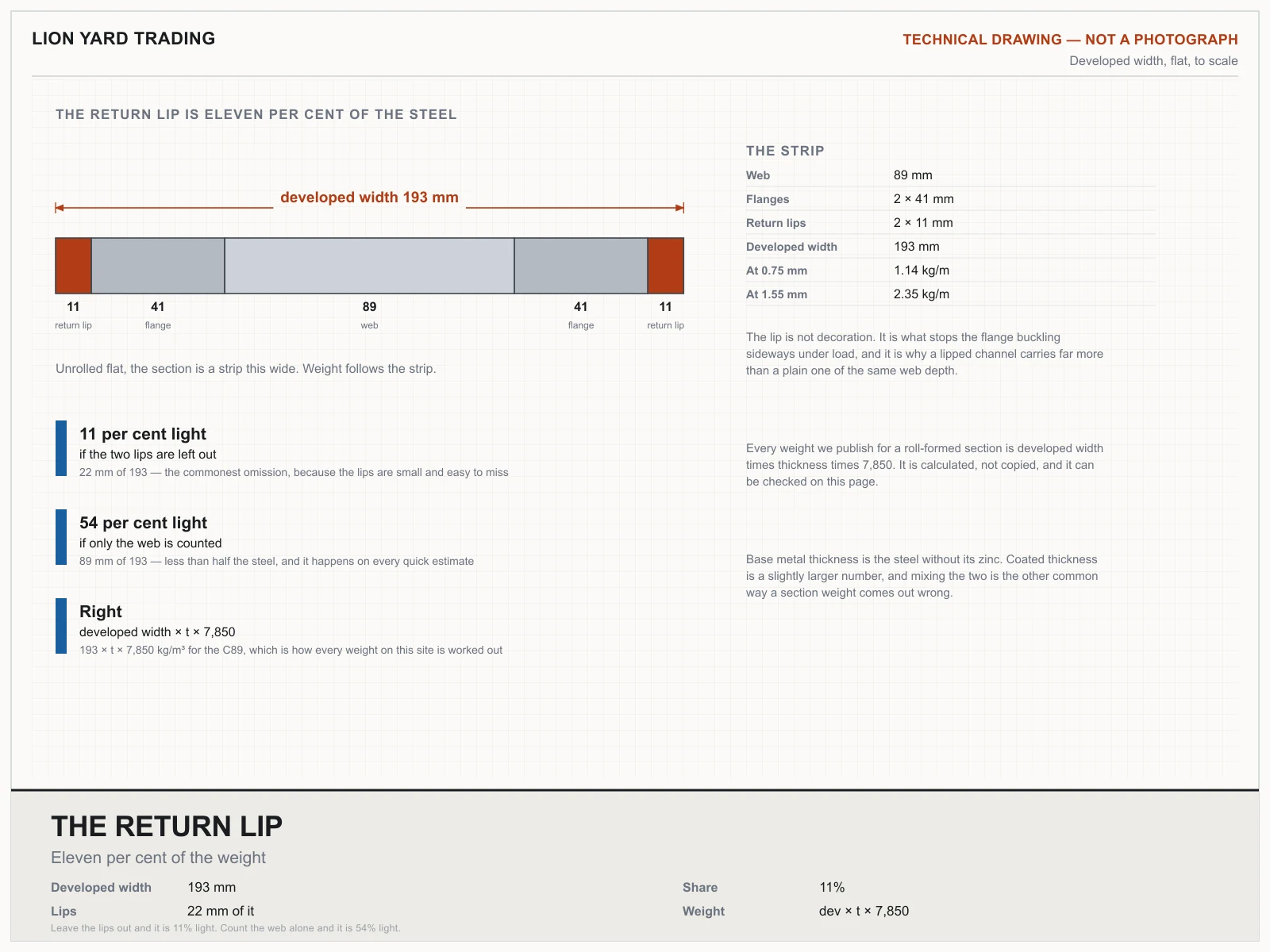

- C89 × 41 × 11 mm — 89 mm web, 41 mm flange, 11 mm return lip
- Gauges
- 0.55 · 0.75 · 0.95 · 1.15 · 1.55 mm base metal thickness
- Steel
- G550 high-tensile — NOT the G250 of a partition stud
- Coating

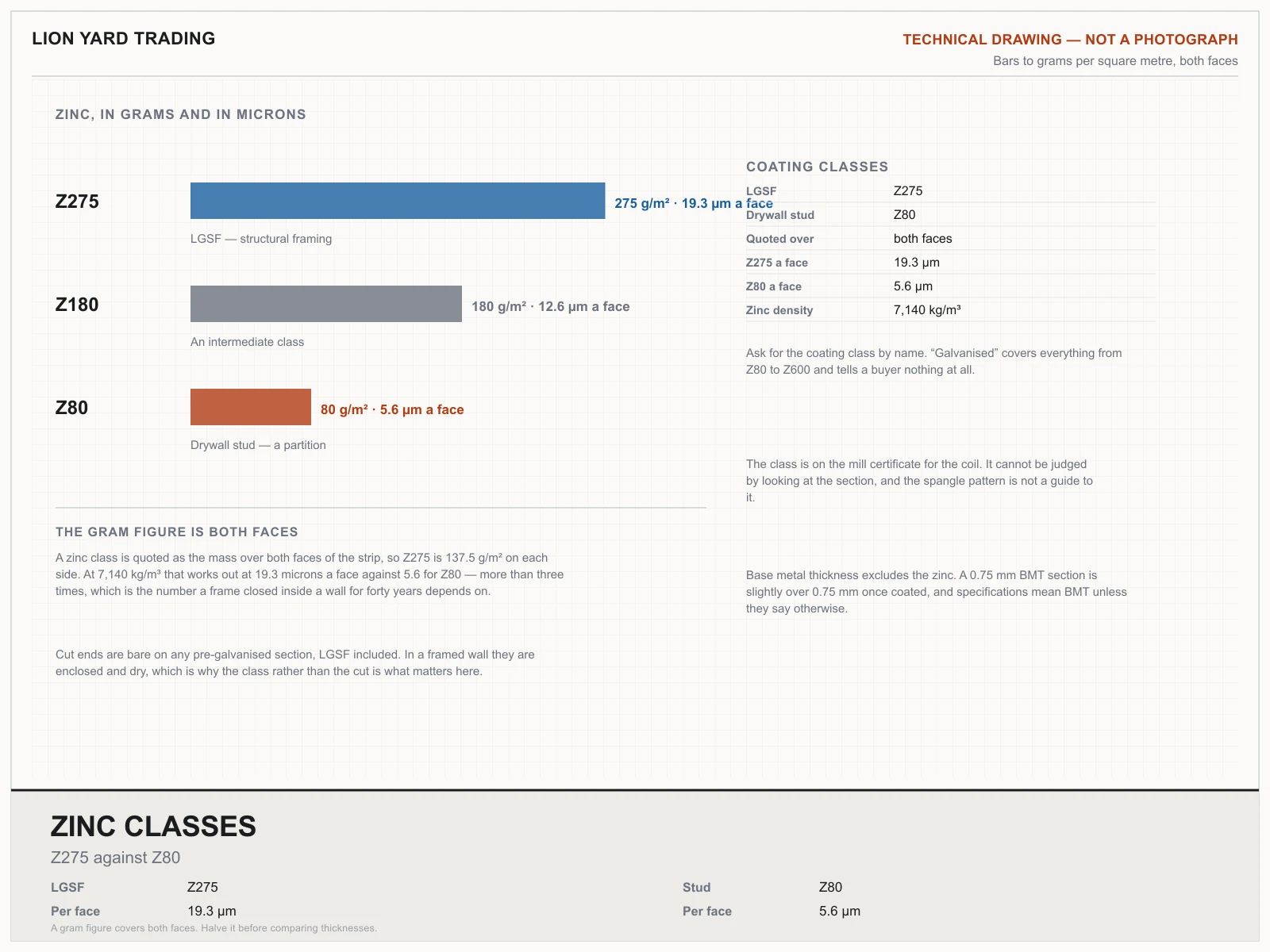

- Z275 galvanising, 275 g/m² both faces
- Weights
- C89 at 0.55 mm — 0.83 kg/m · 0.75 — 1.14 · 0.95 — 1.44 · 1.15 — 1.74 · 1.55 — 2.35 kg/m
- Deeper section

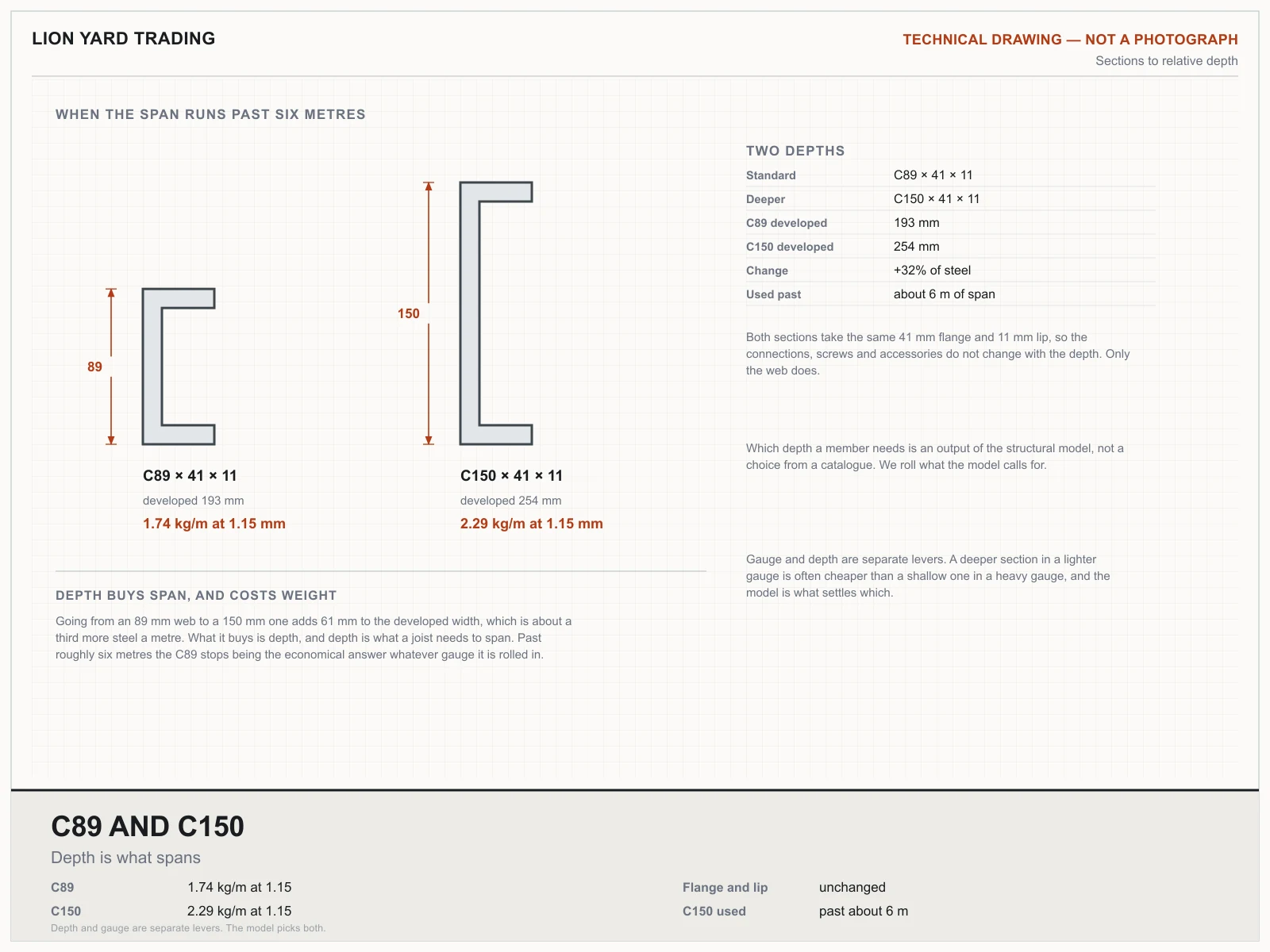

- C150 × 41 × 11 mm for spans past about 6 m
- Lengths

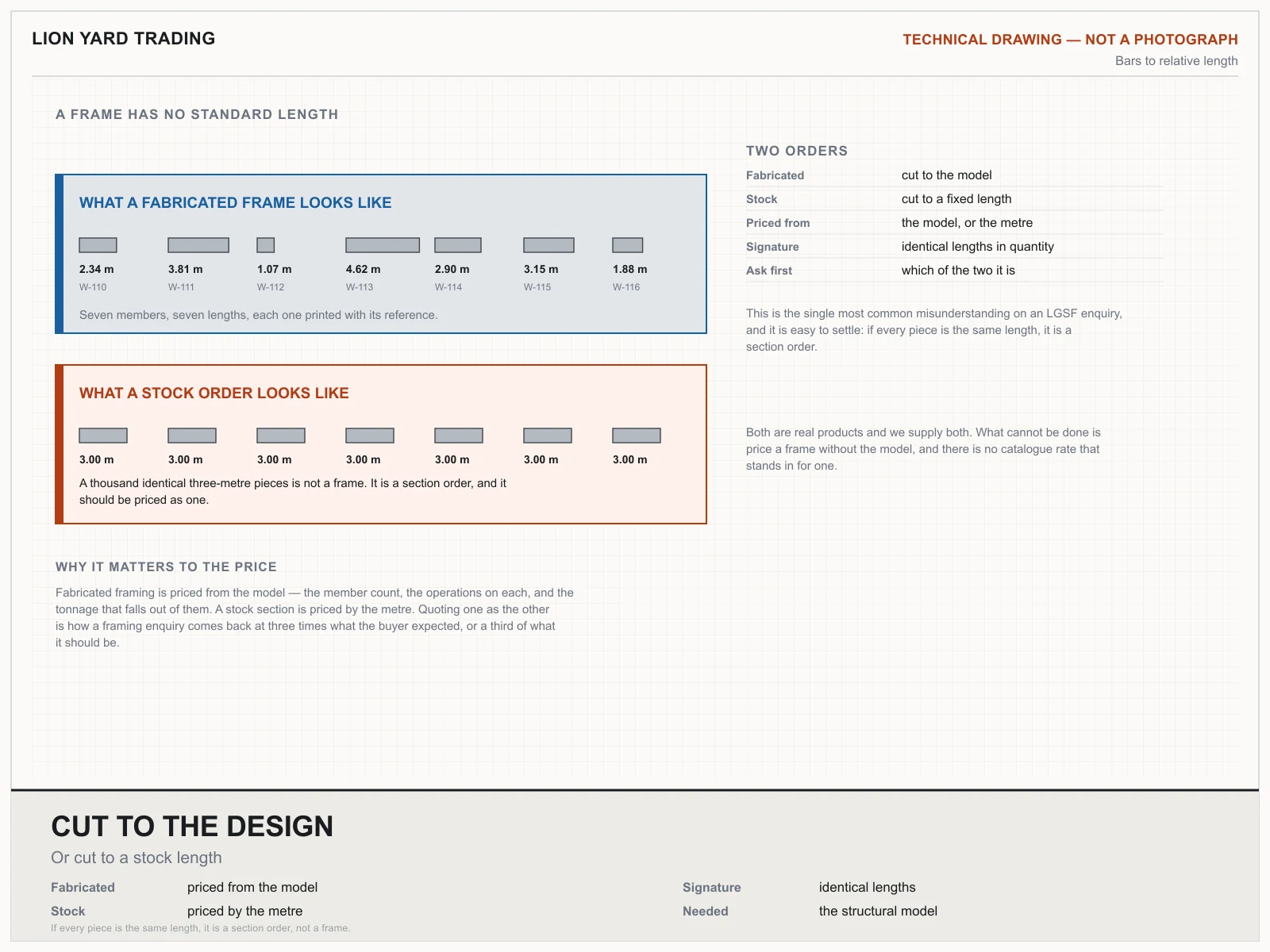

- Cut to the design. A genuine fabricated frame has no fixed length — if an enquiry asks for a thousand identical 3 m pieces, that is a stock order, not a frame.
- What it builds

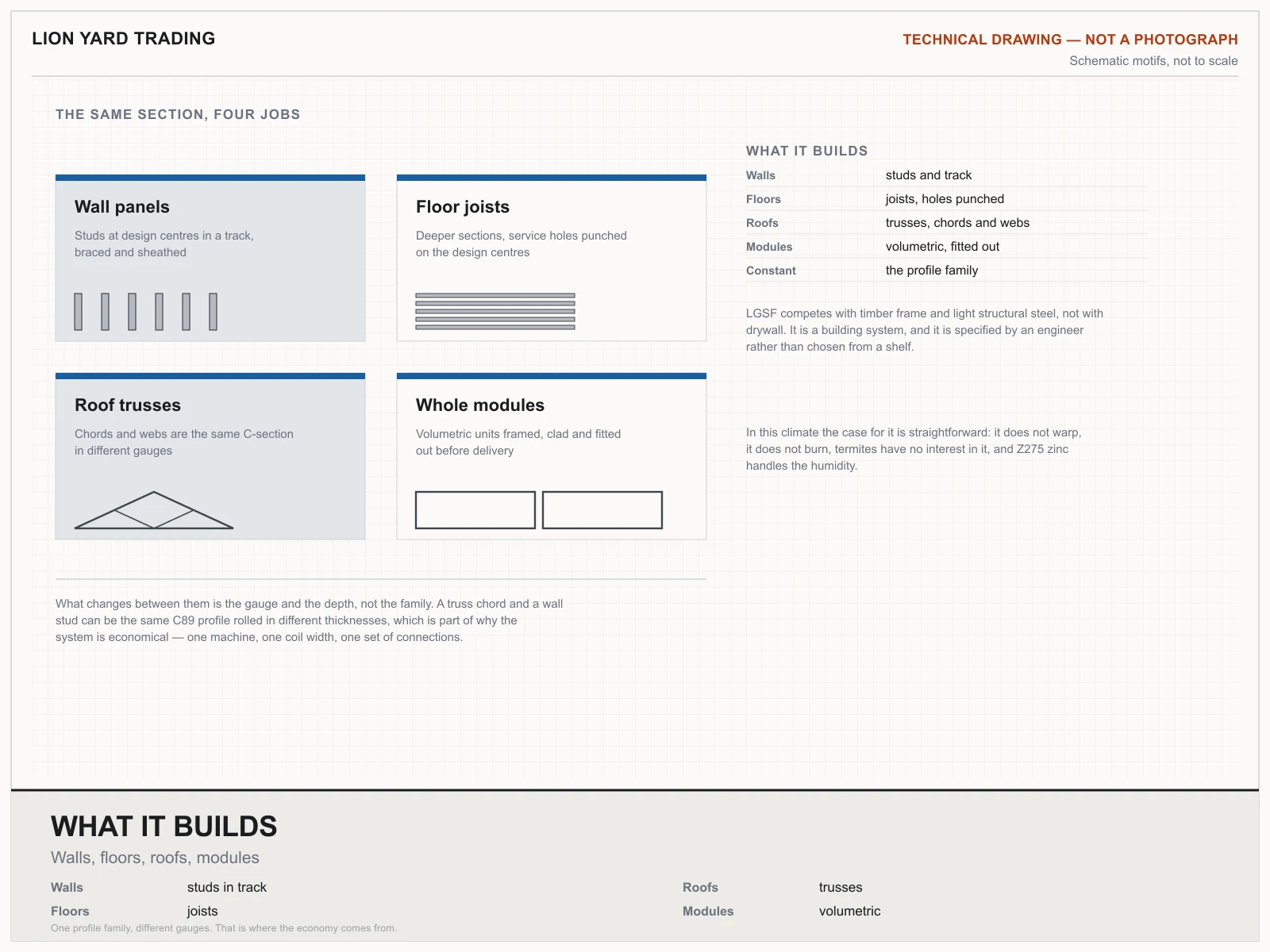

- Wall panels, floor joists, roof trusses, whole modular buildings. Chords and webs of a truss are the same C-section in different gauges.
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Light Gauge Steel Framing — C89 / LGSF — every figure comes from the price table above or from the published standard it is made to.
C89 sectionFive gauges
1 of 10

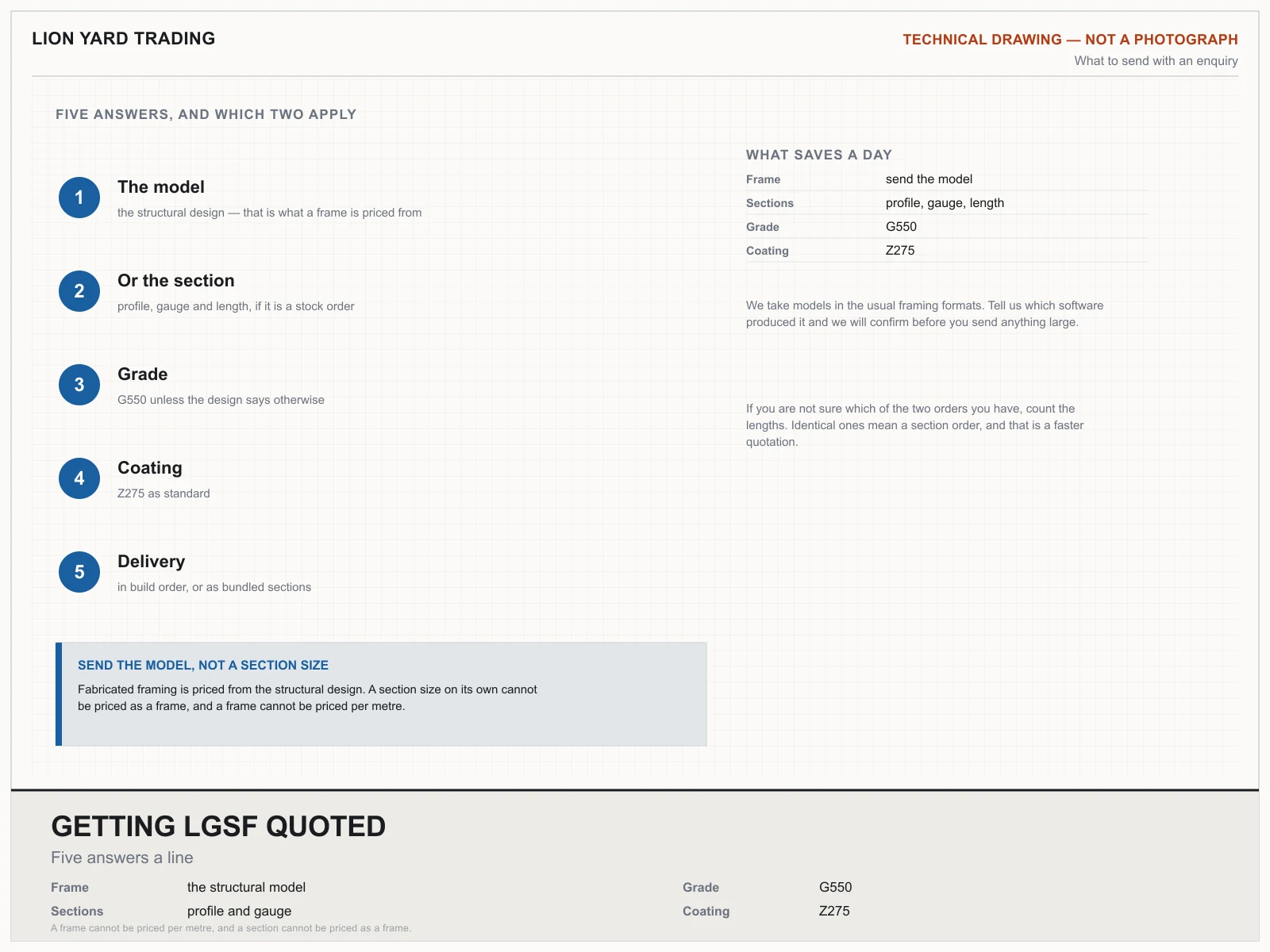

Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your light gauge steel framing — c89 / lgsf?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
