Site Gates — swing & sliding
Site & Perimeter Gates
Priced on enquiry
Made to your opening width, priced per gate.
Tell us the size and where it is going.
About this product
- Infill: Corrugated sheet, mesh, palisade or railings to match the run
- Gate posts: 80 × 80 × 5 mm to 100 × 100 mm SHS, by leaf size
- In-ground: 800 mm to 1.0 m, or a baseplate bolted to concrete
- Operation: Manual, or motorised on sliding gates
- Permit note: Abu Dhabi Municipality caps a site entrance at under 5 m wide
- Delivery: All 7 Emirates from our own yard.
All 7 sizes
Every size on one list. Tap any row to ask about that one.
| Size / product | Details | Enquire |
|---|---|---|
| Pedestrian swing gate 1.0 mLY-HOAR-037 | 1.00 m wide × 2.00–2.40 m high · single leaf | Ask |
| Swing gate 1.6 mLY-HOAR-038 | 1.60 m wide × 2.00–2.40 m high · single leaf | Ask |
| Vehicle gate 4.0 m — double leafLY-HOAR-039 | 4.00 m opening × 2.00–2.40 m high · 2.0 m per leaf | Ask |
| Vehicle gate 5.0 m — double leafLY-HOAR-040 | 5.00 m opening × 2.00–2.40 m high · 2.5 m per leaf · Abu Dhabi caps a site entrance under 5 m | Ask |
| Vehicle gate 6.0 m — double leafLY-HOAR-041 | 6.00 m opening × 2.00–2.40 m high · 3.0 m per leaf · Abu Dhabi caps a site entrance under 5 m | Ask |

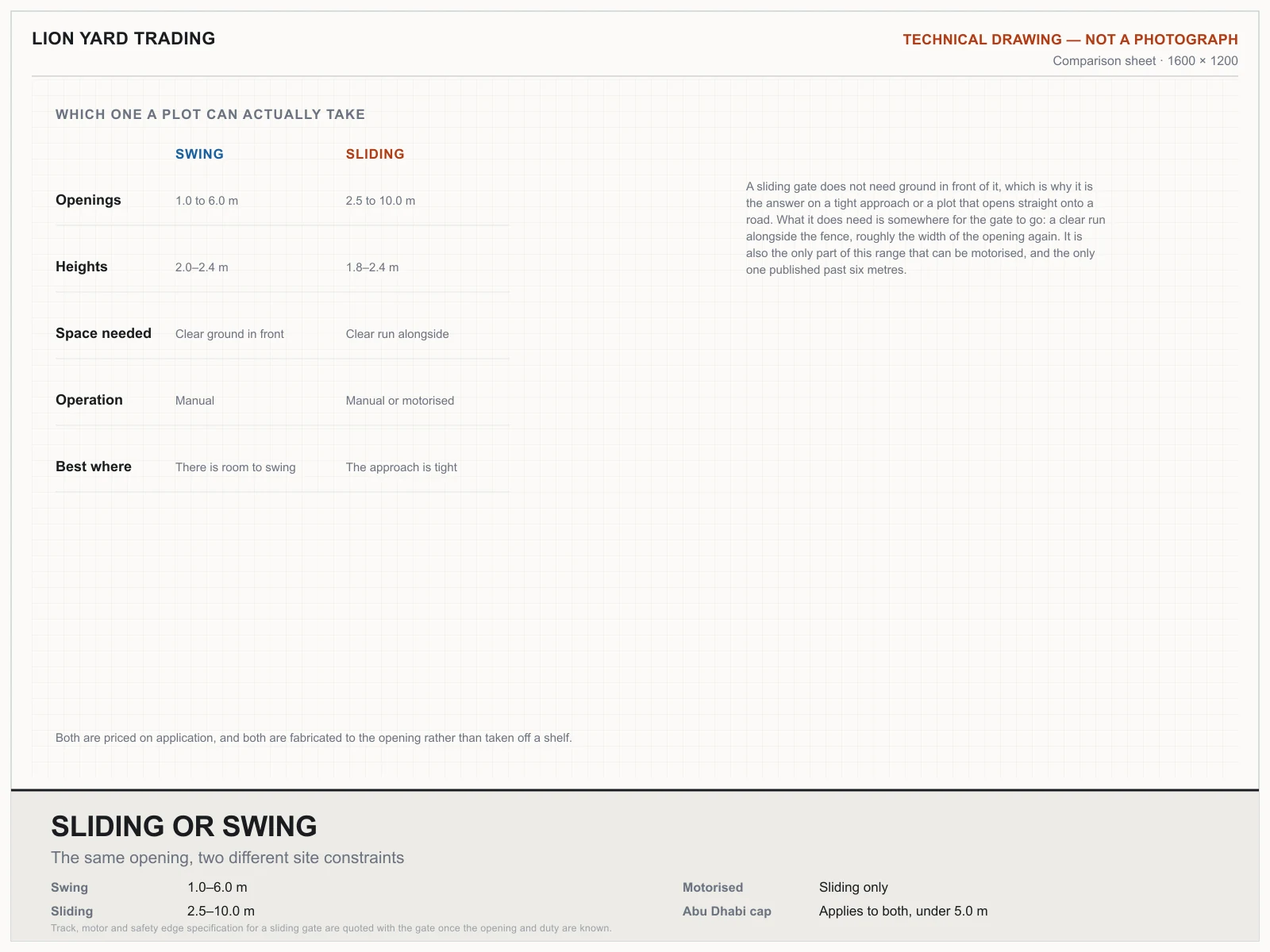

| Sliding gate 2.5–10.0 mLY-HOAR-042 | 2.50–10.00 m opening × 1.80–2.40 m high · manual or motorised | Ask |
| Gate post 100 × 100 mm SHSLY-HOAR-043 | 100 × 100 mm SHS · length to gate height plus 0.8 m in ground | Ask |
- 1.00 m wide × 2.00–2.40 m high · single leafAsk on WhatsApp
- 1.60 m wide × 2.00–2.40 m high · single leafAsk on WhatsApp
- 4.00 m opening × 2.00–2.40 m high · 2.0 m per leafAsk on WhatsApp
- 5.00 m opening × 2.00–2.40 m high · 2.5 m per leaf · Abu Dhabi caps a site entrance under 5 mAsk on WhatsApp
- 6.00 m opening × 2.00–2.40 m high · 3.0 m per leaf · Abu Dhabi caps a site entrance under 5 mAsk on WhatsApp
- 2.50–10.00 m opening × 1.80–2.40 m high · manual or motorisedAsk on WhatsApp
- 100 × 100 mm SHS · length to gate height plus 0.8 m in groundAsk on WhatsApp
Made to your opening width, priced per gate.
What it is
Every enclosed plot needs at least one. The infill is matched to whatever the run is — corrugated sheet for hoarding, mesh for Heras, palisade for a permanent boundary.
Specification
Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

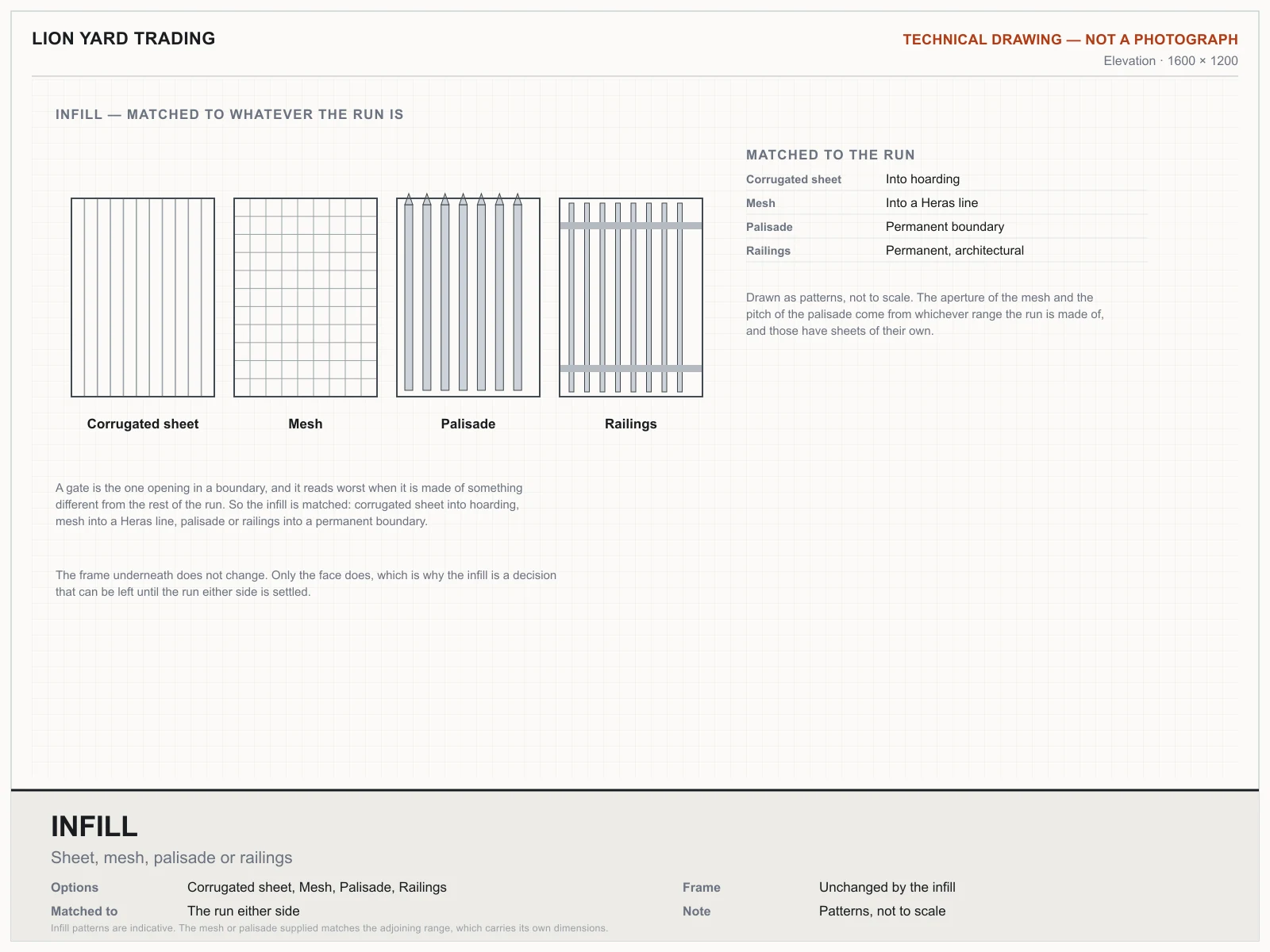

- Infill
- Corrugated sheet, mesh, palisade or railings to match the run

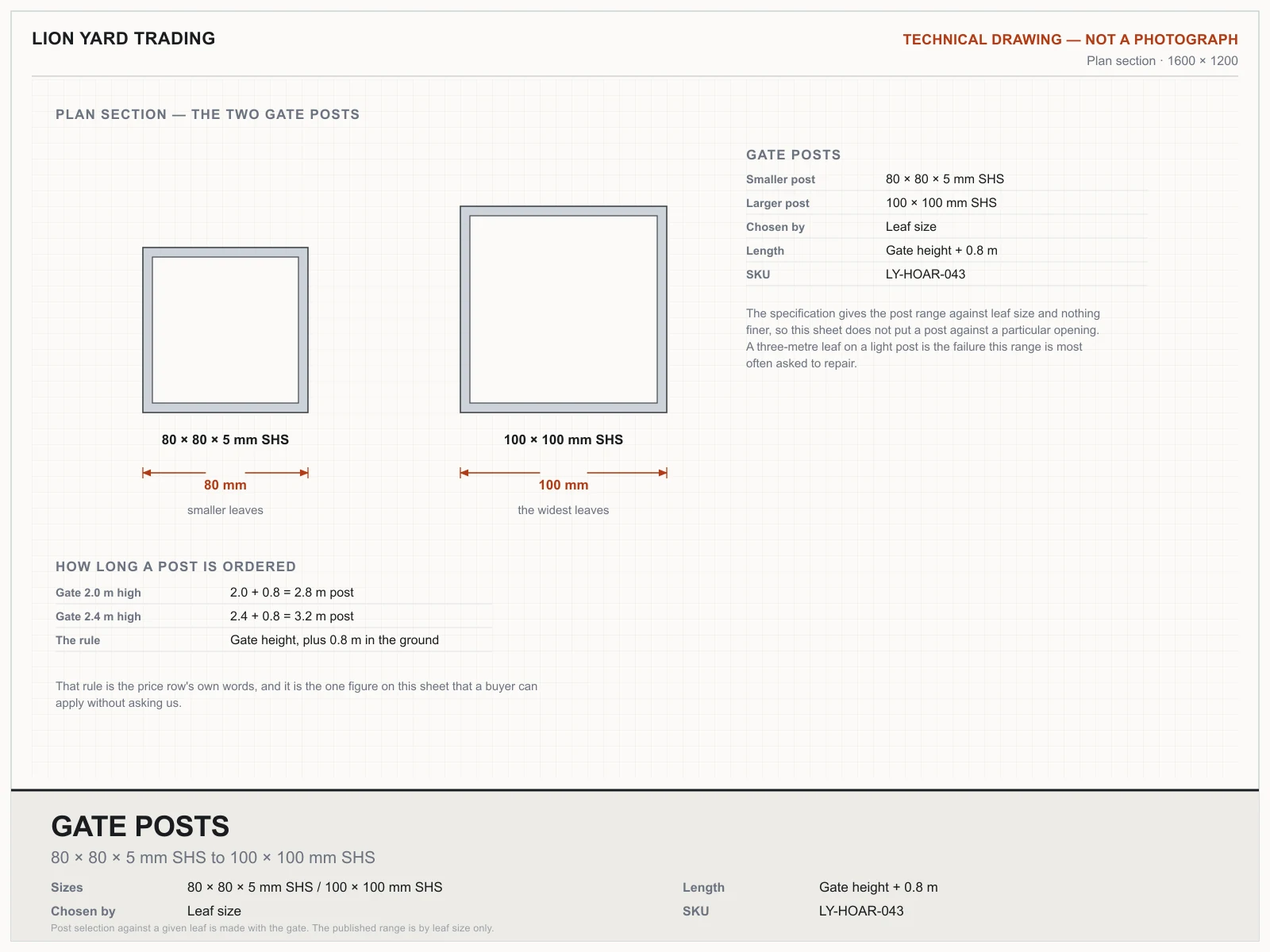

- Gate posts
- 80 × 80 × 5 mm to 100 × 100 mm SHS, by leaf size

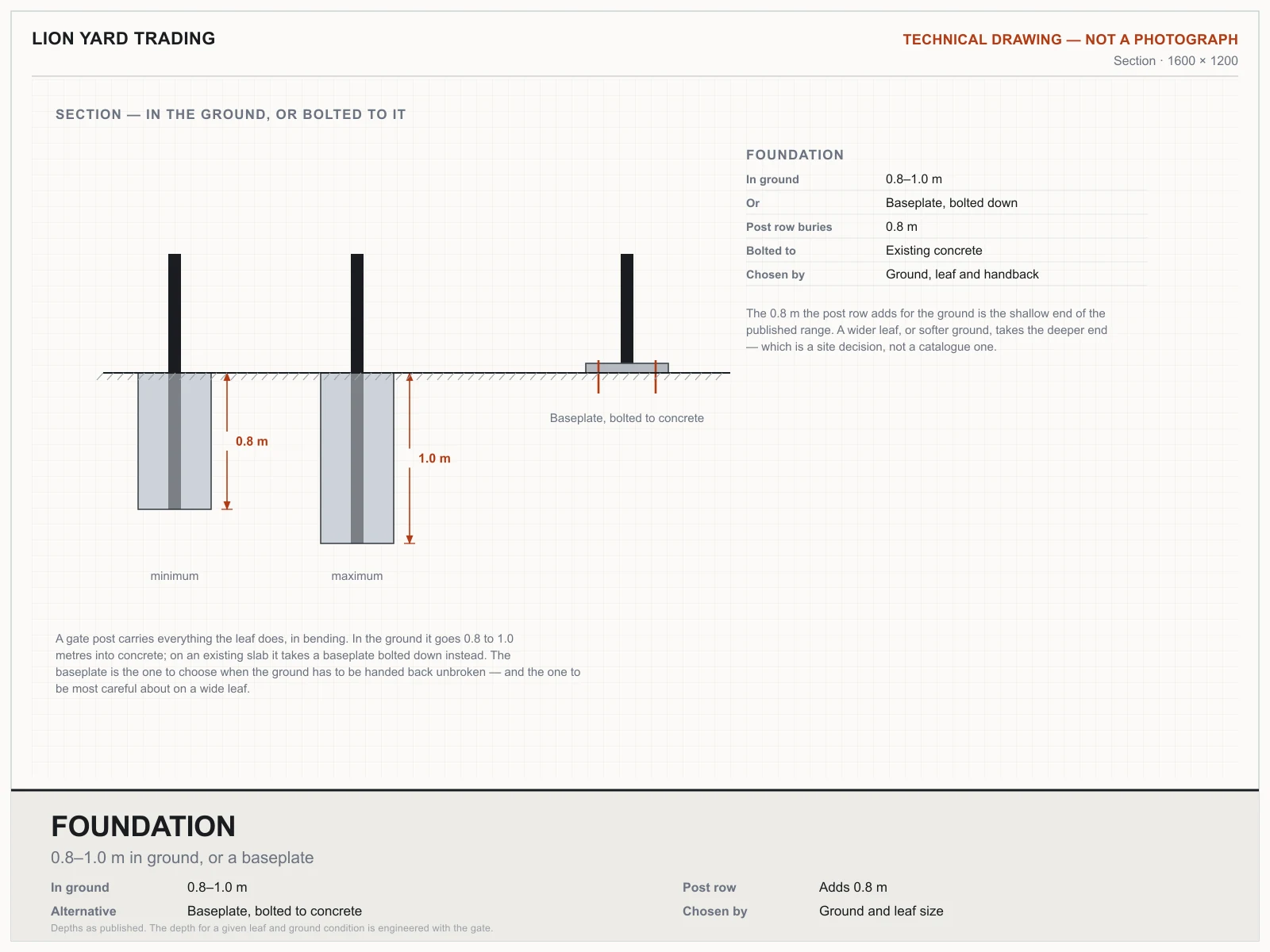

- In-ground
- 800 mm to 1.0 m, or a baseplate bolted to concrete
- Operation
- Manual, or motorised on sliding gates
- Permit note
- Abu Dhabi Municipality caps a site entrance at under 5 m wide
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.

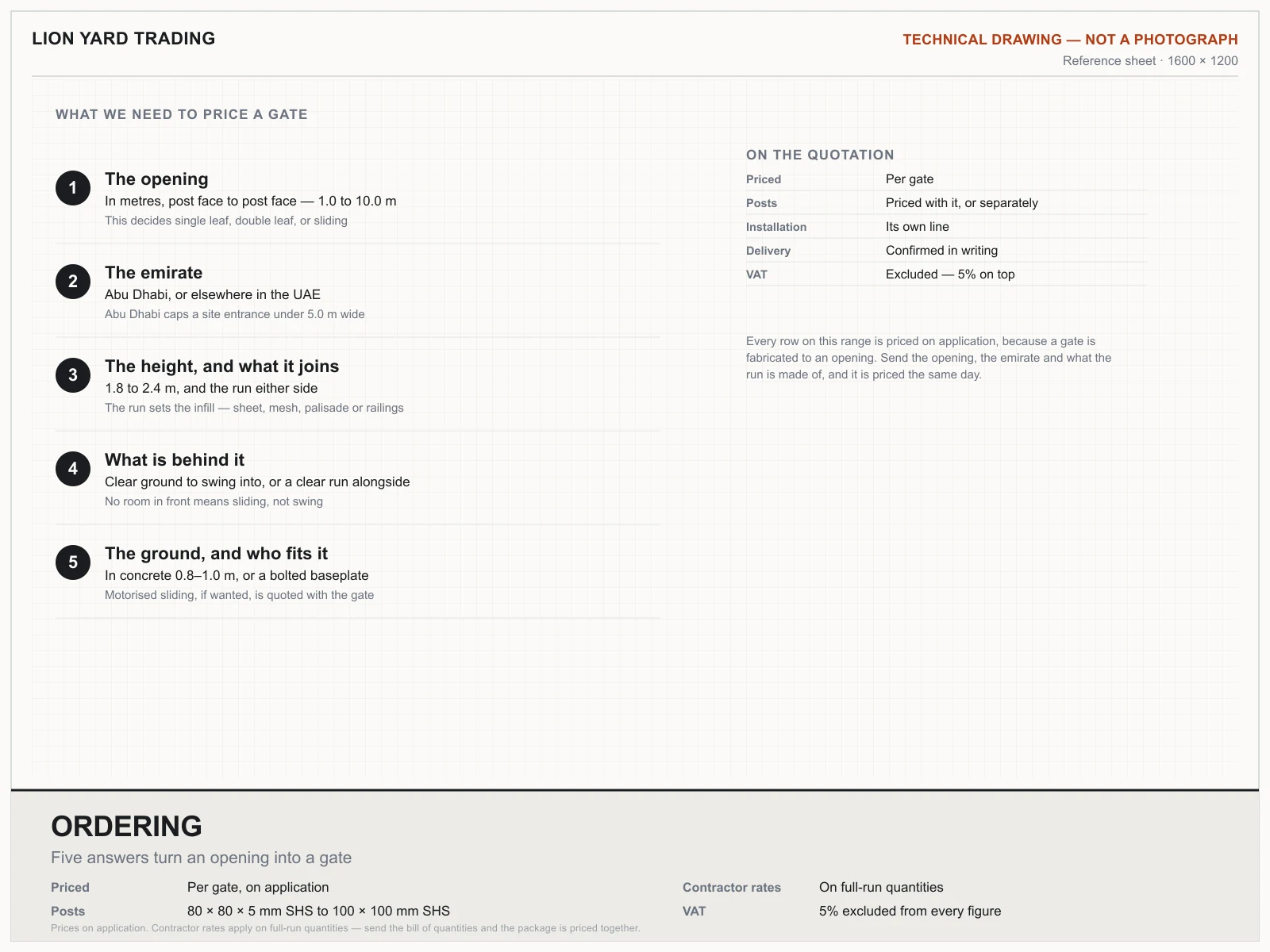

- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Technical Procurement & Ordering Guides
10 drawings covering every answer we need to price Site Gates — swing & sliding — every figure comes from the price table above or from the published standard it is made to.
The gateDouble leaf, in elevation
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your site gates — swing & sliding?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
