Perimeter Security Gates
Site & Perimeter Gates
Priced on enquiry
Made to your opening width and chosen infill, priced per gate.
Tell us the size and where it is going.
About this product
- What it is: A permanent vehicle or pedestrian gate for a security boundary, in swing, sliding or…
- Vs turnstiles and hoarding gates: Turnstiles, which are in IT & Security Systems, control single pedestrians one at a time.
- Operation: Manual, or motorised — cantilever sliding is the common choice where ground-mounted track…
- Delivery: All 7 Emirates from our own yard.
- Installation service: Supply only, or supplied and installed by our own crew rather than a subcontractor.
- Ordering: Made to your opening width and chosen infill, priced per gate.
All 14 options
Every option on one list. Tap any row to ask about that one.

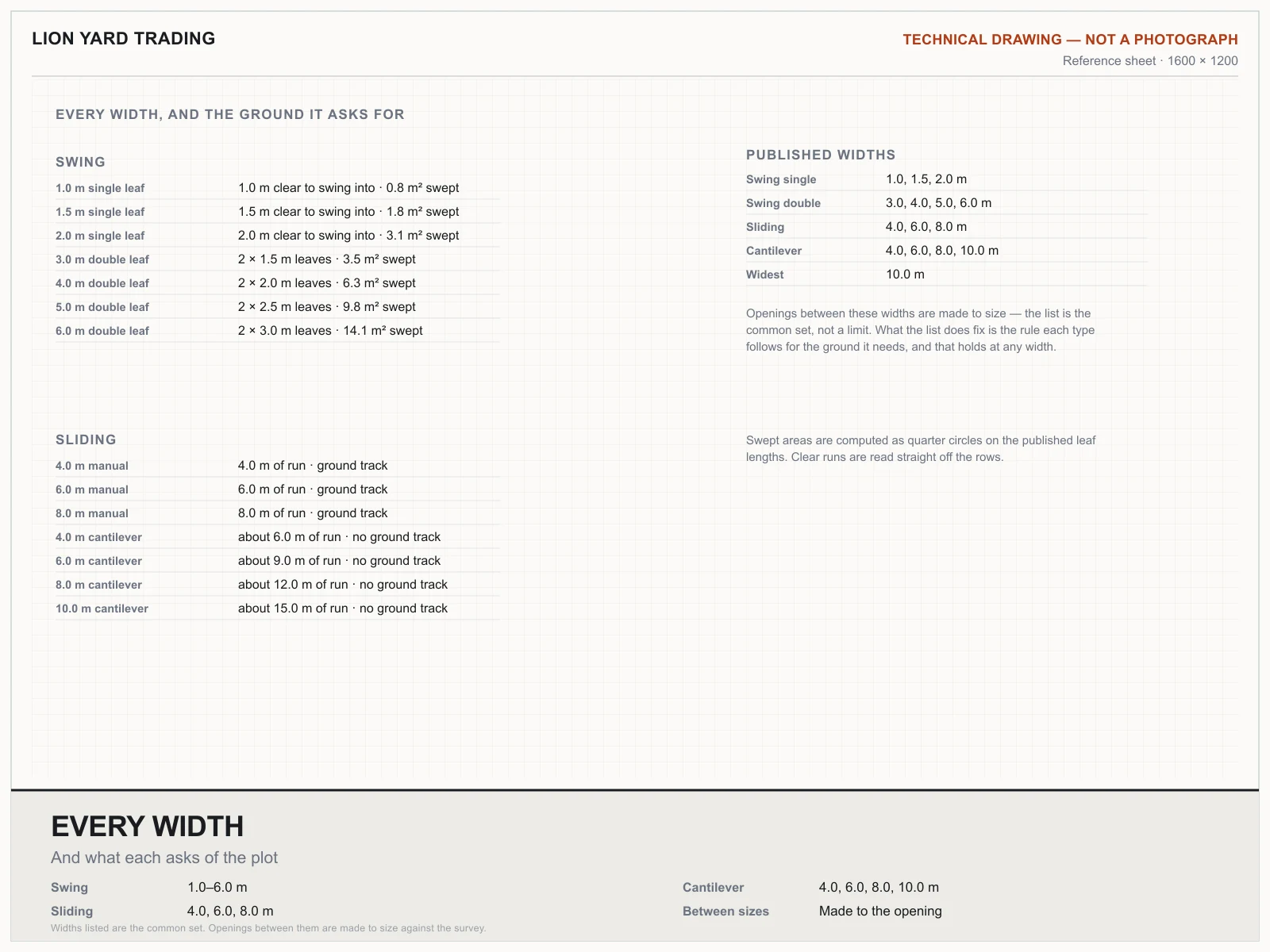

| Size / product | Details | Enquire |
|---|---|---|

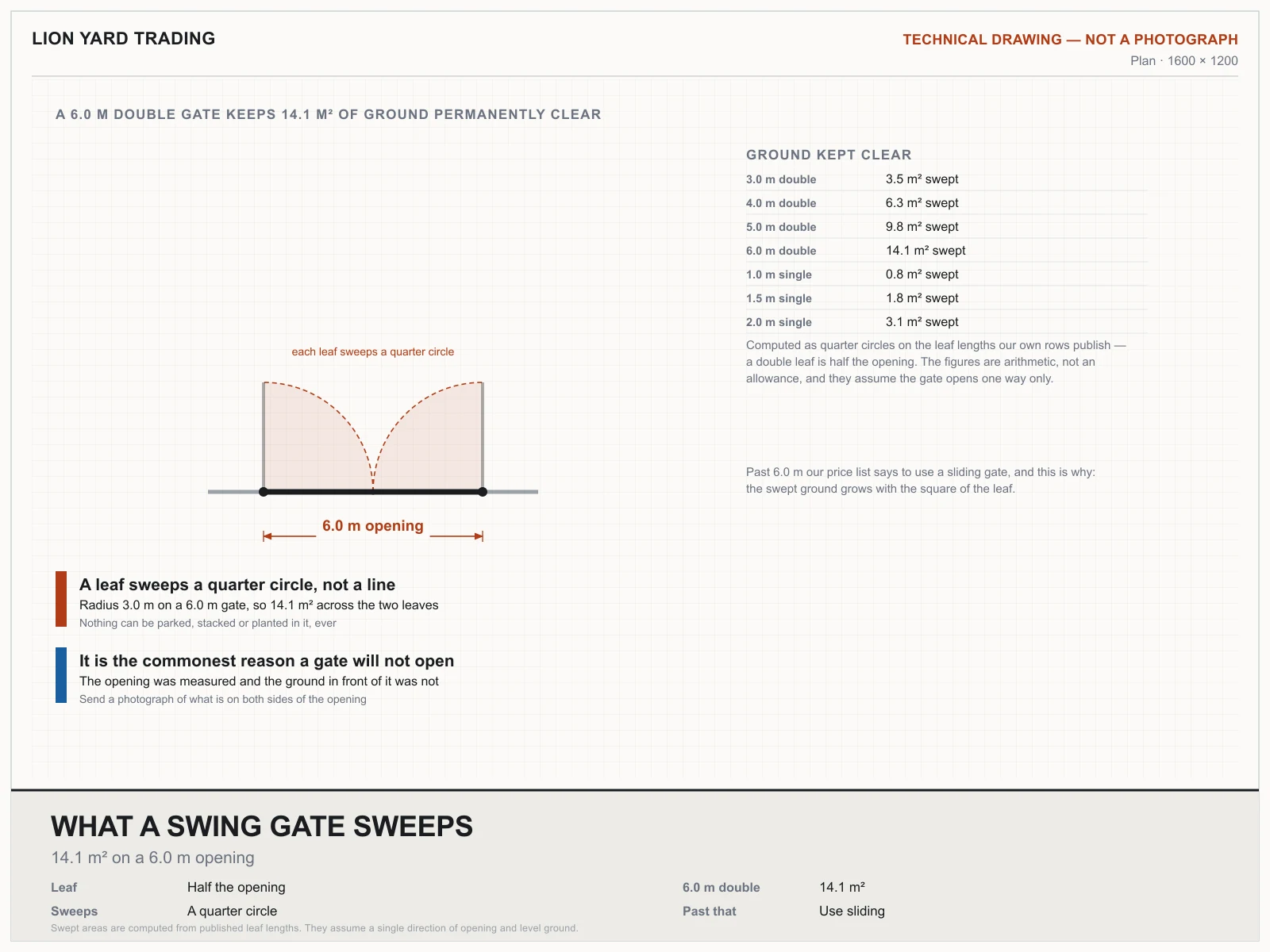

| Swing Gate, single leaf — 1.0 mLY-PERI-124 | Pedestrian opening · needs 1.0 m of clear ground to swing into. Infill matched to the fence. | Ask |
| Swing Gate, single leaf — 1.5 mLY-PERI-128 | Wide pedestrian or barrow opening · needs 1.5 m clear to swing into. | Ask |
| Swing Gate, single leaf — 2.0 mLY-PERI-129 | Narrow vehicle or plant opening · needs 2.0 m clear to swing into. | Ask |

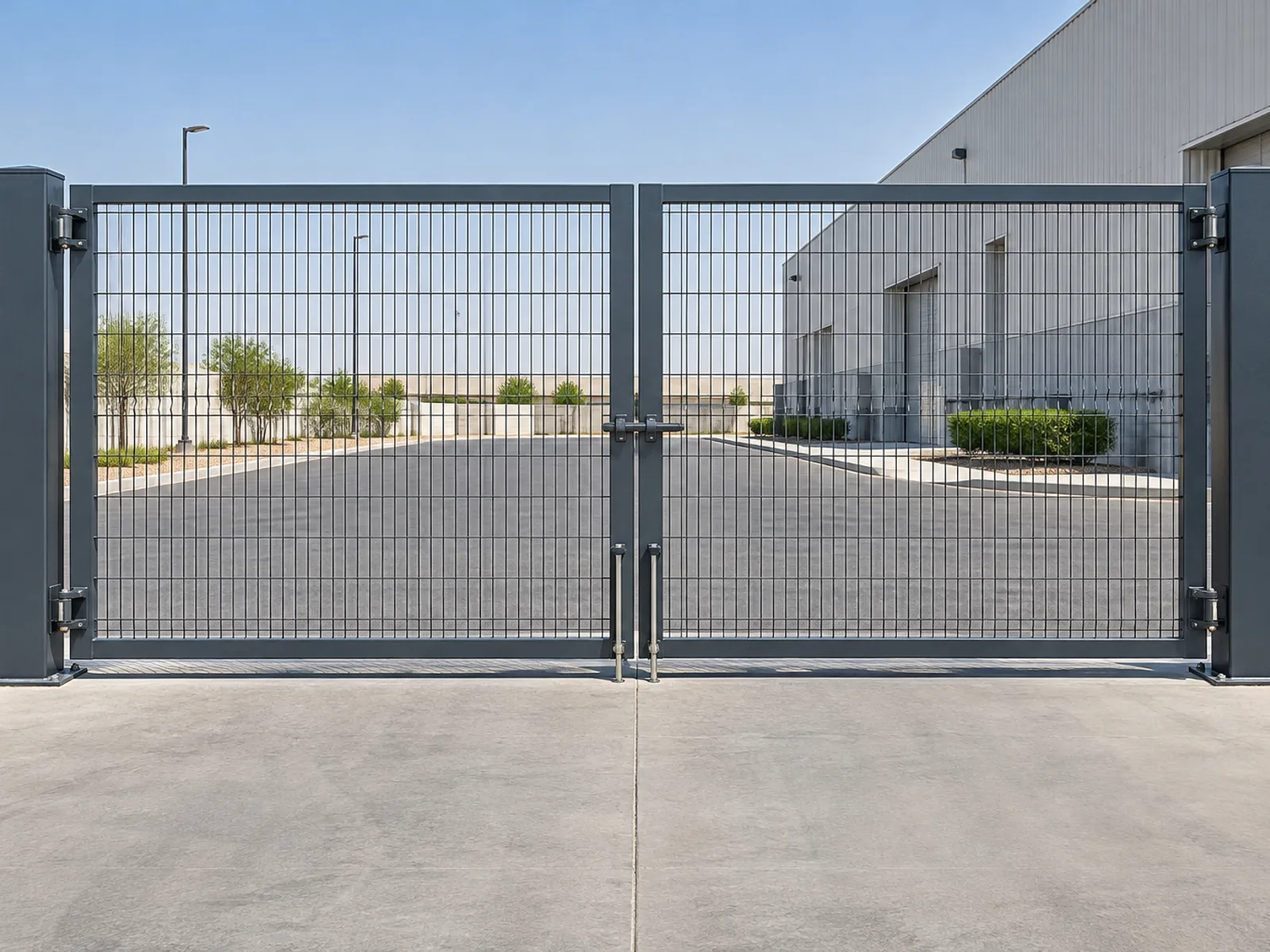

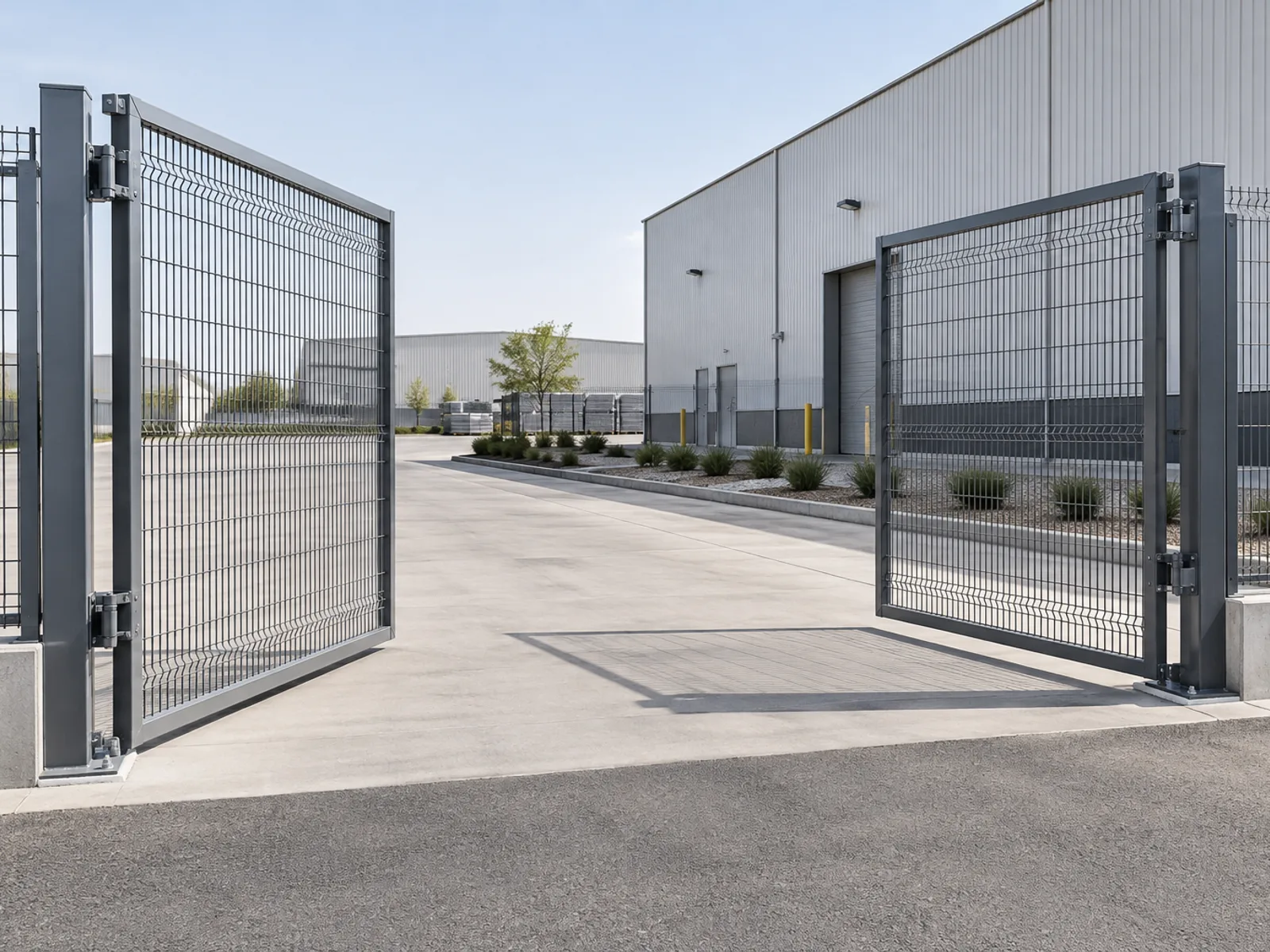

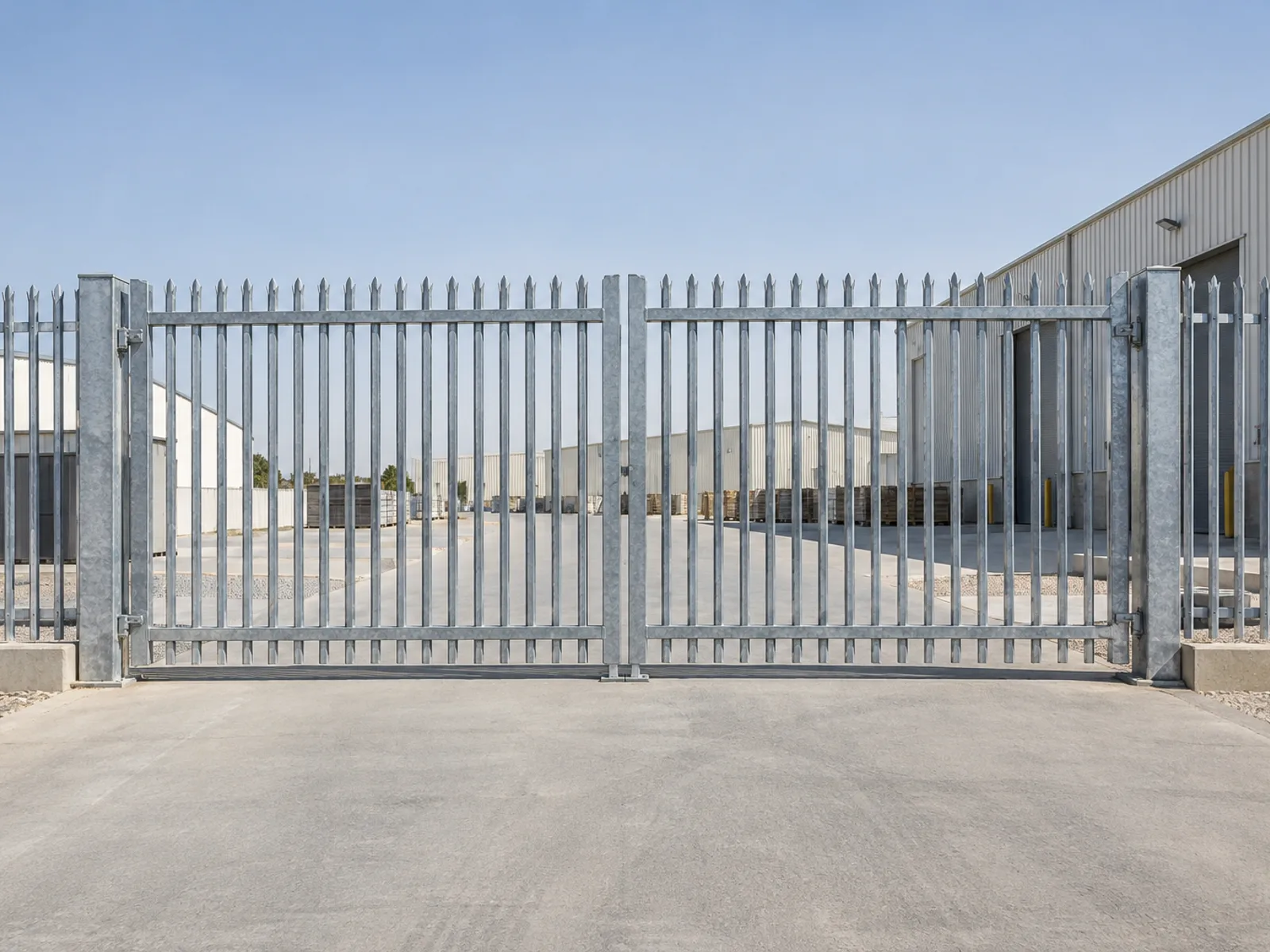

| Swing Gate, double leaf — 3.0 mLY-PERI-125 | 2 × 1.5 m leaves · each sweeps 1.5 m of clear ground. | Ask |
| Swing Gate, double leaf — 4.0 mLY-PERI-130 | 2 × 2.0 m leaves · each sweeps 2.0 m of clear ground. | Ask |
| Swing Gate, double leaf — 5.0 mLY-PERI-131 | 2 × 2.5 m leaves · each sweeps 2.5 m of clear ground. | Ask |
| Swing Gate, double leaf — 6.0 mLY-PERI-132 | 2 × 3.0 m leaves · each sweeps 3.0 m of clear ground. Past this, use sliding. | Ask |

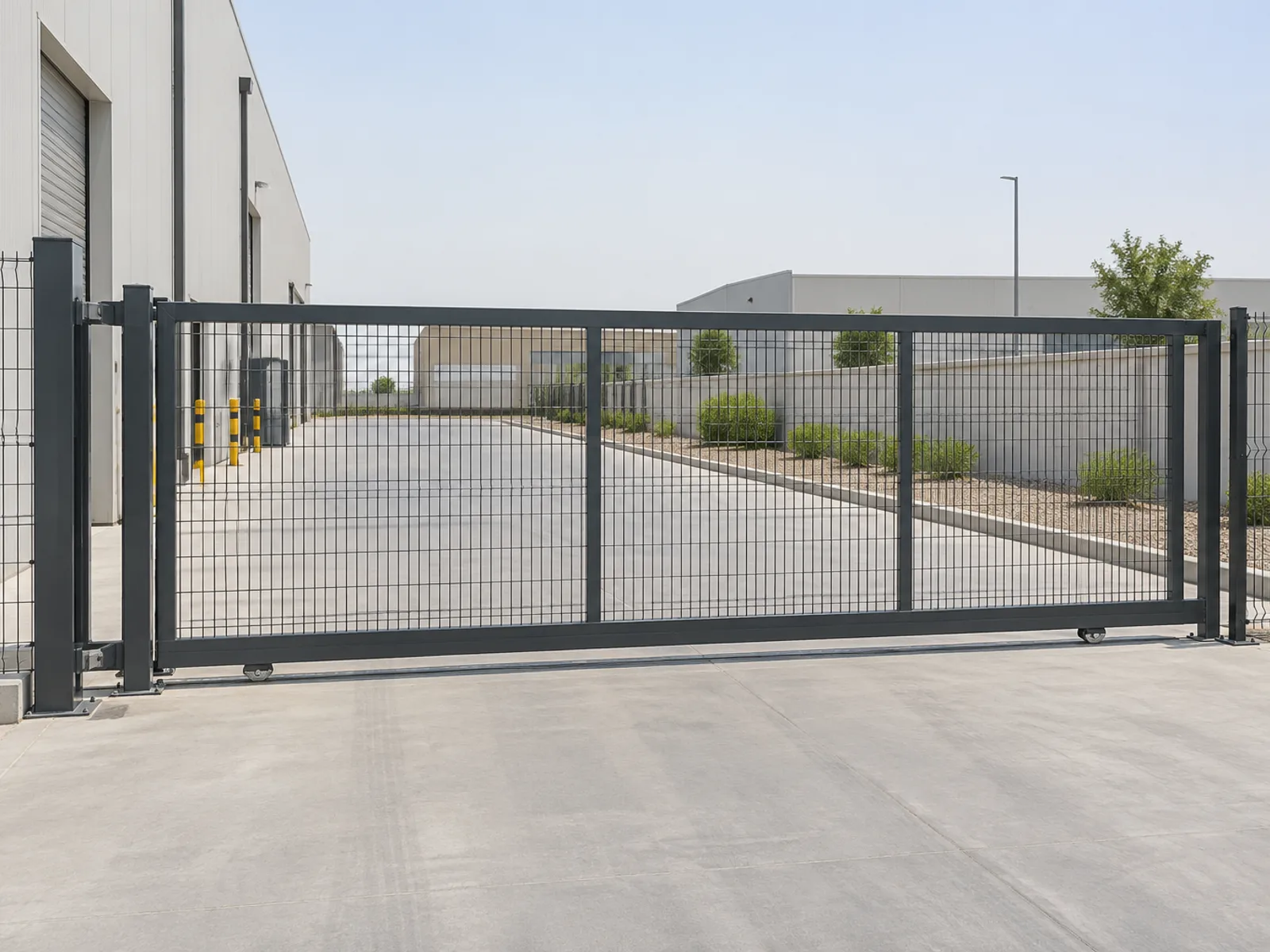

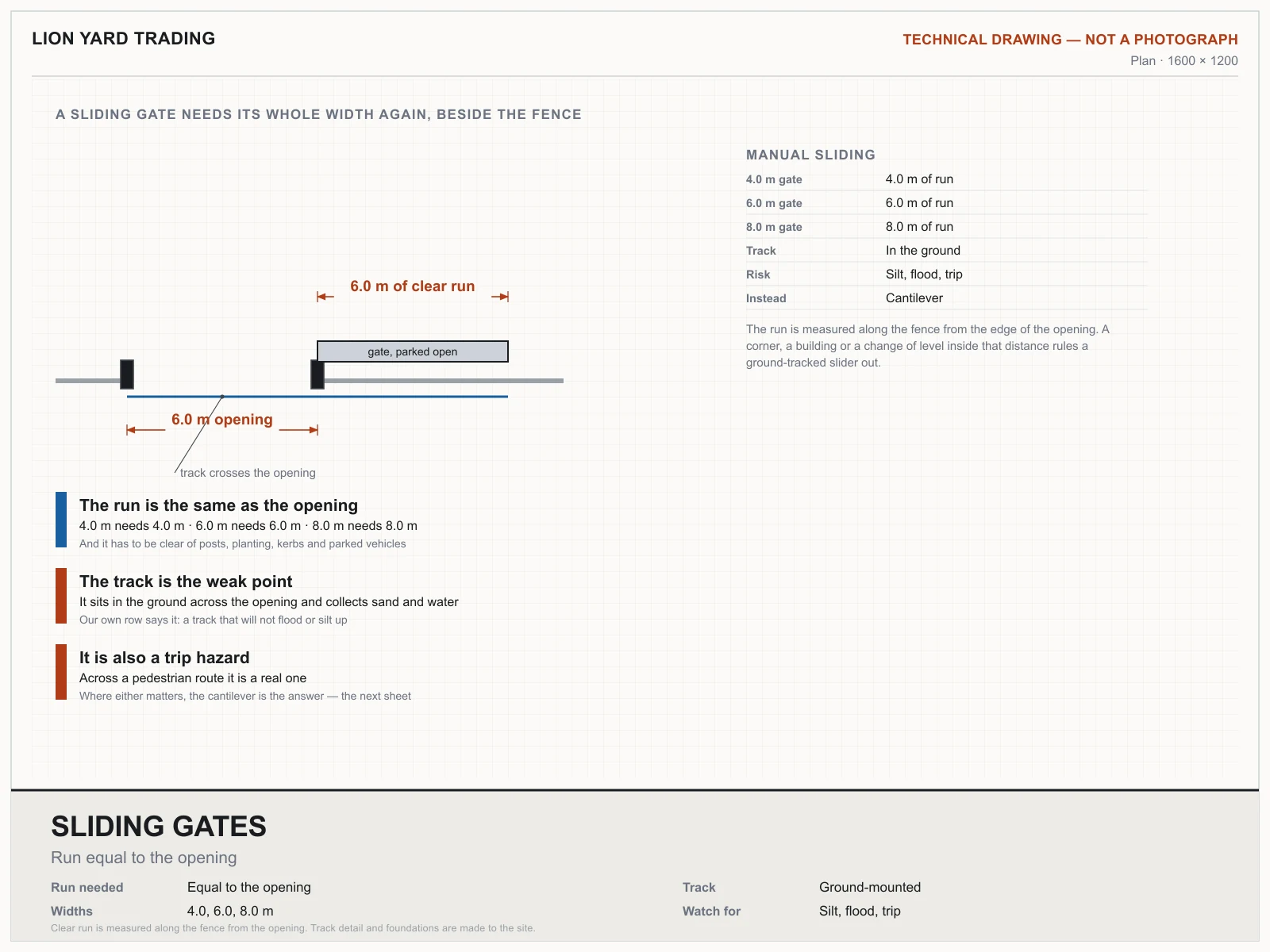

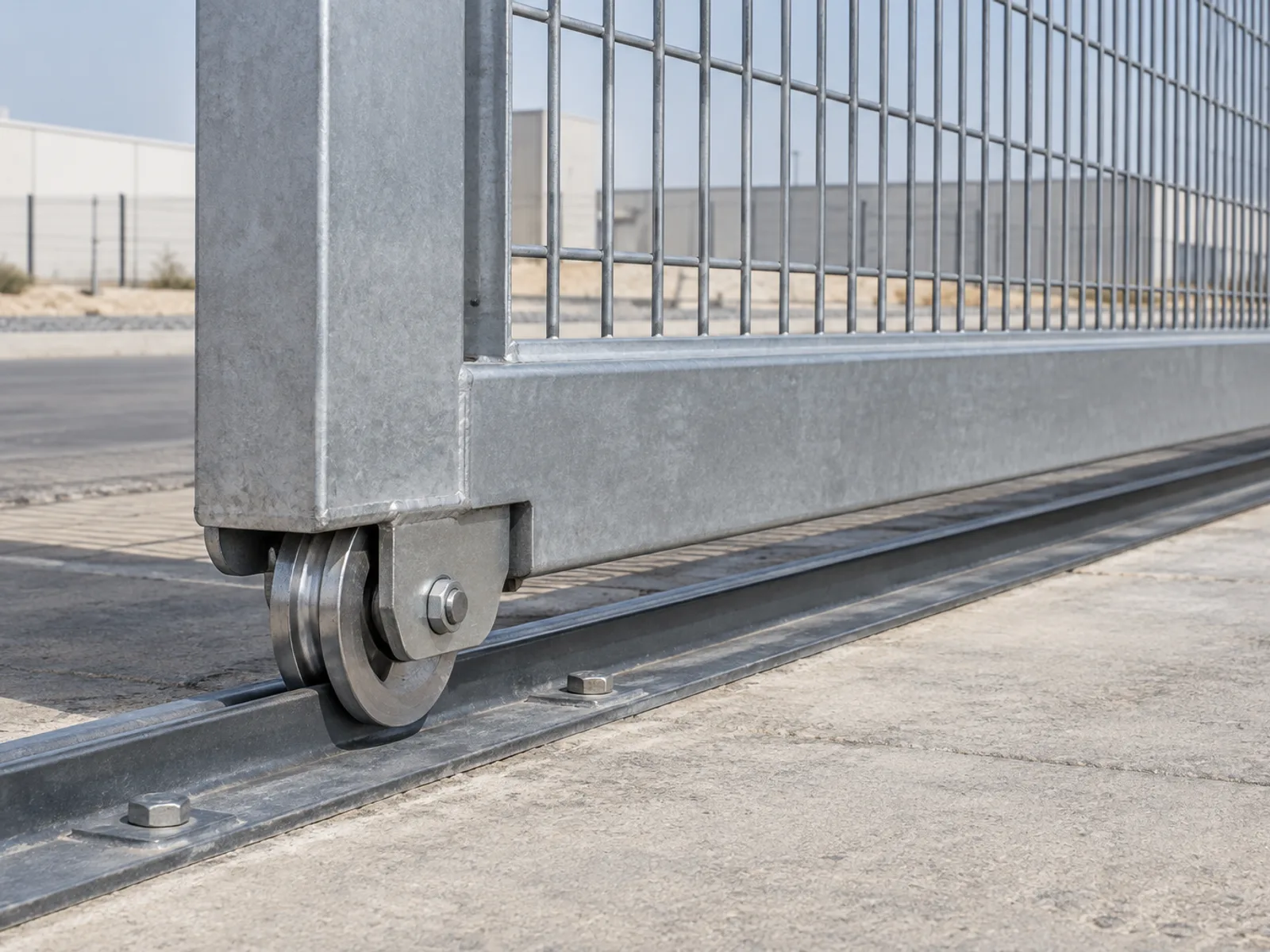

| Sliding Gate, manual — 4.0 mLY-PERI-126 | Ground track · needs 4.0 m of clear run alongside the fence, and a track that will not flood or silt up. | Ask |
| Sliding Gate, manual — 6.0 mLY-PERI-133 | Ground track · needs 6.0 m of clear run alongside the fence. | Ask |
| Sliding Gate, manual — 8.0 mLY-PERI-134 | Ground track · needs 8.0 m of clear run alongside the fence. | Ask |

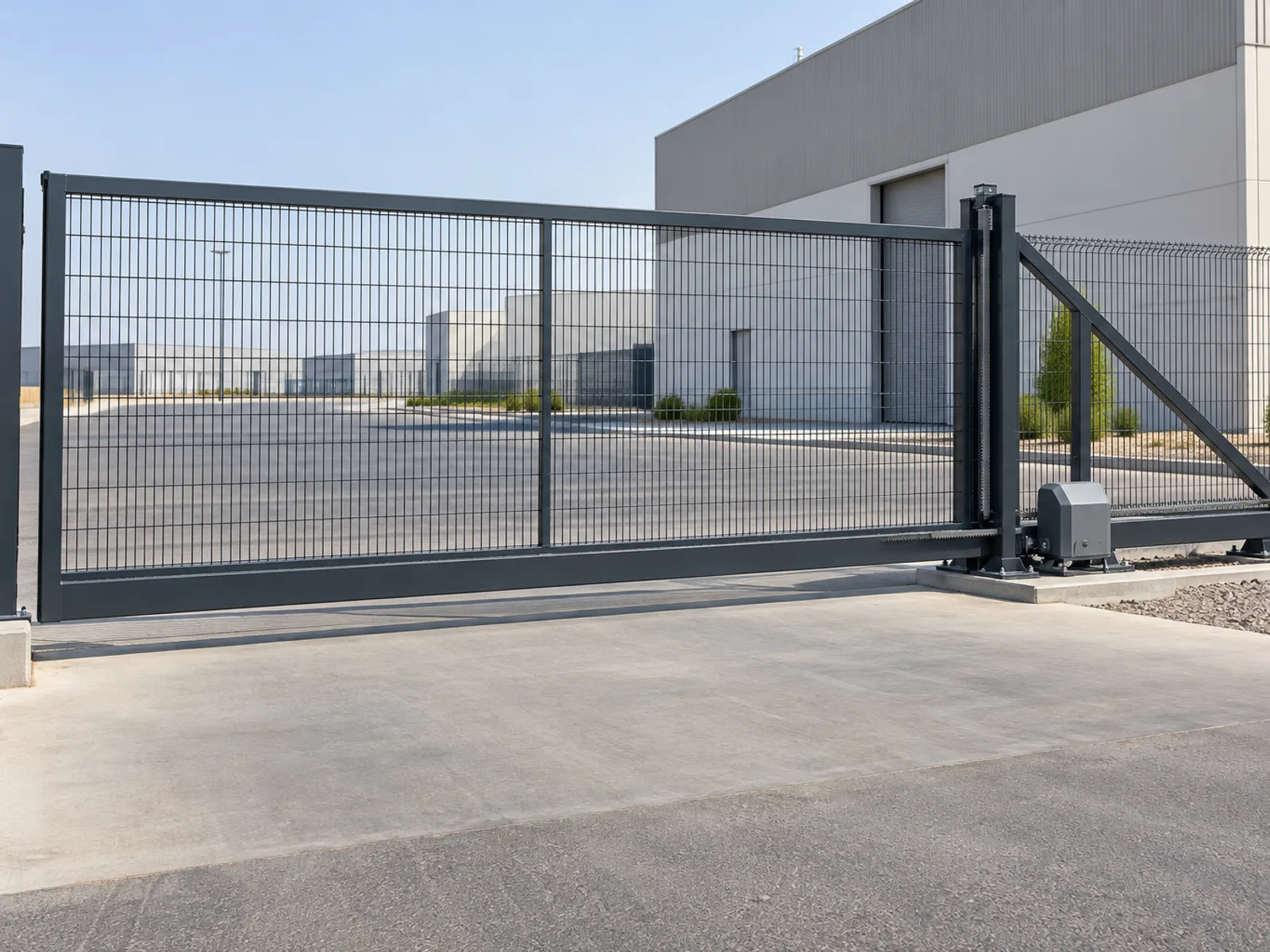

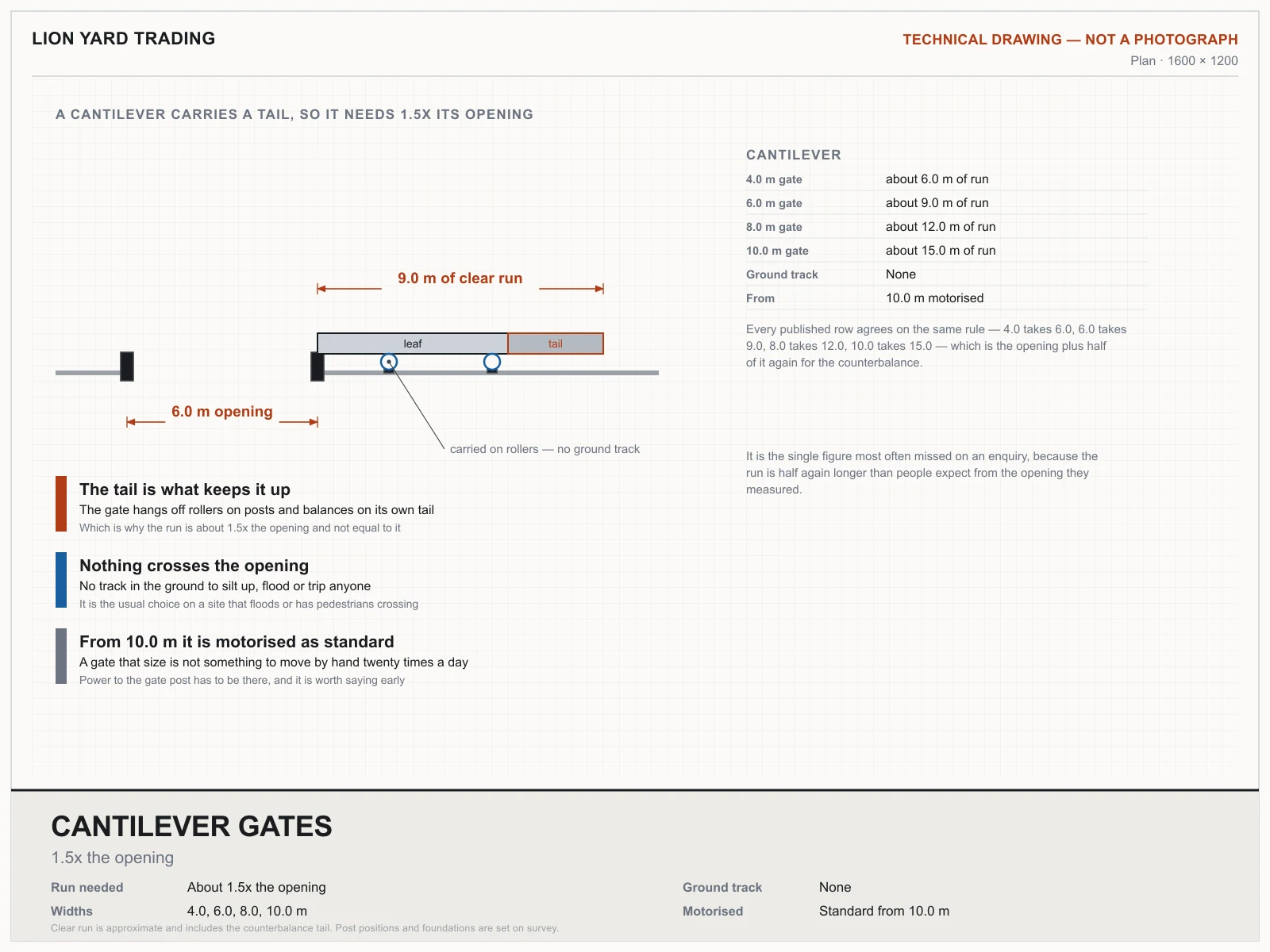

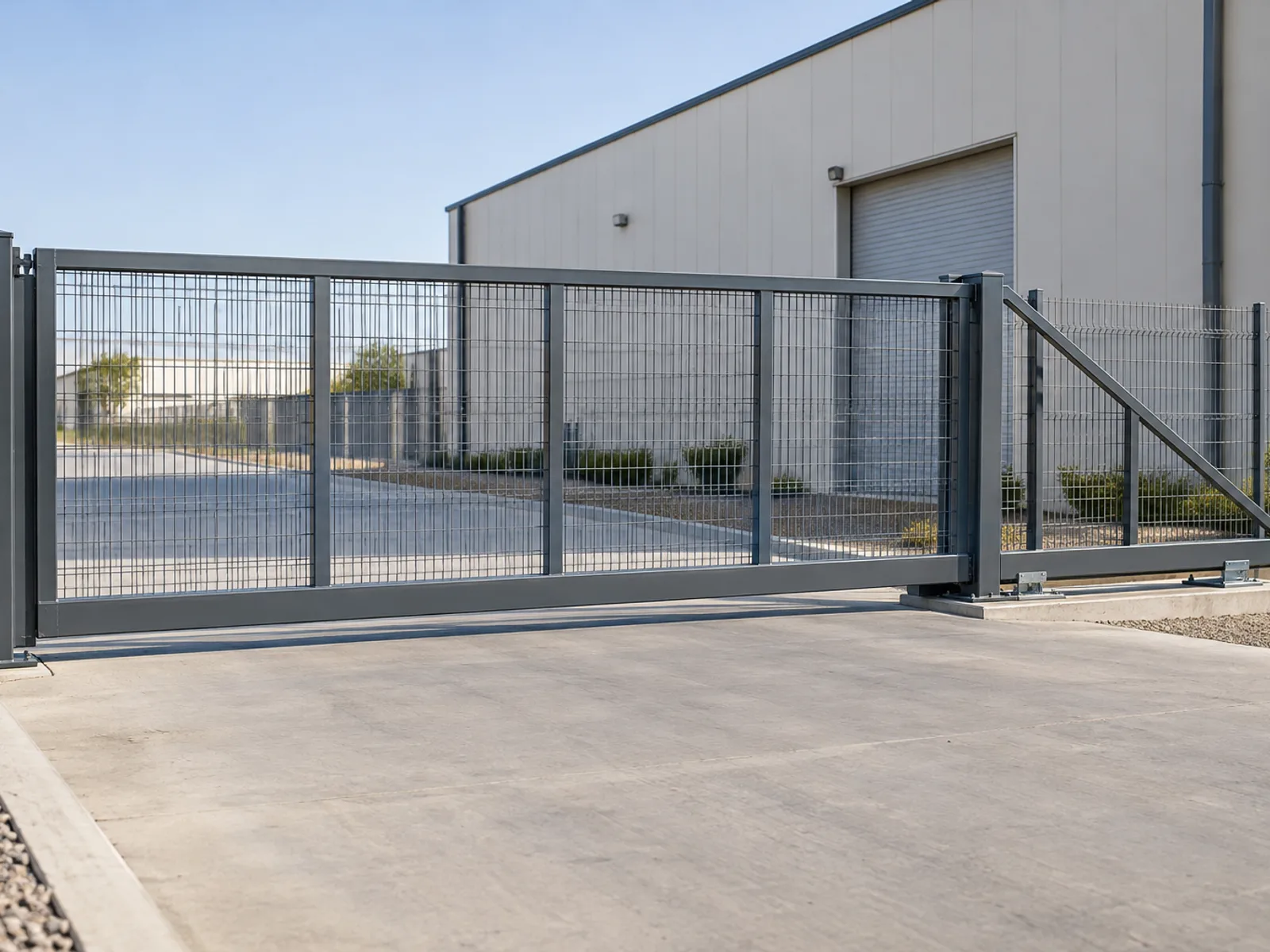

| Cantilever Sliding Gate — 4.0 mLY-PERI-127 | No ground track · the gate carries a counterbalance tail, so allow about 6.0 m of clear run beside the fence. | Ask |
| Cantilever Sliding Gate — 6.0 mLY-PERI-135 | No ground track · allow about 9.0 m of clear run beside the fence for the counterbalance. | Ask |
| Cantilever Sliding Gate — 8.0 mLY-PERI-136 | No ground track · allow about 12.0 m of clear run beside the fence. | Ask |
| Cantilever Sliding Gate — 10.0 mLY-PERI-137 | No ground track · allow about 15.0 m of clear run beside the fence. Motorised as standard at this width. | Ask |
- Pedestrian opening · needs 1.0 m of clear ground to swing into. Infill matched to the fence.Ask on WhatsApp
- Wide pedestrian or barrow opening · needs 1.5 m clear to swing into.Ask on WhatsApp
- Narrow vehicle or plant opening · needs 2.0 m clear to swing into.Ask on WhatsApp
- 2 × 1.5 m leaves · each sweeps 1.5 m of clear ground.Ask on WhatsApp
- 2 × 2.0 m leaves · each sweeps 2.0 m of clear ground.Ask on WhatsApp
- 2 × 2.5 m leaves · each sweeps 2.5 m of clear ground.Ask on WhatsApp
- 2 × 3.0 m leaves · each sweeps 3.0 m of clear ground. Past this, use sliding.Ask on WhatsApp
- Ground track · needs 4.0 m of clear run alongside the fence, and a track that will not flood or silt up.Ask on WhatsApp
- Ground track · needs 6.0 m of clear run alongside the fence.Ask on WhatsApp
- Ground track · needs 8.0 m of clear run alongside the fence.Ask on WhatsApp
- No ground track · the gate carries a counterbalance tail, so allow about 6.0 m of clear run beside the fence.Ask on WhatsApp
- No ground track · allow about 9.0 m of clear run beside the fence for the counterbalance.Ask on WhatsApp
- No ground track · allow about 12.0 m of clear run beside the fence.Ask on WhatsApp
- No ground track · allow about 15.0 m of clear run beside the fence. Motorised as standard at this width.Ask on WhatsApp
Made to your opening width and chosen infill, priced per gate.
What it is

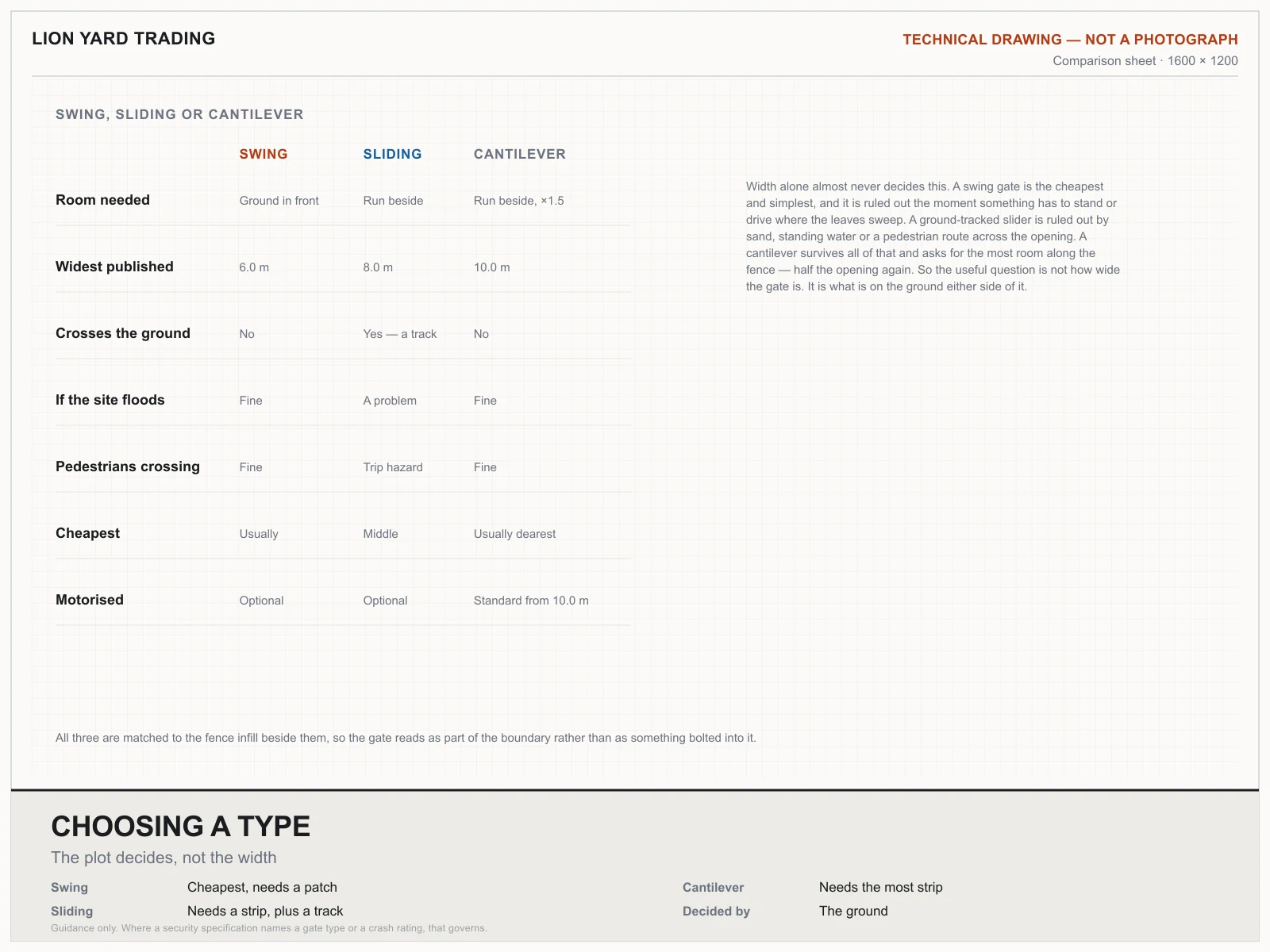

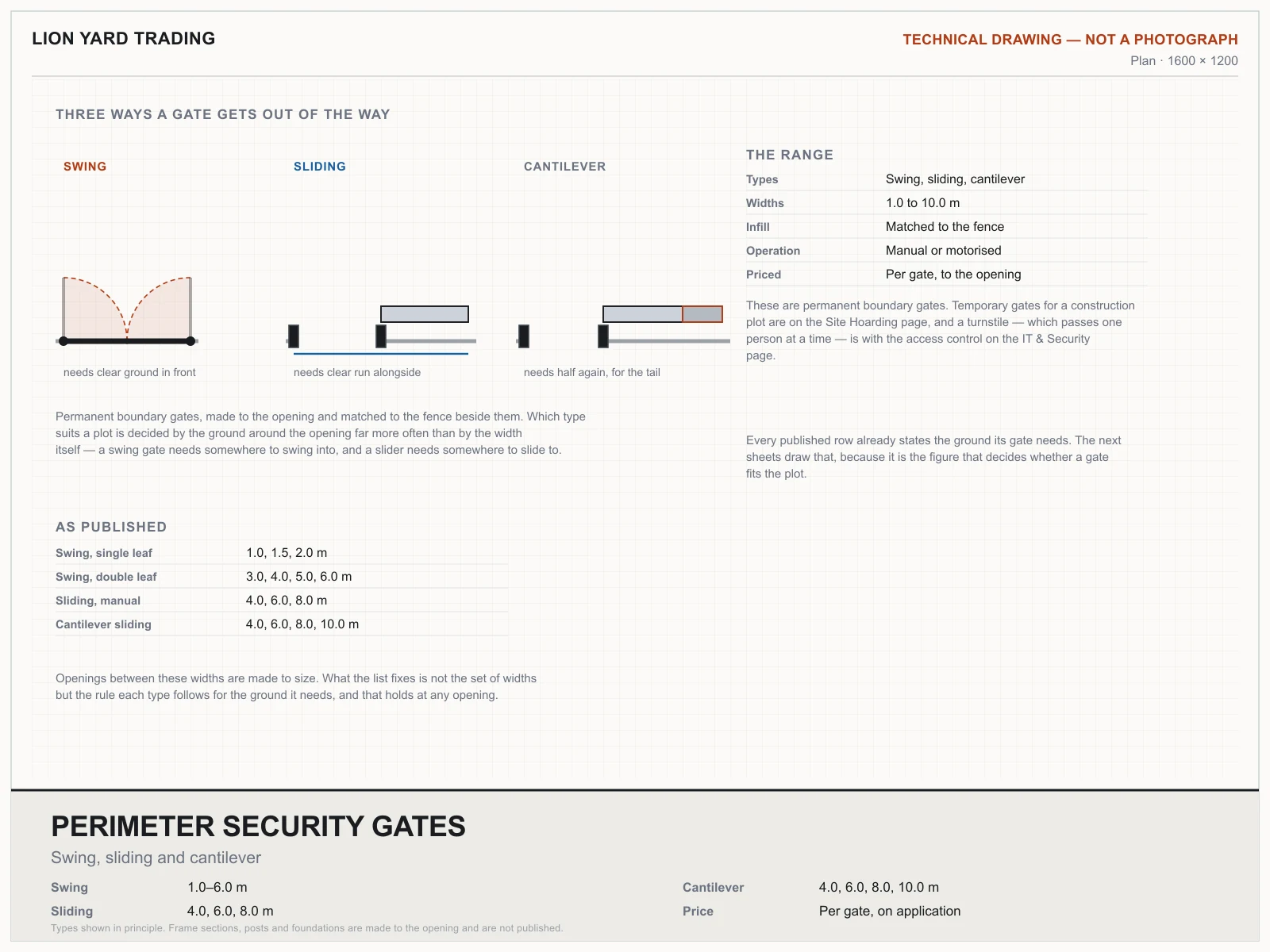

Permanent swing, sliding and cantilever gates for a security boundary, with the infill matched to the fence either side — palisade, mesh or 358. Swing from 1.0 m pedestrian to a 6.0 m double leaf; tracked sliding to 8.0 m; cantilever to 10.0 m and beyond. Three different site constraints, and they are what decides the gate rather than the opening: a swing leaf needs clear ground in front of it, a tracked slider needs a clear run and a track that will not flood, and a cantilever needs no track but carries a counterbalance tail — reckon on half the opening again in clear run beside the fence. Send the opening and what is either side of it.
Specification

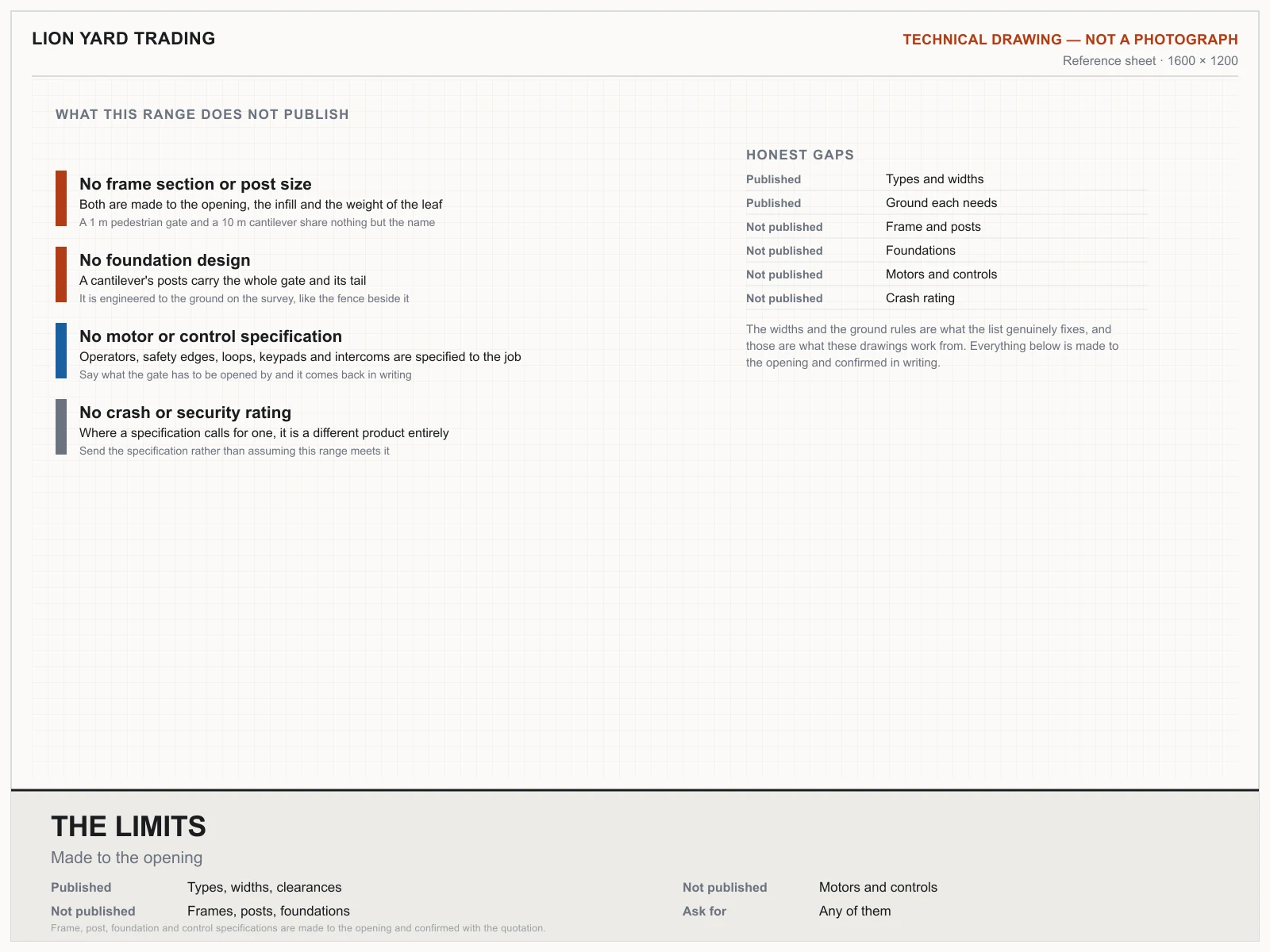

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.
- What it is
- A permanent vehicle or pedestrian gate for a security boundary, in swing, sliding or cantilever-sliding operation, with infill matched to the fence it sits in — palisade pales, welded mesh or 358 anti-climb.
- Vs turnstiles and hoarding gates

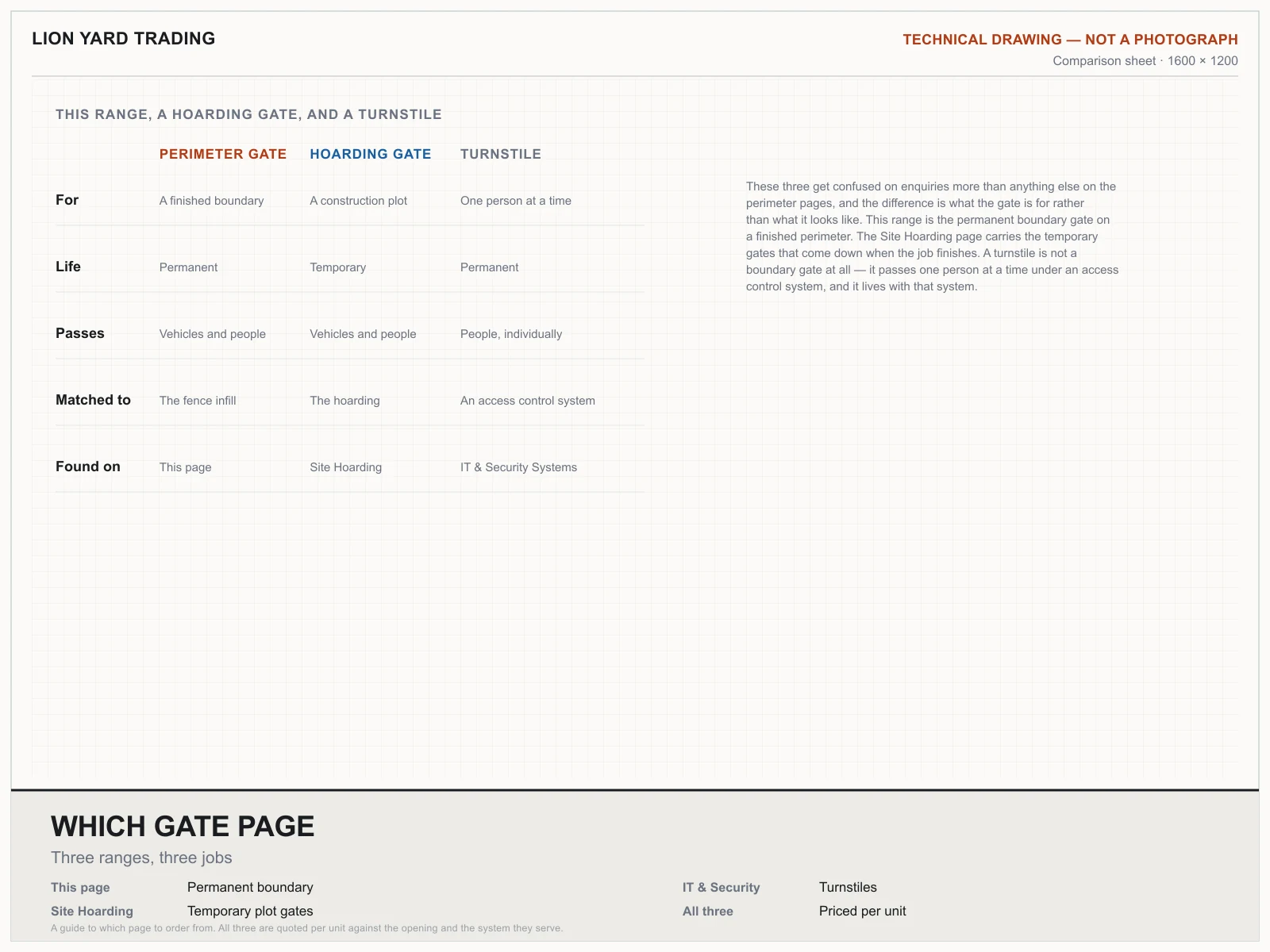

- Turnstiles, which are in IT & Security Systems, control single pedestrians one at a time. The temporary swing/sliding gates on the Site Hoarding page are for a construction plot. This range is the permanent boundary gate for a finished security perimeter.
- Operation
- Manual, or motorised — cantilever sliding is the common choice where ground-mounted track would be a trip hazard or would flood.
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.
- Installation service
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Made to your opening width and chosen infill, priced per gate.
Technical Procurement & Ordering Guides

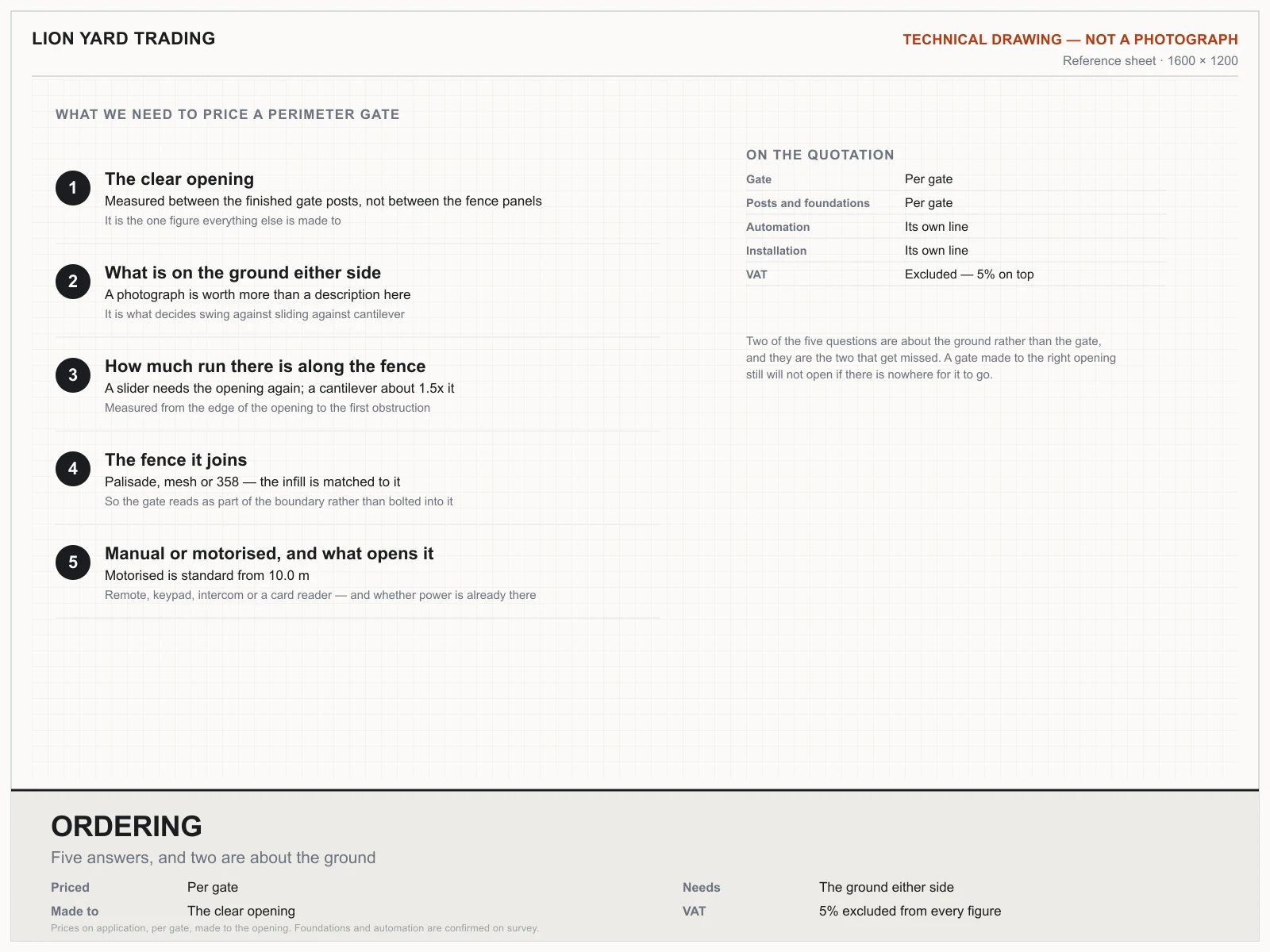

10 drawings covering every answer we need to price Perimeter Security Gates — every figure comes from the price table above or from the published standard it is made to.
The rangeSwing, sliding and cantilever
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
Ready to price your perimeter security gates?
Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.
