Modular Bolted Steel Water Tanks

Modular Bolted Steel Tanks

93sizes10technical drawings

Priced on enquiry

Every one of these is quoted against the job. The figure depends on the wall thickness the height demands, the coating the stored liquid demands, the accessories, and the freight and duty to bring it in — so a published number would be a number we could not honour.

WhatsApp us

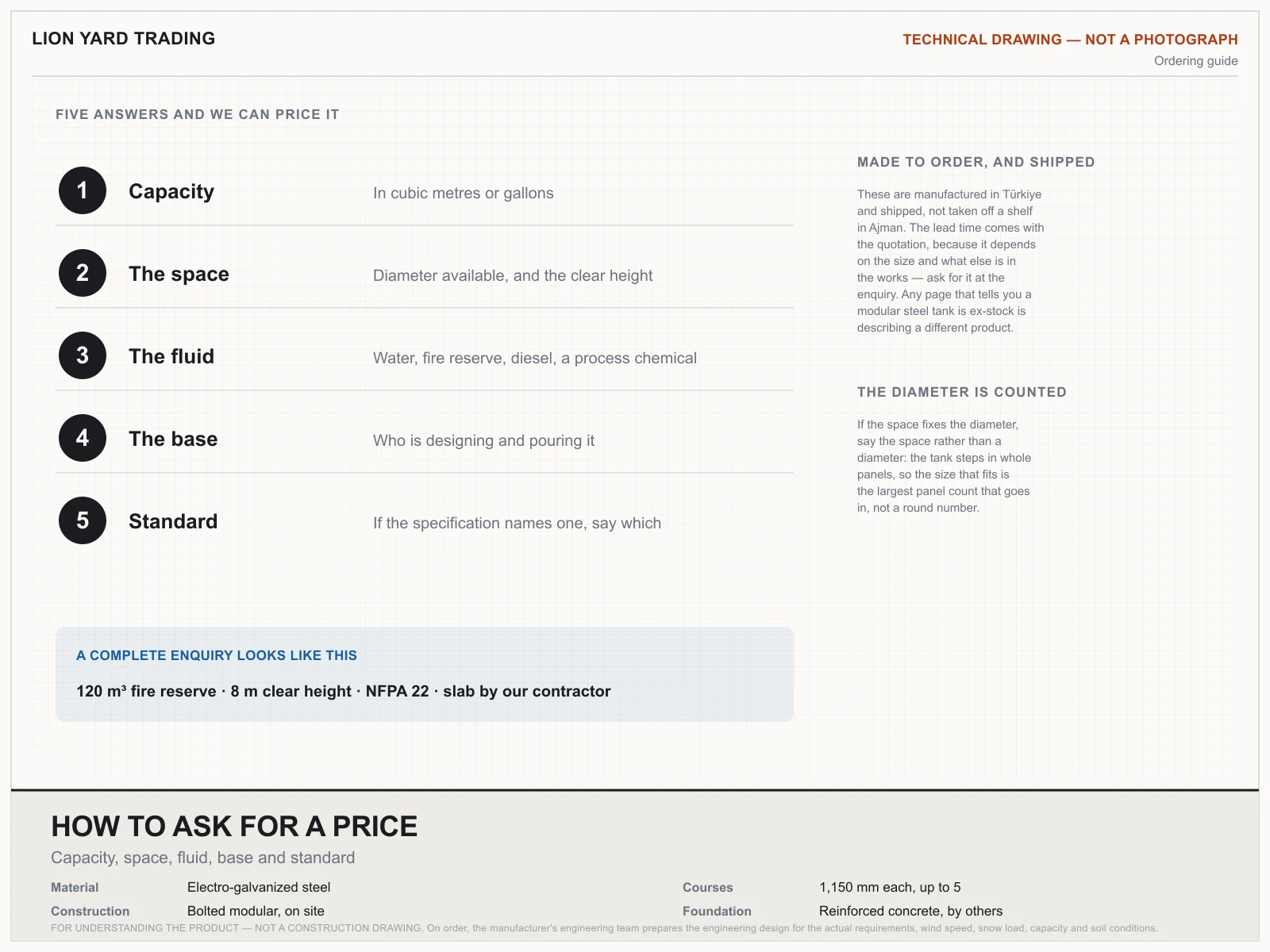

Tell us the size and where it is going.

About this product

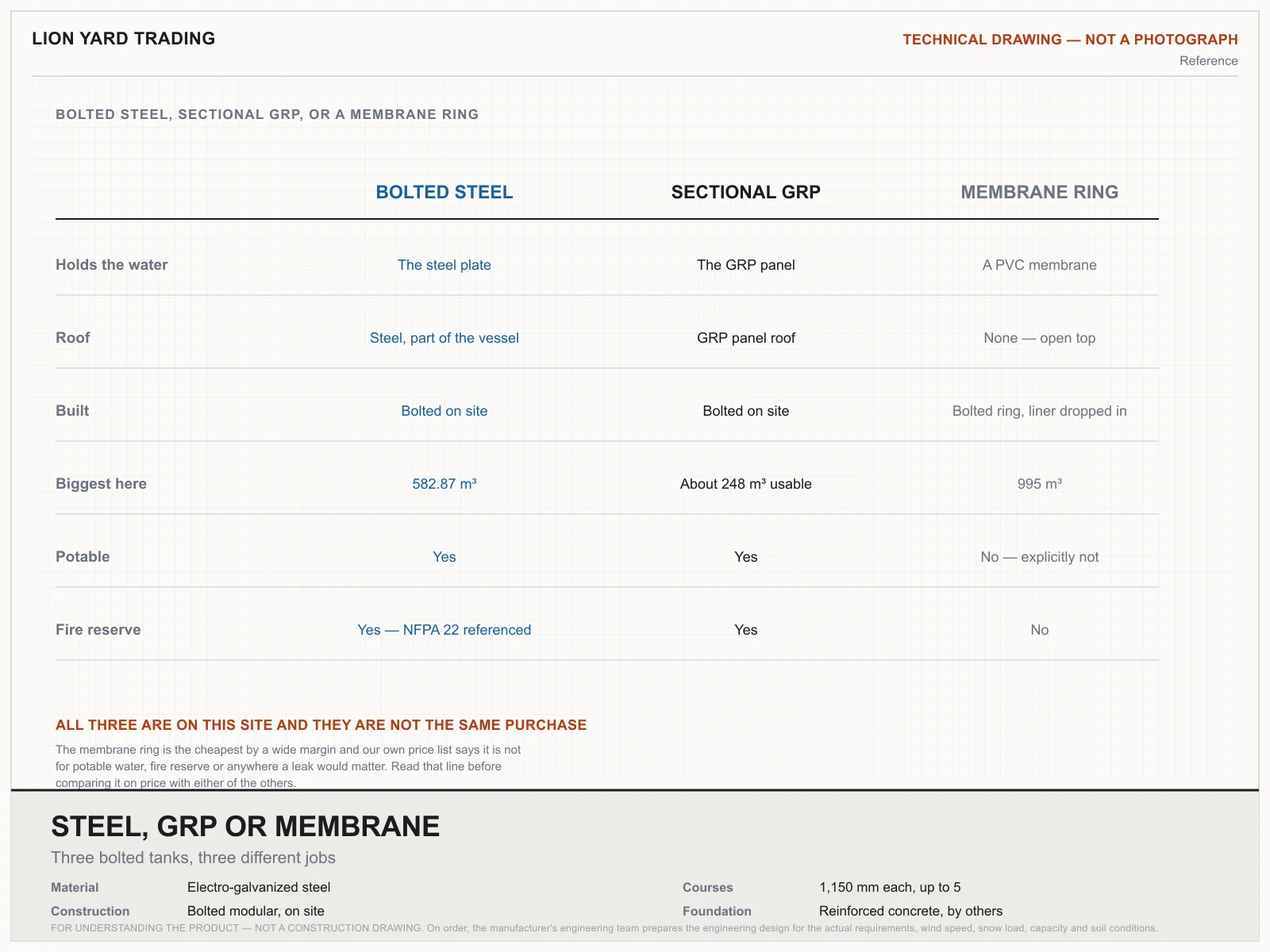

Material: Steel — electro-galvanized as standard. Not GRP

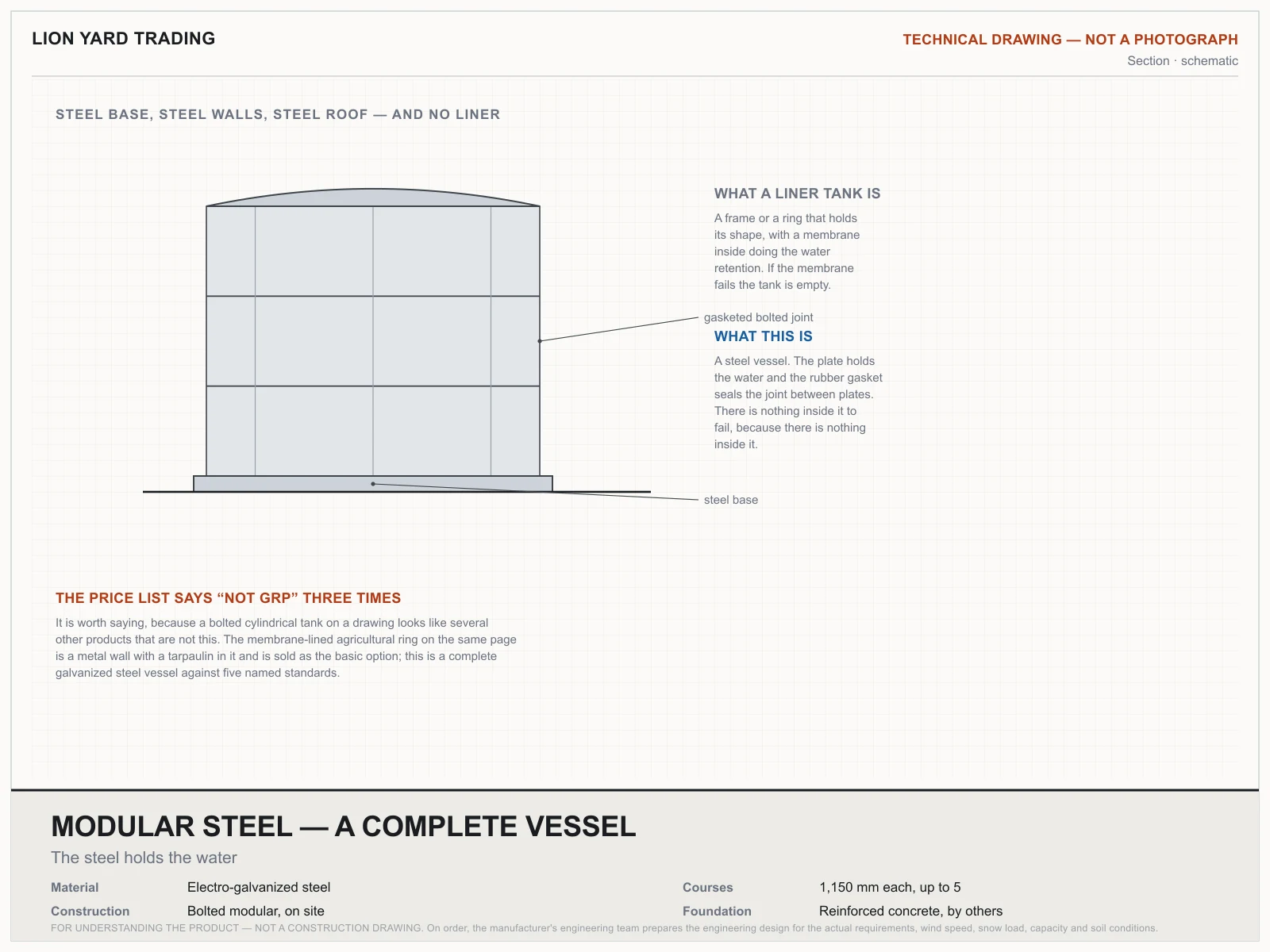

Structure: Complete steel vessel — steel base, walls and roof
Liner: None required — the steel holds the water, sealed on rubber gaskets
Construction: Modular bolted cylindrical, assembled on site

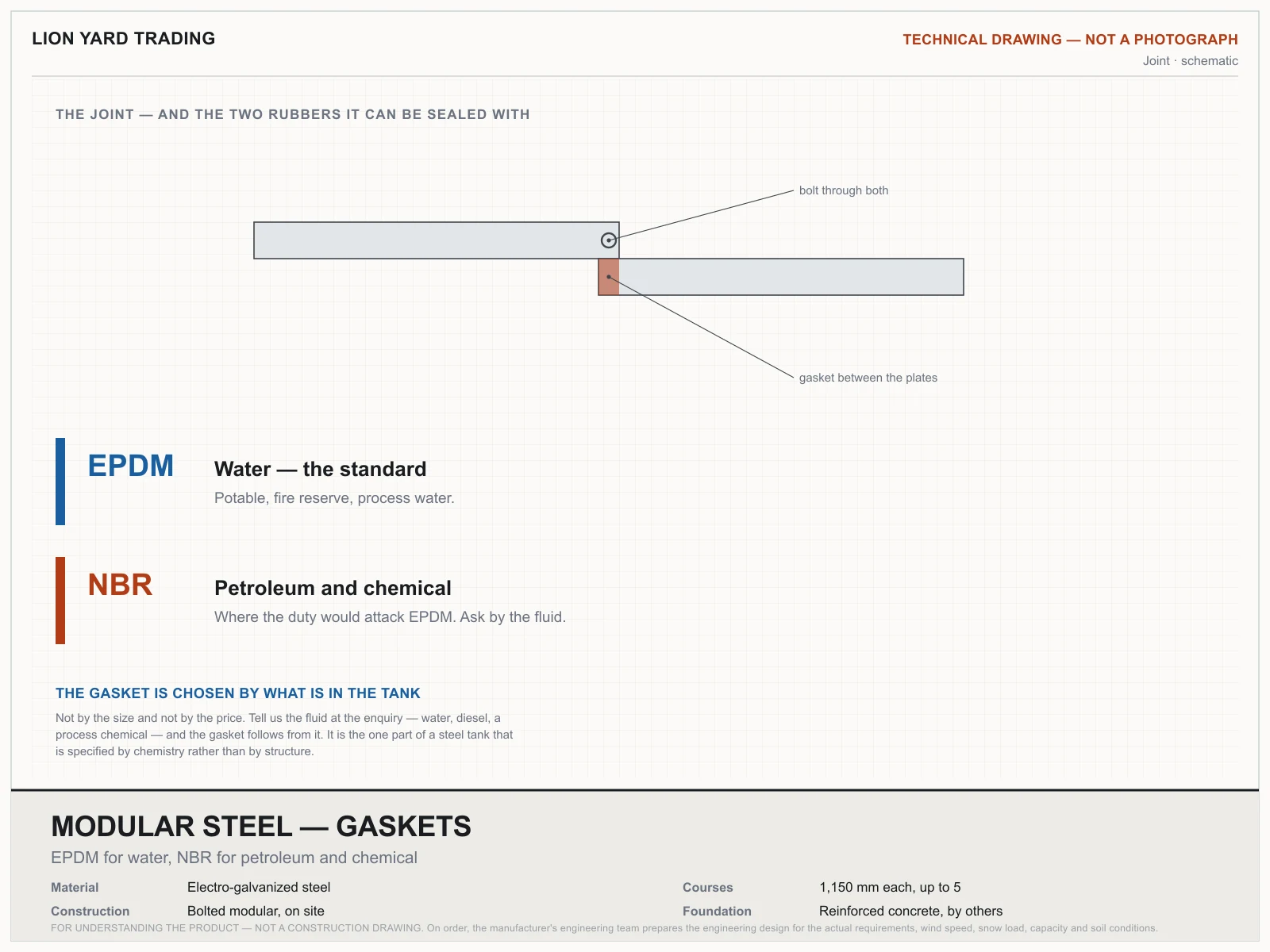

Gaskets: EPDM rubber, or NBR for petroleum and chemical duty
Capacity range: 3.24 m³ to 582.87 m³

Read the full specification →

Delivered across all 7 Emirates2–3 years — the exact period and the coating cover are confirmed on the commercial offer

All 93 sizes

Every size on one list. Tap any row to ask about that one.

Modular Bolted Steel Water Tanks — sizes and specifications, priced on enquiry
Size / product	Details	Enquire
3.24 m³LY-WTR-106	≈ 856 US gallons · 1,894 mm diameter × 1,150 mm high · 1 course of 5 panels	Ask
4.66 m³LY-WTR-107	≈ 1,231 US gallons · 2,273 mm diameter × 1,150 mm high · 1 course of 6 panels	Ask
6.35 m³LY-WTR-108	≈ 1,677 US gallons · 2,652 mm diameter × 1,150 mm high · 1 course of 7 panels	Ask
6.48 m³LY-WTR-109	≈ 1,712 US gallons · 1,894 mm diameter × 2,300 mm high · 2 courses of 5 panels	Ask
8.29 m³LY-WTR-110	≈ 2,190 US gallons · 3,030 mm diameter × 1,150 mm high · 1 course of 8 panels	Ask
9.33 m³LY-WTR-111	≈ 2,465 US gallons · 2,273 mm diameter × 2,300 mm high · 2 courses of 6 panels	Ask
12.69 m³LY-WTR-112	≈ 3,352 US gallons · 2,652 mm diameter × 2,300 mm high · 2 courses of 7 panels	Ask
13.99 m³LY-WTR-113	≈ 3,696 US gallons · 2,273 mm diameter × 3,450 mm high · 3 courses of 6 panels	Ask
16.58 m³LY-WTR-114	≈ 4,380 US gallons · 3,030 mm diameter × 2,300 mm high · 2 courses of 8 panels	Ask
18.65 m³LY-WTR-115	≈ 4,927 US gallons · 2,273 mm diameter × 4,600 mm high · 4 courses of 6 panels	Ask
19.04 m³LY-WTR-116	≈ 5,030 US gallons · 2,652 mm diameter × 3,450 mm high · 3 courses of 7 panels	Ask
20.98 m³LY-WTR-117	≈ 5,542 US gallons · 3,409 mm diameter × 2,300 mm high · 2 courses of 9 panels	Ask
24.87 m³LY-WTR-118	≈ 6,570 US gallons · 3,030 mm diameter × 3,450 mm high · 3 courses of 8 panels	Ask
25.39 m³LY-WTR-119	≈ 6,707 US gallons · 2,652 mm diameter × 4,600 mm high · 4 courses of 7 panels	Ask
25.91 m³LY-WTR-120	≈ 6,845 US gallons · 3,788 mm diameter × 2,300 mm high · 2 courses of 10 panels	Ask
31.35 m³LY-WTR-121	≈ 8,282 US gallons · 4,167 mm diameter × 2,300 mm high · 2 courses of 11 panels	Ask
31.48 m³LY-WTR-122	≈ 8,316 US gallons · 3,409 mm diameter × 3,450 mm high · 3 courses of 9 panels	Ask
33.16 m³LY-WTR-123	≈ 8,760 US gallons · 3,030 mm diameter × 4,600 mm high · 4 courses of 8 panels	Ask
37.30 m³LY-WTR-124	≈ 9,854 US gallons · 4,545 mm diameter × 2,300 mm high · 2 courses of 12 panels	Ask
38.86 m³LY-WTR-125	≈ 10,266 US gallons · 3,788 mm diameter × 3,450 mm high · 3 courses of 10 panels	Ask
41.45 m³LY-WTR-126	≈ 10,950 US gallons · 3,030 mm diameter × 5,750 mm high · 5 courses of 8 panels	Ask
41.97 m³LY-WTR-127	≈ 11,087 US gallons · 3,409 mm diameter × 4,600 mm high · 4 courses of 9 panels	Ask
43.78 m³LY-WTR-128	≈ 11,565 US gallons · 4,924 mm diameter × 2,300 mm high · 2 courses of 13 panels	Ask
47.02 m³LY-WTR-129	≈ 12,421 US gallons · 4,167 mm diameter × 3,450 mm high · 3 courses of 11 panels	Ask
50.77 m³LY-WTR-130	≈ 13,412 US gallons · 5,303 mm diameter × 2,300 mm high · 2 courses of 14 panels	Ask
51.81 m³LY-WTR-131	≈ 13,687 US gallons · 3,788 mm diameter × 4,600 mm high · 4 courses of 10 panels	Ask
52.46 m³LY-WTR-132	≈ 13,858 US gallons · 3,409 mm diameter × 5,750 mm high · 5 courses of 9 panels	Ask
55.96 m³LY-WTR-133	≈ 14,783 US gallons · 4,545 mm diameter × 3,450 mm high · 3 courses of 12 panels	Ask
58.29 m³LY-WTR-134	≈ 15,399 US gallons · 5,682 mm diameter × 2,300 mm high · 2 courses of 15 panels	Ask
62.69 m³LY-WTR-135	≈ 16,561 US gallons · 4,167 mm diameter × 4,600 mm high · 4 courses of 11 panels	Ask
64.76 m³LY-WTR-136	≈ 17,108 US gallons · 3,788 mm diameter × 5,750 mm high · 5 courses of 10 panels	Ask
65.67 m³LY-WTR-137	≈ 17,348 US gallons · 4,924 mm diameter × 3,450 mm high · 3 courses of 13 panels	Ask
66.32 m³LY-WTR-138	≈ 17,520 US gallons · 6,061 mm diameter × 2,300 mm high · 2 courses of 16 panels	Ask
74.61 m³LY-WTR-139	≈ 19,710 US gallons · 4,545 mm diameter × 4,600 mm high · 4 courses of 12 panels	Ask
74.87 m³LY-WTR-140	≈ 19,779 US gallons · 6,439 mm diameter × 2,300 mm high · 2 courses of 17 panels	Ask
76.16 m³LY-WTR-141	≈ 20,119 US gallons · 5,303 mm diameter × 3,450 mm high · 3 courses of 14 panels	Ask
78.36 m³LY-WTR-142	≈ 20,701 US gallons · 4,167 mm diameter × 5,750 mm high · 5 courses of 11 panels	Ask
83.93 m³LY-WTR-143	≈ 22,172 US gallons · 6,818 mm diameter × 2,300 mm high · 2 courses of 18 panels	Ask
87.43 m³LY-WTR-144	≈ 23,097 US gallons · 5,682 mm diameter × 3,450 mm high · 3 courses of 15 panels	Ask
87.56 m³LY-WTR-145	≈ 23,131 US gallons · 4,924 mm diameter × 4,600 mm high · 4 courses of 13 panels	Ask
93.26 m³LY-WTR-146	≈ 24,637 US gallons · 4,545 mm diameter × 5,750 mm high · 5 courses of 12 panels	Ask
93.52 m³LY-WTR-147	≈ 24,705 US gallons · 7,197 mm diameter × 2,300 mm high · 2 courses of 19 panels	Ask
99.48 m³LY-WTR-148	≈ 26,280 US gallons · 6,061 mm diameter × 3,450 mm high · 3 courses of 16 panels	Ask
101.55 m³LY-WTR-149	≈ 26,827 US gallons · 5,303 mm diameter × 4,600 mm high · 4 courses of 14 panels	Ask
103.62 m³LY-WTR-150	≈ 27,374 US gallons · 7,576 mm diameter × 2,300 mm high · 2 courses of 20 panels	Ask
109.45 m³LY-WTR-151	≈ 28,914 US gallons · 4,924 mm diameter × 5,750 mm high · 5 courses of 13 panels	Ask
112.30 m³LY-WTR-152	≈ 29,667 US gallons · 6,439 mm diameter × 3,450 mm high · 3 courses of 17 panels	Ask
114.24 m³LY-WTR-153	≈ 30,179 US gallons · 7,955 mm diameter × 2,300 mm high · 2 courses of 21 panels	Ask
116.57 m³LY-WTR-154	≈ 30,795 US gallons · 5,682 mm diameter × 4,600 mm high · 4 courses of 15 panels	Ask
125.38 m³LY-WTR-155	≈ 33,122 US gallons · 8,333 mm diameter × 2,300 mm high · 2 courses of 22 panels	Ask
125.90 m³LY-WTR-156	≈ 33,259 US gallons · 6,818 mm diameter × 3,450 mm high · 3 courses of 18 panels	Ask
126.94 m³LY-WTR-157	≈ 33,534 US gallons · 5,303 mm diameter × 5,750 mm high · 5 courses of 14 panels	Ask
132.64 m³LY-WTR-158	≈ 35,040 US gallons · 6,061 mm diameter × 4,600 mm high · 4 courses of 16 panels	Ask
137.04 m³LY-WTR-159	≈ 36,202 US gallons · 8,712 mm diameter × 2,300 mm high · 2 courses of 23 panels	Ask
140.28 m³LY-WTR-160	≈ 37,058 US gallons · 7,197 mm diameter × 3,450 mm high · 3 courses of 19 panels	Ask
145.72 m³LY-WTR-161	≈ 38,495 US gallons · 5,682 mm diameter × 5,750 mm high · 5 courses of 15 panels	Ask
149.22 m³LY-WTR-162	≈ 39,420 US gallons · 9,091 mm diameter × 2,300 mm high · 2 courses of 24 panels	Ask
149.73 m³LY-WTR-163	≈ 39,554 US gallons · 6,439 mm diameter × 4,600 mm high · 4 courses of 17 panels	Ask
155.43 m³LY-WTR-164	≈ 41,060 US gallons · 7,576 mm diameter × 3,450 mm high · 3 courses of 20 panels	Ask
161.91 m³LY-WTR-165	≈ 42,772 US gallons · 9,470 mm diameter × 2,300 mm high · 2 courses of 25 panels	Ask
165.80 m³LY-WTR-166	≈ 43,800 US gallons · 6,061 mm diameter × 5,750 mm high · 5 courses of 16 panels	Ask
167.87 m³LY-WTR-167	≈ 44,347 US gallons · 6,818 mm diameter × 4,600 mm high · 4 courses of 18 panels	Ask
171.36 m³LY-WTR-168	≈ 45,269 US gallons · 7,955 mm diameter × 3,450 mm high · 3 courses of 21 panels	Ask
175.12 m³LY-WTR-169	≈ 46,262 US gallons · 9,849 mm diameter × 2,300 mm high · 2 courses of 26 panels	Ask
187.04 m³LY-WTR-170	≈ 49,411 US gallons · 7,197 mm diameter × 4,600 mm high · 4 courses of 19 panels	Ask
187.17 m³LY-WTR-171	≈ 49,445 US gallons · 6,439 mm diameter × 5,750 mm high · 5 courses of 17 panels	Ask
188.07 m³LY-WTR-172	≈ 49,683 US gallons · 8,333 mm diameter × 3,450 mm high · 3 courses of 22 panels	Ask
188.85 m³LY-WTR-173	≈ 49,889 US gallons · 10,227 mm diameter × 2,300 mm high · 2 courses of 27 panels	Ask
203.10 m³LY-WTR-174	≈ 53,653 US gallons · 10,606 mm diameter × 2,300 mm high · 2 courses of 28 panels	Ask
205.56 m³LY-WTR-175	≈ 54,303 US gallons · 8,712 mm diameter × 3,450 mm high · 3 courses of 23 panels	Ask
207.24 m³LY-WTR-176	≈ 54,747 US gallons · 7,576 mm diameter × 4,600 mm high · 4 courses of 20 panels	Ask
209.83 m³LY-WTR-177	≈ 55,431 US gallons · 6,818 mm diameter × 5,750 mm high · 5 courses of 18 panels	Ask
217.87 m³LY-WTR-178	≈ 57,555 US gallons · 10,985 mm diameter × 2,300 mm high · 2 courses of 29 panels	Ask
223.82 m³LY-WTR-179	≈ 59,127 US gallons · 9,091 mm diameter × 3,450 mm high · 3 courses of 24 panels	Ask
228.49 m³LY-WTR-180	≈ 60,361 US gallons · 7,955 mm diameter × 4,600 mm high · 4 courses of 21 panels	Ask
233.15 m³LY-WTR-181	≈ 61,592 US gallons · 11,364 mm diameter × 2,300 mm high · 2 courses of 30 panels	Ask
233.80 m³LY-WTR-182	≈ 61,763 US gallons · 7,197 mm diameter × 5,750 mm high · 5 courses of 19 panels	Ask
250.77 m³LY-WTR-183	≈ 66,246 US gallons · 8,333 mm diameter × 4,600 mm high · 4 courses of 22 panels	Ask
259.05 m³LY-WTR-184	≈ 68,434 US gallons · 7,576 mm diameter × 5,750 mm high · 5 courses of 20 panels	Ask
274.08 m³LY-WTR-185	≈ 72,404 US gallons · 8,712 mm diameter × 4,600 mm high · 4 courses of 23 panels	Ask
285.61 m³LY-WTR-186	≈ 75,450 US gallons · 7,955 mm diameter × 5,750 mm high · 5 courses of 21 panels	Ask
298.43 m³LY-WTR-187	≈ 78,837 US gallons · 9,091 mm diameter × 4,600 mm high · 4 courses of 24 panels	Ask
313.46 m³LY-WTR-188	≈ 82,807 US gallons · 8,333 mm diameter × 5,750 mm high · 5 courses of 22 panels	Ask
323.82 m³LY-WTR-189	≈ 85,544 US gallons · 9,470 mm diameter × 4,600 mm high · 4 courses of 25 panels	Ask
342.60 m³LY-WTR-190	≈ 90,505 US gallons · 8,712 mm diameter × 5,750 mm high · 5 courses of 23 panels	Ask
350.24 m³LY-WTR-191	≈ 92,524 US gallons · 9,849 mm diameter × 4,600 mm high · 4 courses of 26 panels	Ask
373.04 m³LY-WTR-192	≈ 98,547 US gallons · 9,091 mm diameter × 5,750 mm high · 5 courses of 24 panels	Ask
404.77 m³LY-WTR-193	≈ 106,929 US gallons · 9,470 mm diameter × 5,750 mm high · 5 courses of 25 panels	Ask
437.80 m³LY-WTR-194	≈ 115,655 US gallons · 9,849 mm diameter × 5,750 mm high · 5 courses of 26 panels	Ask
472.13 m³LY-WTR-195	≈ 124,724 US gallons · 10,227 mm diameter × 5,750 mm high · 5 courses of 27 panels	Ask
507.75 m³LY-WTR-196	≈ 134,133 US gallons · 10,606 mm diameter × 5,750 mm high · 5 courses of 28 panels	Ask
544.66 m³LY-WTR-197	≈ 143,884 US gallons · 10,985 mm diameter × 5,750 mm high · 5 courses of 29 panels	Ask
582.87 m³LY-WTR-198	≈ 153,978 US gallons · 11,364 mm diameter × 5,750 mm high · 5 courses of 30 panels	Ask

3.24 m³
≈ 856 US gallons · 1,894 mm diameter × 1,150 mm high · 1 course of 5 panels
Ask on WhatsApp
4.66 m³
≈ 1,231 US gallons · 2,273 mm diameter × 1,150 mm high · 1 course of 6 panels
Ask on WhatsApp
6.35 m³
≈ 1,677 US gallons · 2,652 mm diameter × 1,150 mm high · 1 course of 7 panels
Ask on WhatsApp
6.48 m³
≈ 1,712 US gallons · 1,894 mm diameter × 2,300 mm high · 2 courses of 5 panels
Ask on WhatsApp
8.29 m³
≈ 2,190 US gallons · 3,030 mm diameter × 1,150 mm high · 1 course of 8 panels
Ask on WhatsApp
9.33 m³
≈ 2,465 US gallons · 2,273 mm diameter × 2,300 mm high · 2 courses of 6 panels
Ask on WhatsApp
12.69 m³
≈ 3,352 US gallons · 2,652 mm diameter × 2,300 mm high · 2 courses of 7 panels
Ask on WhatsApp
13.99 m³
≈ 3,696 US gallons · 2,273 mm diameter × 3,450 mm high · 3 courses of 6 panels
Ask on WhatsApp
16.58 m³
≈ 4,380 US gallons · 3,030 mm diameter × 2,300 mm high · 2 courses of 8 panels
Ask on WhatsApp
18.65 m³
≈ 4,927 US gallons · 2,273 mm diameter × 4,600 mm high · 4 courses of 6 panels
Ask on WhatsApp
19.04 m³
≈ 5,030 US gallons · 2,652 mm diameter × 3,450 mm high · 3 courses of 7 panels
Ask on WhatsApp
20.98 m³
≈ 5,542 US gallons · 3,409 mm diameter × 2,300 mm high · 2 courses of 9 panels
Ask on WhatsApp
24.87 m³
≈ 6,570 US gallons · 3,030 mm diameter × 3,450 mm high · 3 courses of 8 panels
Ask on WhatsApp
25.39 m³
≈ 6,707 US gallons · 2,652 mm diameter × 4,600 mm high · 4 courses of 7 panels
Ask on WhatsApp
25.91 m³
≈ 6,845 US gallons · 3,788 mm diameter × 2,300 mm high · 2 courses of 10 panels
Ask on WhatsApp
31.35 m³
≈ 8,282 US gallons · 4,167 mm diameter × 2,300 mm high · 2 courses of 11 panels
Ask on WhatsApp
31.48 m³
≈ 8,316 US gallons · 3,409 mm diameter × 3,450 mm high · 3 courses of 9 panels
Ask on WhatsApp
33.16 m³
≈ 8,760 US gallons · 3,030 mm diameter × 4,600 mm high · 4 courses of 8 panels
Ask on WhatsApp
37.30 m³
≈ 9,854 US gallons · 4,545 mm diameter × 2,300 mm high · 2 courses of 12 panels
Ask on WhatsApp
38.86 m³
≈ 10,266 US gallons · 3,788 mm diameter × 3,450 mm high · 3 courses of 10 panels
Ask on WhatsApp
41.45 m³
≈ 10,950 US gallons · 3,030 mm diameter × 5,750 mm high · 5 courses of 8 panels
Ask on WhatsApp
41.97 m³
≈ 11,087 US gallons · 3,409 mm diameter × 4,600 mm high · 4 courses of 9 panels
Ask on WhatsApp
43.78 m³
≈ 11,565 US gallons · 4,924 mm diameter × 2,300 mm high · 2 courses of 13 panels
Ask on WhatsApp
47.02 m³
≈ 12,421 US gallons · 4,167 mm diameter × 3,450 mm high · 3 courses of 11 panels
Ask on WhatsApp
50.77 m³
≈ 13,412 US gallons · 5,303 mm diameter × 2,300 mm high · 2 courses of 14 panels
Ask on WhatsApp
51.81 m³
≈ 13,687 US gallons · 3,788 mm diameter × 4,600 mm high · 4 courses of 10 panels
Ask on WhatsApp
52.46 m³
≈ 13,858 US gallons · 3,409 mm diameter × 5,750 mm high · 5 courses of 9 panels
Ask on WhatsApp
55.96 m³
≈ 14,783 US gallons · 4,545 mm diameter × 3,450 mm high · 3 courses of 12 panels
Ask on WhatsApp
58.29 m³
≈ 15,399 US gallons · 5,682 mm diameter × 2,300 mm high · 2 courses of 15 panels
Ask on WhatsApp
62.69 m³
≈ 16,561 US gallons · 4,167 mm diameter × 4,600 mm high · 4 courses of 11 panels
Ask on WhatsApp
64.76 m³
≈ 17,108 US gallons · 3,788 mm diameter × 5,750 mm high · 5 courses of 10 panels
Ask on WhatsApp
65.67 m³
≈ 17,348 US gallons · 4,924 mm diameter × 3,450 mm high · 3 courses of 13 panels
Ask on WhatsApp
66.32 m³
≈ 17,520 US gallons · 6,061 mm diameter × 2,300 mm high · 2 courses of 16 panels
Ask on WhatsApp
74.61 m³
≈ 19,710 US gallons · 4,545 mm diameter × 4,600 mm high · 4 courses of 12 panels
Ask on WhatsApp
74.87 m³
≈ 19,779 US gallons · 6,439 mm diameter × 2,300 mm high · 2 courses of 17 panels
Ask on WhatsApp
76.16 m³
≈ 20,119 US gallons · 5,303 mm diameter × 3,450 mm high · 3 courses of 14 panels
Ask on WhatsApp
78.36 m³
≈ 20,701 US gallons · 4,167 mm diameter × 5,750 mm high · 5 courses of 11 panels
Ask on WhatsApp
83.93 m³
≈ 22,172 US gallons · 6,818 mm diameter × 2,300 mm high · 2 courses of 18 panels
Ask on WhatsApp
87.43 m³
≈ 23,097 US gallons · 5,682 mm diameter × 3,450 mm high · 3 courses of 15 panels
Ask on WhatsApp
87.56 m³
≈ 23,131 US gallons · 4,924 mm diameter × 4,600 mm high · 4 courses of 13 panels
Ask on WhatsApp
93.26 m³
≈ 24,637 US gallons · 4,545 mm diameter × 5,750 mm high · 5 courses of 12 panels
Ask on WhatsApp
93.52 m³
≈ 24,705 US gallons · 7,197 mm diameter × 2,300 mm high · 2 courses of 19 panels
Ask on WhatsApp
99.48 m³
≈ 26,280 US gallons · 6,061 mm diameter × 3,450 mm high · 3 courses of 16 panels
Ask on WhatsApp
101.55 m³
≈ 26,827 US gallons · 5,303 mm diameter × 4,600 mm high · 4 courses of 14 panels
Ask on WhatsApp
103.62 m³
≈ 27,374 US gallons · 7,576 mm diameter × 2,300 mm high · 2 courses of 20 panels
Ask on WhatsApp
109.45 m³
≈ 28,914 US gallons · 4,924 mm diameter × 5,750 mm high · 5 courses of 13 panels
Ask on WhatsApp
112.30 m³
≈ 29,667 US gallons · 6,439 mm diameter × 3,450 mm high · 3 courses of 17 panels
Ask on WhatsApp
114.24 m³
≈ 30,179 US gallons · 7,955 mm diameter × 2,300 mm high · 2 courses of 21 panels
Ask on WhatsApp
116.57 m³
≈ 30,795 US gallons · 5,682 mm diameter × 4,600 mm high · 4 courses of 15 panels
Ask on WhatsApp
125.38 m³
≈ 33,122 US gallons · 8,333 mm diameter × 2,300 mm high · 2 courses of 22 panels
Ask on WhatsApp
125.90 m³
≈ 33,259 US gallons · 6,818 mm diameter × 3,450 mm high · 3 courses of 18 panels
Ask on WhatsApp
126.94 m³
≈ 33,534 US gallons · 5,303 mm diameter × 5,750 mm high · 5 courses of 14 panels
Ask on WhatsApp
132.64 m³
≈ 35,040 US gallons · 6,061 mm diameter × 4,600 mm high · 4 courses of 16 panels
Ask on WhatsApp
137.04 m³
≈ 36,202 US gallons · 8,712 mm diameter × 2,300 mm high · 2 courses of 23 panels
Ask on WhatsApp
140.28 m³
≈ 37,058 US gallons · 7,197 mm diameter × 3,450 mm high · 3 courses of 19 panels
Ask on WhatsApp
145.72 m³
≈ 38,495 US gallons · 5,682 mm diameter × 5,750 mm high · 5 courses of 15 panels
Ask on WhatsApp
149.22 m³
≈ 39,420 US gallons · 9,091 mm diameter × 2,300 mm high · 2 courses of 24 panels
Ask on WhatsApp
149.73 m³
≈ 39,554 US gallons · 6,439 mm diameter × 4,600 mm high · 4 courses of 17 panels
Ask on WhatsApp
155.43 m³
≈ 41,060 US gallons · 7,576 mm diameter × 3,450 mm high · 3 courses of 20 panels
Ask on WhatsApp
161.91 m³
≈ 42,772 US gallons · 9,470 mm diameter × 2,300 mm high · 2 courses of 25 panels
Ask on WhatsApp
165.80 m³
≈ 43,800 US gallons · 6,061 mm diameter × 5,750 mm high · 5 courses of 16 panels
Ask on WhatsApp
167.87 m³
≈ 44,347 US gallons · 6,818 mm diameter × 4,600 mm high · 4 courses of 18 panels
Ask on WhatsApp
171.36 m³
≈ 45,269 US gallons · 7,955 mm diameter × 3,450 mm high · 3 courses of 21 panels
Ask on WhatsApp
175.12 m³
≈ 46,262 US gallons · 9,849 mm diameter × 2,300 mm high · 2 courses of 26 panels
Ask on WhatsApp
187.04 m³
≈ 49,411 US gallons · 7,197 mm diameter × 4,600 mm high · 4 courses of 19 panels
Ask on WhatsApp
187.17 m³
≈ 49,445 US gallons · 6,439 mm diameter × 5,750 mm high · 5 courses of 17 panels
Ask on WhatsApp
188.07 m³
≈ 49,683 US gallons · 8,333 mm diameter × 3,450 mm high · 3 courses of 22 panels
Ask on WhatsApp
188.85 m³
≈ 49,889 US gallons · 10,227 mm diameter × 2,300 mm high · 2 courses of 27 panels
Ask on WhatsApp
203.10 m³
≈ 53,653 US gallons · 10,606 mm diameter × 2,300 mm high · 2 courses of 28 panels
Ask on WhatsApp
205.56 m³
≈ 54,303 US gallons · 8,712 mm diameter × 3,450 mm high · 3 courses of 23 panels
Ask on WhatsApp
207.24 m³
≈ 54,747 US gallons · 7,576 mm diameter × 4,600 mm high · 4 courses of 20 panels
Ask on WhatsApp
209.83 m³
≈ 55,431 US gallons · 6,818 mm diameter × 5,750 mm high · 5 courses of 18 panels
Ask on WhatsApp
217.87 m³
≈ 57,555 US gallons · 10,985 mm diameter × 2,300 mm high · 2 courses of 29 panels
Ask on WhatsApp
223.82 m³
≈ 59,127 US gallons · 9,091 mm diameter × 3,450 mm high · 3 courses of 24 panels
Ask on WhatsApp
228.49 m³
≈ 60,361 US gallons · 7,955 mm diameter × 4,600 mm high · 4 courses of 21 panels
Ask on WhatsApp
233.15 m³
≈ 61,592 US gallons · 11,364 mm diameter × 2,300 mm high · 2 courses of 30 panels
Ask on WhatsApp
233.80 m³
≈ 61,763 US gallons · 7,197 mm diameter × 5,750 mm high · 5 courses of 19 panels
Ask on WhatsApp
250.77 m³
≈ 66,246 US gallons · 8,333 mm diameter × 4,600 mm high · 4 courses of 22 panels
Ask on WhatsApp
259.05 m³
≈ 68,434 US gallons · 7,576 mm diameter × 5,750 mm high · 5 courses of 20 panels
Ask on WhatsApp
274.08 m³
≈ 72,404 US gallons · 8,712 mm diameter × 4,600 mm high · 4 courses of 23 panels
Ask on WhatsApp
285.61 m³
≈ 75,450 US gallons · 7,955 mm diameter × 5,750 mm high · 5 courses of 21 panels
Ask on WhatsApp
298.43 m³
≈ 78,837 US gallons · 9,091 mm diameter × 4,600 mm high · 4 courses of 24 panels
Ask on WhatsApp
313.46 m³
≈ 82,807 US gallons · 8,333 mm diameter × 5,750 mm high · 5 courses of 22 panels
Ask on WhatsApp
323.82 m³
≈ 85,544 US gallons · 9,470 mm diameter × 4,600 mm high · 4 courses of 25 panels
Ask on WhatsApp
342.60 m³
≈ 90,505 US gallons · 8,712 mm diameter × 5,750 mm high · 5 courses of 23 panels
Ask on WhatsApp
350.24 m³
≈ 92,524 US gallons · 9,849 mm diameter × 4,600 mm high · 4 courses of 26 panels
Ask on WhatsApp
373.04 m³
≈ 98,547 US gallons · 9,091 mm diameter × 5,750 mm high · 5 courses of 24 panels
Ask on WhatsApp
404.77 m³
≈ 106,929 US gallons · 9,470 mm diameter × 5,750 mm high · 5 courses of 25 panels
Ask on WhatsApp
437.80 m³
≈ 115,655 US gallons · 9,849 mm diameter × 5,750 mm high · 5 courses of 26 panels
Ask on WhatsApp
472.13 m³
≈ 124,724 US gallons · 10,227 mm diameter × 5,750 mm high · 5 courses of 27 panels
Ask on WhatsApp
507.75 m³
≈ 134,133 US gallons · 10,606 mm diameter × 5,750 mm high · 5 courses of 28 panels
Ask on WhatsApp
544.66 m³
≈ 143,884 US gallons · 10,985 mm diameter × 5,750 mm high · 5 courses of 29 panels
Ask on WhatsApp
582.87 m³
≈ 153,978 US gallons · 11,364 mm diameter × 5,750 mm high · 5 courses of 30 panels
Ask on WhatsApp

What it is

A complete steel vessel — base, walls and roof — bolted together on site from galvanized panels and sealed on EPDM rubber gaskets, so there is no liner to split or replace. Ninety-three sizes from 3.24 to 582.87 m³, built up in 1,150 mm courses to a maximum height of 5,750 mm.

Specification

Everything published for this product. Anything not listed here is not published — ask and we will confirm it for the unit you are buying.

Material: Steel — electro-galvanized as standard. Not GRP
Structure: Complete steel vessel — steel base, walls and roof
Liner: None required — the steel holds the water, sealed on rubber gaskets
Construction: Modular bolted cylindrical, assembled on site
Gaskets: EPDM rubber, or NBR for petroleum and chemical duty
Capacity range: 3.24 m³ to 582.87 m³
Heights: 1,150 mm to 5,750 mm, in 1,150 mm courses
Wall thickness: Engineered per diameter, height and water head. The schedule comes with the technical submittal

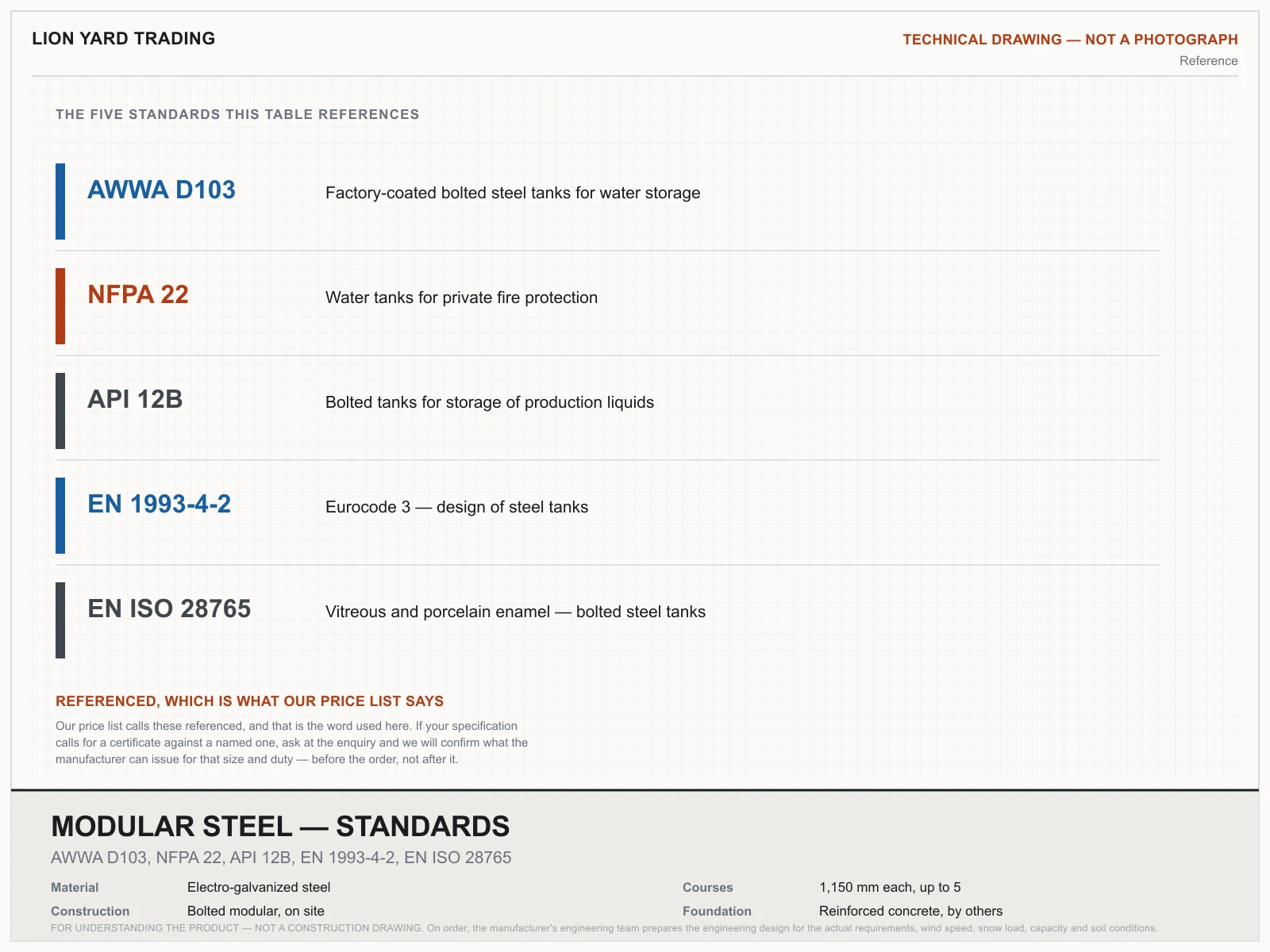

Standards referenced: AWWA D103, NFPA 22, API 12B, EN 1993-4-2, EN ISO 28765

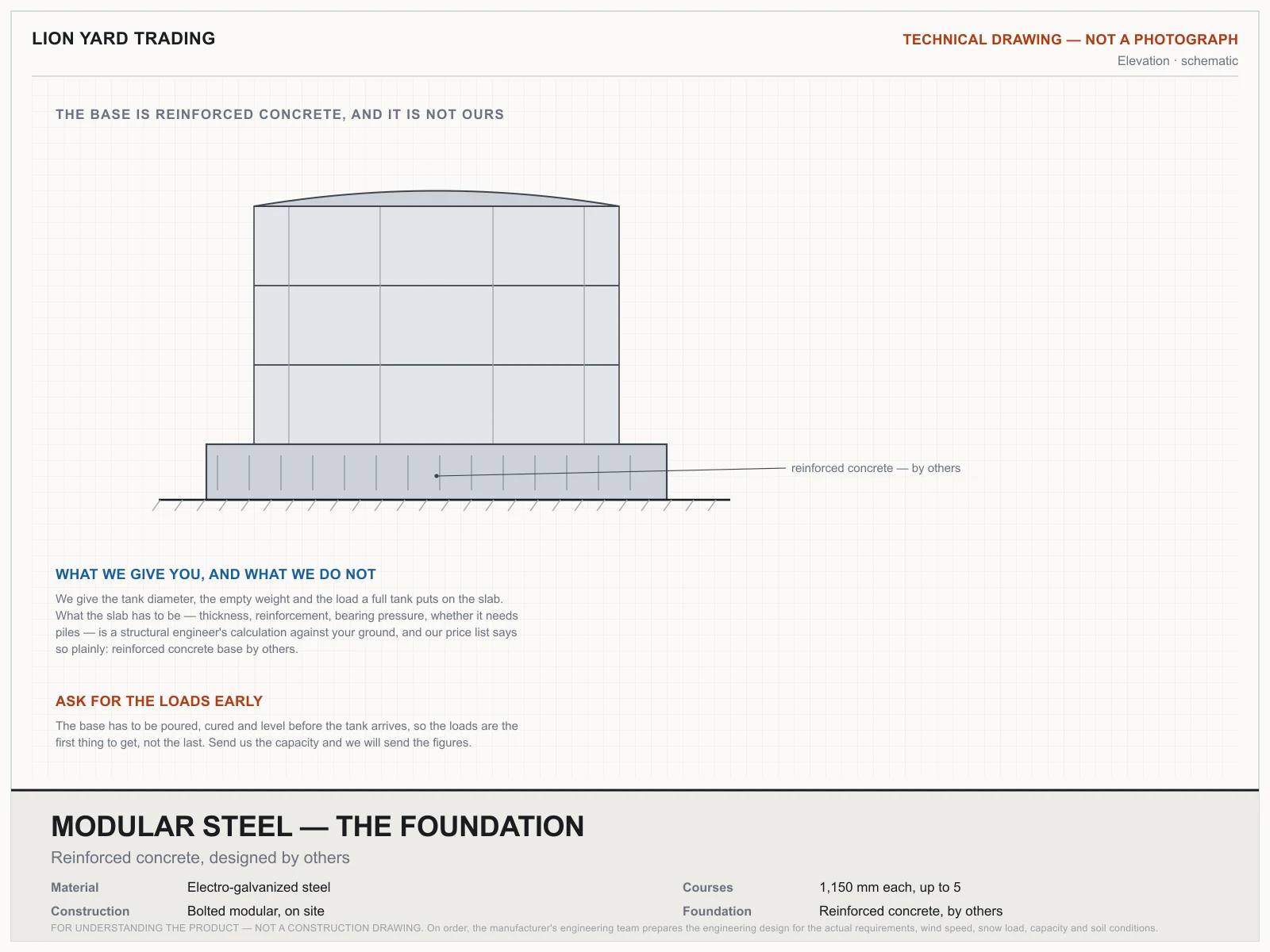

Foundation: Reinforced concrete by others — the manufacturer issues the loading and the foundation design requirements
Installation: A supervisor over your own crew, or a full crew from the manufacturer. Quoted separately from the tank
Country of origin: Türkiye

2–3 years — the exact period and the coating cover are confirmed on the commercial offer

Modular Bolted Steel Water Tanks

Technical Procurement & Ordering Guides

10 drawings covering every answer we need to price Modular Bolted Steel Water Tanks — every figure comes from the price table above or from the published standard it is made to.

The vesselSteel base, walls and roof

1 of 10

WhatsApp us

Send us the size, wall and length — or send the drawing and we will read it off.

Ready to price your modular bolted steel water tanks?

Send us the size and the site. We quote the same day, and we deliver across all seven Emirates.

WhatsApp us
