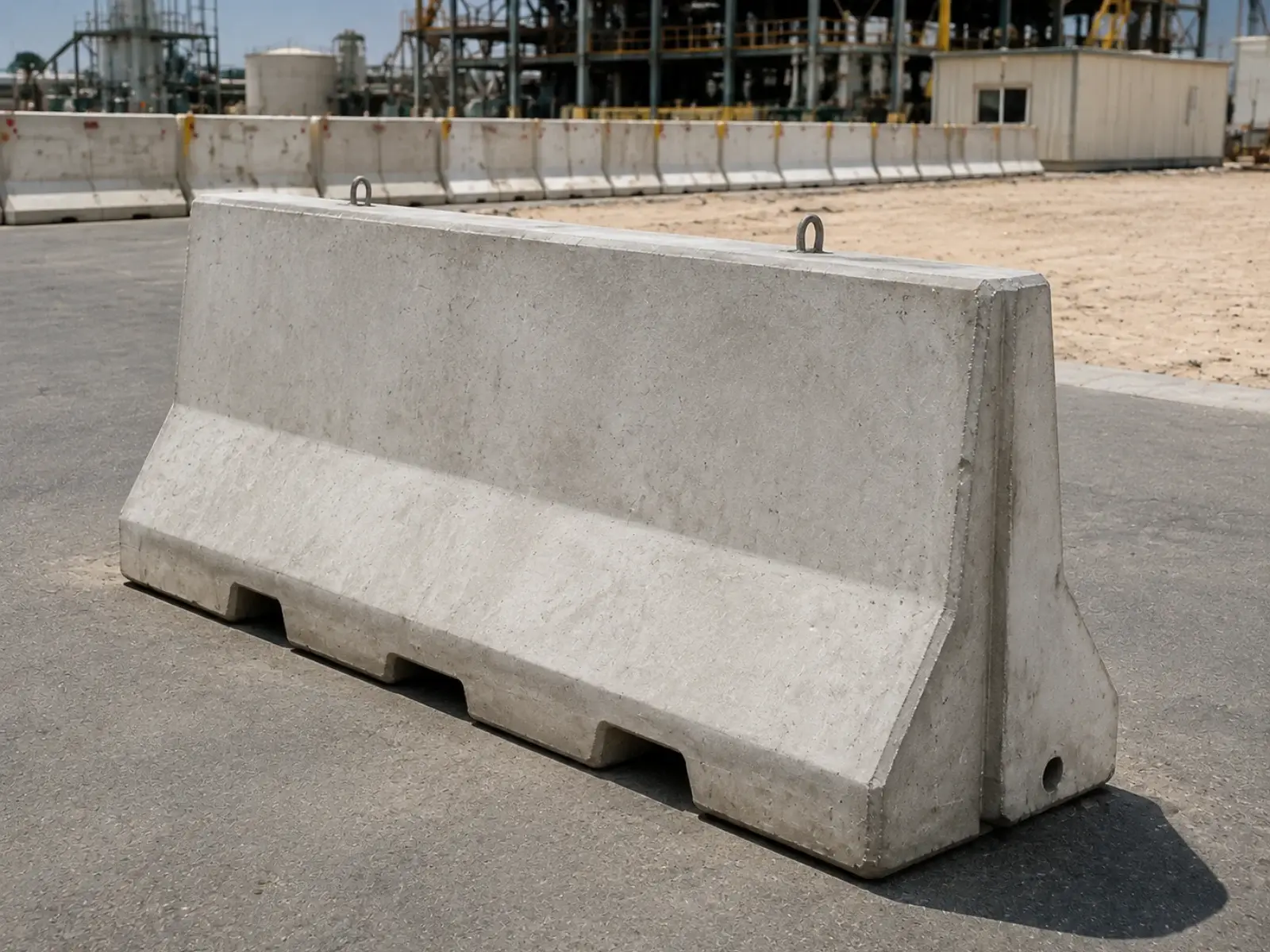

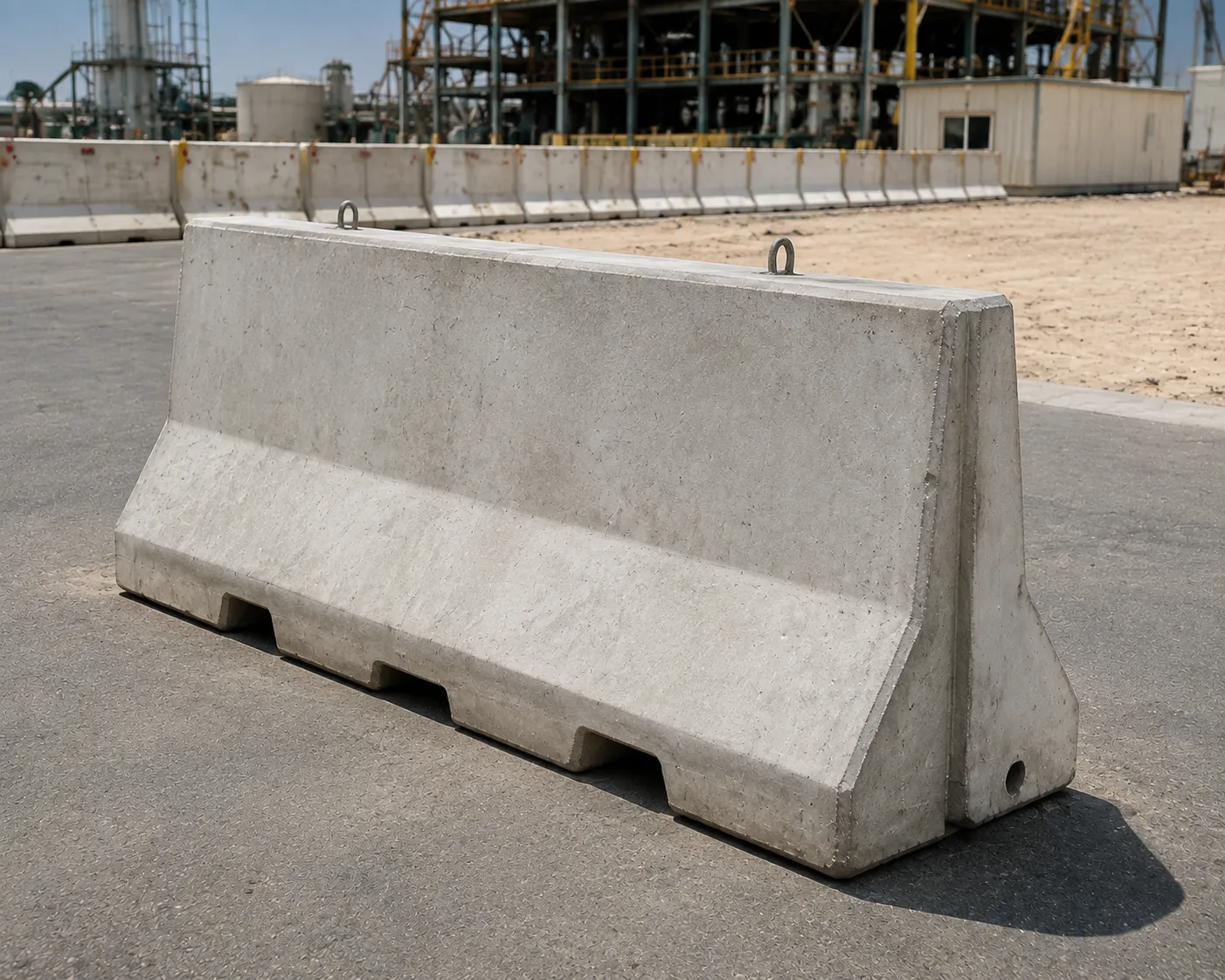

Jersey barrier 2.0 m
2000 mm long × 610 mm base × 810 mm high · approx. 1,200 kg. Heavy-duty high-strength concrete barriers reinforced with internal steel rebar cages, for high-speed highways, permanent roadblocks and secure site boundaries. Tongue-and-groove joints distribute load across the run on heavy impact.
Published price
Jersey barrier 2.0 m
Quoted on the day
This one is priced against your specification rather than published. Send us what you need and we will come back with a figure.
One message, no form — we reply with the price.
Prices exclude 5% VAT and are subject to change. Bulk discounts available.
Delivered across all 7 Emirates. How delivery works
This size
2000 mm long × 610 mm base × 810 mm high · approx. 1,200 kg
What this is
- Length
- 2.0 m
Taken from the product’s own name, converted where the unit differs, and from the standard where the range cites one. Tell us the application and we will confirm the exact item before you order.
Specification
- Construction
- Precast high-strength concrete, internal steel rebar cage

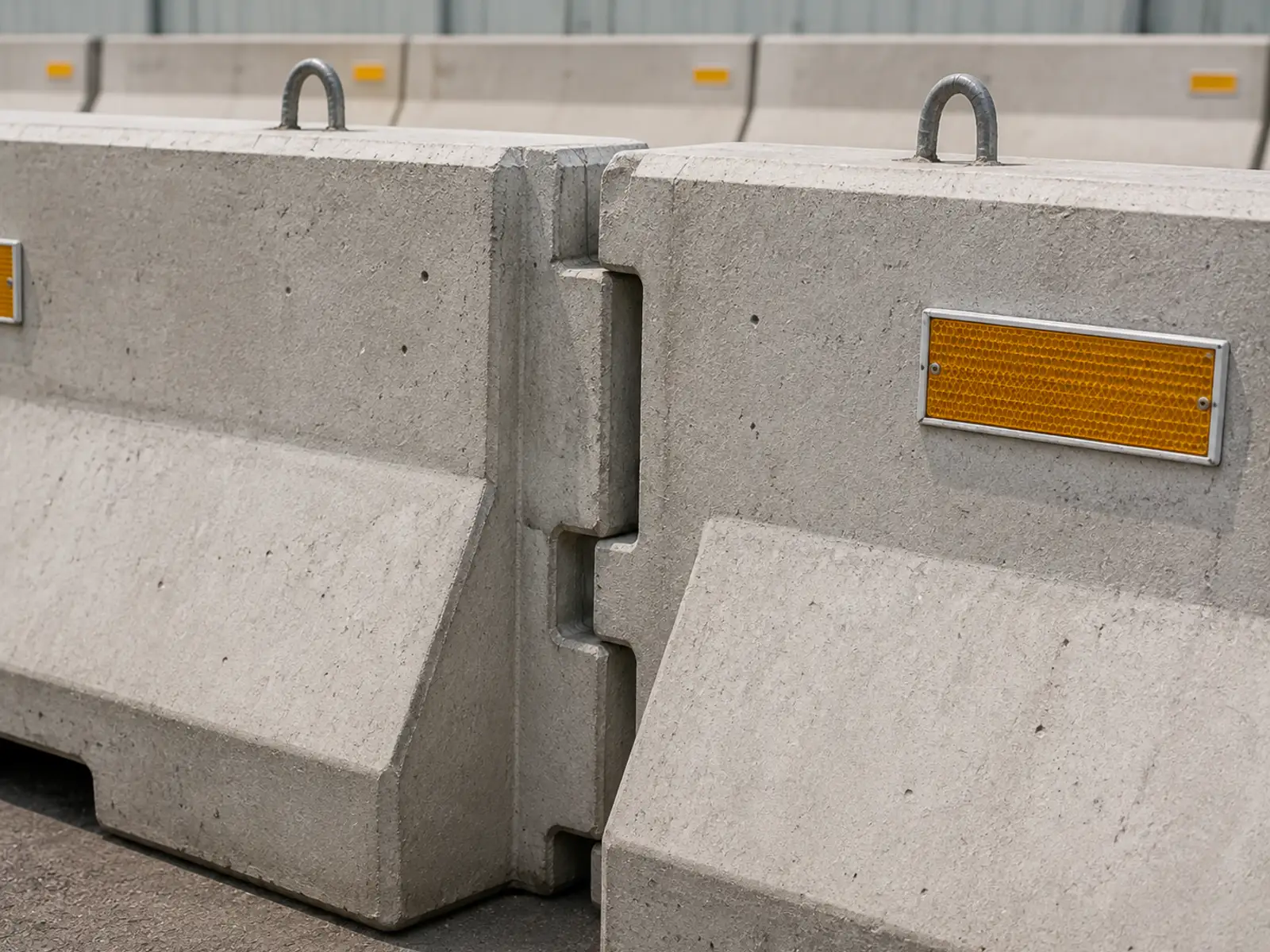

- Jointing
- Interlocking tongue-and-groove, load shared along the run

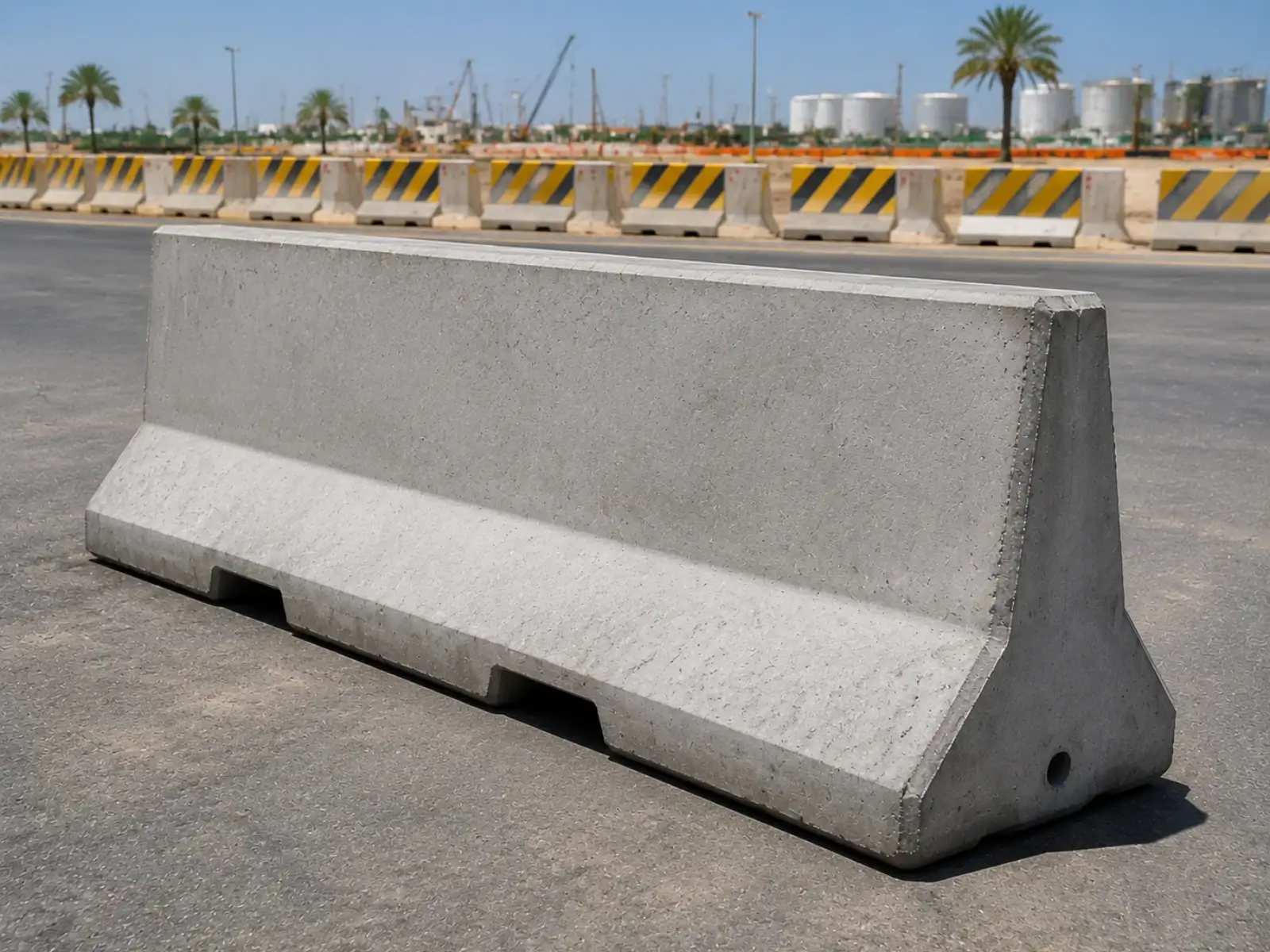

- Use

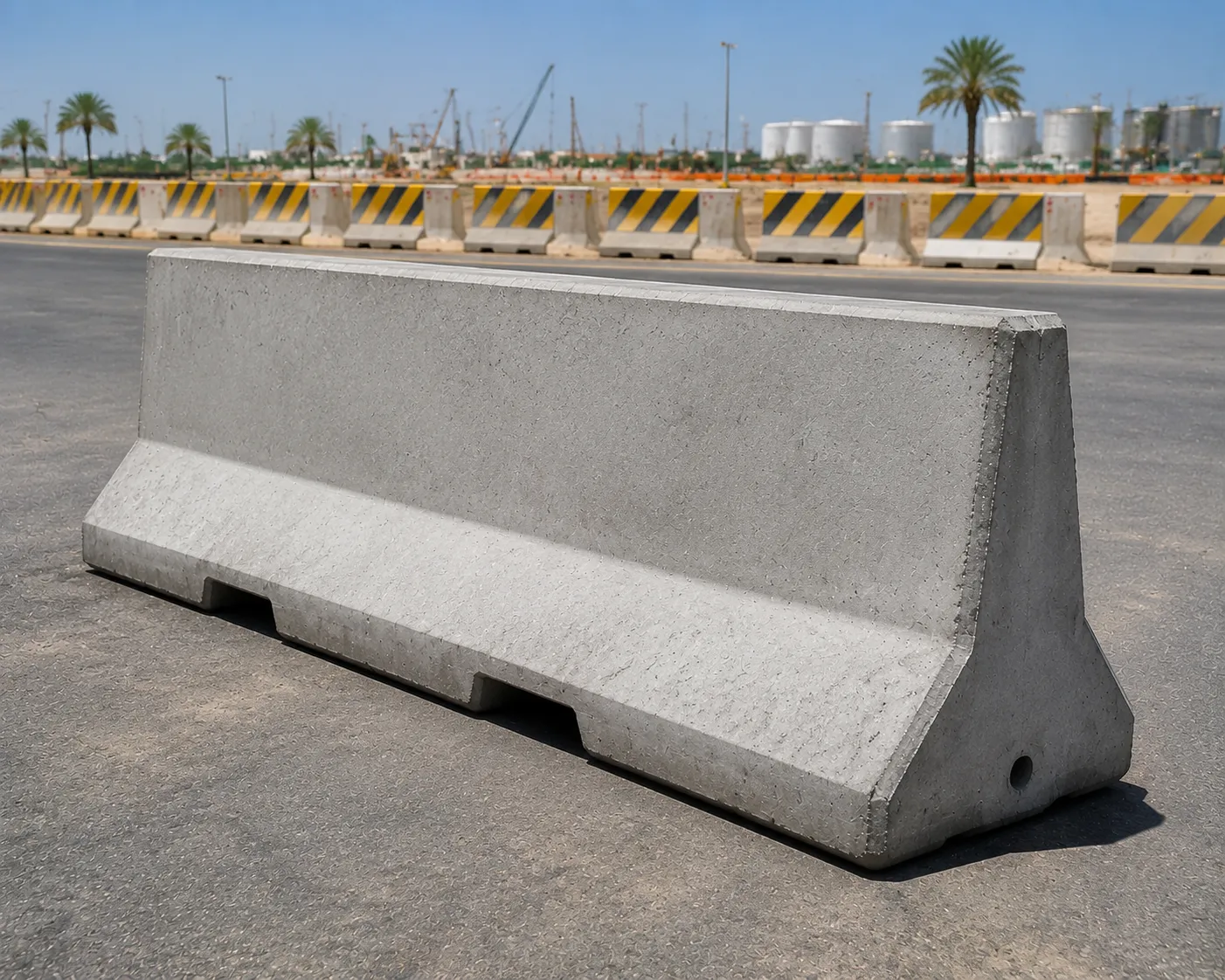

- High-speed highways, permanent roadblocks, secure boundaries
- Offloading
- Crane truck required — 600 kg to 3,600 kg per unit
- Standard profile
- 810 mm high · 610 mm base · 330 mm top · slope break at 330 mm
- F-shape
- Slope break at 255 mm — 75 mm lower than Jersey, and it performs better on impact
- Weight
- Approximately 600 kg per linear metre. Calculated from the profile, not weighed — confirm with us before designing a lift around it.
- Concrete
- C40/50 at 28 days · sulphate-resisting cement for coastal work
- Handling
- Forklift pockets and lifting eyes cast in
- Dubai RTA rule
- Works running more than 8 hours require concrete barriers with end terminals or crash cushions
- Delivery
- All 7 Emirates from our own yard. Sharjah and the northern emirates are usually same day on stocked lines; the rest of the country is one to three working days. The delivery charge depends on the emirate, the load and the offloading, and is confirmed in writing on the quotation rather than guessed at here.

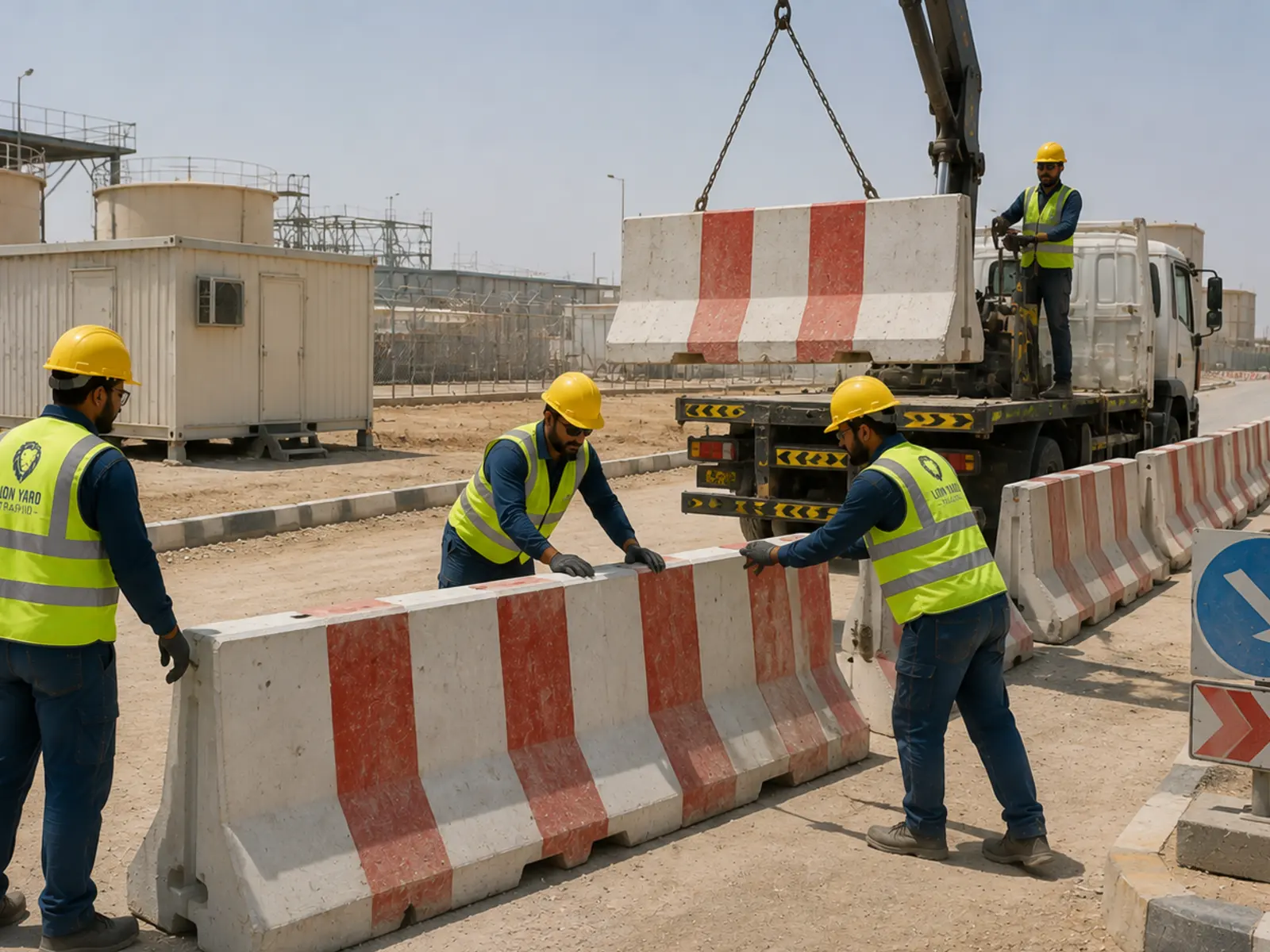

- Installation
- Supply only, or supplied and installed by our own crew rather than a subcontractor. Installation is quoted with the goods once we have the site conditions and the access, and is shown as its own line on the quotation.
- Ordering
- Priced per piece unless the row states otherwise, excluding 5% VAT. Contractor rates apply on full-run quantities - send the bill of quantities and the whole package is priced together.
Not the right size?
Every option in the Precast Concrete Jersey Barriers range. Tell us the quantity and all of them are quoted together.
Back to the full Precast Concrete Jersey Barriers tableTechnical Procurement & Ordering Guides
10 drawings covering every answer we need to price Precast Concrete Jersey Barriers — every figure comes from the price table above or from the published standard it is made to.
The section610 × 810 mm
1 of 10
Send us the size, wall and length — or send the drawing and we will read it off.
