End terminal
Required by RTA on works running over 8 hours. Corrugated steel guardrail on posts with blockouts. Unlike everything else in this category it is a tested restraint system, so the certification matters more than the dimensions — ask for the mill certificate and we will supply it with the delivery.
Published price
End terminal
Quoted on the day
This one is priced against your specification rather than published. Send us what you need and we will come back with a figure.
Prices exclude 5% VAT and are subject to change. Bulk discounts available.
New: 2 year warranty | Refurbished: 6 month warranty
Delivered across all 7 Emirates from Ajman Free Zone. How delivery works
This size
Required by RTA on works running over 8 hours
Specification

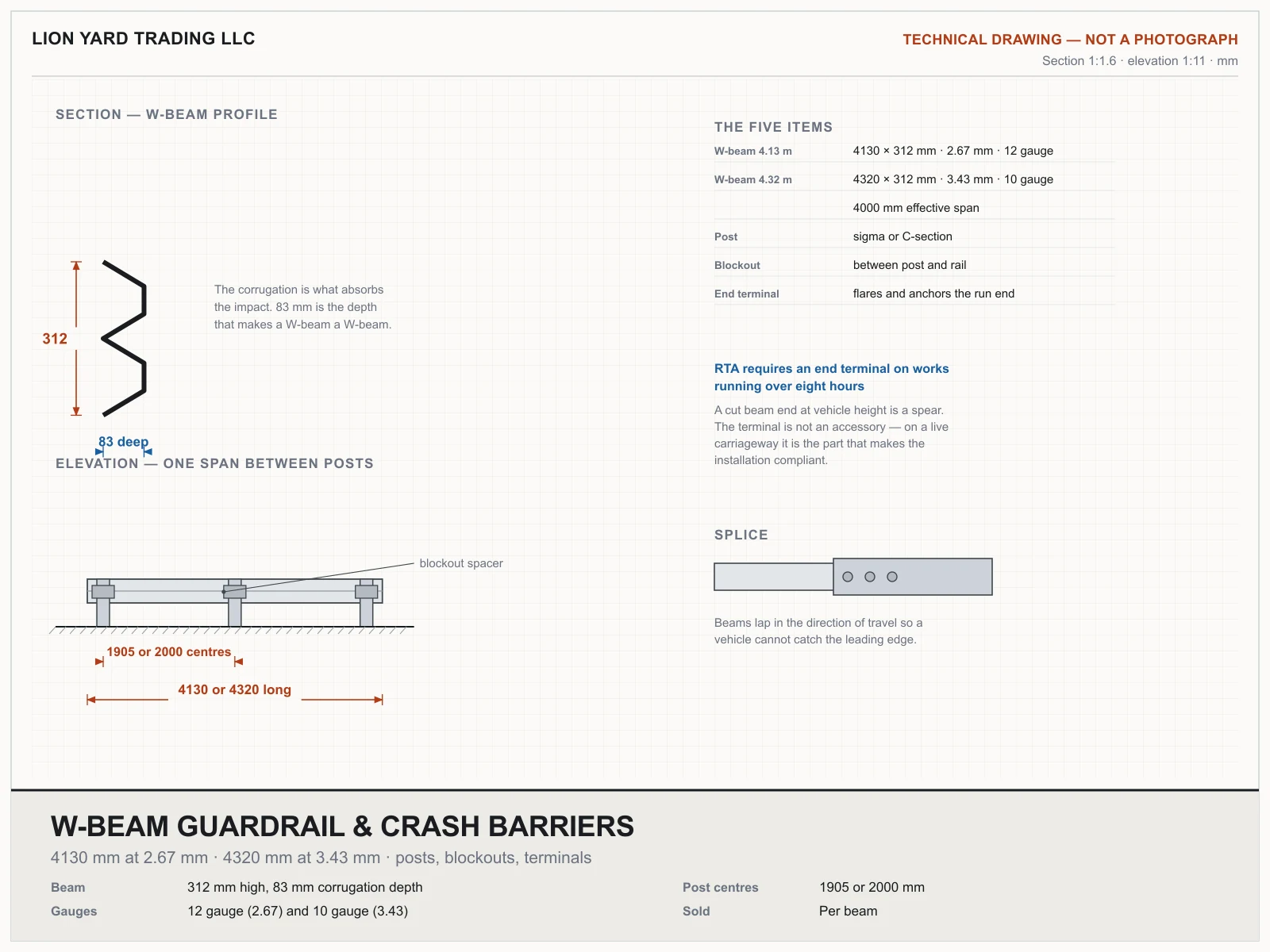

- Beam
- 312 mm high · 83 mm corrugation depth · 2.67 or 3.43 mm
- Mounting height
- Top of rail 700–810 mm above surface; 787 mm to MASH
- Steel
- Yield 345–450 MPa · tensile 483–620 MPa
- Galvanising
- AASHTO M180 Class A or B — specify the class, not a g/m² figure
- Testing
- MASH TL3 / TL4 or EN 1317, per the certificate supplied
Not the right size?
Every size in the W-Beam Guardrail & Crash Barriers table, with the figure next to it.
Back to the full W-Beam Guardrail & Crash Barriers table
